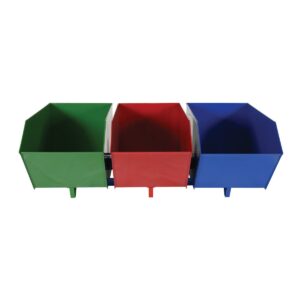

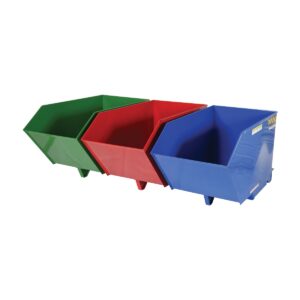

Vestil ENVIR-BIN Triple Bin Recycling Hopper 2K LB Cap

This unique Triple-Bin Recycling Hopper is designed for holding different materials. Bins are painted three different colors; green red and blue and include a manual pull-cable to dump from the seat of a fork truck. Each bin may be dumped independently and returns to upright position when lowered to the ground. Includes a safety strap to secure hopper to forklift. (Poly lids are sold separately.) Hoppers have a durable powder-coat paint finish.

• Designed for holding different materials depending on colors

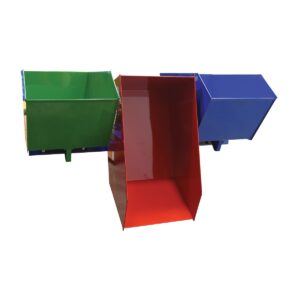

• Bins may be dumped alone and return upright when lowered

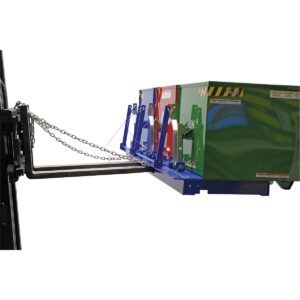

• Includes a safety strap to secure hopper to forklift
• Durable powder coat finish

Specification

• Maximum Uniform Capacity (lb.): 2000
• Dump Angle (degree): 90
• Bin Volume Capacity (cu. yd.): 1/2
• Total combined bin volumetric capacity (cu. yd.): 1-1/2
• Fork Pocket Width/Height (in.): 7 x 2
• Fork Pocket Length (in.): 22-3/4
• Individual Bin Width (in.): 24
• Individual Bin Length (in.): 46-5/16
• Individual Bin Height (in.): 23-5/16
• Hopper Type: Triple Bin
• Steel (Gauge): 12

Documents

Click for ENVIR-BIN Approval Drawings
