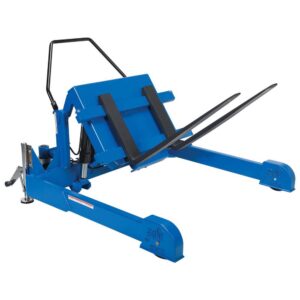

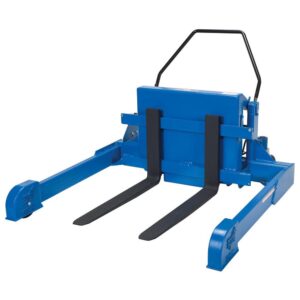

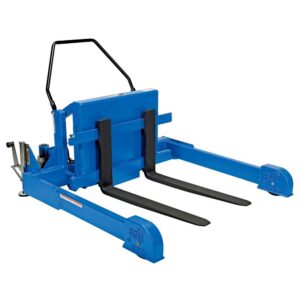

Vestil Tilt Master Strad Air/Oil Recipr

The Tilt Master Straddle lifts and positions filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty tilt master. The tilter will function as transporters by moving completed products from work station to work station without waiting for a fork truck. It features a folding ergonomic handle for quick and easy maneuverability. This Lift has a thin profile to allow the user to get as close to the load as possible. It also has a standard floor lock and rolls easily on the phenolic steering wheels. Lift is designed to be used with virtually any kind of container or pallet. The unit is powered by an air pneumatic motor.

• Will function as a transporter by moving completed products from work station to work station without waiting for a fork truck
• Two rigid and two swivel casters provide smooth and efficient mobility
• 90° tilt angle allows for better ergonomic access
• Ergonomic push handle folds down when not needed for better access

Specification

• Fork Adjustment Minimum I.D (in.): 1/2
• Fork Adjustment Maximum I.D. (in.): 28-1/2
• Operator Reach (in.): 13-1/2
• Fork Width (in.): 4
• Rotated Height (in.): 37
• Lowered Height (in.): 3
• Maximum Tilt Degree: 90
• Power: Reciprocating Air/Oil
• Wheel Diameter (in.): 8
• Wheel Width (in.): 3
• Wheel Type: Phenolic
• Folding Handle Length (in.): 20
• Load Center (in.): 18

Documents

Click for TMS-20-AIR Approval Drawings

Click for TMS-40-AIR Approval Drawings

Click for TMS-60-AIR Approval Drawings
