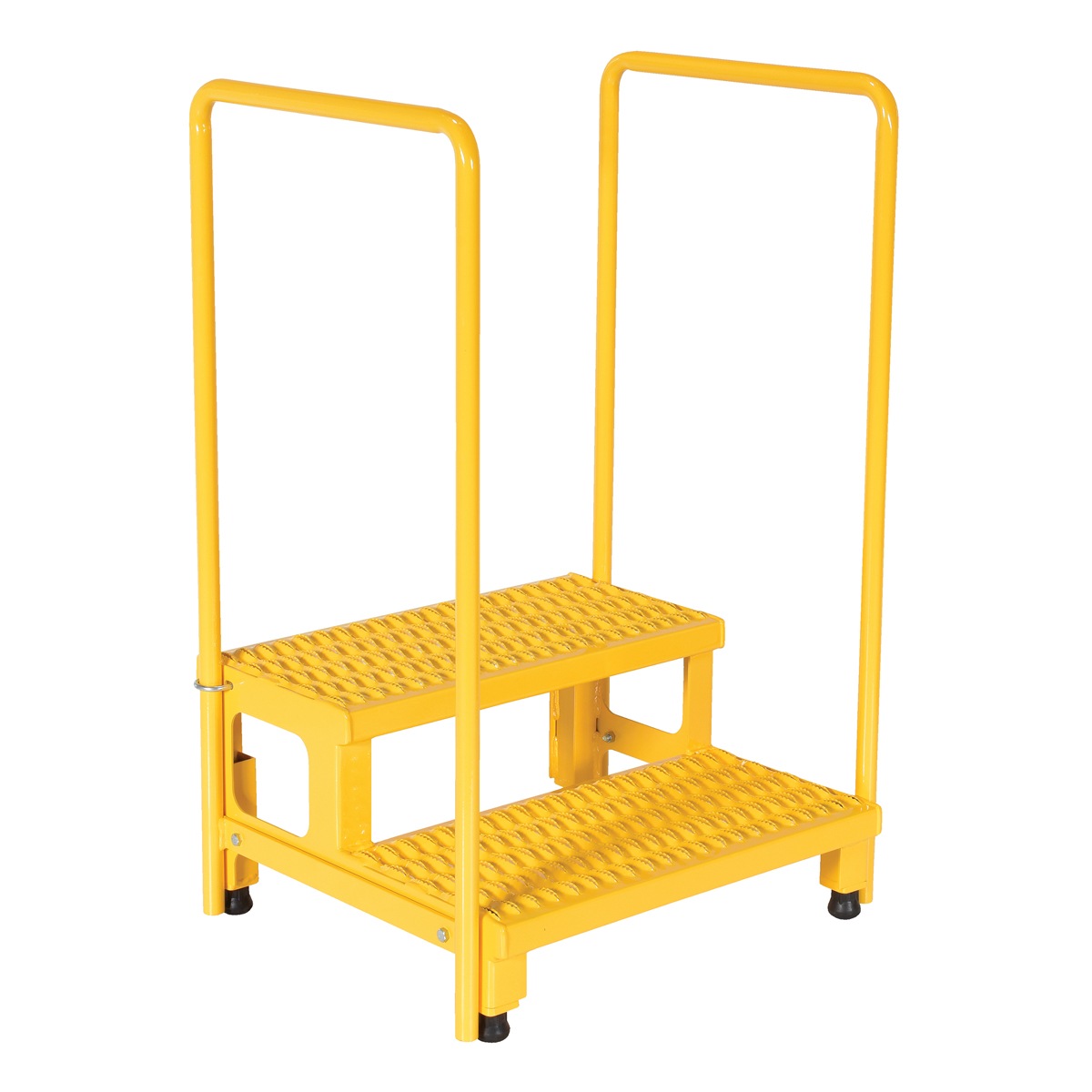

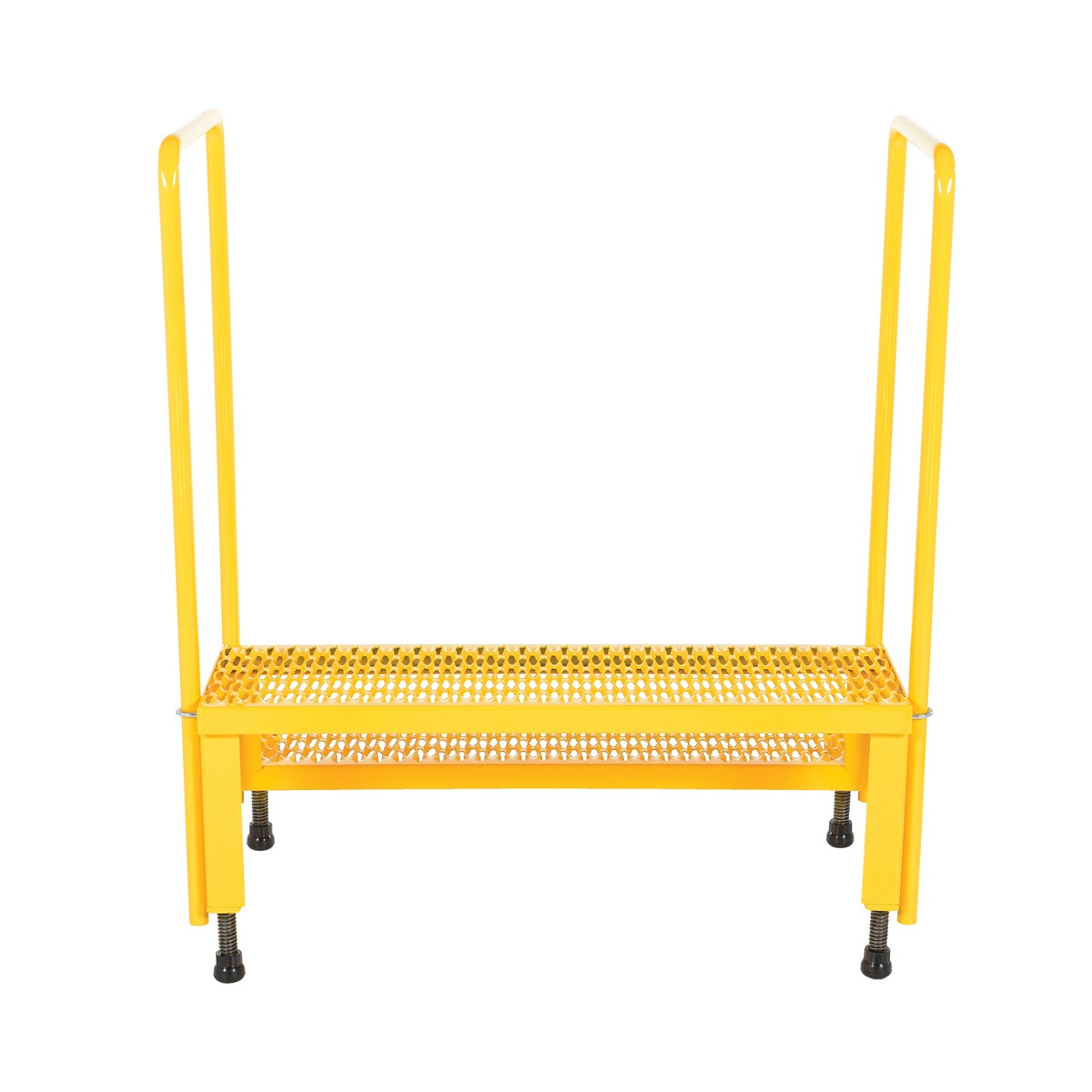

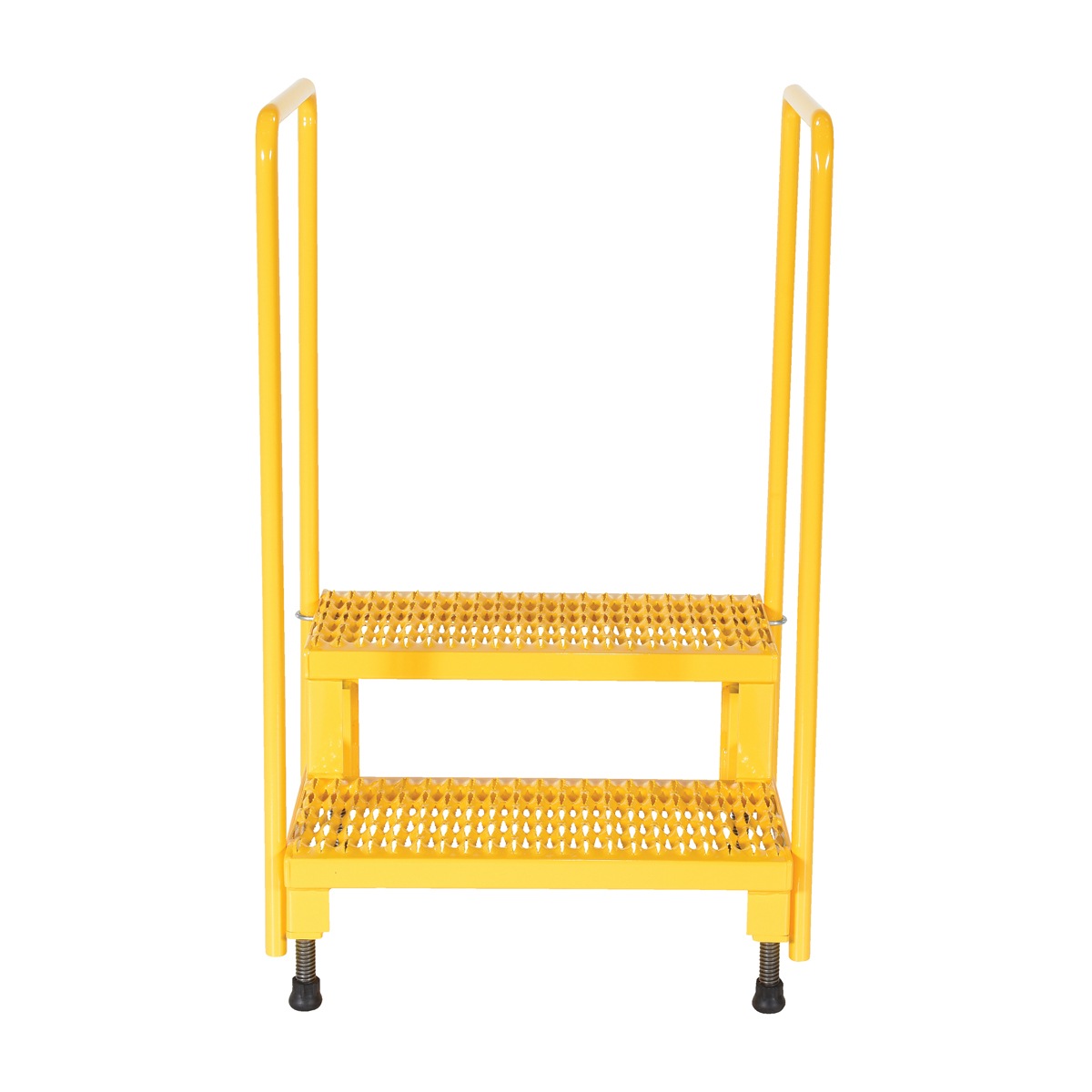

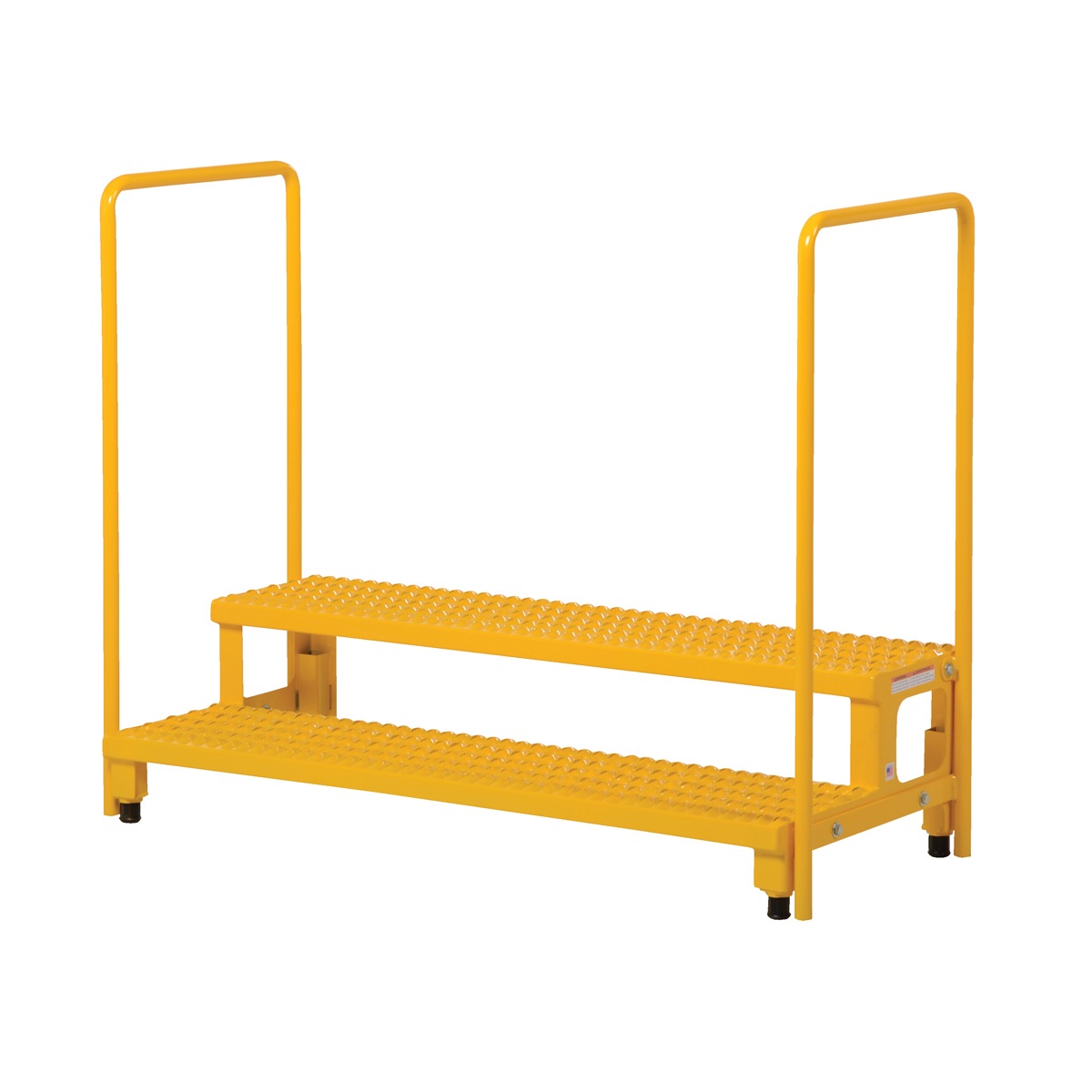

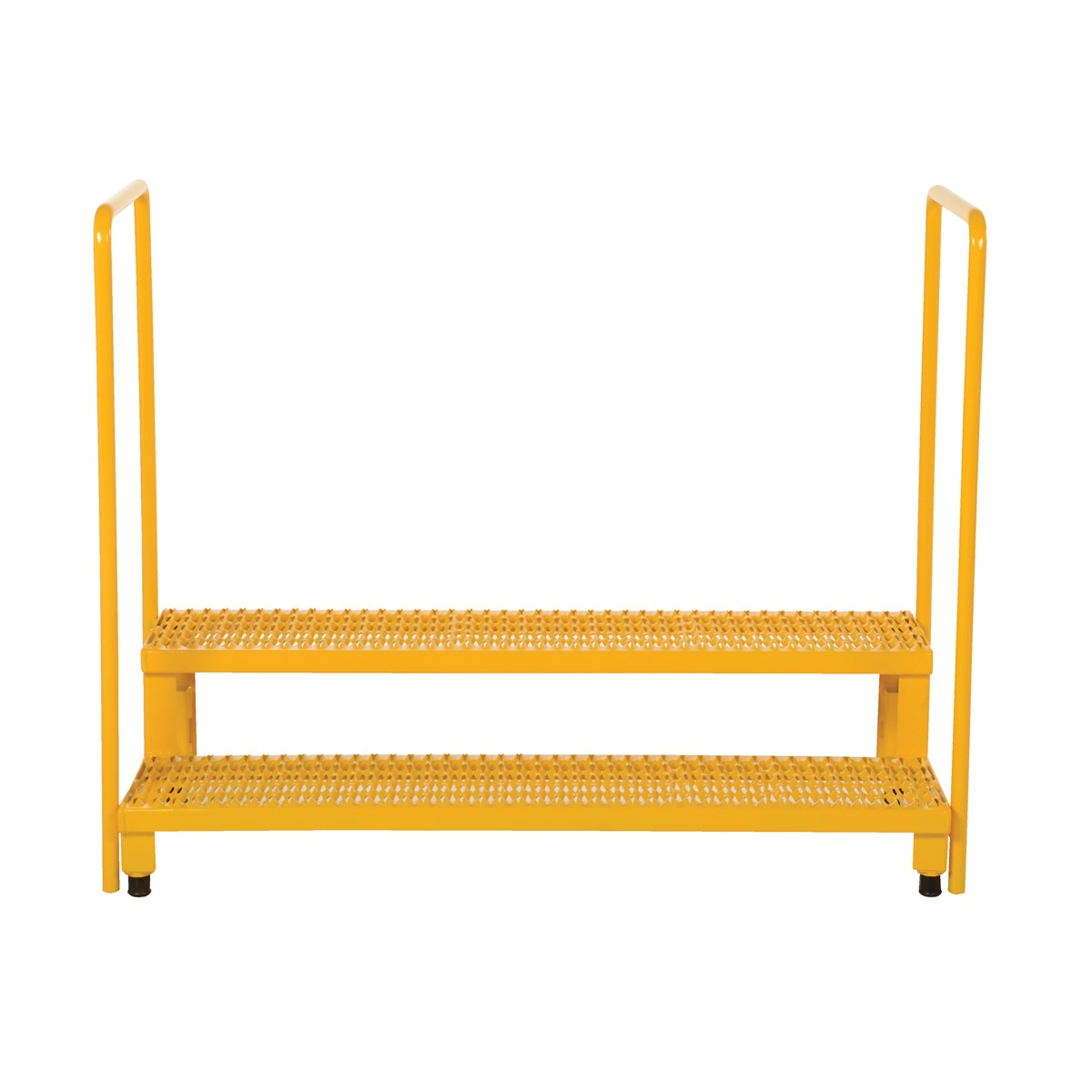

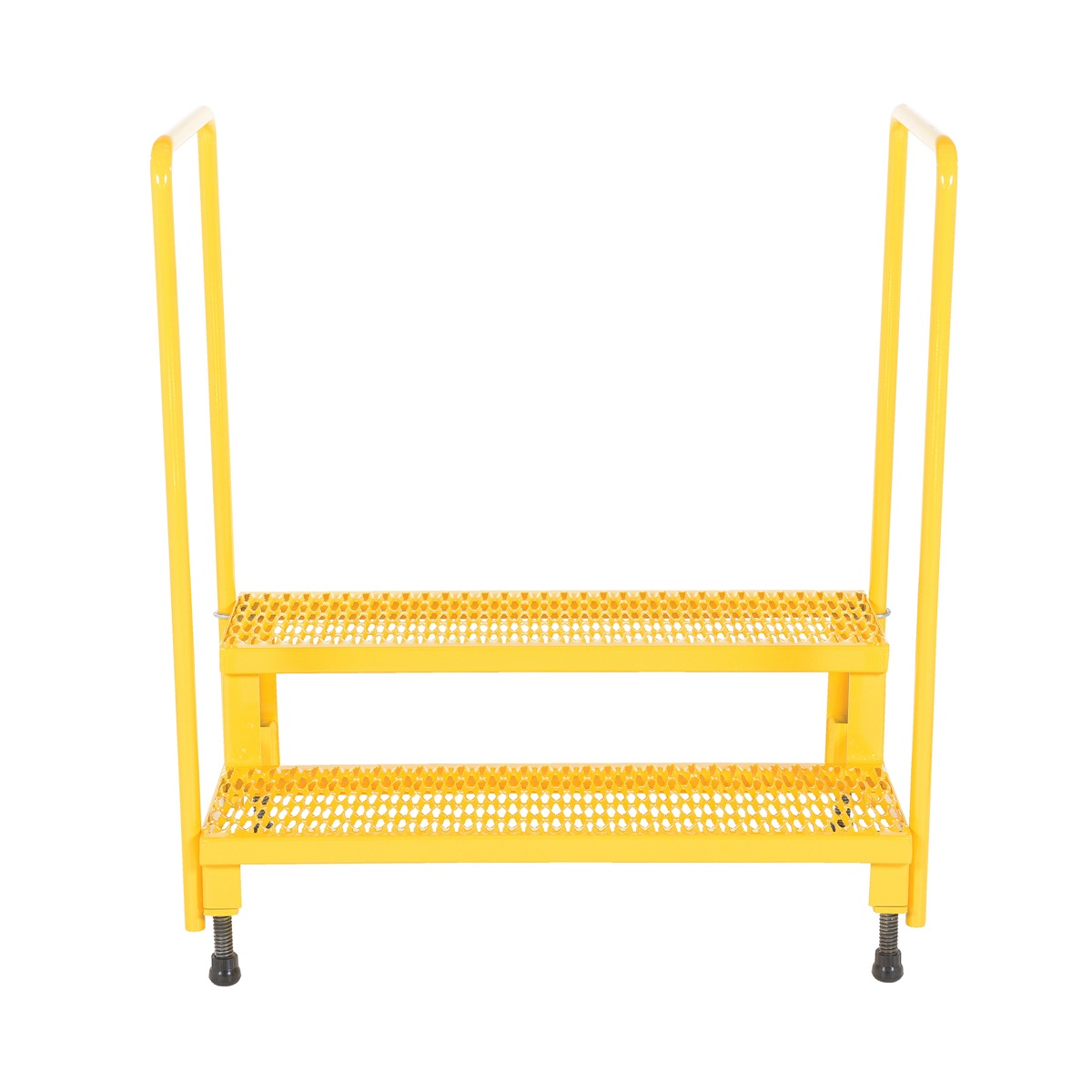

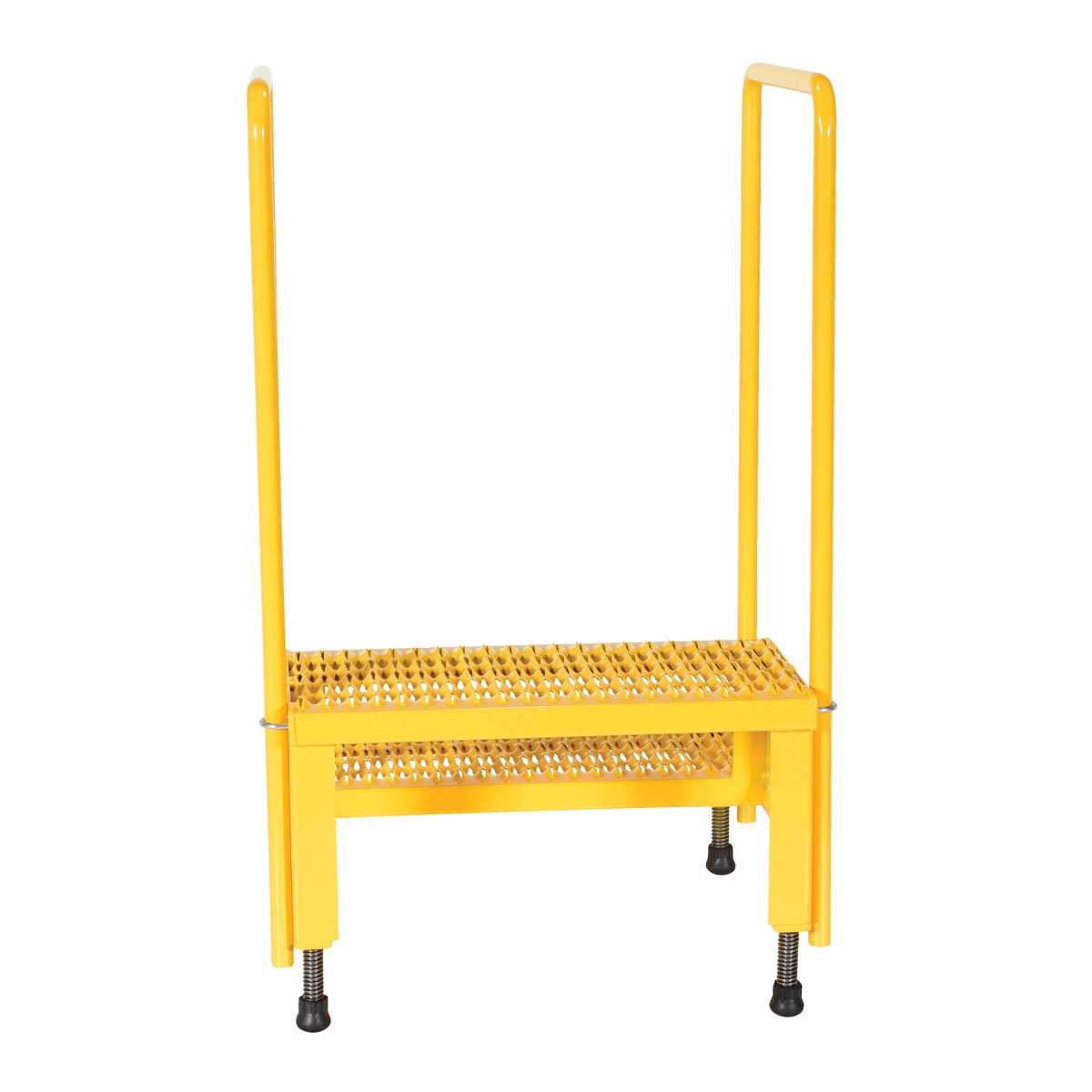

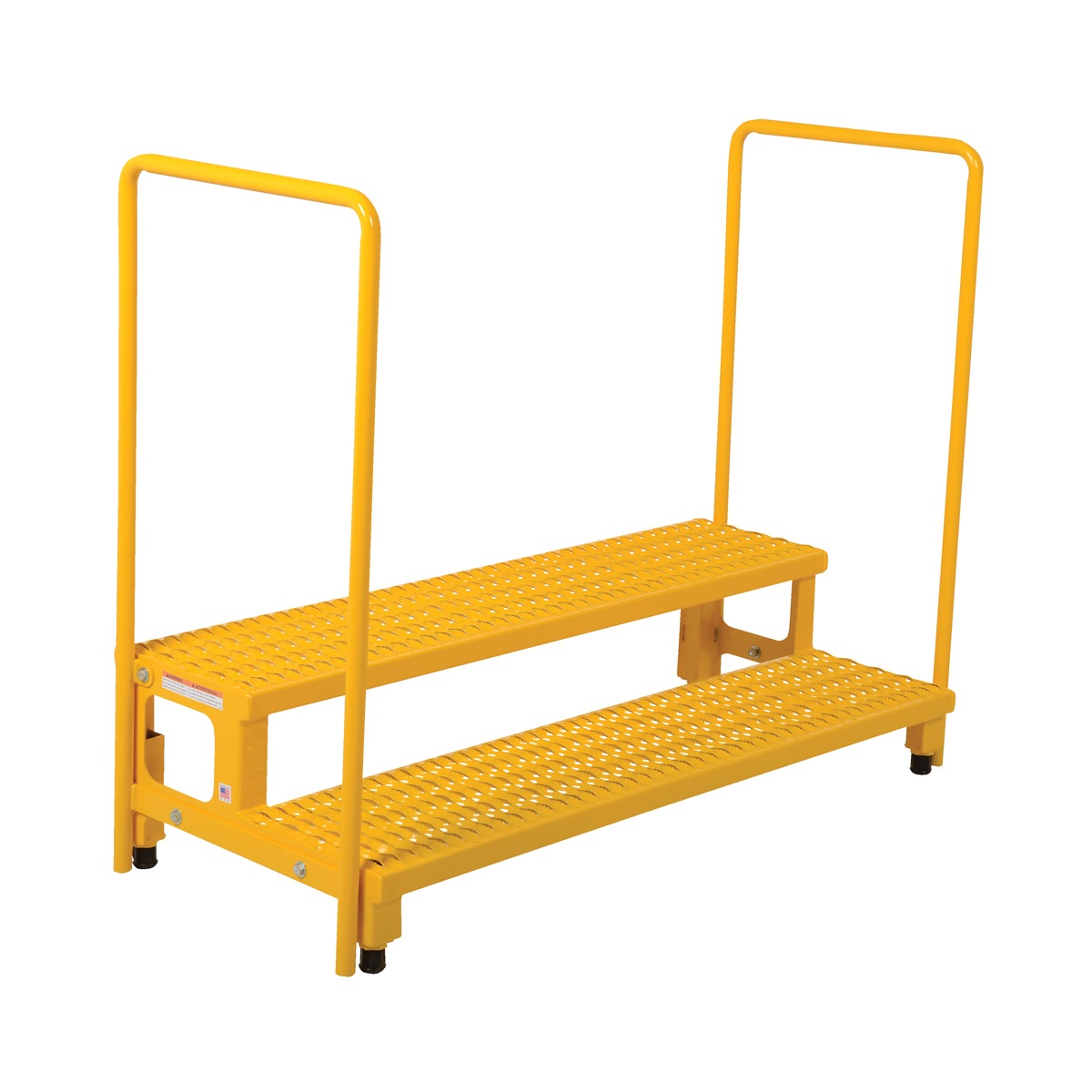

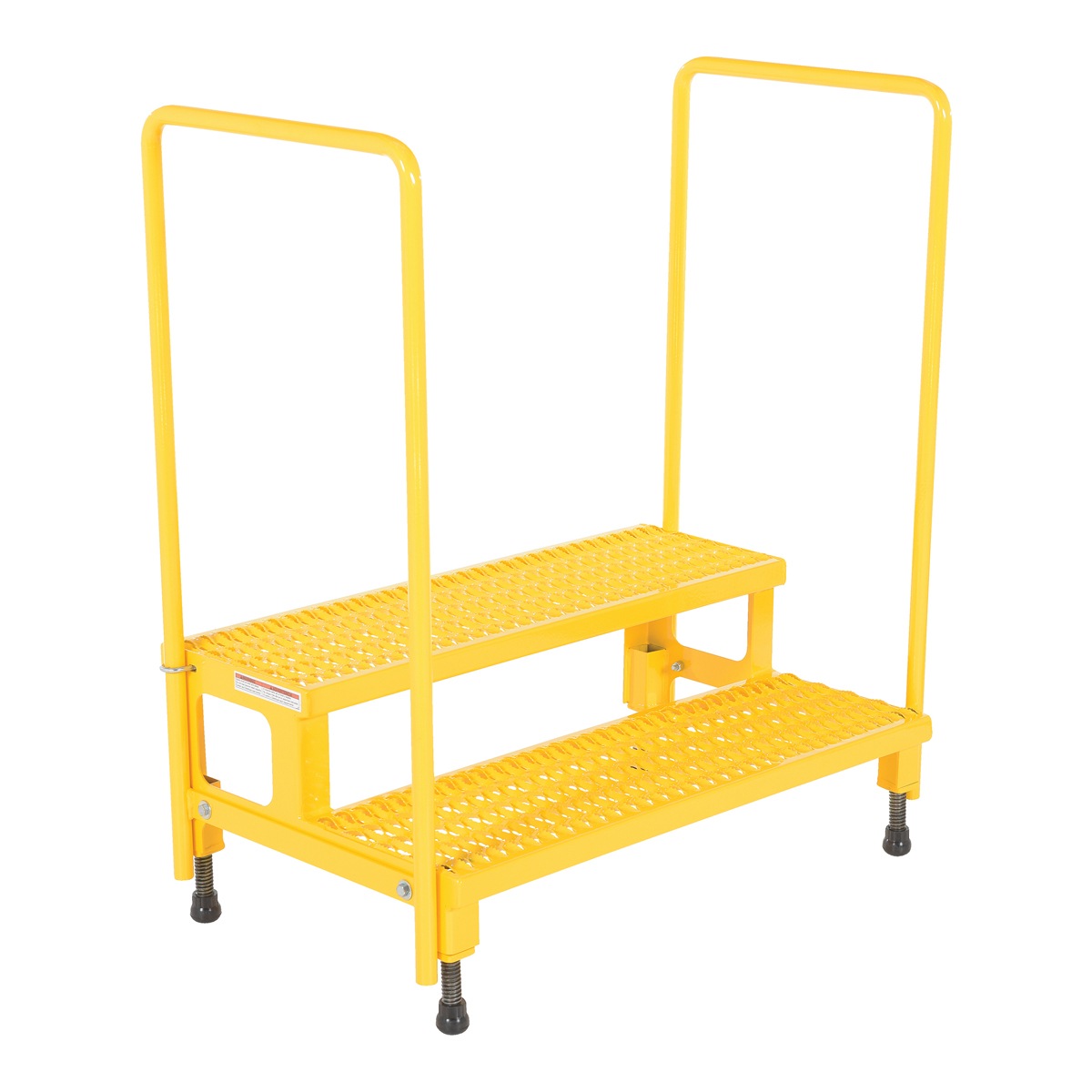

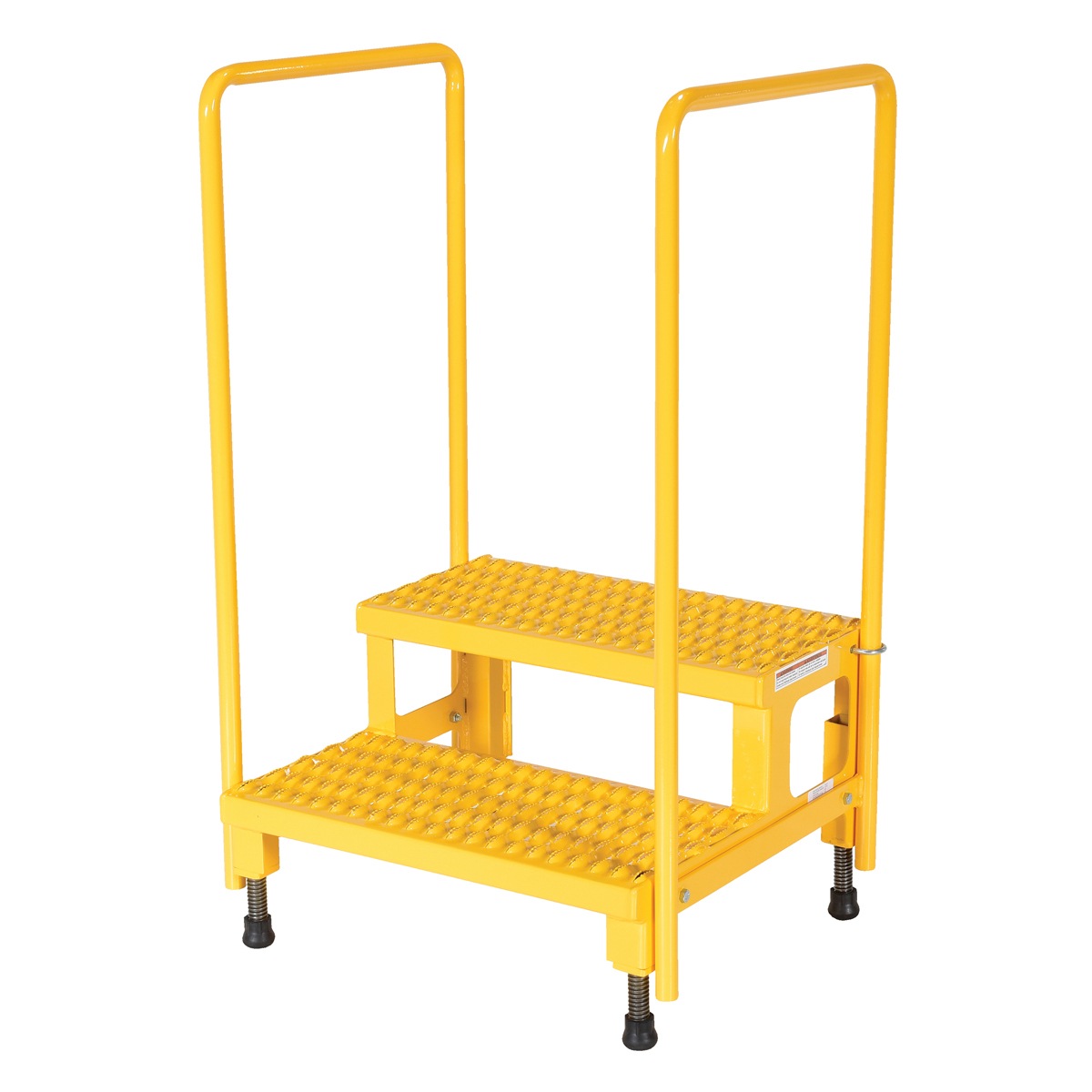

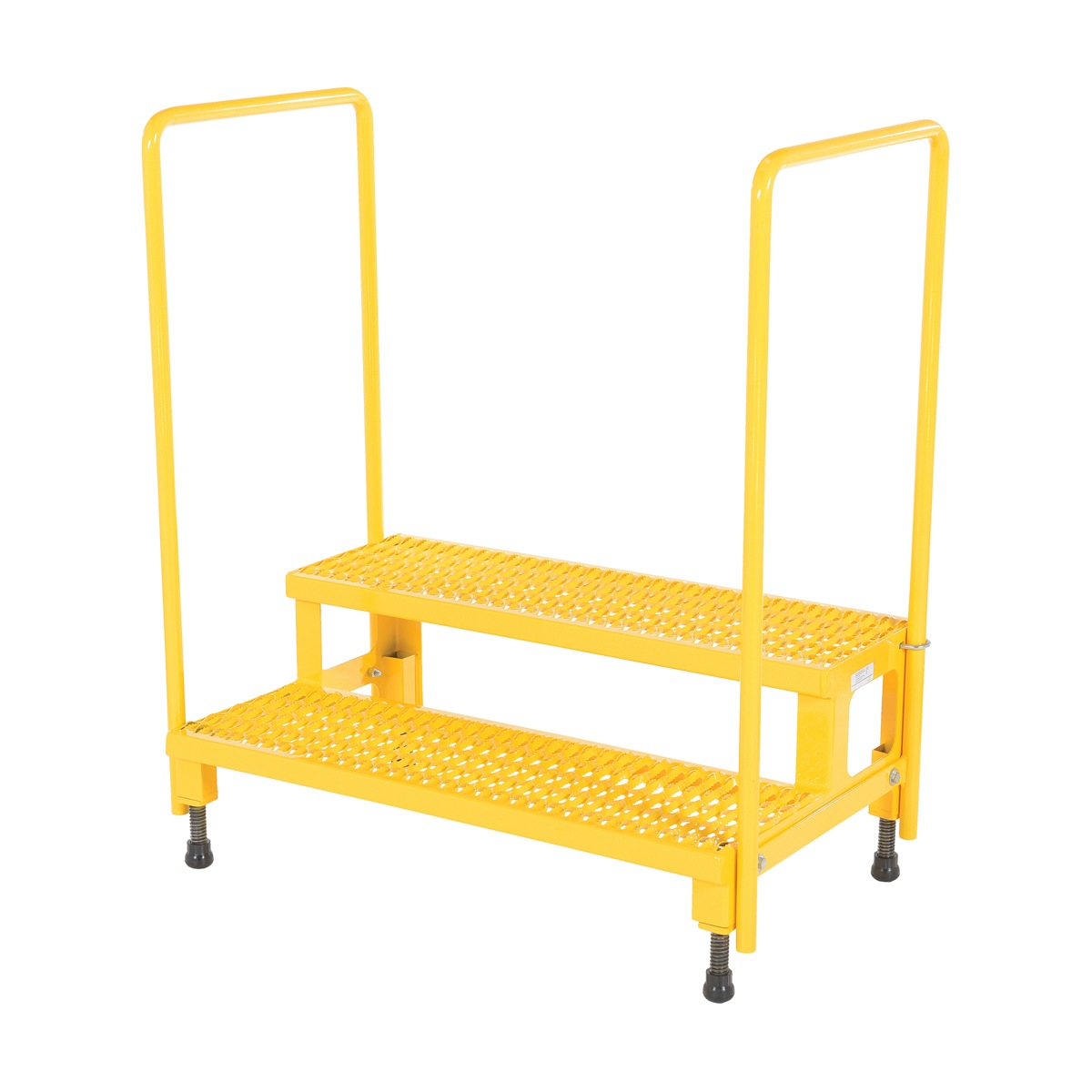

Vestil Adjust Step Stand 2 Step W/Handrail

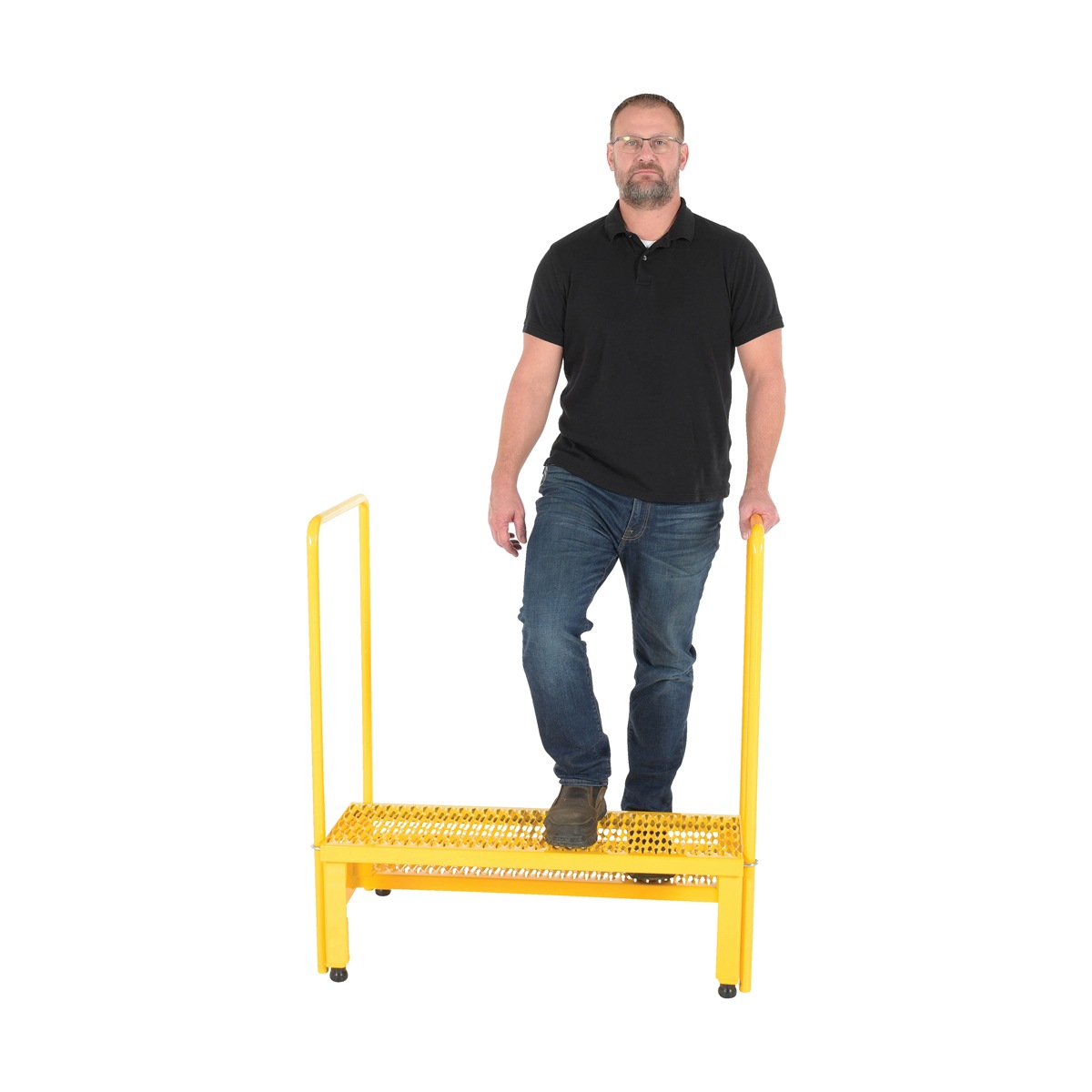

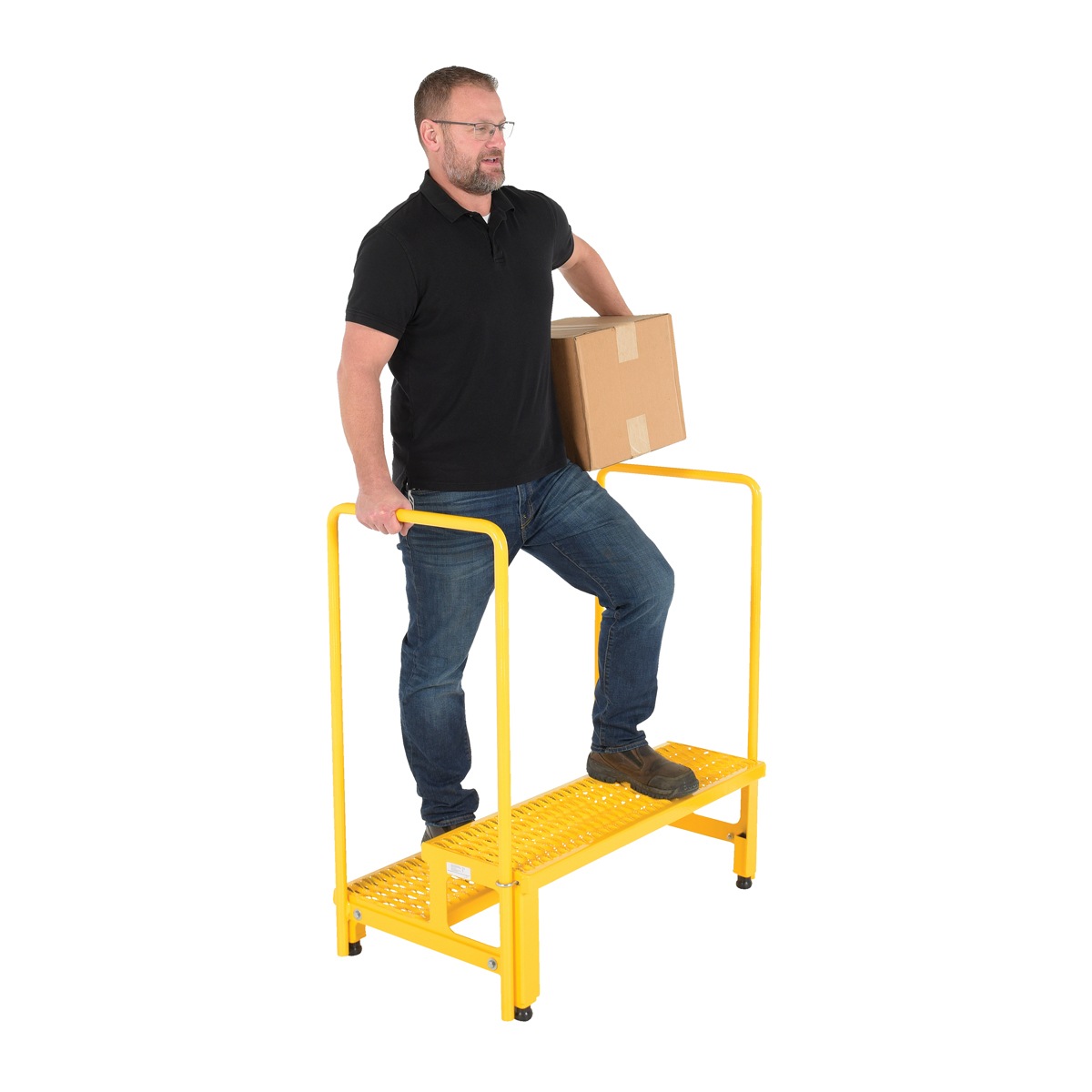

The Adjustable Step-Mate Stand can be used as either a comfortable worker platform or a semi-permanent step. The serrated surface ensures safe footing. Models feature handrails for added stability during use. The legs adjust individually by screwing them into or out of the leg base. The unit has a welded construction.

• Independently adjustable height legs may be set to level unit on uneven floors
• Serrated step surface provides excellent traction even in wet environments
• Each leg fitted with rubber tip for better grip & traction
• Models feature handrails for added stability during use

Specification

• Uniform Capacity (lb.): 500
• Individual Step Depth (in.): 11-3/4
• First Step Adjustment Minimum (in.): 6
• First Step Adjustment Maximum (in.): 8-1/4
• Second Step Adjustment Minimum (in.): 13
• Second Step Adjustment Maximum (in.): 15-1/4
• Handrail Height – from Bottom Step (in.): 34-7/8
• Handrail Height – from Upper Step (in.): 27-7/8
• Handrail Diameter (in.): 1
• Handrail Construction: Steel Tubing
• Includes: 2 Bolt-On Handrails
• Step Angle (degrees): 33
• Handrail Installed Depth/Height (in.): 20-1/4 x 40-7/8

Documents

Click for Manual

Click for ASP-24-HR Approval Drawings

Click for ASP-36-HR Approval Drawings

Click for ASP-48-HR Approval Drawings
