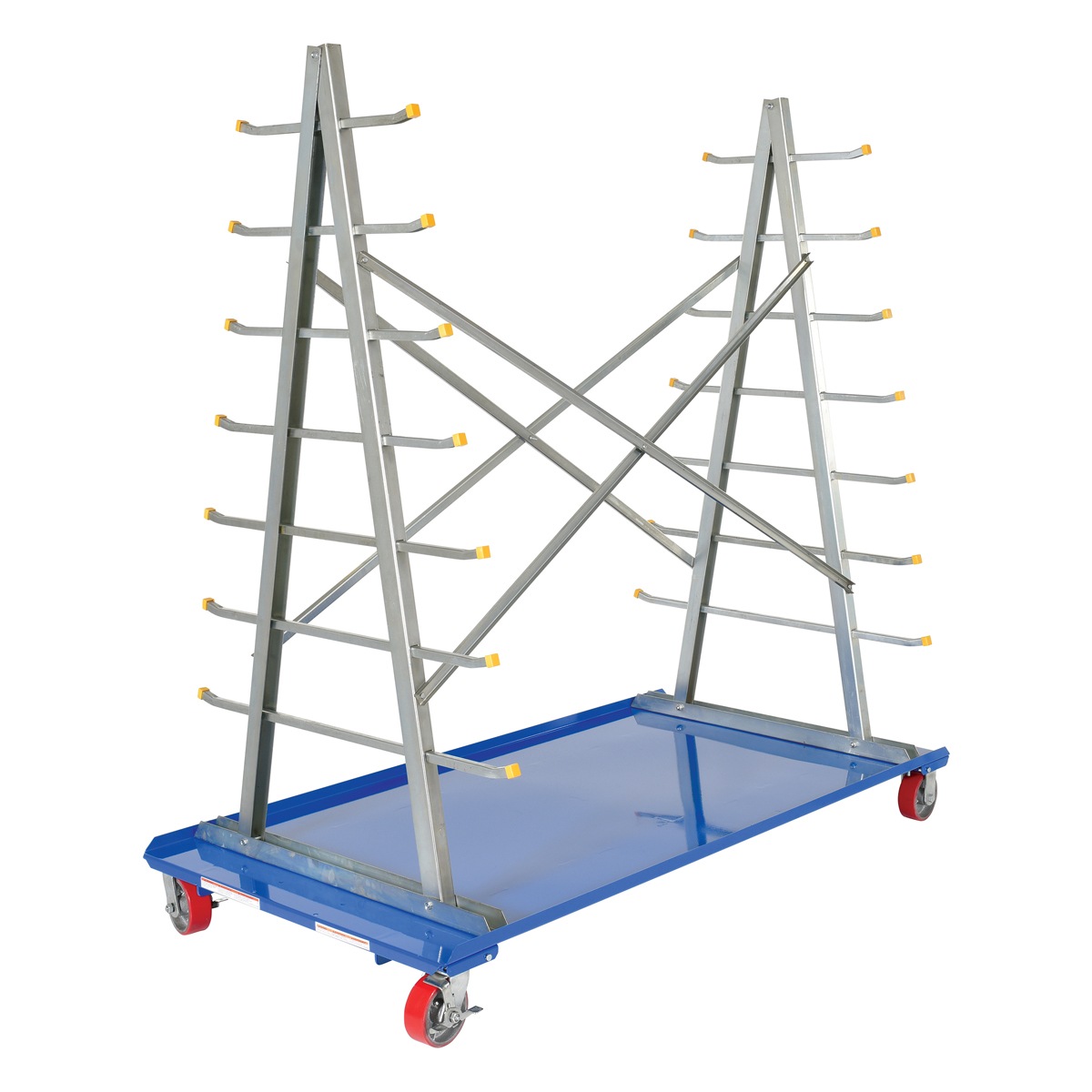

Vestil AFSR-3672 A-Frame Cart with Storage Rack 36-3/4″ W X 72″ L

The portable A-Frame Storage Cart with storage rack is ideal for storage and transporting pipe, conduit and other types of bar material. Storage arms extend beyond frame. Unit rolls on swivel casters that include brakes. Base is powder coat blue while the storage rack is zinc plated.

• Rack design is ideal for storing & transporting pipe, conduit and other types of bar material
• Storage arms extend beyond frame offering greater storage capacity
• Swivel casters include wheel brakes for safety
• Eight level storage cart provides maximum storage capacity

Specification

• Uniform Capacity (lb.): 2,000
• Deck Width/Length (in.): 36-3/4 x 72
• Arm Extension (in.): 8
• Clearance Between Arms (in.): 7-1/4
• Storage Level (qty.): 8
• Caster Quantity/Diameter/Width (in.): (4) 5×2
• Caster Type: (2) Rigid (2) Swivel with Side Brake
• Caster Material: Poly-on-Steel

Documents

Click for AFSR-3672 Approval Drawings
