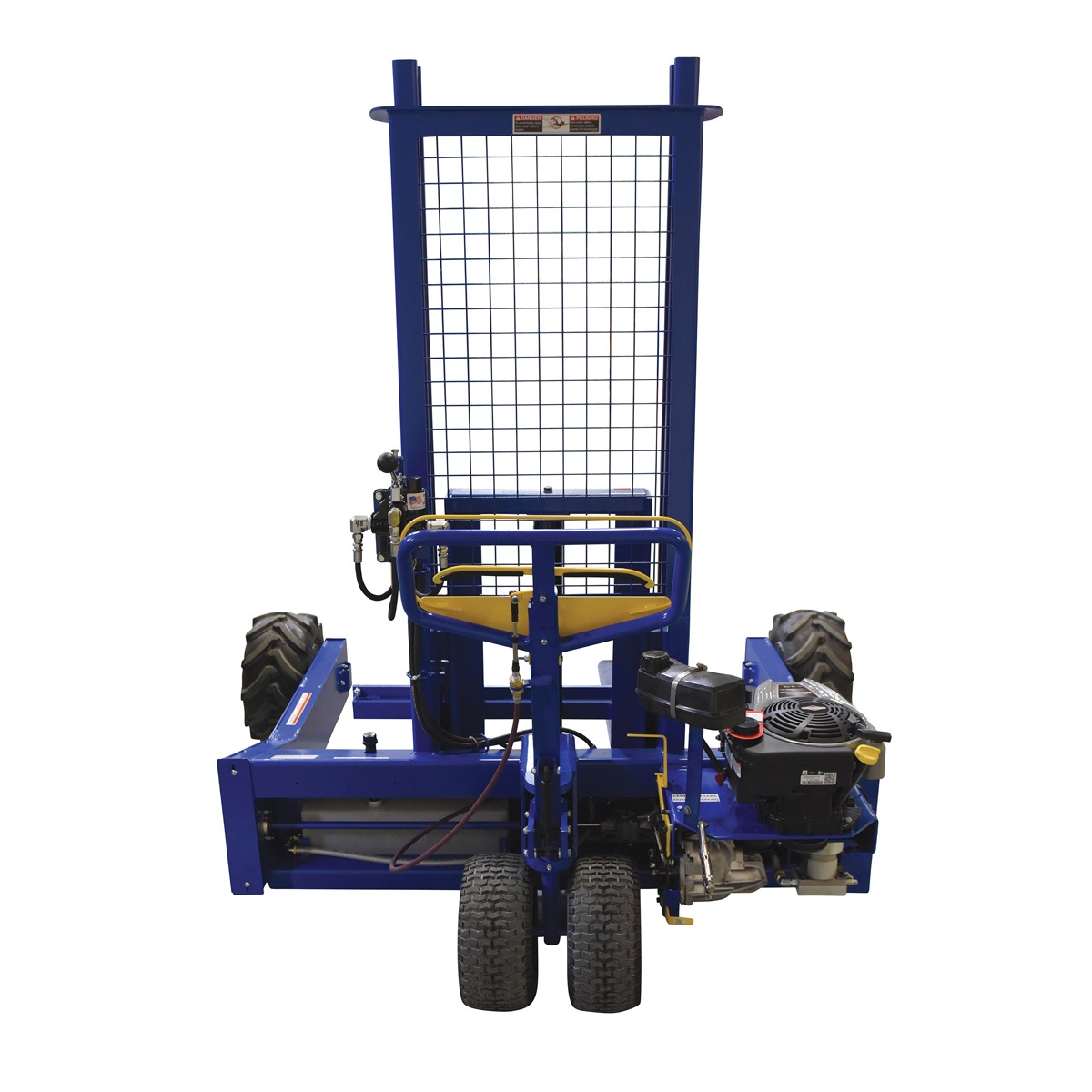

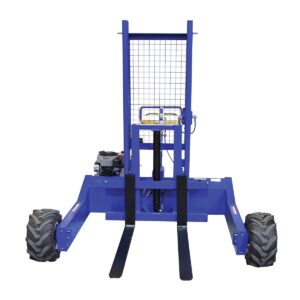

Vestil ALL-T-1-GPT-ST-L Gas Powered All Terrain Pallet Truck

All terrain pallet truck with gas-powered traction drive system. Great for moving heavy loads over rough terrain. Powered by a Briggs & Stratton 6HP gas-powered engine for both the power traction drive and fork lift/lower. Handle with forward reverse speed control and dead man safety switch. Approximate walking speed is 3 mph. Hydrostatic transmission with hand-operated forward and reverse selection. Powered fork raise and lower control lever. Usable width between outriggers is 52″. Forks adjust 8″ to 36″. Pneumatic steer wheels are 13″ diameter x 4″ wide each. The drive wheels are 18″ diameter x 8.” wide each foam filled. Wheels include sealed bearings for outdoor use. Steering arc is 150°. Comply with ASME B56.1-2004. Optional 10.5 HP engine with electric start and heavy duty trans axle available.

• Three position handle makes operation easy
• Unique design easily rolls on pneumatic tires
• Welded steel tubular frame construction provides maximum strength
• Sealed bearing wheels provide dust protection and long life

Specification

• Uniform Capacity (lb.) at 24 (in.) Horizontal Load Center: 1,000
• Fork Width (in.): 4
• Fork Length (in.): 48
• Straddle Width (in.): 52
• Service Height (in.): 3 to 48
• Adjustable Forks (in.): 8 to 36
• Front Tires (in.): 18″ Foam Filled
• Control: Hand Lever

Documents

Click for ALL-T-1-GPT-ST-L Approval Drawings
