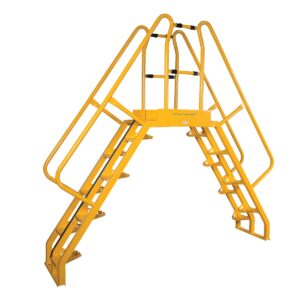

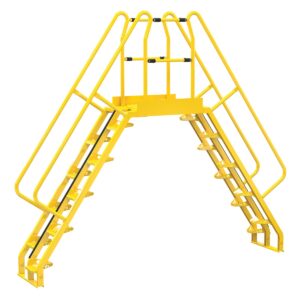

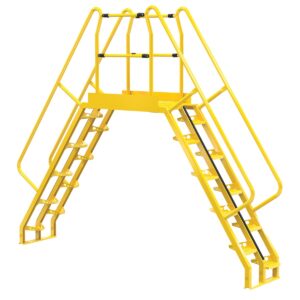

Vestil Alter. Cross-Over Ladder 20 Step
Price range: $3,577.89 through $4,945.19
Description
Mount this Alternating Step Cross-Over Ladder where you need permanent access at crossover points. Alternating step design for shorter overall span than other units. The upper platform features removable two sided high handrail with mid-rail and fixed toeboards to prevent objects from rolling off. Includes lag-down points for securing to floor. Steel construction with powder-coat safety yellow finish.
- Alternating step design offers shorter overall span than other units
- Pre-drilled lag-down points make installation quick and easy
- Two-sided handrailing provides adder user safety
- Meets OSHA STD 01-01-011and ANSI A14.7 standards
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size | 102 X 114, 116 X 114, 122 X 115, 129 X 115, 136 X 115, 150 X 115, 88 X 114, 95 X 114 |
Specification
Specification
- Uniform Capacity (lb.): 350
- Number of Steps on Each Side: 10
- Platform Handrail Height (in.): 39
- Platform Mid-Rail (in.): 21
- Toeboard (in.): 4
- Usable Width between Handrails (in.): 20-1/16
- Step Width (in.): 9-1/8
- Step Depth (in.): 10-1/2
- Base Width (in.): 23-11/16
- Tread: Serrated
- Platform Height (in.): 72-1/8
- ANSI: A14.7
- OSHA: STD 01-01-011
Documents
Click for ManualReviews (0)
