Vestil Aluminum Dock Board Steel Curb

Name: Vestil Aluminum Dock Board Steel Curb - Industrial Supply Depot
SKU: TAS
Availability: InStock

Price range: $766.78 through $4,245.40

Capacity

Size

Clear

SKU: TAS Category: Dockplates & Dockboards

Description

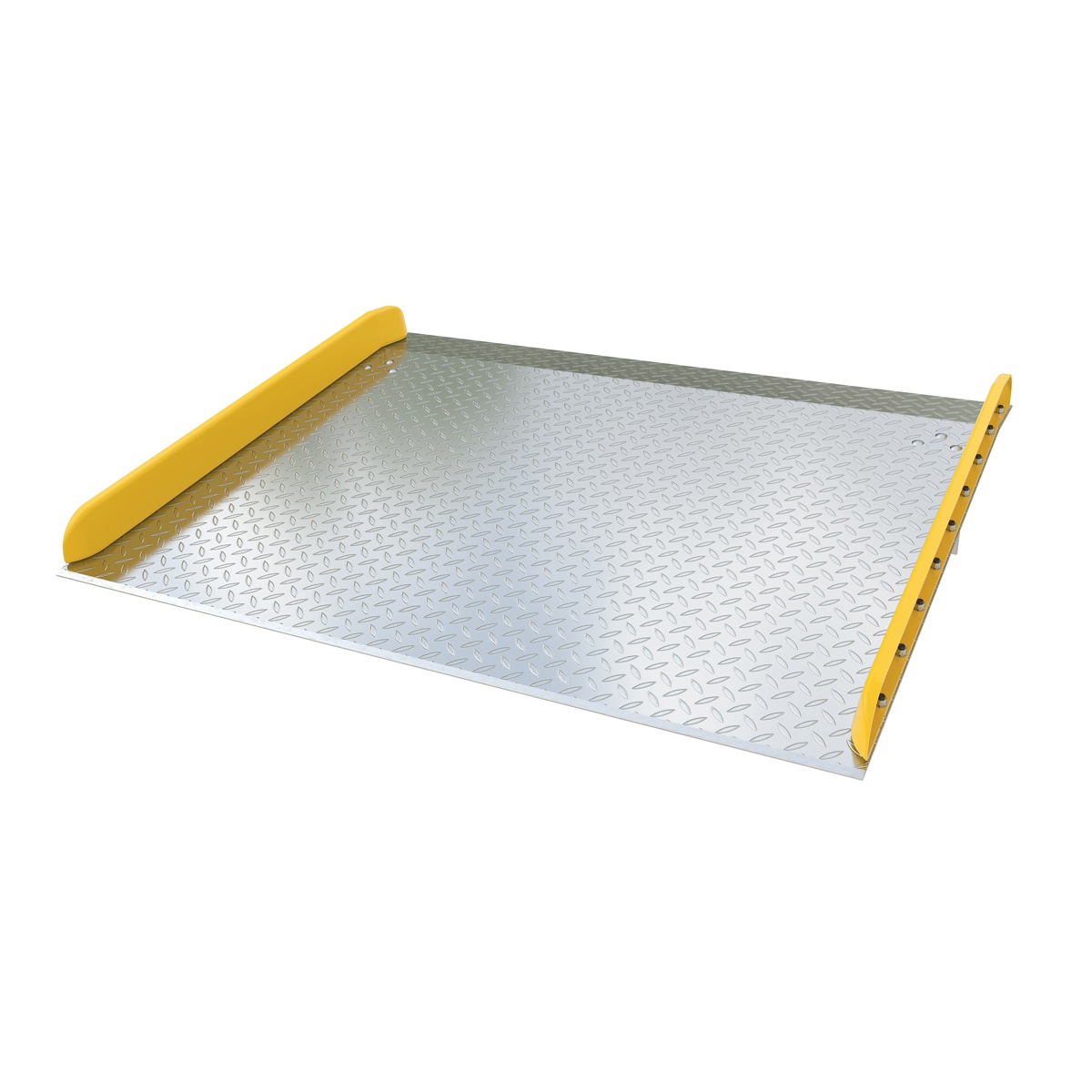

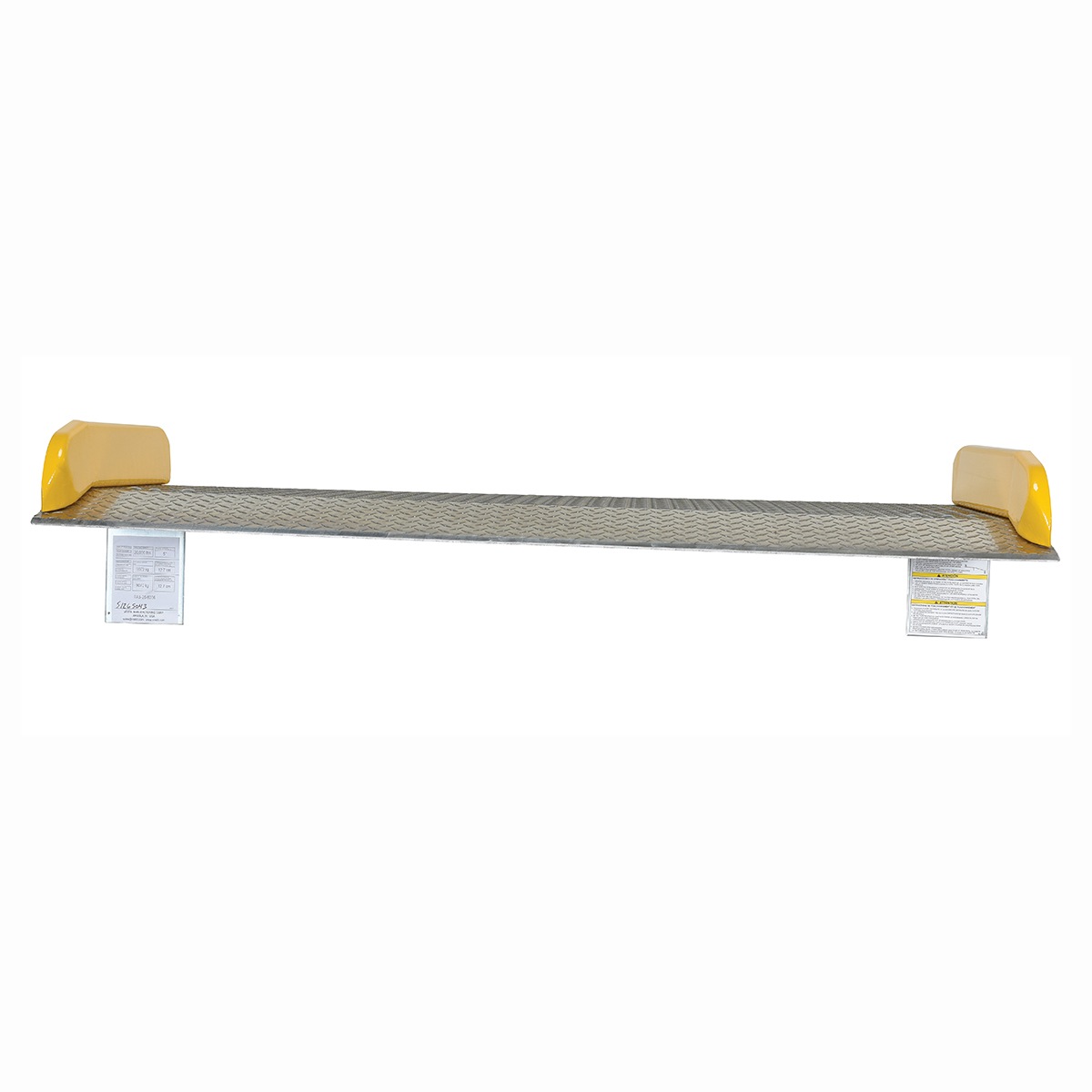

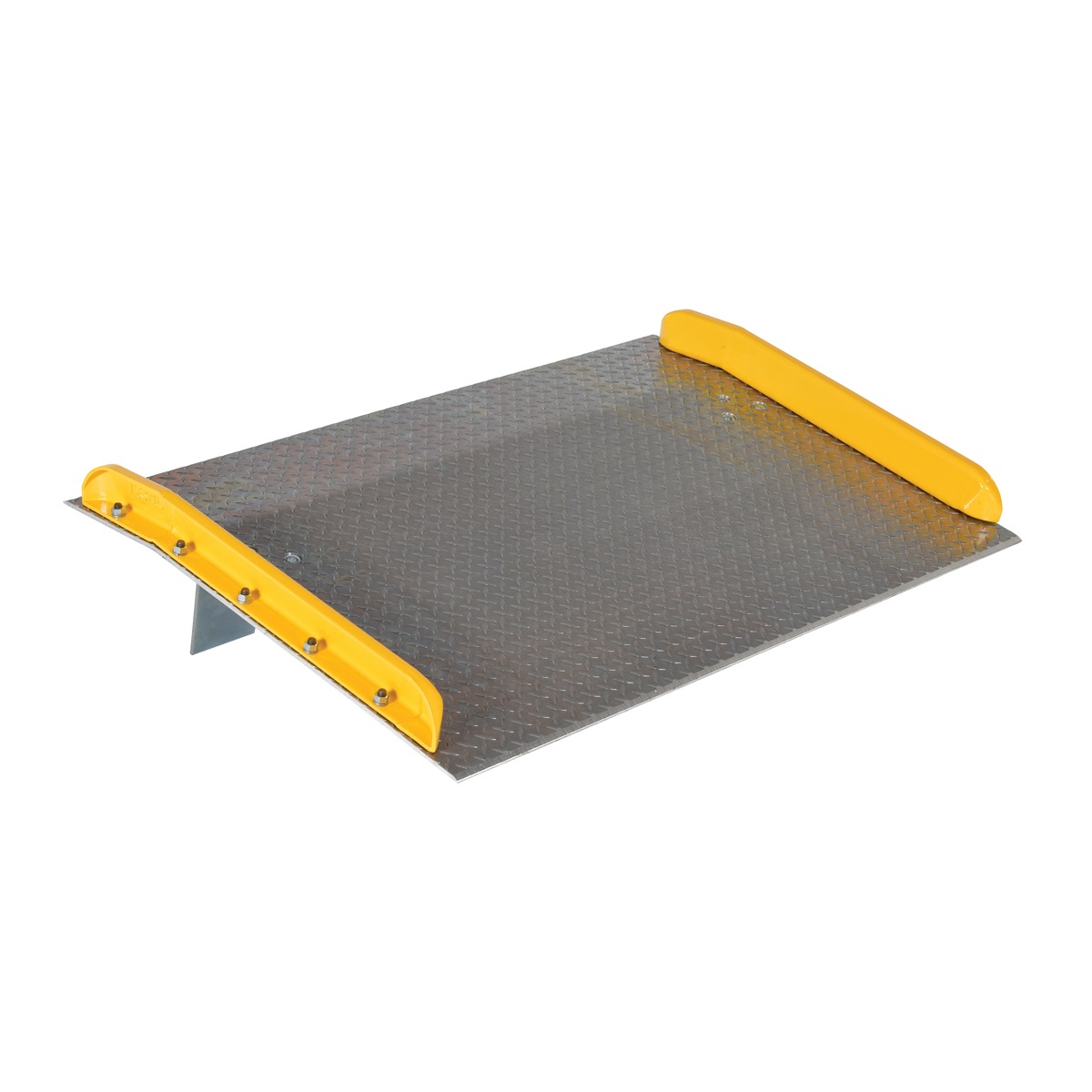

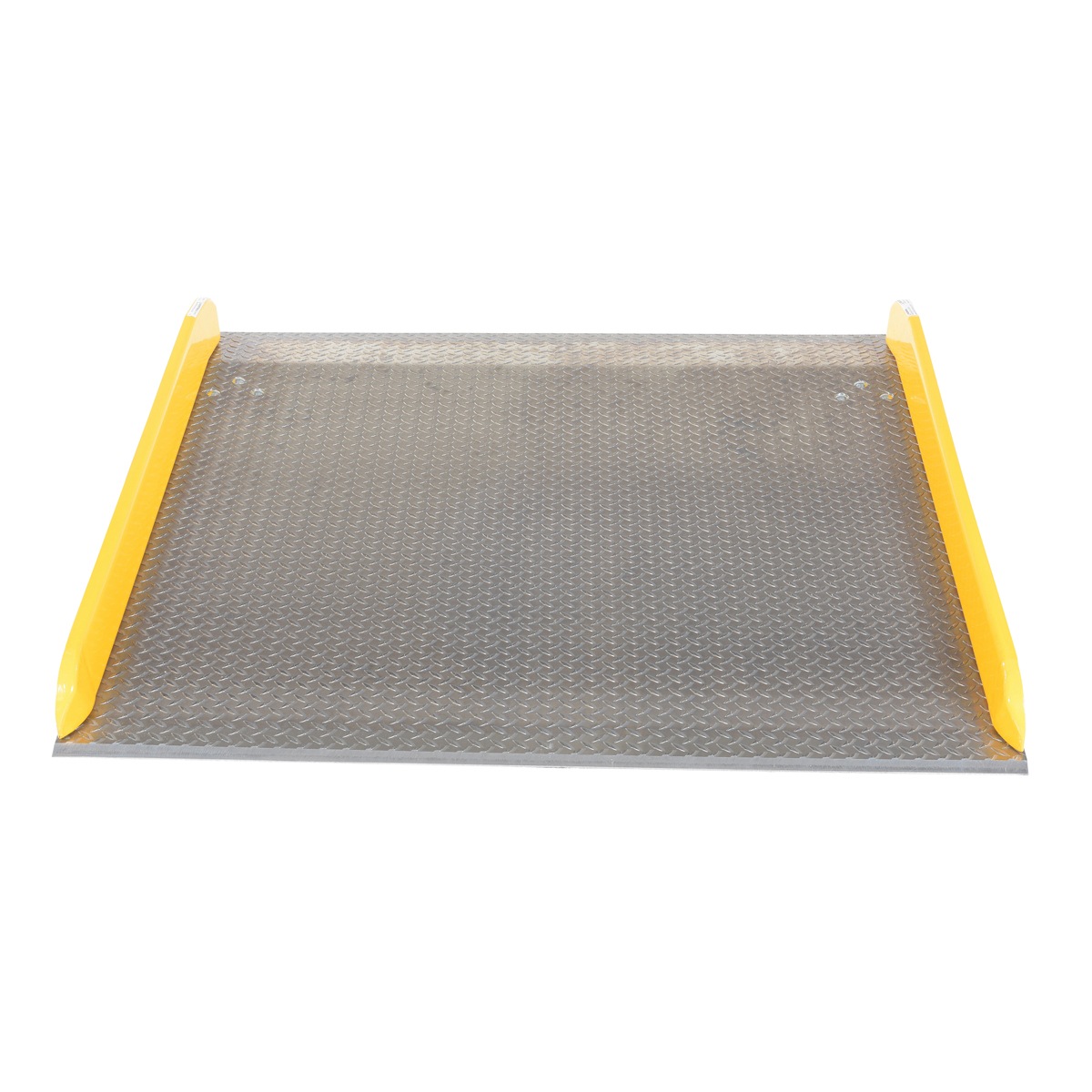

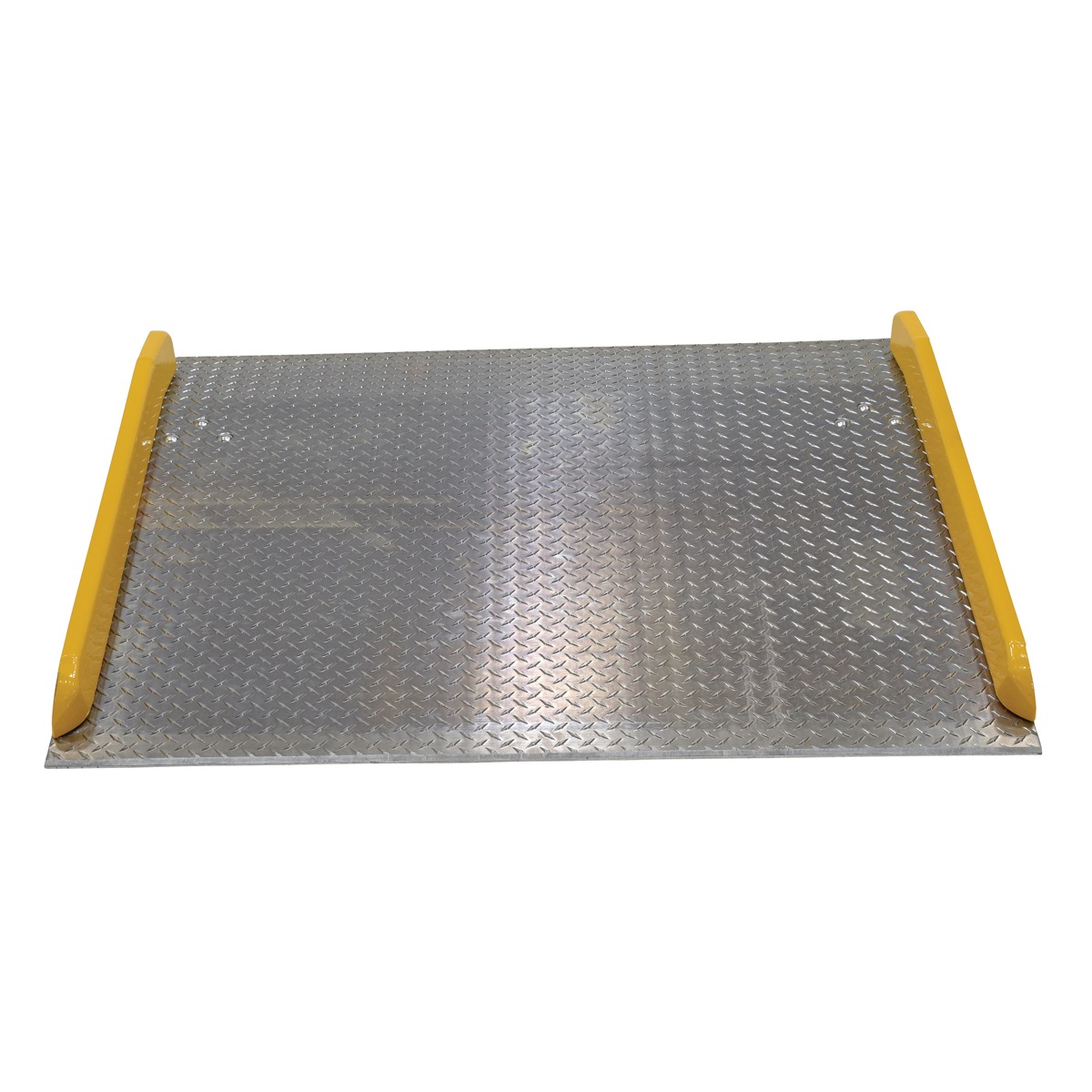

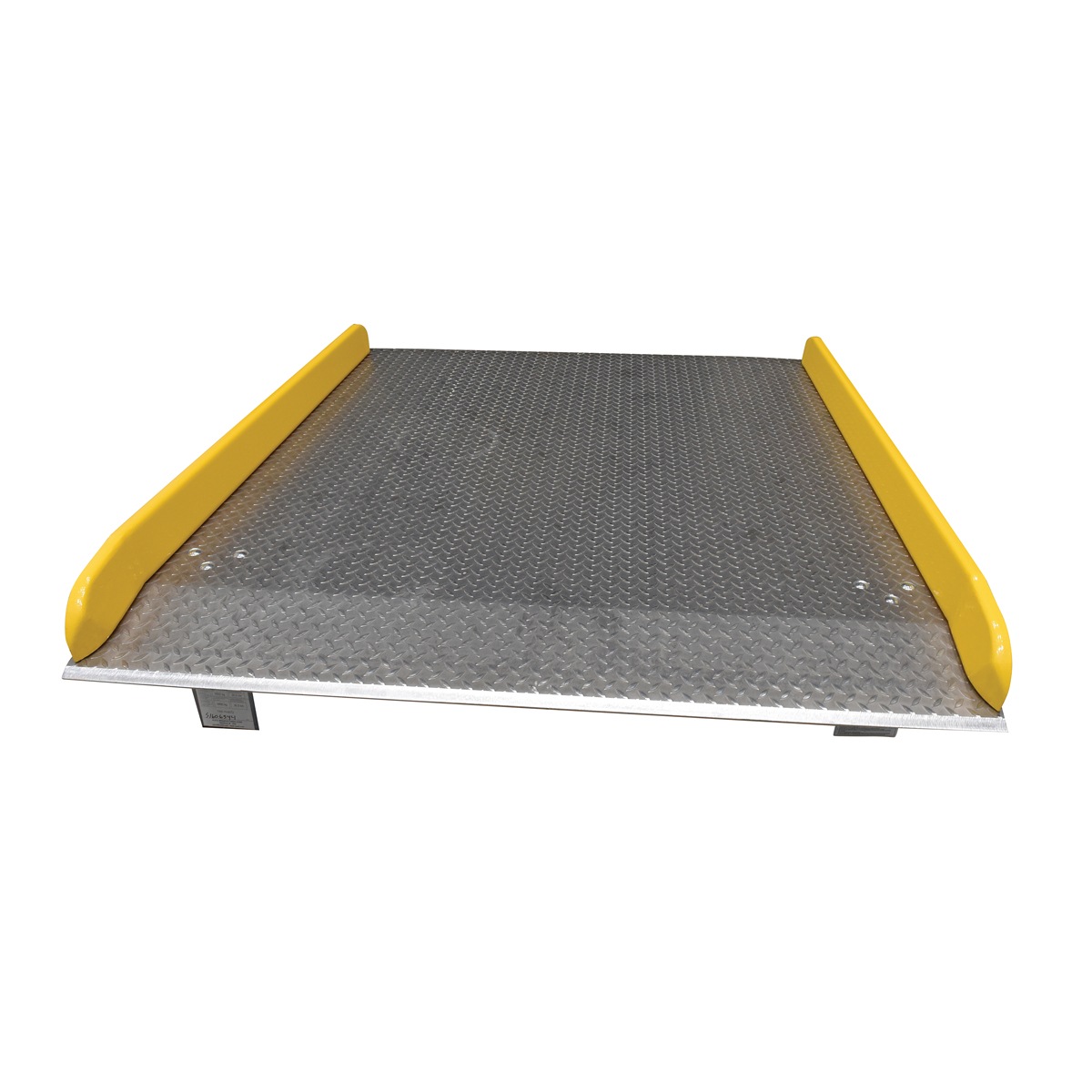

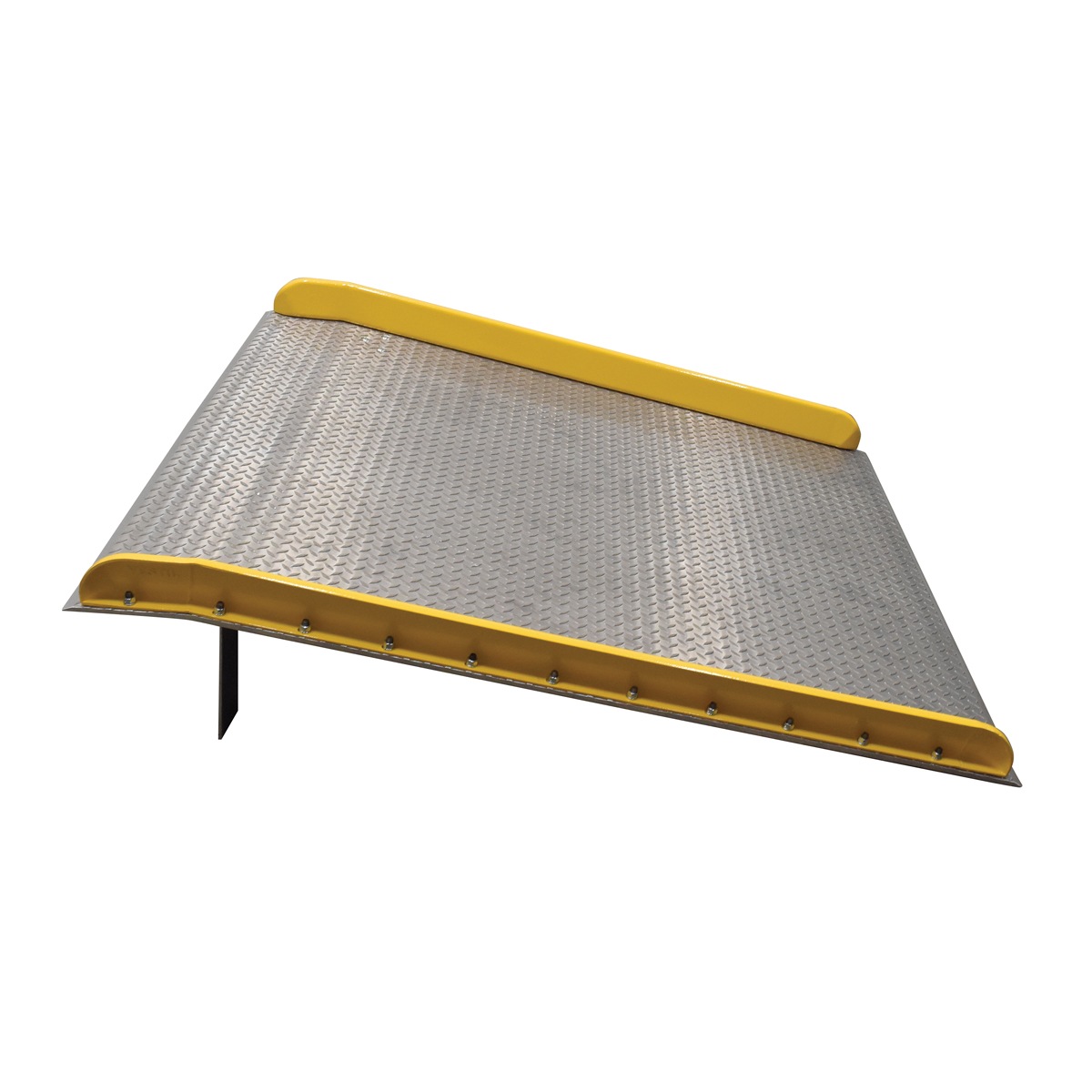

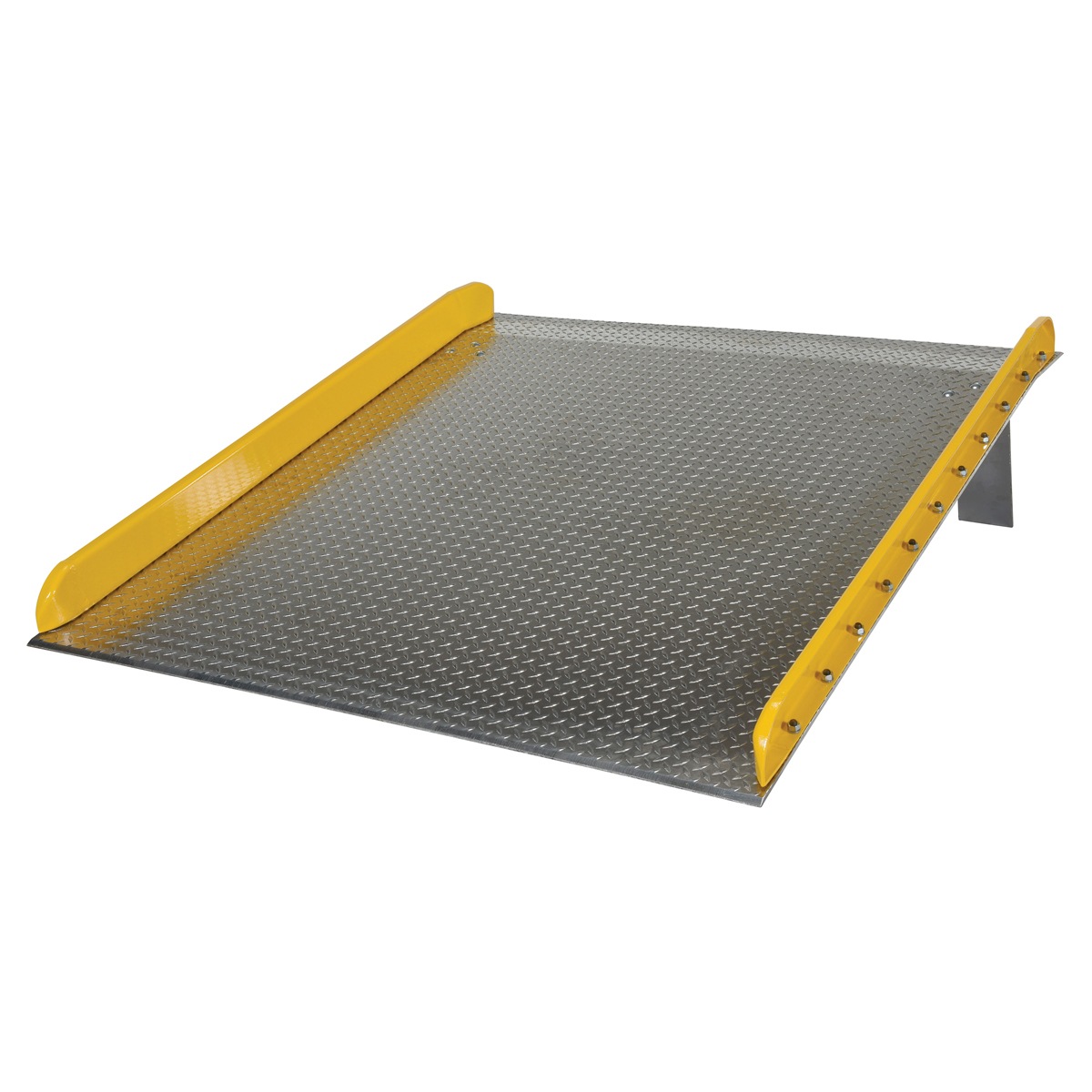

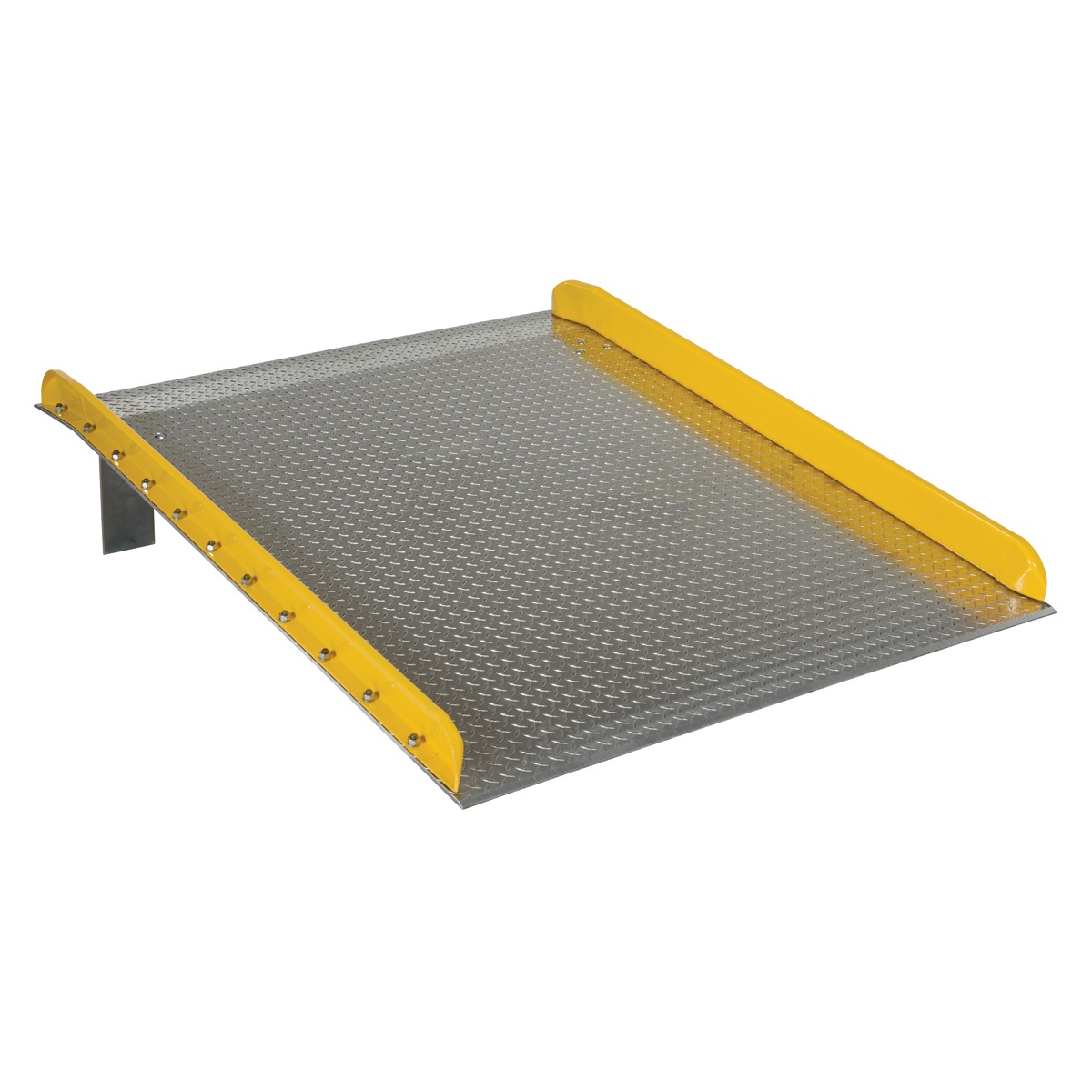

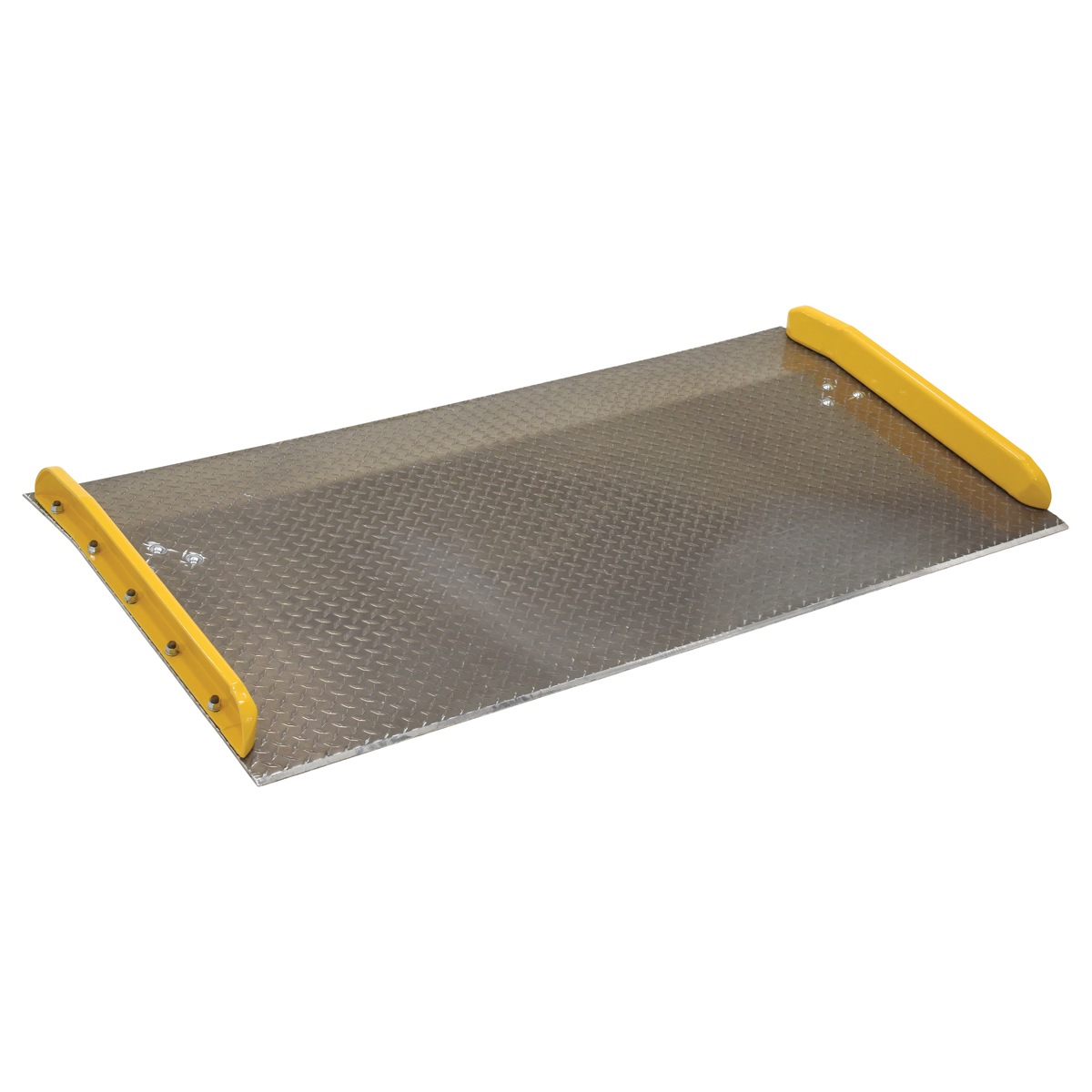

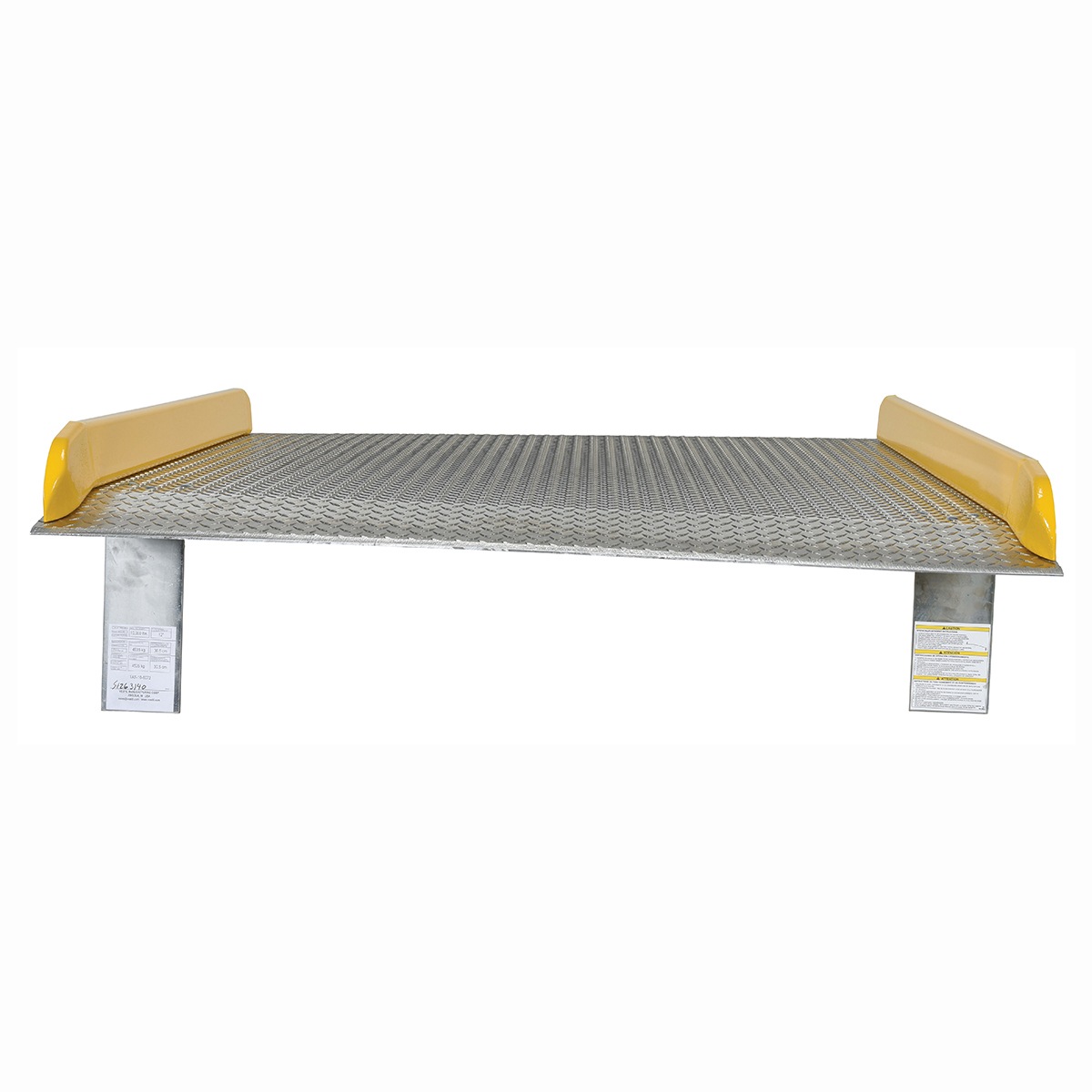

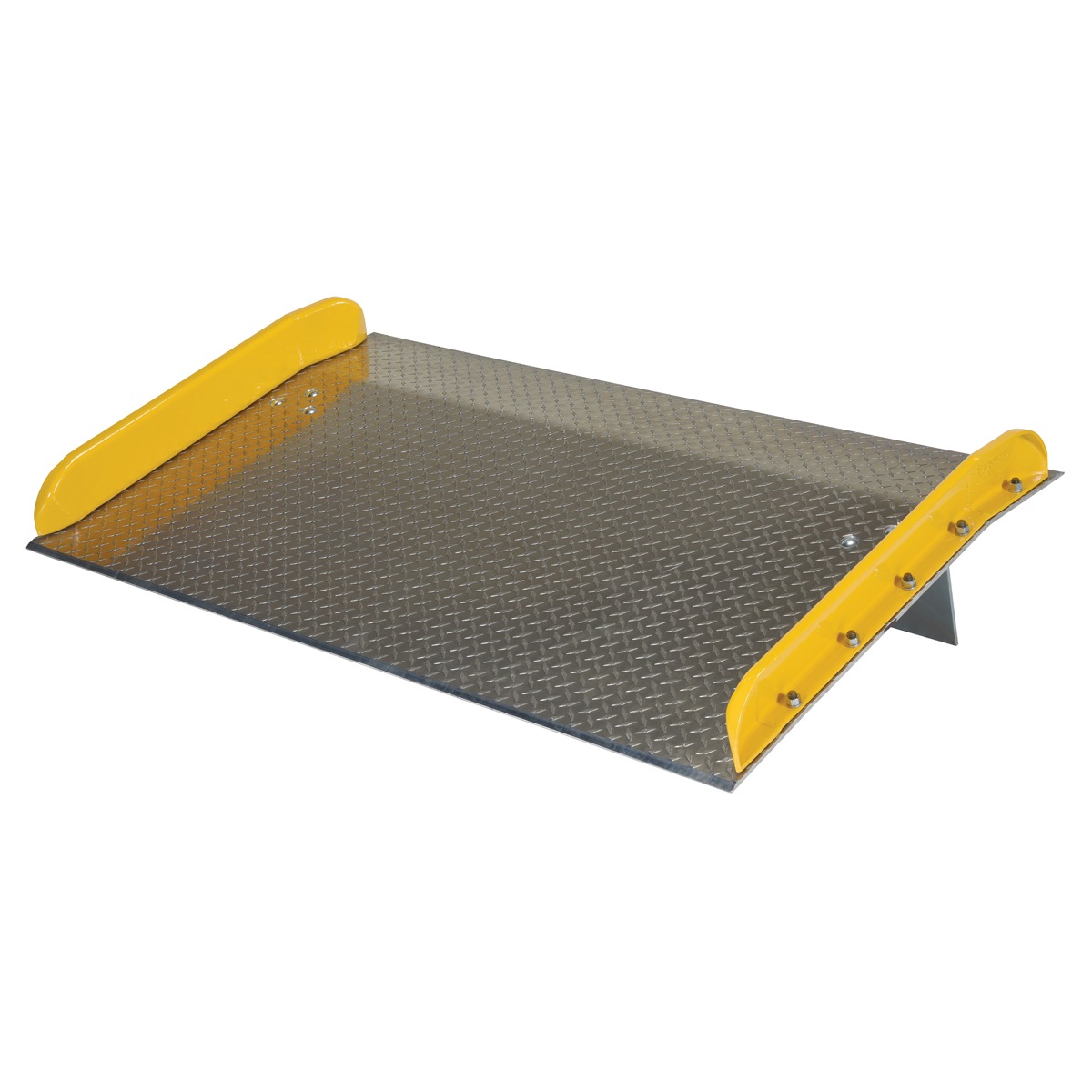

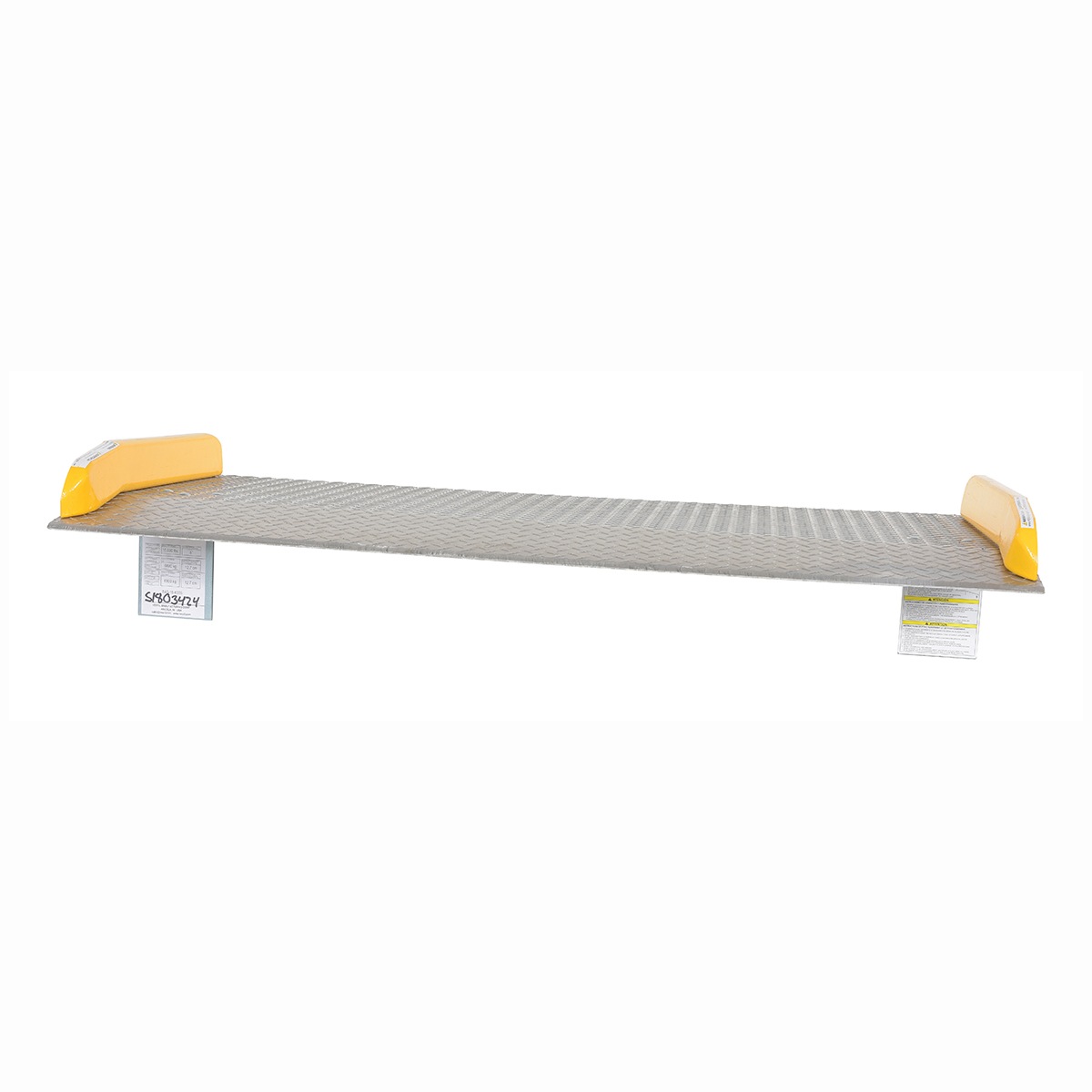

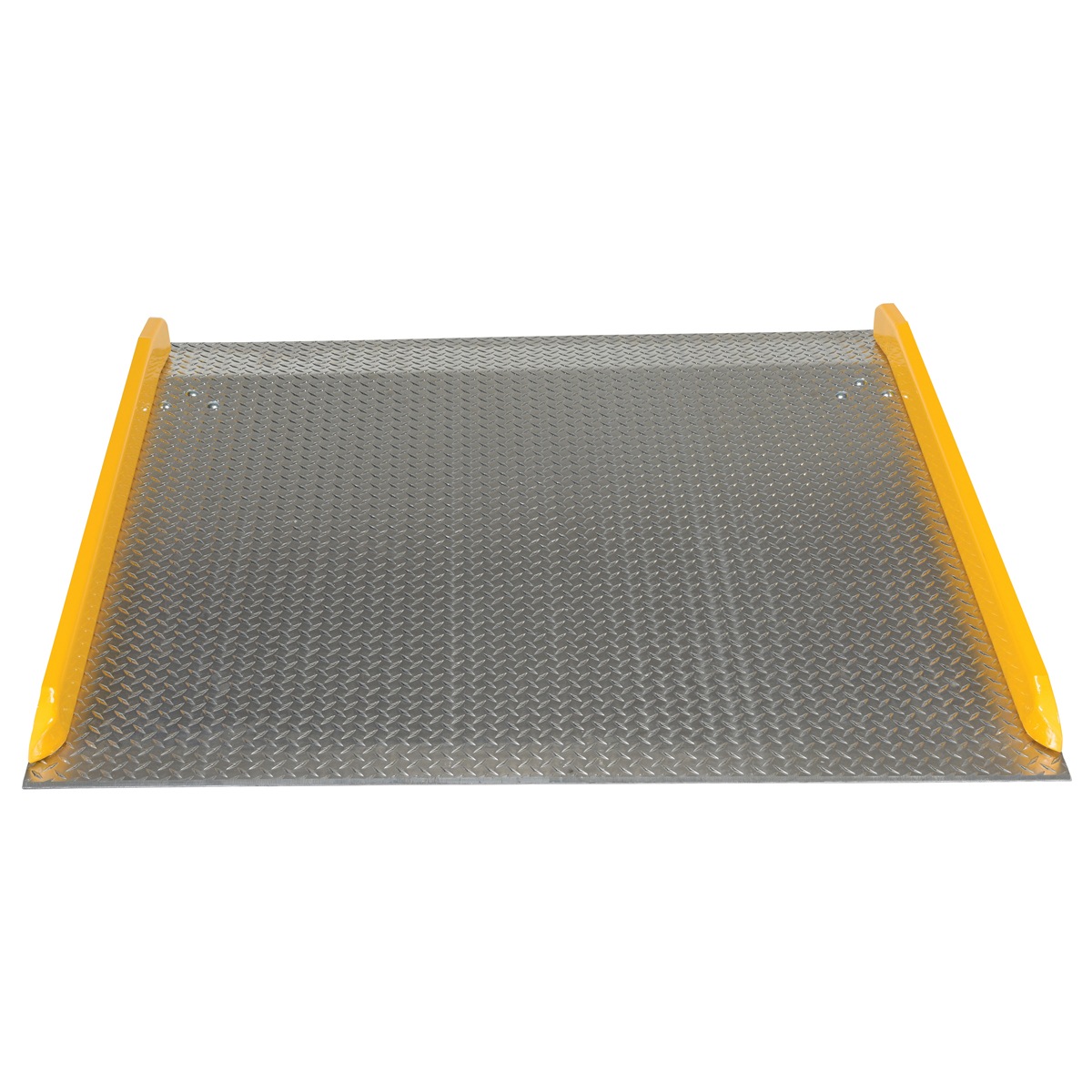

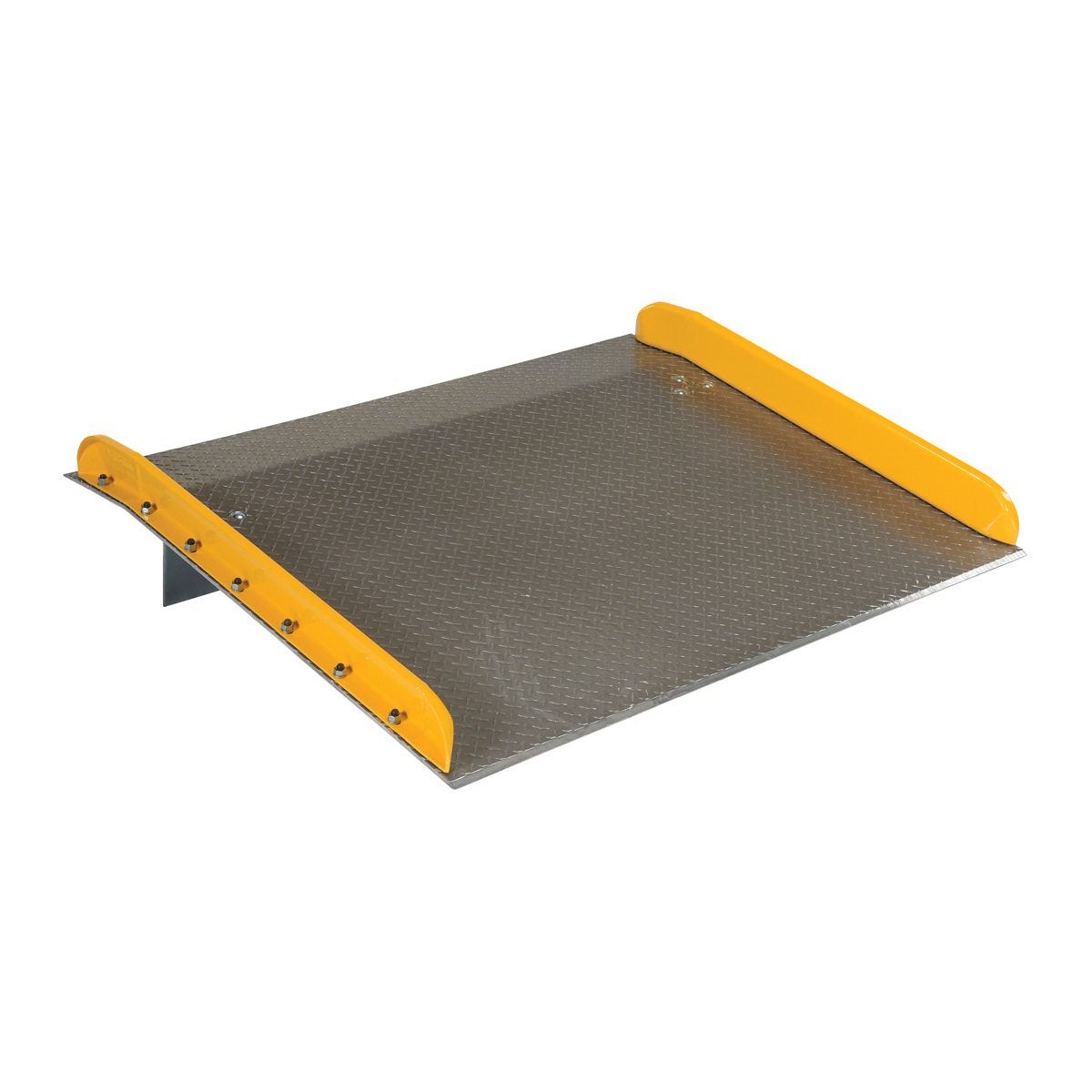

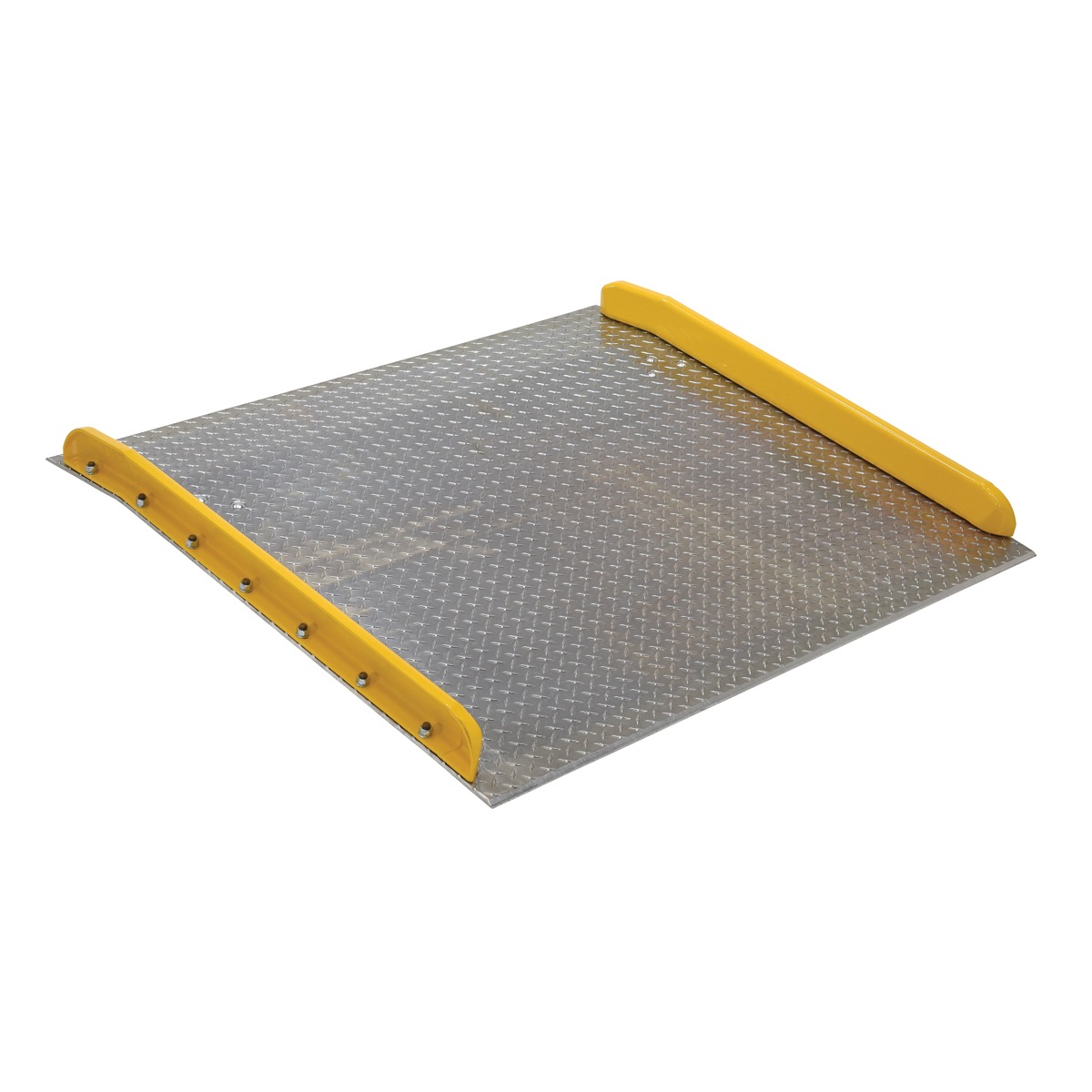

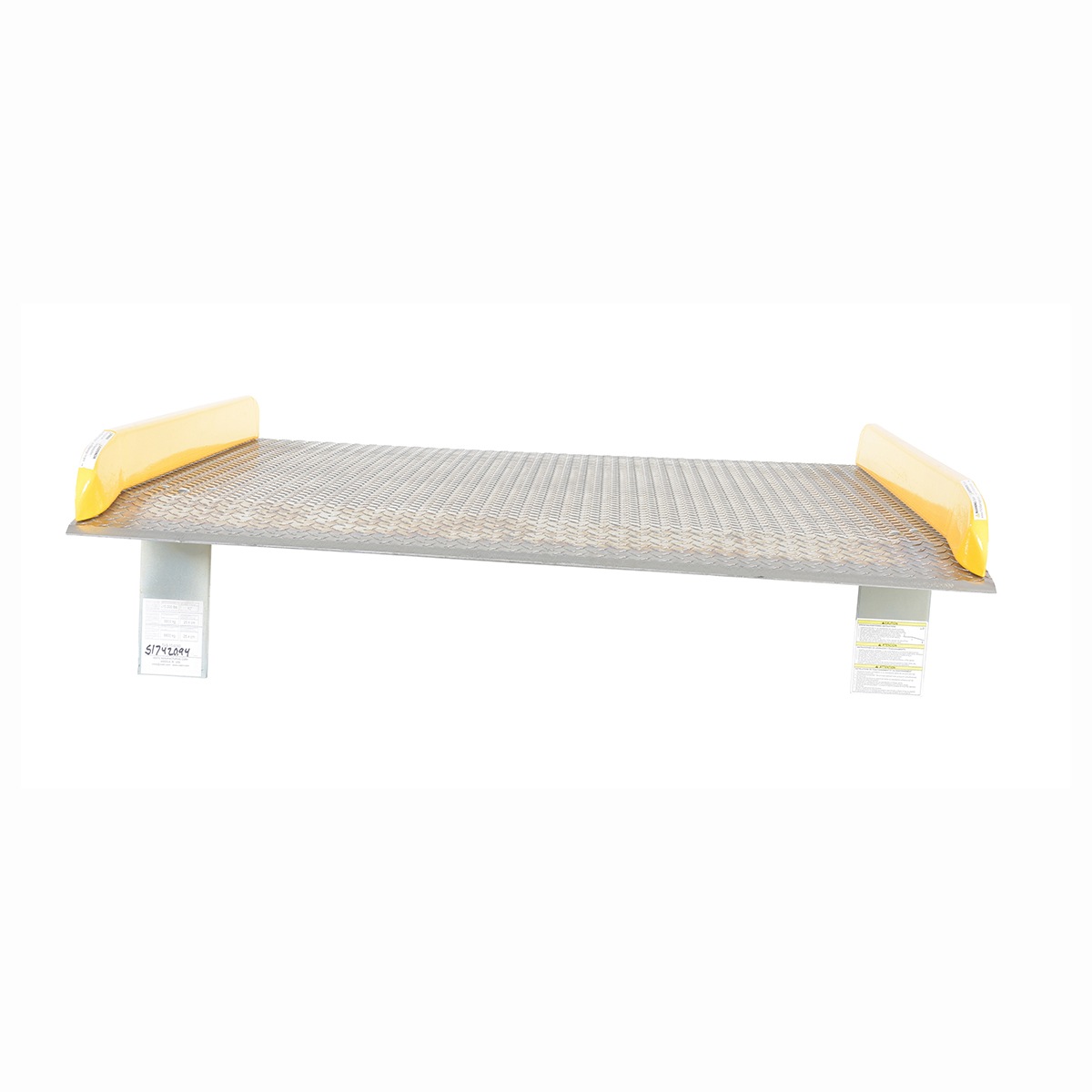

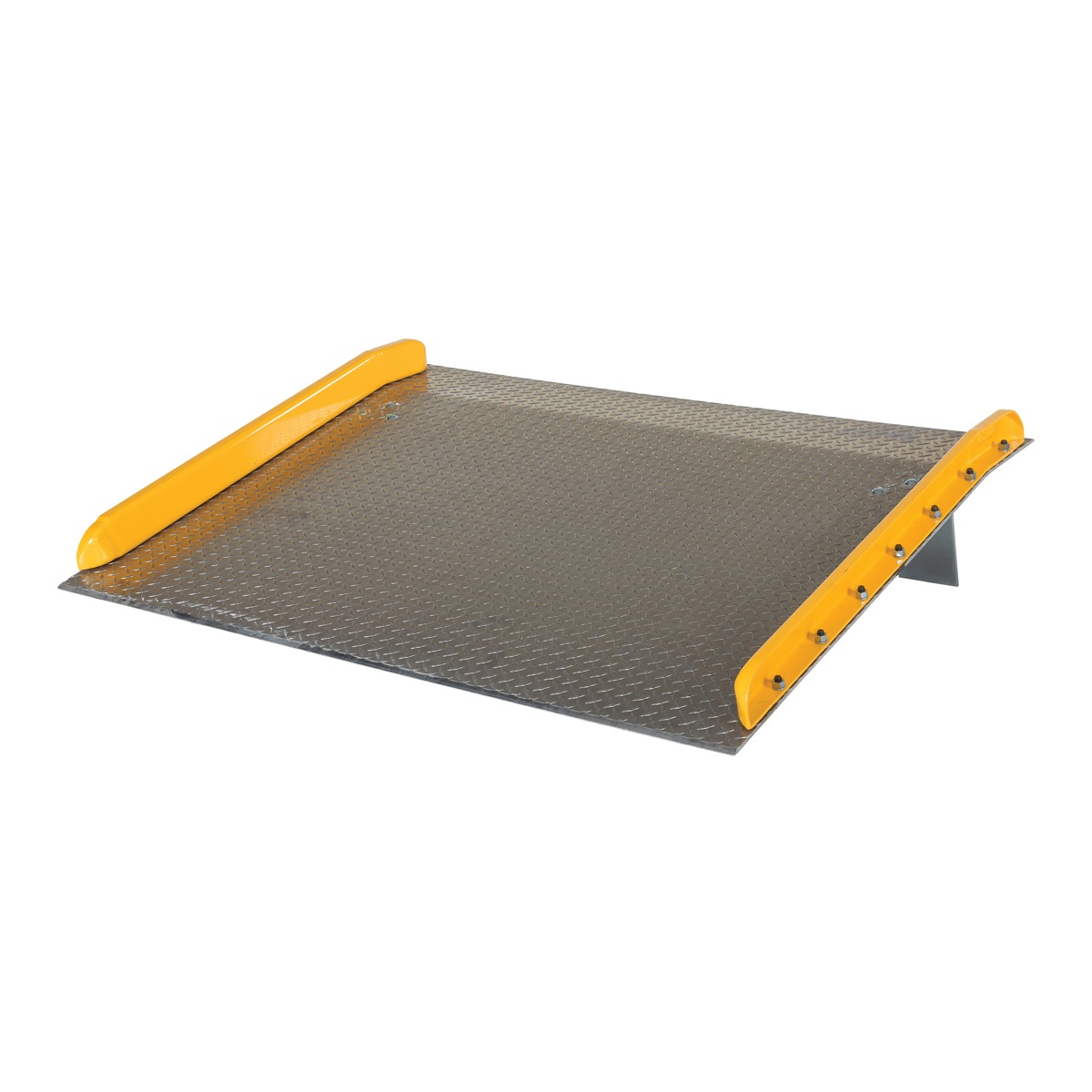

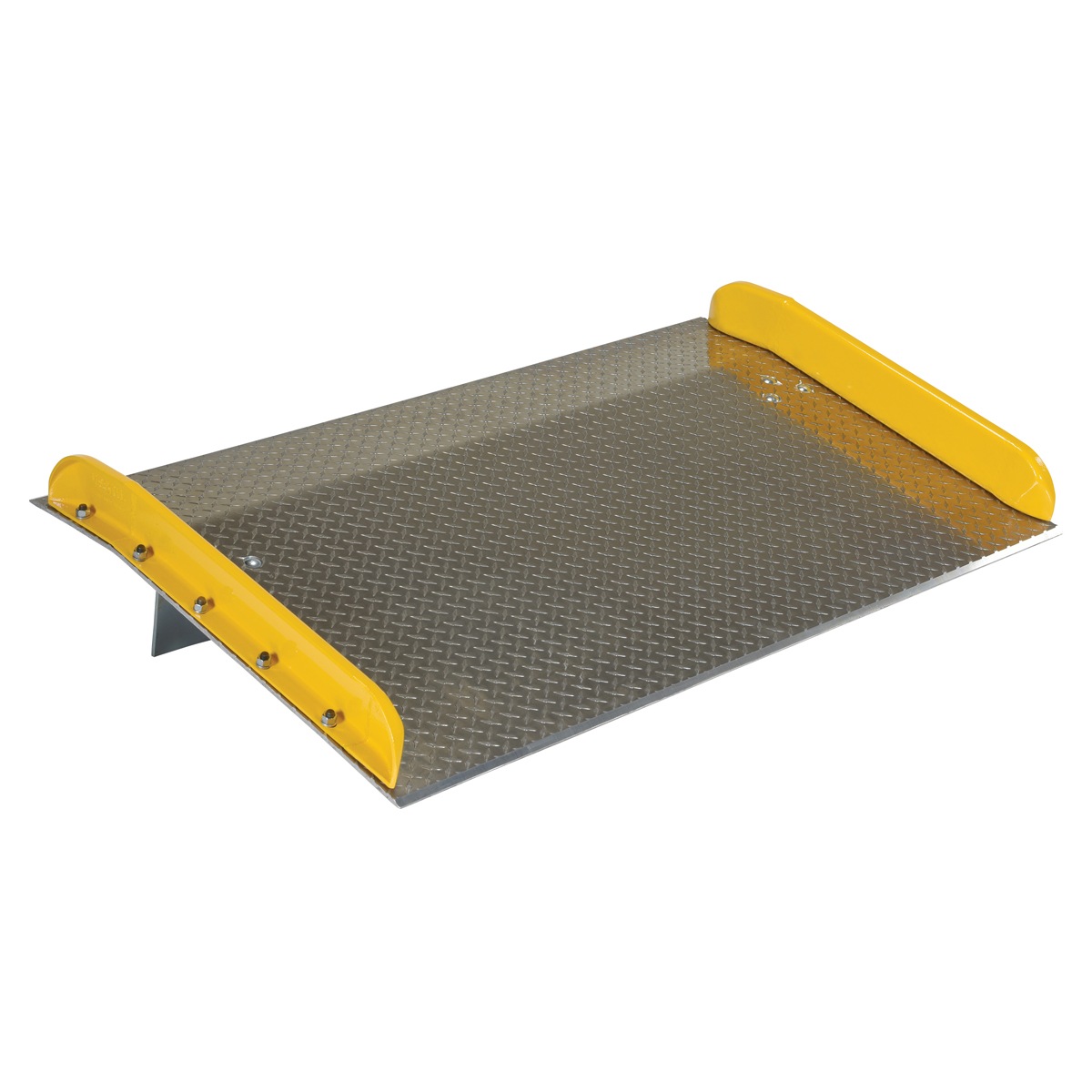

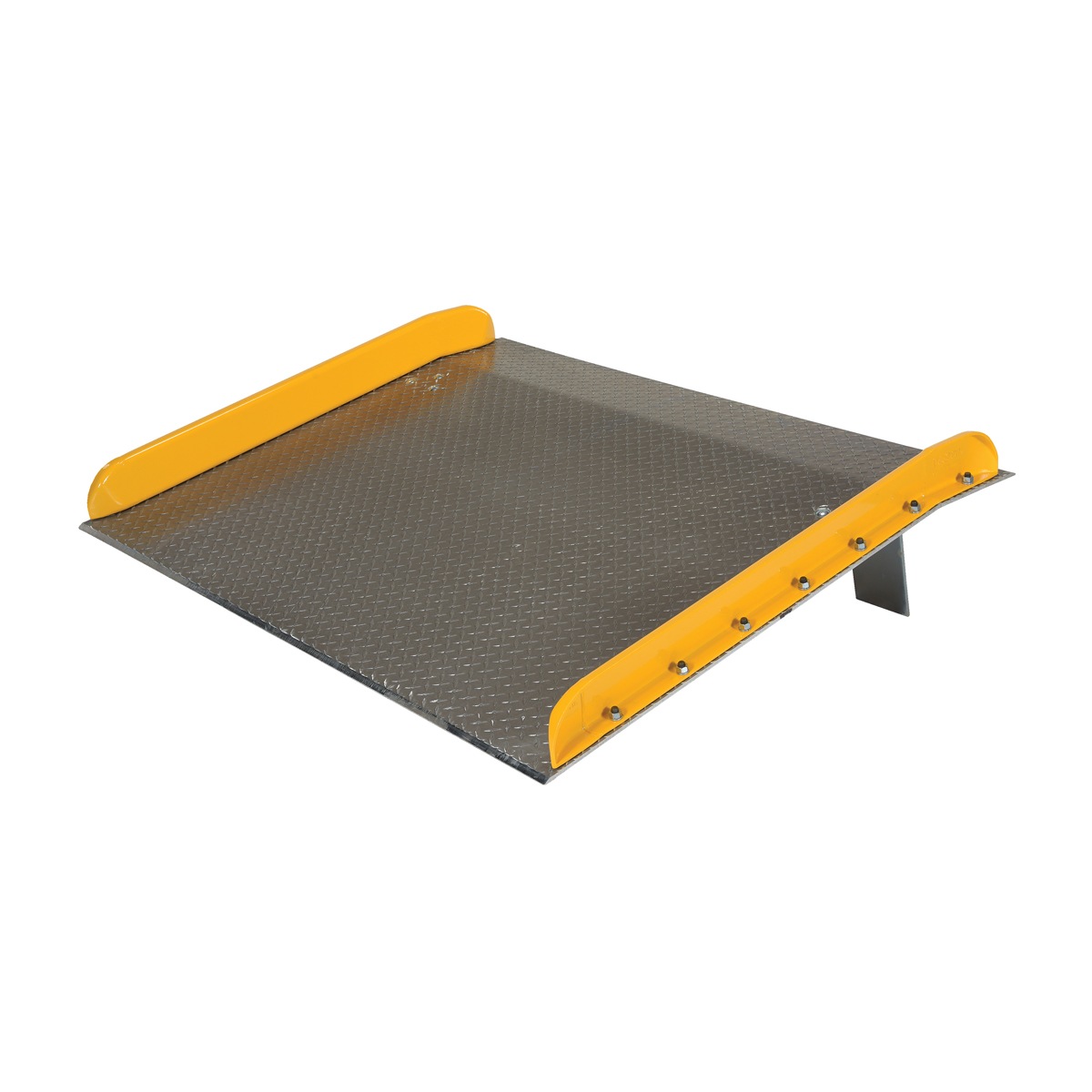

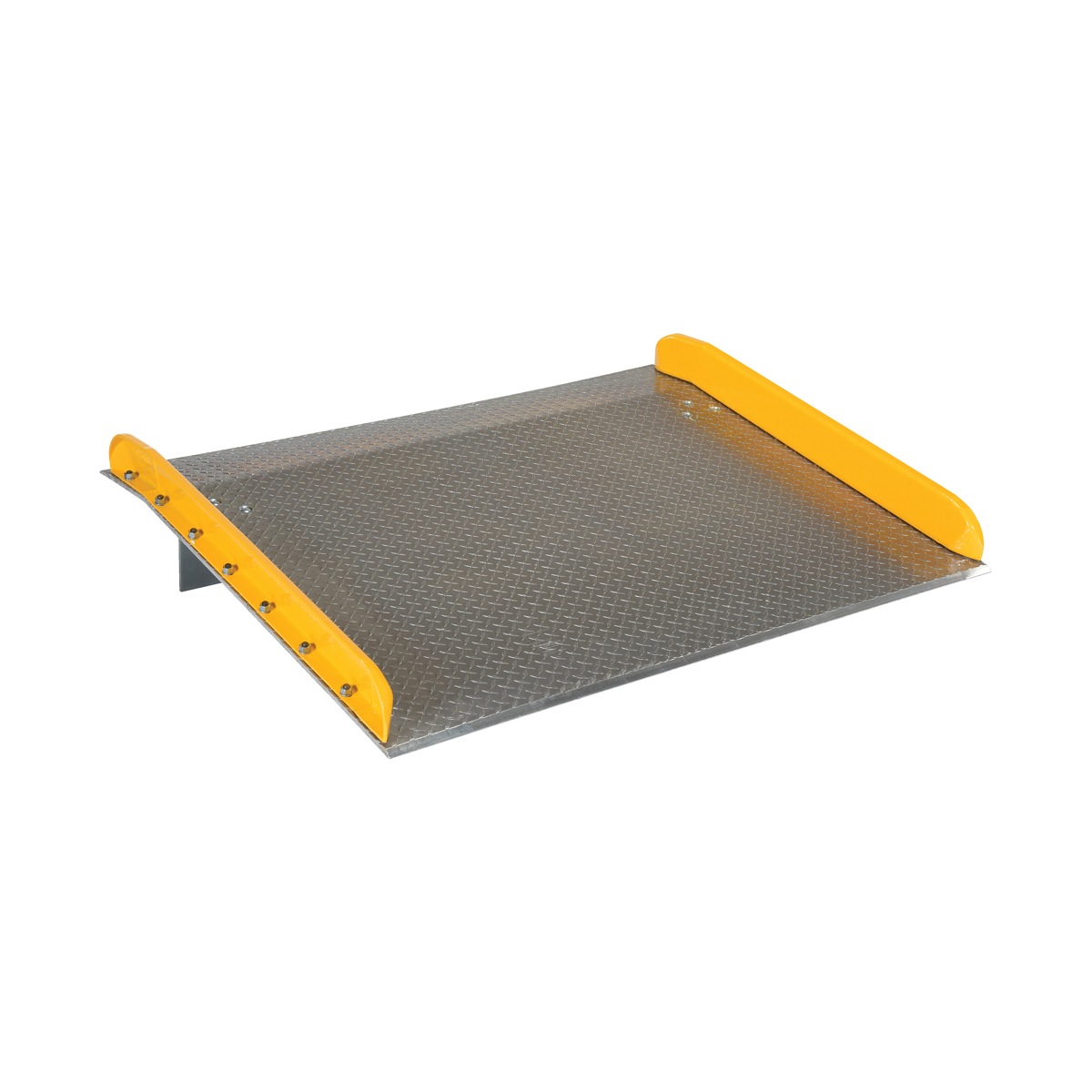

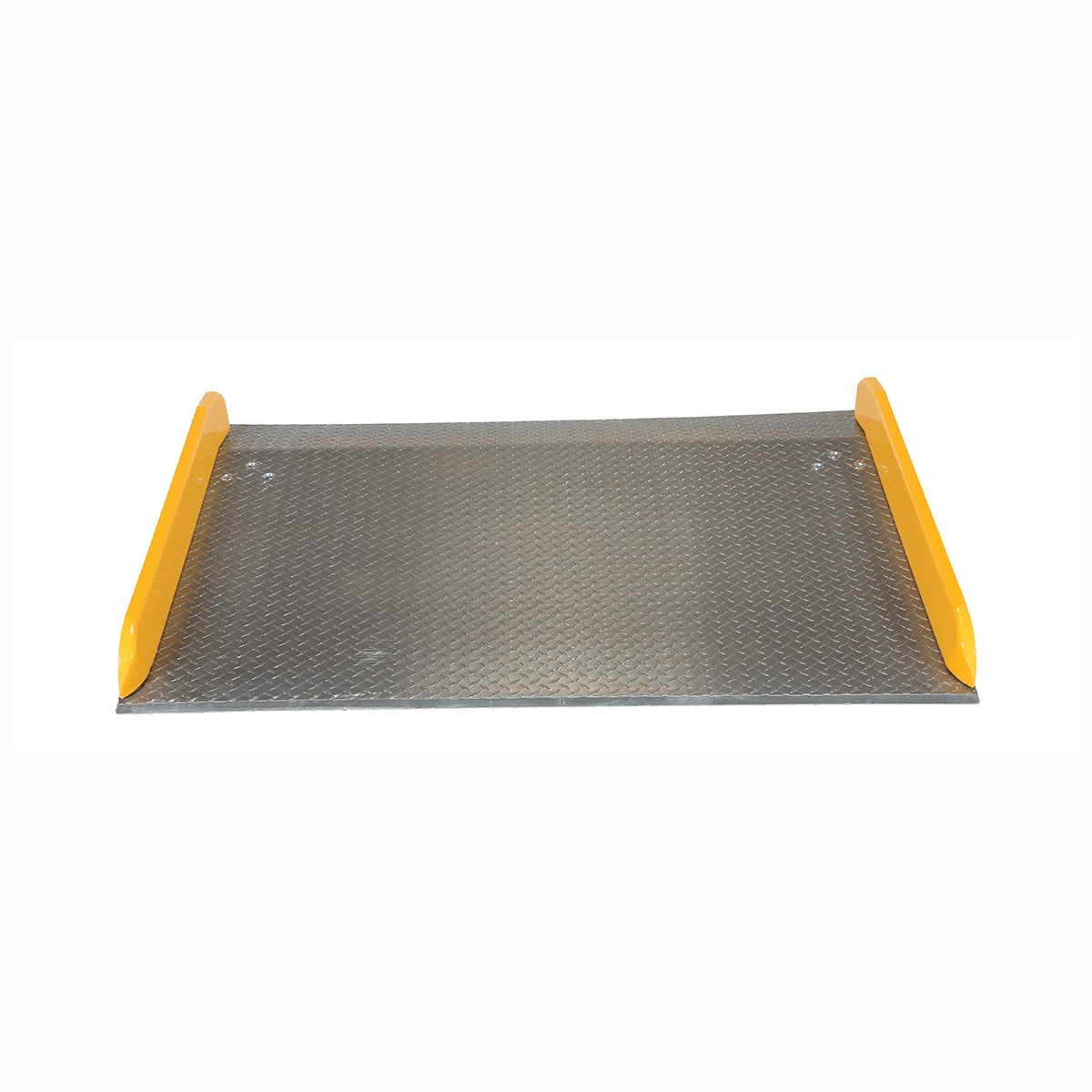

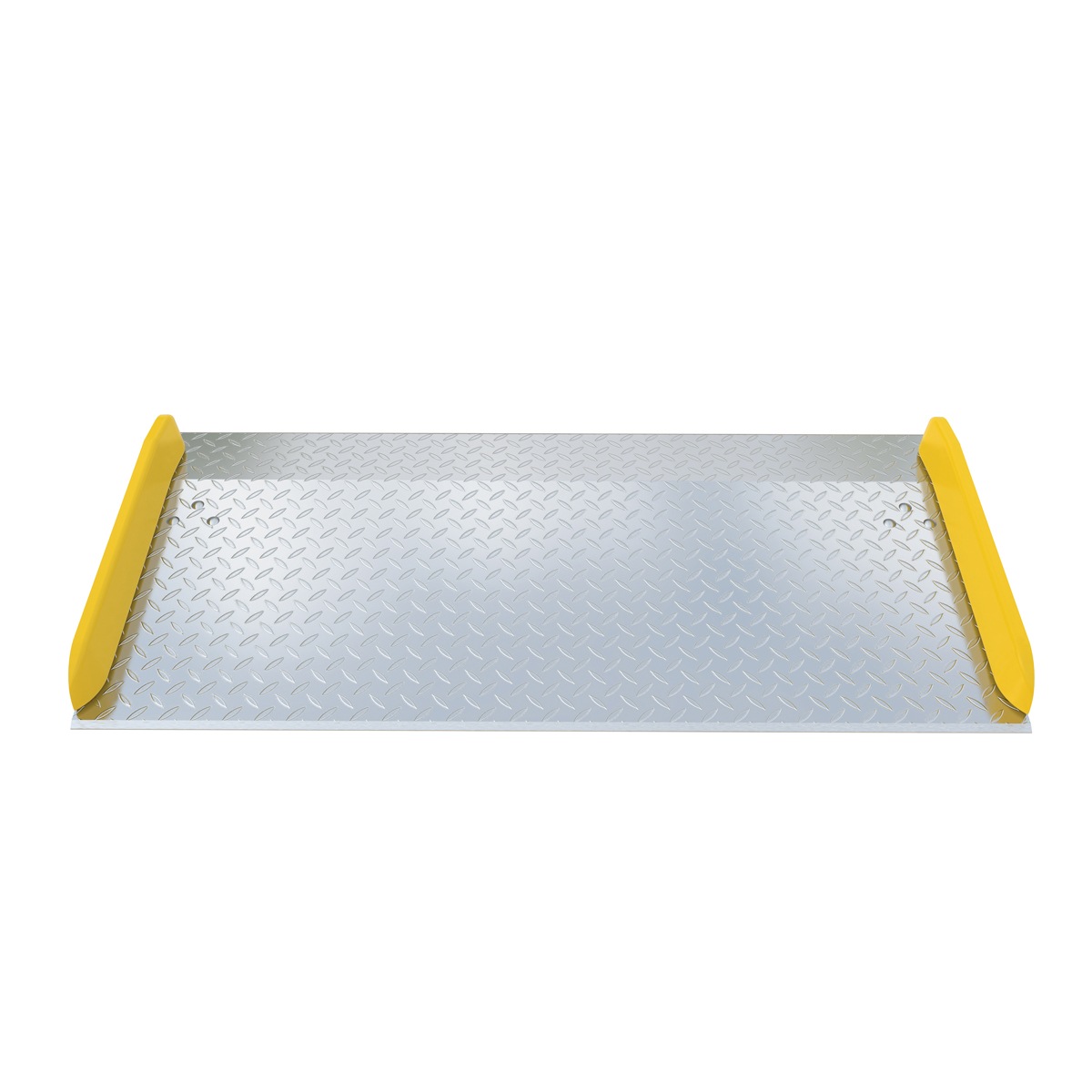

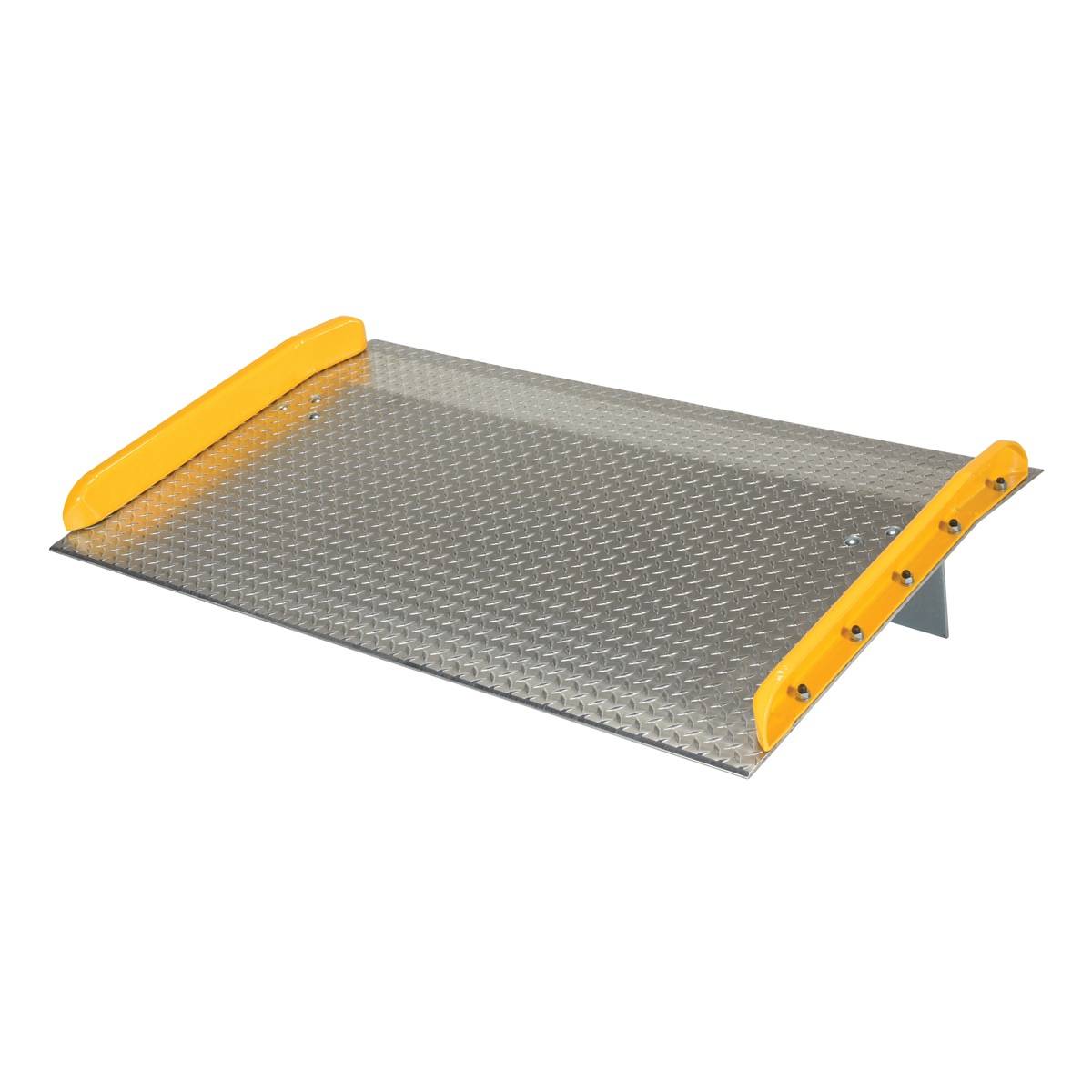

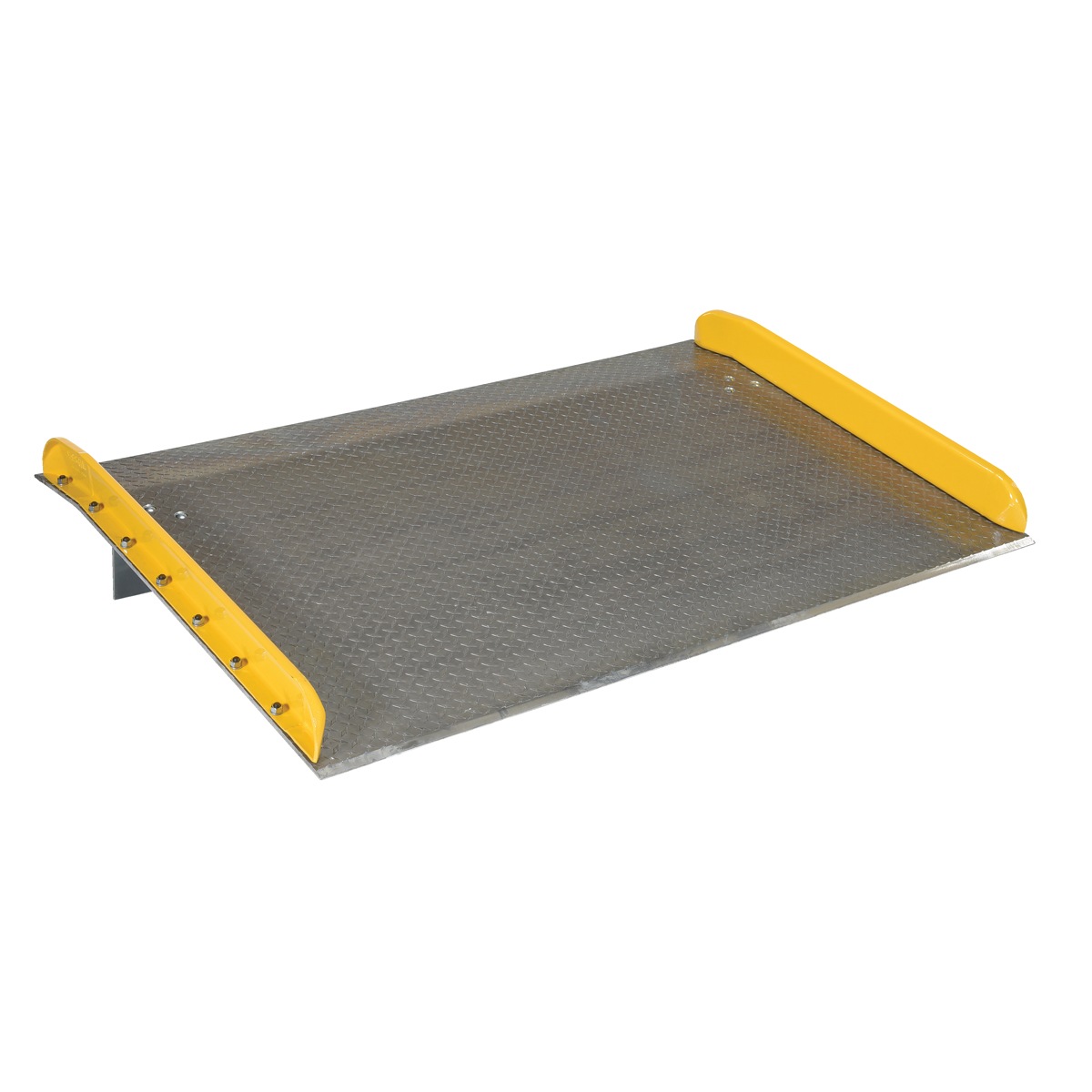

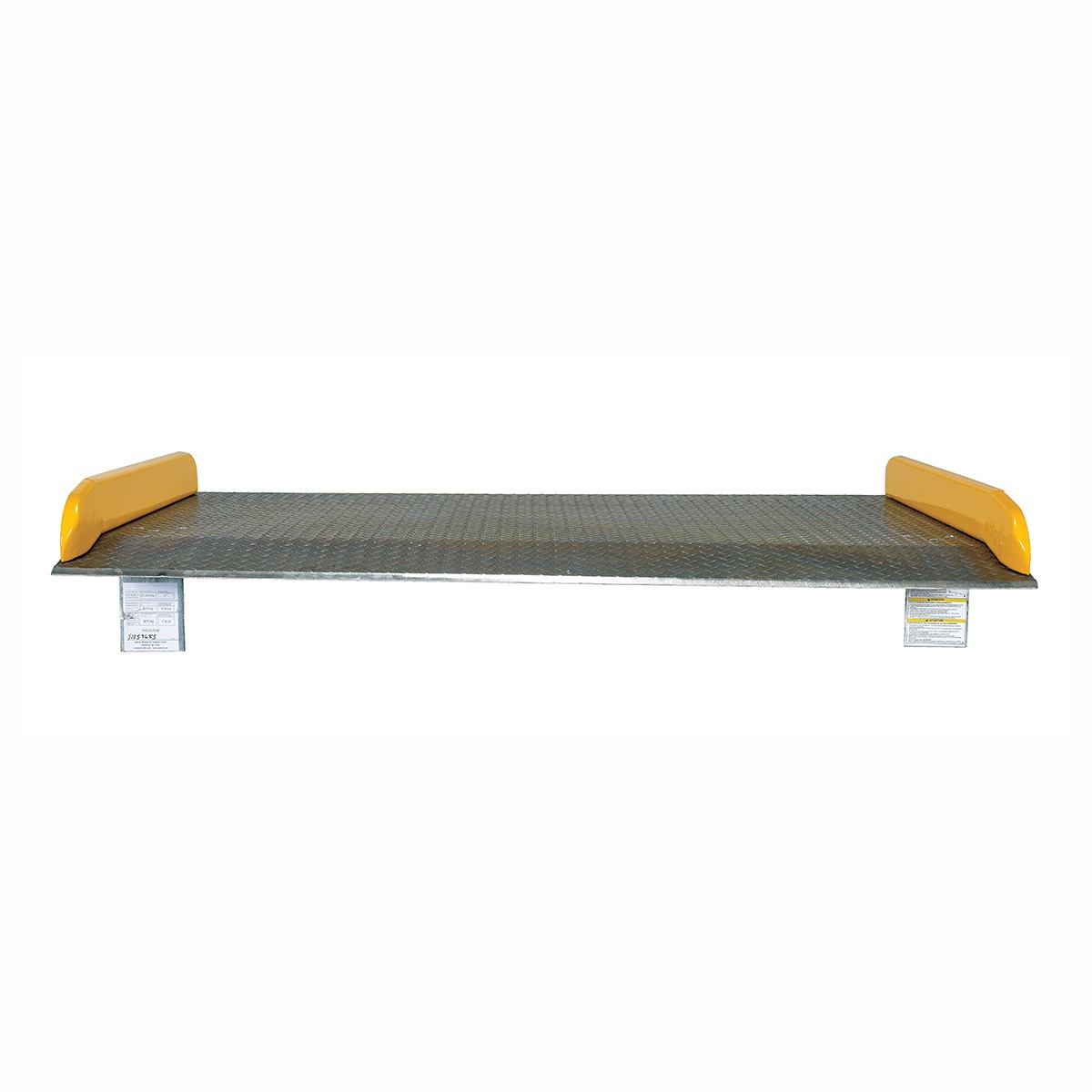

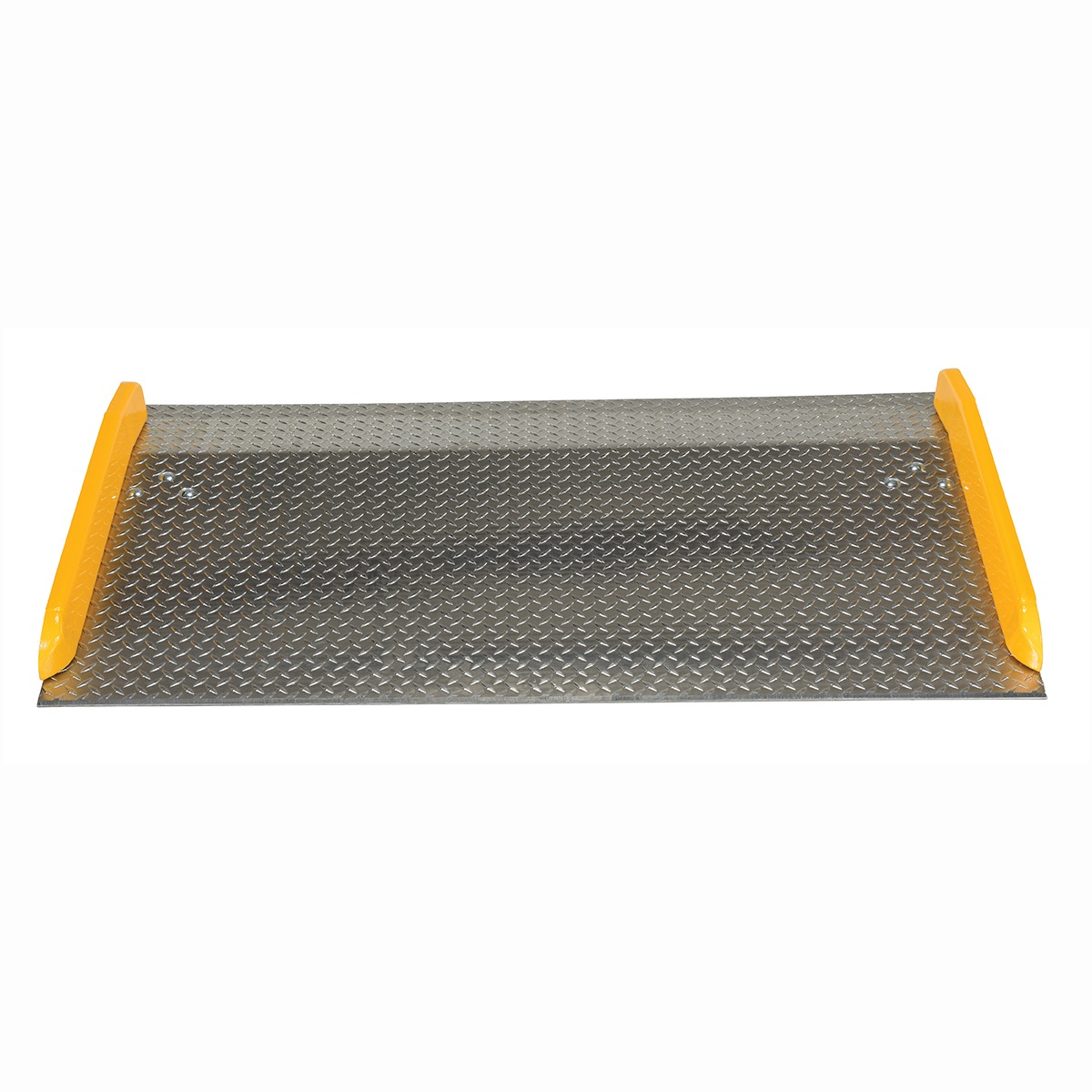

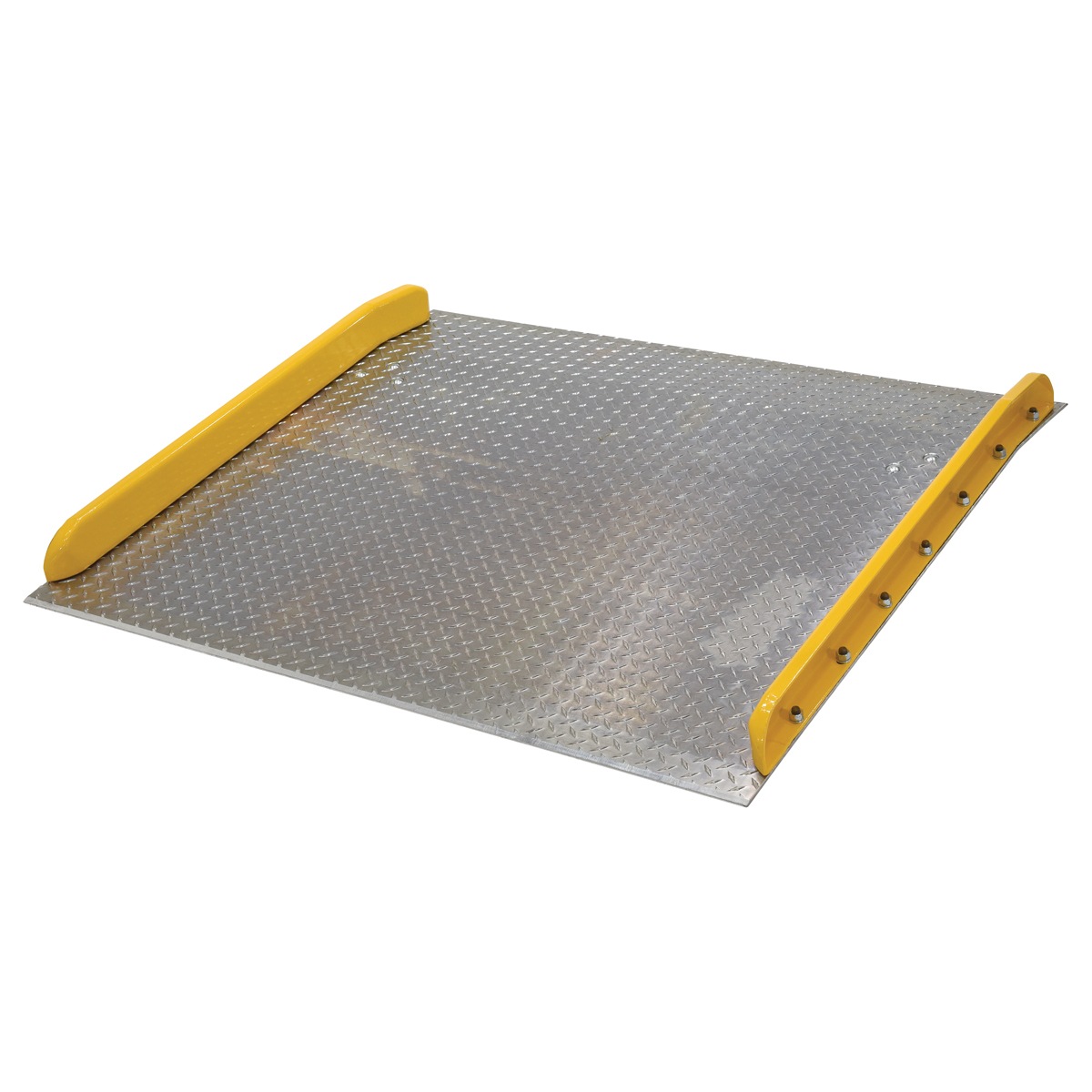

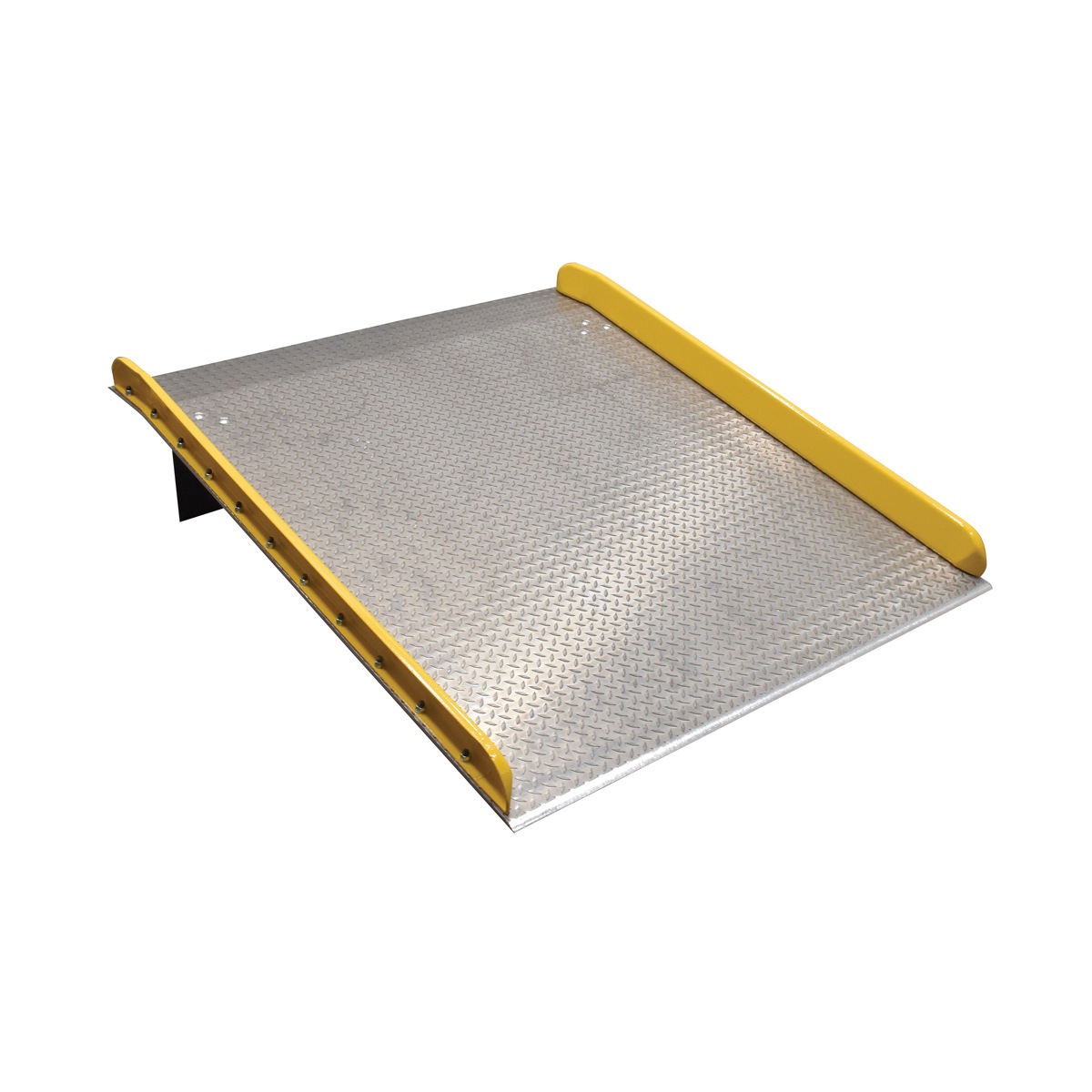

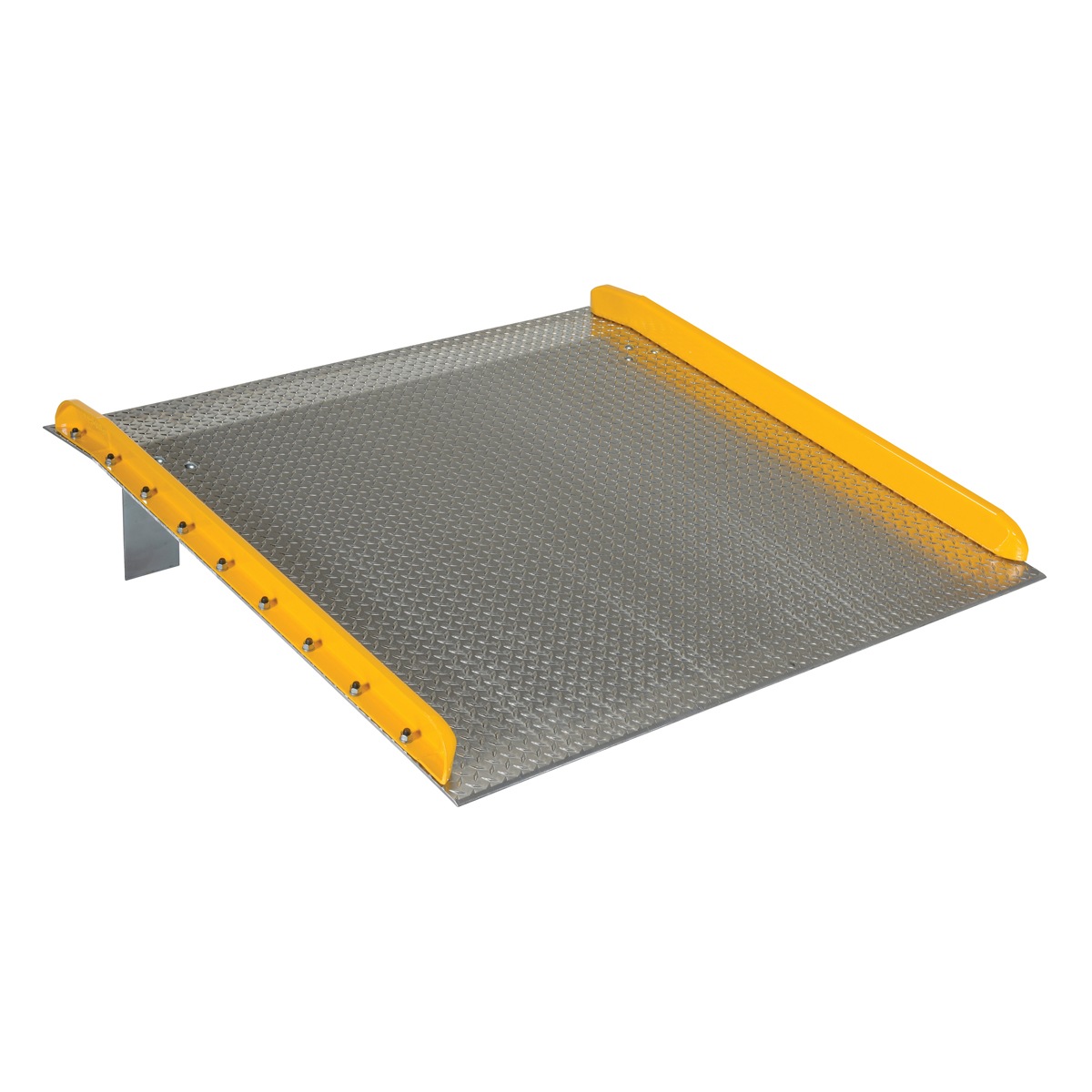

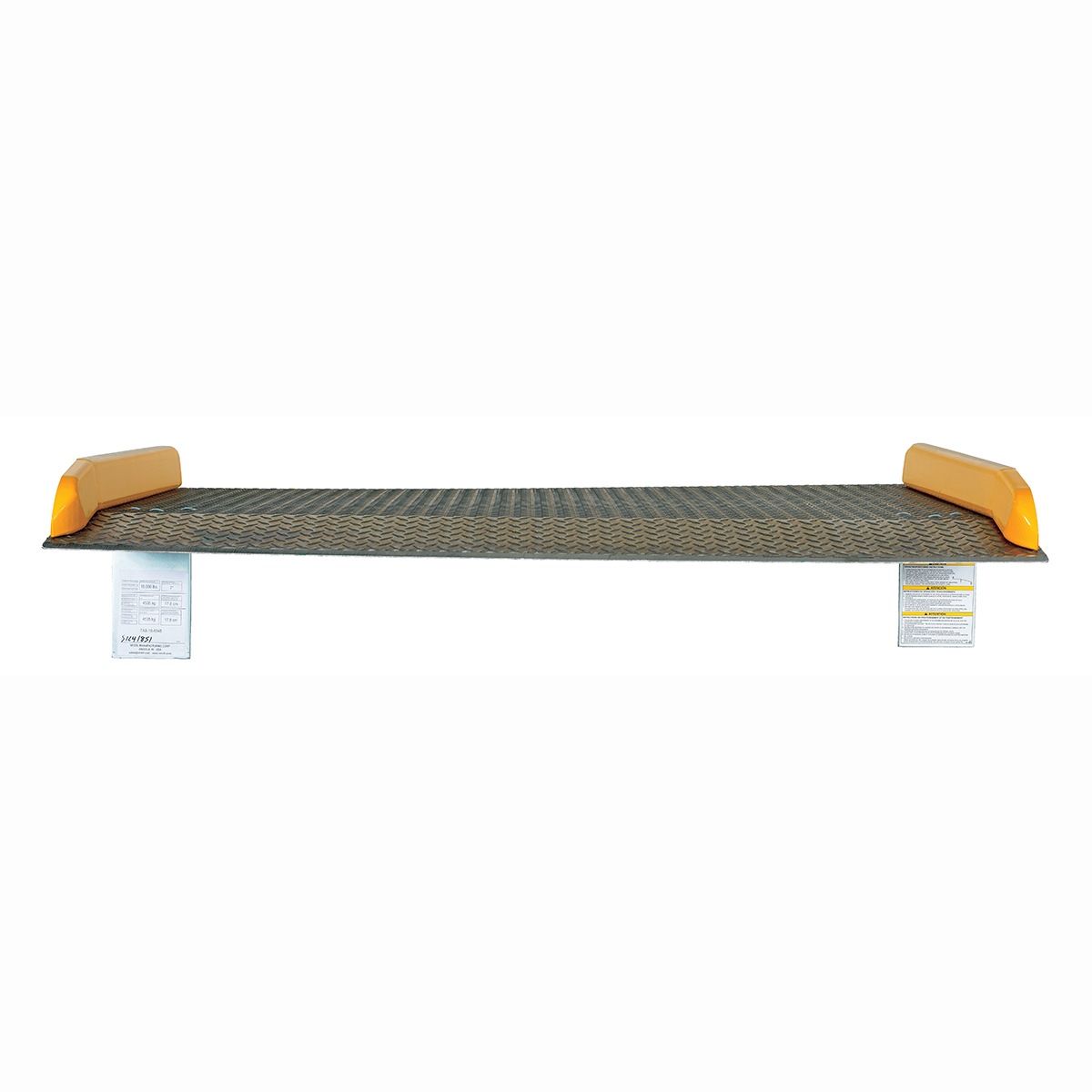

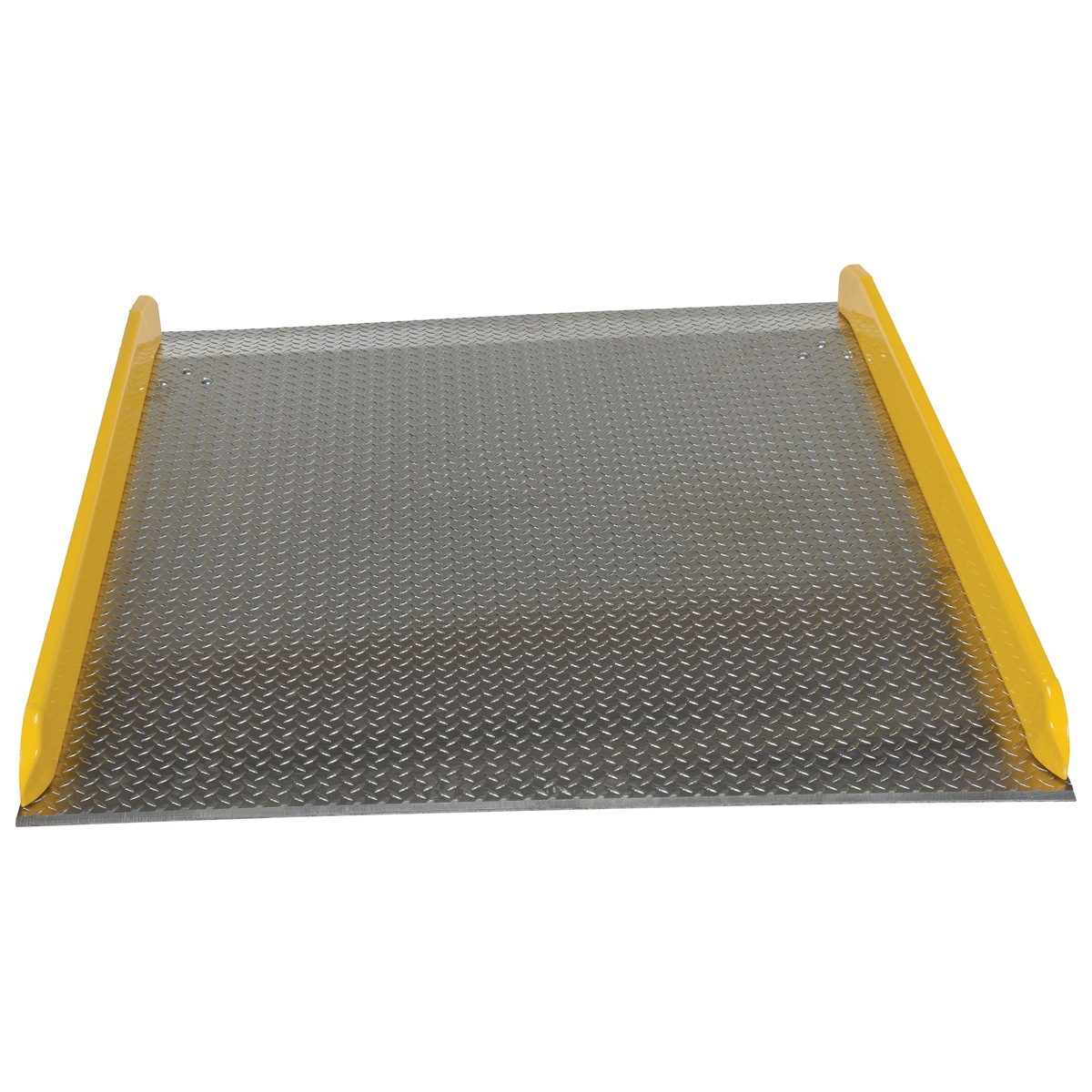

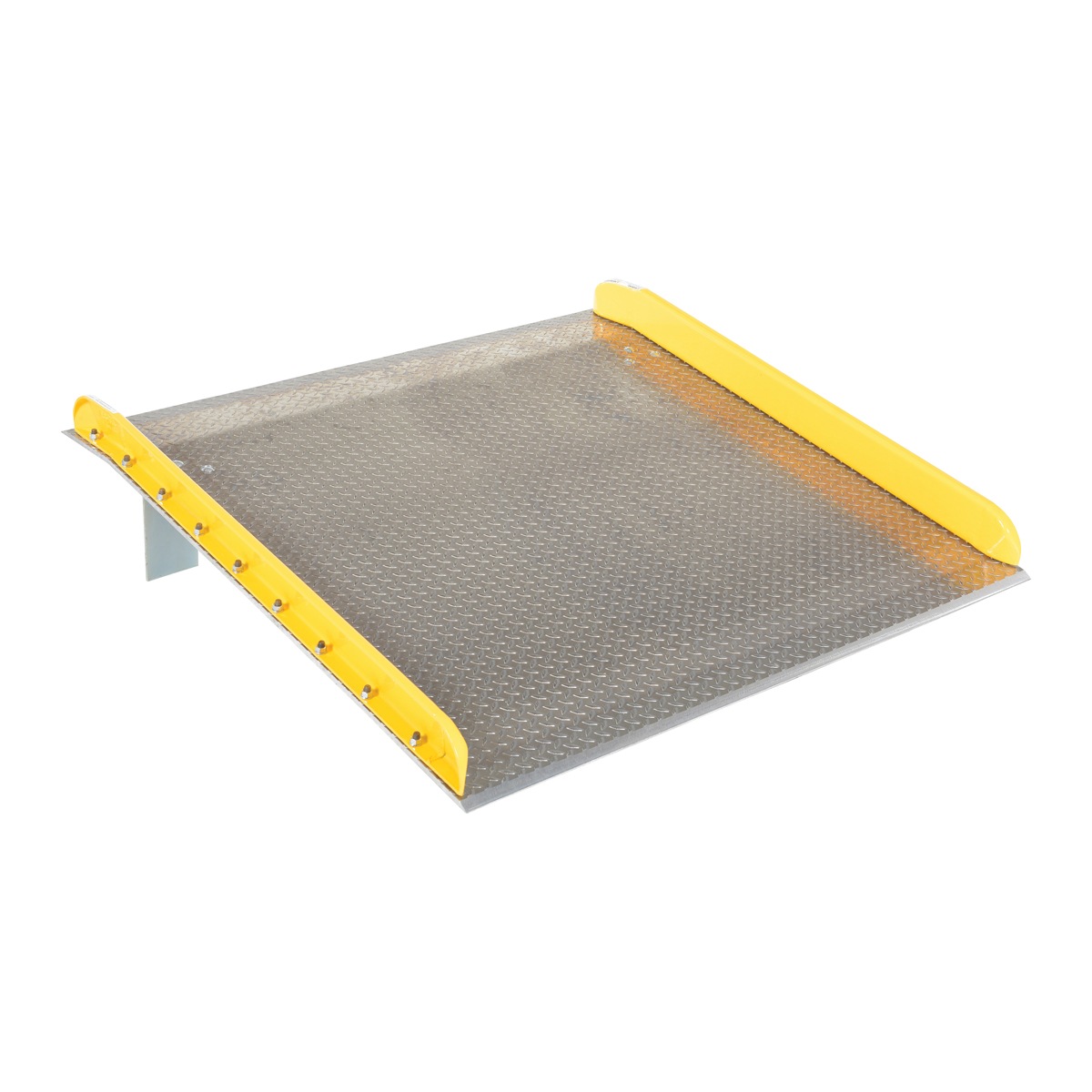

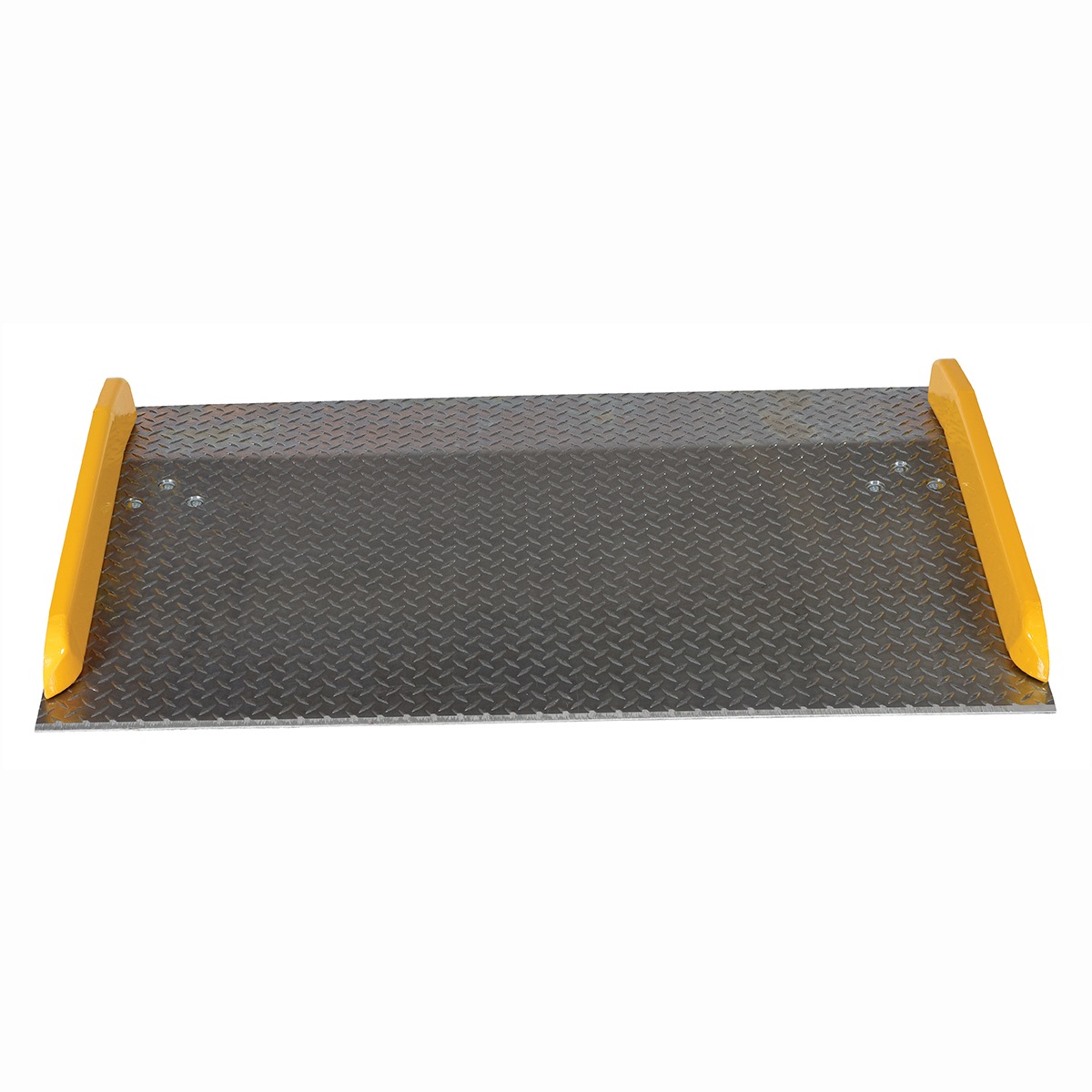

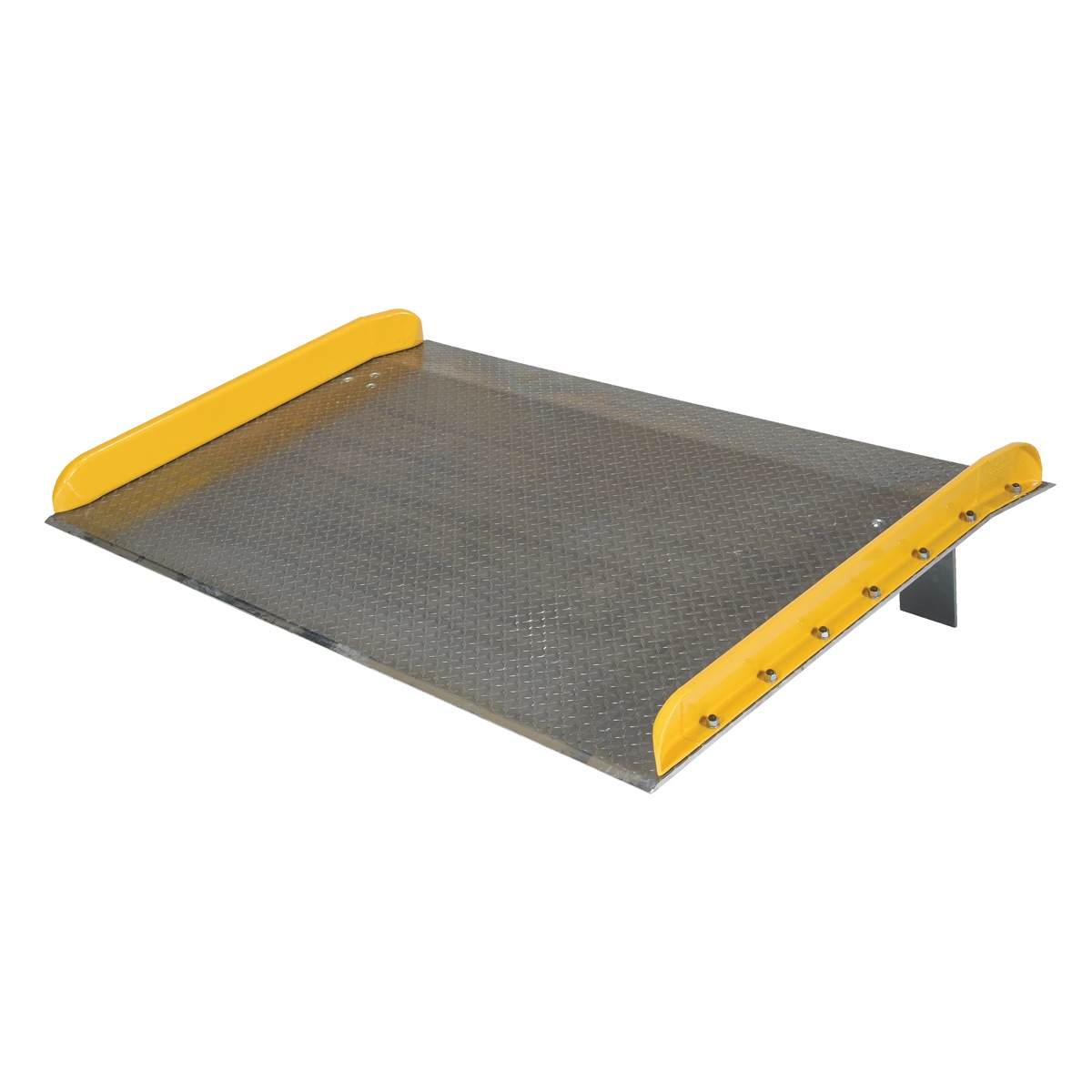

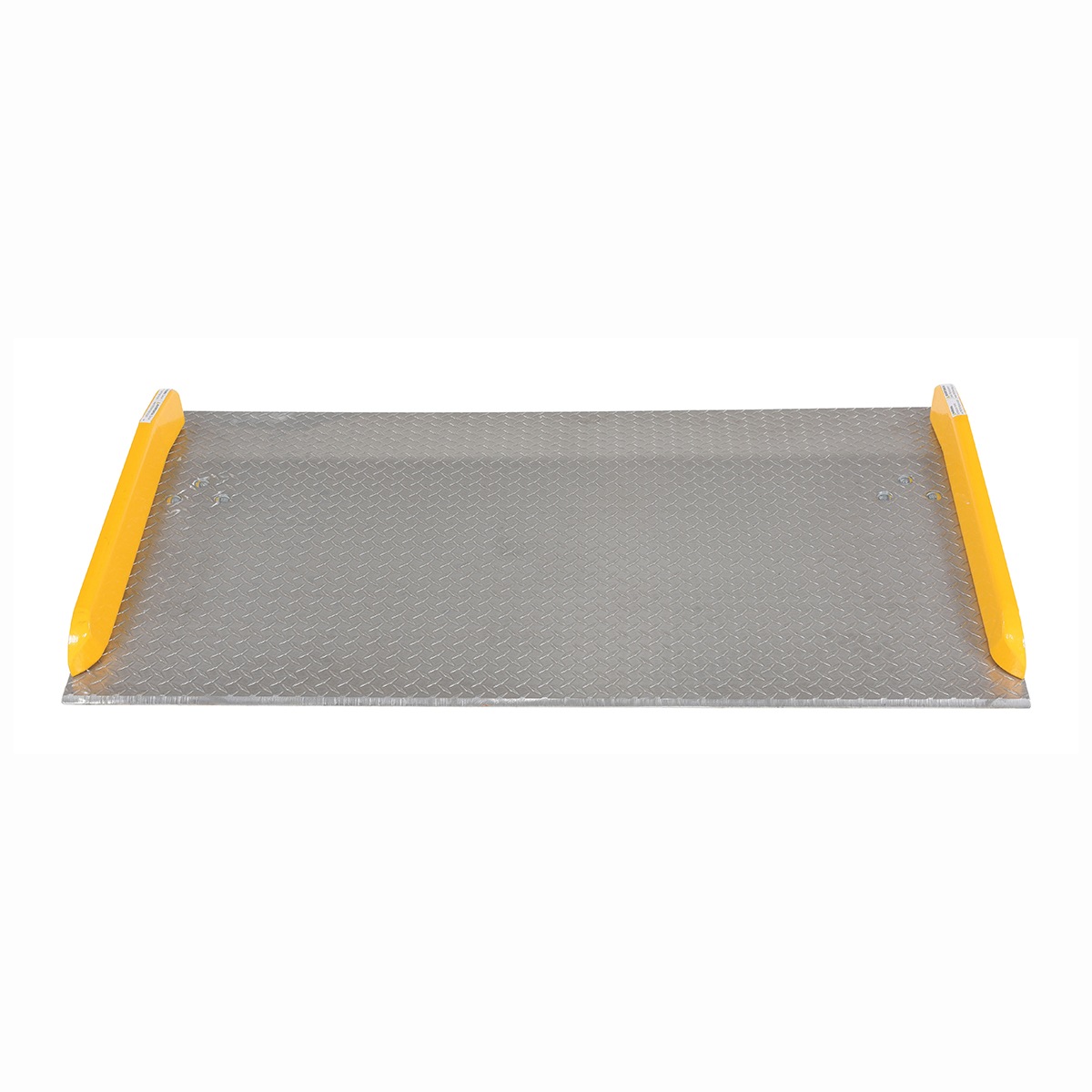

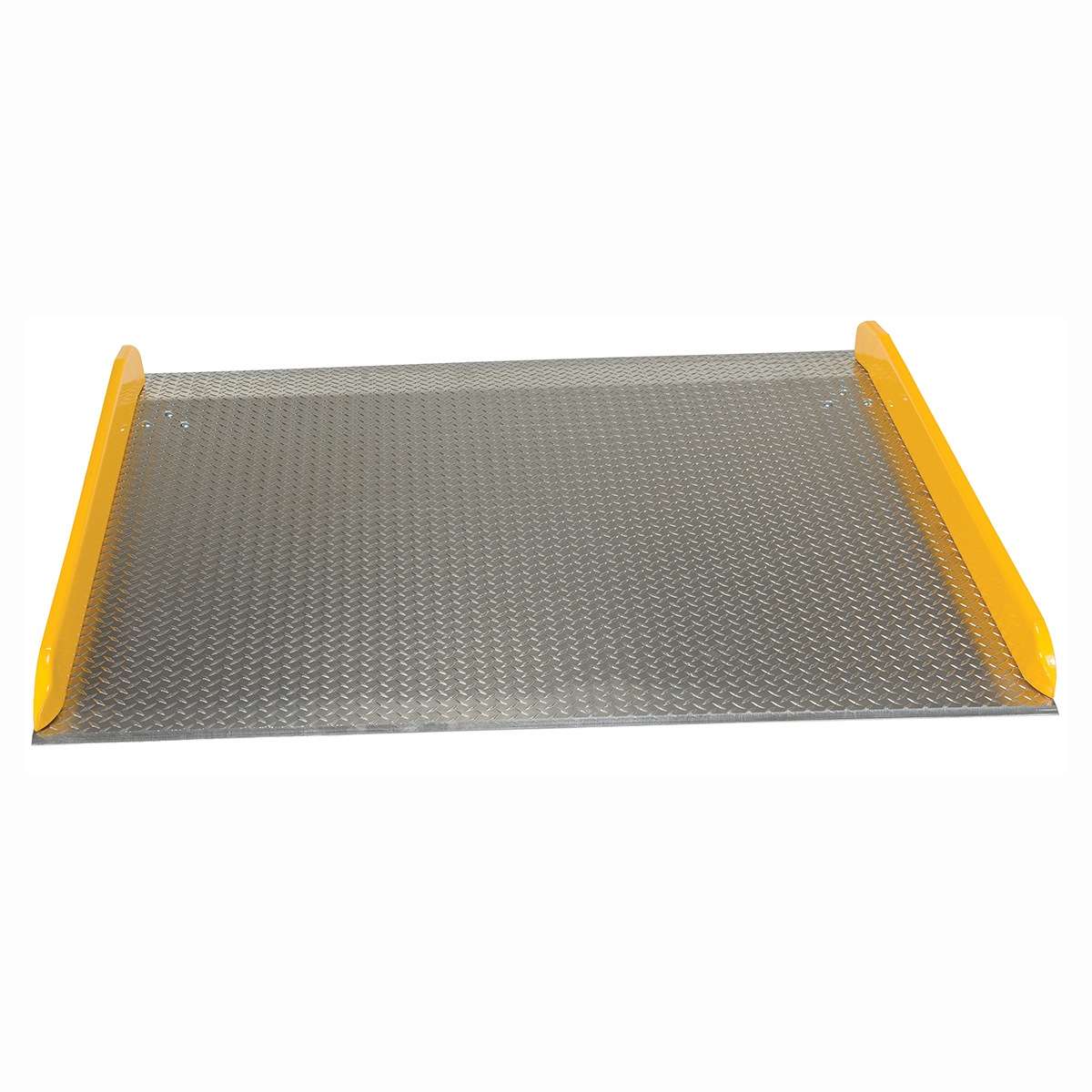

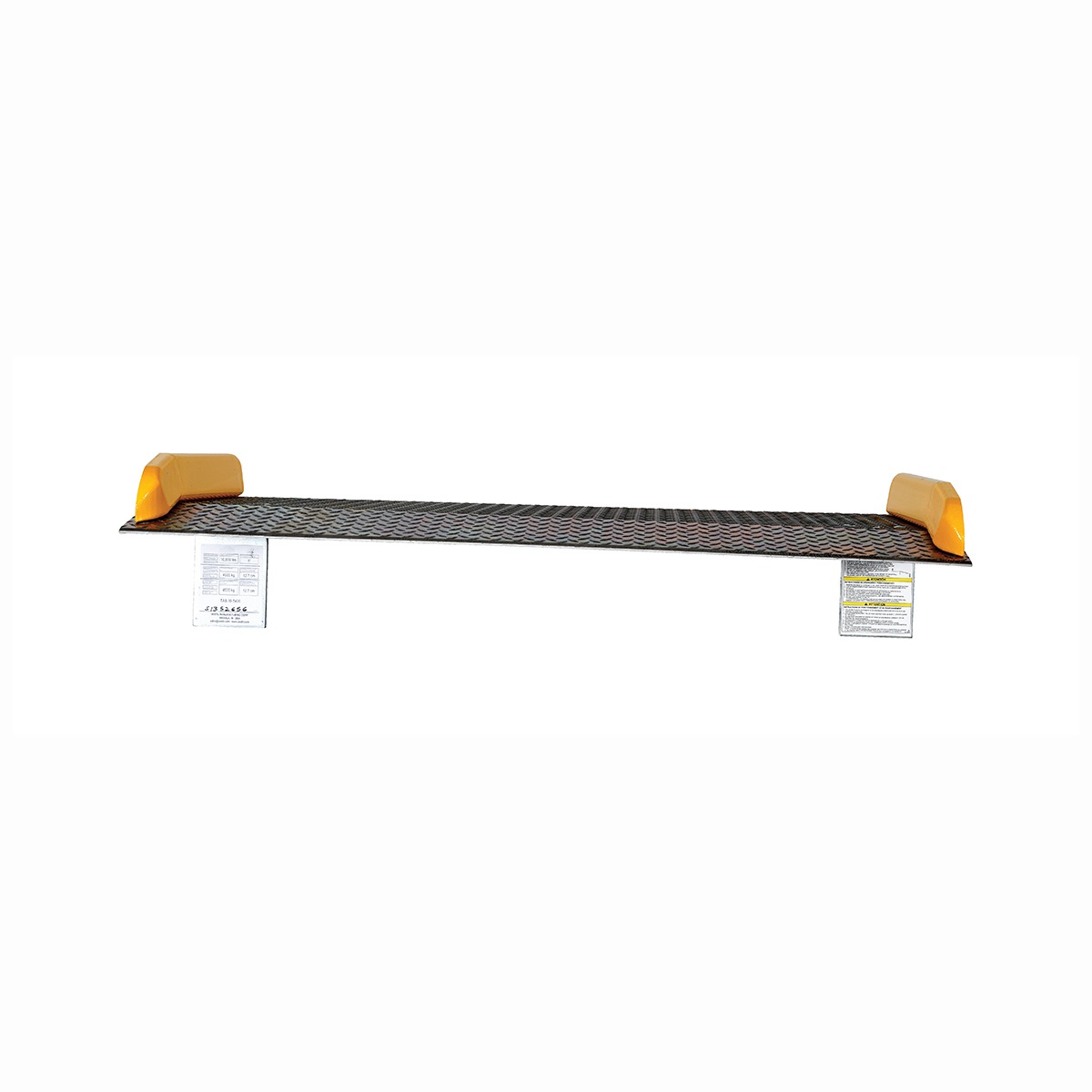

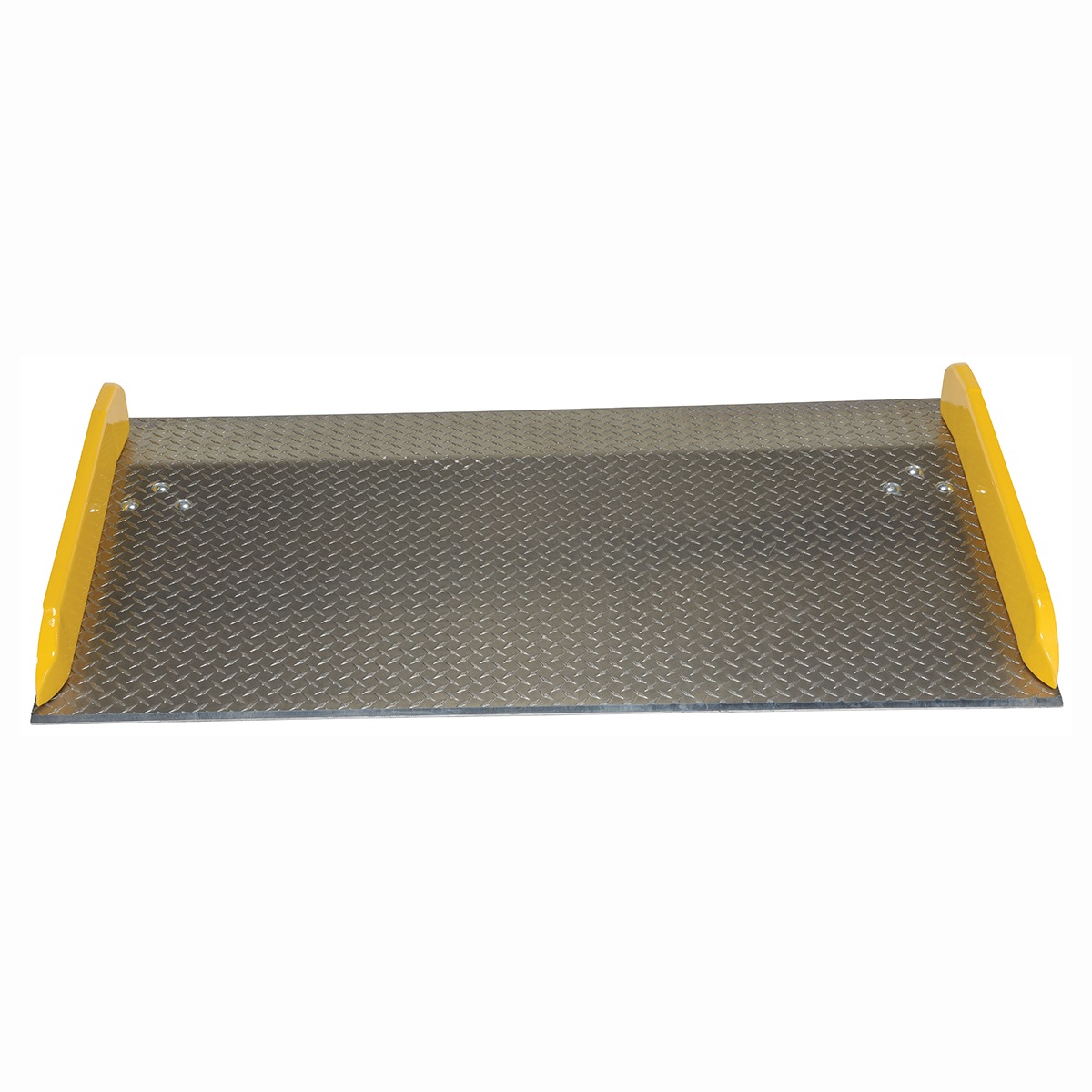

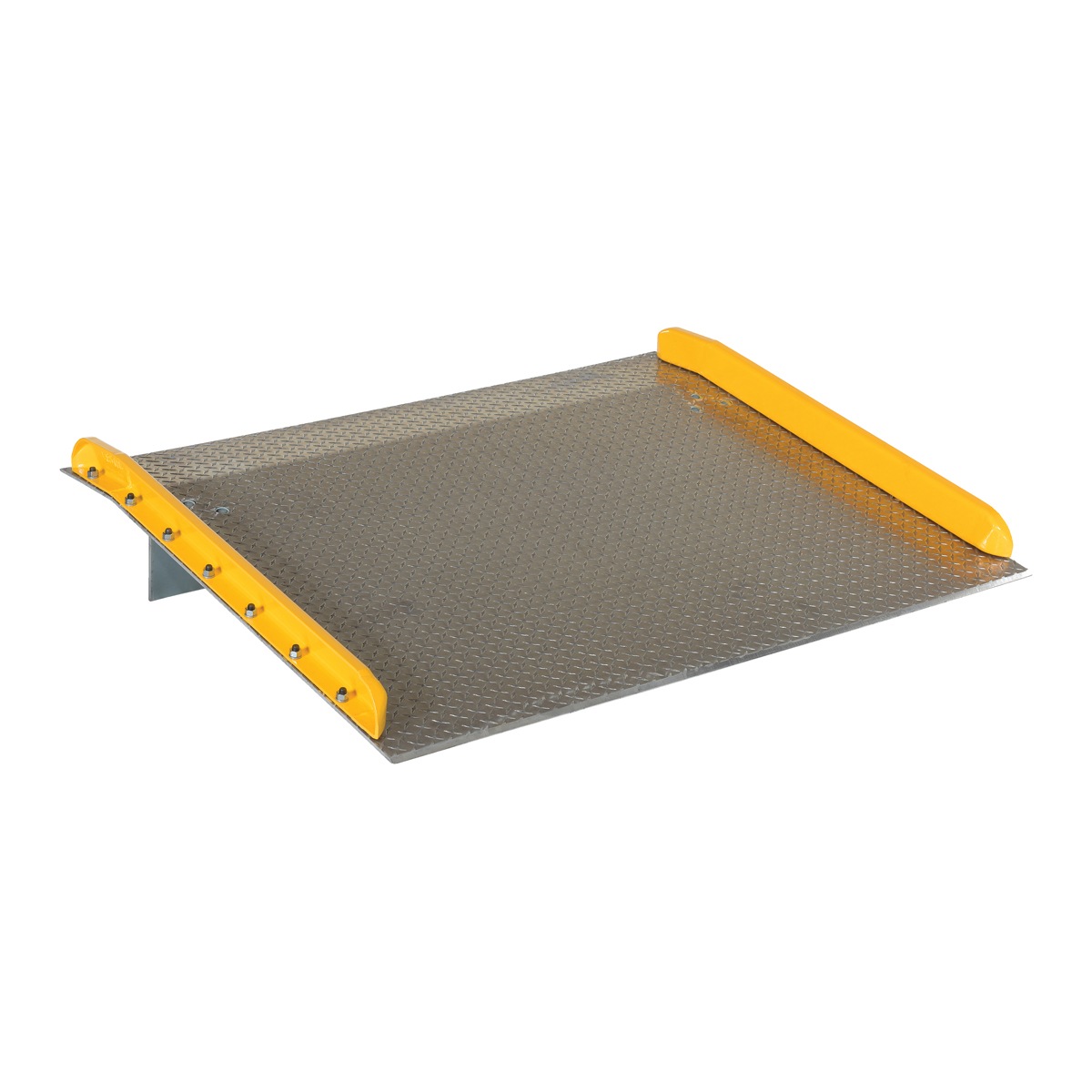

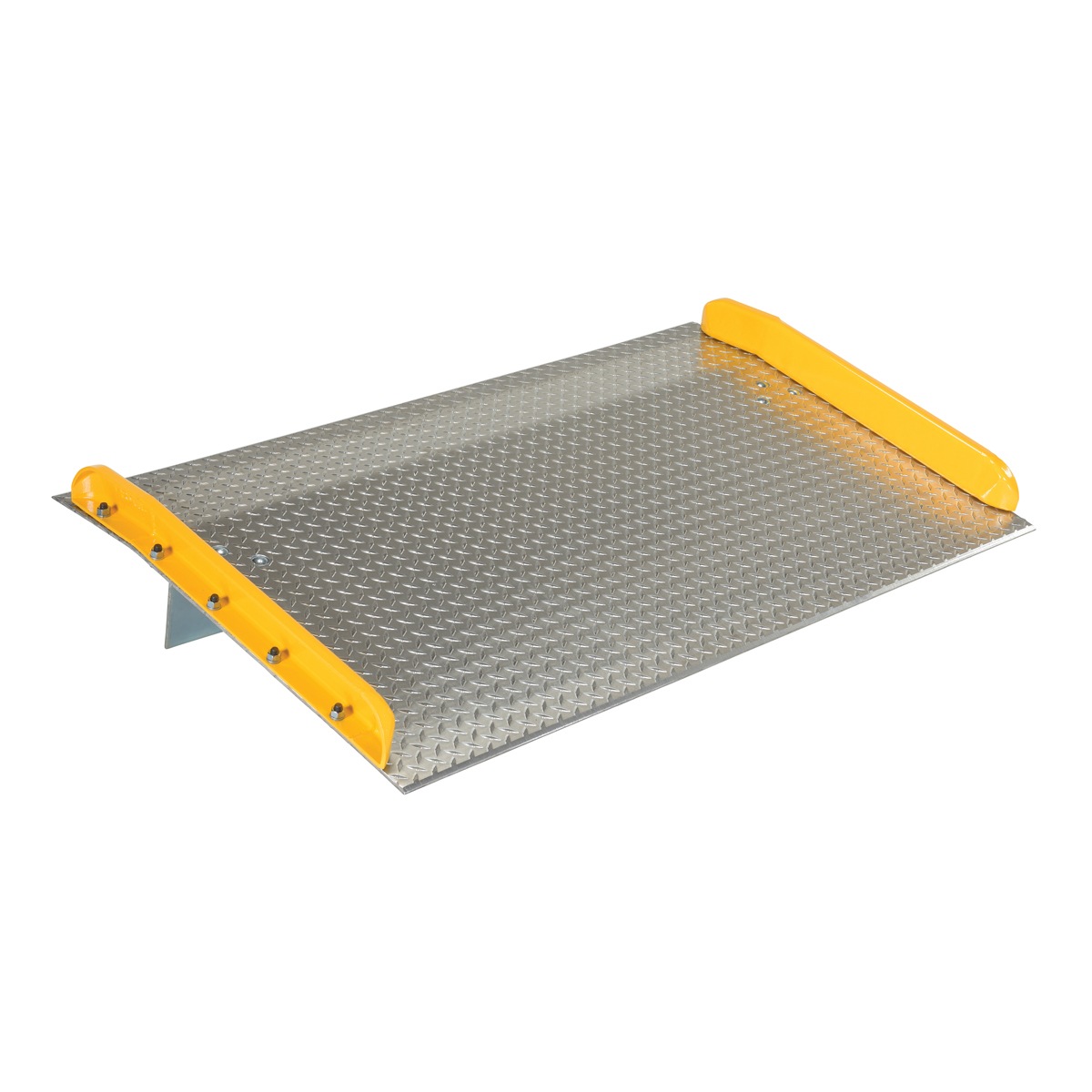

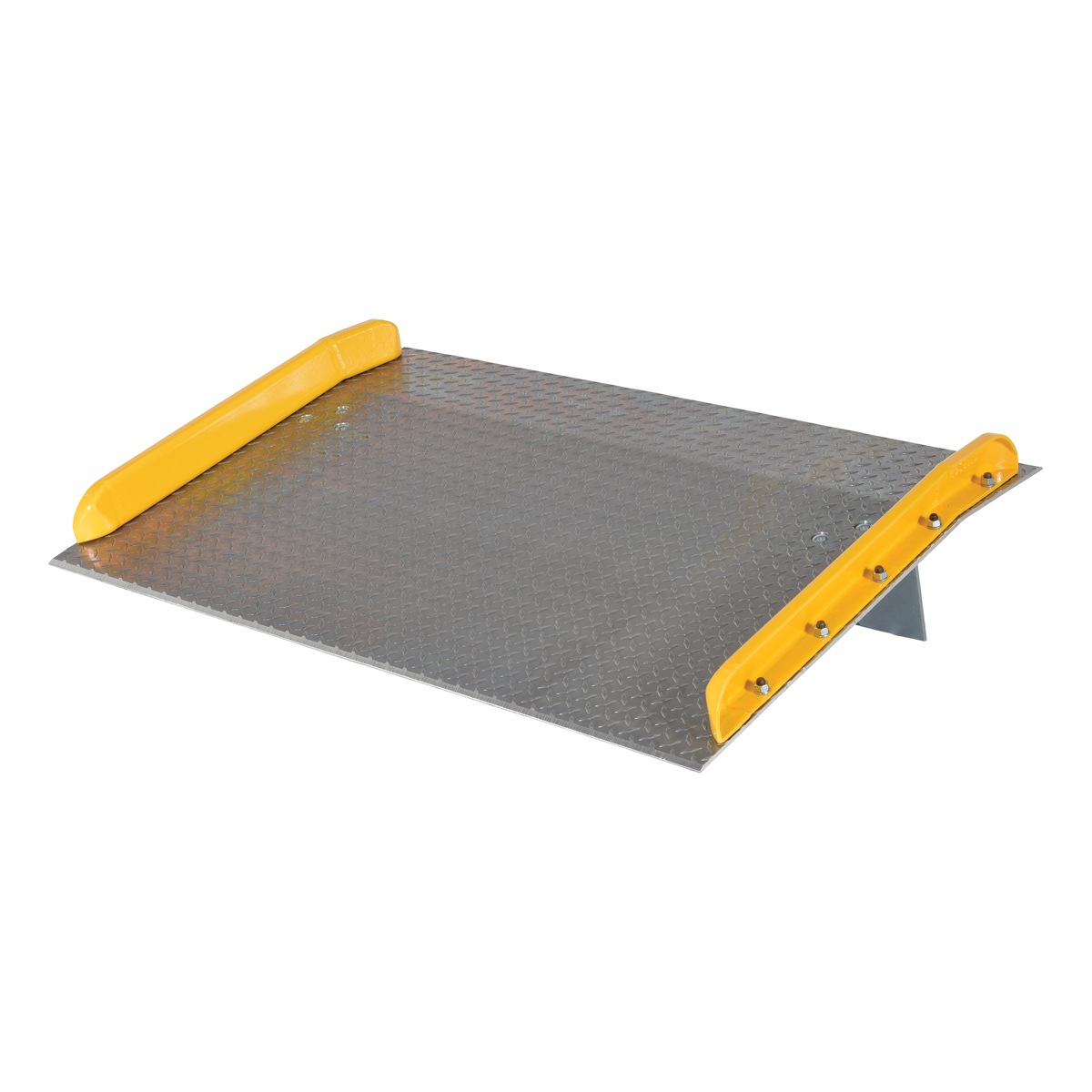

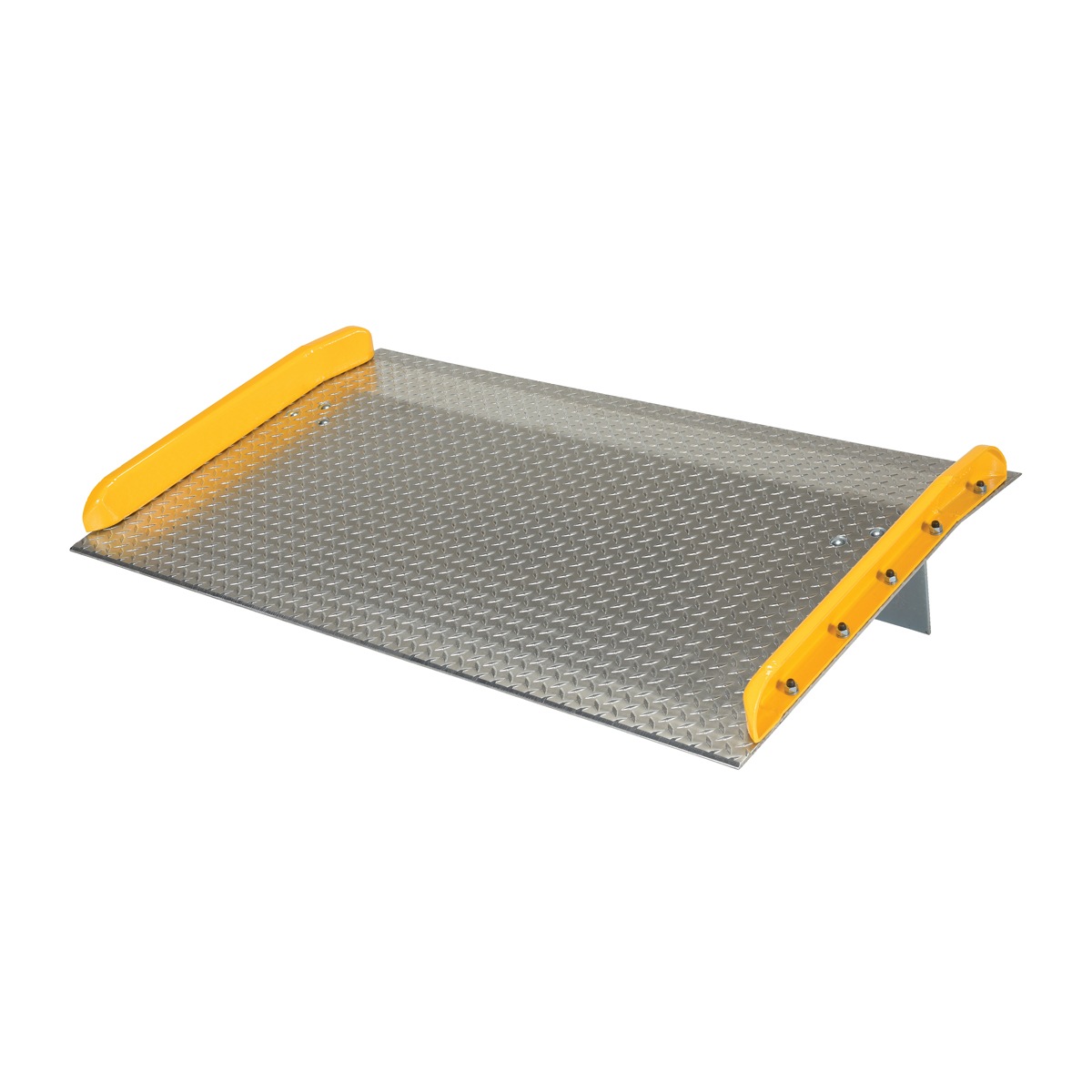

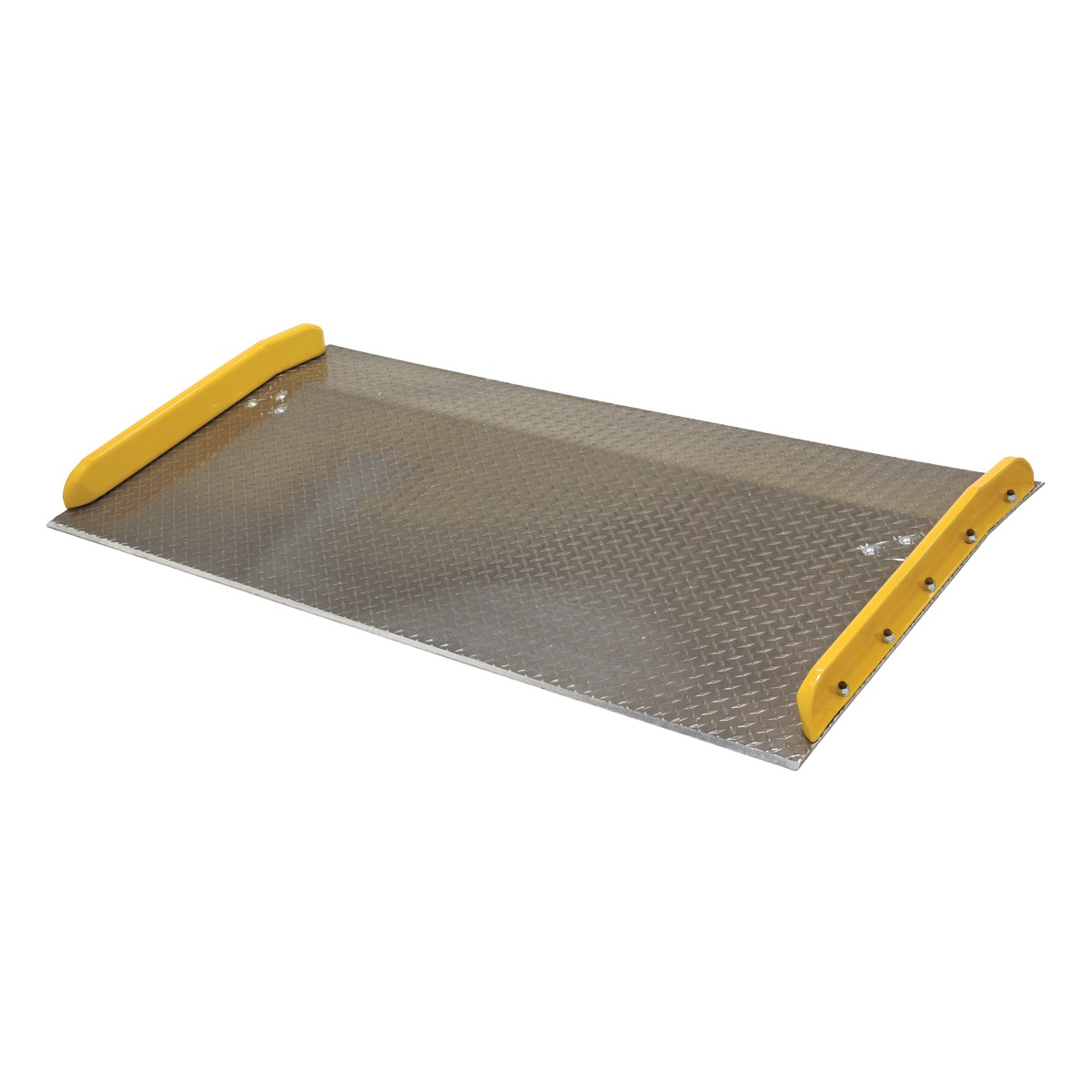

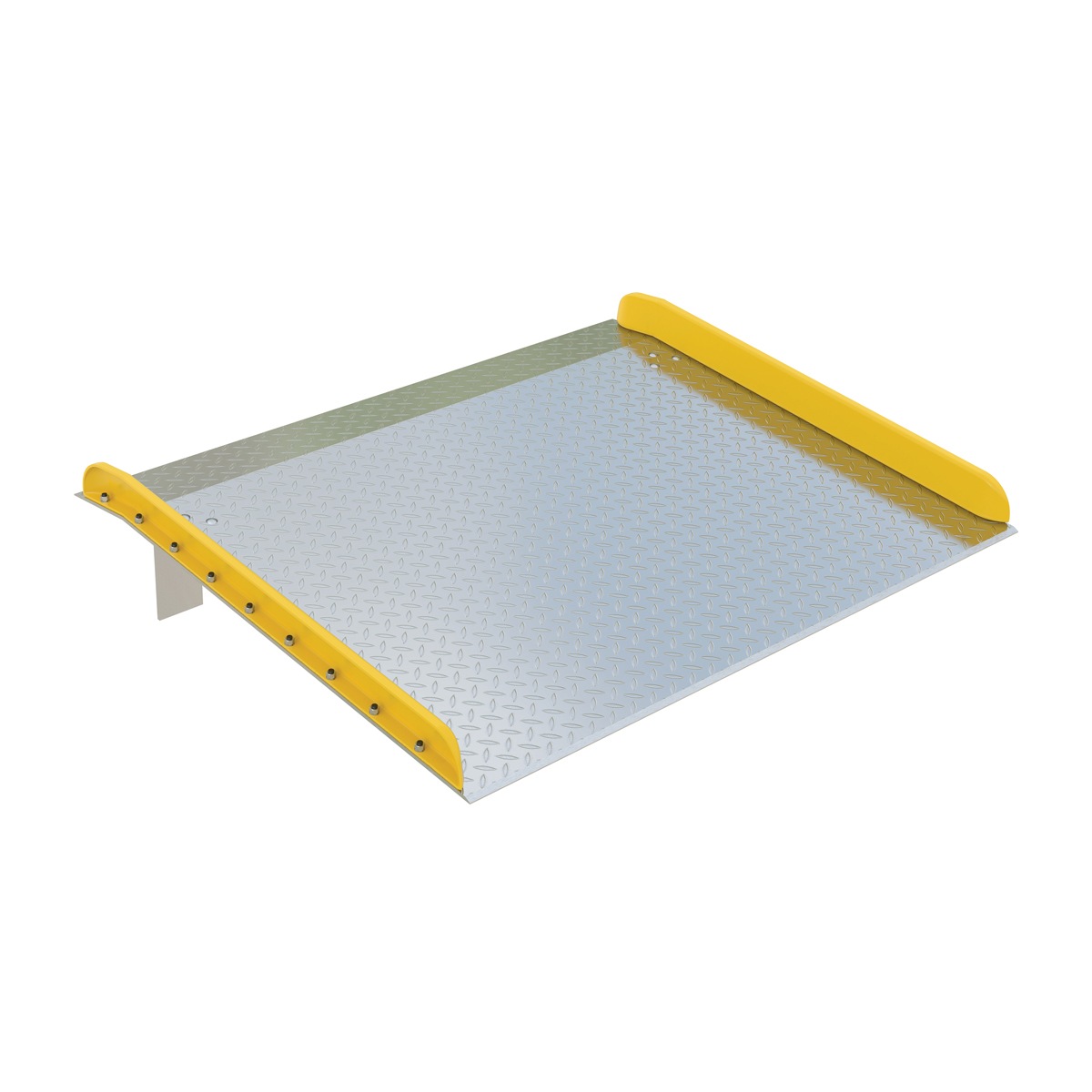

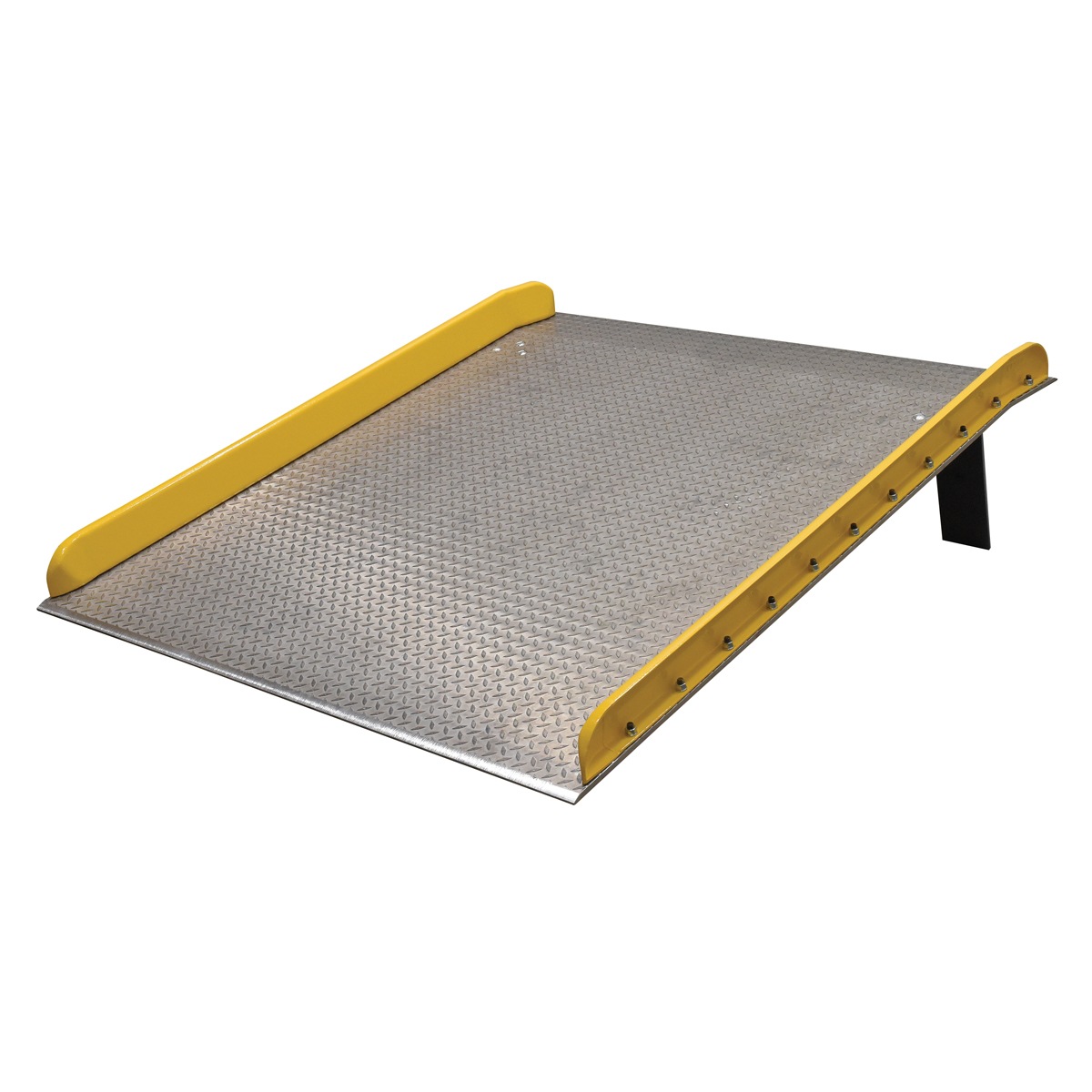

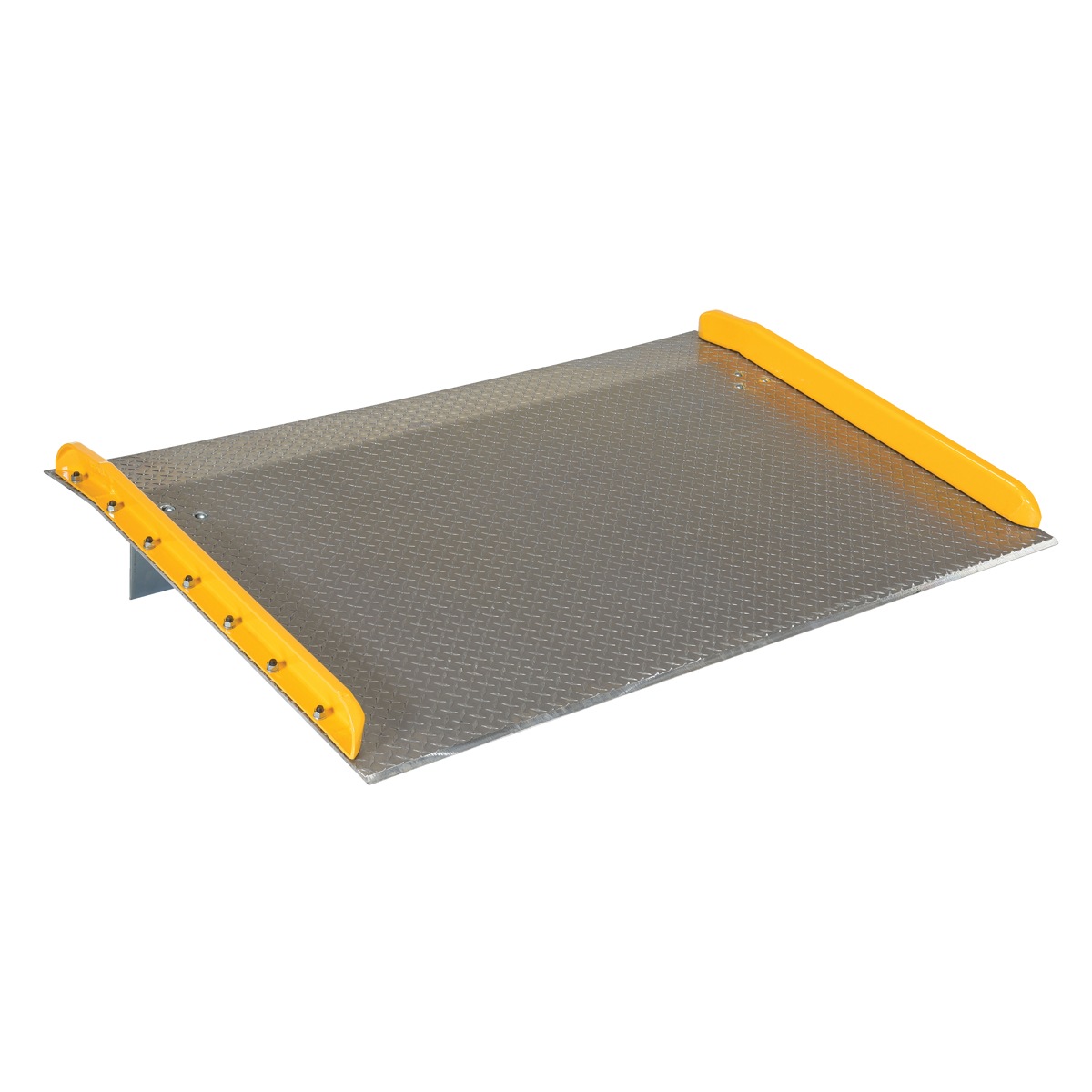

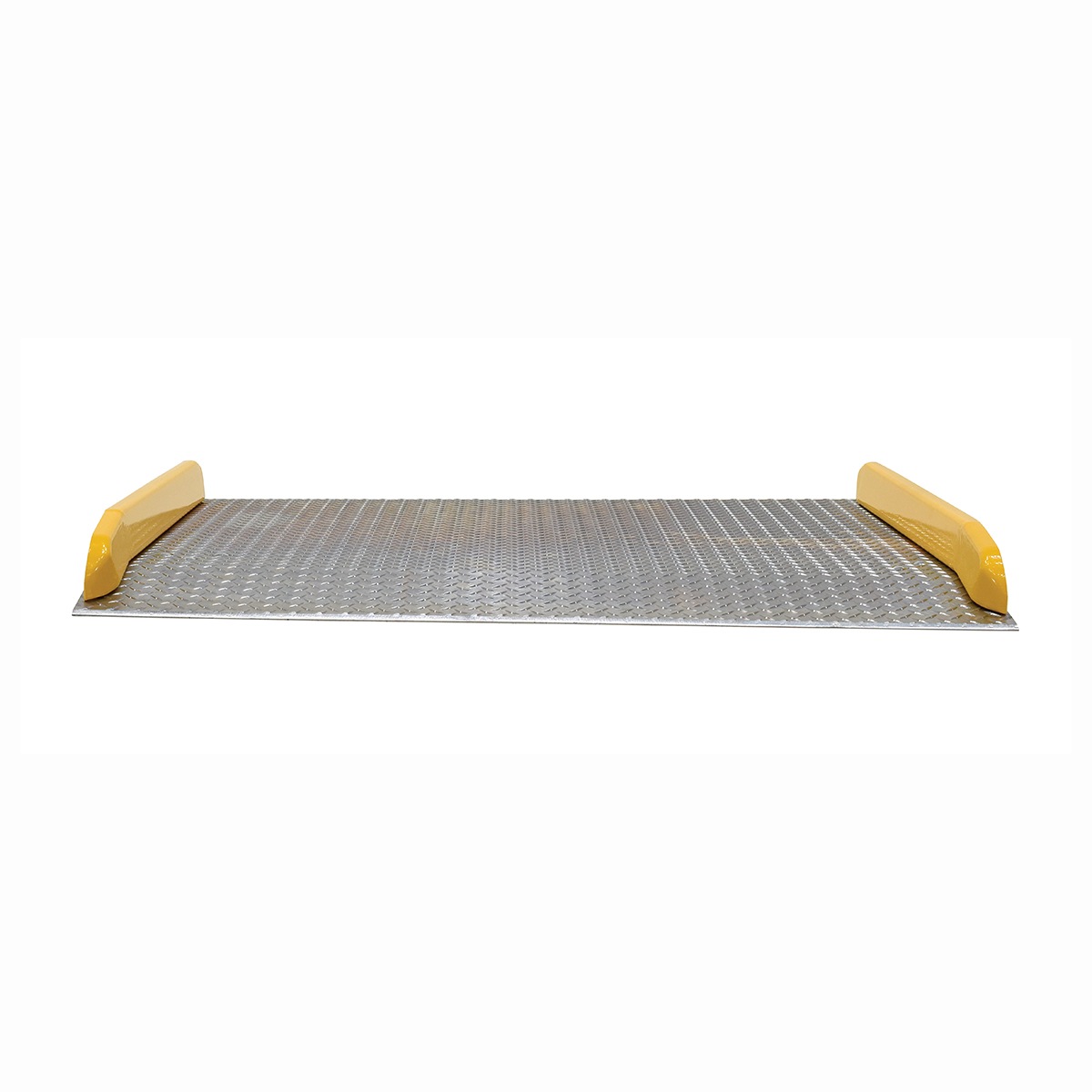

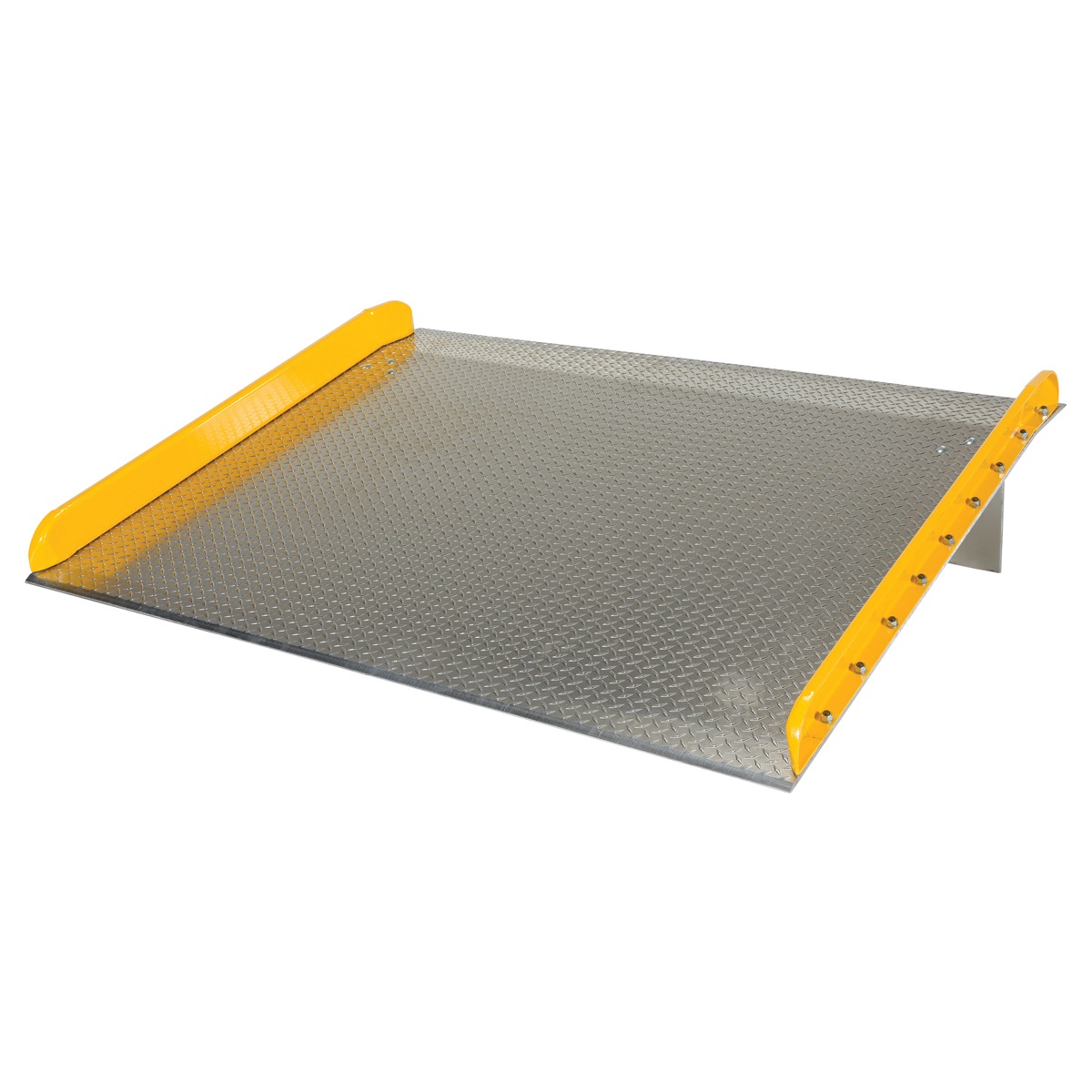

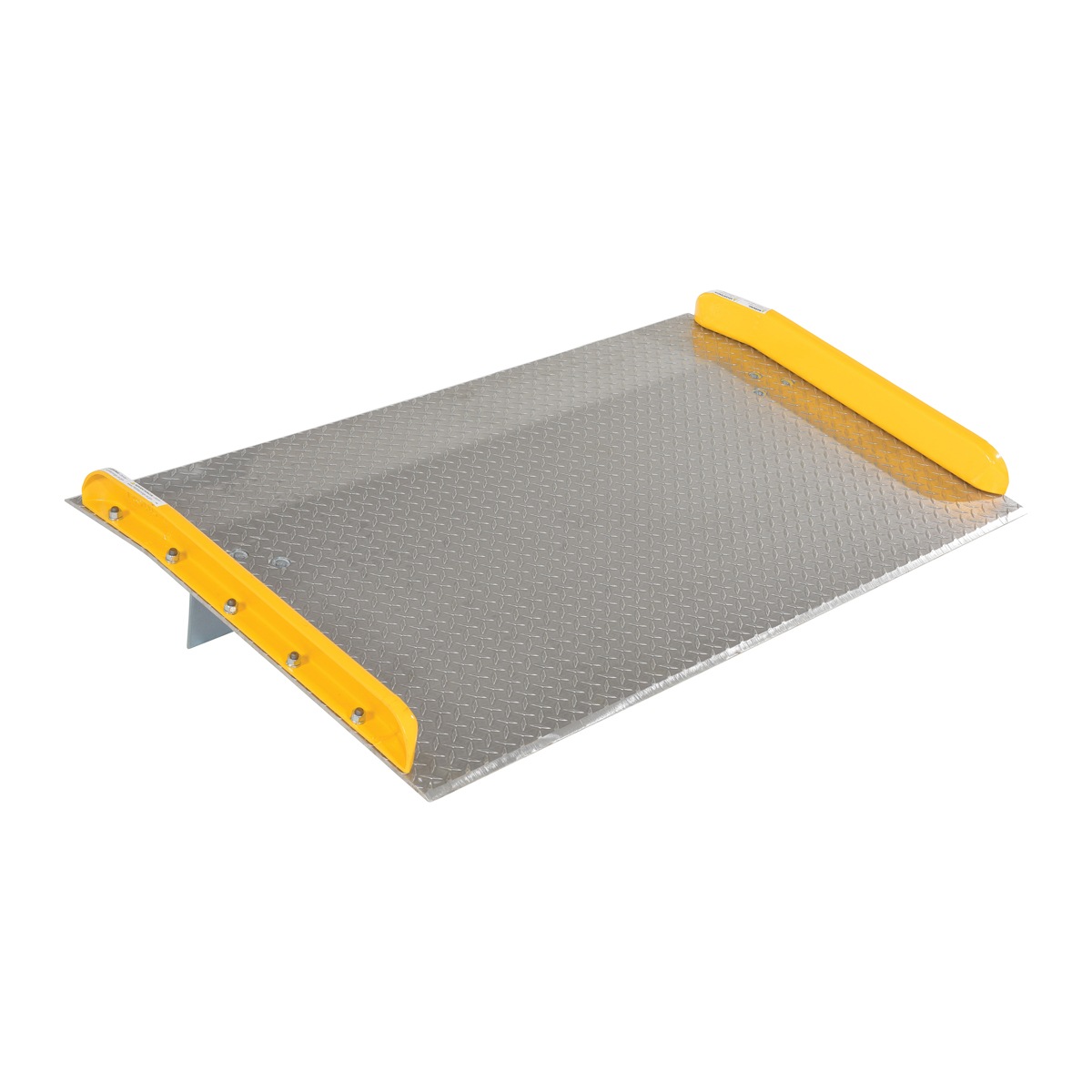

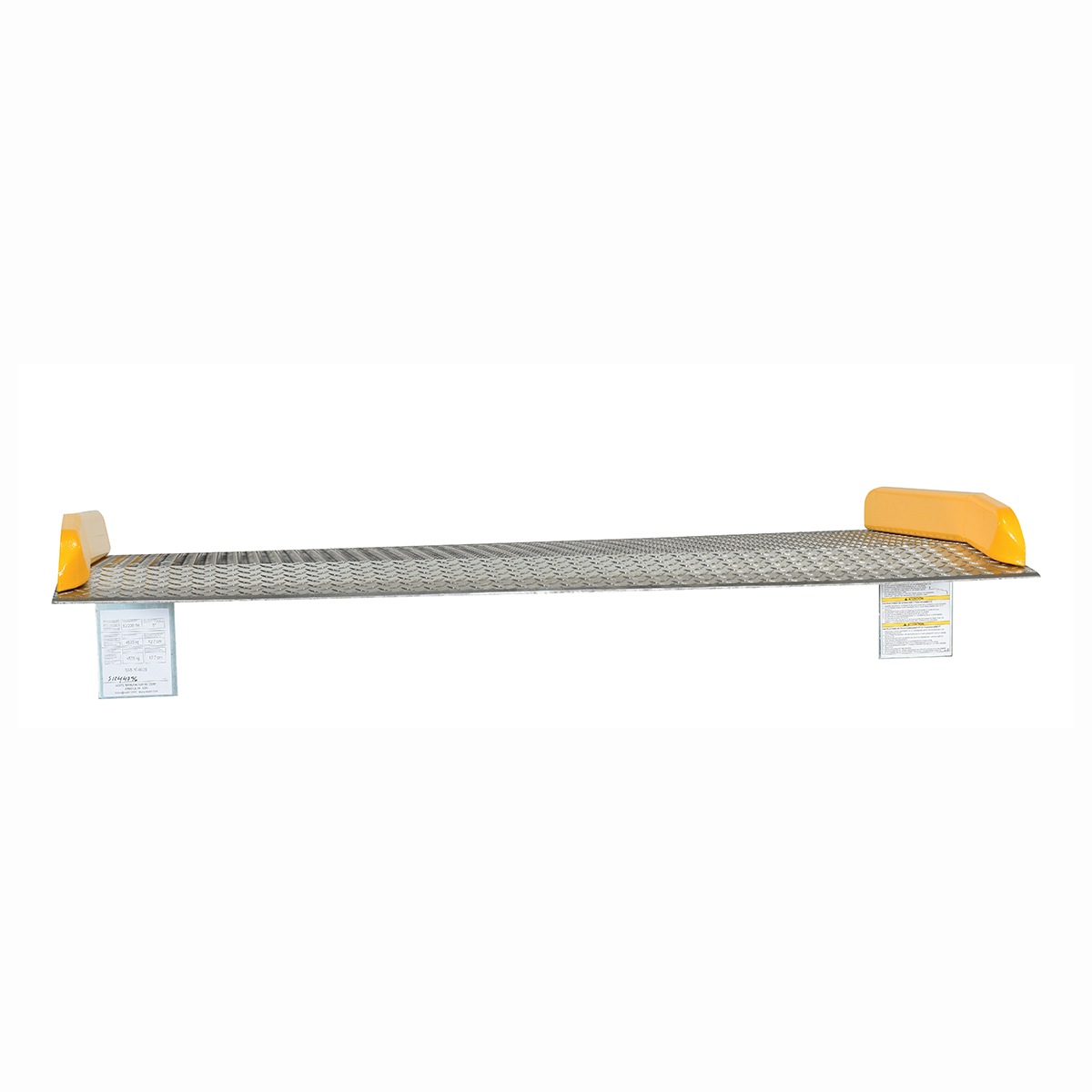

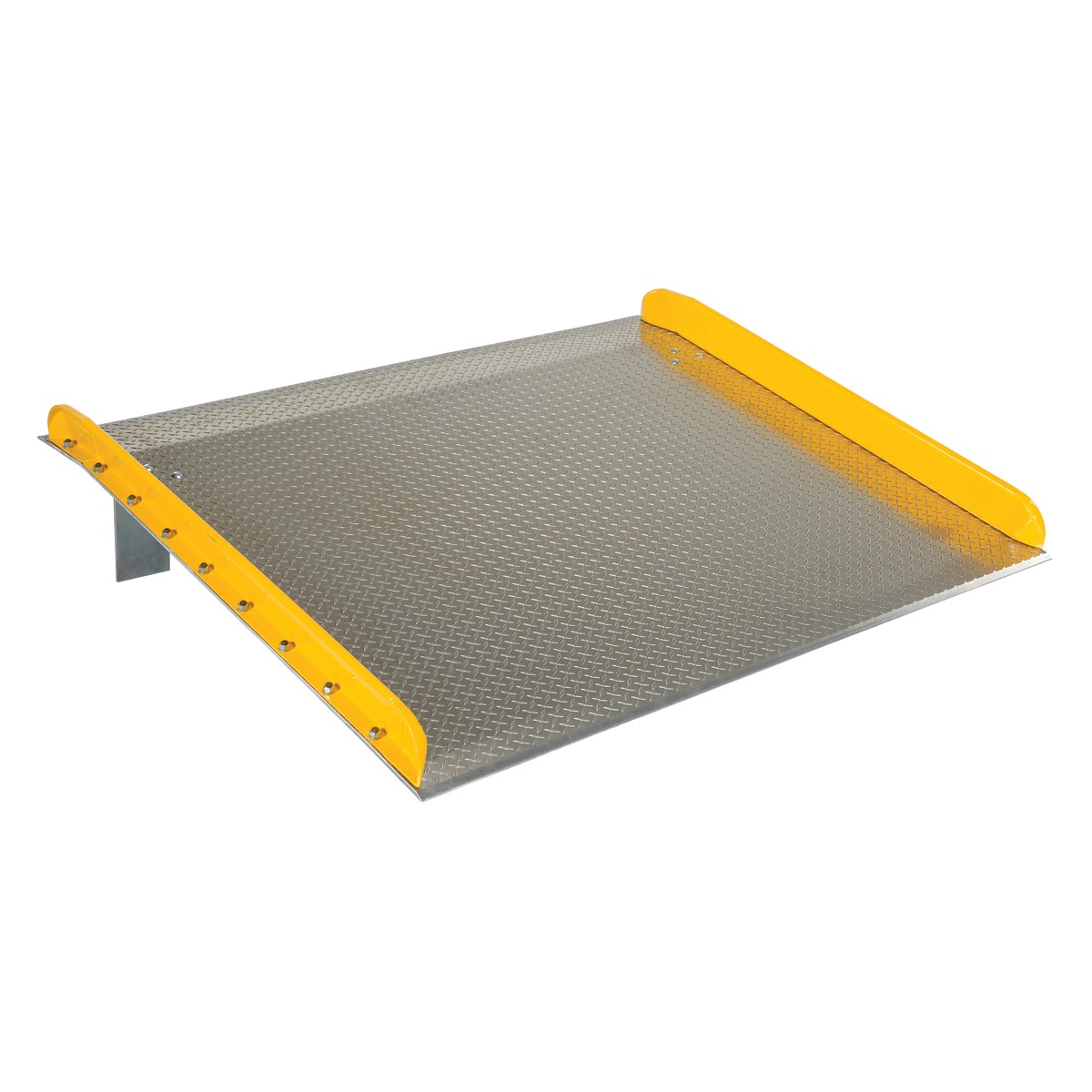

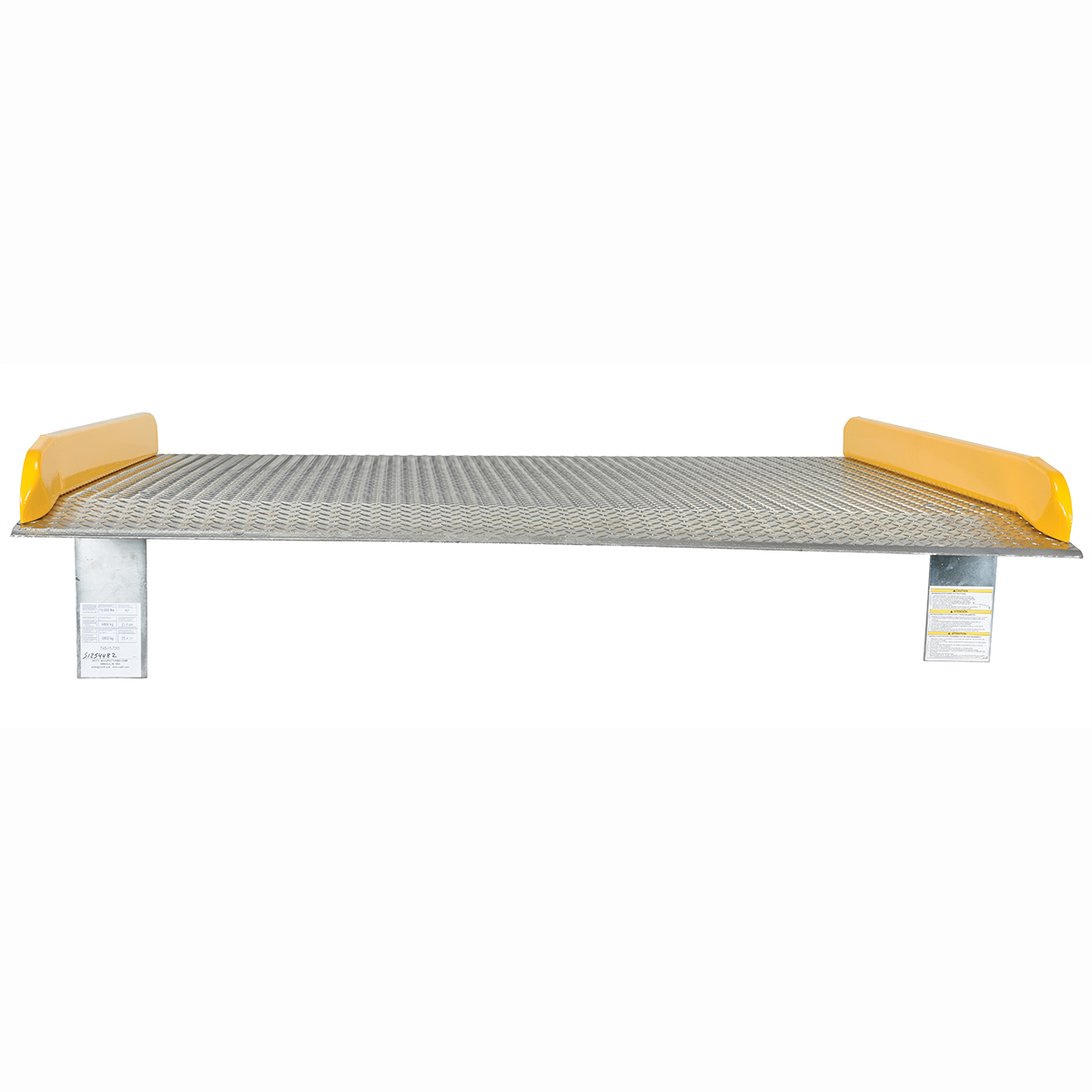

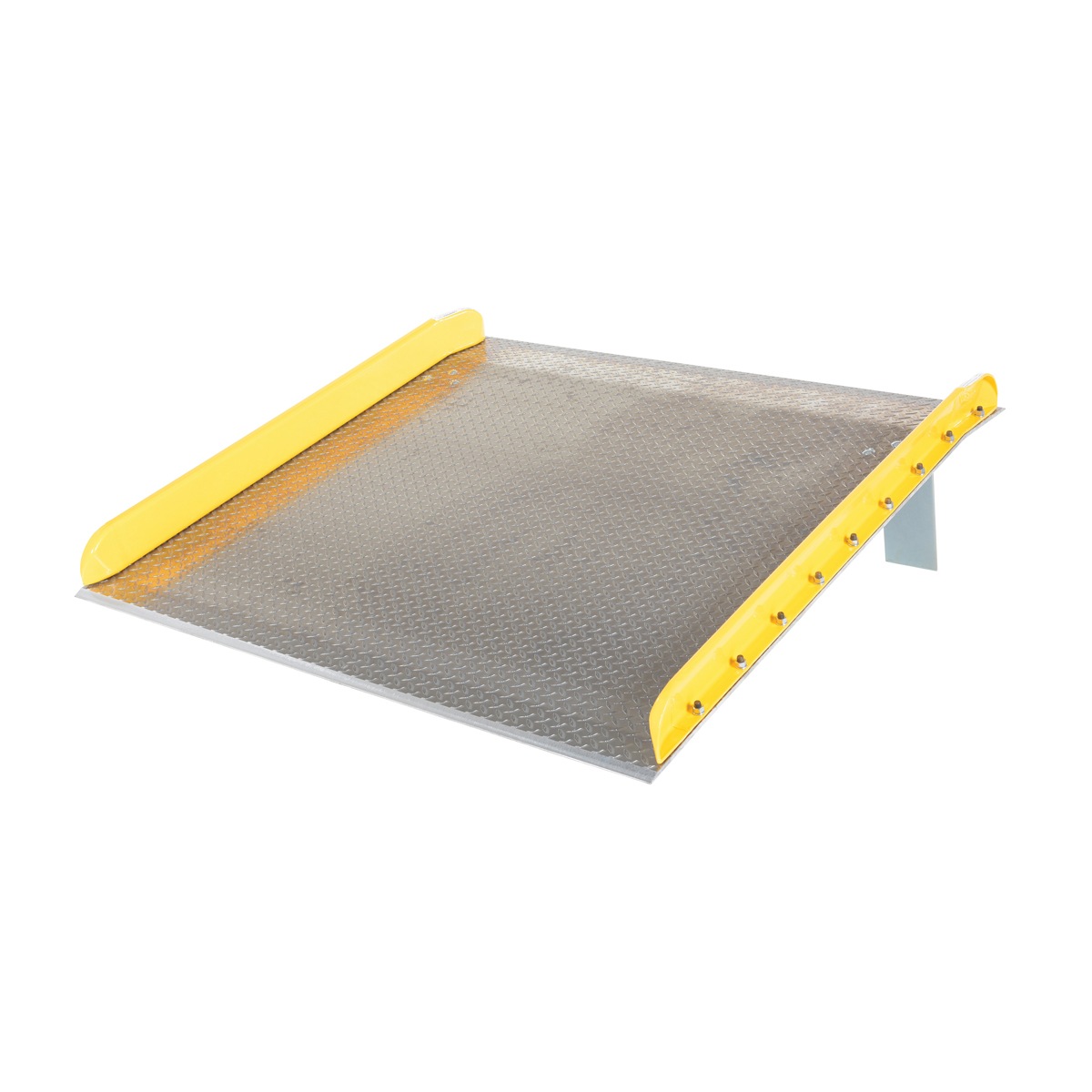

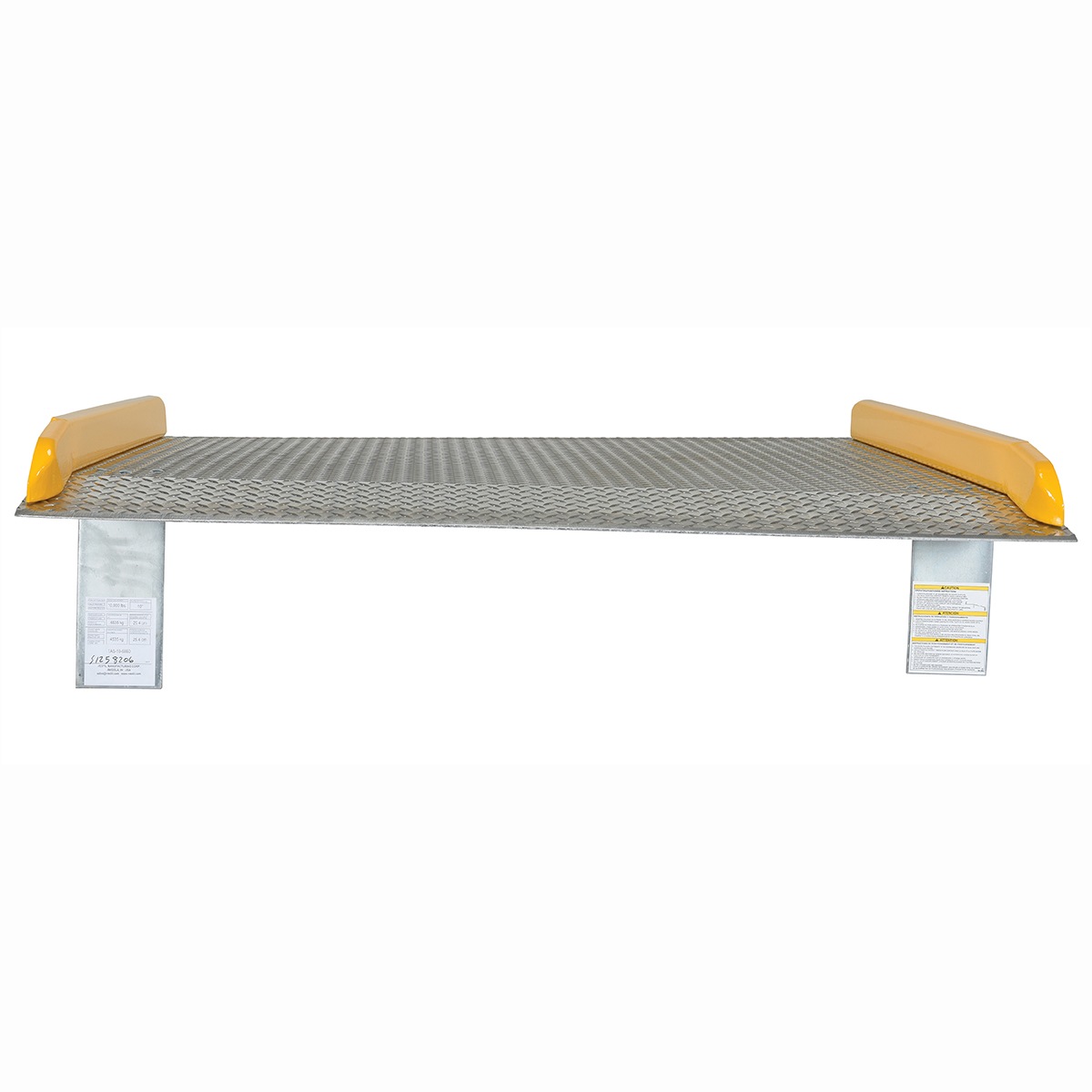

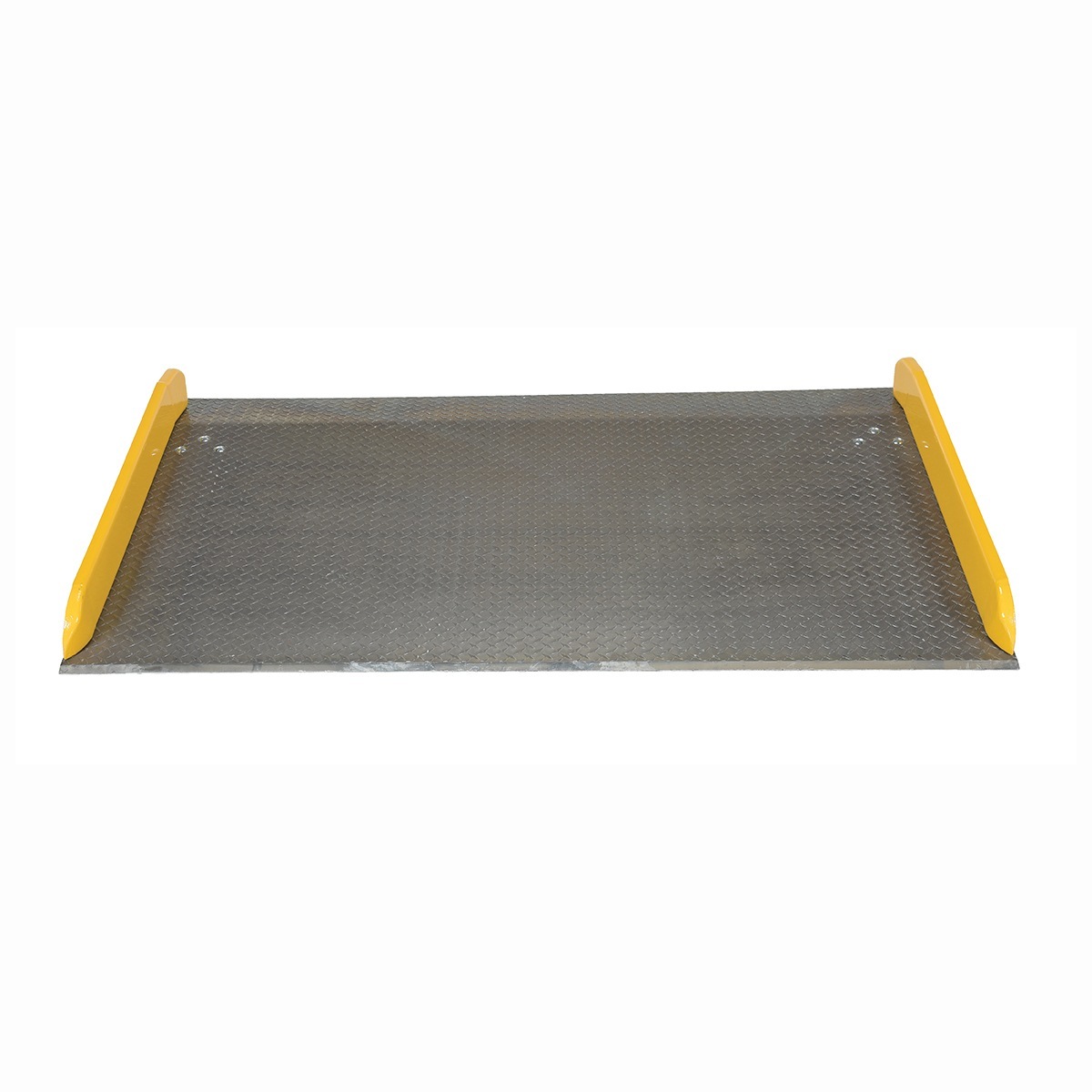

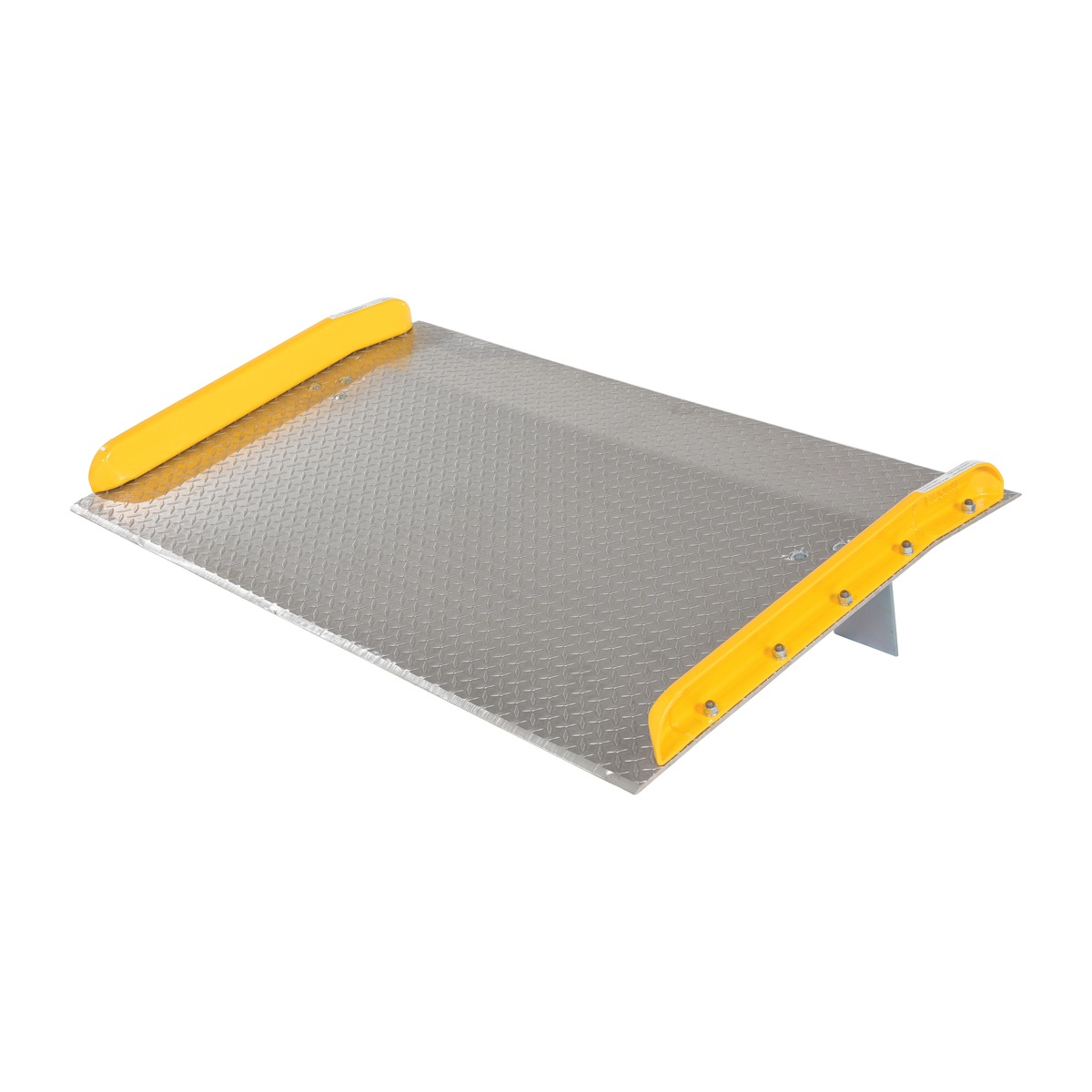

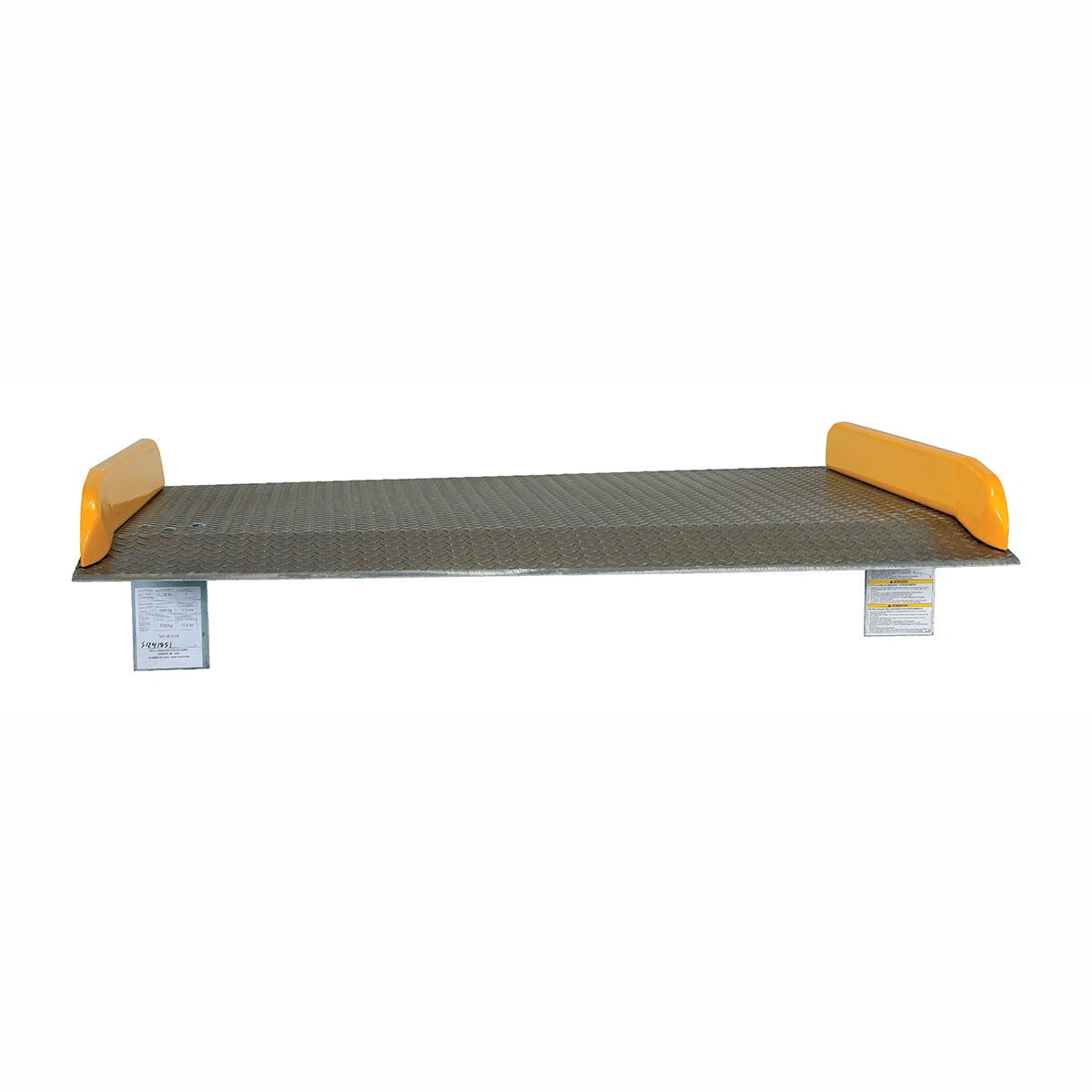

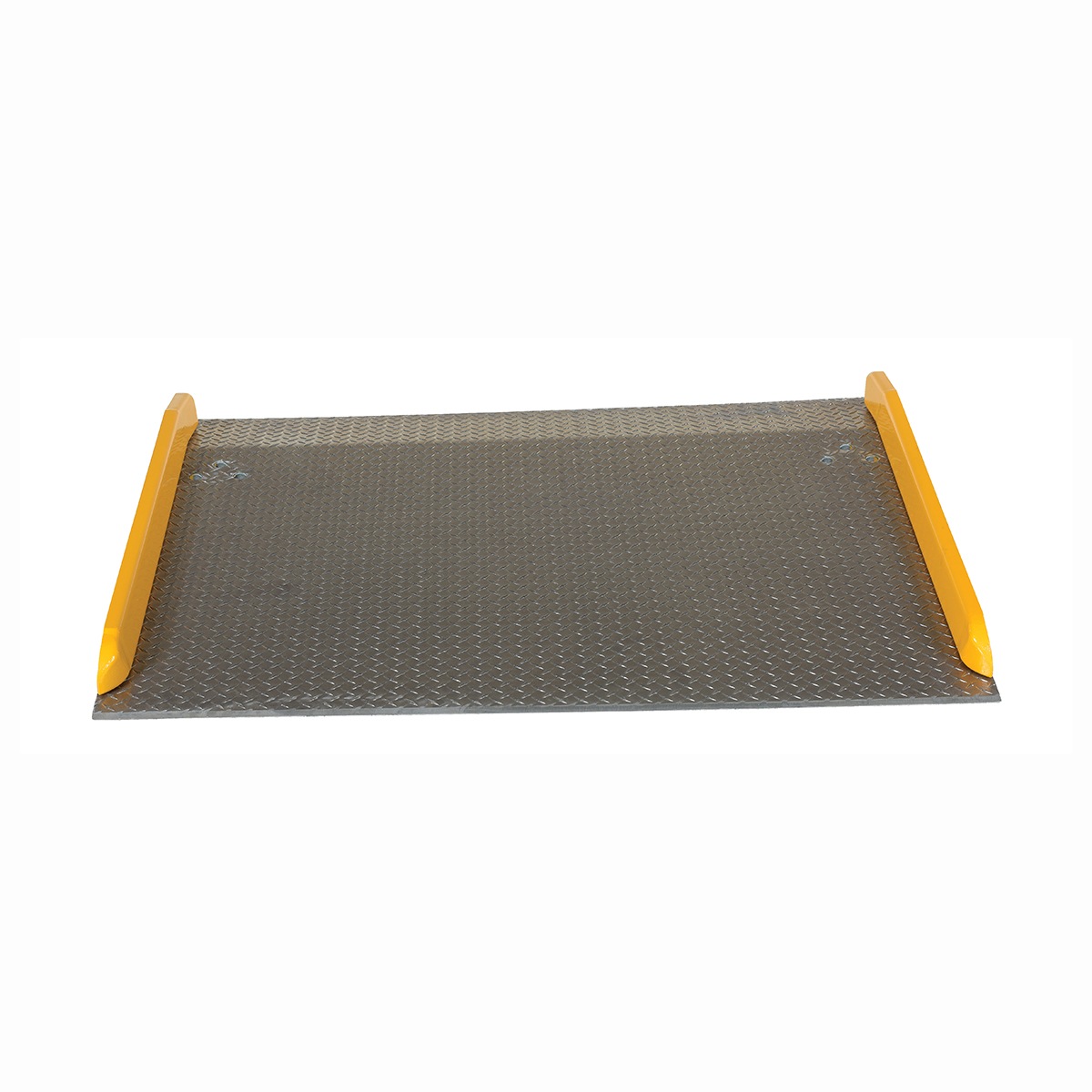

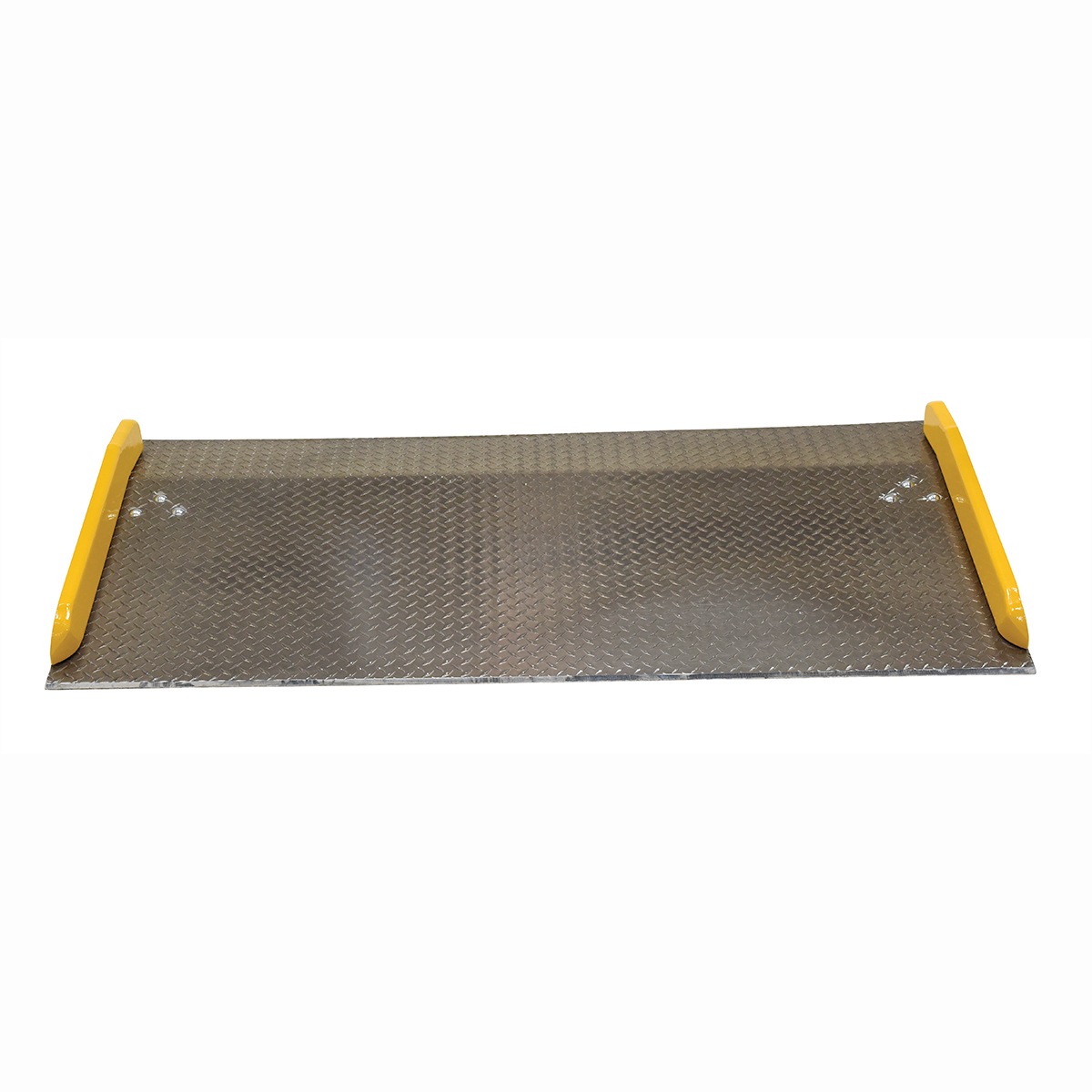

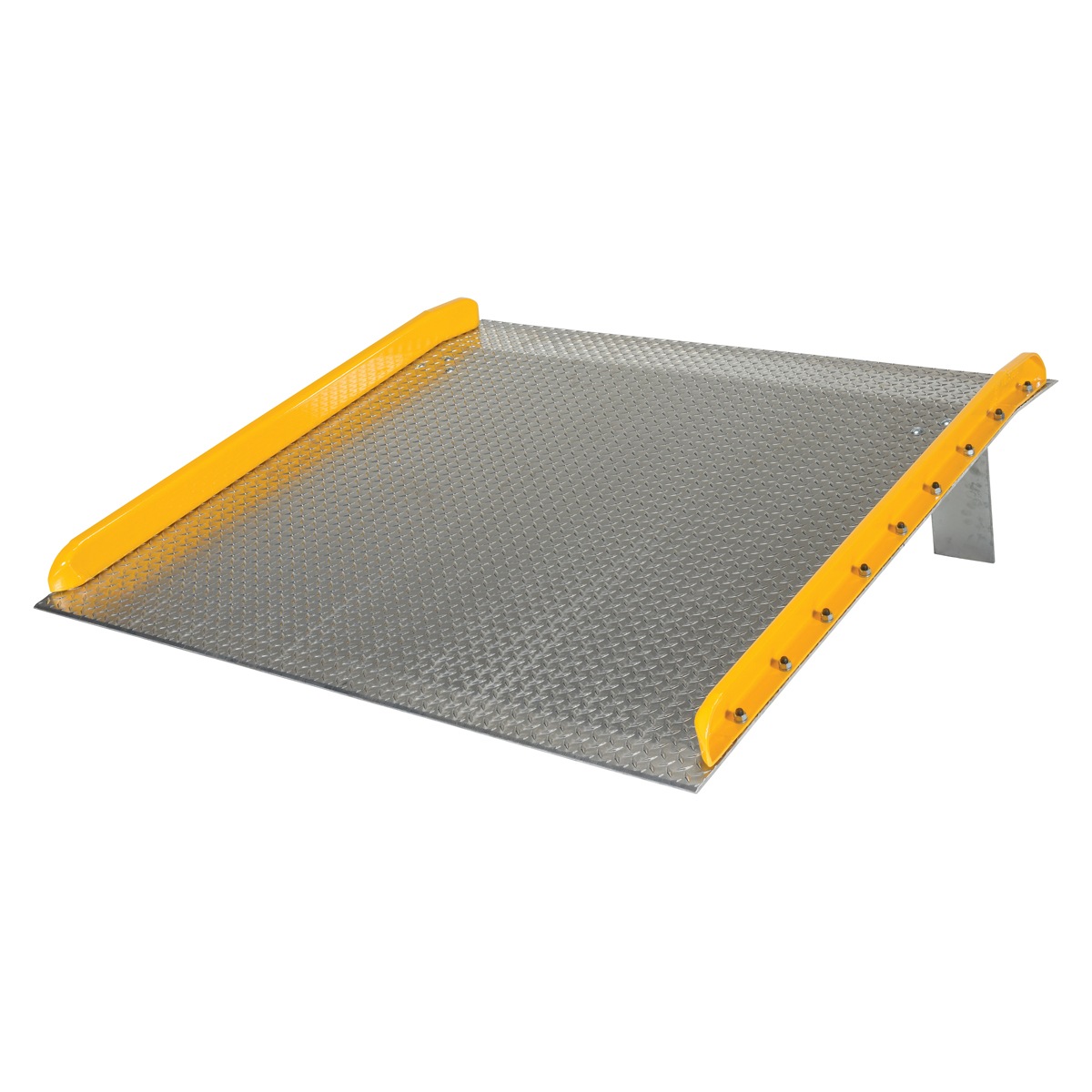

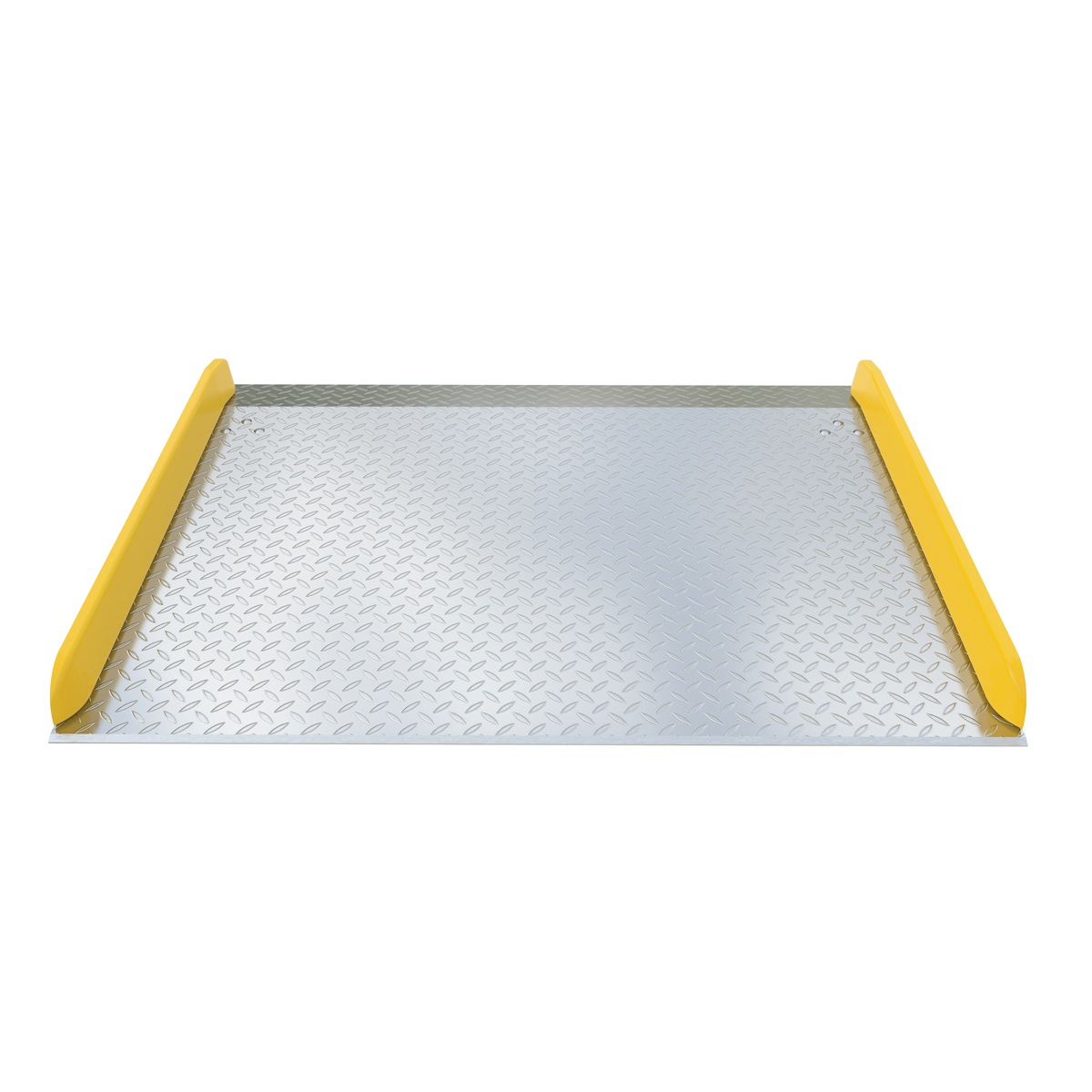

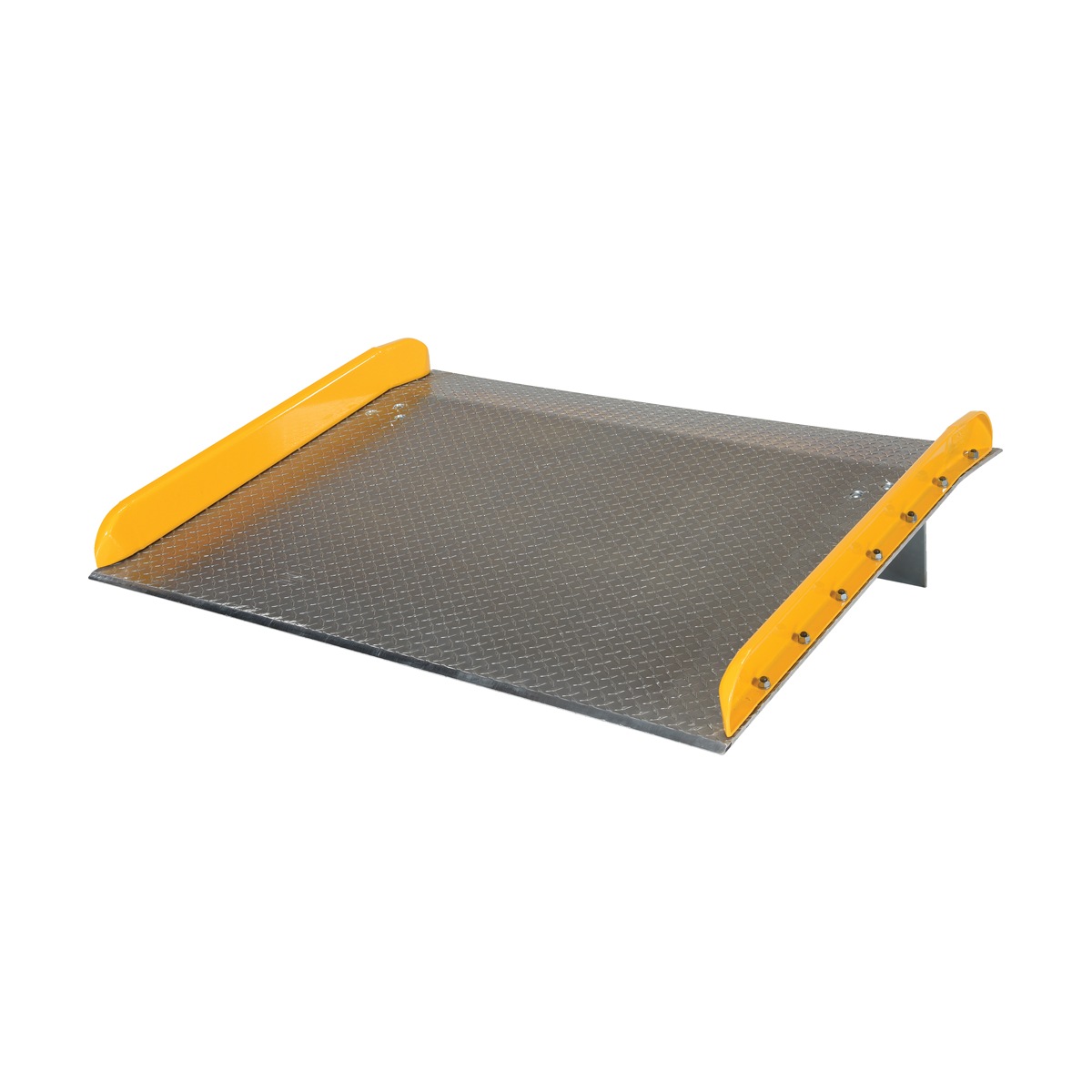

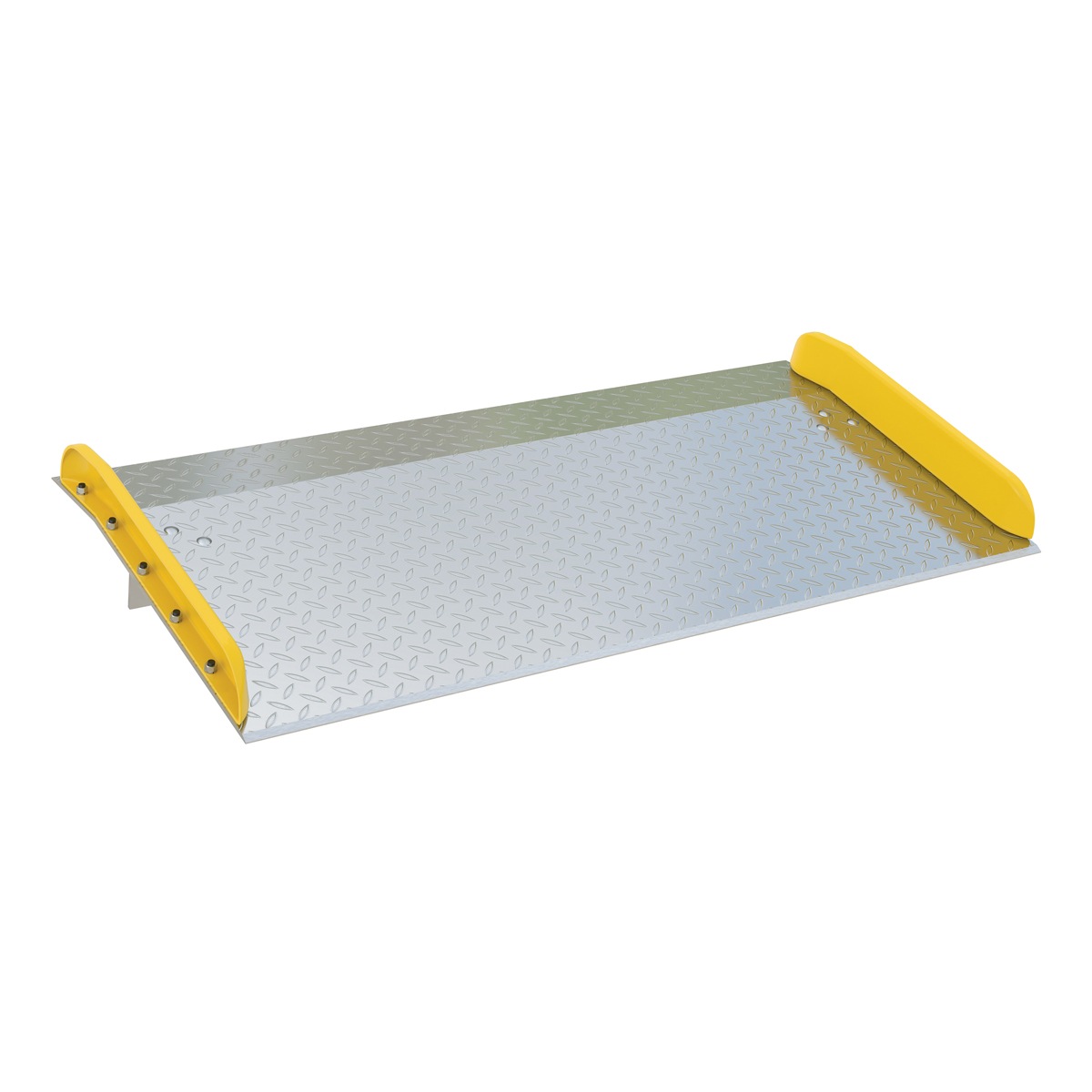

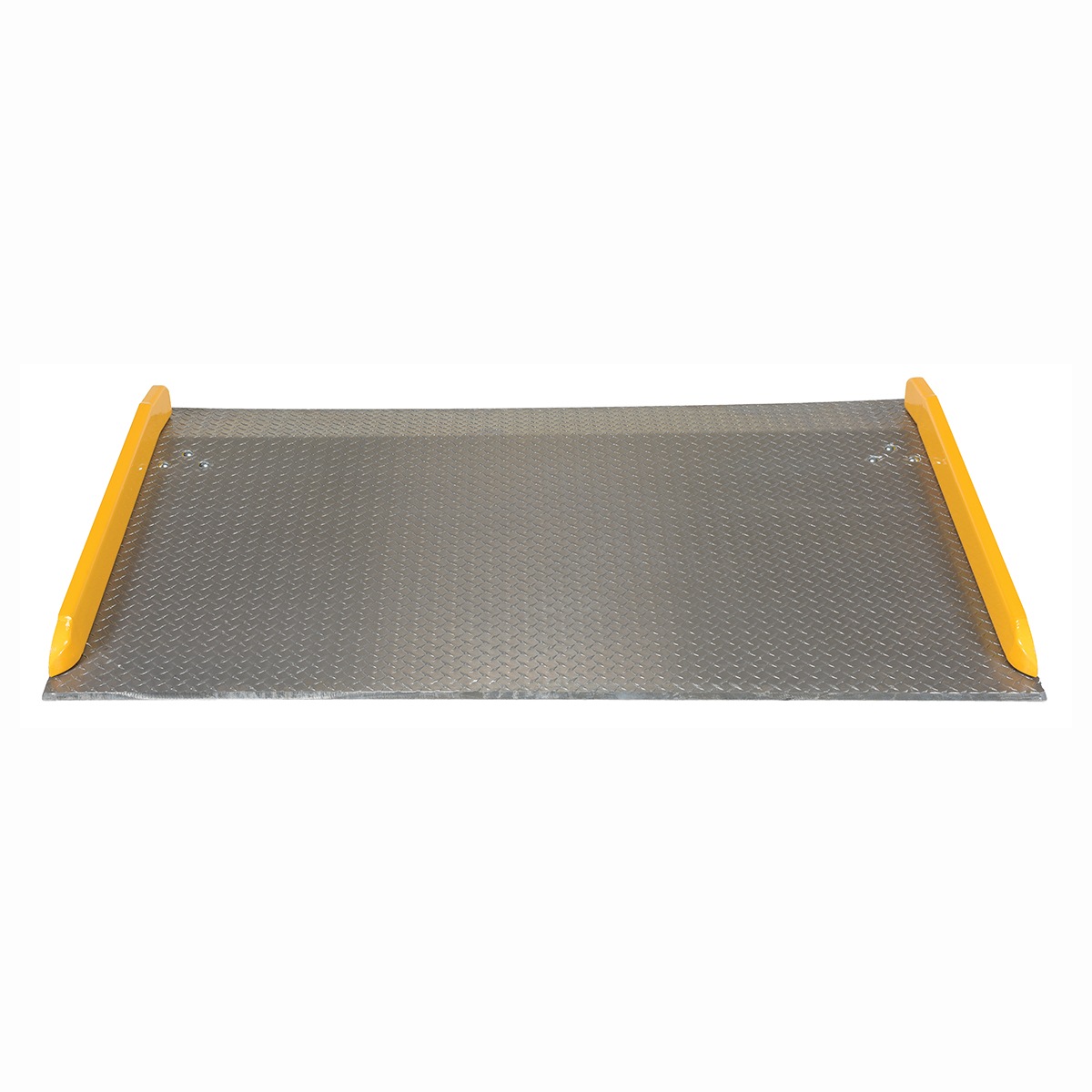

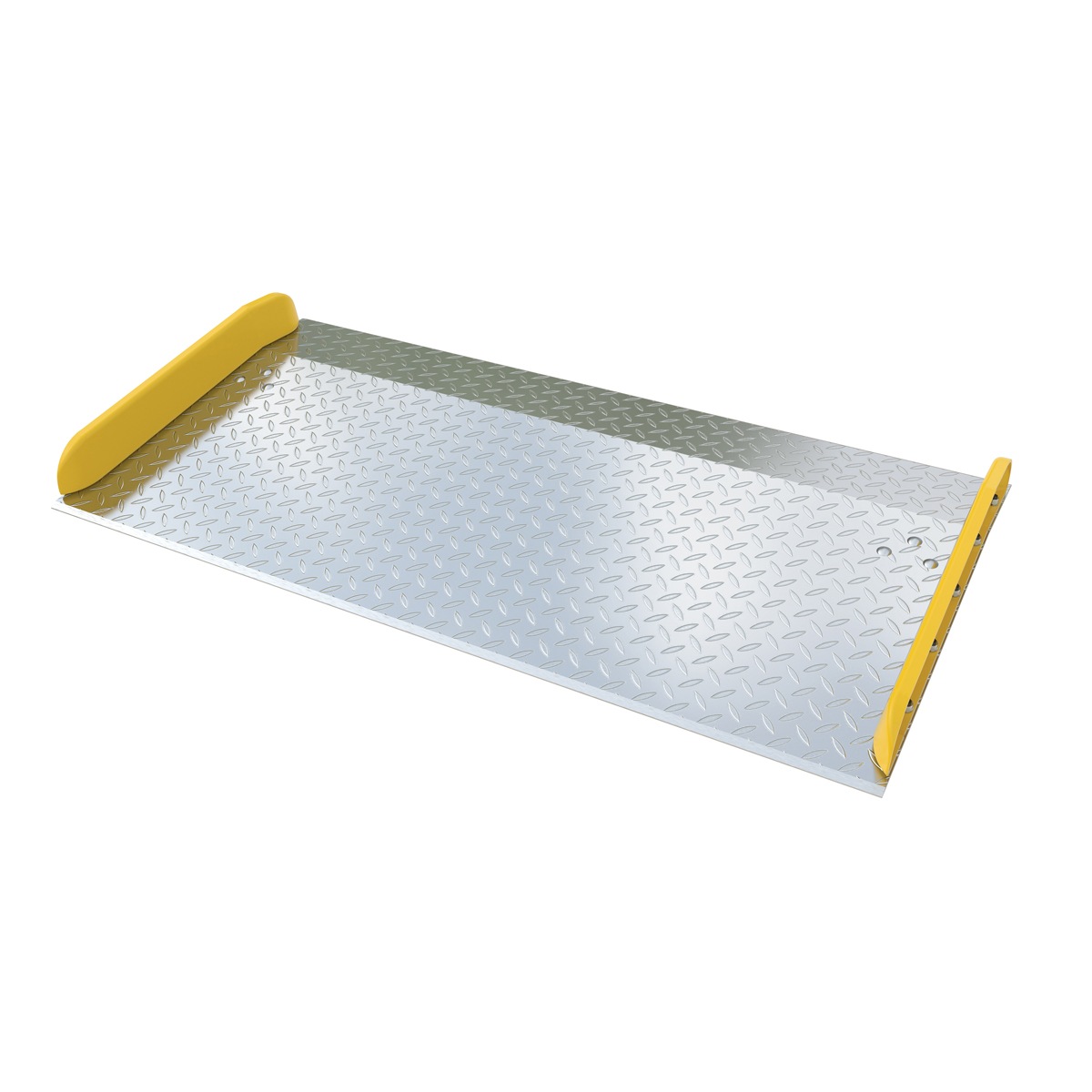

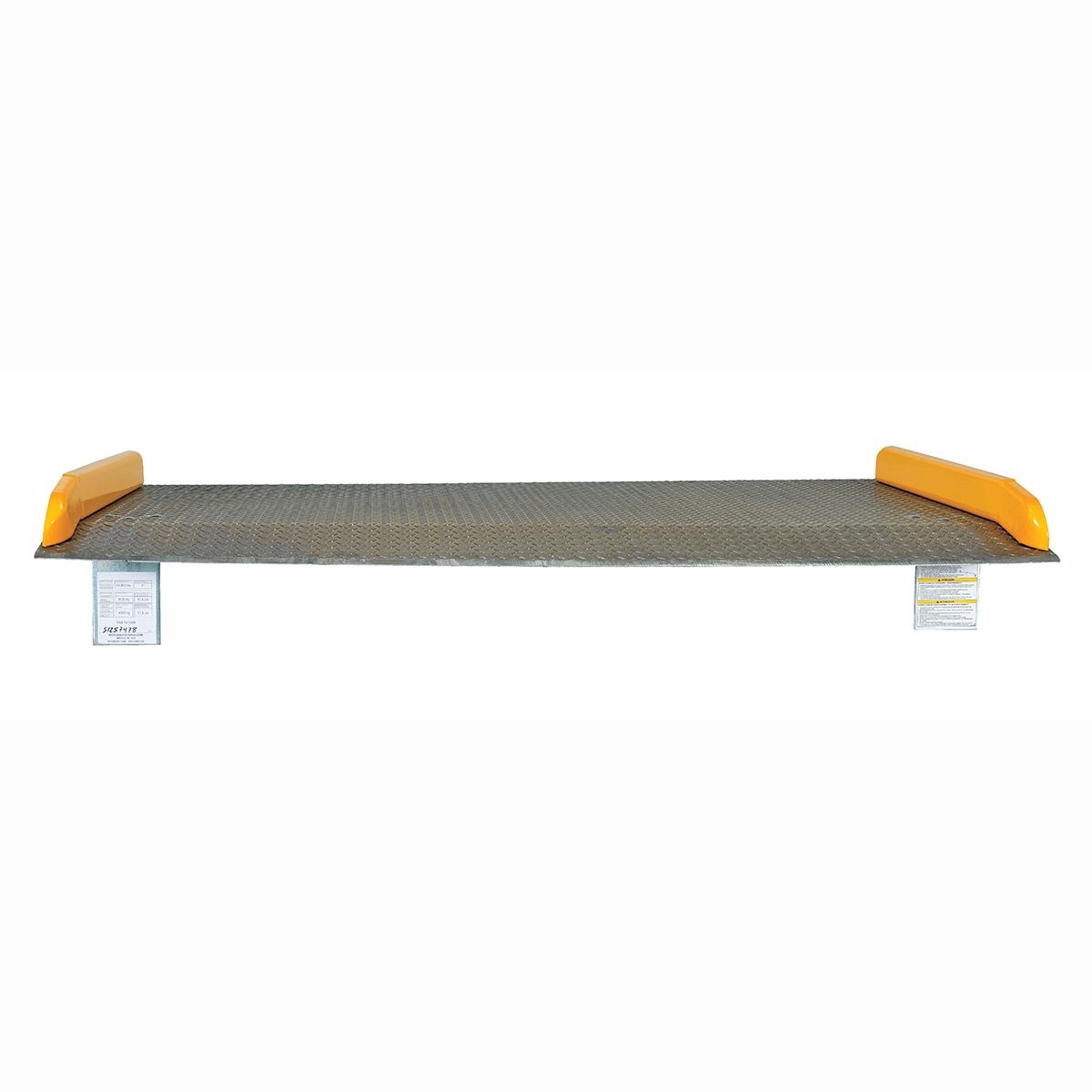

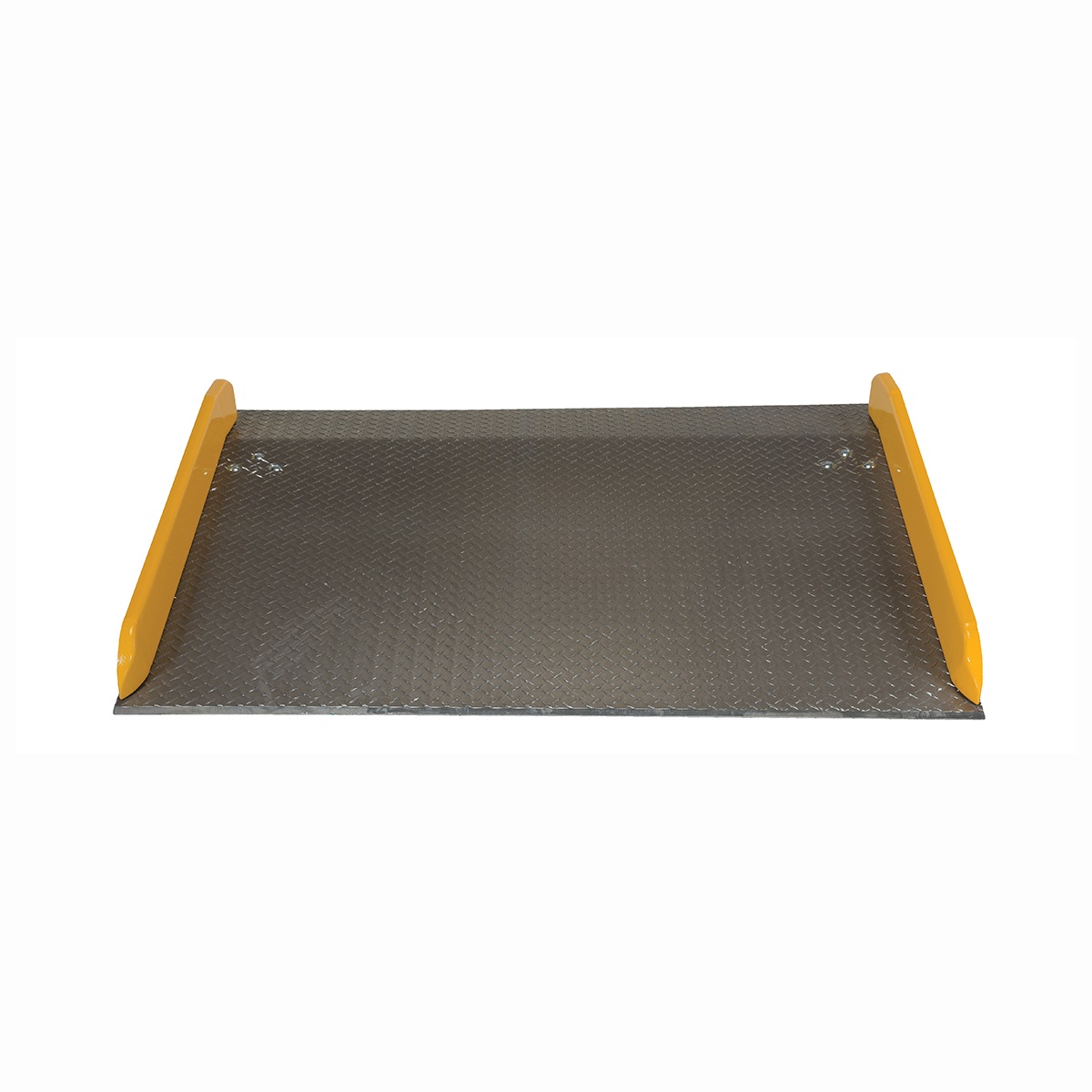

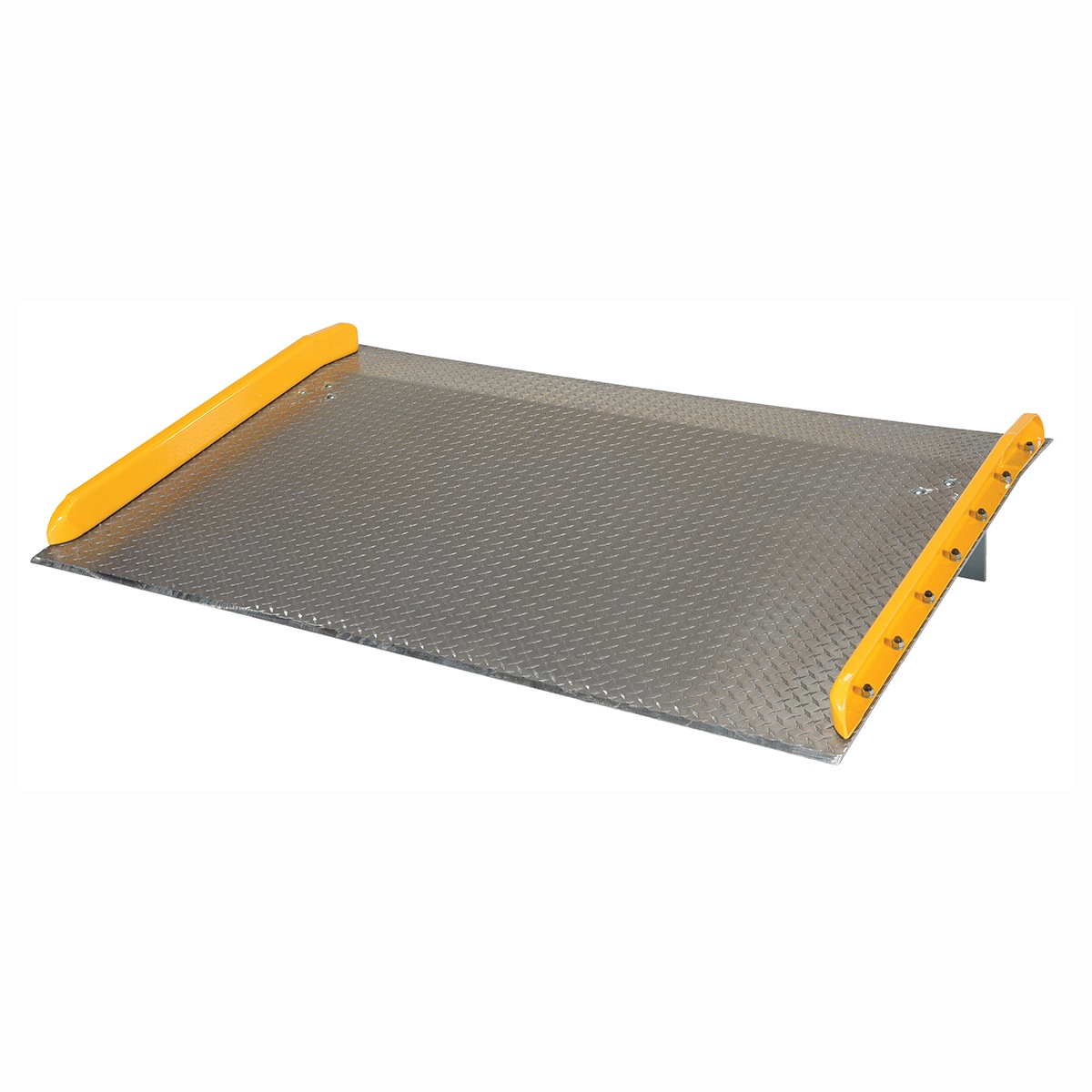

The Aluminum Truck Dockboard with Steel Safety Curbs is designed for portability and safety. The deck is made of tough high strength aluminum tread plate. The edges are beveled for smooth entry and exit. Safety curbs are coated yellow and are constructed of steel with cast tapered ends. Steel legs are bolted on for increased durability. Canted locking legs for easier truck portability. Manufactured in compliance with OSHA. The capacity is based upon the heaviest type of equipment used plus the maximum load carried times the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered. When using three-wheeled fork trucks order dockboard with capacity at least four-times the lifting capacity of fork truck. The width of the dockboard should be at least fifteen (15) inches wider than the load or equipment passing between the curbs. If the load does not pass between curbs, but is elevated above, add fifteen (15) inches to overall width of equipment.

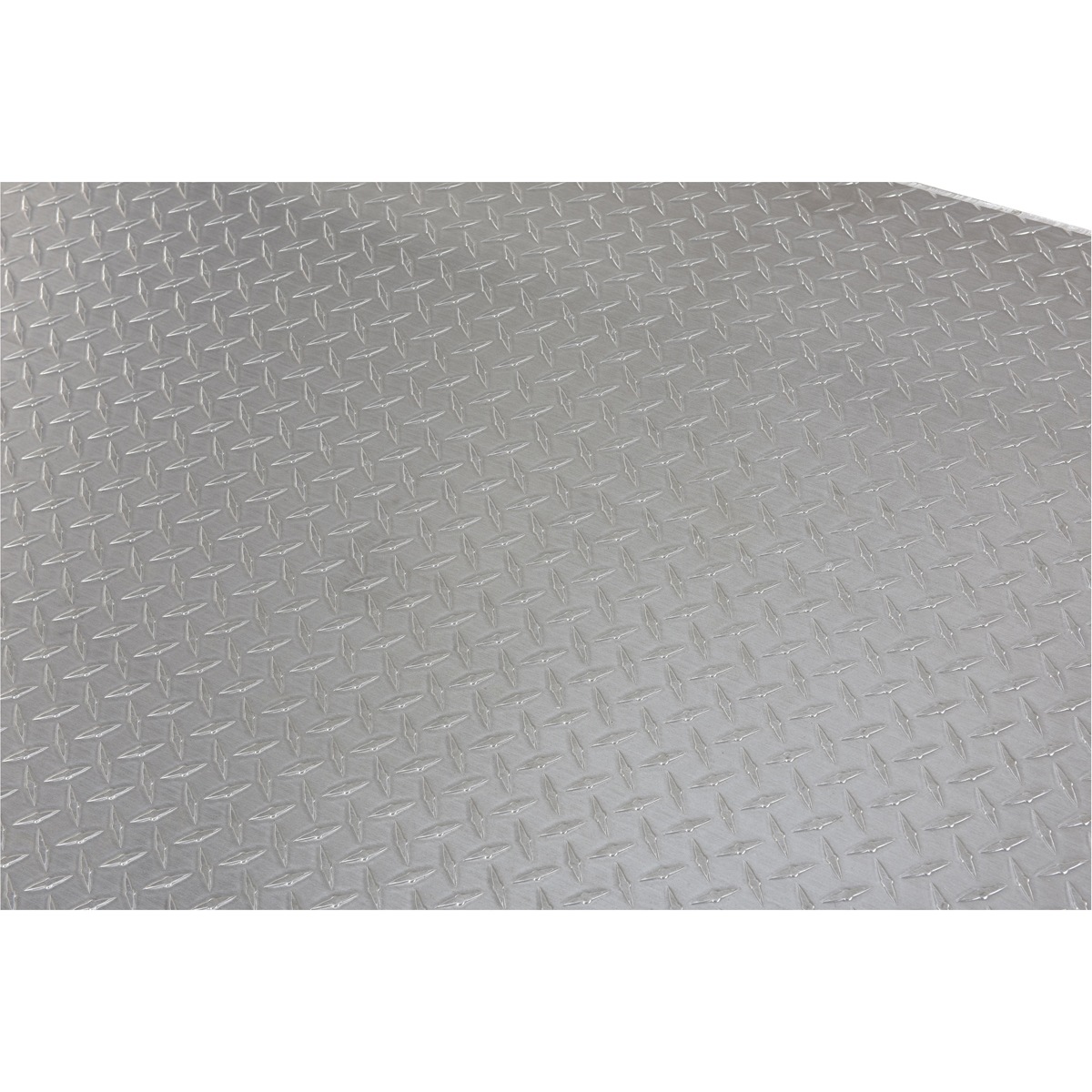

High-strength aluminum treadplate material is durable yet lightweight

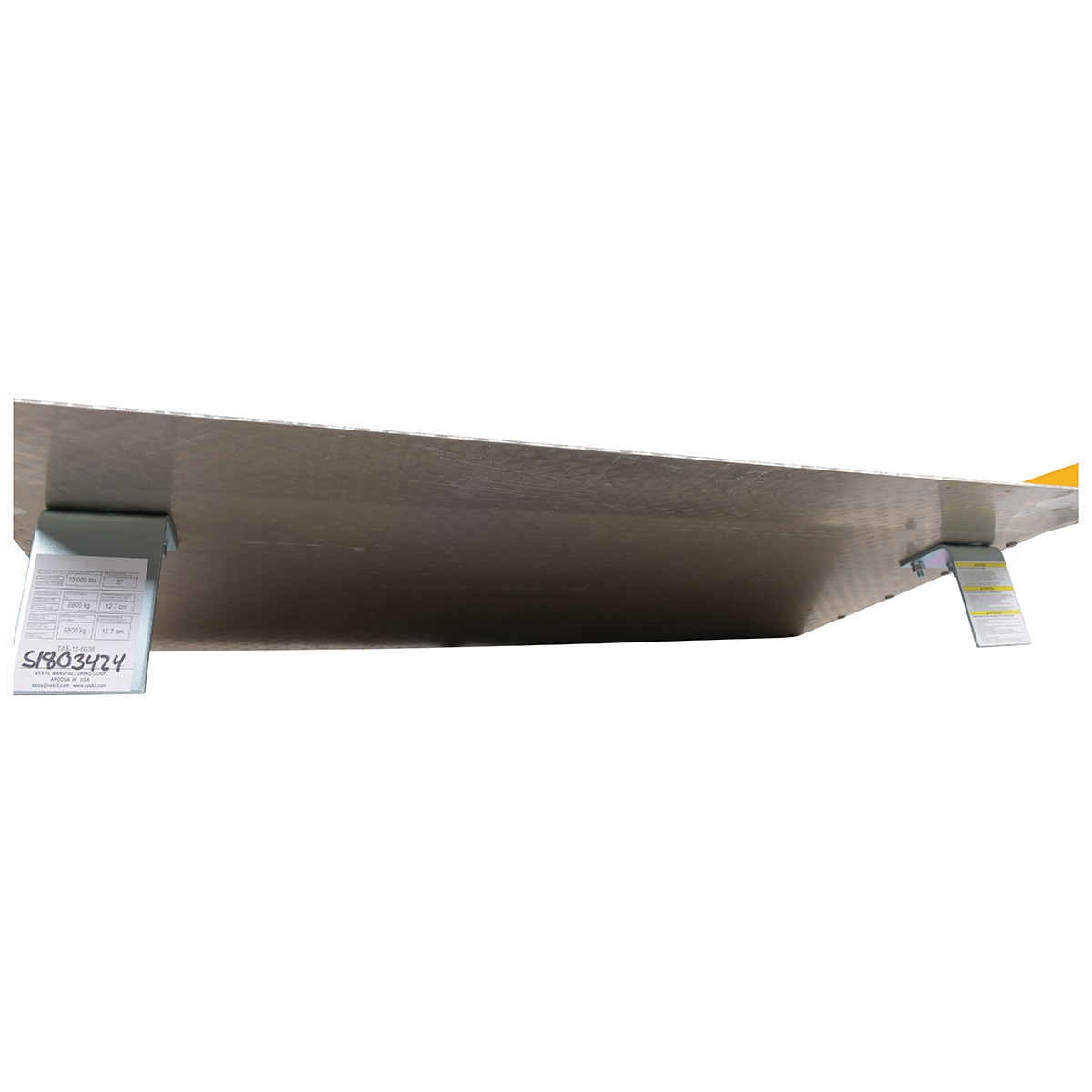

Zinc-plated locking legs are within OSHA compliance
Beveled entrance and exit edges allow for smoother transition

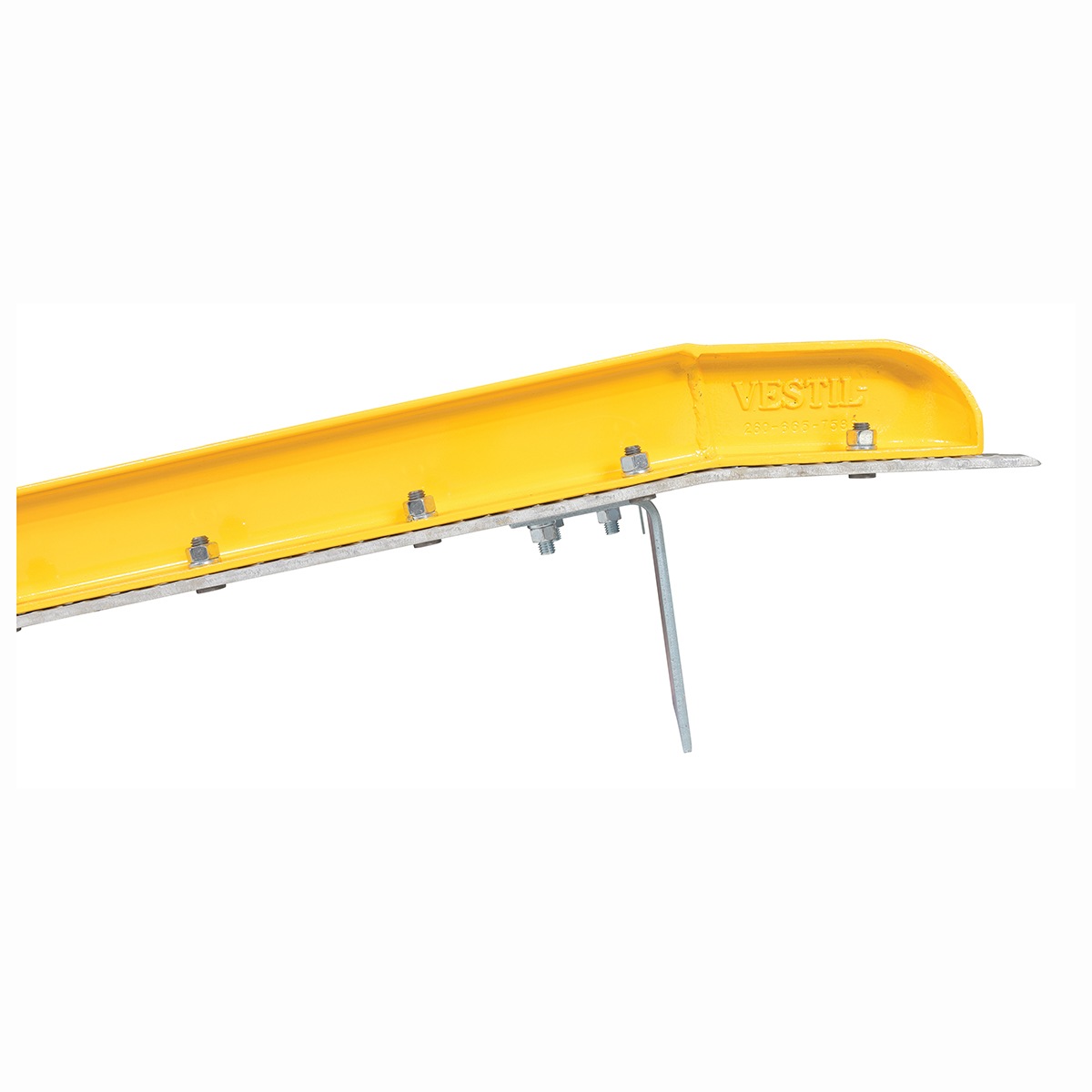

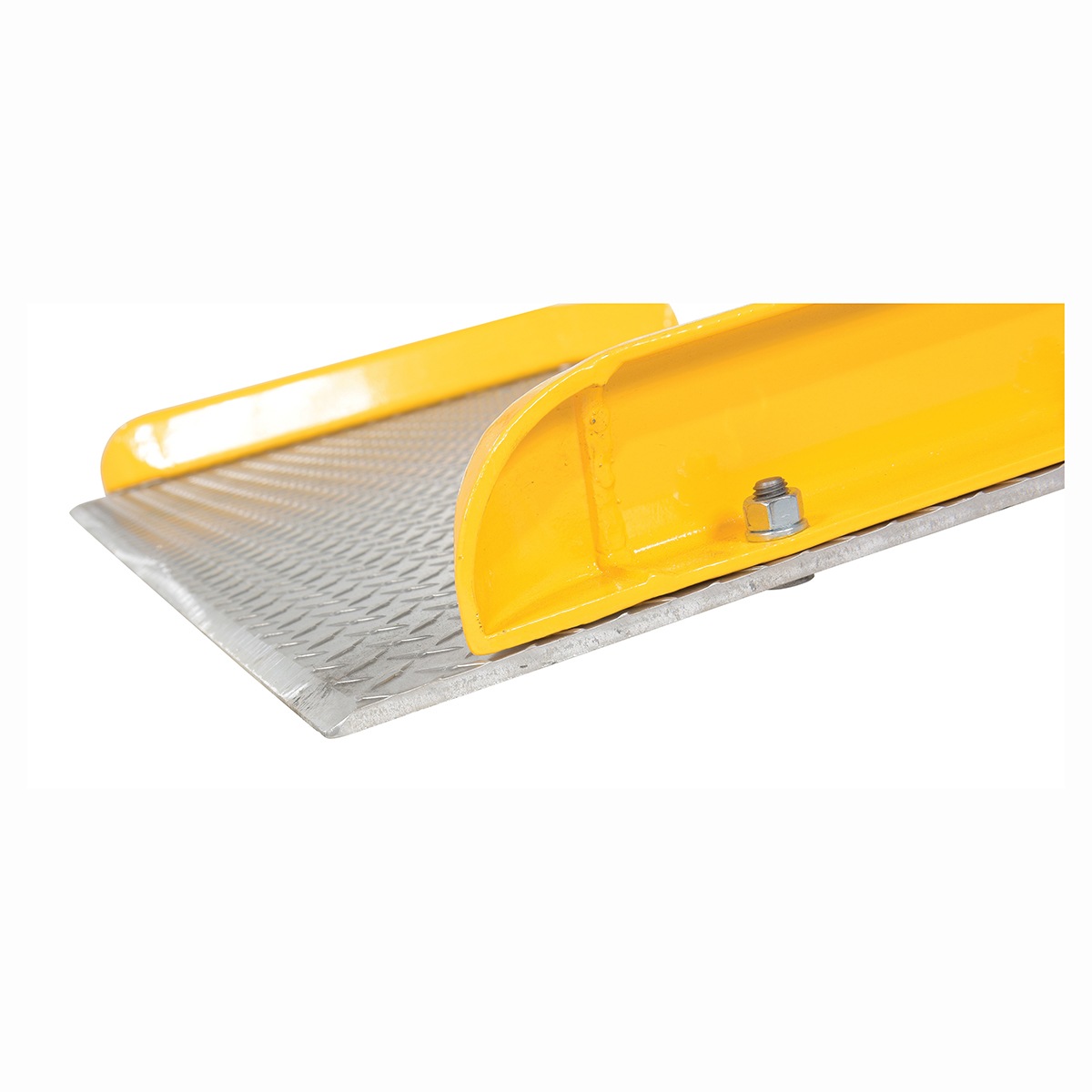

Heavy-duty steel curbs are painted yellow and bolted to deckplate for safer use

Additional information

Weight	N/A
Dimensions	N/A
Capacity	10000 lbs, 15000 lbs, 20000 lbs
Size	48"W X 42"L, 54"W X 36"L, 54"W X 48"L, 54"W X 60"L, 54"W X 72"L, 60"W X 30"L, 60"W X 36"L, 60"W X 48"L, 60"W X 60"L, 60"W X 72"L, 72"W X 30"L, 72"W X 36"L, 72"W X 42"L, 72"W X 48"L, 72"W X 60"L, 72"W X 72"L
