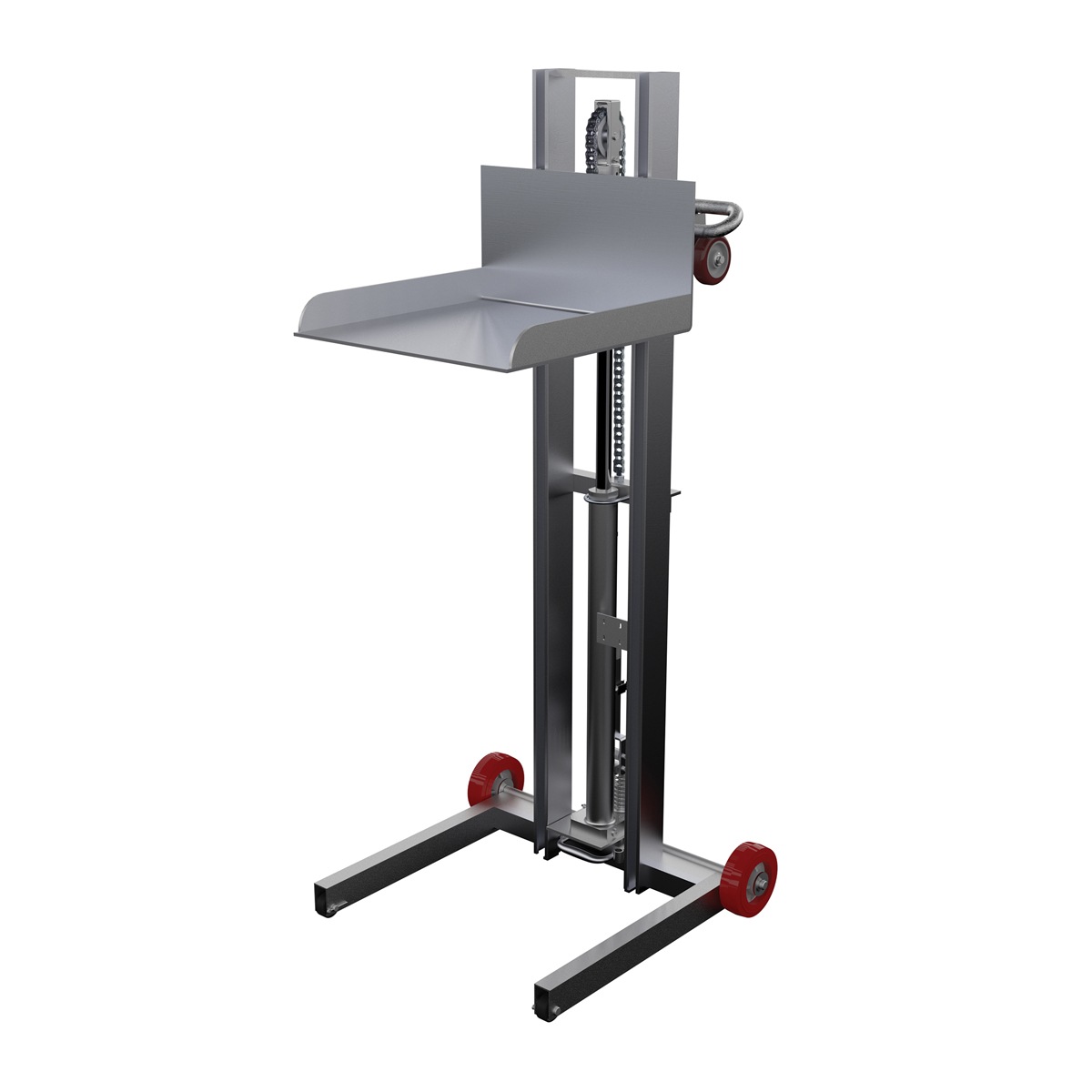

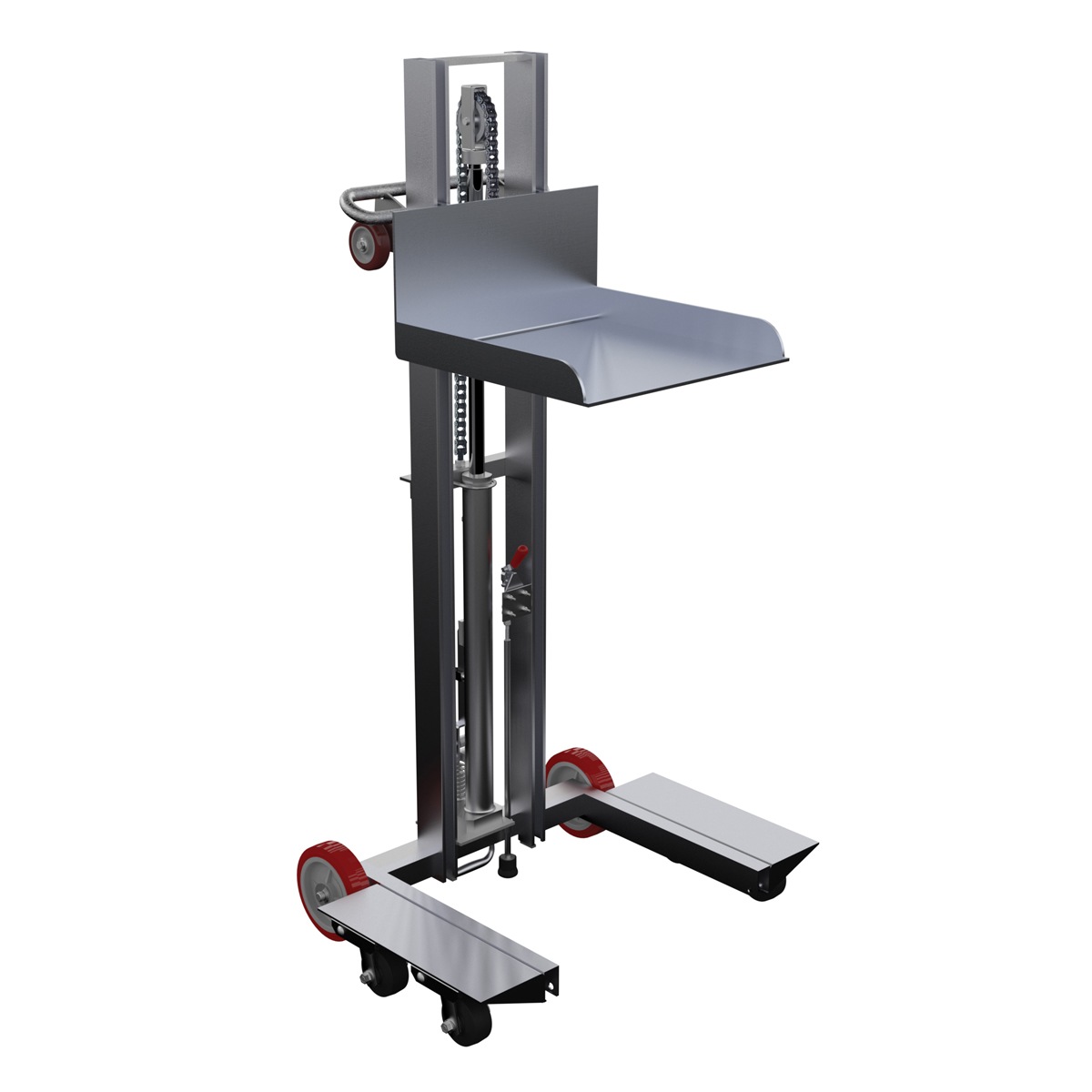

Vestil Aluminum Low Profile Lift 48.25 In

The Lite Load Lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. This low profile unit is easy to operate with a foot pump and an aluminum construction. The unit rolls smoothly on poly-on-poly rear wheels, four swivel front casters and a hand operated floor lock. Located on the handle are two rollers to ease loading into delivery trucks.

• Aluminum construction provides long lasting rugged use
• Easy to operate lift system makes lifting products to ergonomic heights simple
• Two rear and four swivel front wheel design conveniently rolls when loaded
• Two rollers on handle provide easy unit loading into delivery trucks

Specification

• Uniform Capacity (lb.): 400
• Platform Width (in.): 19-1/2
• Platform Length (in.): 20
• Lowered Height (in.): 1/4
• Raised Height (in.): 48-1/4
• Per Winch Rotation or Foot Pump Lift (in.): 1
• Horizontal Load Center (in.): 10
• Side Lip Height (in.): 2
• Profile: Low
• Operation: Foot Pump
• Rear Wheel Material: Poly on Poly
• Rear Wheel Type: Rigid
• Handle Caster Quantity/Diameter/Width (in.): (2) 4 x 1-1/4
• Handle Caster Material: Poly on Poly
• Handle Caster Type: Rigid

Documents

Click for Manual

Click for ALLPH-500-4SFL Approval Drawings

Click for ALLPH-500-FW Approval Drawings
