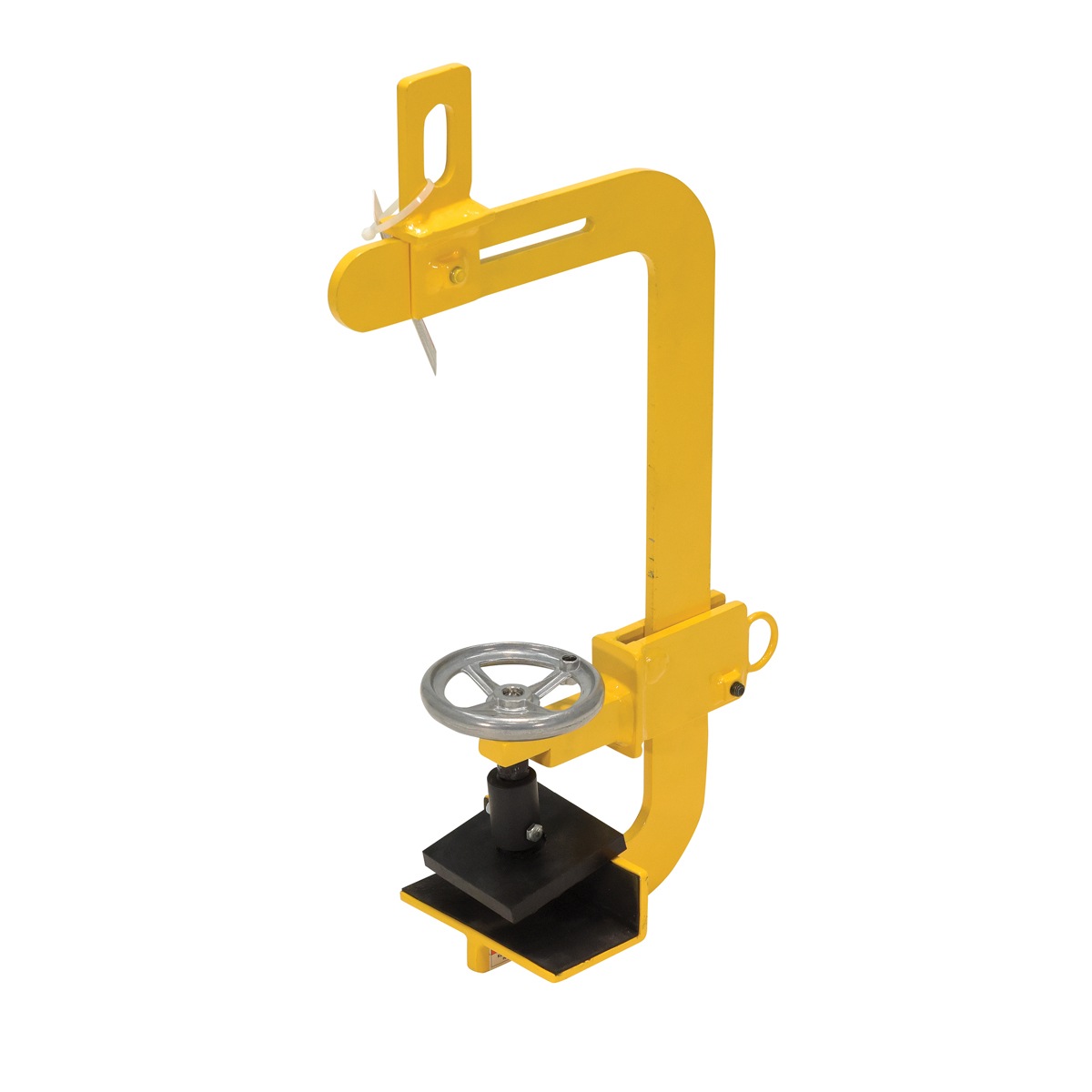

Vestil C-Clamp Square Stock Lifter

A block lifter minimizes manual labor and increases work place efficiency. The lifter allows the user to lift heavy awkward sized blocks to a preferred height. By securely attaching the adjustable lifting bale to a separate lifting device, the unit is ready for product placement. Once the beam/block is in the lower jaw of the lift and is resting alongside the back wall, the wheel can then be turned to firmly press the clamp pad against the block. As the product is secured and is within the limits of capacity, it can then be transferred to the desired location. The robust steel construction maximizes longevity of unit and painted finish diminishes excess damage during daily use.

• Large capacity for heavy loads
• Screw down clamp for precise positioning
• Open front side for large products
• Bright color for visibility

Specification

• Lifting Capacity (lb.): 200
• Minimum Block Height (in.): 1-3/4
• Clamp Engagement on Block (in.): 3-1/2
• Usable Lifting Eye Width/Height (in.): 1 x 2
