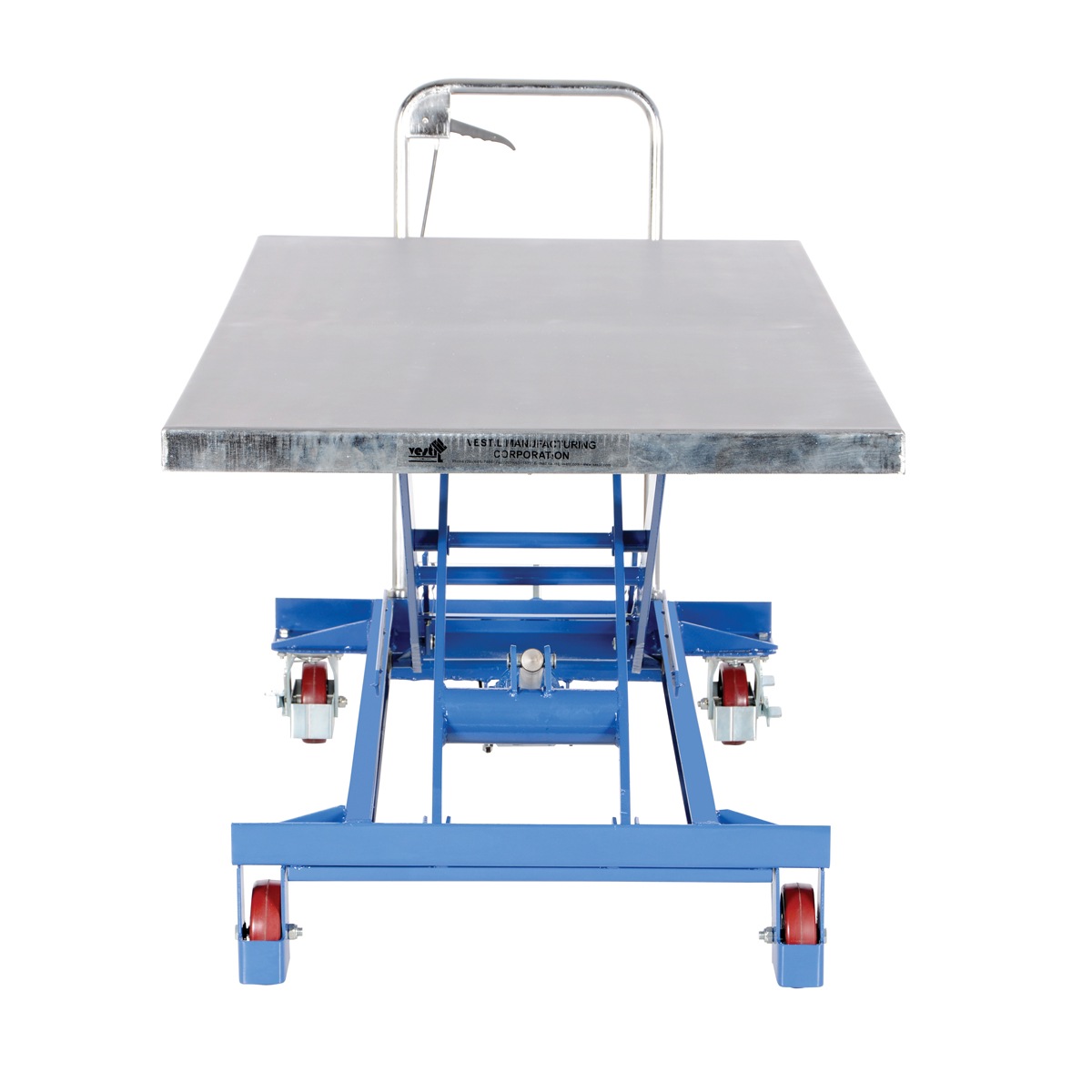

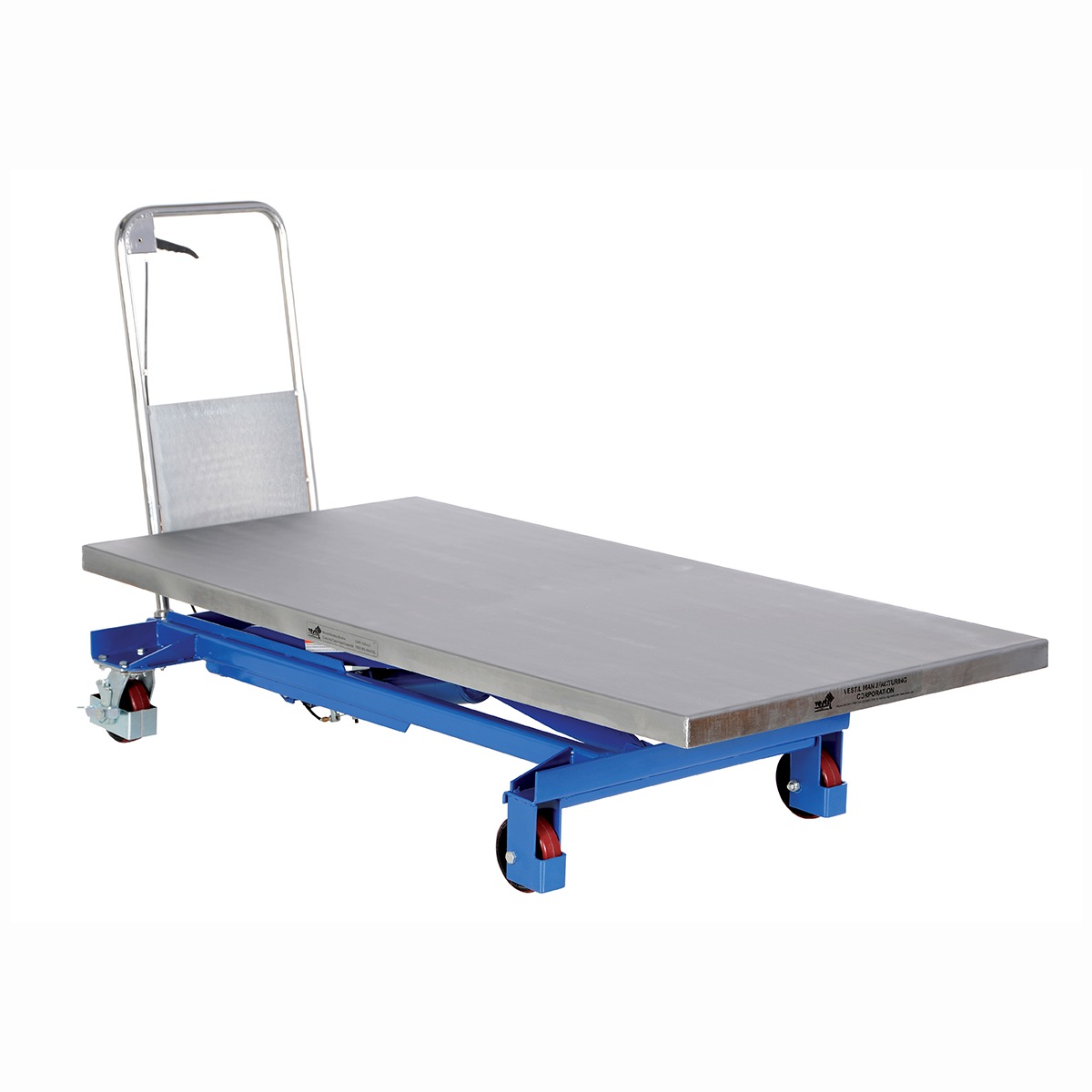

Vestil CART-1000-LD Hydraulic Single Scissor Cart 1K 63″X31.5″

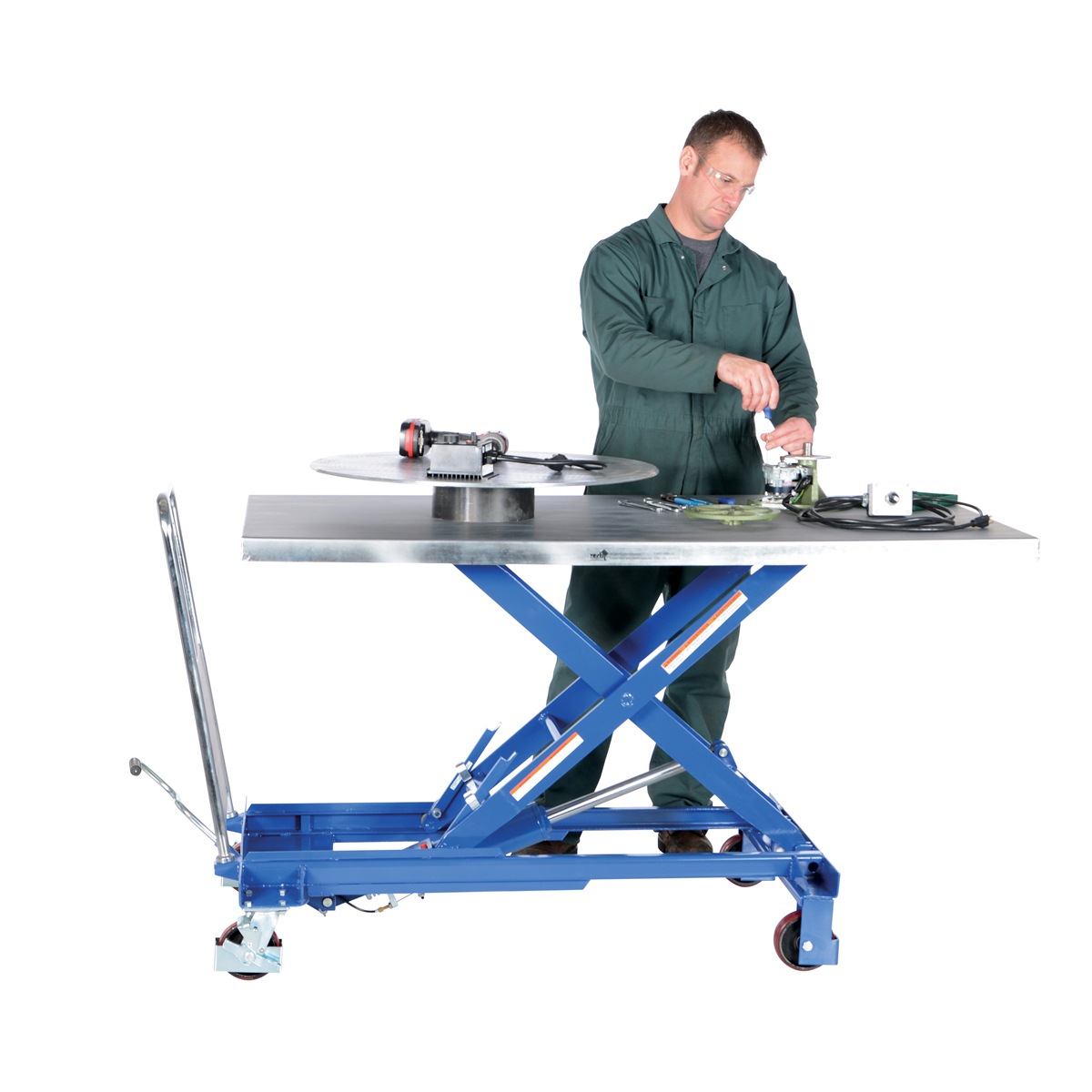

The Hydraulic Elevating Cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a single-speed foot pump. Features an internal safety velocity fuse in each cylinder.

• Unique lift design quickly raises & lowers material
• Ergonomic cart design improves user safety
• Caster construction provides easy portability when loaded
• Steel construction offers long lasting rugged use

Specification

• Uniform Capacity (lb.): 1000
• Platform Width (in.): 31-1/2
• Platform Length (in.): 63
• Lowered Height (in.): 15
• Raised Height (in.): 36
• Scissor Type: Single
• Caster Quantity/Diameter/Width (in.): (4) 5 x 1-1/2
• Caster Quantity/Type: (2) Rigid, (2) Swivel with Breaks
• Caster Material: Poly-on-Poly
• Foot Pump Speed: Single
• Elevation per Stroke (in.): 3/4
• Pumps to Raise Cart with Load (quantity): 40 to 45

Documents

Click for CART-1000-LD Approval Drawings

Click for Manual
