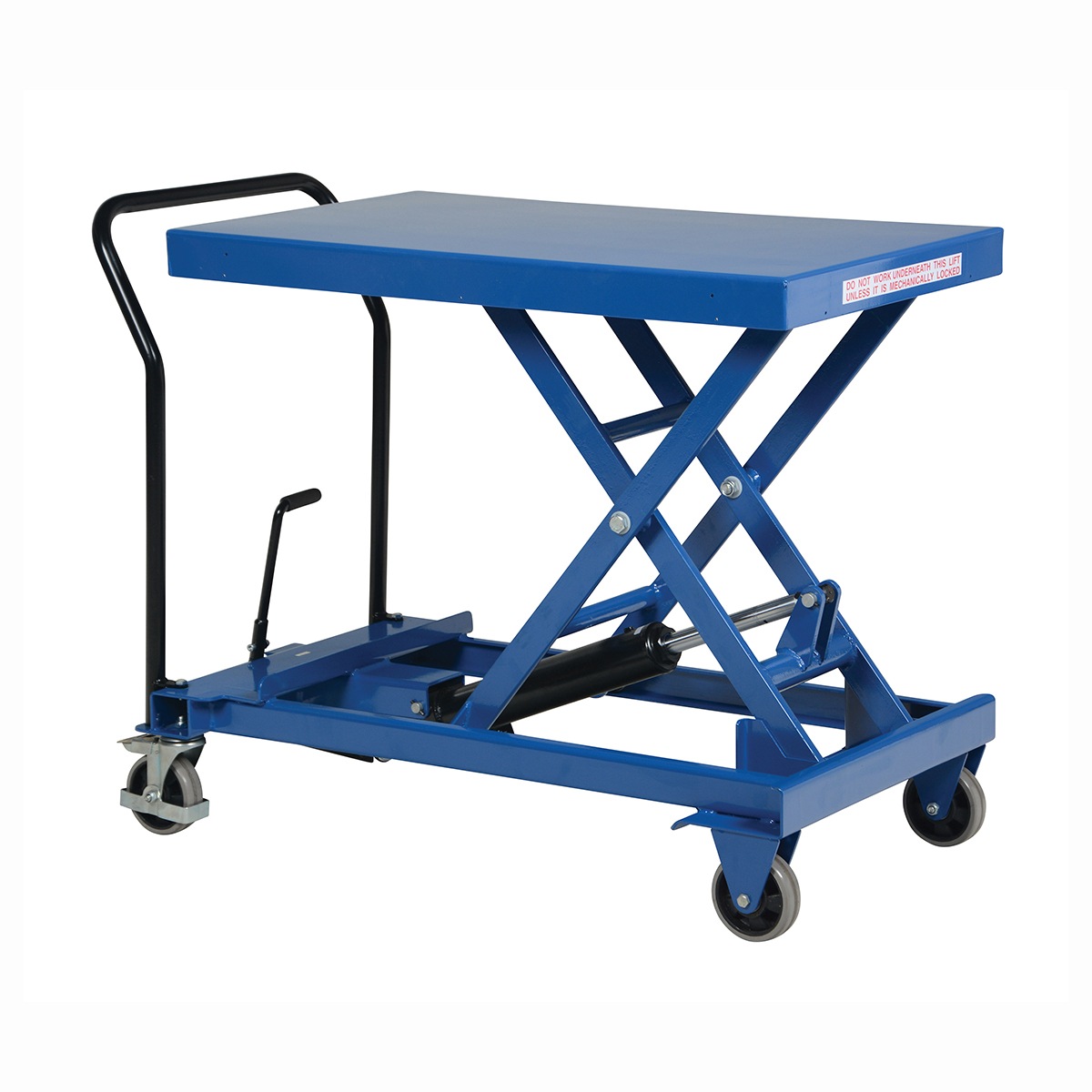

Vestil CART-1000-S-FR Premium Portable Scissor Cart 1K 40.5″X24″

The Premium Scissor Lift Cart is constructed of heavy duty steel and designed to withstand the most demanding industrial environments. The simplicity and compactness of these products make them ideal for lifting and transporting loads, order-picking, die handling, and for use in support of assembly operations. There is little exertion required to raise and lower the deck due to the high quality foot-actuated, single speed hydraulic pump. The hydraulic system is equipped with an overload protection valve. Each cart has safety stops to prevent an empty deck from lowering while performing maintenance. A unique tilt-up table top allows for safe and easy maintenance. The two rigid front casters and two rear swivel polyurethane casters with brake provide a high degree of maneuverability; each swivel wheel is protected by guards and is equipped with brakes. Features an internal safety velocity fuse in each cylinder.

• Unique lift design quickly raises & lowers material
• Ergonomic cart design improves user safety
• Caster construction provides easy portability when loaded
• Steel construction offers long lasting rugged use

Specification

• Uniform Capacity (lb.): 1000
• Platform Width (in.): 24
• Platform Length (in.): 40-1/2
• Lowered Height (in.): 13-1/2
• Raised Height (in.): 35-1/2
• Lowering Method: Foot Release
• Scissor Design: Single
• Front Caster Diameter (in.): 8
• Front Caster Width (in.): 2
• Rear Caster Diameter (in.): 5
• Rear Caster Width (in.): 1-1/2
• Front Caster Type: Hard Rubber
• Rear Caster Type: Poly-on-Poly

Documents

Click for CART-1000-S-FR Approval Drawings
