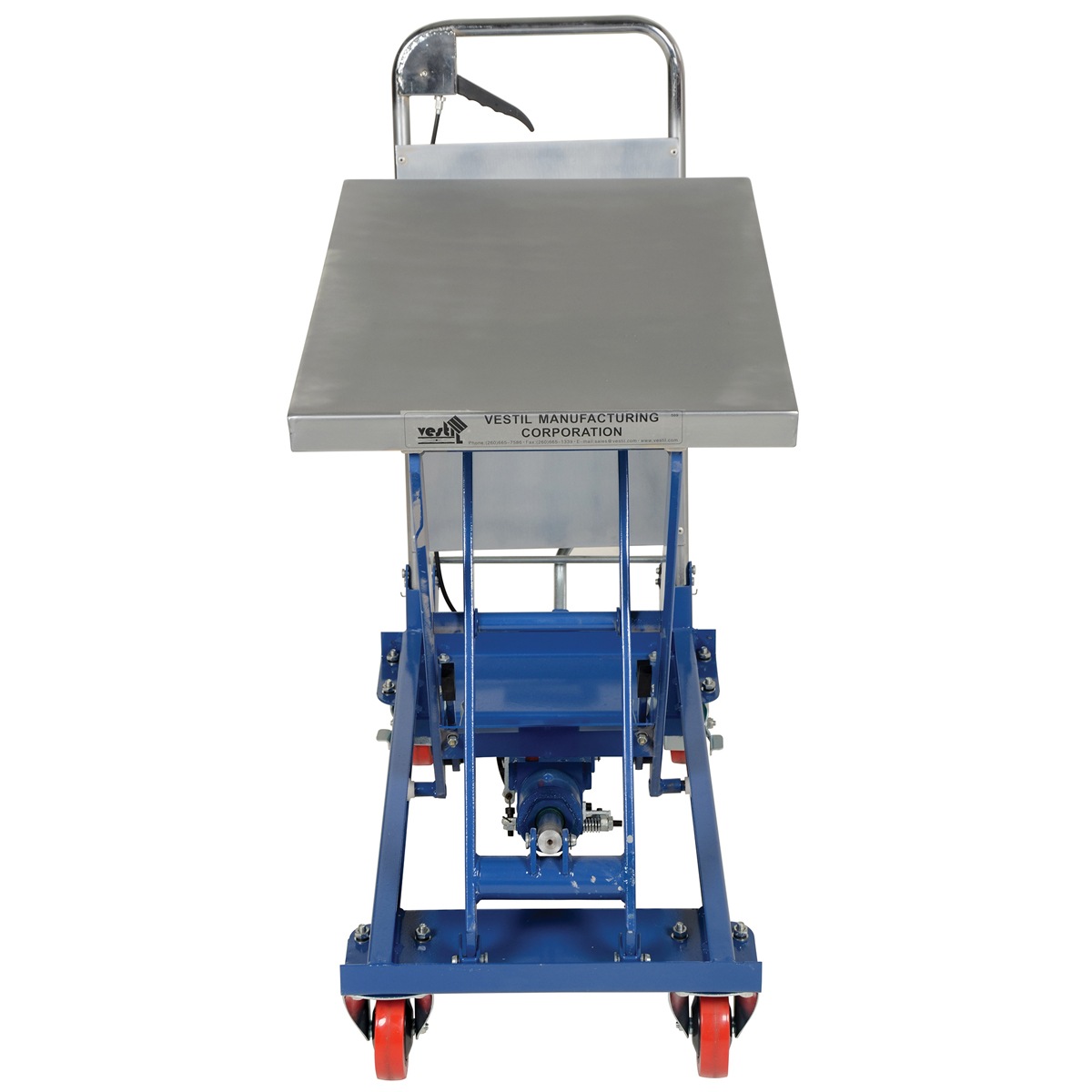

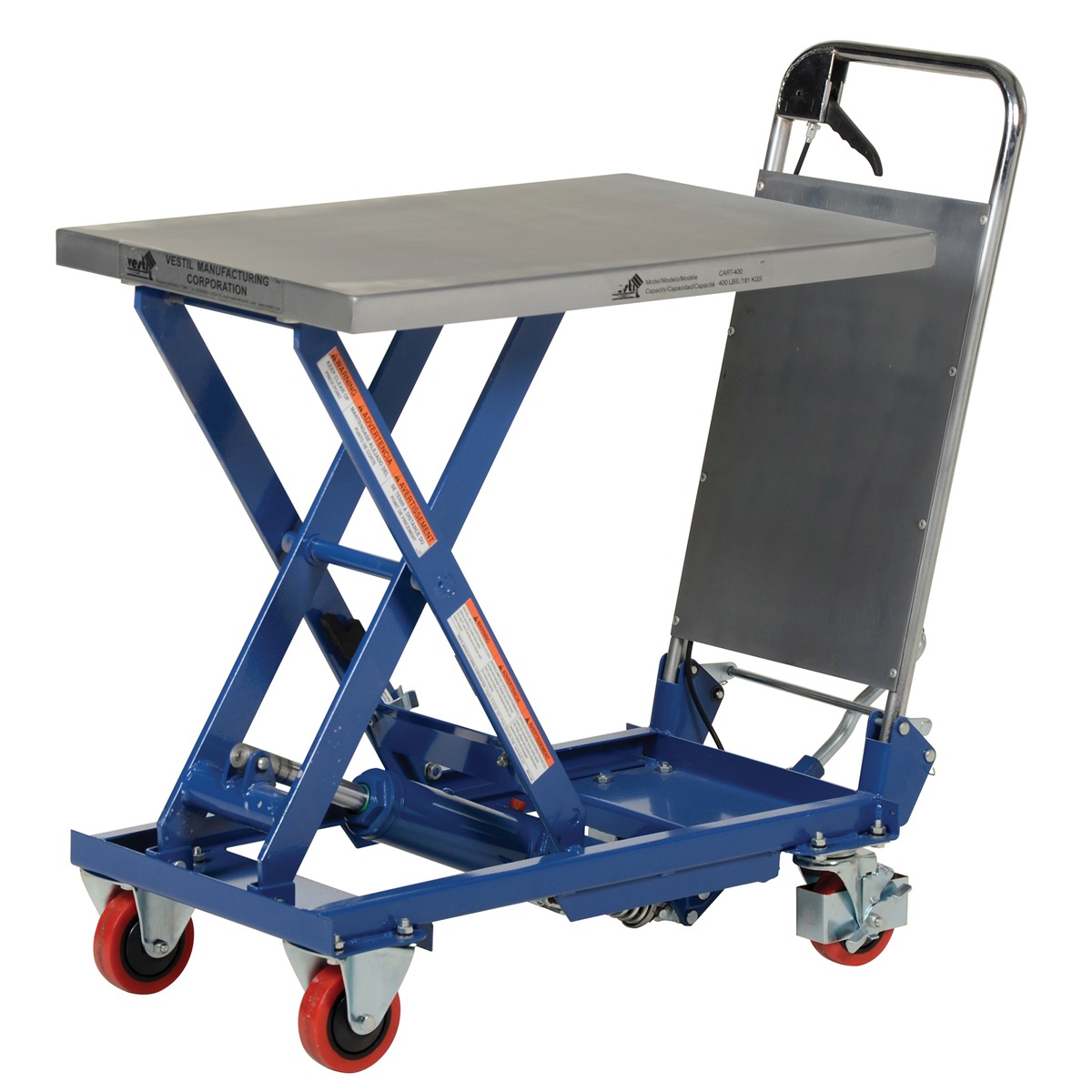

Vestil CART-400 Hydraulic Scissor Cart 400LB 27.5″X17.5″

The Hydraulic Elevating Cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a single-speed foot pump. Features an internal safety velocity fuse in each cylinder.

• Unique lift design quickly raises & lowers material
• Ergonomic cart design improves user safety
• Caster construction provides easy portability when loaded
• Steel construction offers long lasting rugged use

Specification

• Uniform Capacity (lb.): 400
• Platform Width (in.): 17-1/2
• Platform Length (in.): 27-1/2
• Lowered Height (in.): 8-3/4
• Raised Height (in.): 29
• Foot Pump Speed: Single
• Number of Pumps High/Low Speed: 8/16
• Caster Quantity/Diameter/Width (in.): (4) 4 x 1-1/4
• Caster Type: (2) Rigid (2) Swivel with Brakes
• Caster Material: Poly-on-Poly
• Scissor Type: Single
• Elevation per Stroke (in.): 1-1/2
• Platform Thickness (gauge): 11

Documents

Click for CART-400 Approval Drawings
