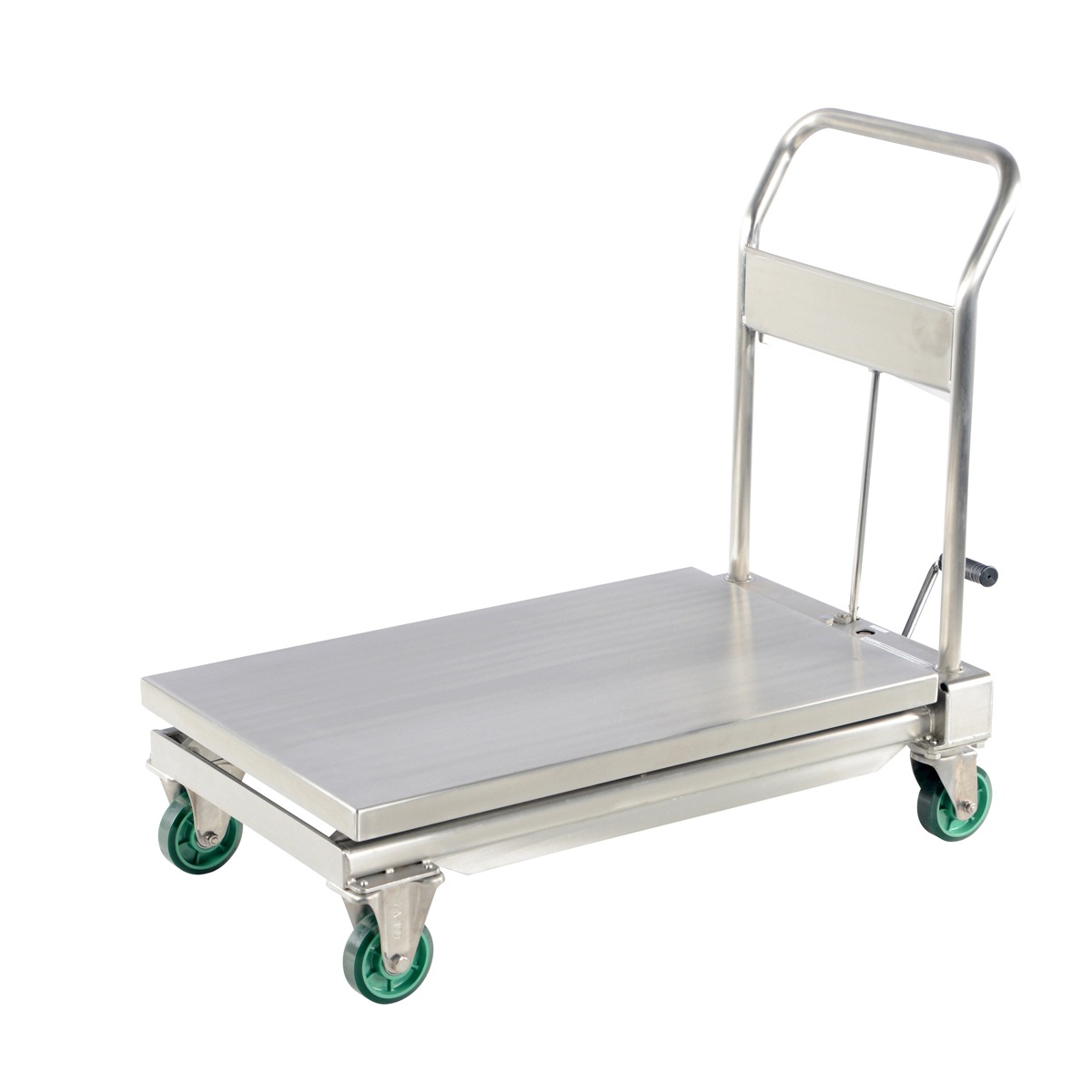

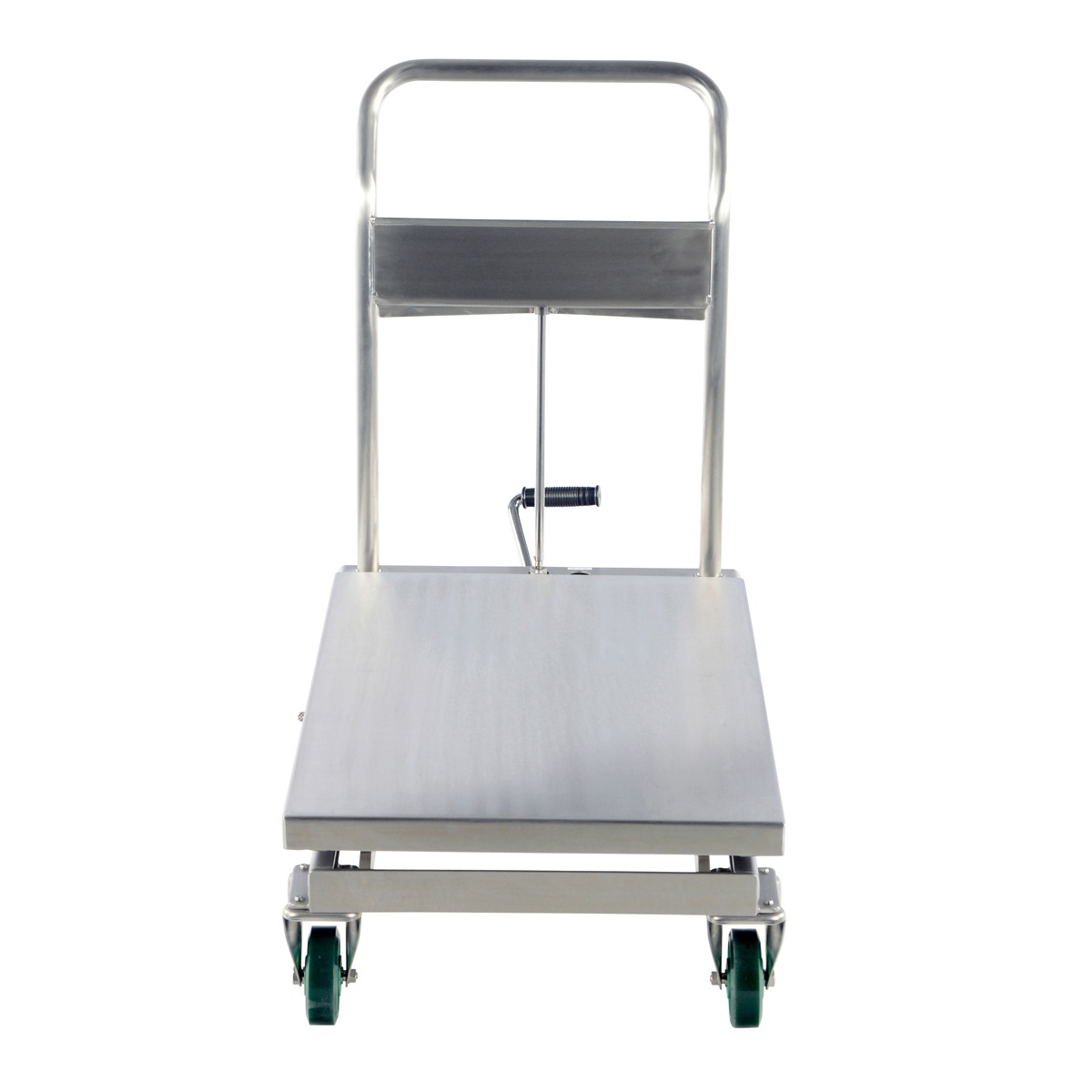

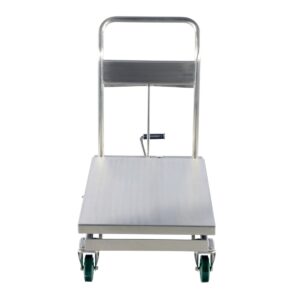

Vestil CART-550-SS Ss Hydraulic Cart 550LB 31.5″X19.5″

The Hydraulic Elevating Cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Foot pump pedal, pump assembly and hydraulic cylinder are chrome plated. Rest of the unit is fully stainless construction. Features an internal safety velocity fuse in each cylinder.

• Unique lift design quickly raises & lowers material
• Ergonomic cart design improves user safety
• Caster construction provides easy portability when loaded
• Stainless Steel construction offers long lasting rugged use

Specification

• Uniform Capacity (lb.): 550
• Platform Width (in.): 19-1/2
• Platform Length (in.): 31-1/2
• Lowered Height (in.): 9-3/4
• Raised Height (in.): 33-1/2
• Foot Pump Speed: Two
• Caster Quantity/Diameter/Width (in.): (4) 4 x 1-1/4
• Caster Type: (2) Rigid, (2) Swivel with Brakes
• Caster Material: Polyurethane
• Number of Pumps Unloaded at Slow Speed: 24
• Number of Pumps Unloaded at Fast Speed: 12
• Number of Pumps Loaded at Slow Speed: 27
• Elevation per Stroke (in.): 3/4
