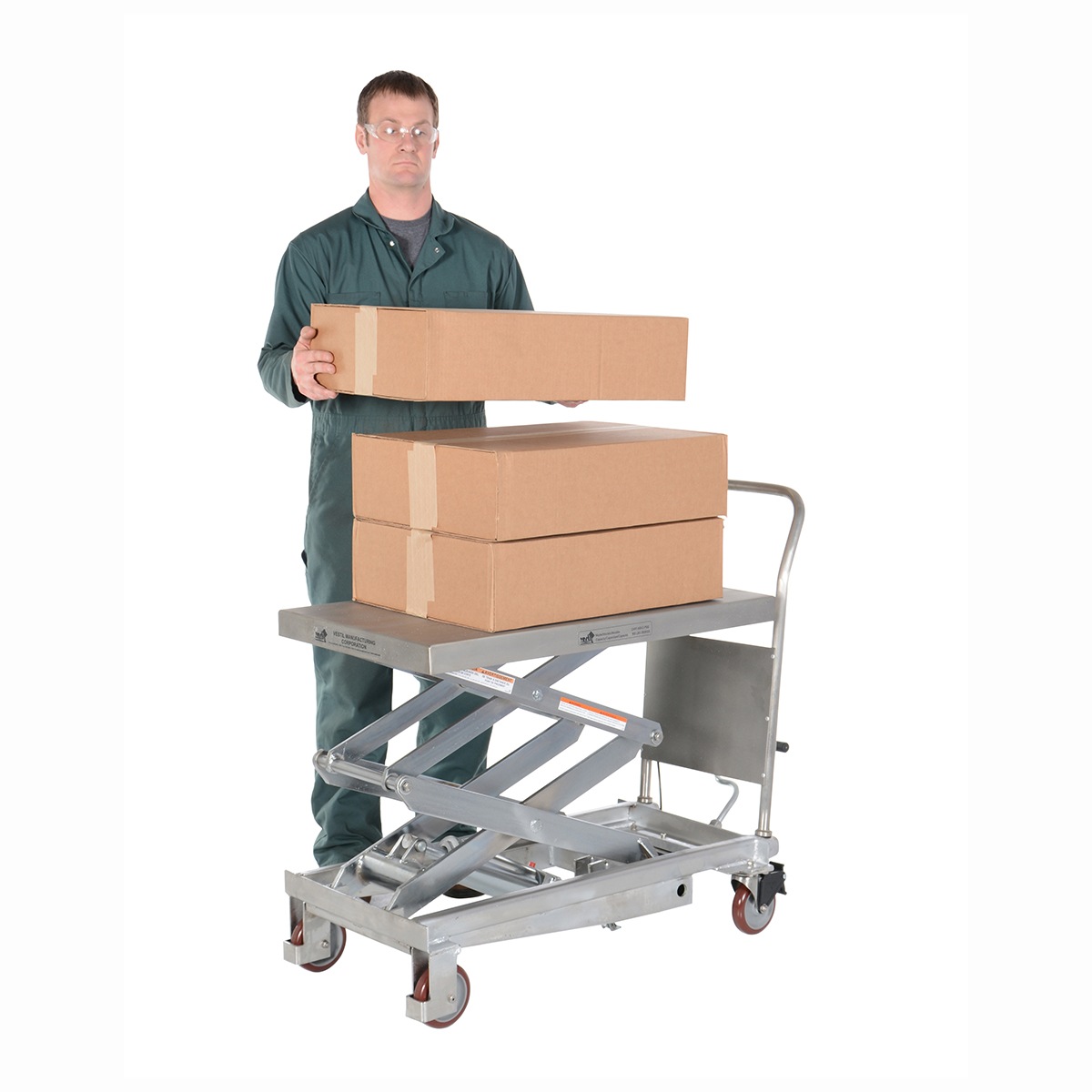

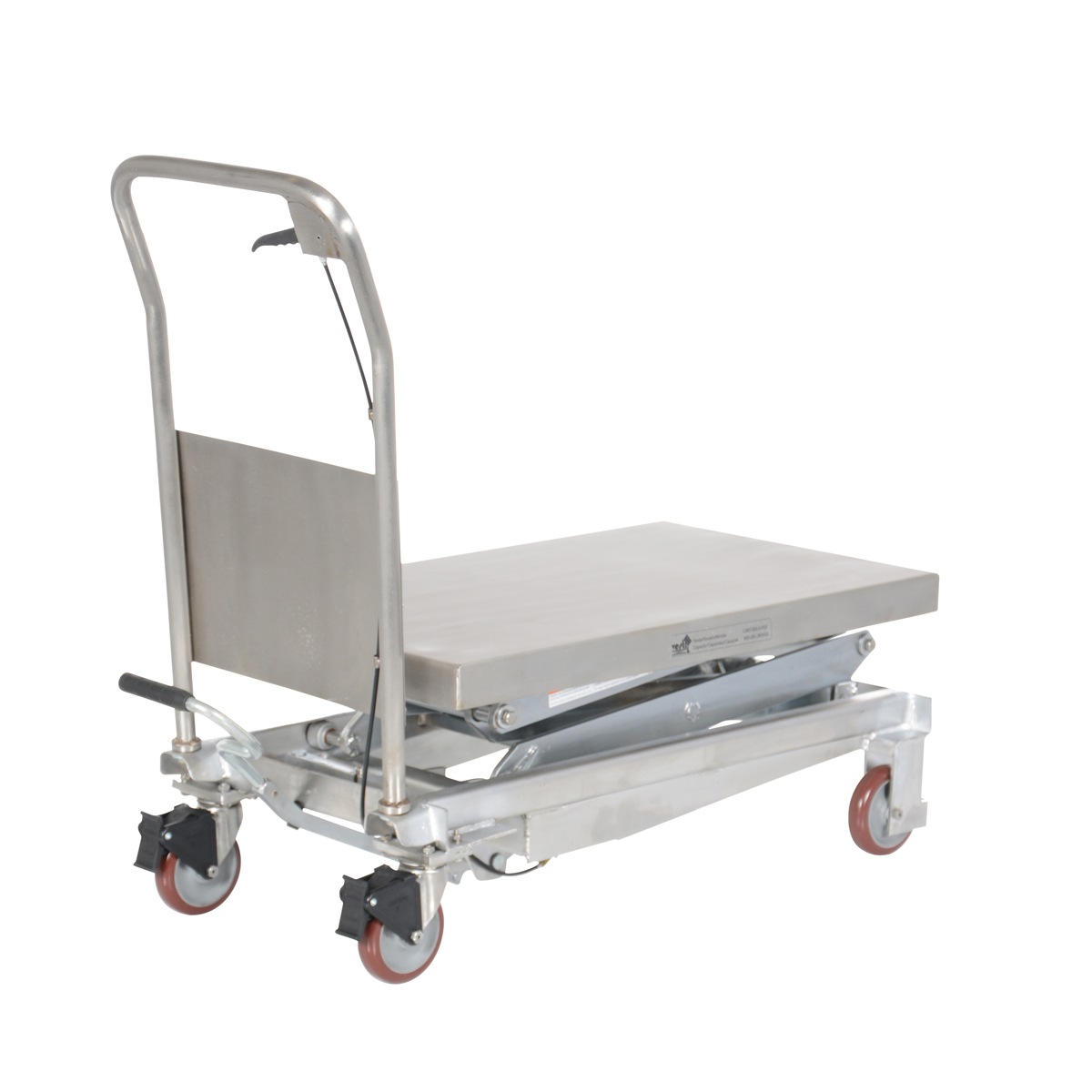

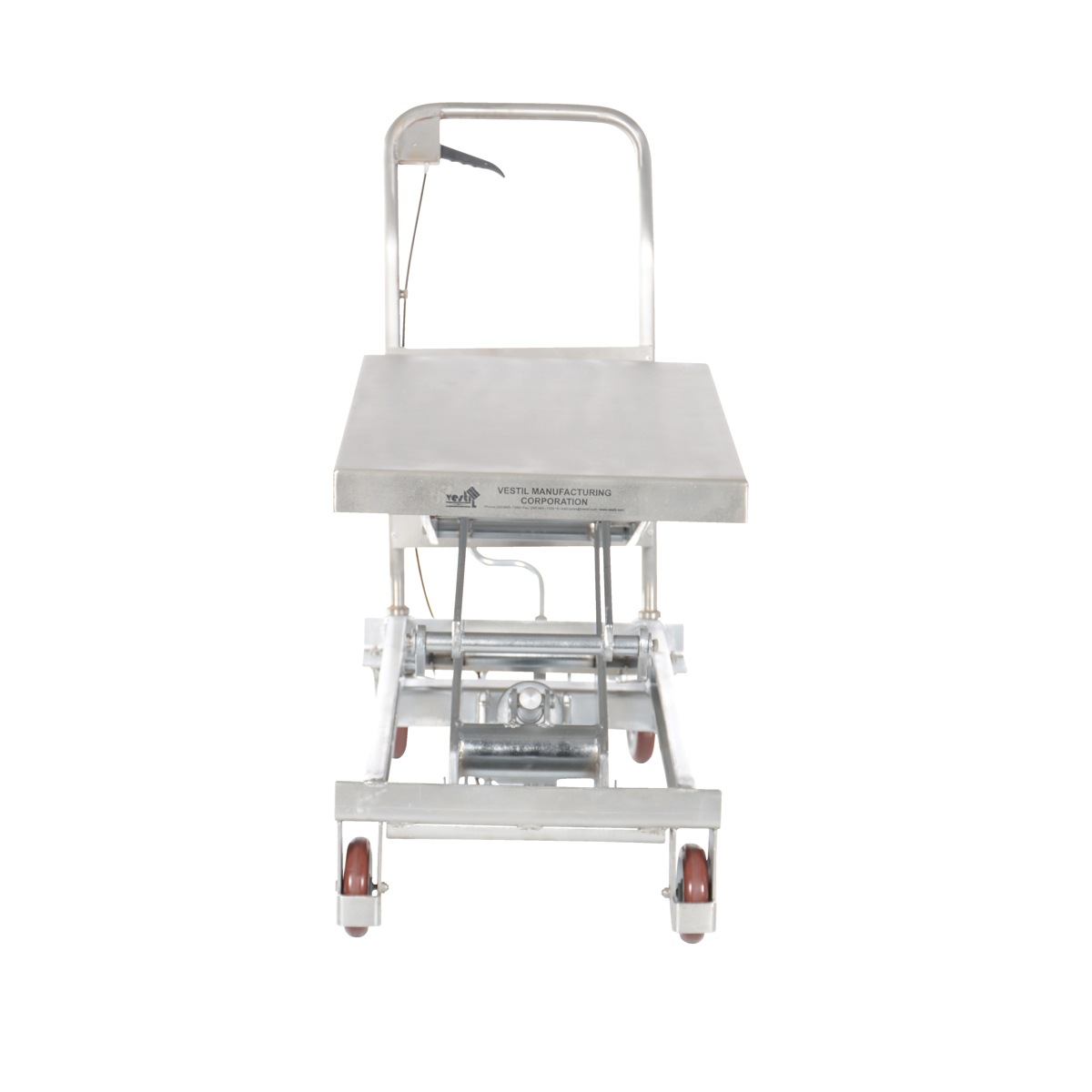

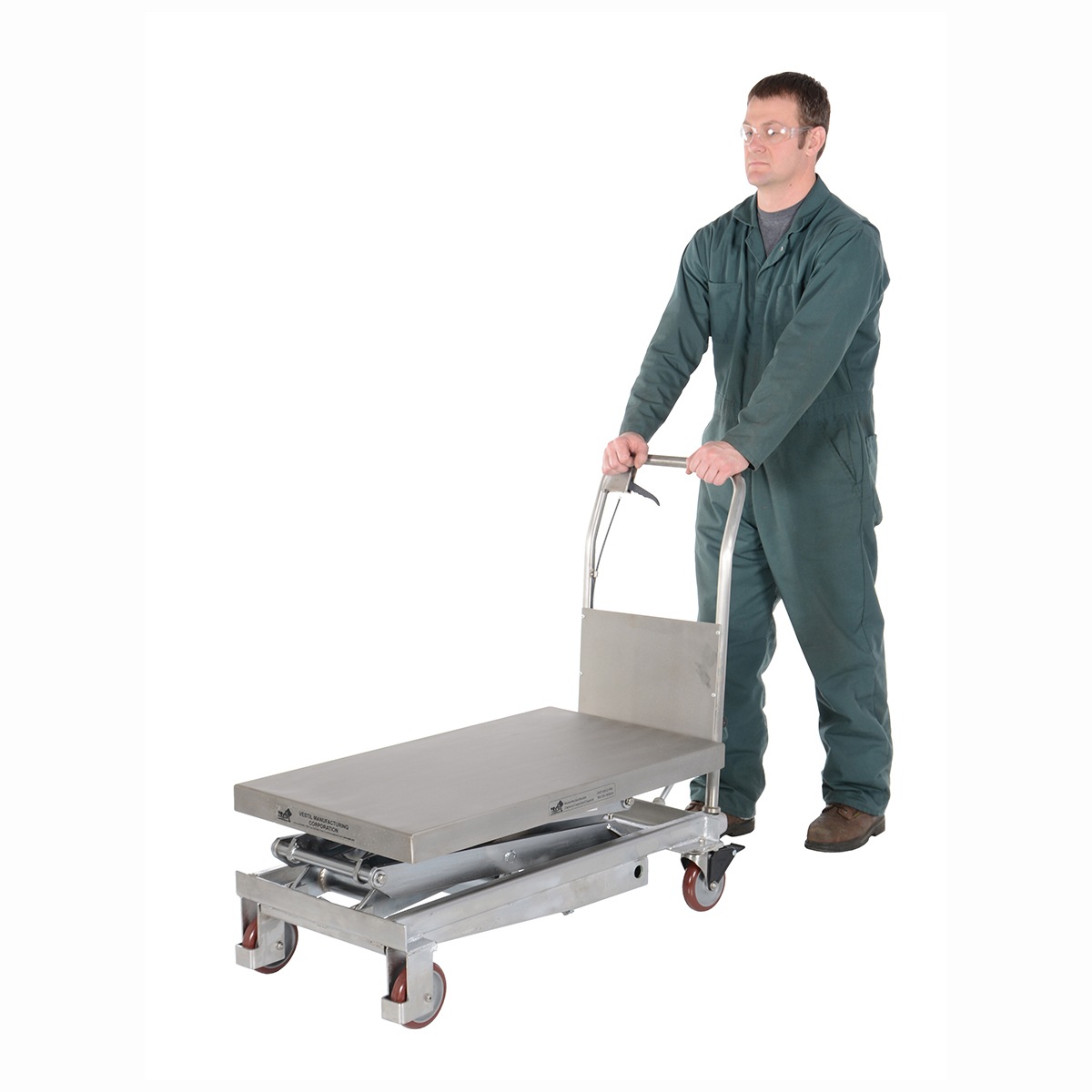

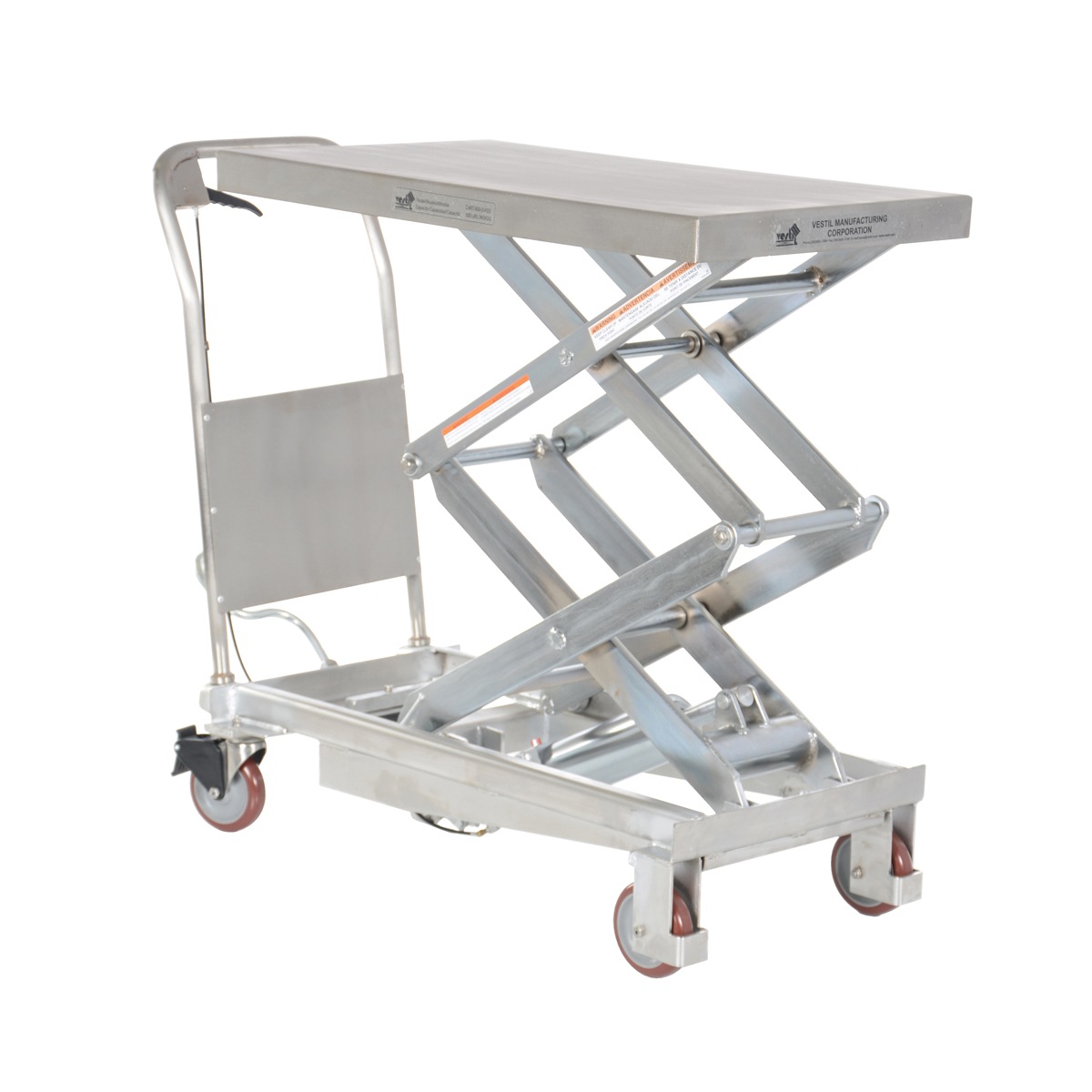

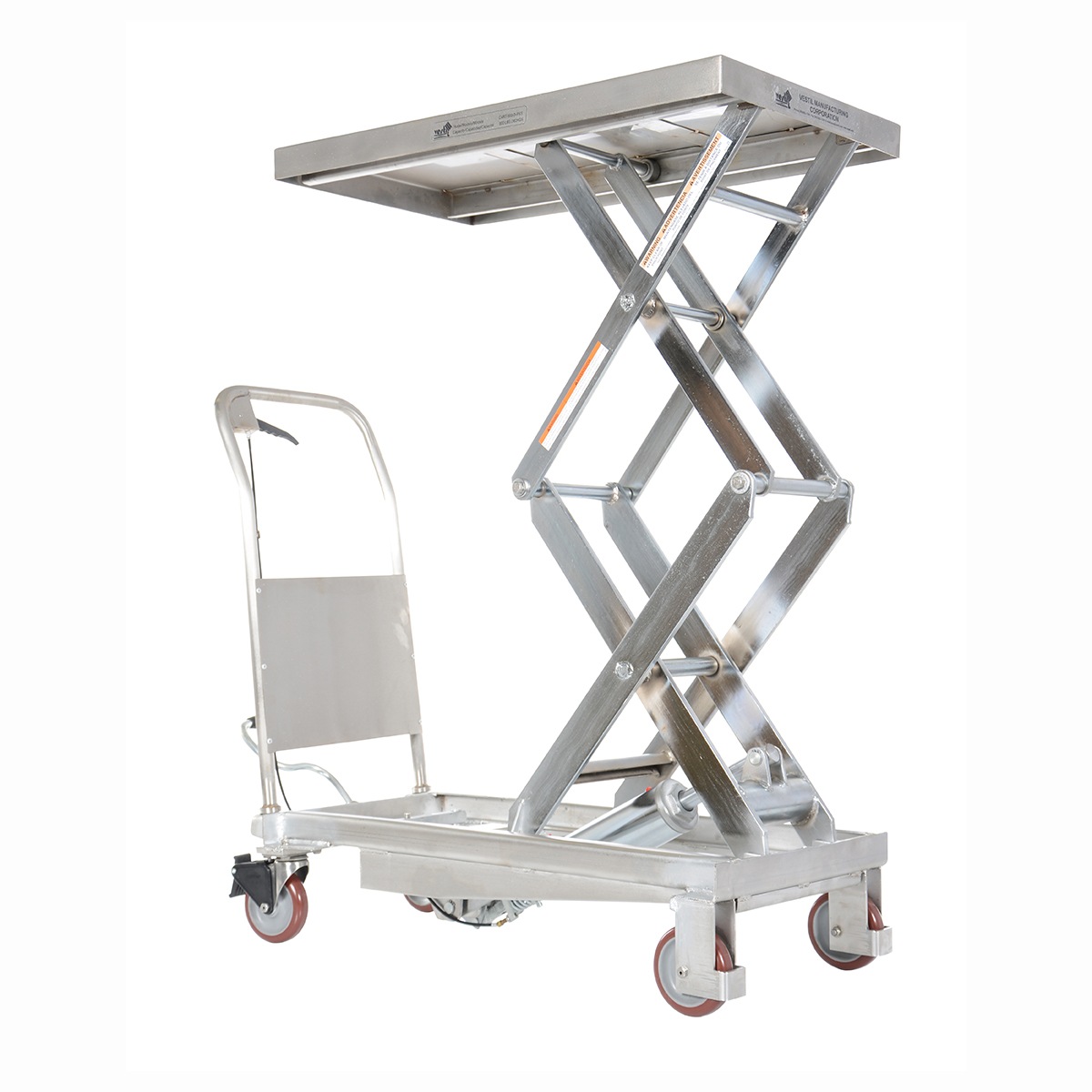

Vestil CART-800-D-PSS Partial Stainless Steel Elevating Cart 800LB 35.5″X20″

The Partially Stainless Steel Hydraulic Elevating Cart is available for transport heavy loads in lab, food service and healthcare applications. Not suitable for wash-down applications. environments. The platform. handle, base frame, caster rig and hardware are 304 grade stainless steel. Silver painted pump assembly, scissor legs, and foot pedal offers maximum rust-resistance. Foot-operated hydraulic pump raises platform. To lower unit use the hand-operated release. The wheels are poly-on-poly. Features an internal safety velocity fuse in each cylinder.

• Unique lift design quickly raises & lowers material
• Ergonomic cart design improves user safety
• Caster construction provides easy portability when loaded
• Partially Stainless Steel construction offers long lasting rugged use

Specification

• Uniform Capacity (lb.): 800
• Platform Width (in.): 20
• Platform Length (in.): 35-1/2
• Lowered Height (in.): 15-1/2
• Raised Height (in.): 50-3/4
• Foot Pump Speed: Single
• Caster Diameter (in.): 5
• Caster Width (in.): 2
• Elevation per Stroke (in.): 3/4
• Caster (qty.): 4
• Caster Material: Poly-on-Poly

Documents

Click for CART-800-D-PSS Approval Drawings
