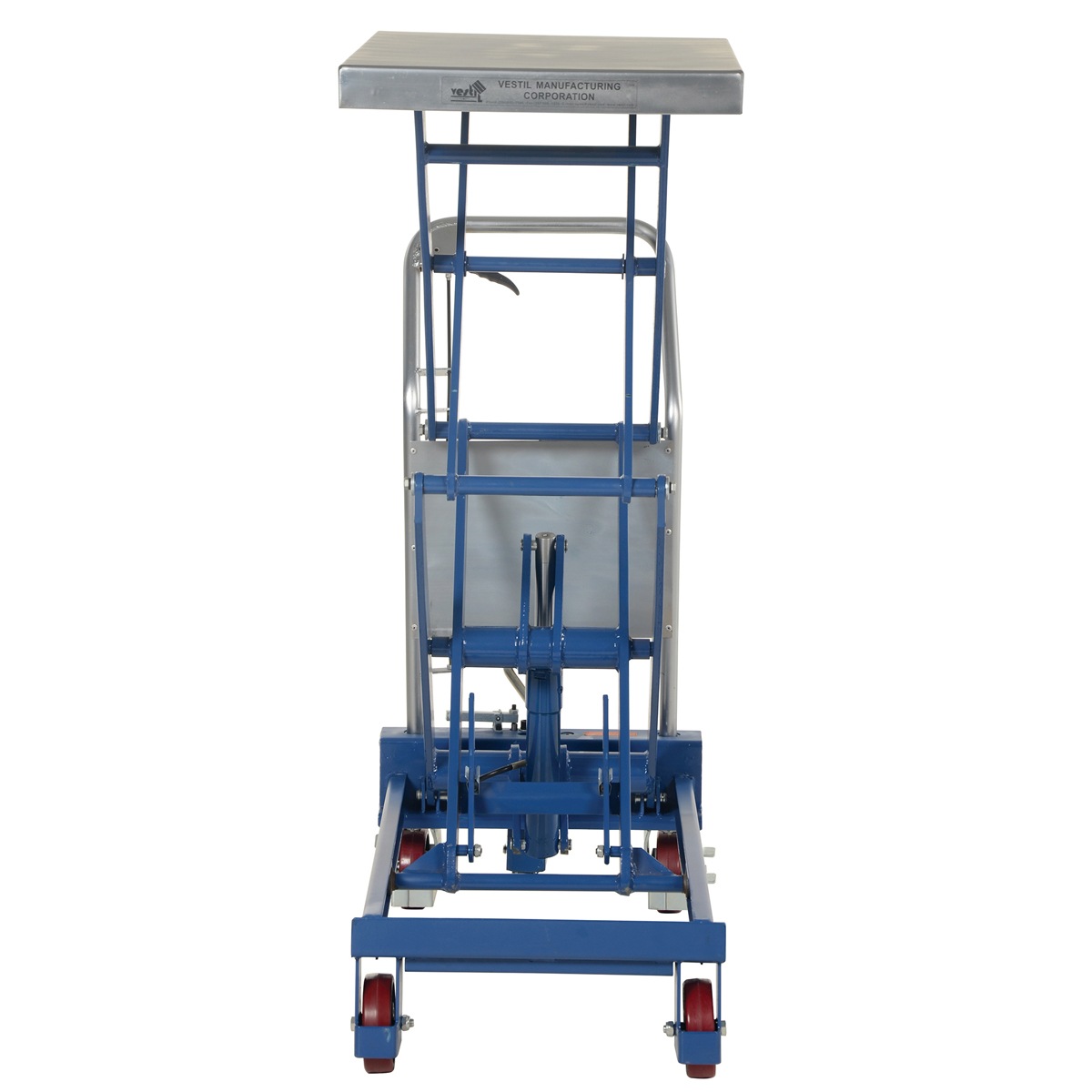

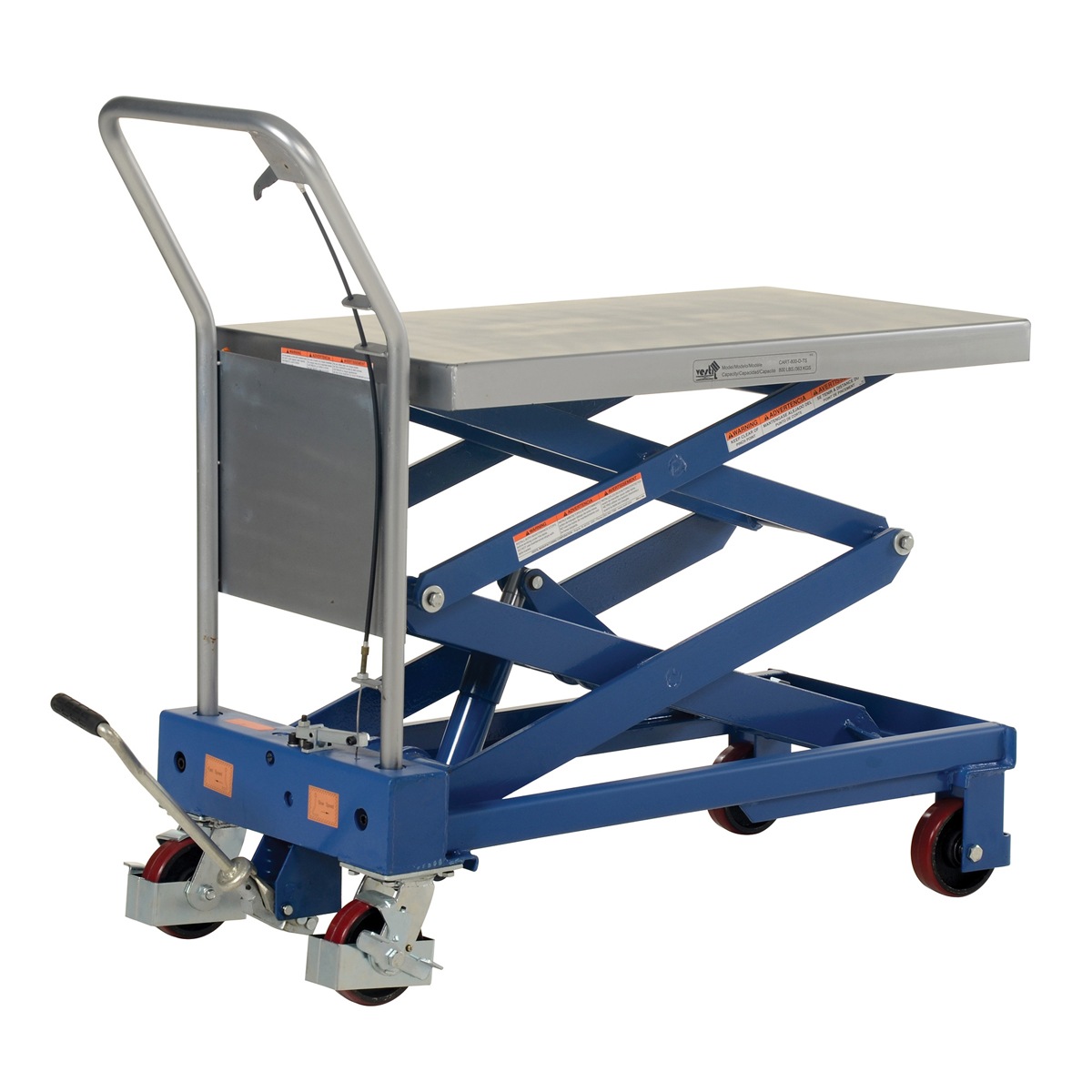

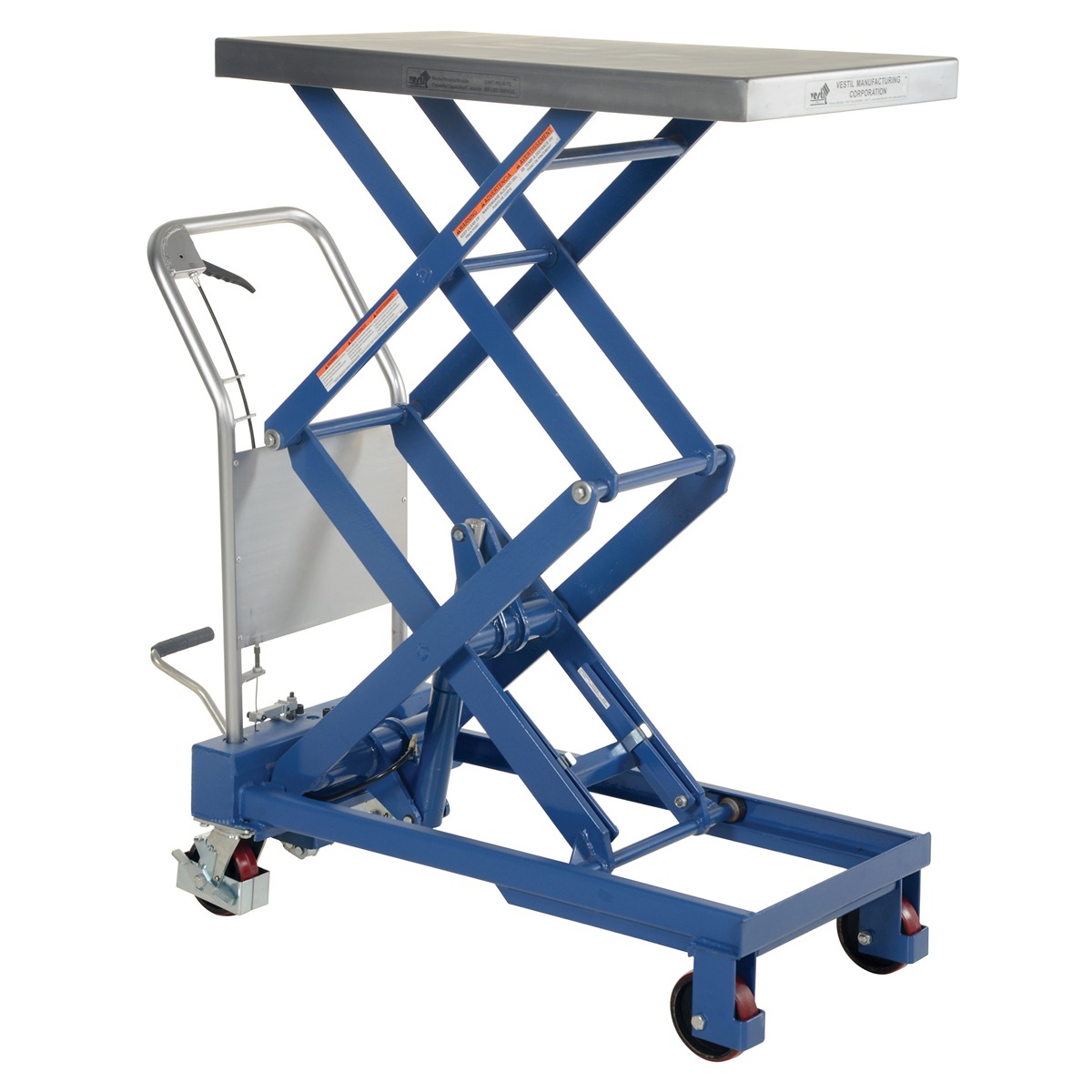

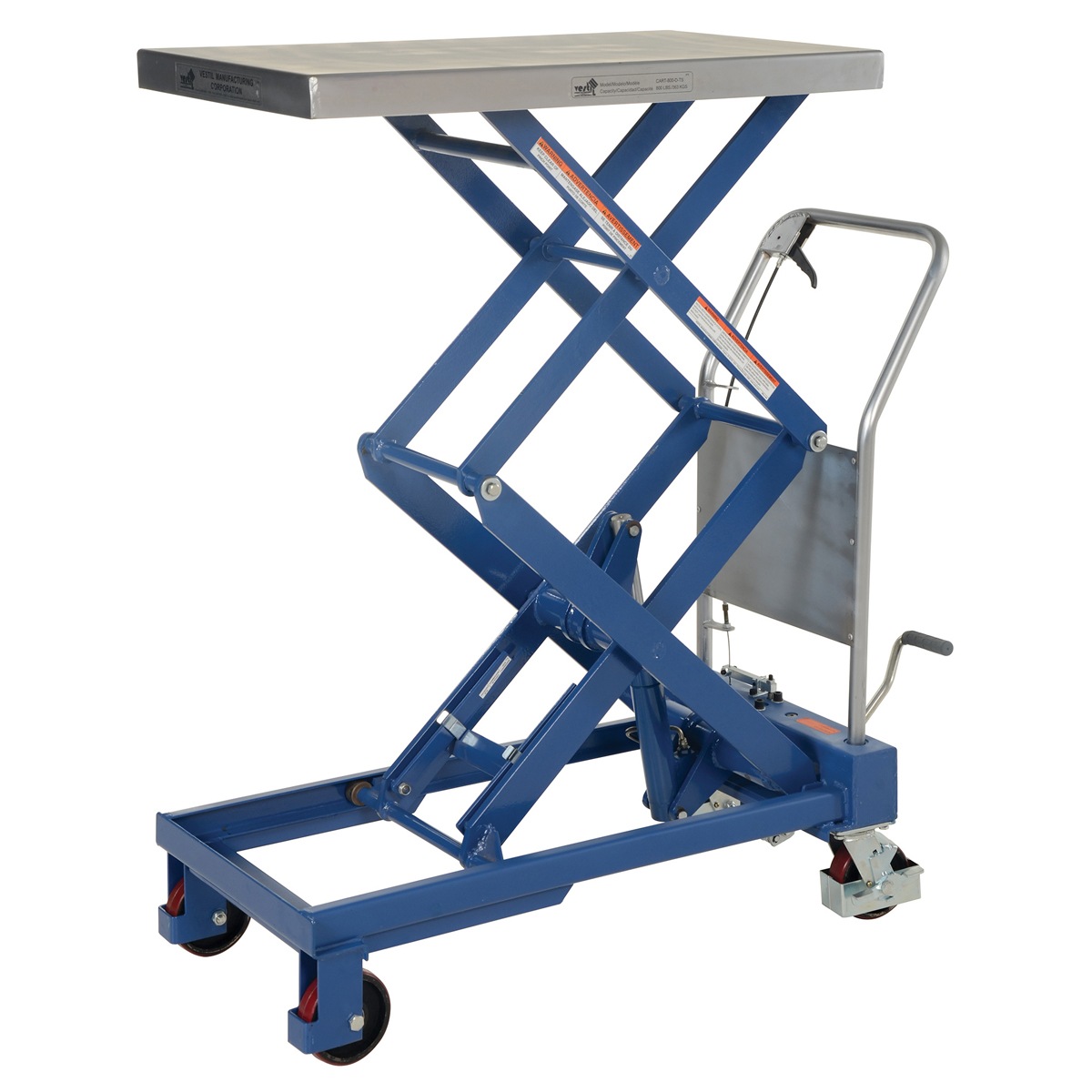

Vestil CART-800-D-TS Double Hydraulic Cart 800LB 35.5″ X 20″

The Hydraulic Elevating Cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Features an internal safety velocity fuse in each cylinder.

• Unique lift design quickly raises & lowers material
• Ergonomic cart design improves user safety
• Caster construction provides easy portability when loaded
• Steel construction offers long lasting rugged use

Specification

• Uniform Capacity (lb.): 800
• Platform Width (in.): 20
• Platform Length (in.): 35-1/2
• Lowered Height (in.): 15-1/2
• Raised Height (in.): 51-7/8

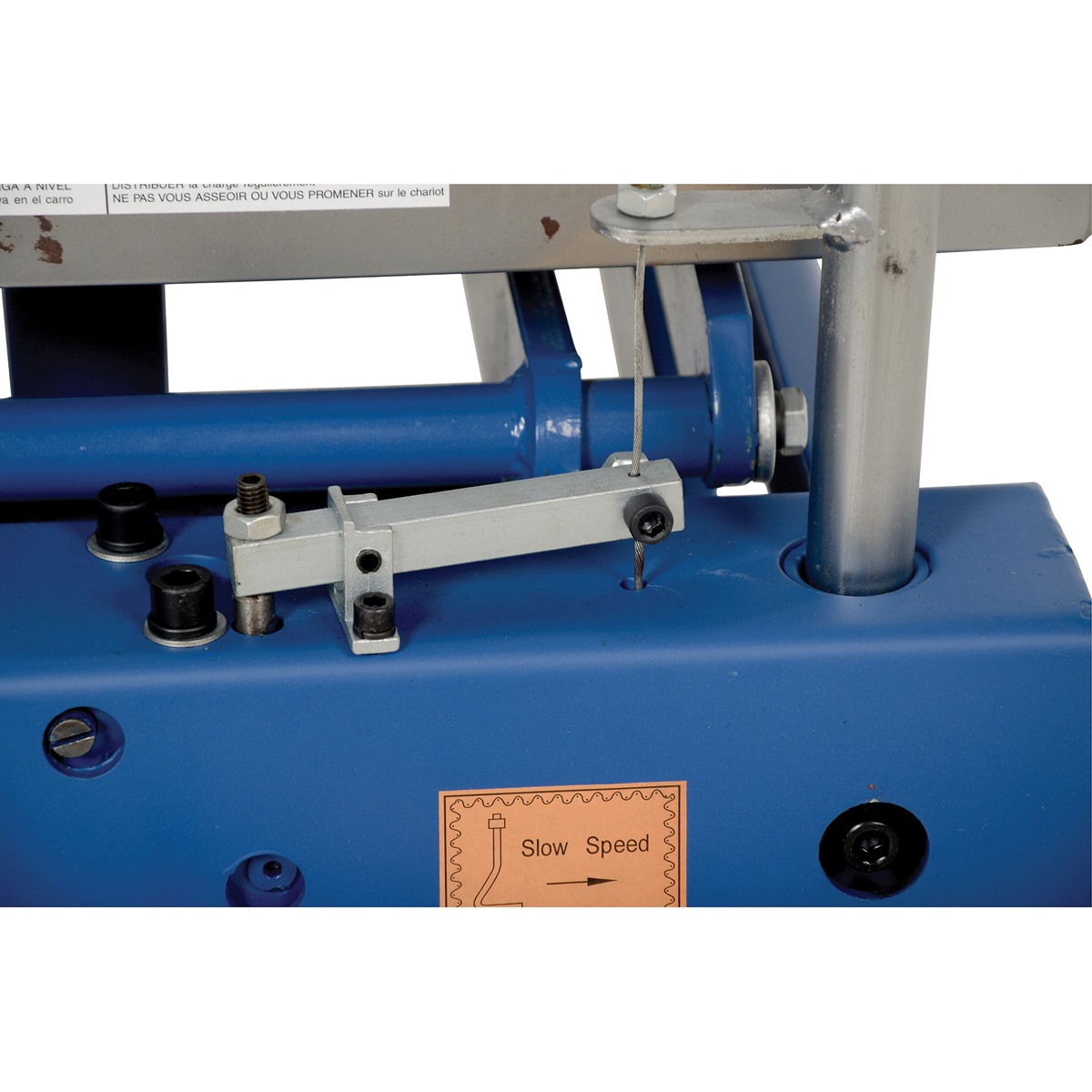

• Foot Pump Speed: Two
• Caster Quantity/Diameter/Width (in.): (4) 5 x 2
• Caster Quantity/Type: (2) Rigid (2) Swivel with Brakes
• Caster Material: Poly-on-Poly
• Scissor Number: 2
• Elevation per Stroke (in.): 3/4

Documents

Click for CART-800-D-TS Approval Drawings

Click for Manual
