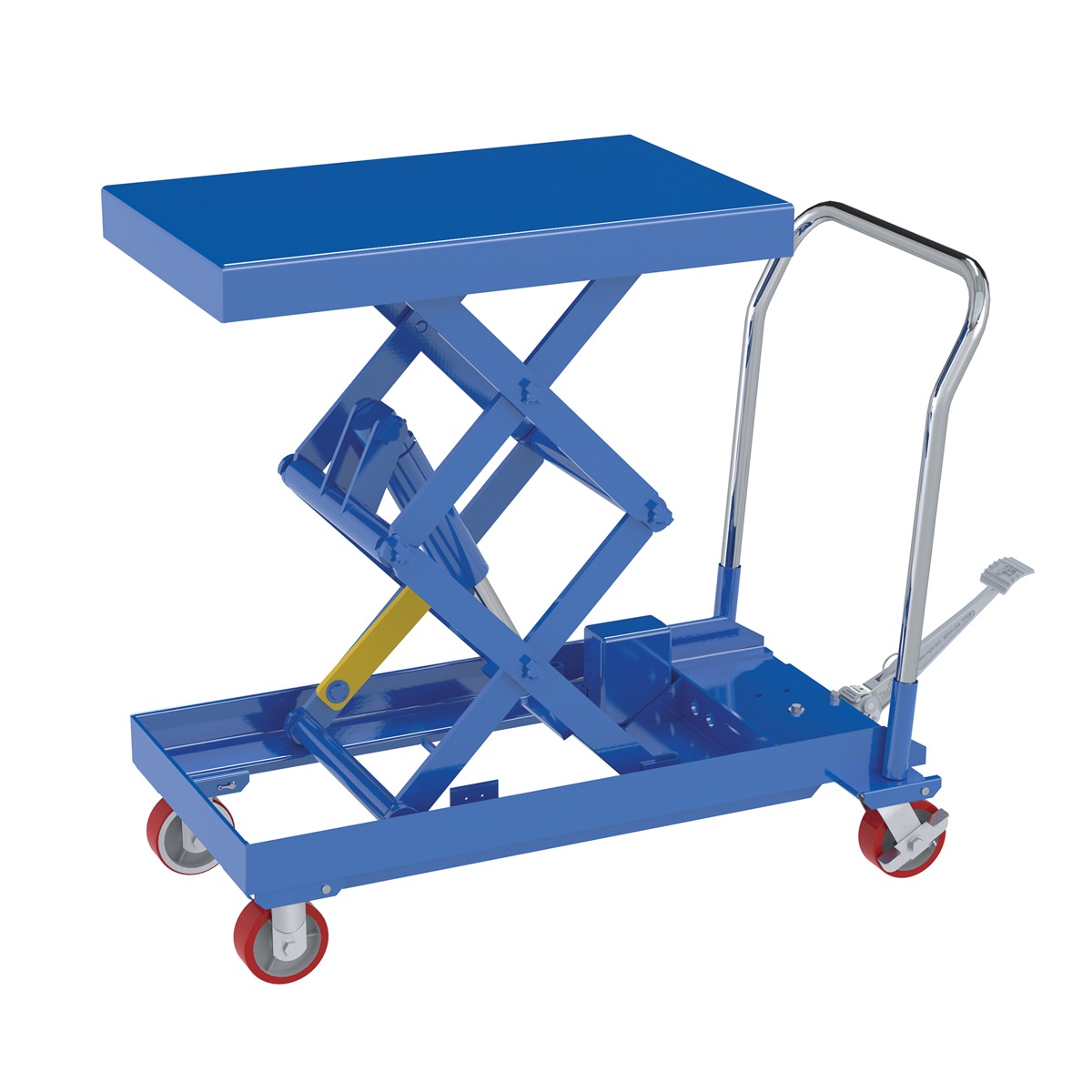

Vestil CARTD-1000-2033-FP Hydraulic Elevating Cart 20″X33″ 1000 LB Foot Pump

Hydraulic Elevating Carts are well suited for manufacturing and distributing industries. Material can be easily loaded onto a cart from a table, lowered to safe transporting height, and raised to unload at a destination. Foot pump includes a soft-lowering down valve for precise positioning and the perfect ergonomic height. The unit rolls on (4) polyurethane casters; two (2) swivel with brakes and two (2) rigid. The tables can be raised and lowered with a single speed foot pump, two speed foot pump or a two speed auto shifter that automatically shifts when the table is loaded. Steel construction with chrome platform and handle on all models, except model CART-200-ALUM which includes an aluminum platform surface.

• Foot pump design for precise positioning
• Double scissor for added strength
• High handle height for proper ergonomic posture
• Attached casters allow rolling over rough terrain

Specification

• Uniform Capacity (lb.): 1000
• Platform Width (in.): 20-3/8
• Platform Length (in.): 33-3/8
• Lowered Height (in.): 14
• Raised Height (in.): 42
• Foot Pump Speed: 2-Speed Auto Shifter
• Caster Quantity/Diameter/Width (in.): (4) 5×2
• Caster Type: Poly-on-Steel
• Caster Quantity/Type: (2) Rigid, (2) Swivel with Brakes

Documents

Click for CARTD-1000-2033-FP Approval Drawings
