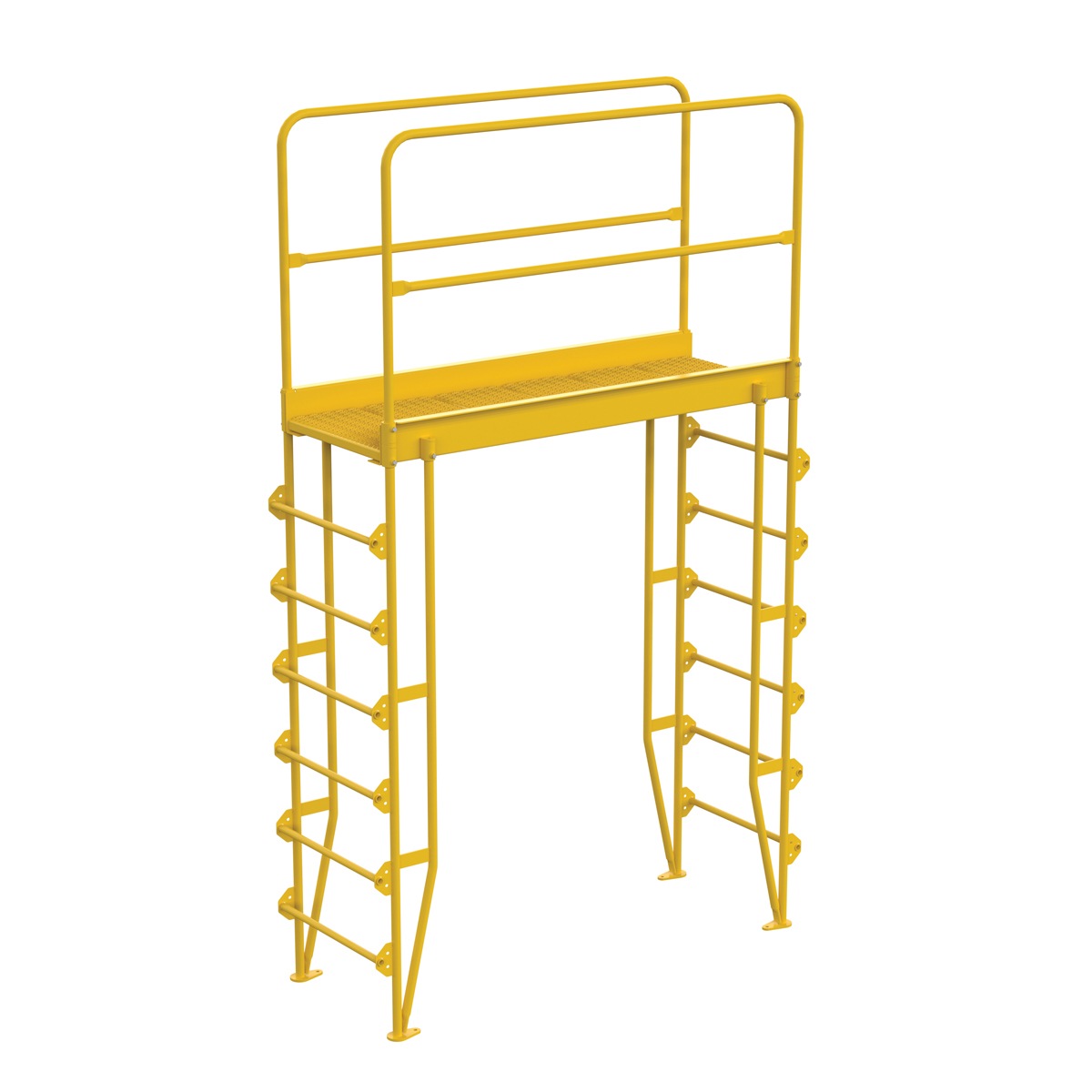

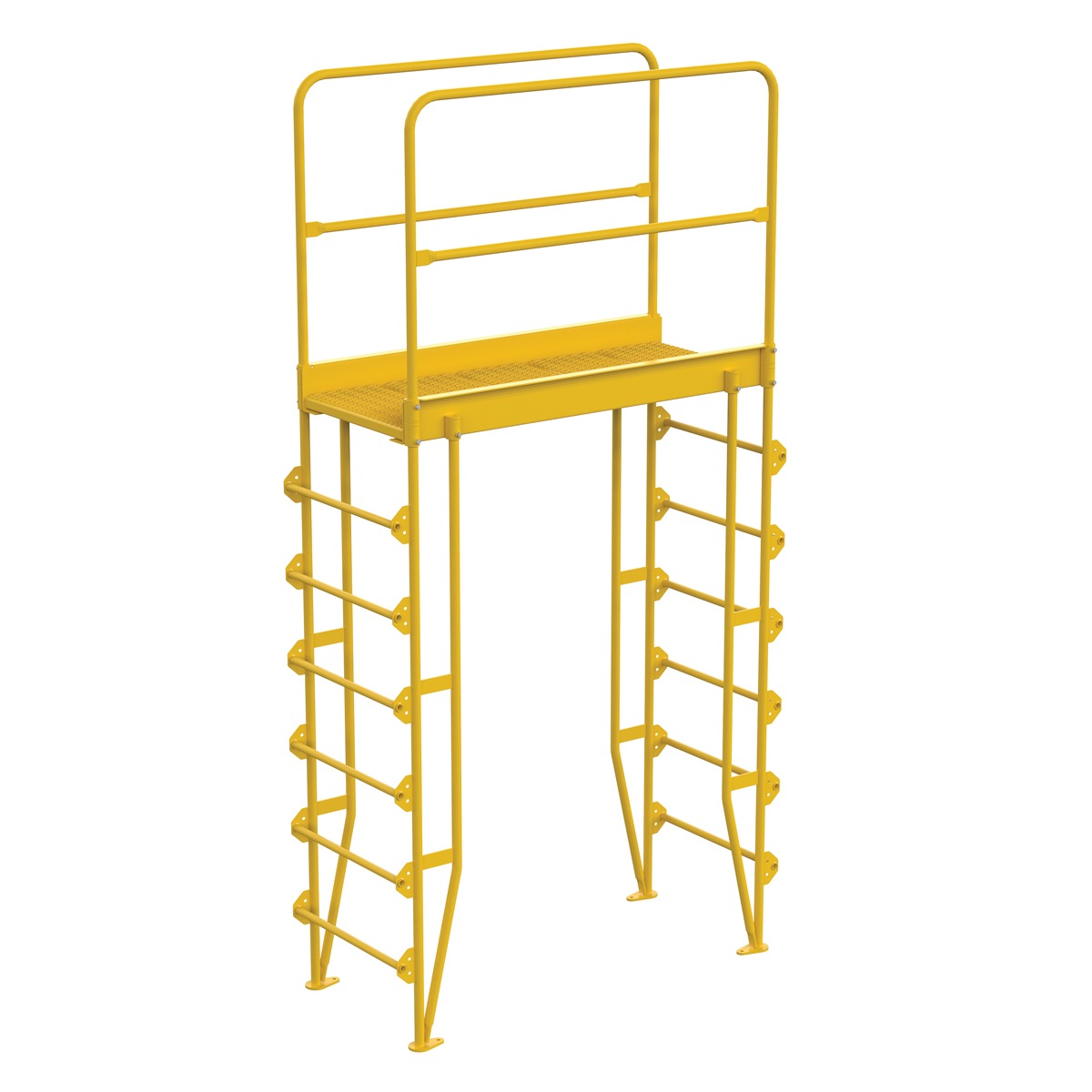

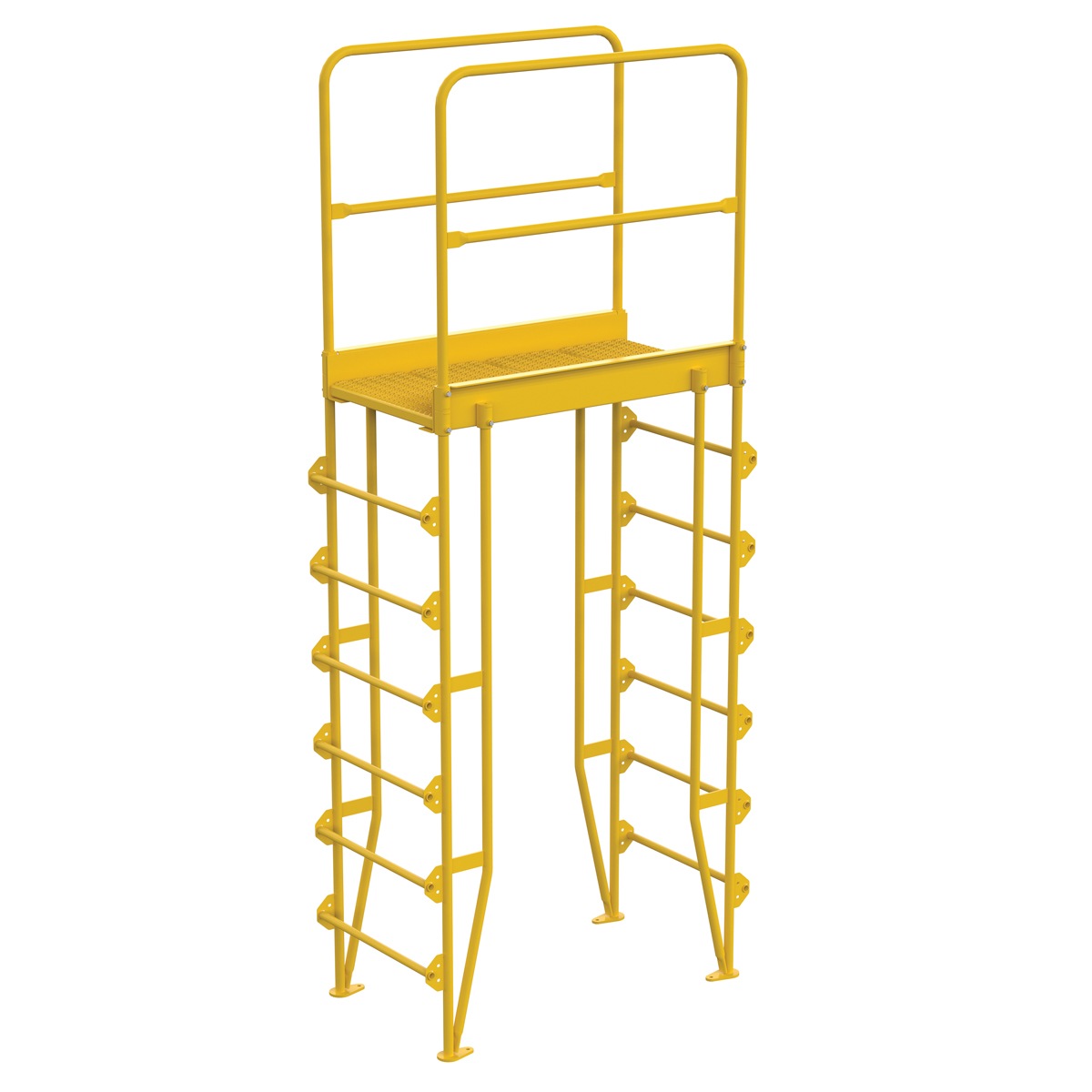

Vestil Cross-Over Ladder Vertical 7 Step

Mount where you need permanent access at crossover points. The upper platform features removable handrail and fixed toeboards to prevent objects from rolling off. Serrated platform for extra grip. Top half of steps covered in grip material for safety. Ground legs include floor mounting pads. Units must be anchored to the floor. Units are all steel construction and can be knockdown for storage and shipping. Meets OSHA 29 CFR 1910.27. Baked-in powder-coated toughness.

• High handrail for supreme safety
• Serrated platform for additional foot control
• Powder coated finish for long term use
• Easy to deconstruct for storage

Specification

• Uniform Capacity (lb.): 500
• Platform Height (in.): 84
• Platform Width (in.): 23-9/16
• Handrail Height (in.): 42-5/8
• Mid-Rail (in.): 21
• Toeboard (in.): 4
• Step Width (in.): 23-9/16
• Step Spacing (in.): 12
• Number of Steps on Each Side: 7
• Clearance Span Height (in.): 82-3/16
• Platform Tread: Serrated
• OSHA: 29 CFR 1910.27

Documents

Click for Manual

Click for COLV-7-82-20 Approval Drawings

Click for COLV-7-82-32 Approval Drawings

Click for COLV-7-82-44 Approval Drawings

Click for COLV-7-82-56 Approval Drawings

Click for COLV-7-82-8 Approval Drawings
