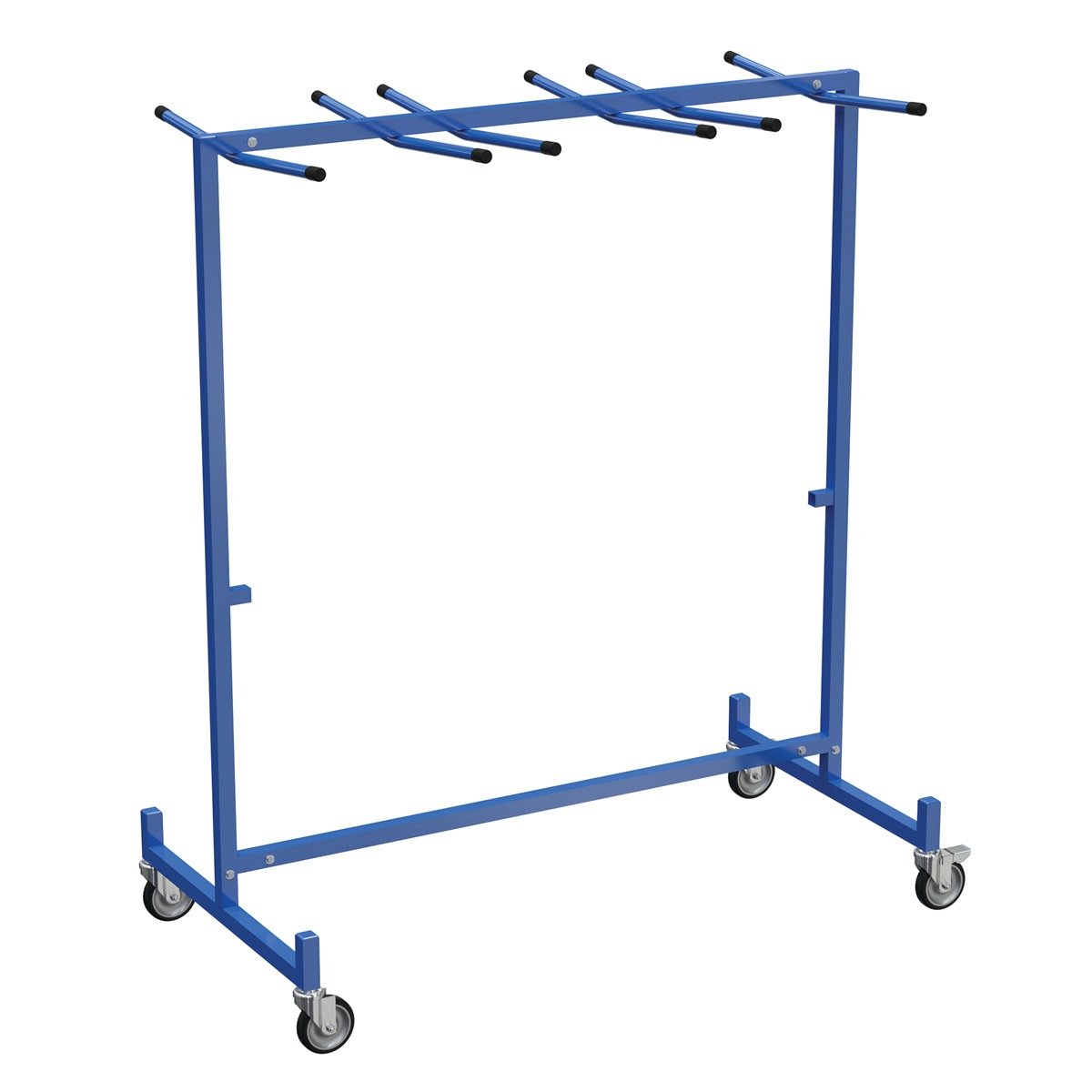

Vestil CTRT-36 Chair/Table Rack Dolly

The Chair and Table Rack is ideal for the material handling and hospitality industries. The steel construction allows the unit to withstand longtime use. The rack truck can be used to transport, as well as store table and chairs. The unit rolls on casters for smooth transition when transporting from workstation to workstation.

• Provides a place of storage for tables and chairs
• Multiple chairs and tables can be transported in one trip
• Able to be rolled over a variety of surfaces
• Racks arms include edge tips to prevent falling

Specification

• Uniform Capacity (lb.): 1,000
• Capacity Chairs/Tables: 36 / 6
• Usable Width Chairs (in.): 30-5/8
• Usable Width Tables (in.): 30-1/8
• Arm Length (in.): 14
• Bottom Base Length (in.): 14
• Caster Quantity/Diameter/Width (in.): (4) 5×1-1/4
• Caster Quantity/Type: (2) Swivel (2) Swivel with Total Brake
• Caster Material: Poly-on-Poly

Documents

Click for CTRT-36 Approval Drawings
