Vestil CYL-EH-FP-FF Torch Cart-Lift Eye-Fire Proof 66.38″

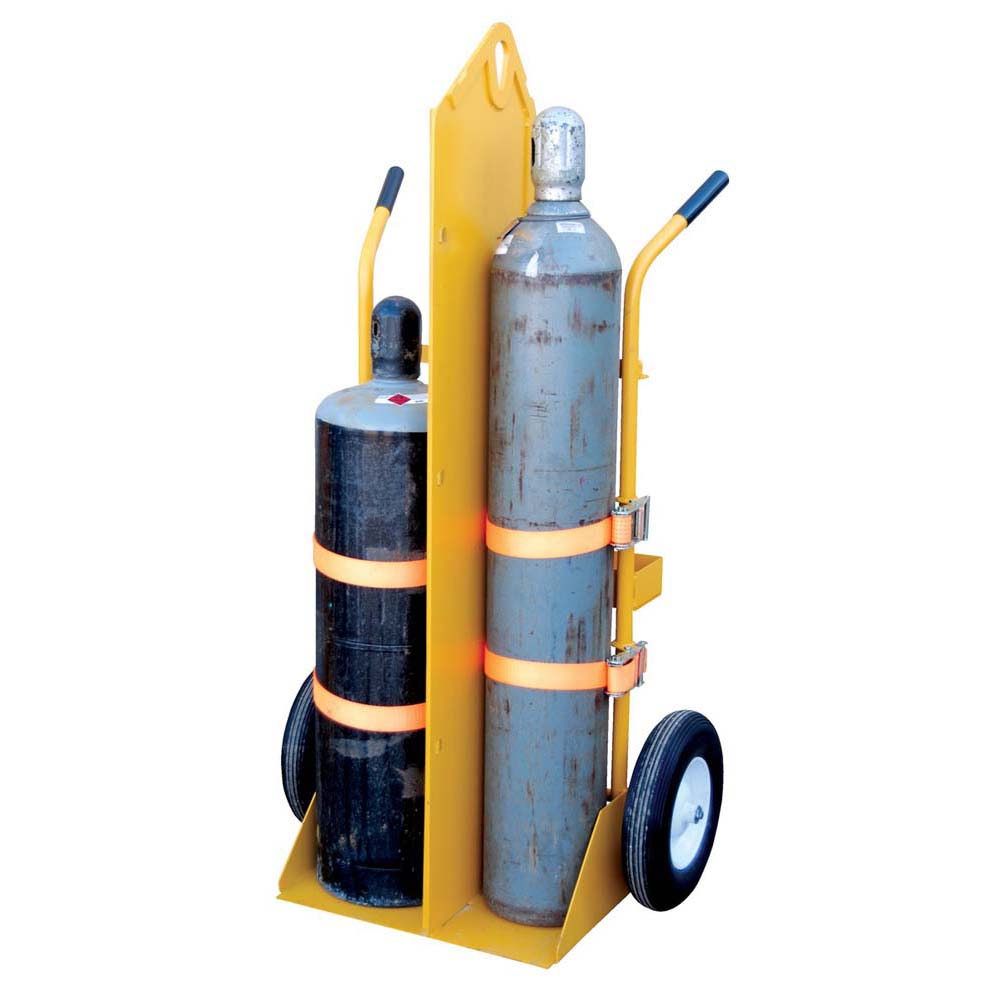

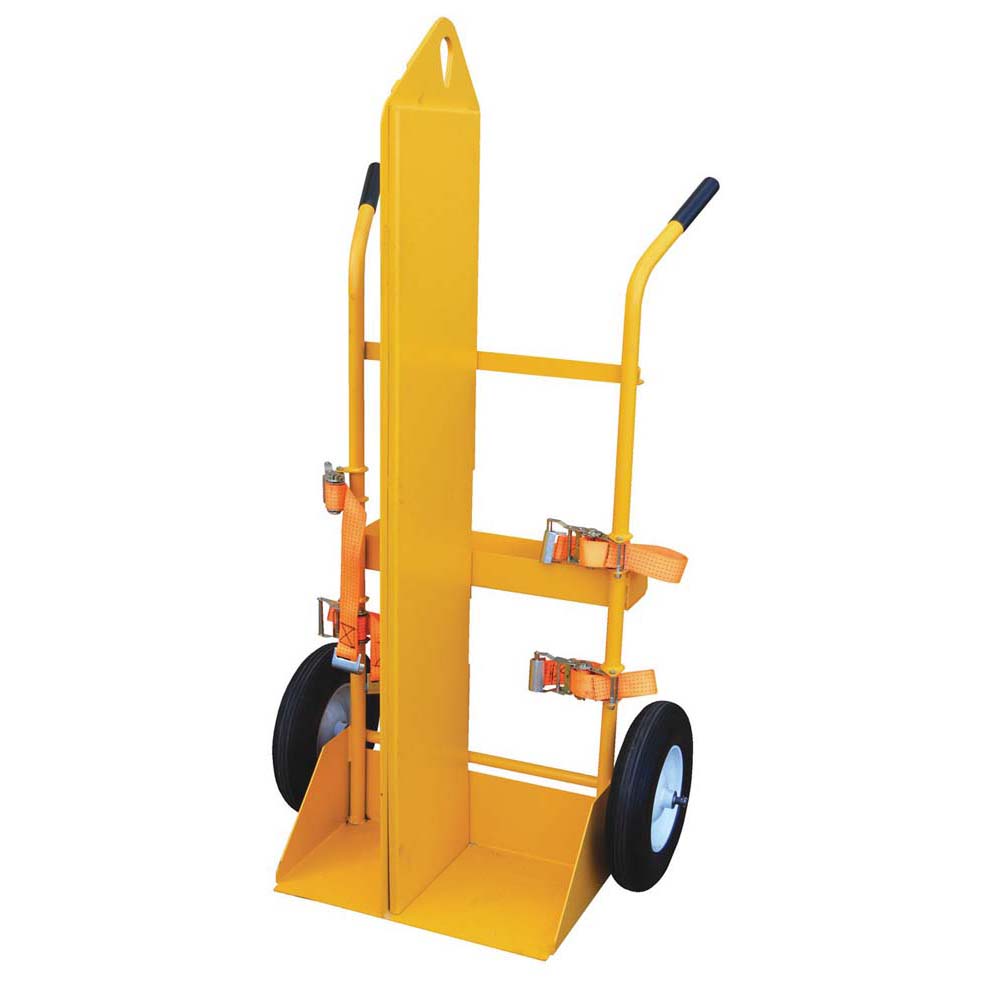

The Welding Cylinder Torch Cart is designed for transporting cylinders and cutting torch. Includes two (2)tank compartments with heavy-duty ratchet straps. Brackets are included for holding cutting torch and hose. Convenient open-top storage tray. Sturdy handles and large wheels for tilt-n-go portability. Overhead lift eye. Unit has fire protection Marinite 1 (one) material which provides a thirty (30) minute fire protection barrier as prescribed by OSHA standards 1910.253 and 1926.350. Welded steel construction with powder coat finish. Not designed for use as a storage means for gas cylinders.

• OSHA standards 1910.253 and 1926.355
• Heavy-duty ratchet straps holds tanks in compartment
• Open-top storage tray conveniently holds tools & other materials
• Steel brackets safely hold cutting torch & hoses

Specification

• Uniform Capacity (lb.): 500
• Wheel Diameter (in.): 16
• Wheel (qty.): 2
• Wheel Width (in.): 2-1/2
• Wheel Bearings (in.): 5/8
• Wheel Type: Foam Filled
• Material Thickness (in.): 7/16
• Cylinder Capacity (qty.): 2
• Base Plate Usable Quantity/Width (in.): (2) 12-11/16 – 10-7/16
• Base Plate Length (in.): 14-5/16
• Handle Type: Double
• Includes: Ratchet Straps
• Max. Tank Diameter Acetylene (cubic feet): 397, #5 Tank
• Max. Tank Diameter Oxygen (mL): 260, #T Bottle
• Tool Tray Length (in.): 24
• Tool Tray Width (in.): 5
• Tool Tray Height (in.): 3
• Maximum Eye Diameter (in.): 2
• Marinite 1 thickness (in.): 1/2 (approx. 13 mm)
• OSHA: 1910.253 & 1926.350

Documents

Click for CYL-EH-FP-FF Approval Drawings
