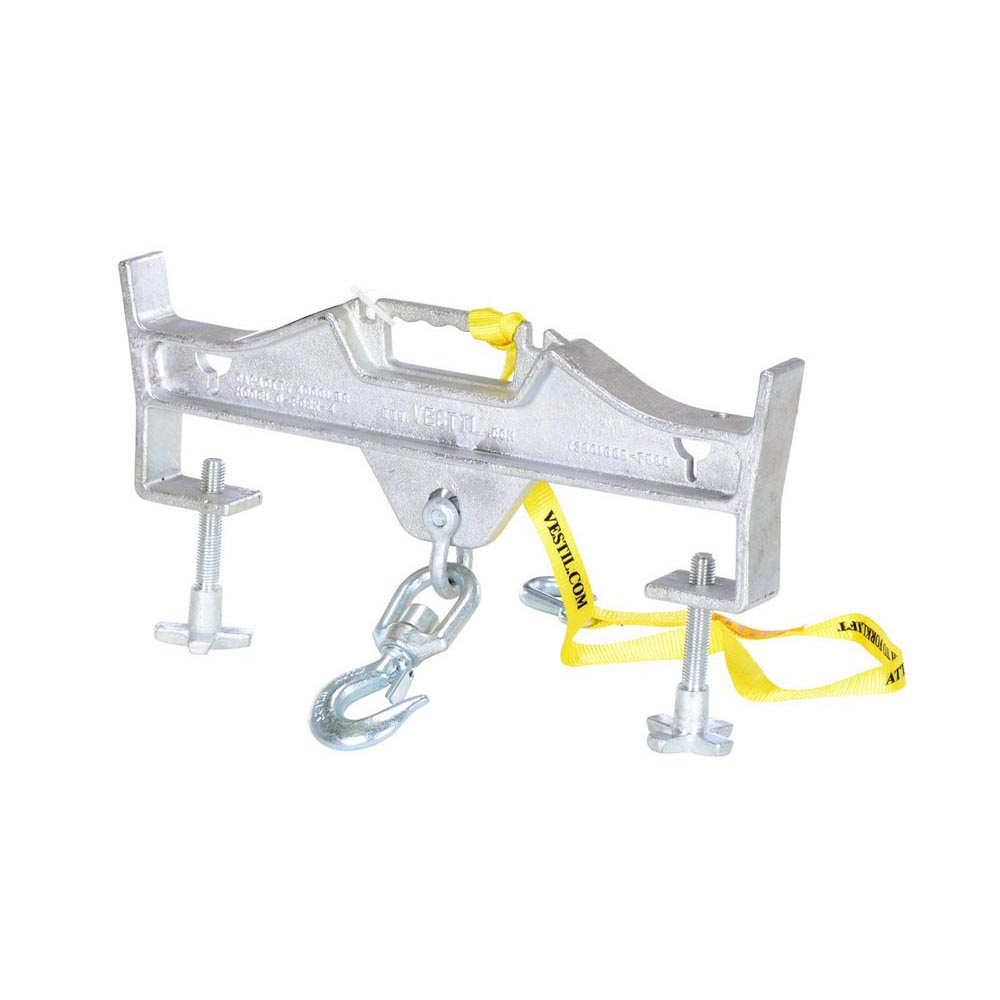

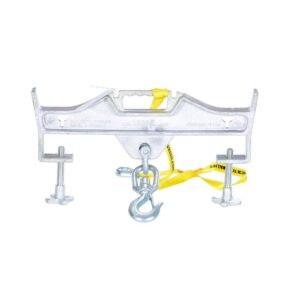

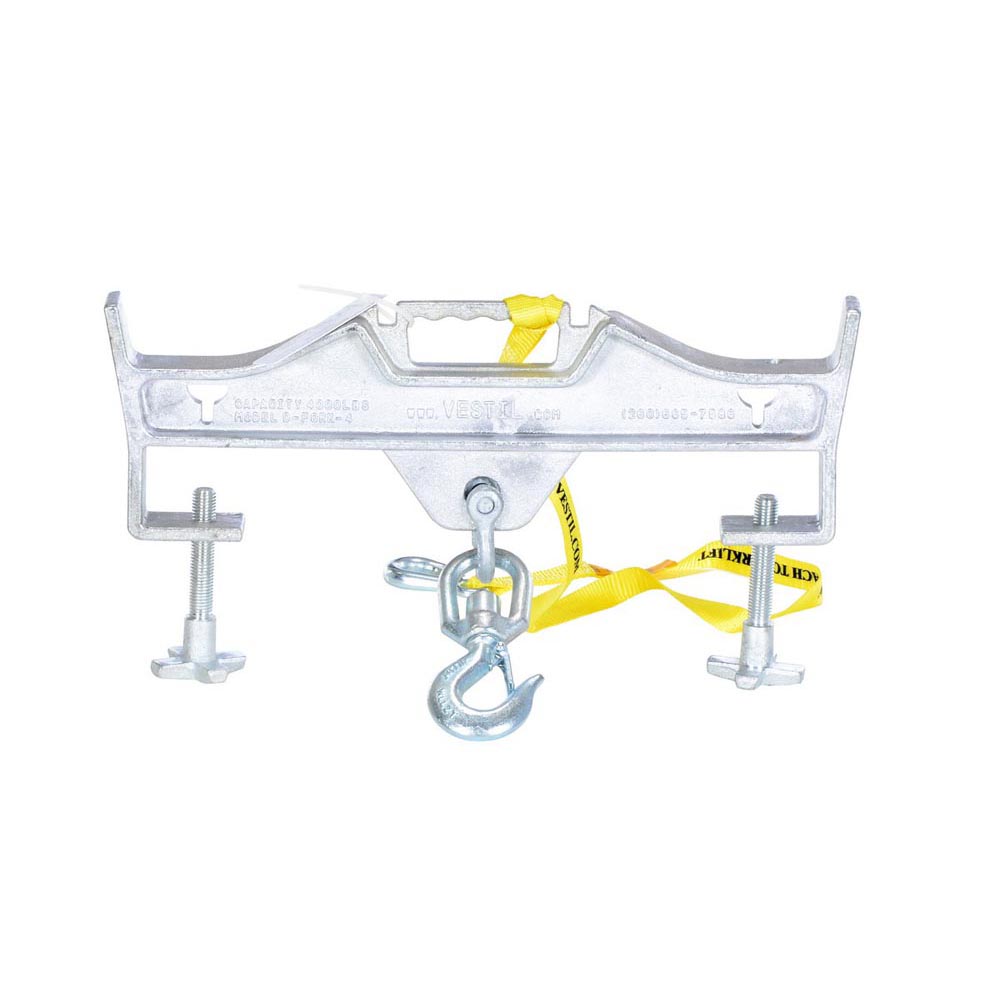

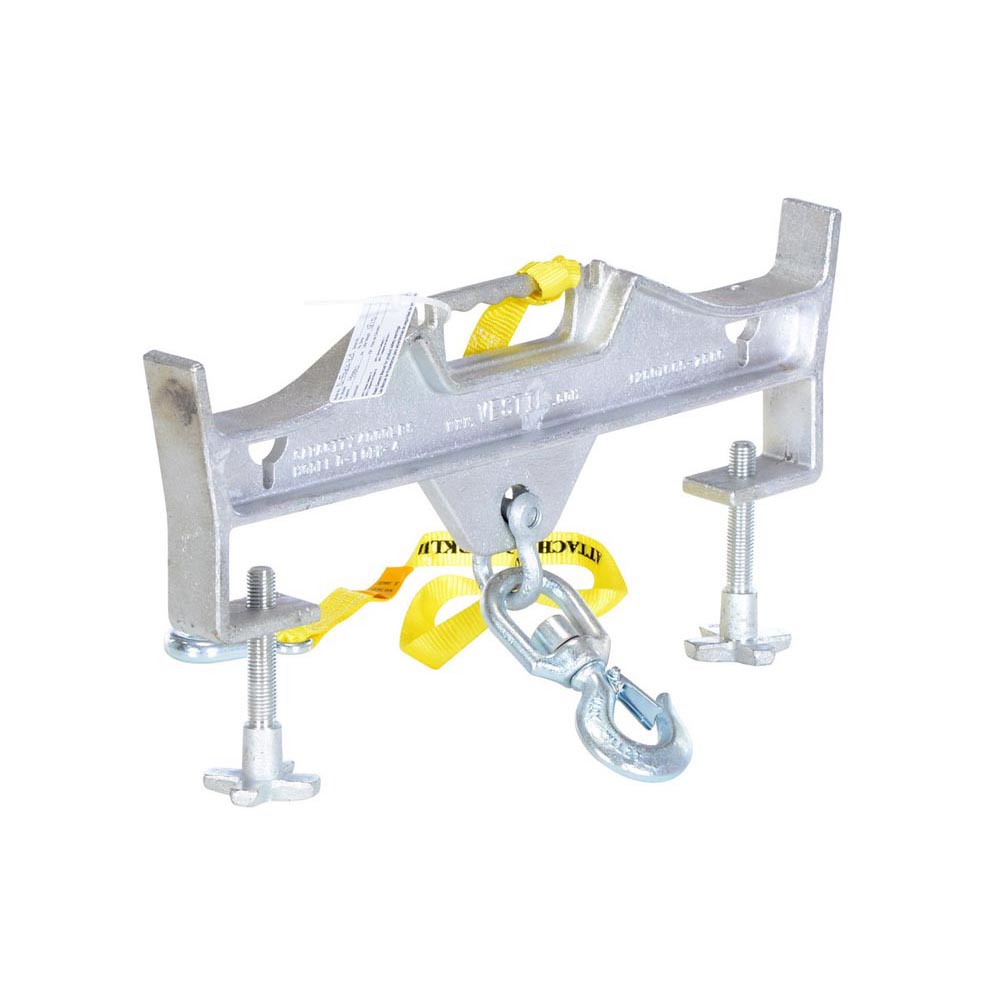

Vestil D-FORK-4-SL Hoisting Hook Double Swivel/Latch 4K

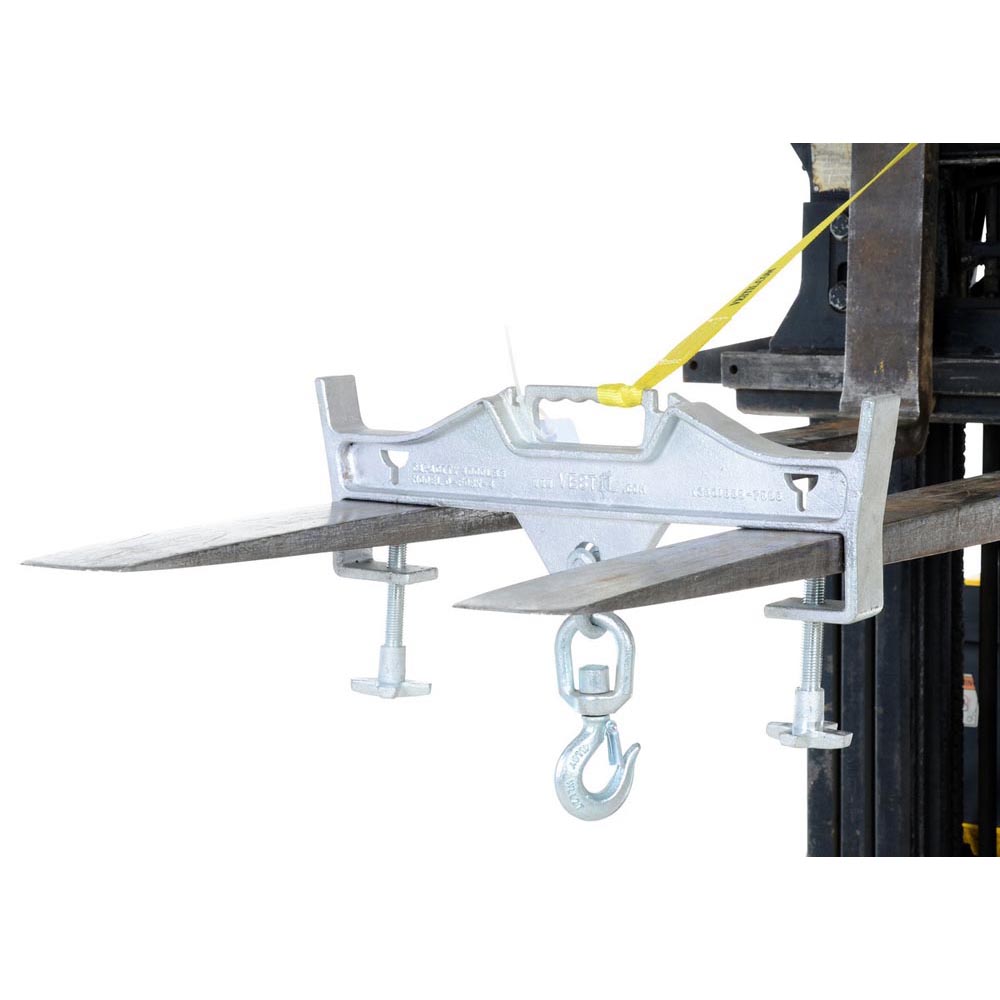

Convert your fork truck into a hook with anchor in a matter of seconds. The easy to attach Hoisting Hook does not require the assistance of special tools. Secured to the fork truck by means of a long safety restraint and screw clamps. Zinc plated hook with shackle included.

• Heavy-duty solid steel construction provides long lasting rugged use
• Double-fork style securely slides onto both fork truck forks
• Safety chain with snap hook attaches unit to carriage of fork truck
• Forged steel hook with safety latch ensures worker safety

Specification

• Uniform Capacity (lb.): 4,000
• Safety Restraint Length (in.): 48
• Usable Fork Pocket Width (in.): 7-1/4
• Usable Fork Pocket Height (in.): 2-1/2
• Maximum Fork Width (in.): 20-9/16
• Hook Type: Double Swivel
• Use with Fork Width (in.): 4-6
• Inner Hook Diameter (in.): 1
• Fork Pocket on Center (in.): 14-1/2

Documents

Click for D-FORK-4-SL Approval Drawings

Click for Manual
