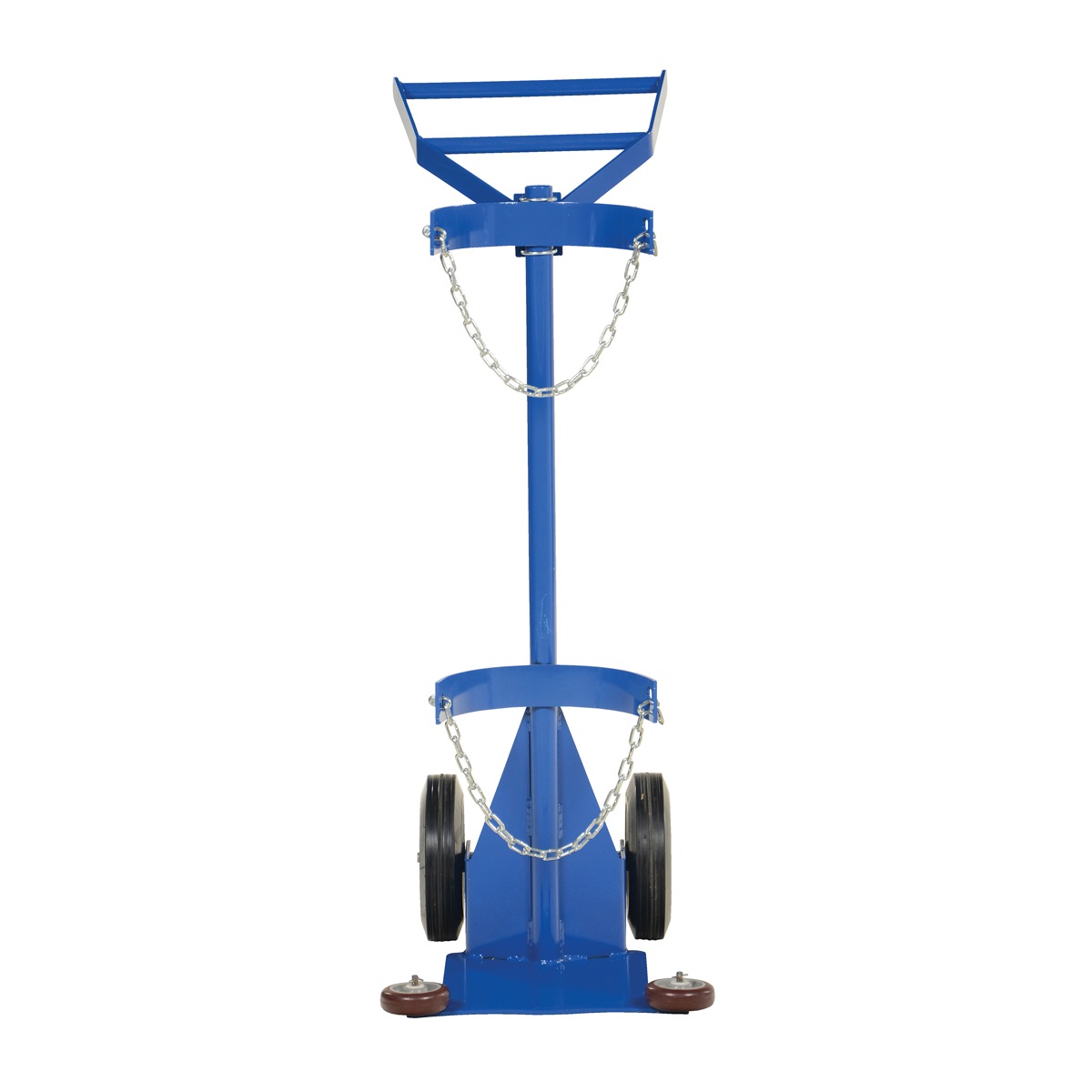

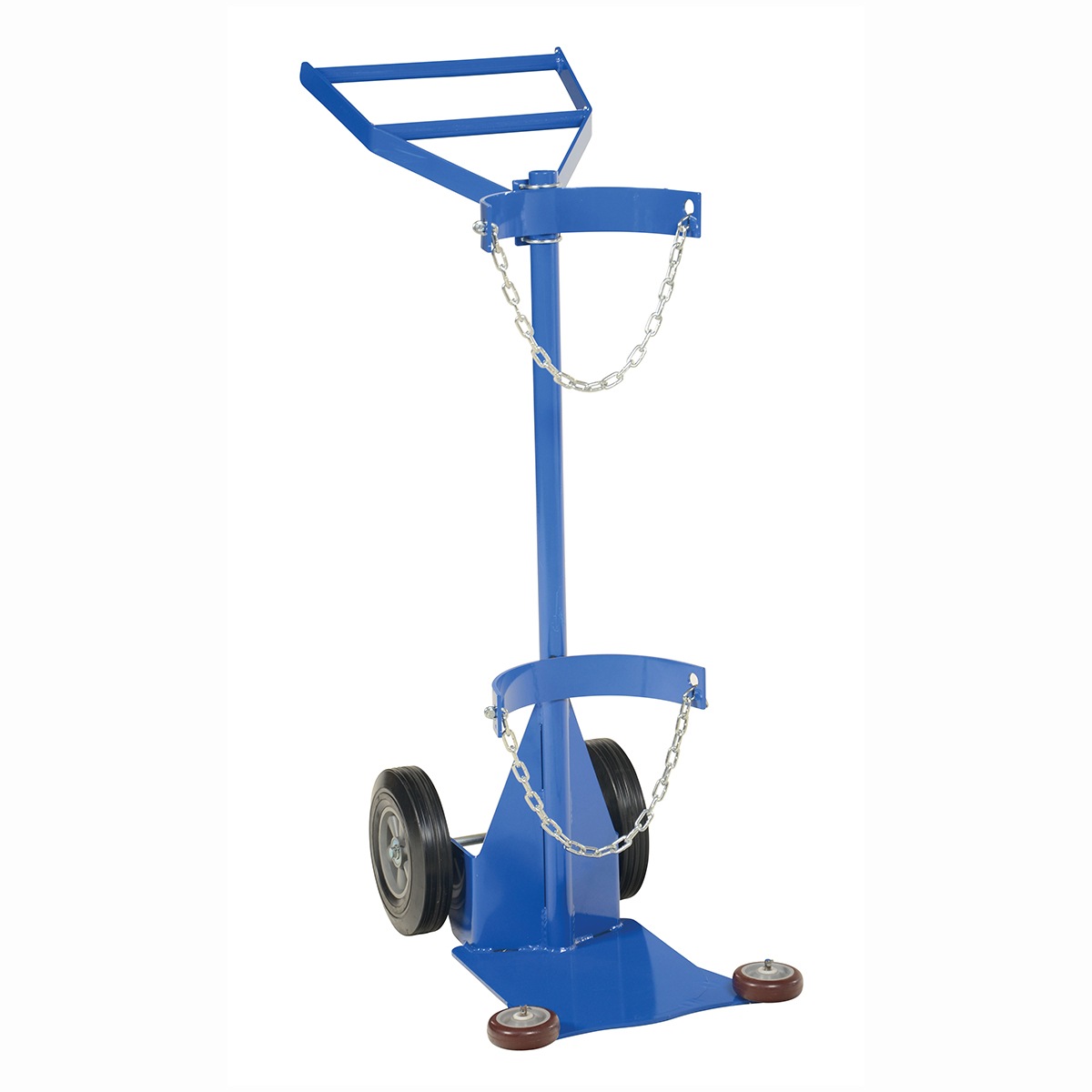

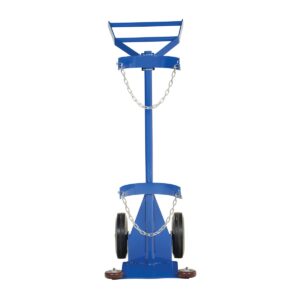

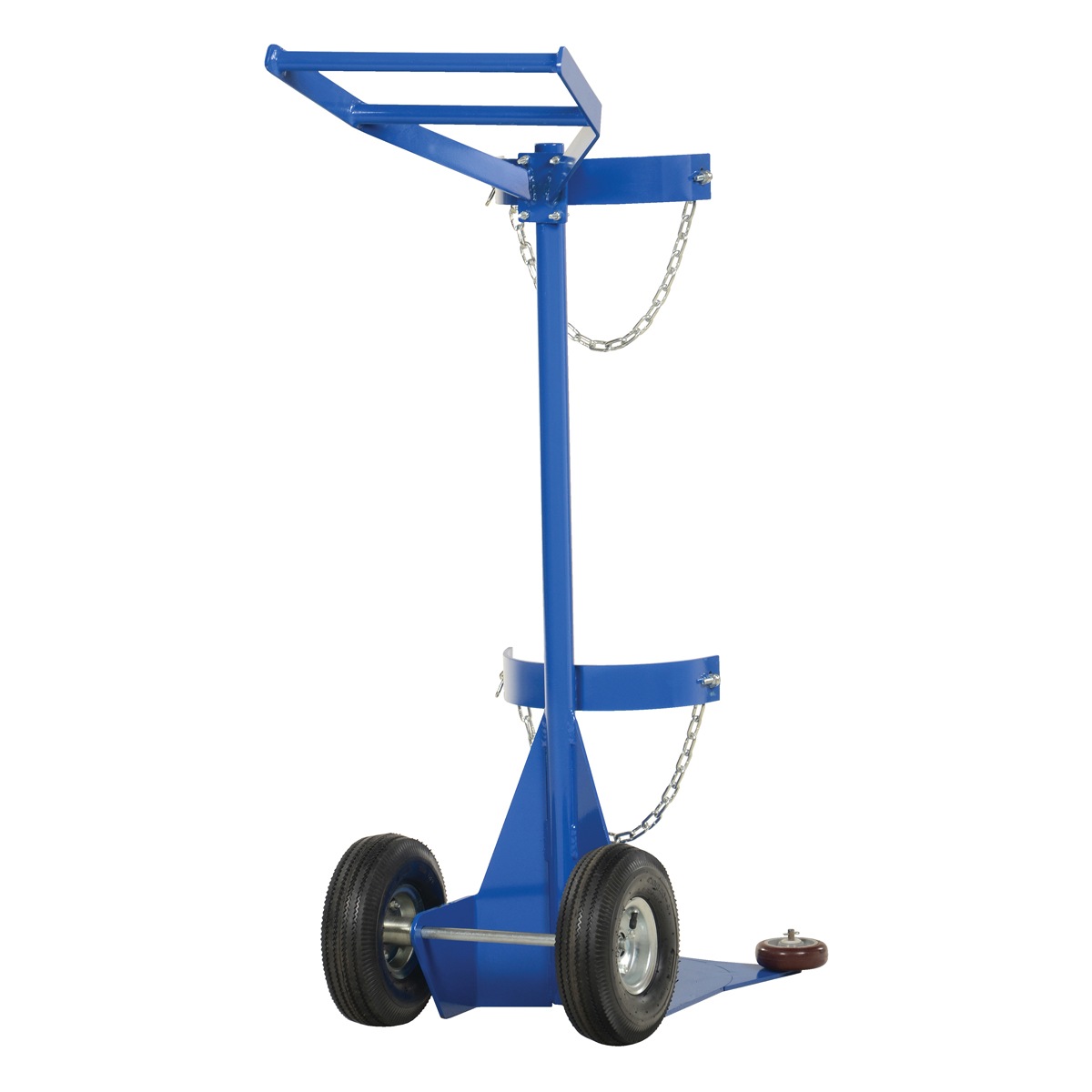

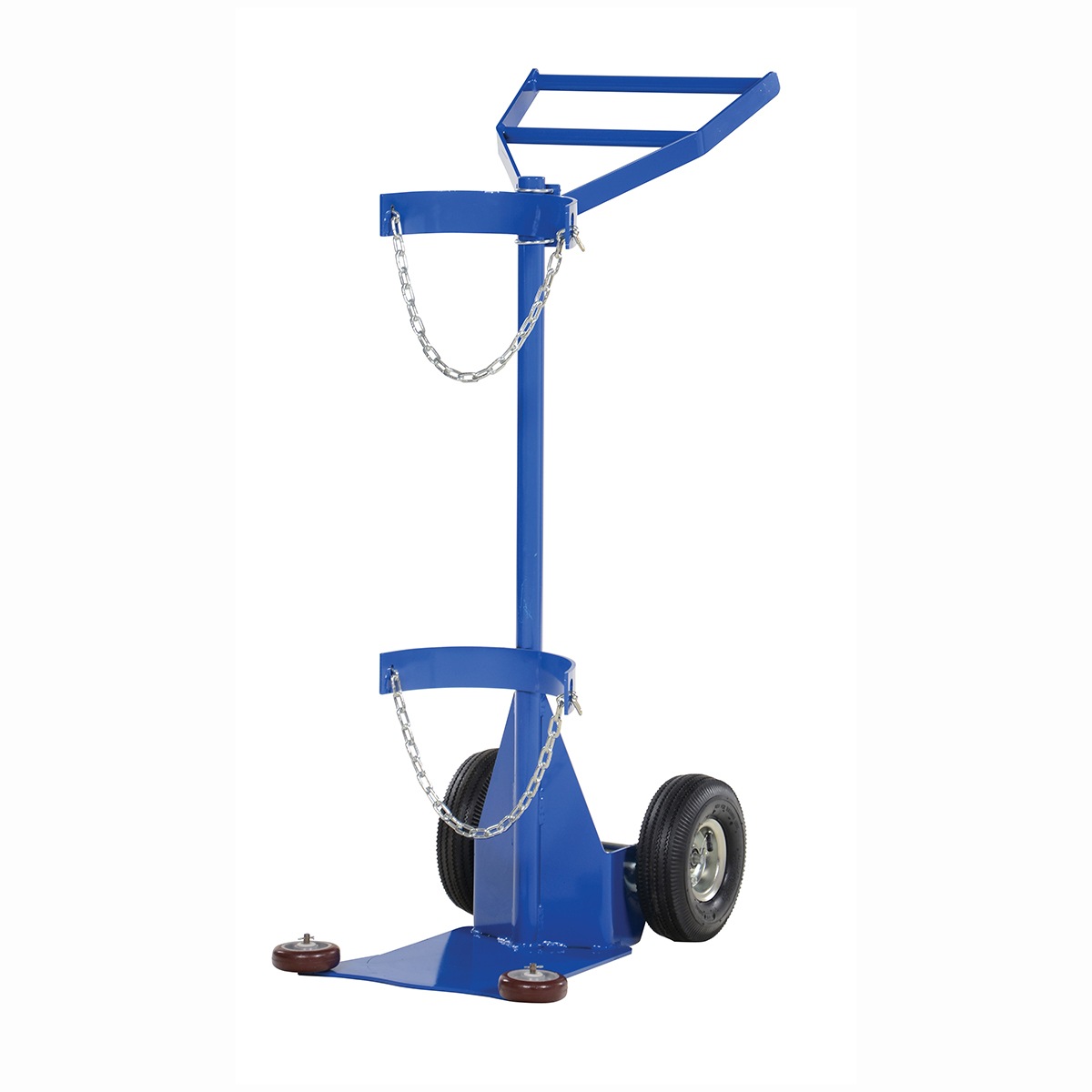

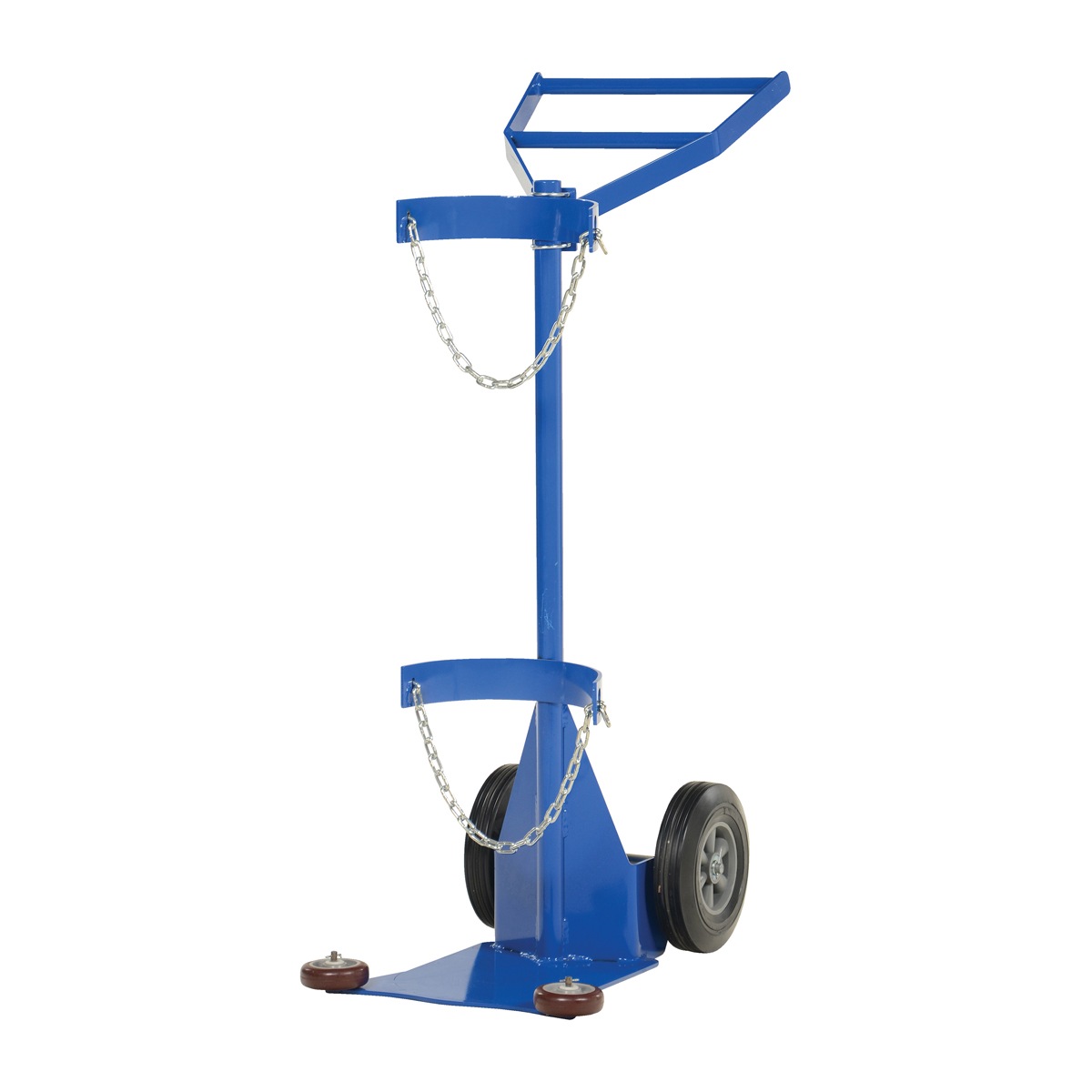

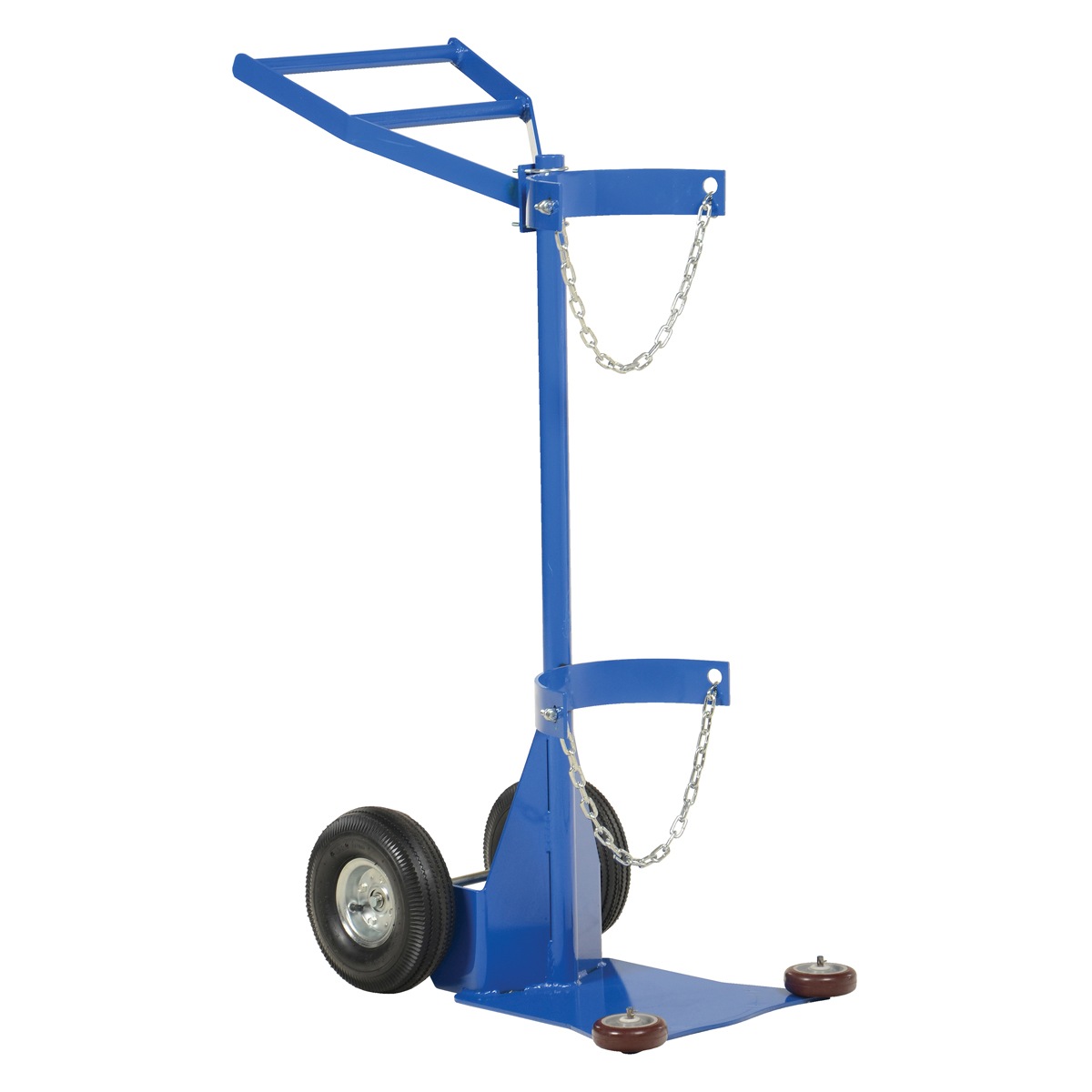

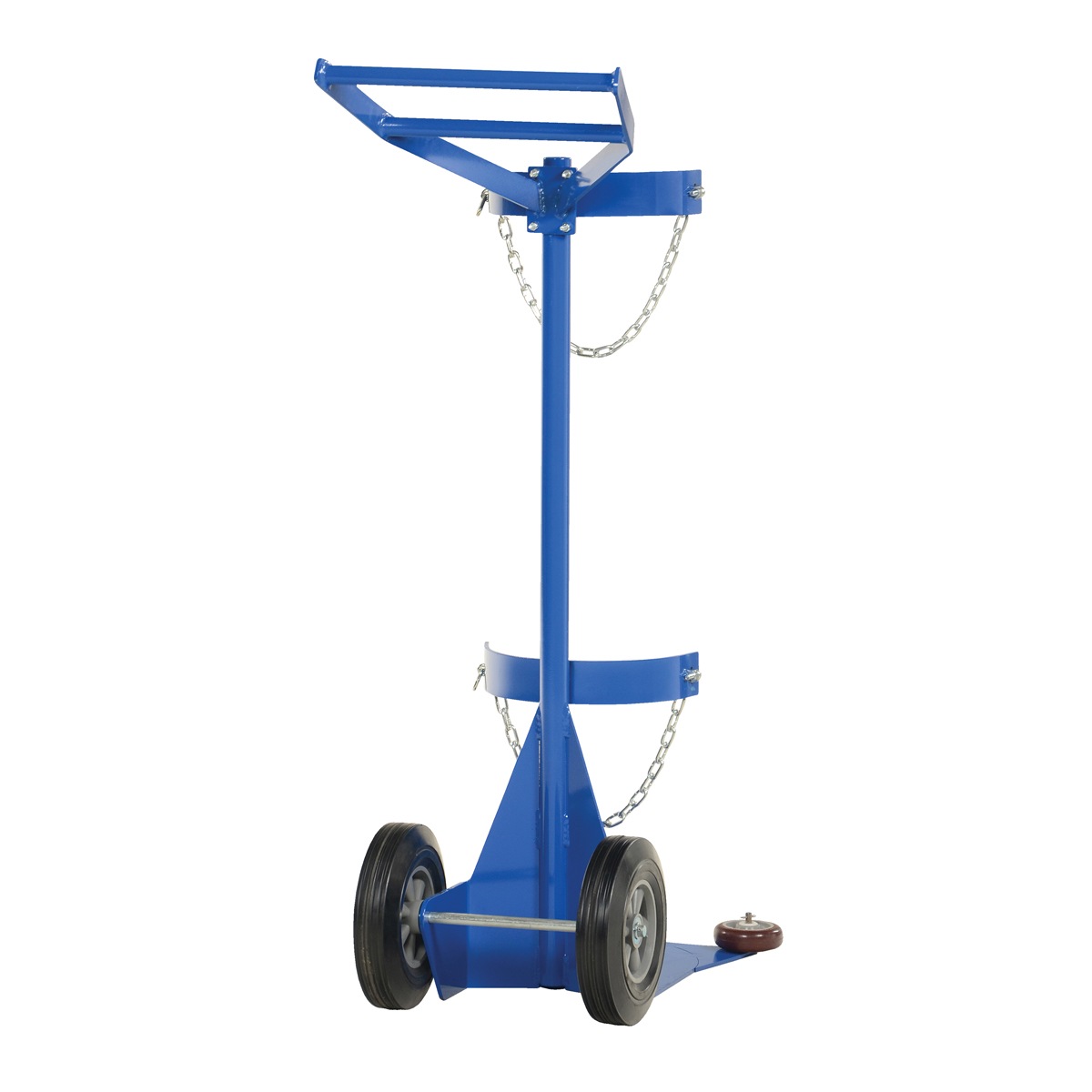

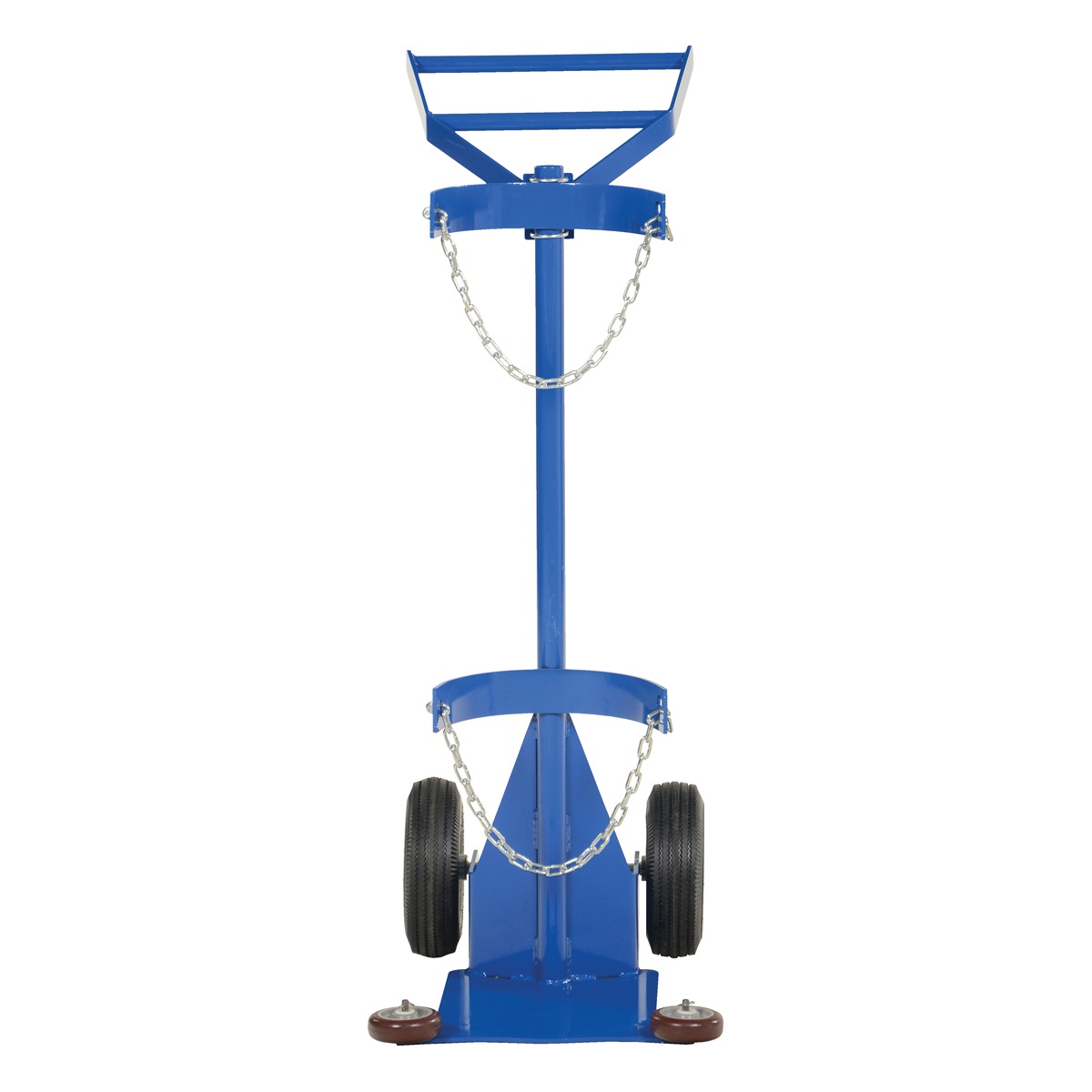

Vestil Deluxe Cylinder Dolly

The Cylinder Dolly transports cylinders from workstation to workstation. This deluxe version feature roller guides attached to the nose plate. The hard rubber roller guides allow for easier entry onto the nose plate. Secure the cylinder with the included restraint chains. Tilt unit back and transport.

• Cylinder dolly transports cylinders for ideal operation

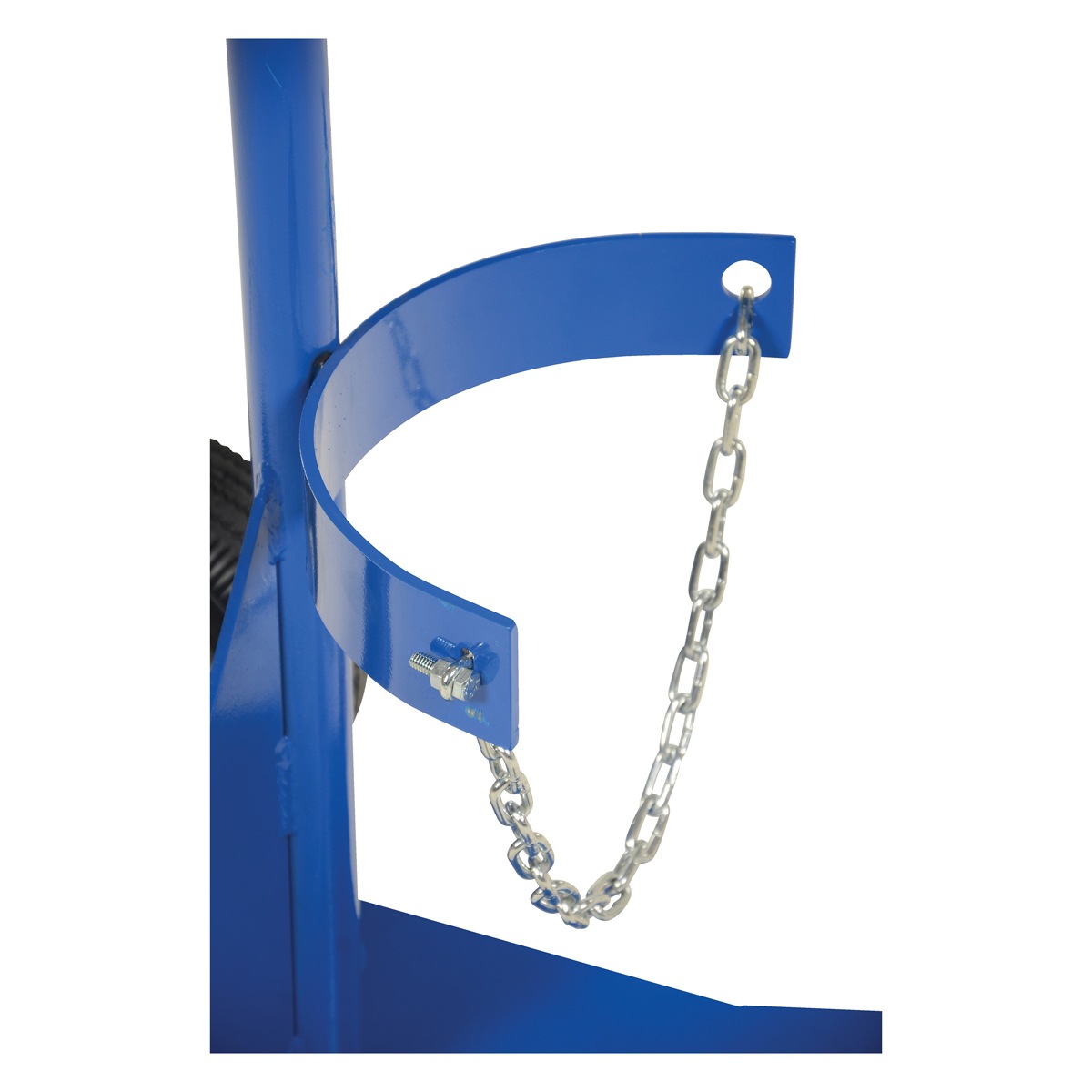

• Includes restraint chains in order to secure cylinders for maximum efficiency

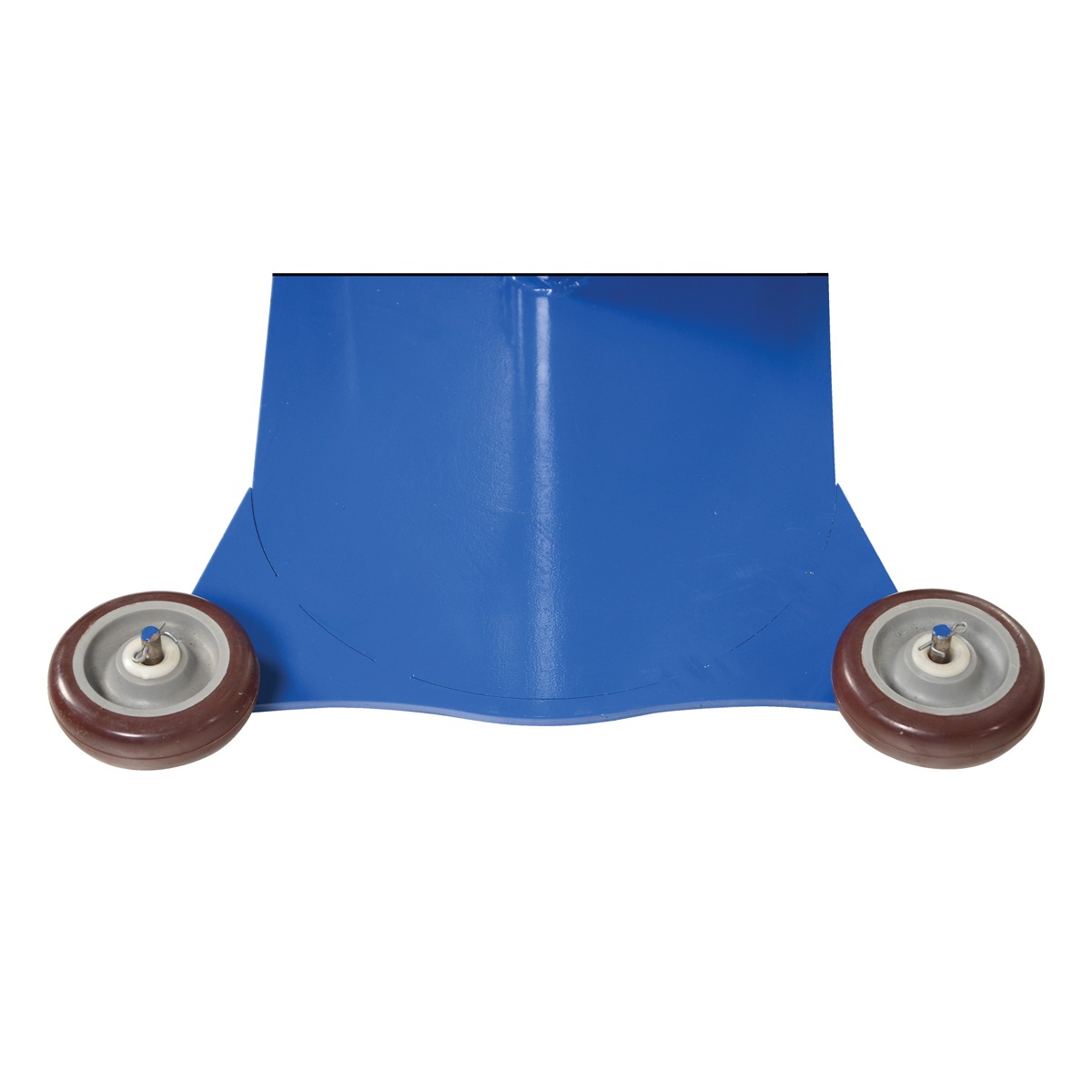

• Features hard rubber roller guides which allow for entry on nose plate
• Use in industrial applications for optimal results

Specification

• Uniform Capacity (lb.): 500
• Maximum Cylinder Diameter (in.): 11-1/2
• Nose Plate Width (in.): 12
• Nose Plate Depth (in.): 15-1/2
• Roller Guide Quantity/Diameter/Height (in.): (2) 4 x 1-1/4
• Roller Type: Hard Rubber

Documents

Click for Manual

Click for CYL-DLX-1-HR Approval Drawings

Click for CYL-DLX-1-PN Approval Drawings
