Vestil DGS-55-D-G Drum Gripper Galvanized Single 55 Gal 1.5K

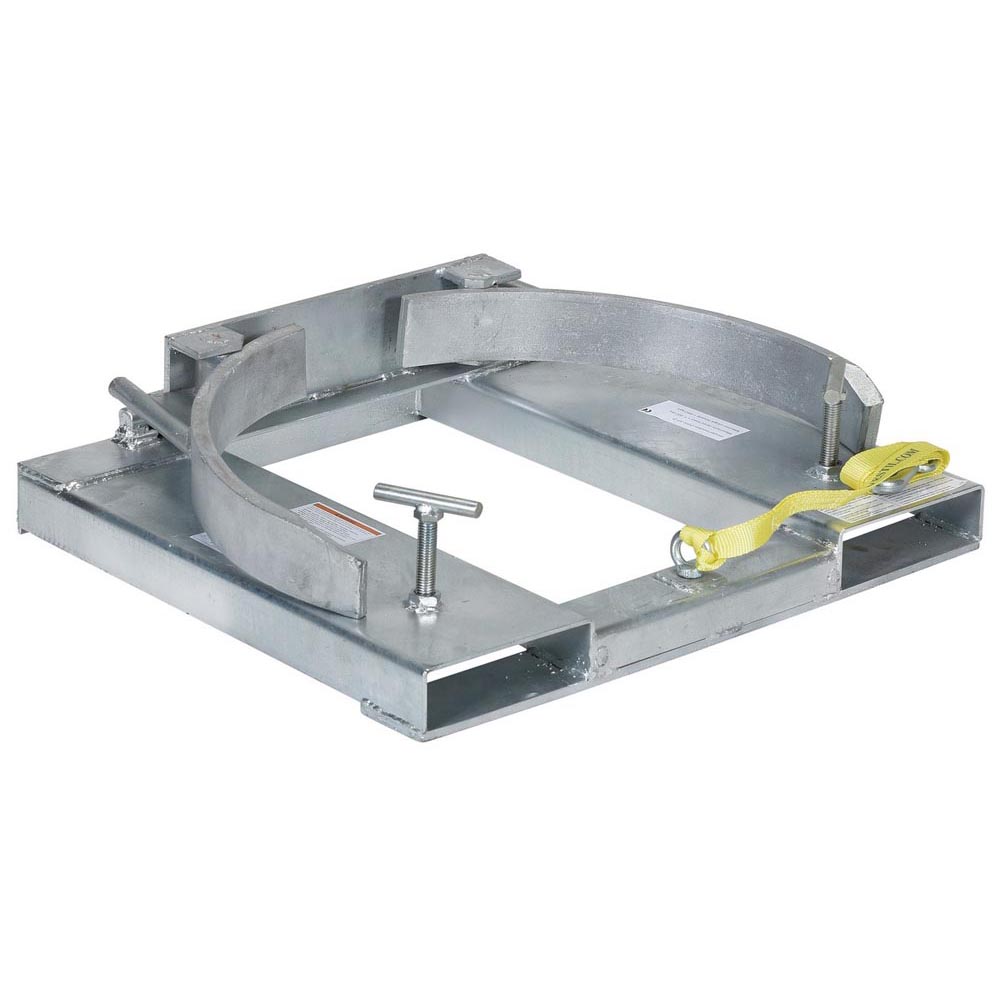

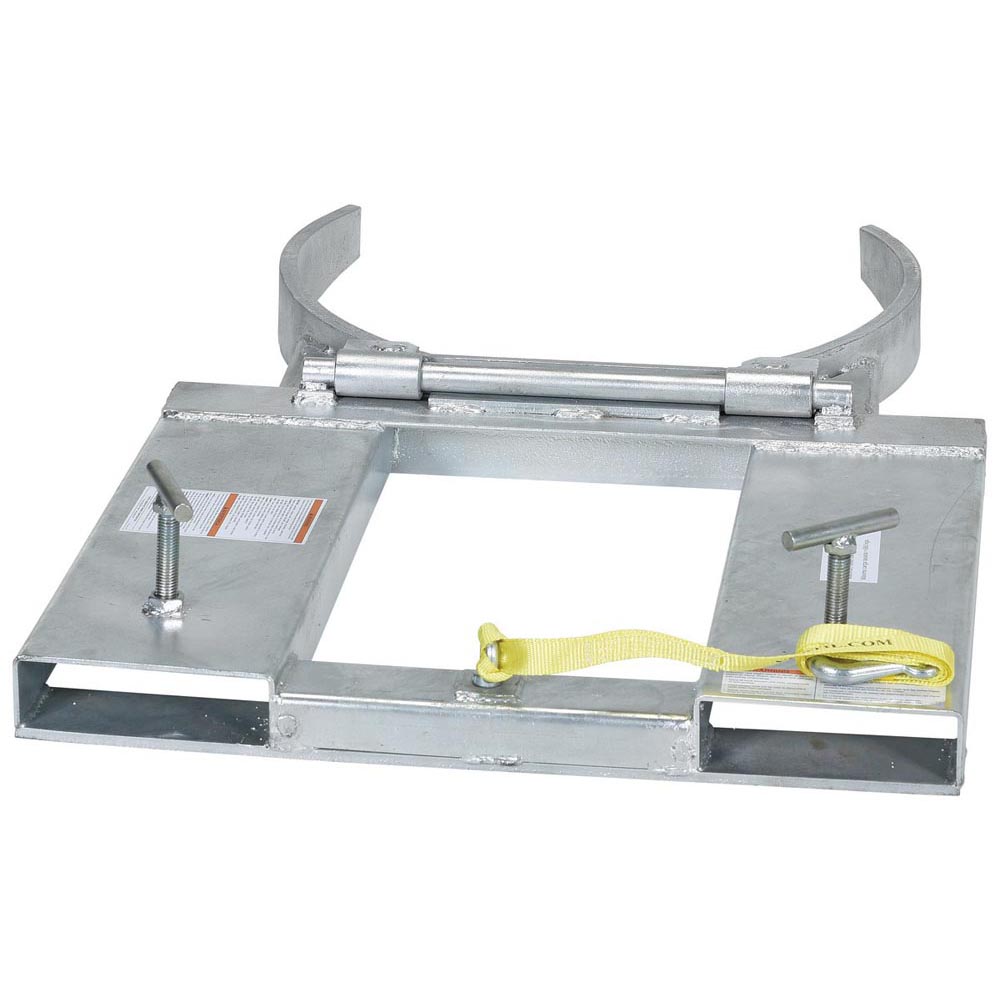

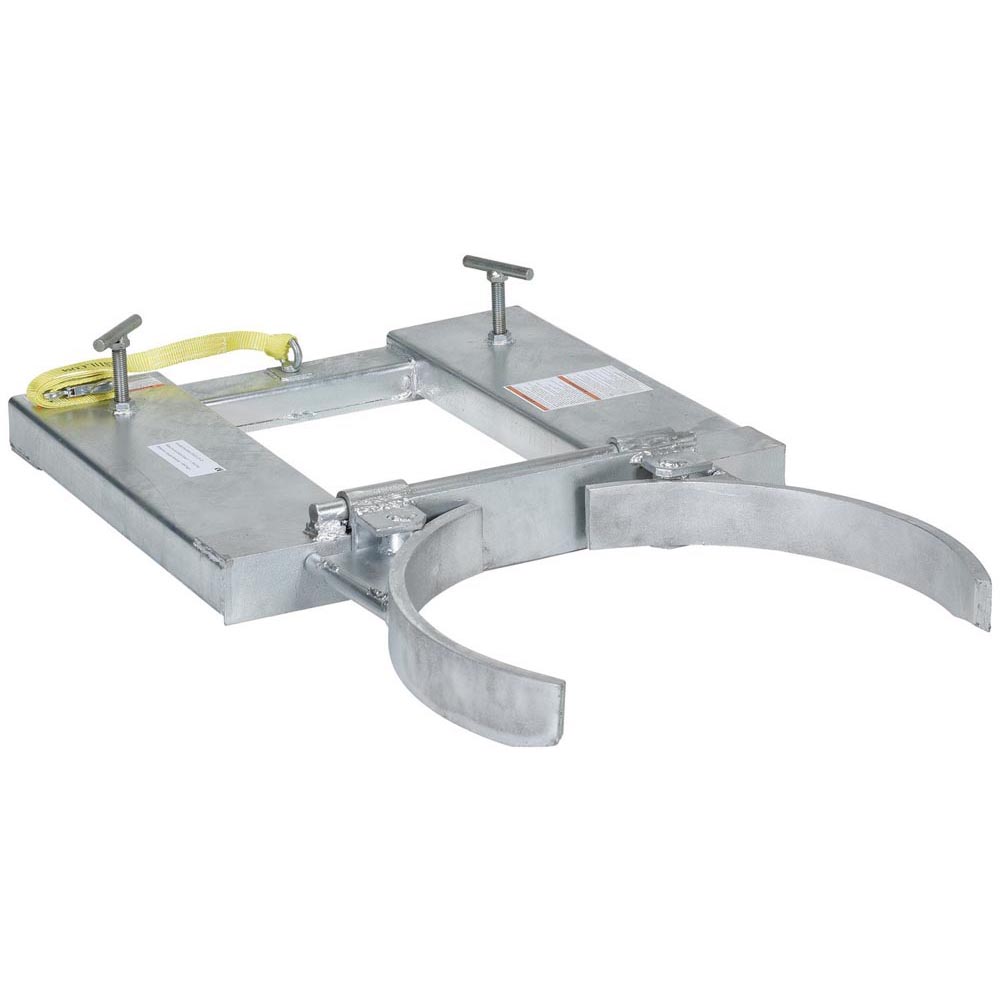

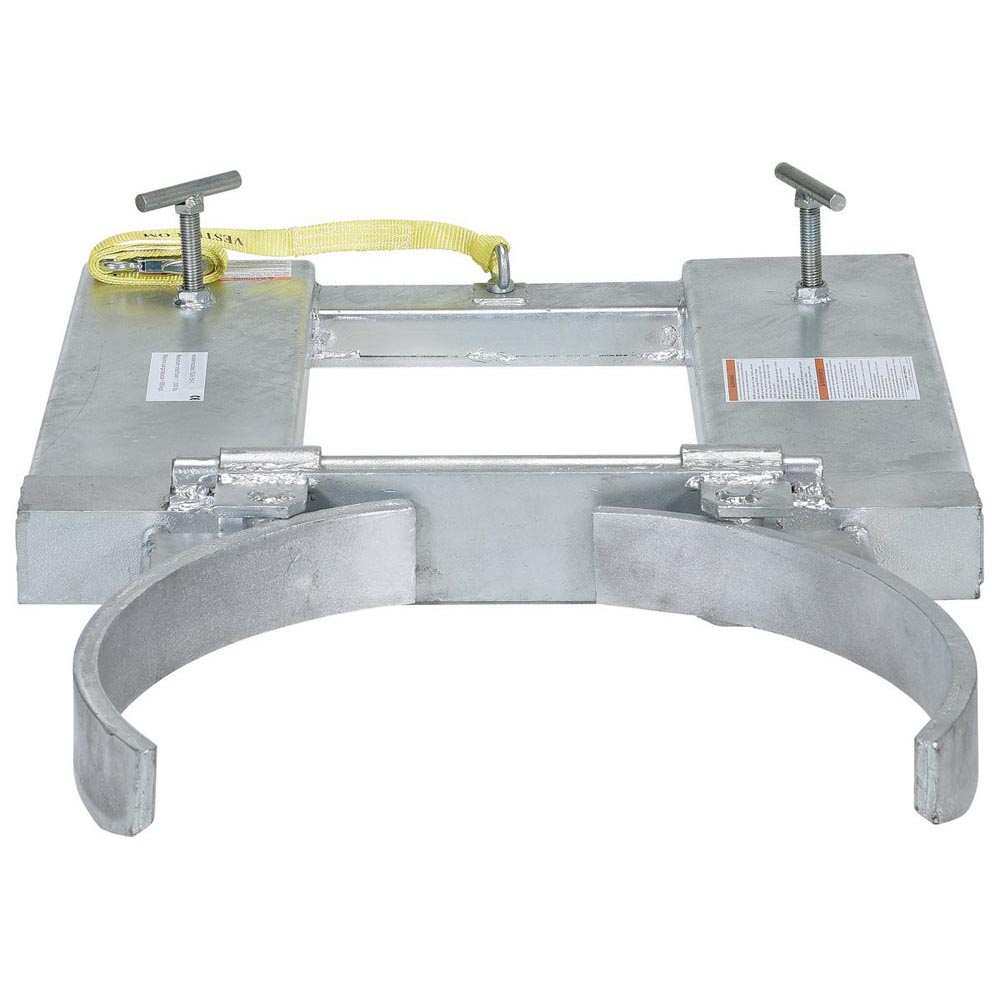

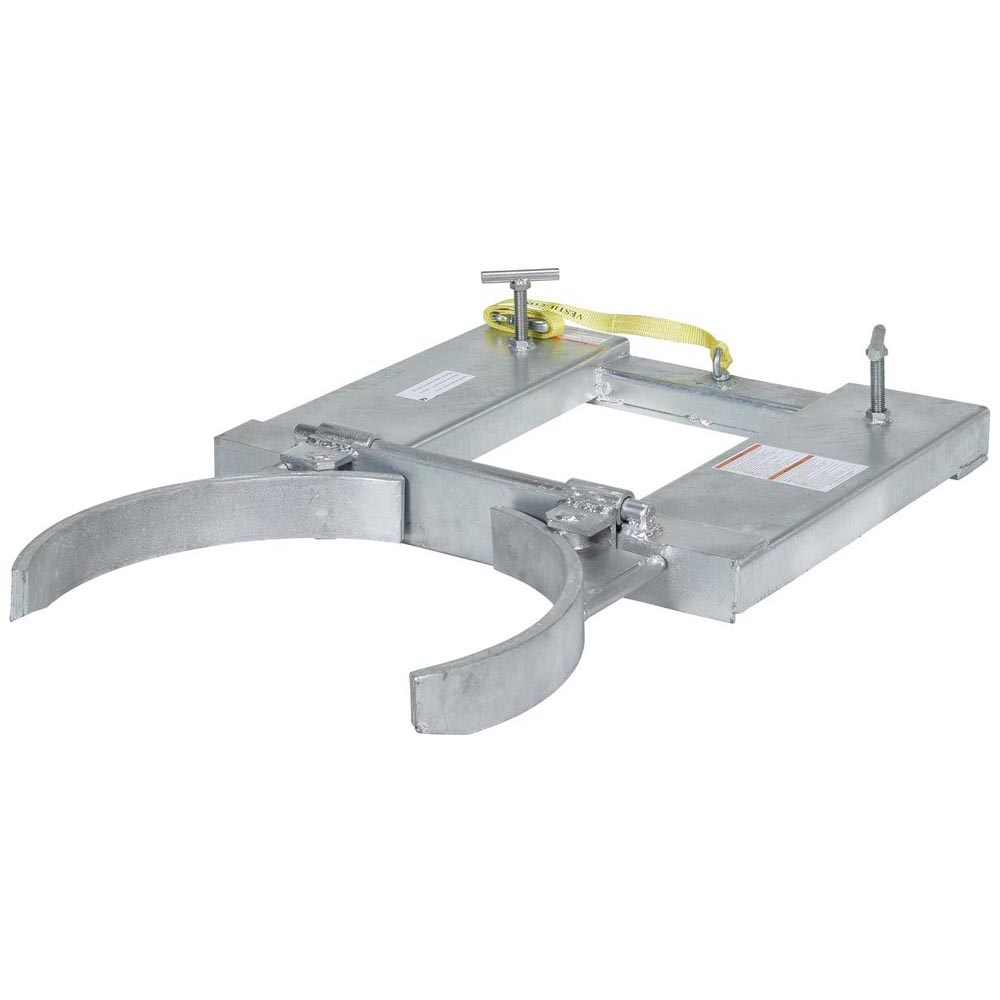

The Drum Grippers make it easy to pick up one or two open head (with lid installed and secured) and closed head steel drums without leaving the seat of the fork truck. Simply slip the forks into the fork tubes, fasten the safety restraint and the Drum Gripper is ready to go. The knuckle gripping system is lowered around the drum, gripped tightly, and then lifted into the air. Drum is automatically released by lowering the forks. All models feature hinged folding design for storage.

• Galvanized for long lasting finish
• Strong grip for supreme control
• Compact design for minimal storage space
• Open design is accessible immediate use

Specification

• Uniform Capacity (lb.): 1,500
• Accepts: (1) 55-gallon steel drums
• Fork Pocket on Center (in.): 20-1/4
• Fork Pocket Width (in.): 6-7/8
• Fork Pocket Height (in.): 2-1/8
• Type: Fold-up

Documents

Click for Manual
