Vestil Dock Chain Barrier Bollard

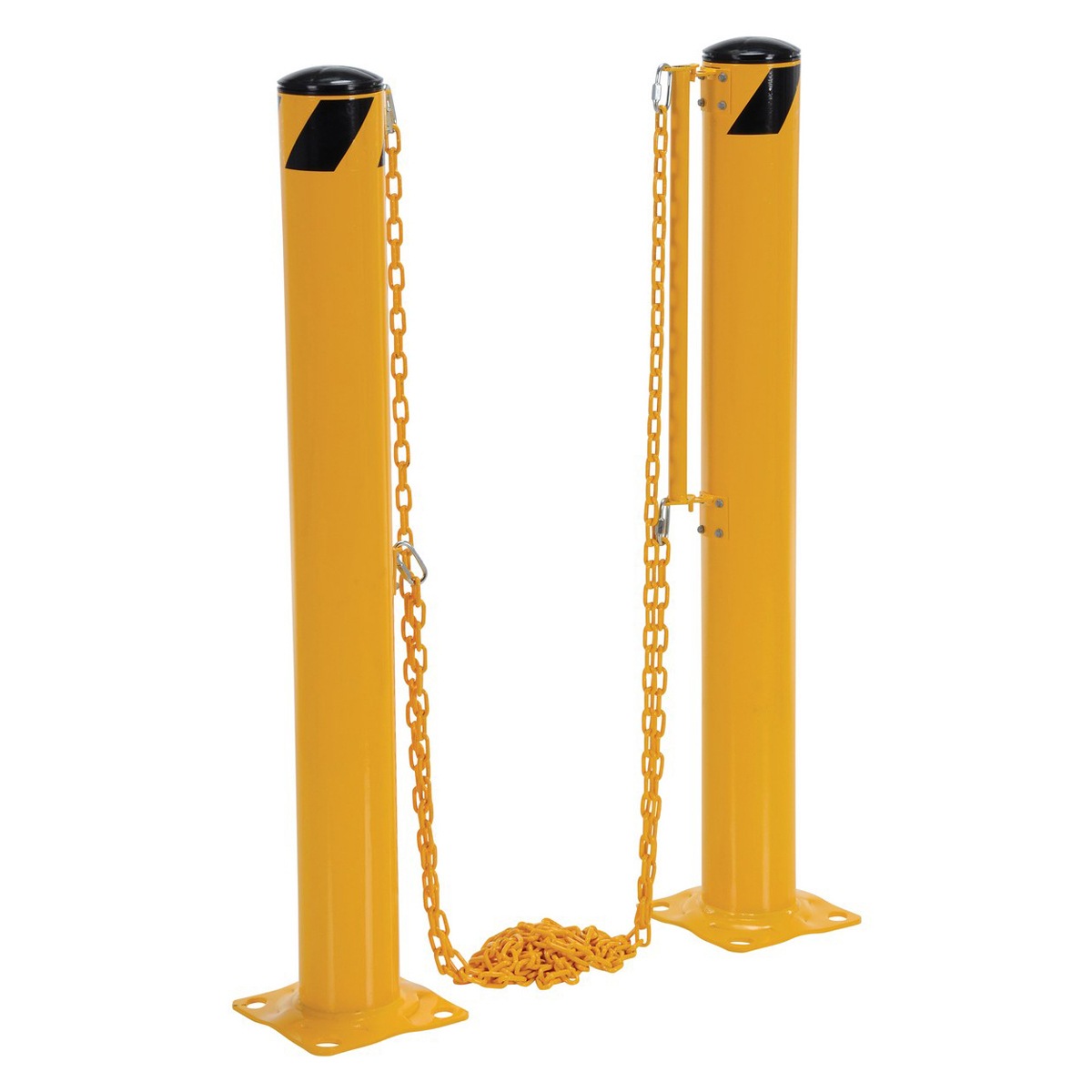

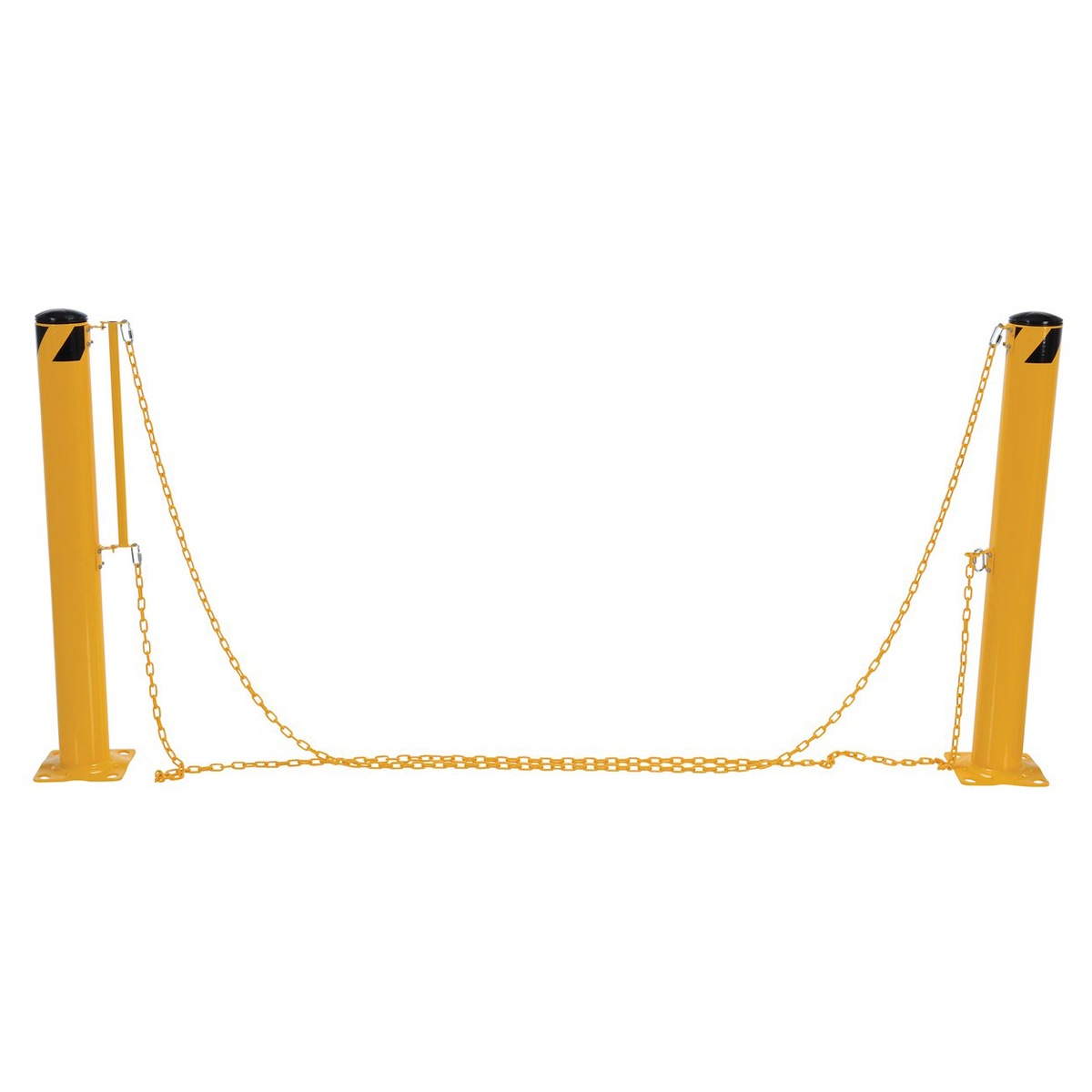

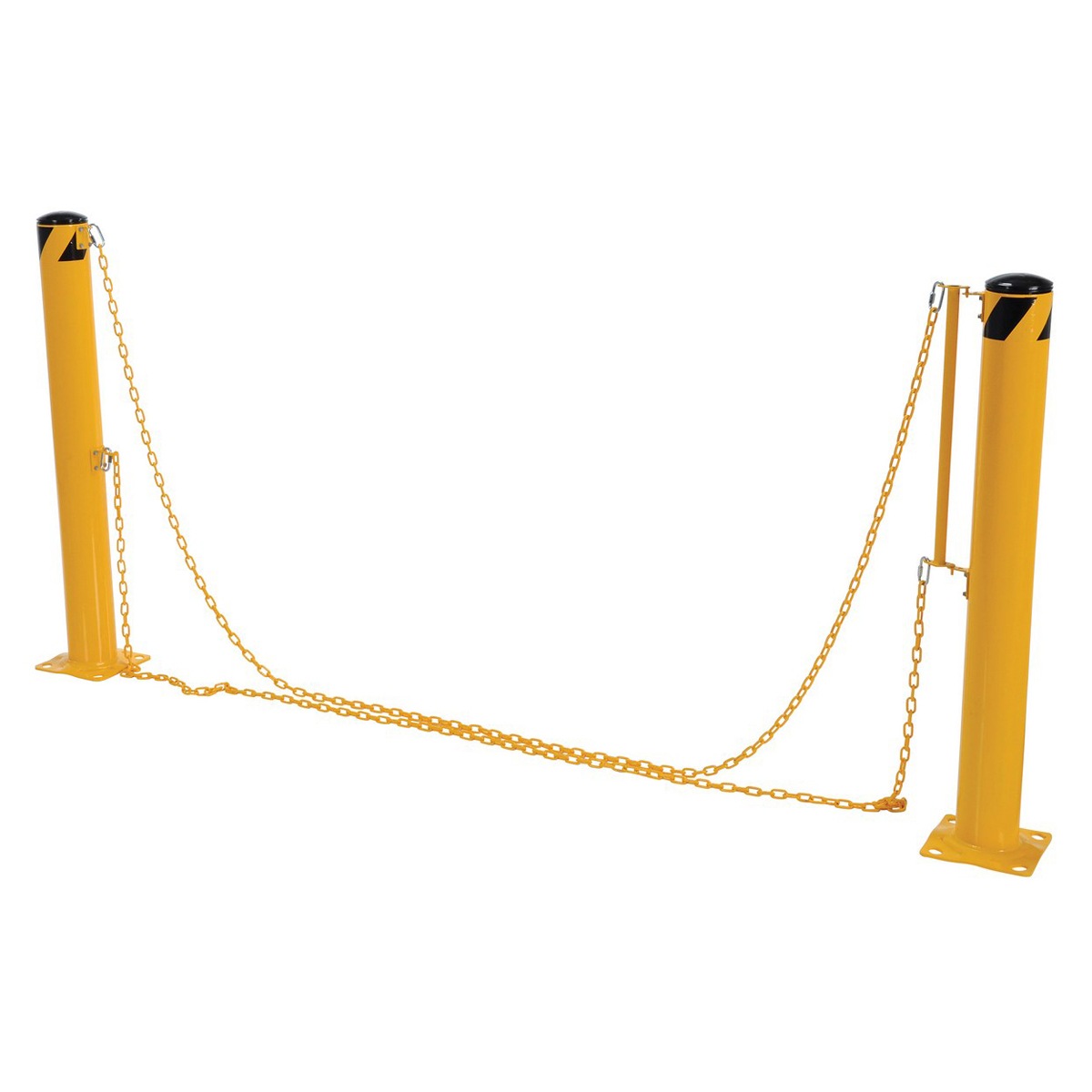

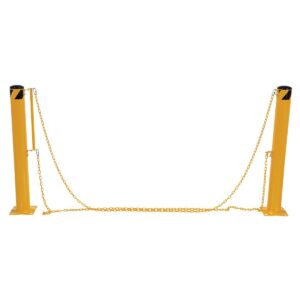

The Dock Chain Barrier System creates a safe environment for both personnel and products. The steel constructed double chain adds extra security for door up to 10′. Unit is designed with a safety yellow finish for clear visibility and a bolt on chain hook-up enabling quick installation or removal. Chains are mounted at 21″ and 39″ high on the bollard. The chain can be cut to a specific size upon request. The barrier system includes (2) two bollards, (2) 127″ long chains and (1) one bollard conversion kit. The conversion kit includes four (4) bollard mounting brackets, (16) self tapping sixteen screws, (1) post weldment bracket, and (4) four quick links.

• Provides a safe environment around the dock area and other high traffic areas
• Includes a double chain design and a bolt on chain hook-up for maximum efficiency
• Safety yellow finish for clear visibility
• Simple installation enables immediate use

Specification

• Bollard quantity: 2
• Chain Quantity/Length (in.): (2) 127
• Mounting Bracket (qty.): 4
• Self Tapping Screw (qty.): 16

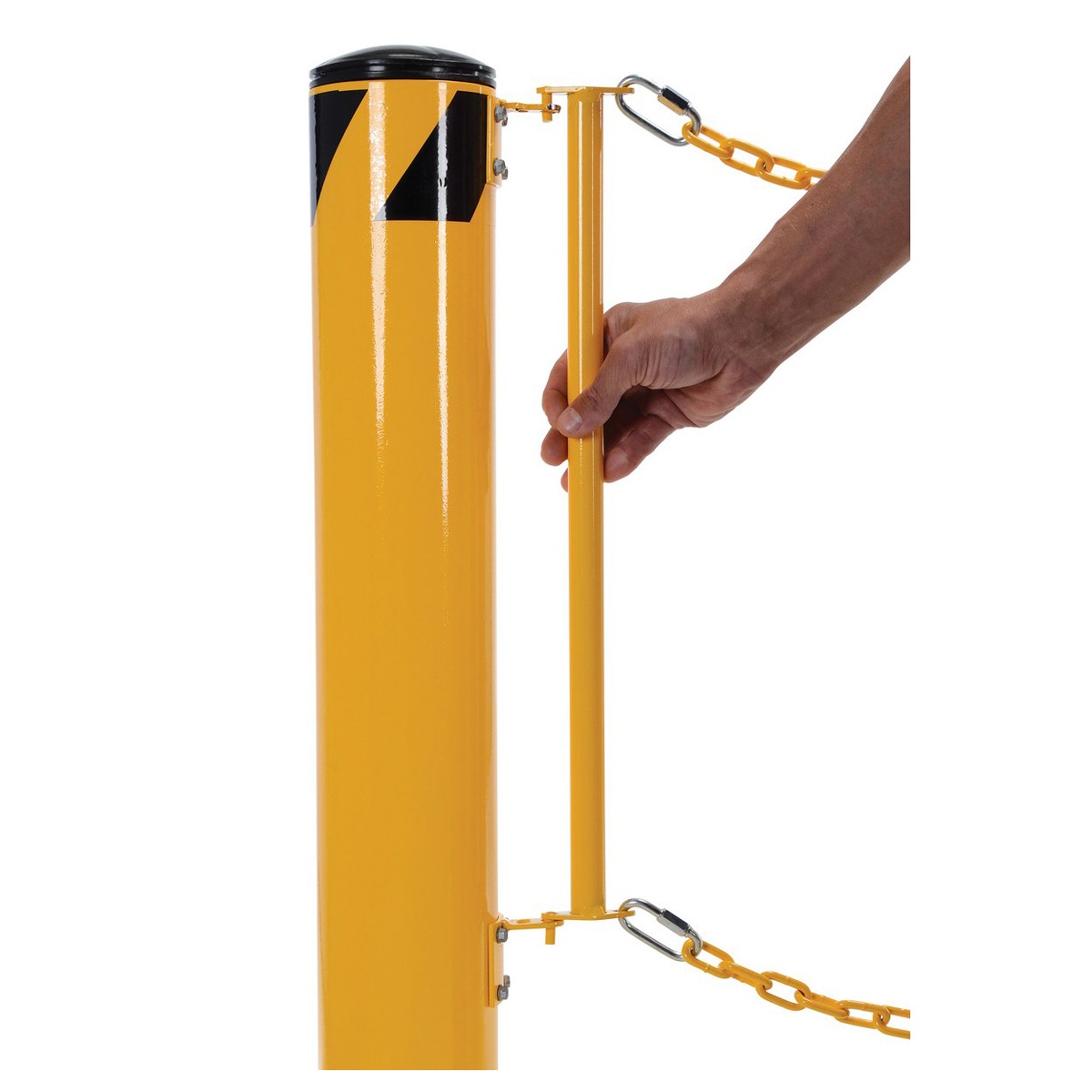

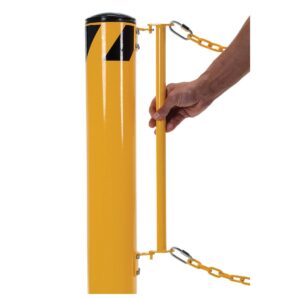

• Chain Post Handle (qty.): 1
• Quick Links (qty.): 4
• Accommodated Door Width (ft.): 10
• Impact Resistance: Each BOL = 4,000 @ 4mph, connecting chain = only rated for personnel barrier of 250 lbs. load
