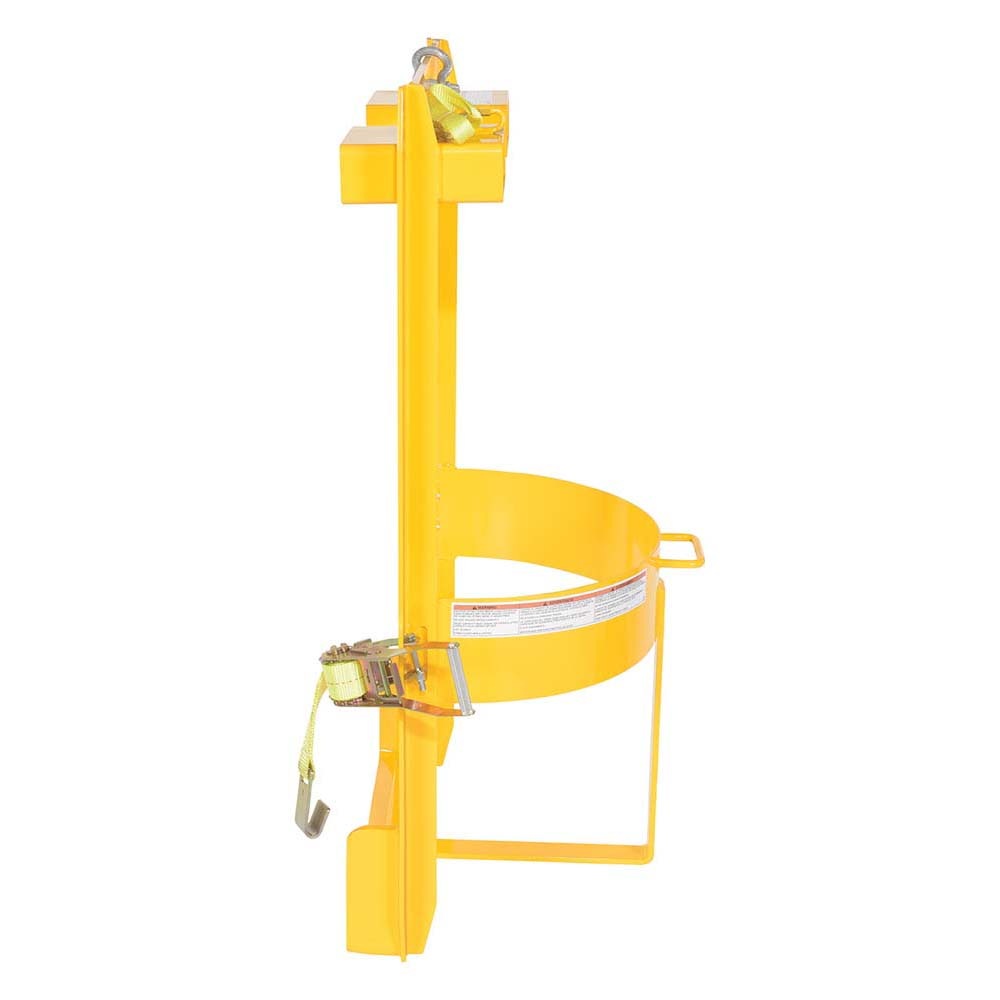

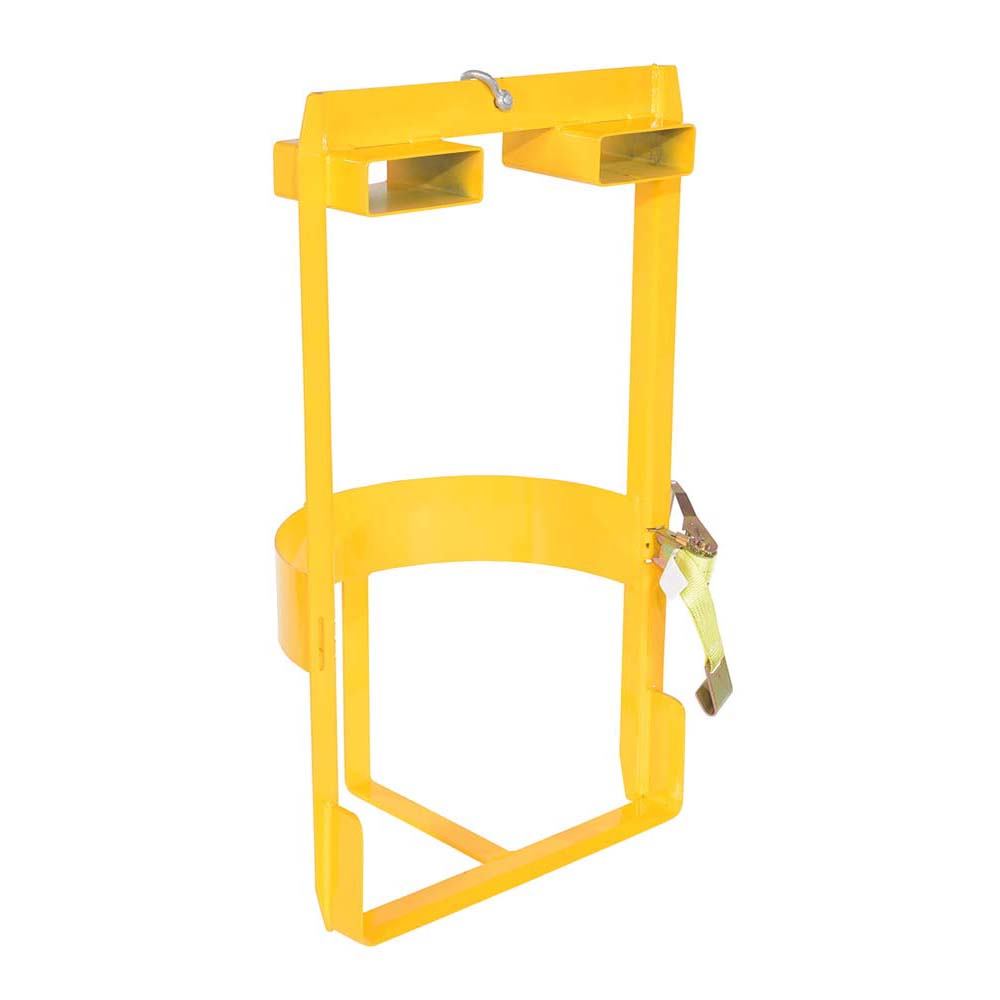

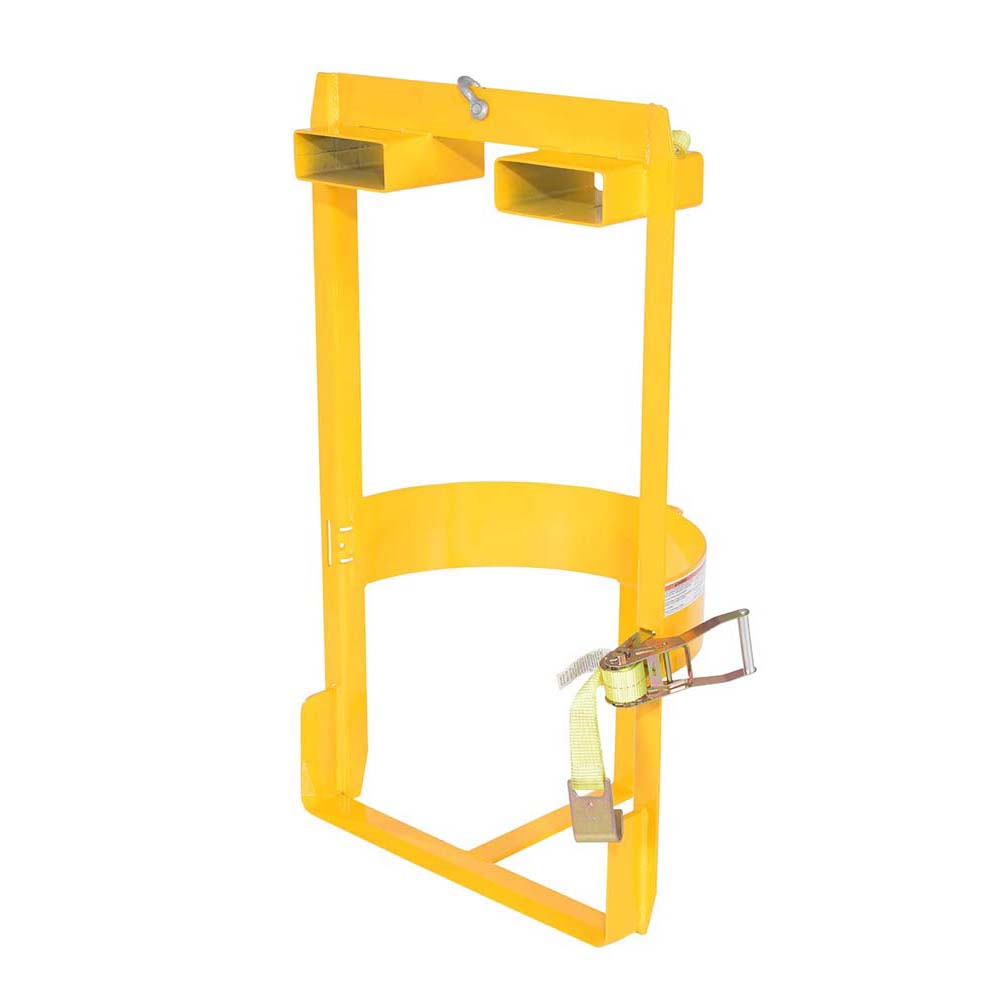

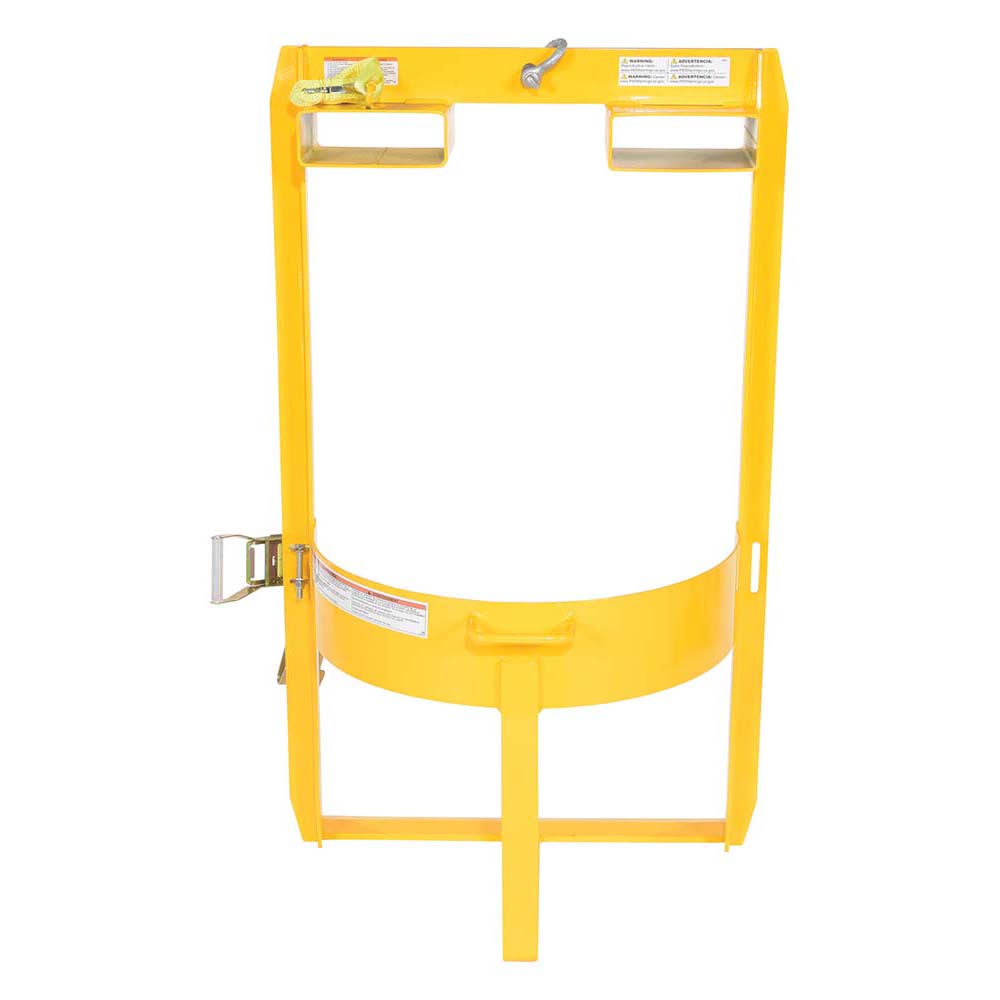

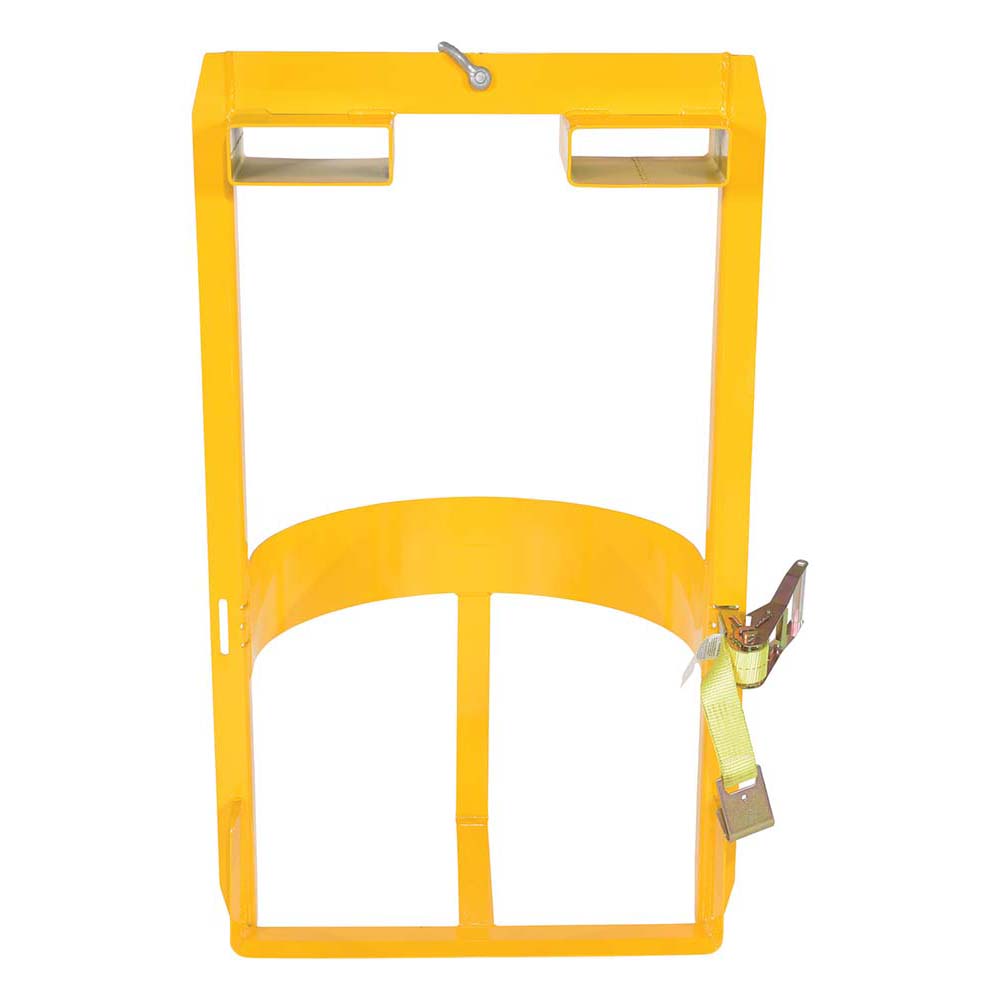

Vestil DRUM-LUG Overhead Drum Lifter 1000 LB Capacity

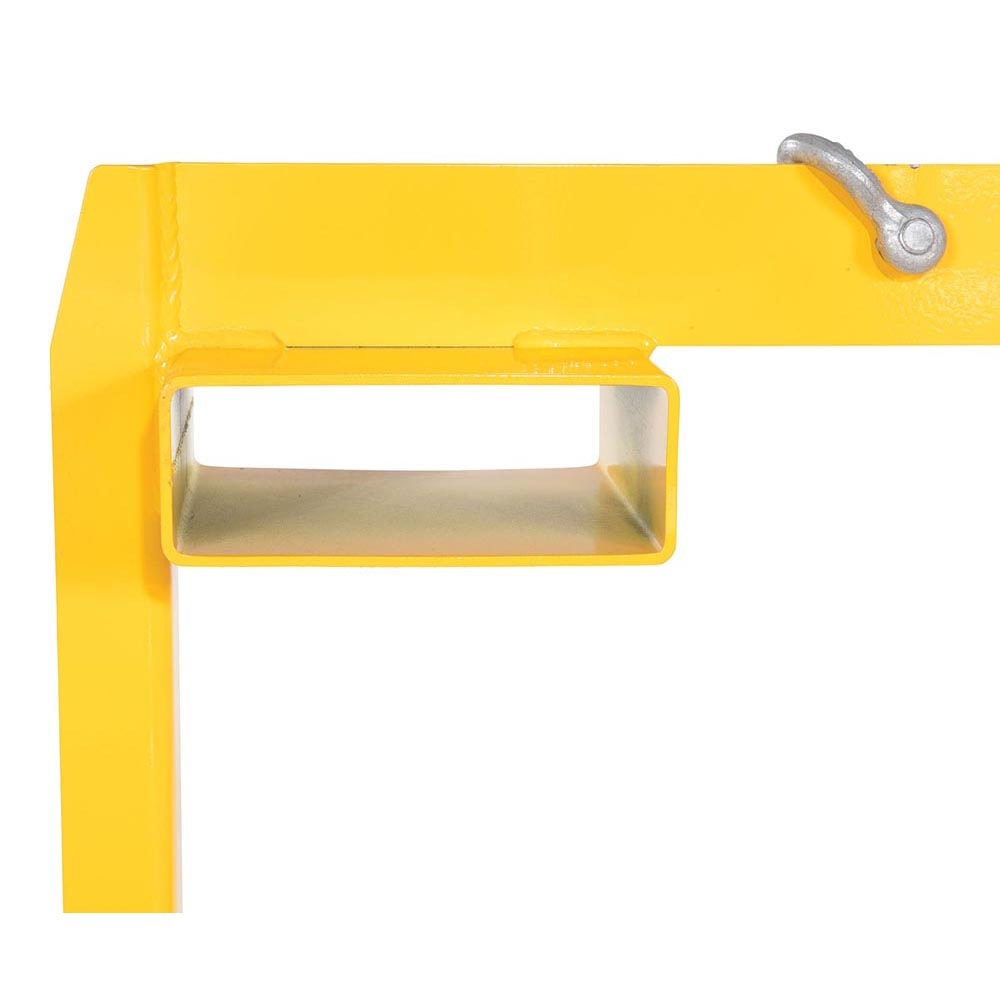

This Overhead Drum Lifter is designed for lifting drums with an overhead crane or similar lifting device. Integral fork pockets are also included for transportation with forklift. Safety restraint included. Steel saddle is designed for use with steel, plastic & fiber drums with a ratchet strap for securely holding the drum in place. With a non-tilting style, this lifter is made for straight vertical lifting only. Features a durable yellow baked-in powder-coated toughness.

• Designed for lifting drums with an overhead lifting device

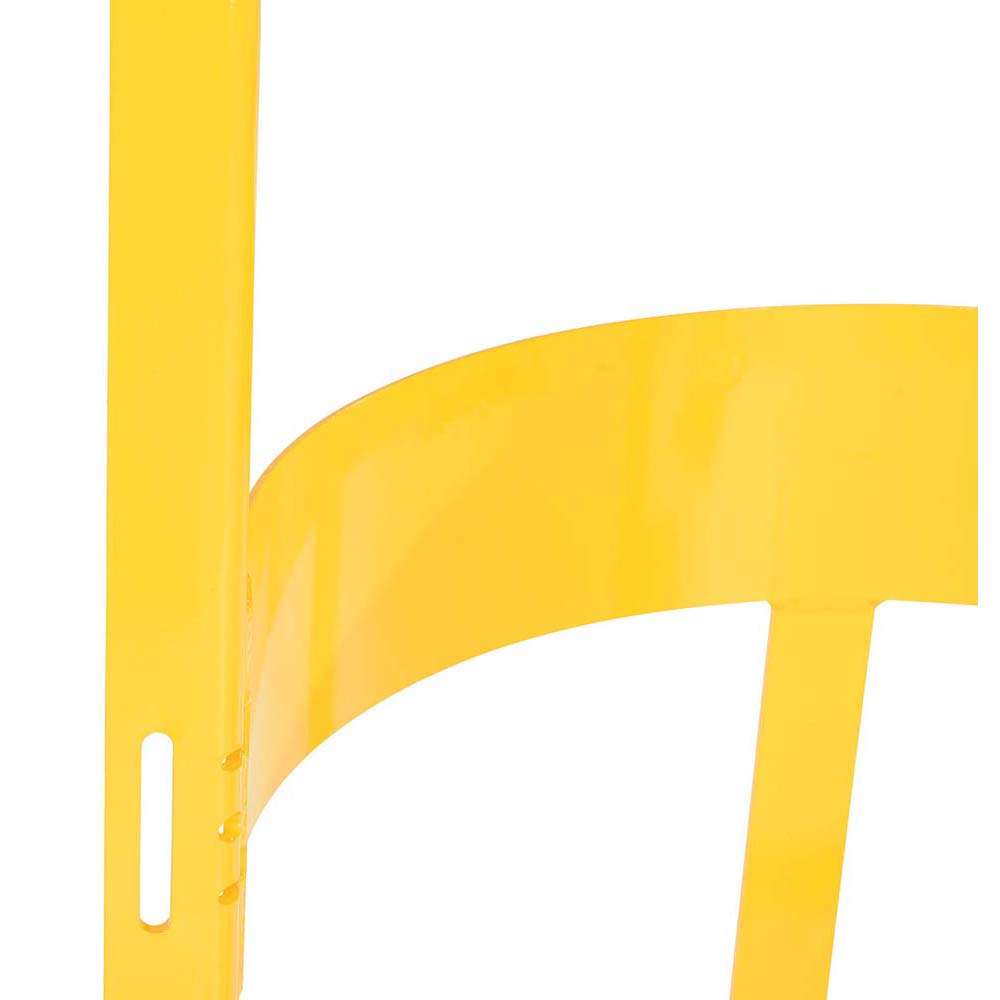

• Steel saddle is for use with steel, plastic & fiber drums

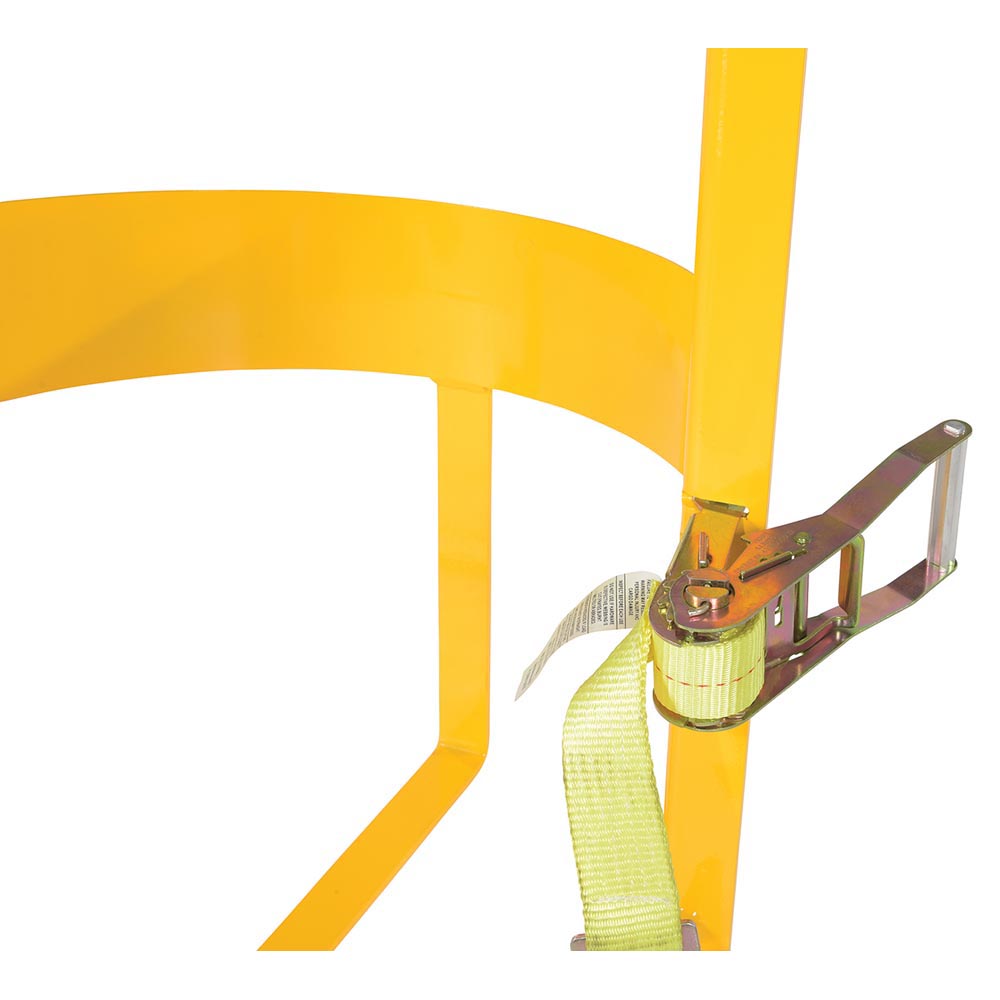

• Features a ratchet strap for securely holding the drum in place
• With a non-tilting style, this lifter is made for straight vertical lifting only

Specification

• Uniform Capacity (lb.): 1000
• Accepts: 30 & 55-gallon drums
• Strap Width (in.): 2
• Minimum Drum Height (in.): 20-11/16
• Maximum Drum Height (in.): 42
• Max Drum Diameter (in.): 24-5/8
• Fork Pocket on Center (in.): 18
• Fork Pocket Height (in.): 2
• Fork Pocket Width (in.): 6-1/2
• OSHA: 1910.179

Documents

Click for DRUM-LUG Approval Drawings

Click for Manual
