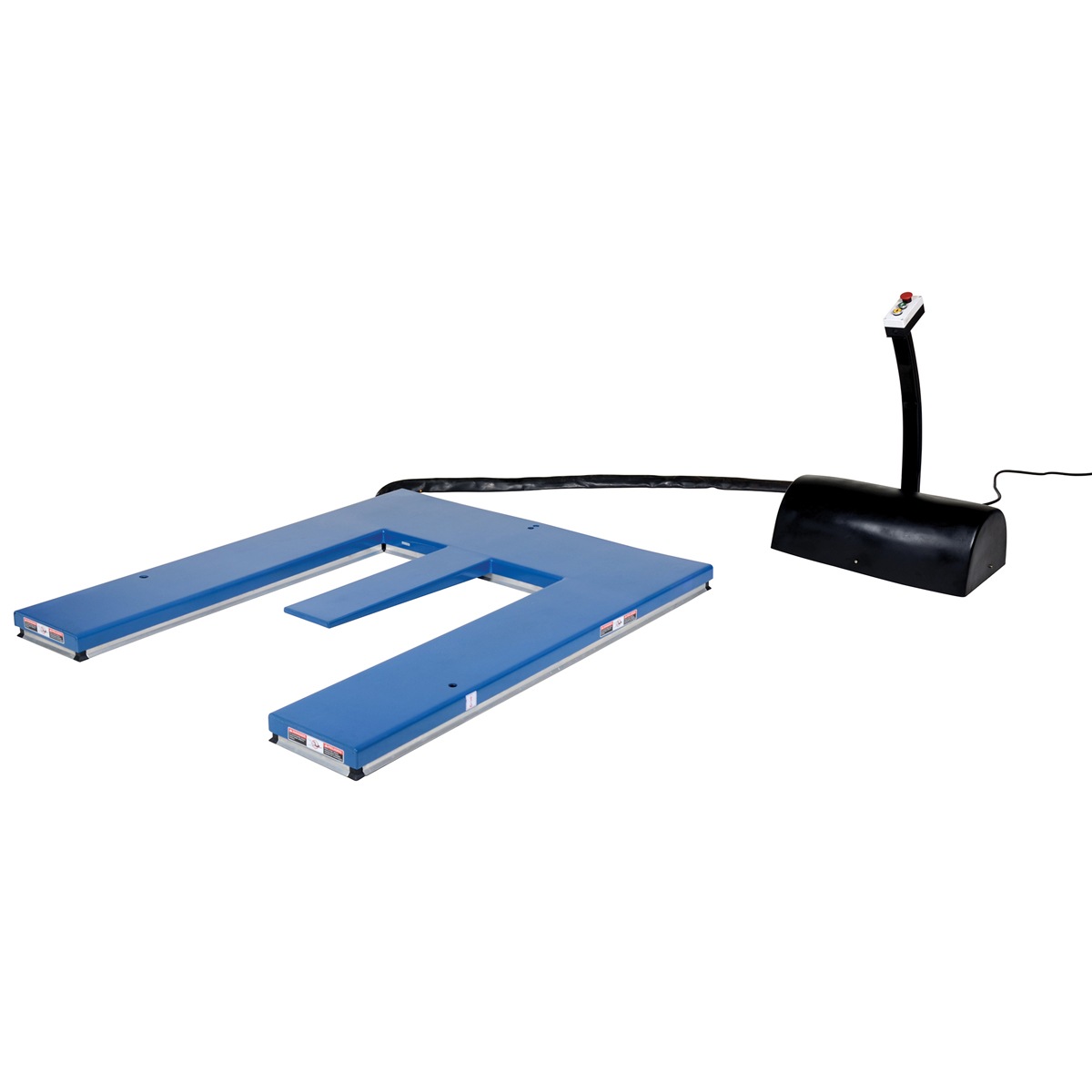

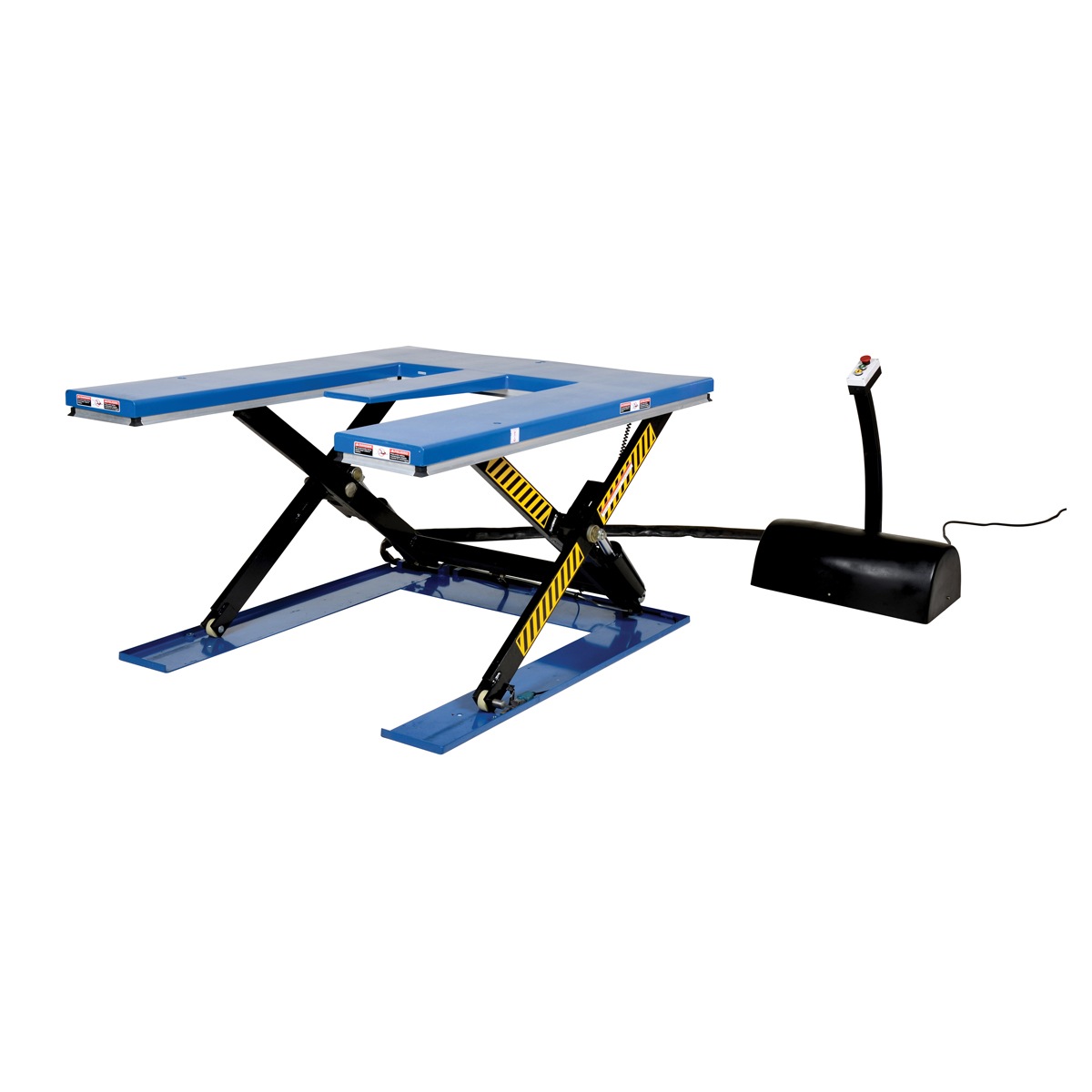

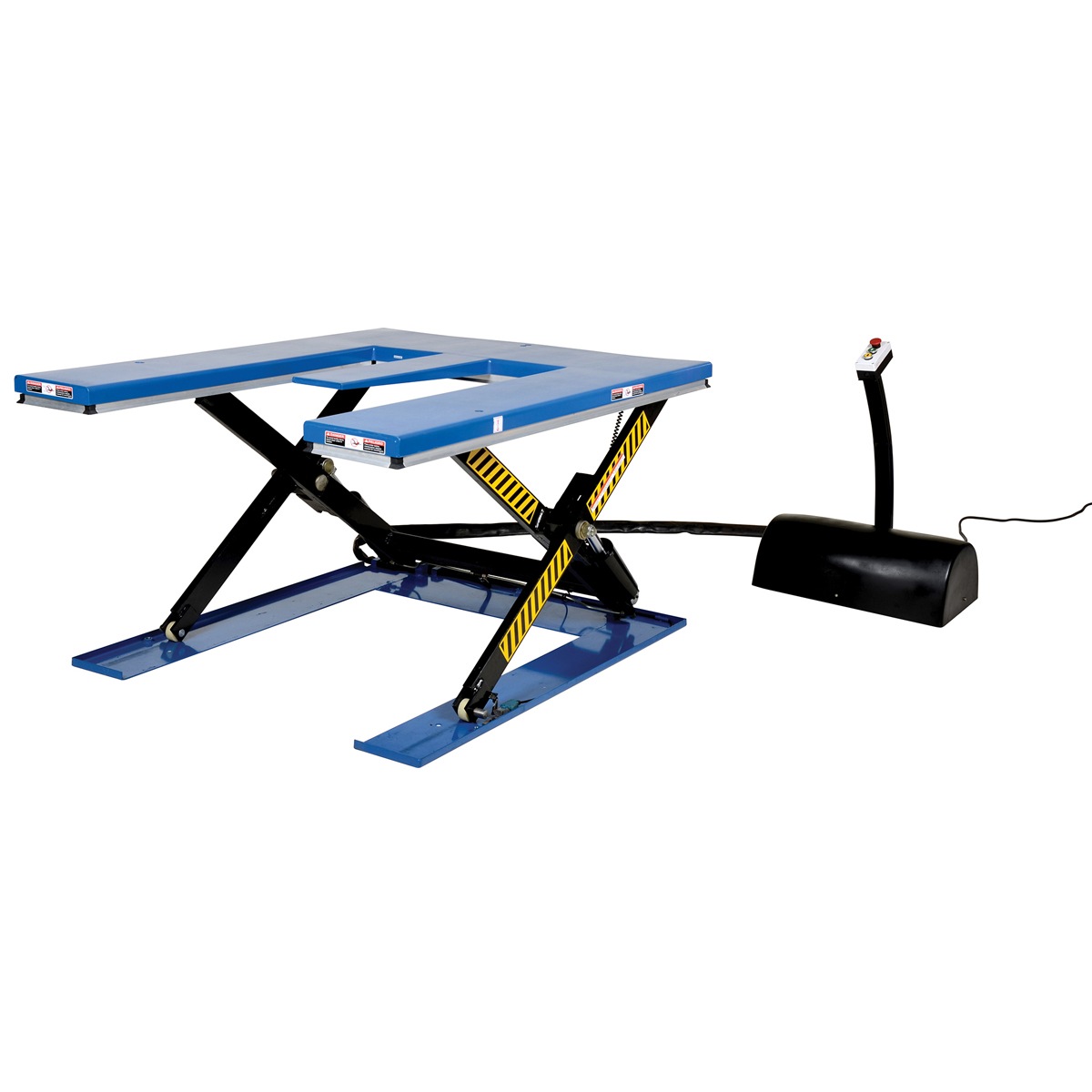

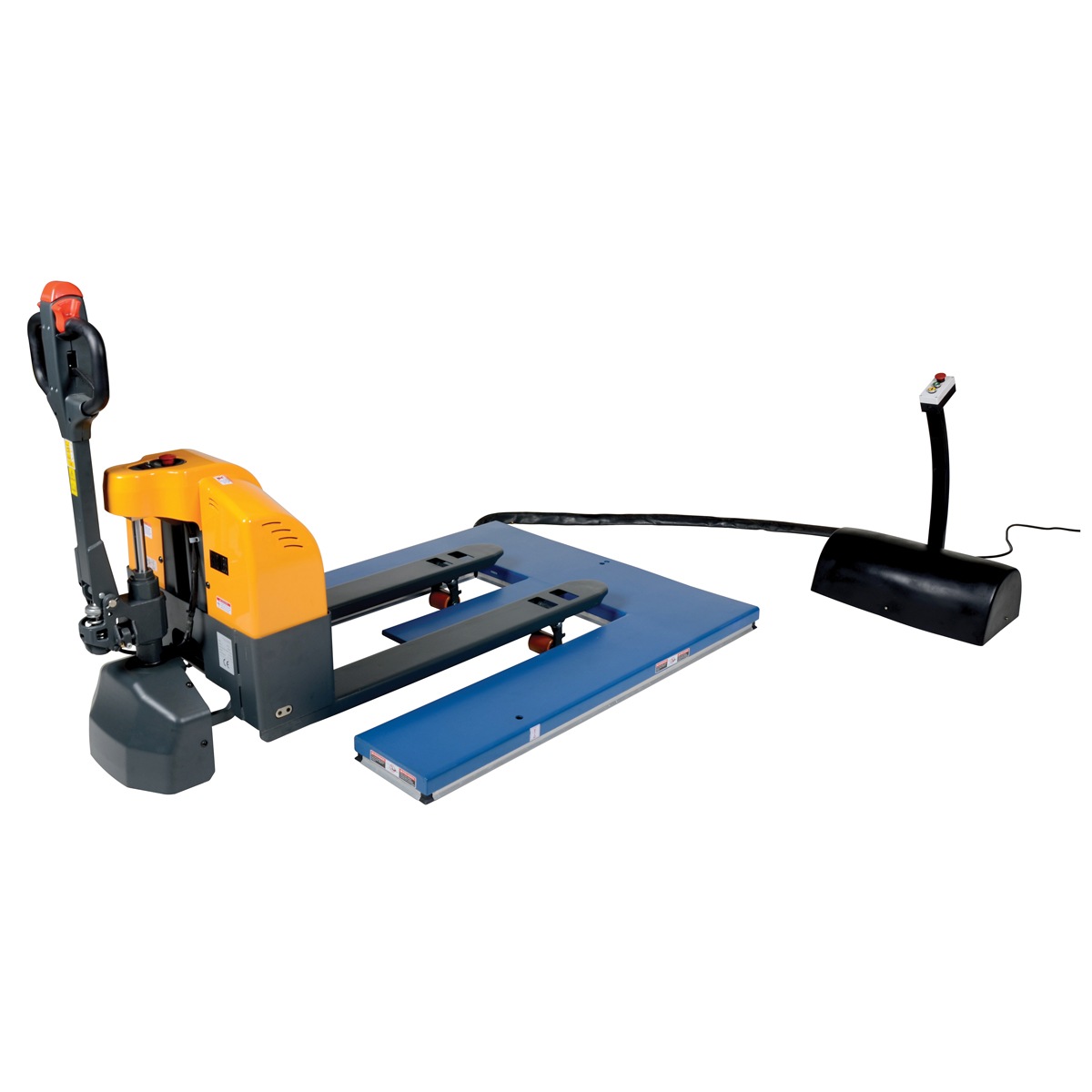

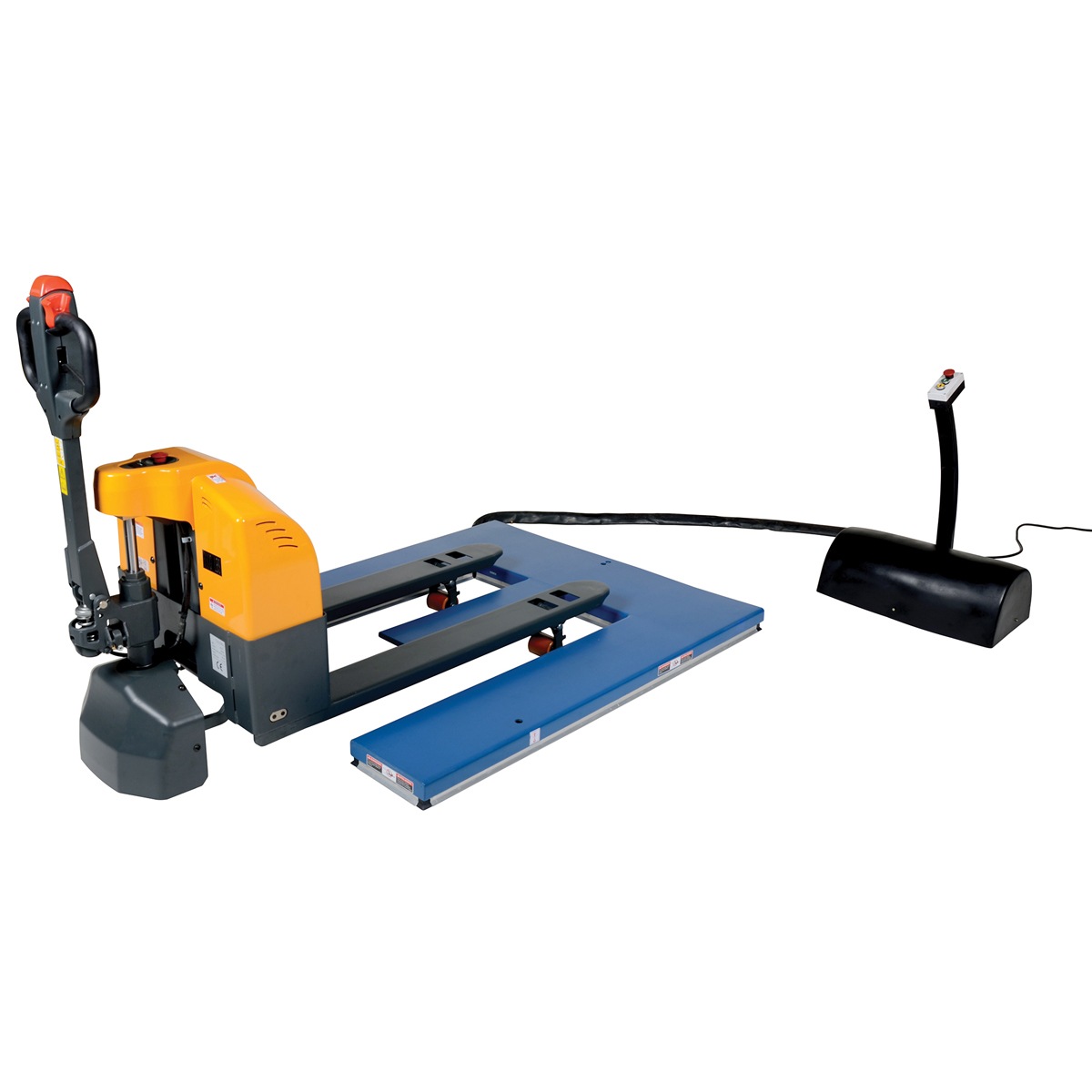

Vestil E Type Electric Lift Table

The Low Profile Electric Lift Tables are ideal for the manufacturing and distribution facilities. The unique, steel constructed, “E” design provides a center support beam to prevent the lifted product from deflecting downward in the center. Numerous protective features include electric toe guards, velocity cylinders, and emergency stop buttons provide personnel with the utmost safety. An external power pack is equipped with a pressure relief valve which prevents overloading while controlling lowering speed. To raise and lower the unit, simply utilize the ‘up and down’ push button design on the 24V control box for precise ergonomic positioning of product.

• Ergonomically stable control box height
• Lift products to minimize bending and twisting
• Easy to use controls for efficiency
• Unique design provides more surface area

Specification

• Voltage/Phase: 115/Single
• Control Box Voltage: 24
• Deck Inside Width (in.): 29-3/4
• Remote Power Unit Width (in.): 14-3/4
• Remote Power Unit Length (in.): 26-3/4
• Remote Power Unit Height (in.): 9-1/2
