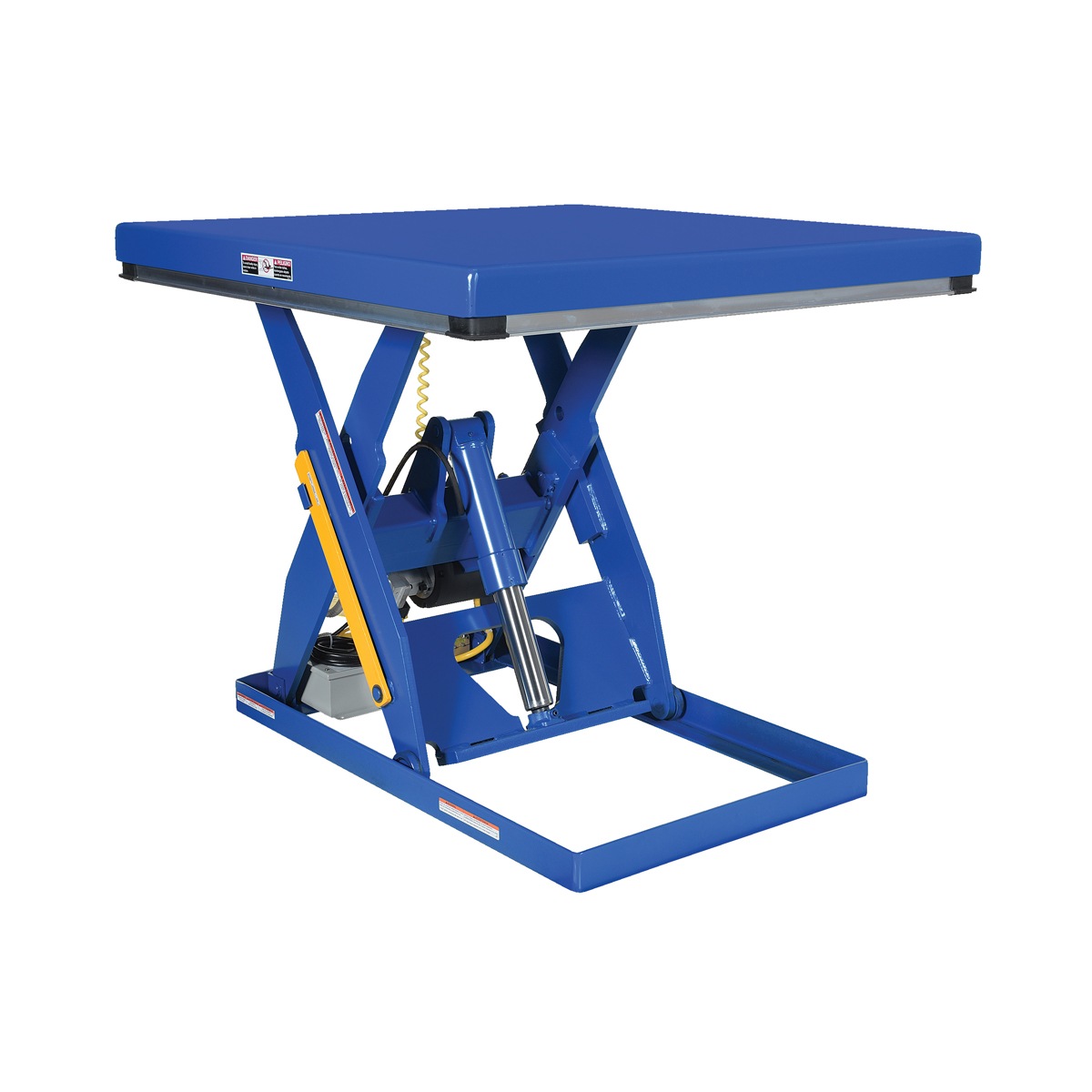

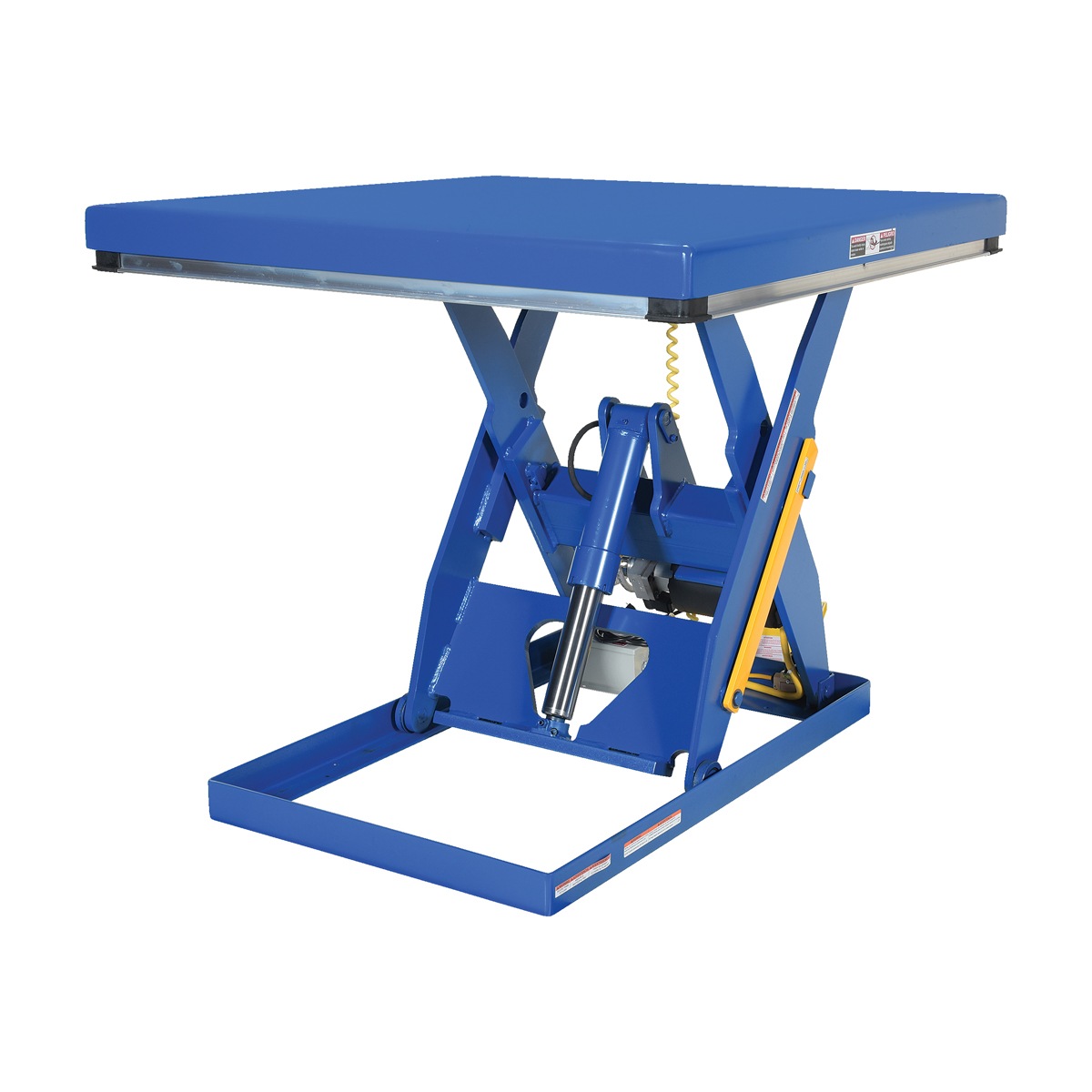

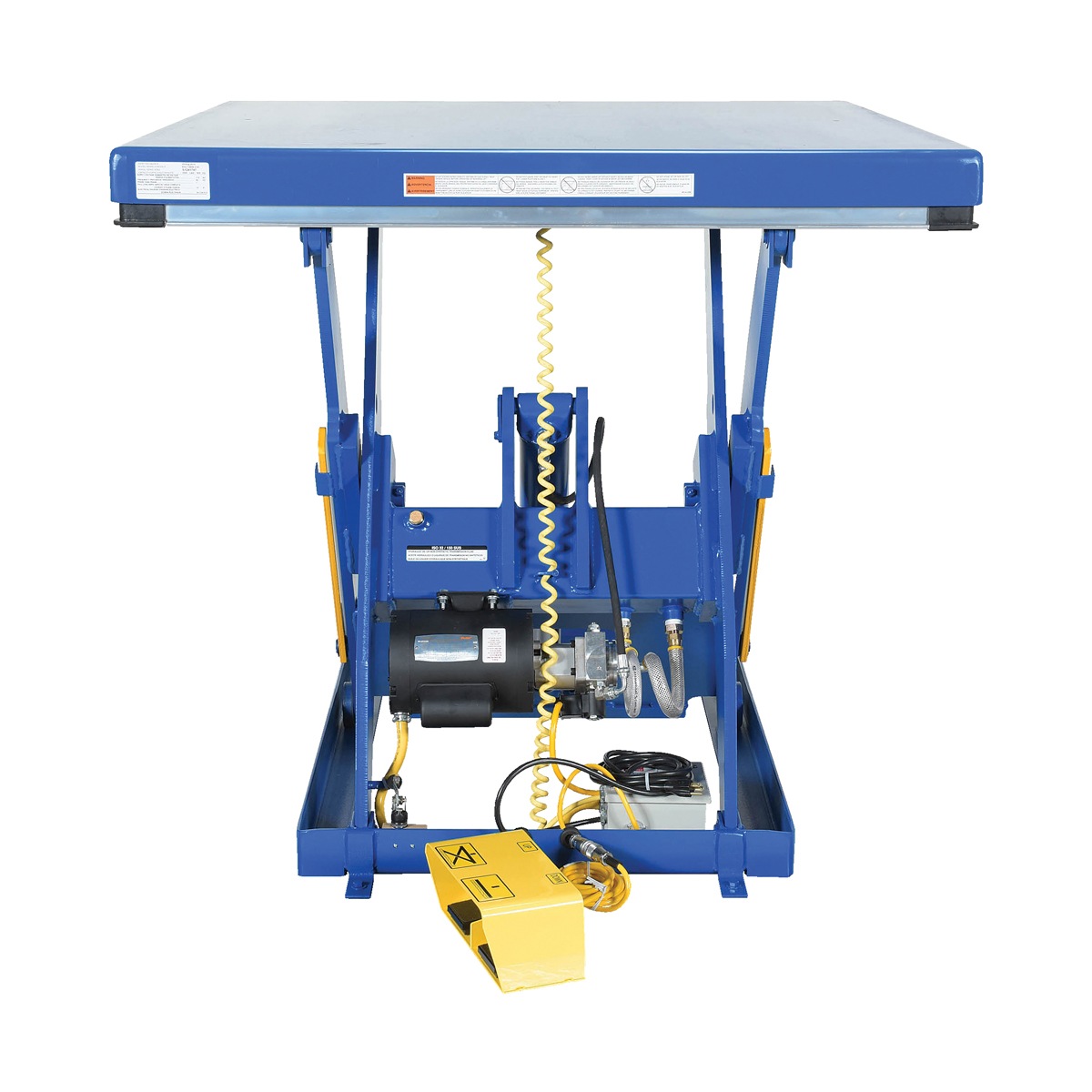

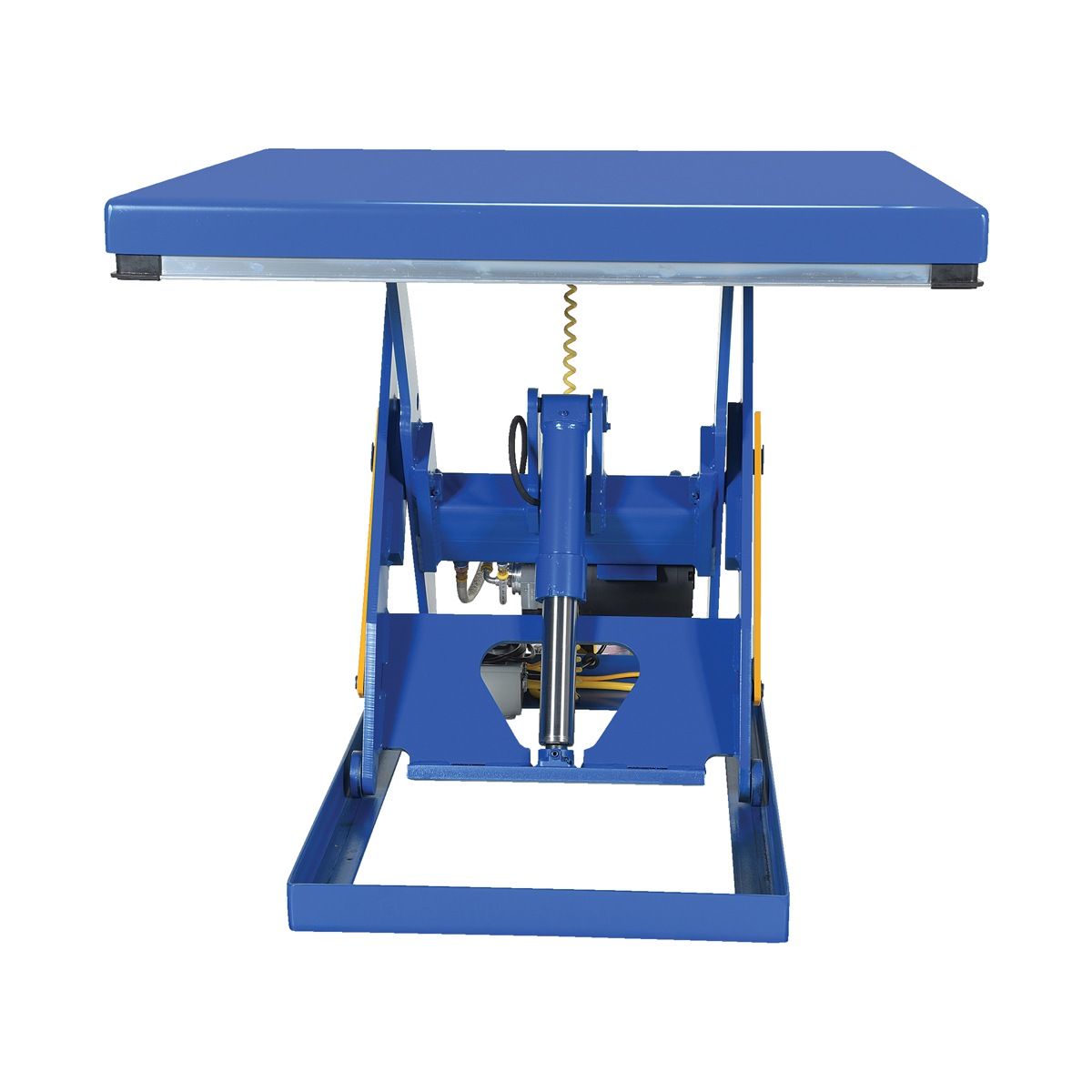

Vestil EHLT4848-2-43FC Lift Table – Foot Control 48″ X 48″

The Electric Hydraulic Scissor Lift Table with Foot Control is used by all types of manufacturing and warehouse facilities. The unit lifts products to a desired height creating an ergonomically friendly workspace. The lift table is designed with a steel construction for durability and longevity. Additional safety features include a patented pinch point perimeter toe guard to protect pinch points while lowering of the table, as well as, a foot control for lowering and raising the unit.? An internal safety velocity fuse is included to maintain platform height in an event of hose or fitting failure. The standard 56 frame electric motor is a fully enclosed with optional voltages available.

• Electric hydraulic scissor lift table with foot control lifts products to a desired height
• Perimeter toe guard protects pinch points while lowering for optimal safety
• Features durable construction for added strength and long life
• Internal safety velocity fuse maintains platform height during a hose or fitting failure

Specification

• Capacity: 2000 lbs
• Uniform Capacity (lb.): 2,000
• Travel Time (sec.): 11
• Vertical Travel (in.): 36
• Voltage/Phase: 460/3
• Hertz: 60
• Motor Horsepower: 2
• Hydraulic Component Rating (psi): 3000
• Cord Length (in.): 96
• Foot Control: 24V AC
• Raised Height (in.): 43

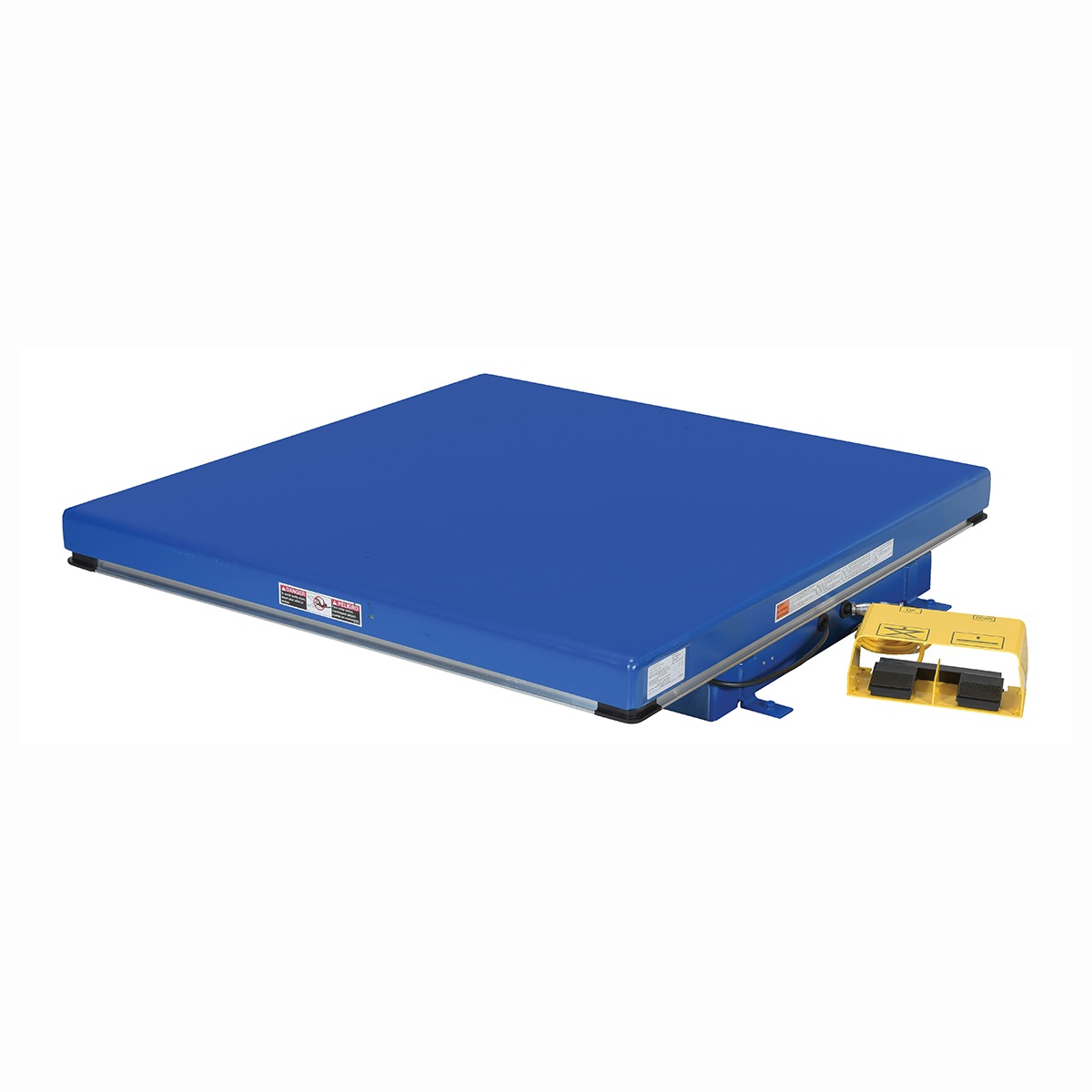

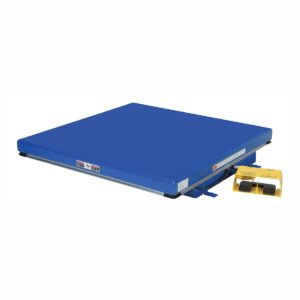

• Lowered Height (in.): 7
• Platform Width/Length (in.): 24-3/8 x 48-3/8
