Vestil Electric Edge-O-Dockleveler 72″ X 36″

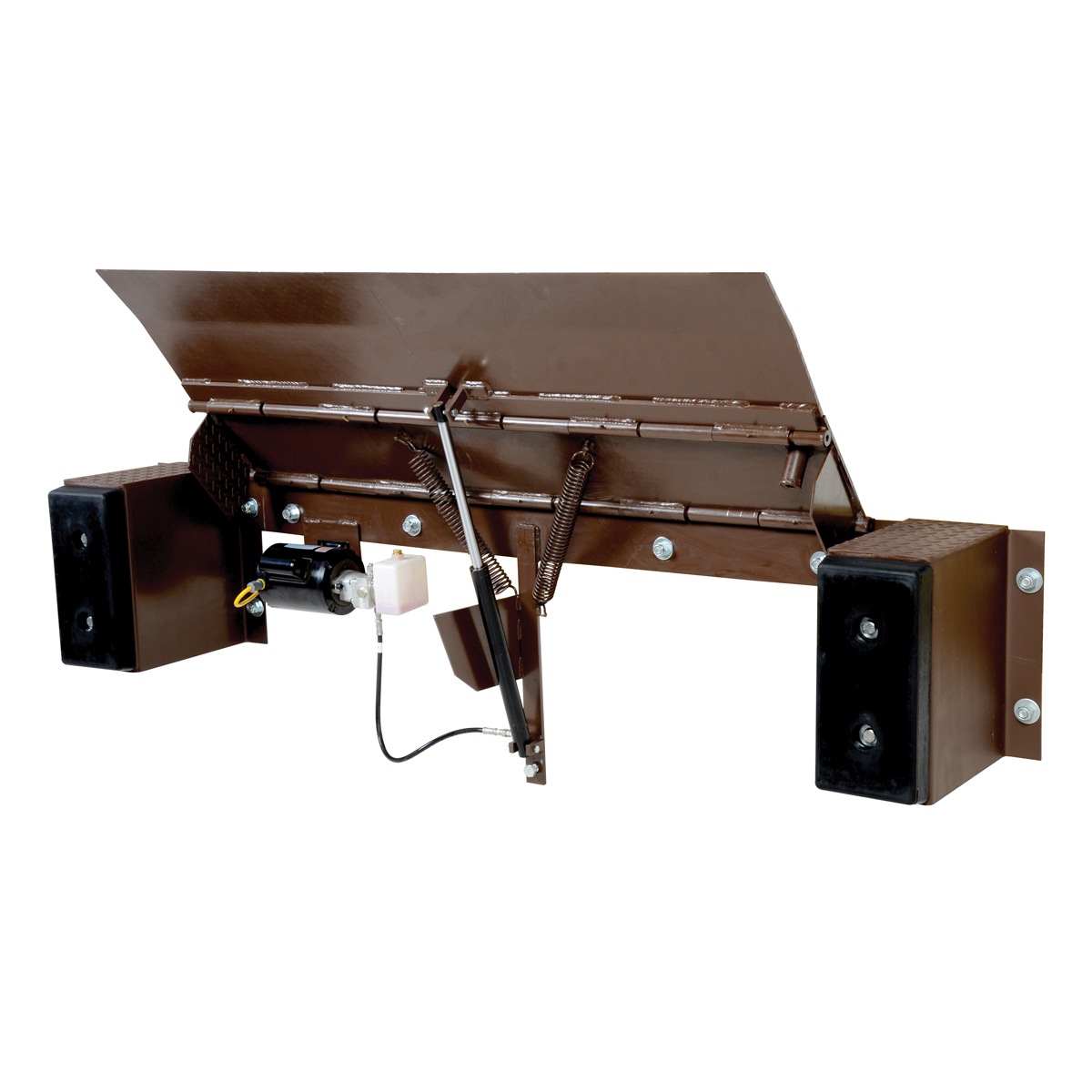

The Edge-O-Dock leveler permanently attaches to the face of a dock. It is recommended for docks to be at least 48 inches high. When the trailer departs, the lip drops automatically behind the face of the bumpers. Concrete recess is not required. It comes complete with bumpers and installation instructions. Standard Ramping is 29 inches; models FM/PP/PE 3066 and 3072 are 29-13/16 inches, with a 36-5/8 inch long ramping length available. A steel dock edge, or approach ramp is required for proper installation. The Electric Hydraulic Edge-O-Dock is the easiest to operate. After the truck is backed against the dock, push and hold the control button. The leveler raises and the lip will extend. The unit comes complete with motor, pump, control box, cylinder, lines and oil. The truck must pull out for leveler to return to stored position.

• Easy install allows unit to quickly mount to any loading dock with a steel dock edge
• Tread plate design offers a positive non-slip gripping action
• Product design conveniently does not require a concrete recess
• Solid steel construction offers long lasting reliable use

Specification

• Service range above dock (in.): 5
• Service range below dock (in.): 5
• Bumper Width (in.): 8
• Bumper Length (in.): 2
• Bumper Height (in.): 18
• AC Voltage/Phase: 115/1
• Ramp Width (in.): 72
• Ramping Length (in.): 36-5/8
• Bumper projection including rubber bumper (in.): 26-3/4

Documents

Click for Manual

Click for PE-1572-36 Approval Drawings

Click for PE-2572-36 Approval Drawings
