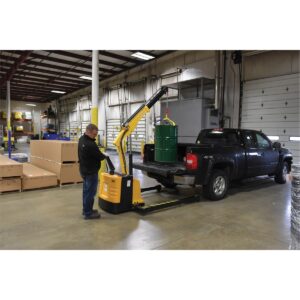

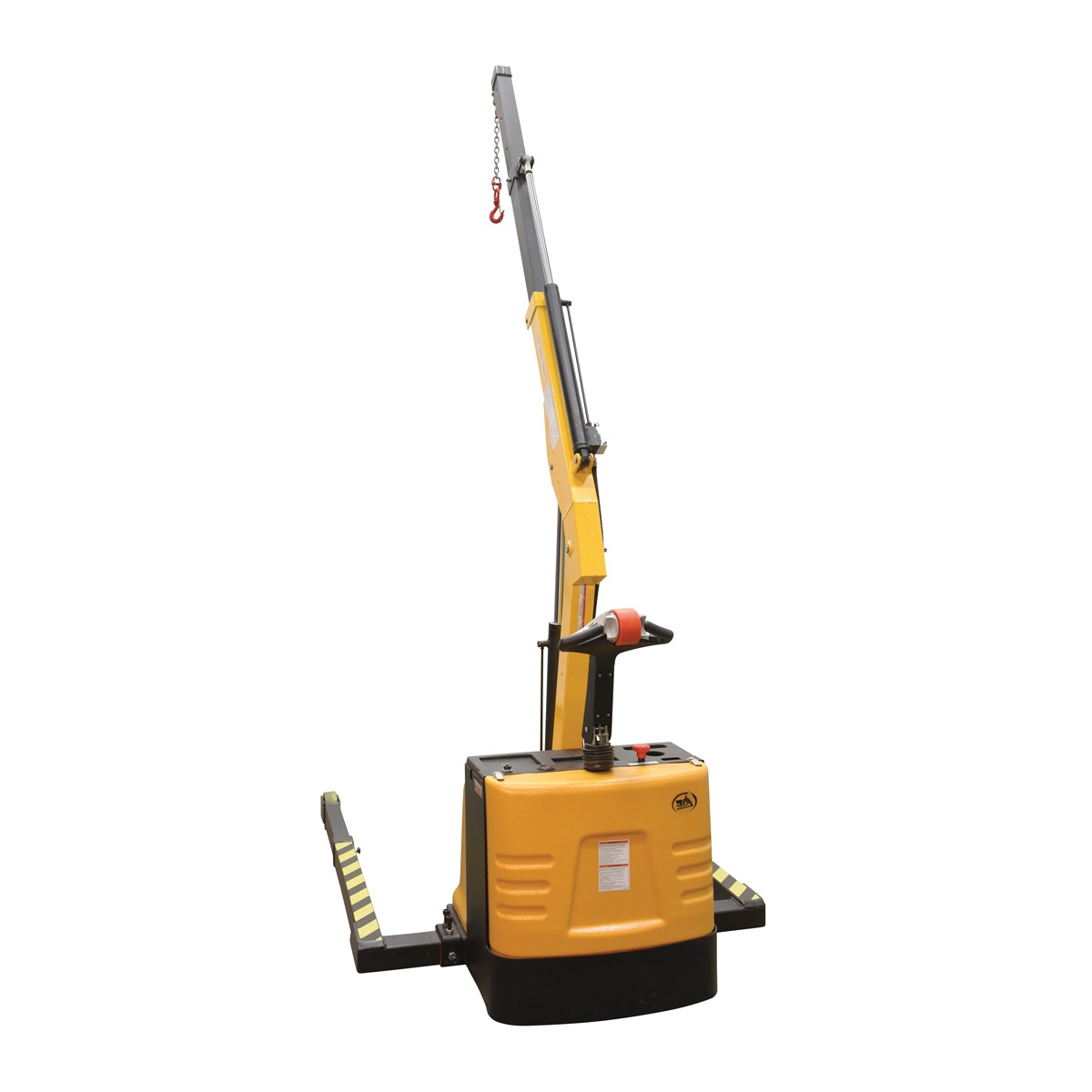

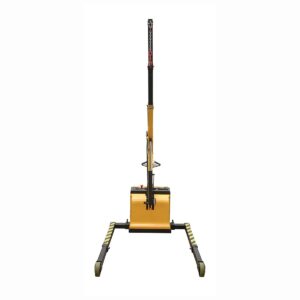

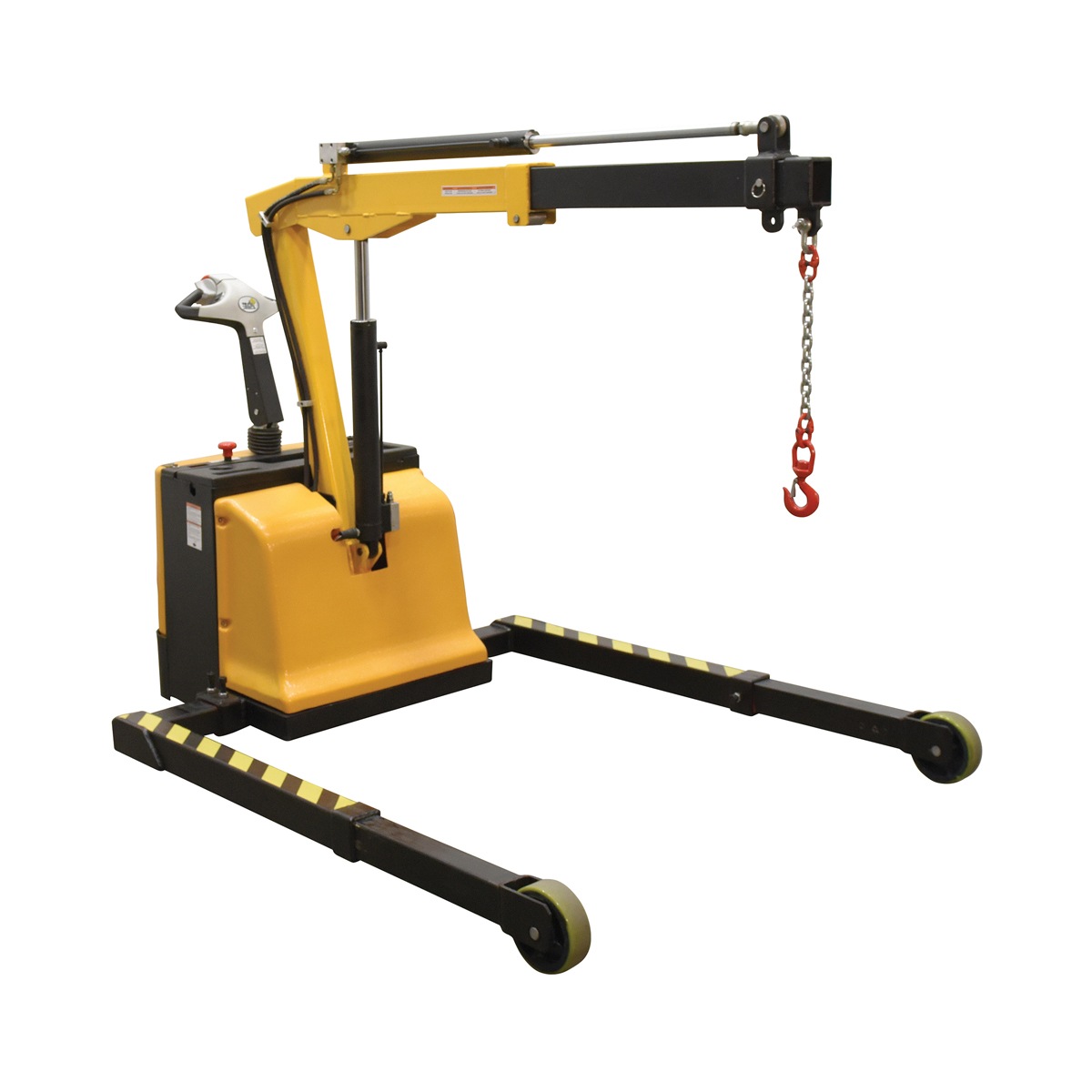

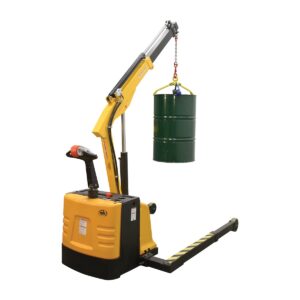

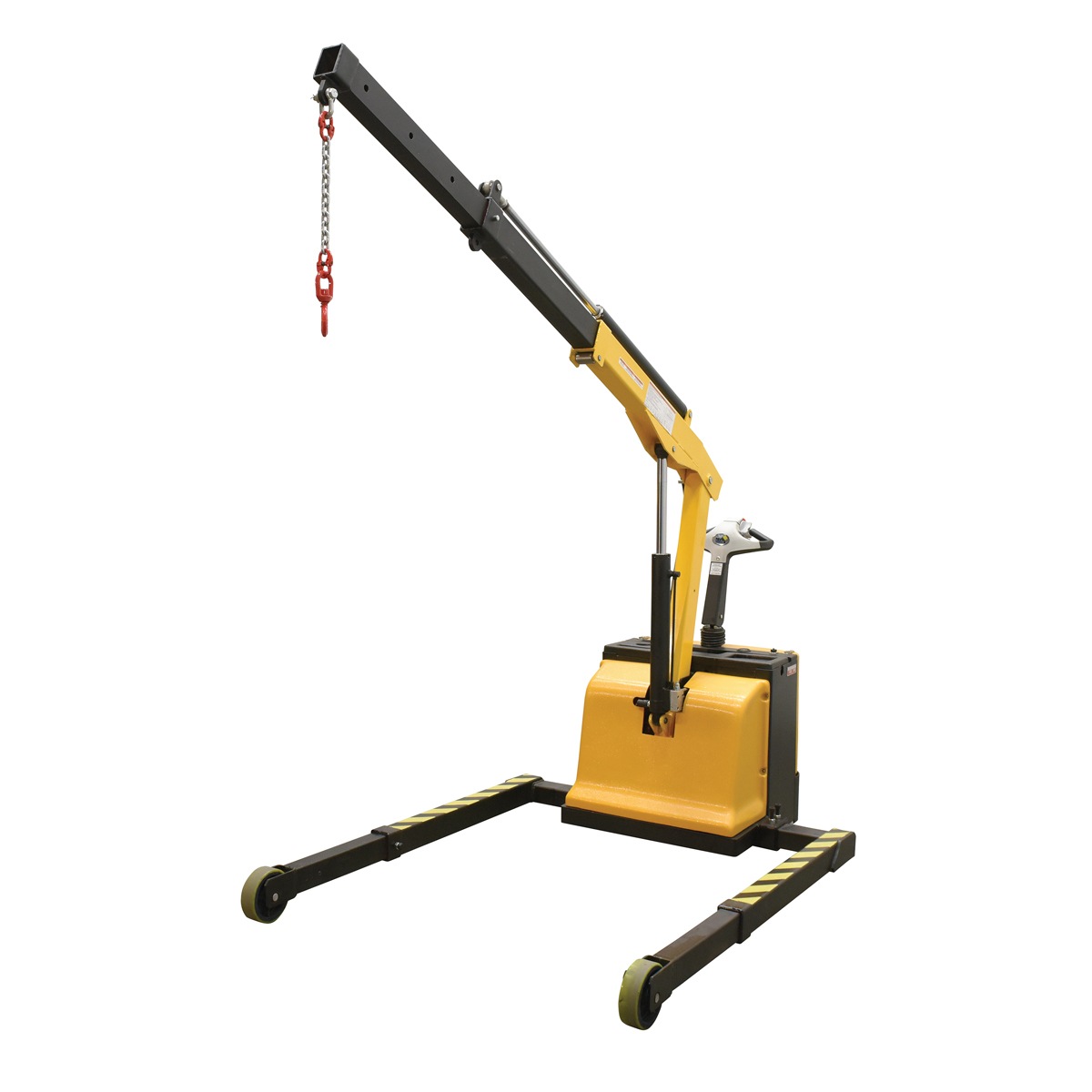

Vestil EPFC-25-AA Adjust Electric Powered Floor Crane 2.5K

The Fully Powered Electric Floor Crane has an easy and quick operation. The unit raises and lowers loads with a push of a button. It can maneuver loads in warehouses and trailers. The Heavy duty rigid hook with safety latch provides long service. The high-torque DC drive and lift motors handle heavy-duty jobs. Floor crane includes integral battery charger, battery level gauge, and emergency battery disconnect. The truck rolls smoothly on poly-on-steel, steer and load wheels. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, controlled lift/lower controls, adjustable length legs, proprietary safety-enhancing emergency reverse function, and horn. When the Proprietary Safety-enhancing Emergency Reverse function is actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after 1.5 seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 1.5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a level of operator protection which is unmatched by any unit on the market today. Also includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle. Not recommended for use on incline surface and no greater than 4 degrees on a decline surface.

• Fully-powered floor crane makes movement of material quick and easy
• Includes fingertip RAISE and LOWER buttons for operator convenience
• Safety belly reverse button improves worker safety
• Easy-to-operate throttle for forward and reverse direction with infinite speeds

Specification

• Uniform Capacity Retracted (lb.): 2,500
• Uniform Capacity Battery Extended (lb.): 1300
• Uniform Capacity Manually Extended (lb.): 600
• Legs adjustable width (in.): 43-3/4 to 58-11/16
• Manual Extension Holes (qty.): 3
• Space Between Holes (in.): 8
• Maximum Height – Crane Extended (in.): 110
• Maximum Length – Legs Extended (in.): 103-1/8
• Lift Range – Retracted (in.): 44-1/4
• Lift Range – Extended (in.): 97
• Drive Motor: DC24V / 0.7KW
• Lift Motor: DC24V / 2KW
• Battery (quantity): 2
• Battery Type: 12V
• Battery Charger: 24V / 12 amp
• Battery Charger Power Cord: 115V AC
• Minimum Service Per Charge (hrs.): 8
• Lift Speed w/o Load (sec): 0.7
• Lift Speed w/ Load (sec): 0.5
• Lower down speed w/o load (sec): 0.25
• Lower down speed w/ Load (sec): 0.75
• Travel speed w/o load (mph): 2.8
• Travel speed w/load (mph): 2.18
• Drive Wheel Size (in): 10 x 3.15
• Rear Caster quantity: 2
• Rear Caster Size (in): 3 x 1.375
• Front/Leg Caster quantity: 2
• Front/Leg Caster Size (in): 6 x 2
• Wheel/Caster Material: Poly-On-Steel
• Lowered Height at 44.25 in Reach 2500 lbs. (in): 22
• Raised Height at 44.25 in Reach 2500 lbs. (in): 70
• Lowered Height at 70 in Reach 1300 lbs. (ins): 12.5
• Raised Height at 70 in Reach 1300 lbs. (ins): 90
• Lowered Height at 97 in Reach 600 lbs. (ins): 4
• Raised Height at 97 in Reach 600 lbs. (ins): 110

Documents

Click for EPFC-25-AA Approval Drawings

Click for Manual
