Vestil EPT-2547-30-SCL Elec Pallet Truck 3K-25″X47″ Scale (2)12V

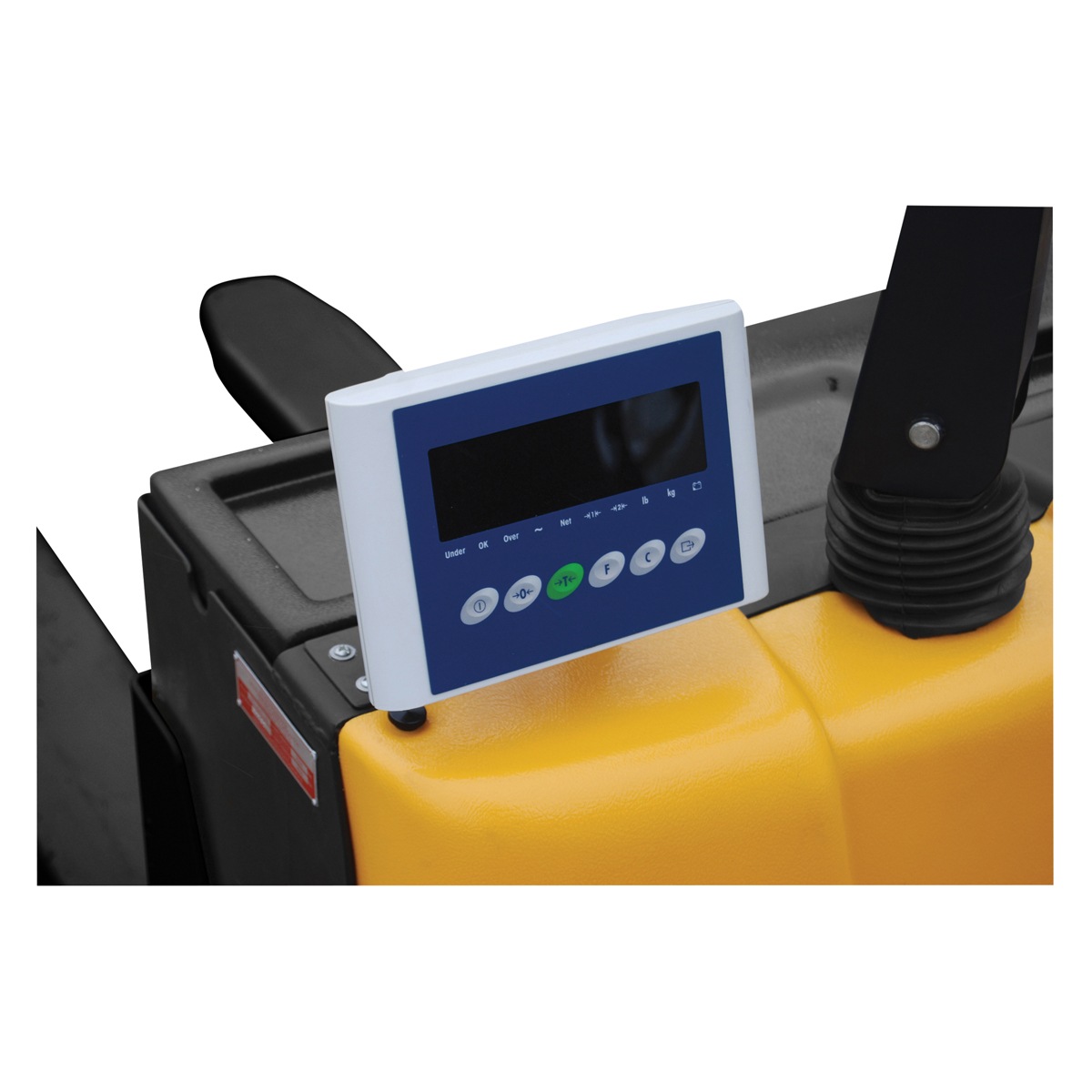

The Electric Pallet Truck with Scale can verify inbound and outbound freight right on your pallet truck and then move your loads with ease. The LCD scale and function keys (zero, tare, net/gross, print, LB/KG), displays weight in one (1) pound increments within trucks rated capacity. The Scale display operates on AA batteries (best accuracy is 0.01 percent of maximum calibrated weight). The Scale is not NTEP approved (not legal for trade). Scale head includes RS232 port for serial printing. An individual can raise and lower loads with a push of a button. The unit makes it easy to maneuver loads in warehouses and trailers. Reinforced welded forks with adjustable tie-rods provide long service. The high torque DC drive and lift motor handles heavy duty jobs, while the ergonomic handle features an easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle.

• Fully-powered pallet truck makes movement of pallets quick and easy
• Includes fingertip RAISE and LOWER buttons for operator convenience
• Safety belly reverse button improves worker safety
• Easy-to-operate throttle for forward and reverse direction

Specification

• Uniform Capacity (lb.): 3000
• Overall Fork Width (in.): 25
• Overall Fork Length (in.): 47
• Lowered Height (in.): 3-3/8
• Raised Height (in.): 8
• Battery Type: (2) 12 Volt
• DC Motor Voltage: 24
• Battery Charger: 120V Input, 24V/10 amp
• Turn Radius (in.): 52
• Drive KW: 0.7
• Lift Motor KW: 1.3
• Operation at Full Charge (hours): 3 to 4
• Operation When Used Intermittently (hours): 8
• Drive Wheel Diameter (in.): 10
• Drive Wheel Width (in): 3-1/8
• Load Roller Diameter (in.): 2-3/4
• Load Roller Width (in.): 3
• Stabilizing Roller Diameter (in.): 1-1/2
• Stabilizing Roller Width (in.): 3
• Wheel & Roller Type: Poly on Steel
• Individual Fork Width (in.): 6
• Scale Length (in.): 6
• Scale Width (in.): 8-1/2
• Scale Height (in.): 5
• Number of Function Keys: 5
• Scale Accuracy of Applied Load (Percent): 1
• Scale Battery Quantity/Type: (6) AA
• Use with: Open bottom pallets only

Documents

Click for EPT-2547-30-SCL Approval Drawings
