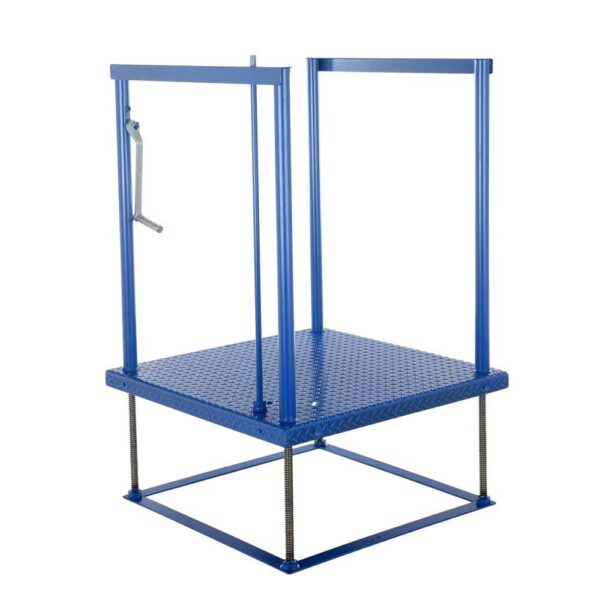

Vestil Ergo Posi-Crank Platform

The Posi-Crank Worker Platform can be adjusted to the optimum ergonomic level suitable for each operator with a simple turn of the crank. It incorporates the use of ACME threaded rods and a series of gears for simple yet effective height adjustment. The crank handle may be removed for maximizing the operating space. The deck is constructed of steel tread plate for better traction.

• Adjustable with a simple turn of the crank
• Incorporates the use of ACME threaded rods
• Crank handle may be removed for maximizing space
• Deck is constructed of steel tread plate for better traction

Specification

• Uniform Capacity (lb.): 500
• Platform Width (in.): 36
• Lowered Height (in.): 3
• Raised Height (in.): 19
• Operation: Hand Crank
• Deck Raises Per 1 Revolution of Crank (in.): 1/8
• Lowered Overall Height (in.): 49-5/8

Documents

Click for POS-3636 Approval Drawings

Click for POS-3648 Approval Drawings

Click for POS-3672 Approval Drawings
