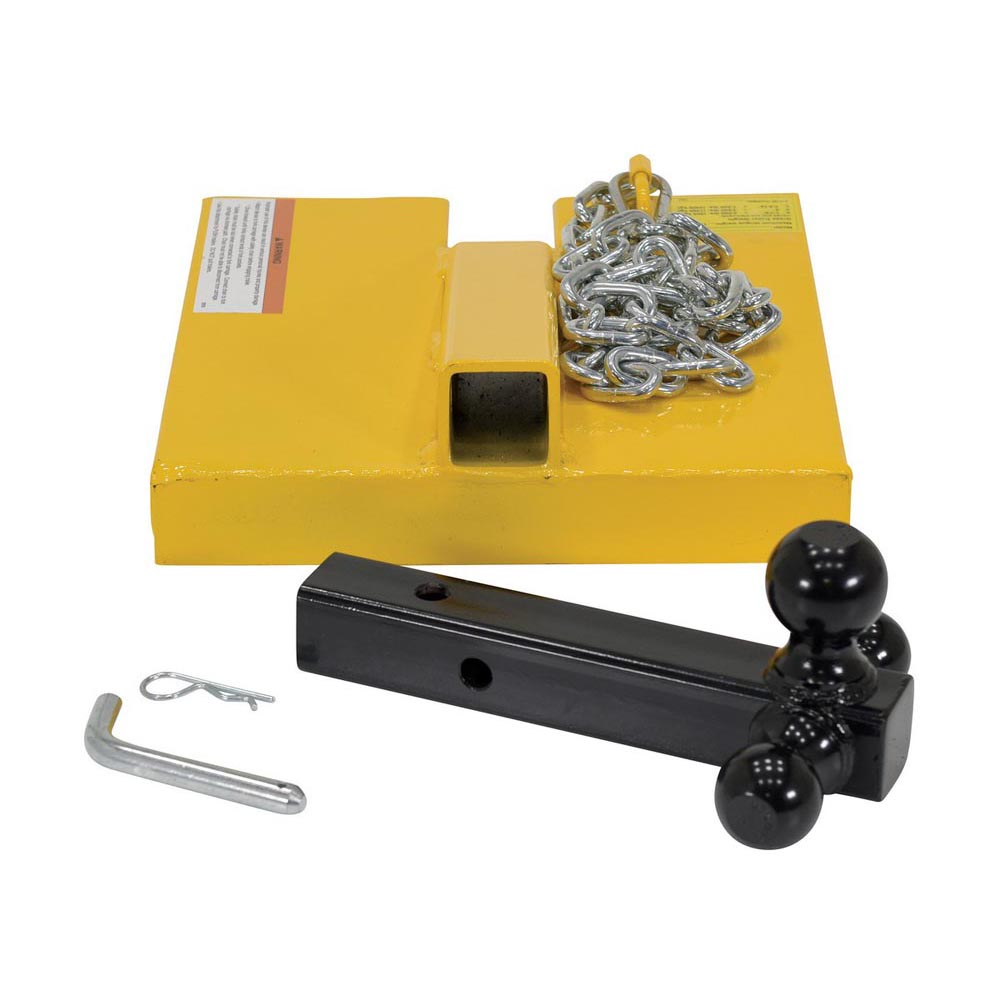

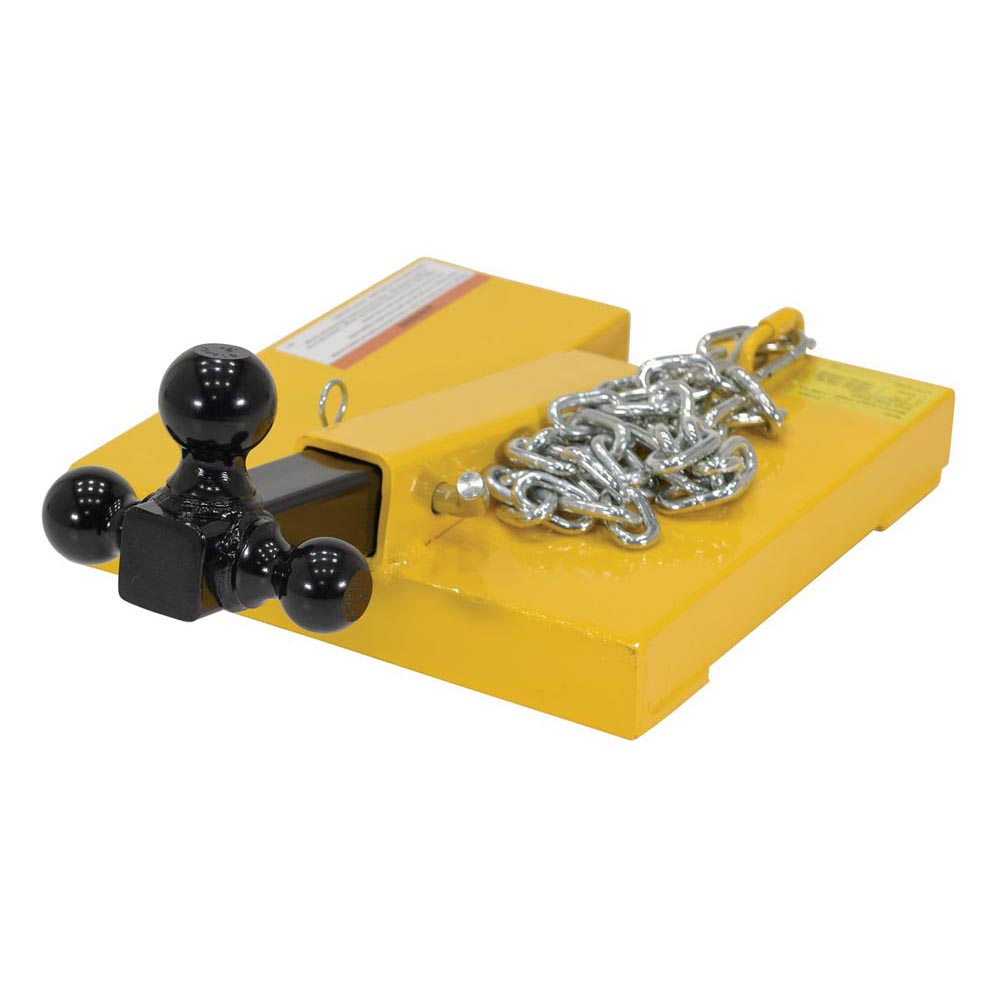

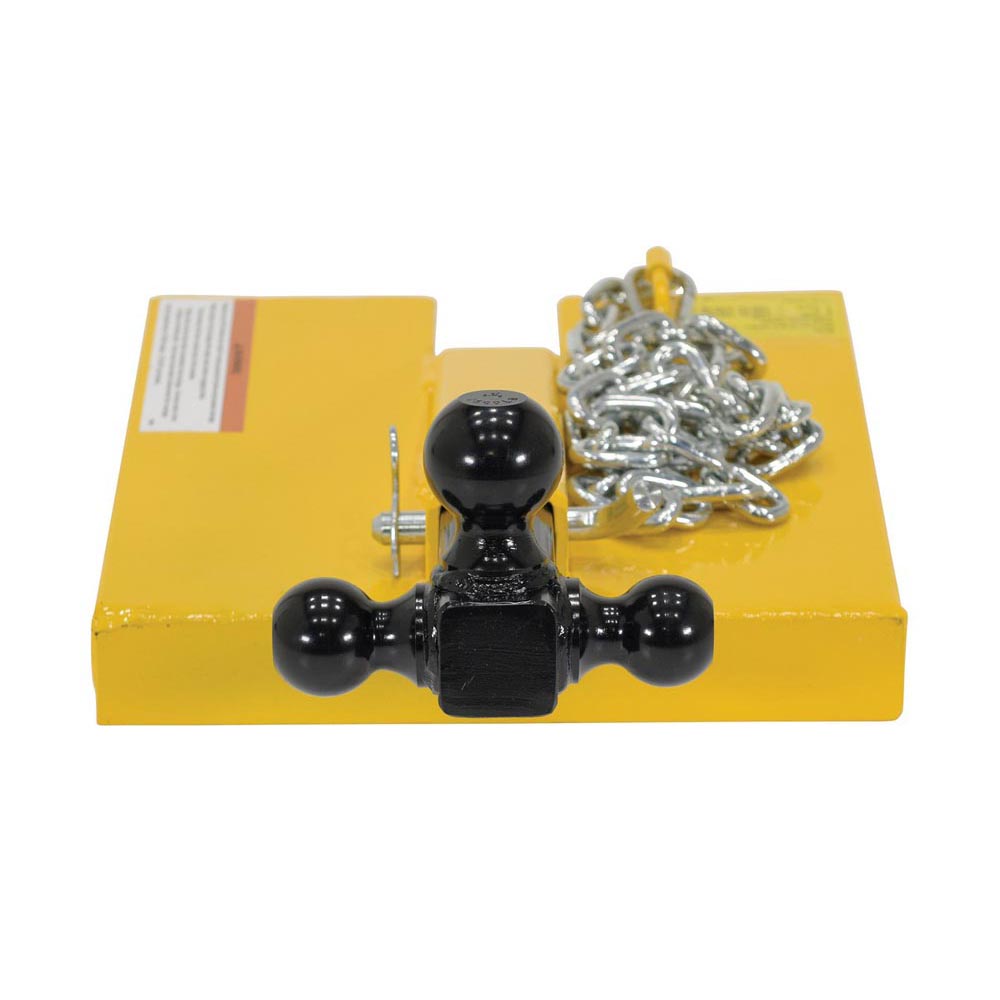

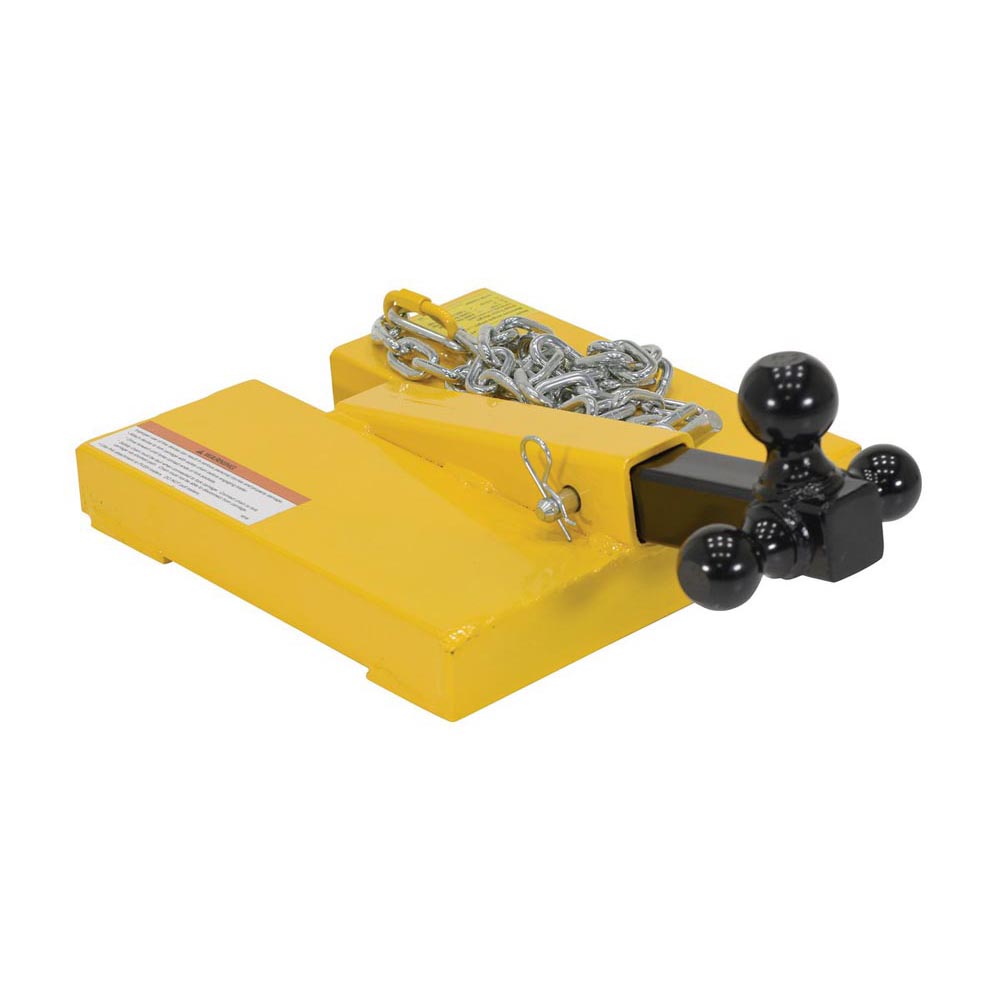

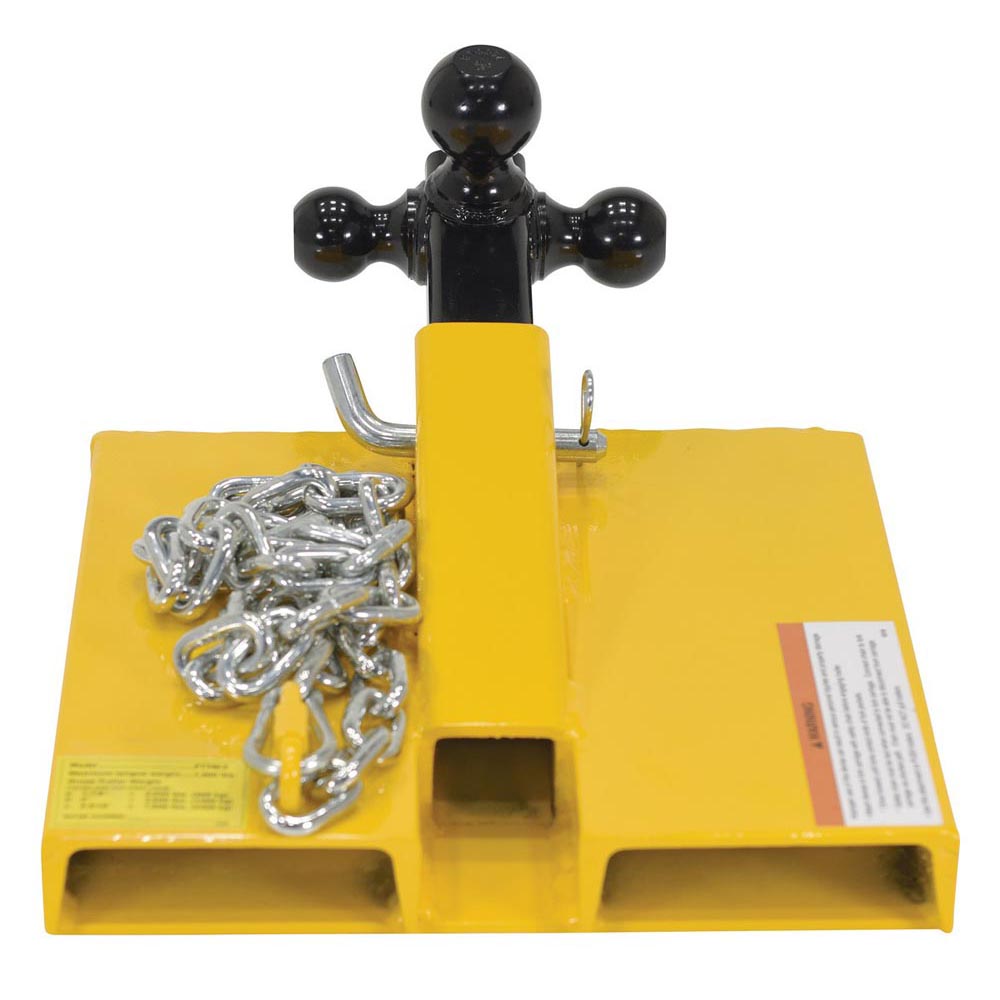

Vestil FTTM-2 Fork Lift Hitch Attachment

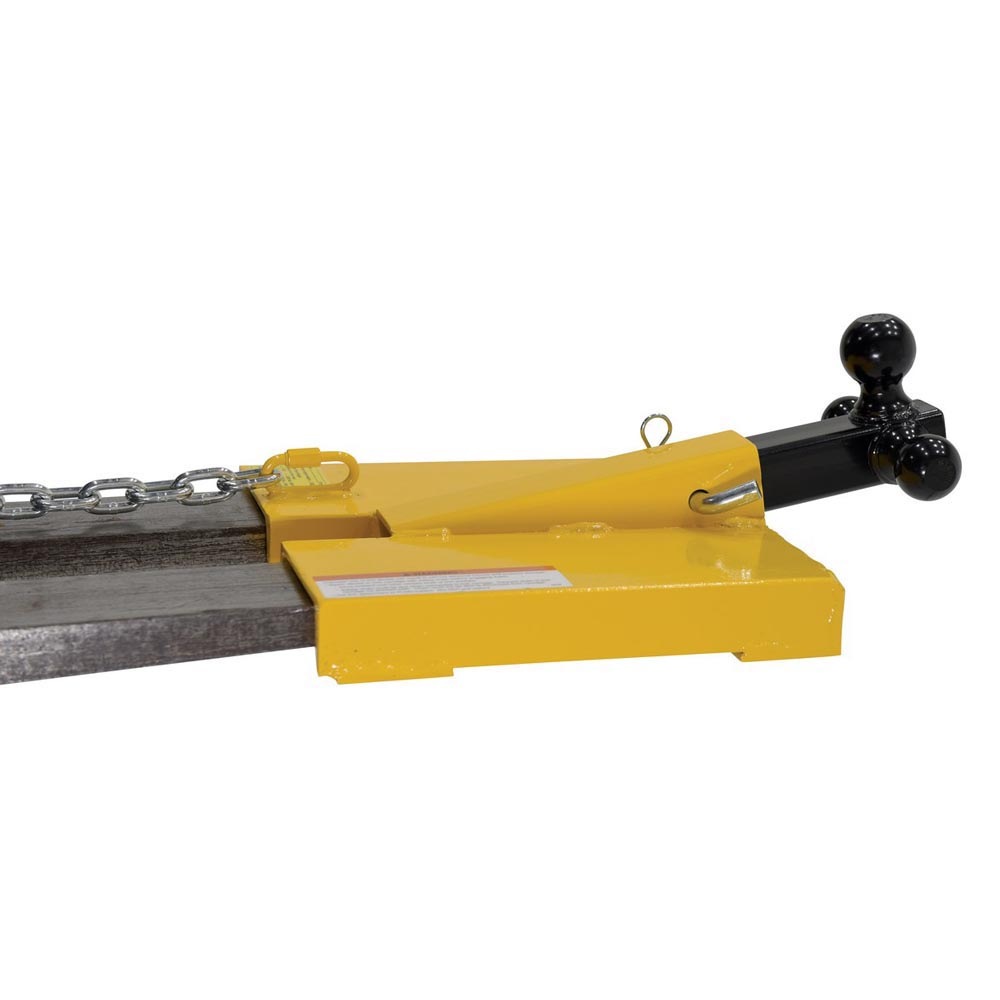

The Fork Lift Hitch is a superb addition to the manufacturing and maintenance facilities. A strong steel construction allows for long term use, even in the harshest of conditions. The hitch includes a yellow finish for clear visibility. For best use, slide the forklift forks into the unit and secure safety chain to forklift. Once in place, the unit is ready to be hitched to the desired equipment.

• Great for moving equipment in condensed areas
• Durable construction for daily handling
• Simple attachment for immediate use
• Smooth finish for safe transporting by personnel

Specification

• Maximum Tongue Load (lb.): 1,500
• Usable Fork Pockets Width/Height (in.): 4-5/16 x 1-11/16
• Chain Length (in.): 56
• Ball Option 1 Diameter (in.): 2-5/16
• Ball Option 1 Uniform Capacity (lb.): 7500
• Ball Option 2 Diameter (in.): 2
• Ball Option 2 Uniform Capacity (lb.): 3500
• Ball Option 3 Diameter (in.): 1-7/8
• Ball Option 3 Uniform Capacity (lb.): 2000

Documents

Click for FTTM-2 Approval Drawings

Click for Manual
