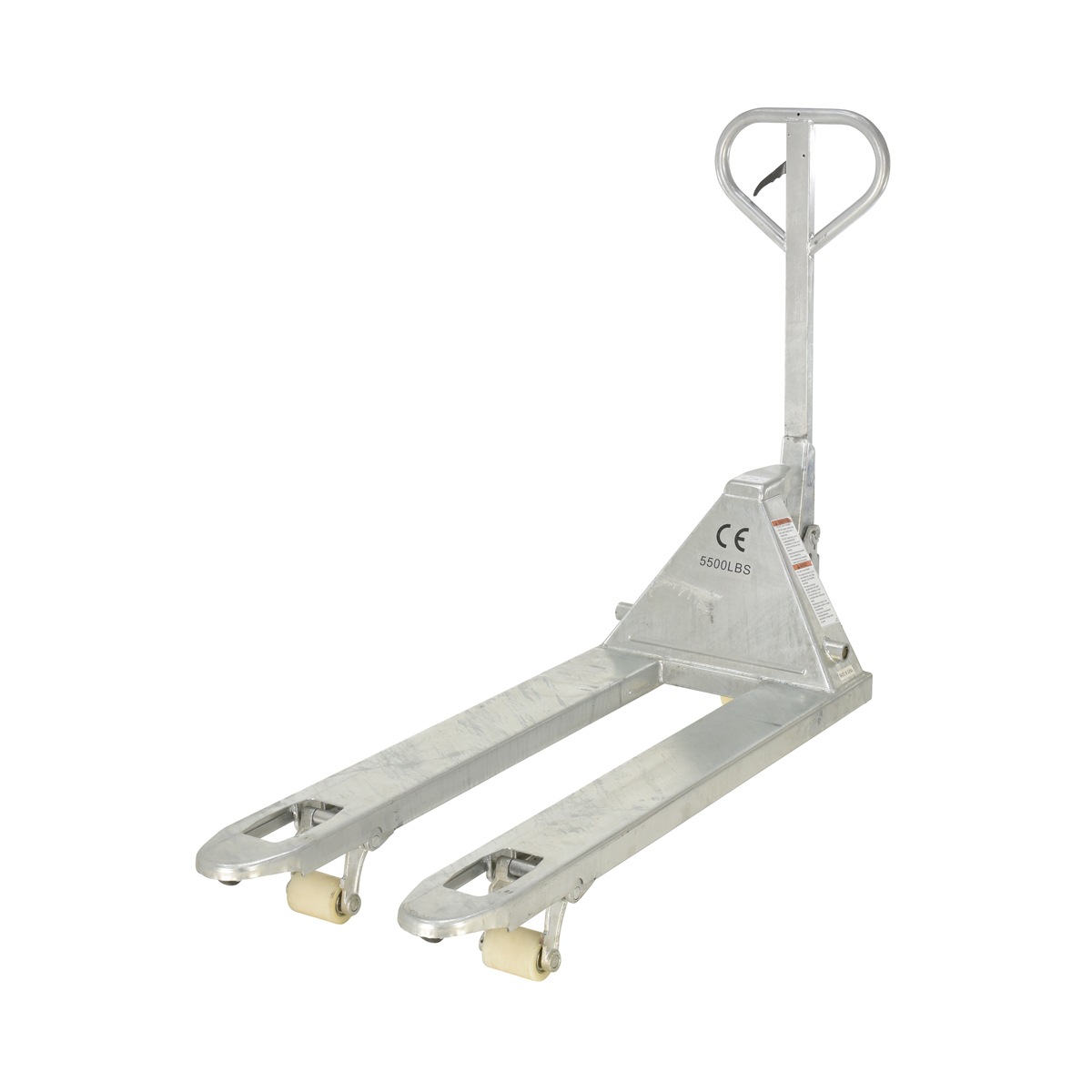

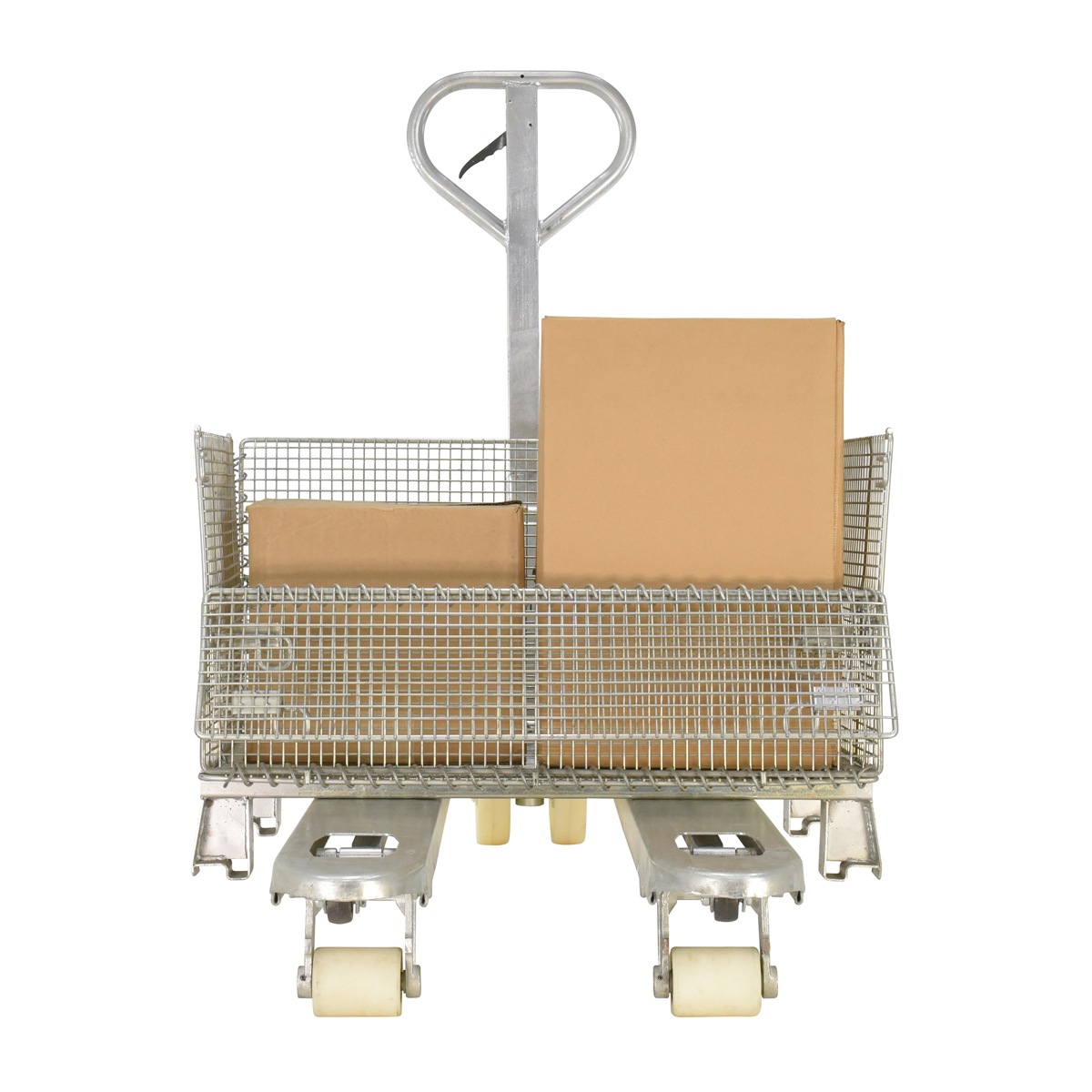

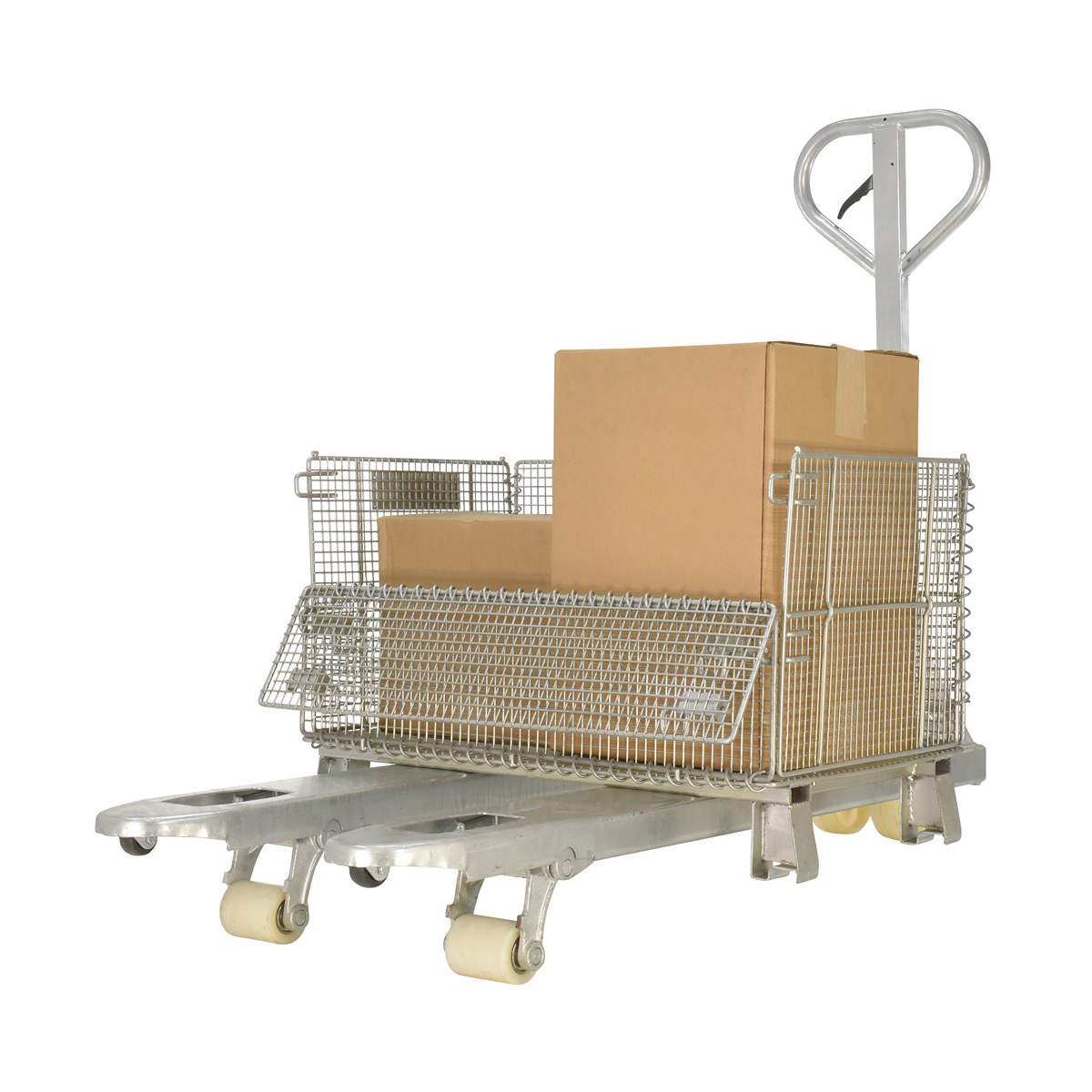

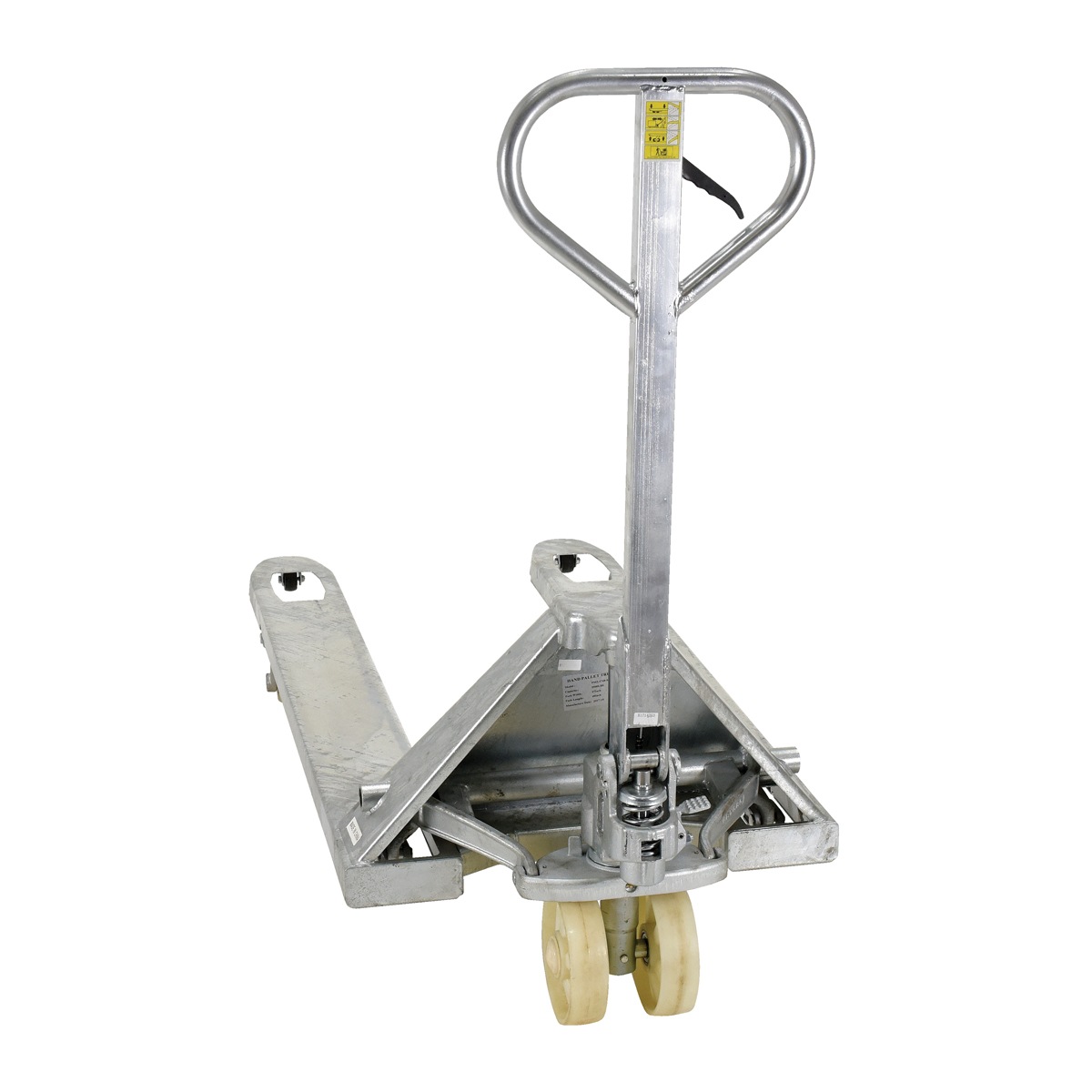

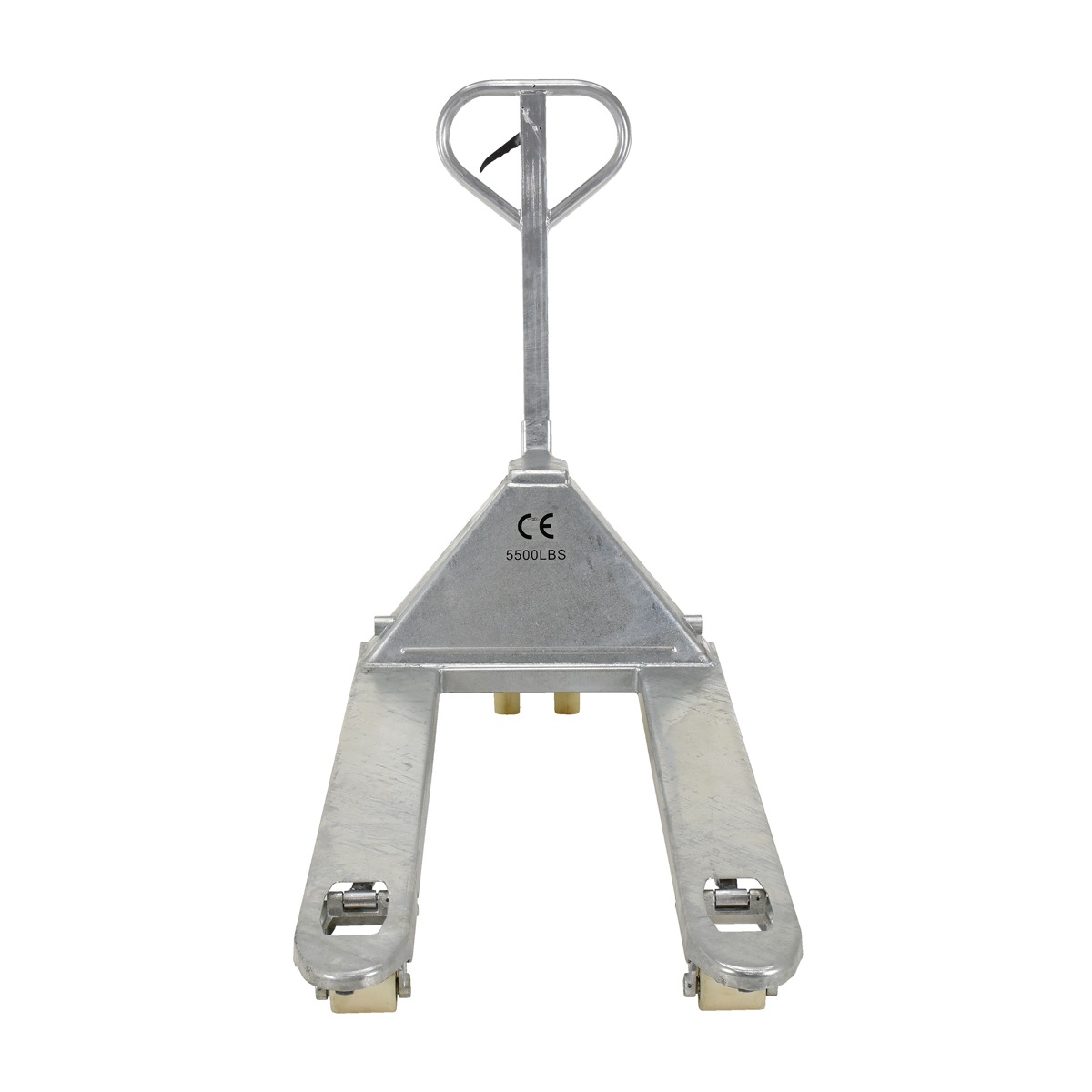

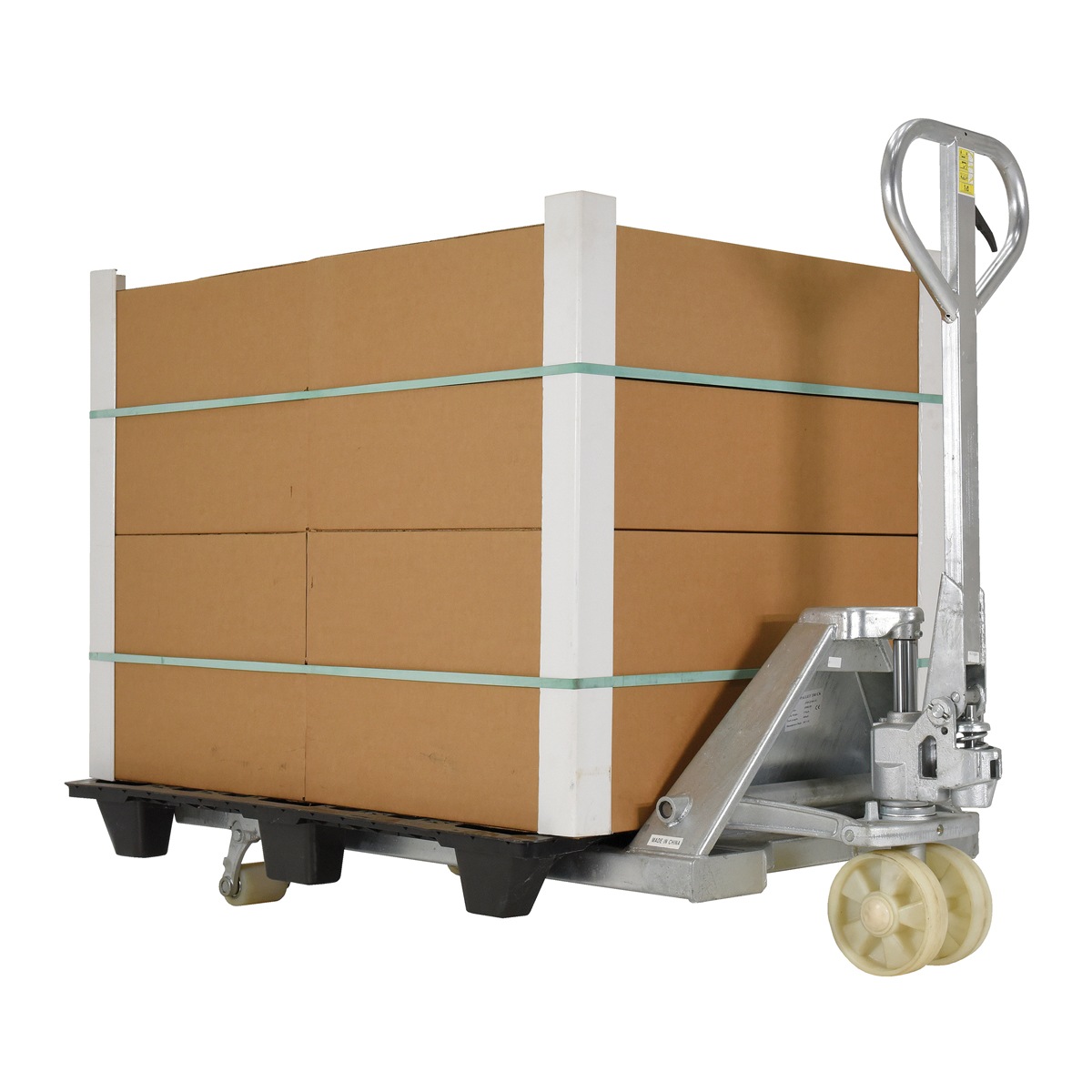

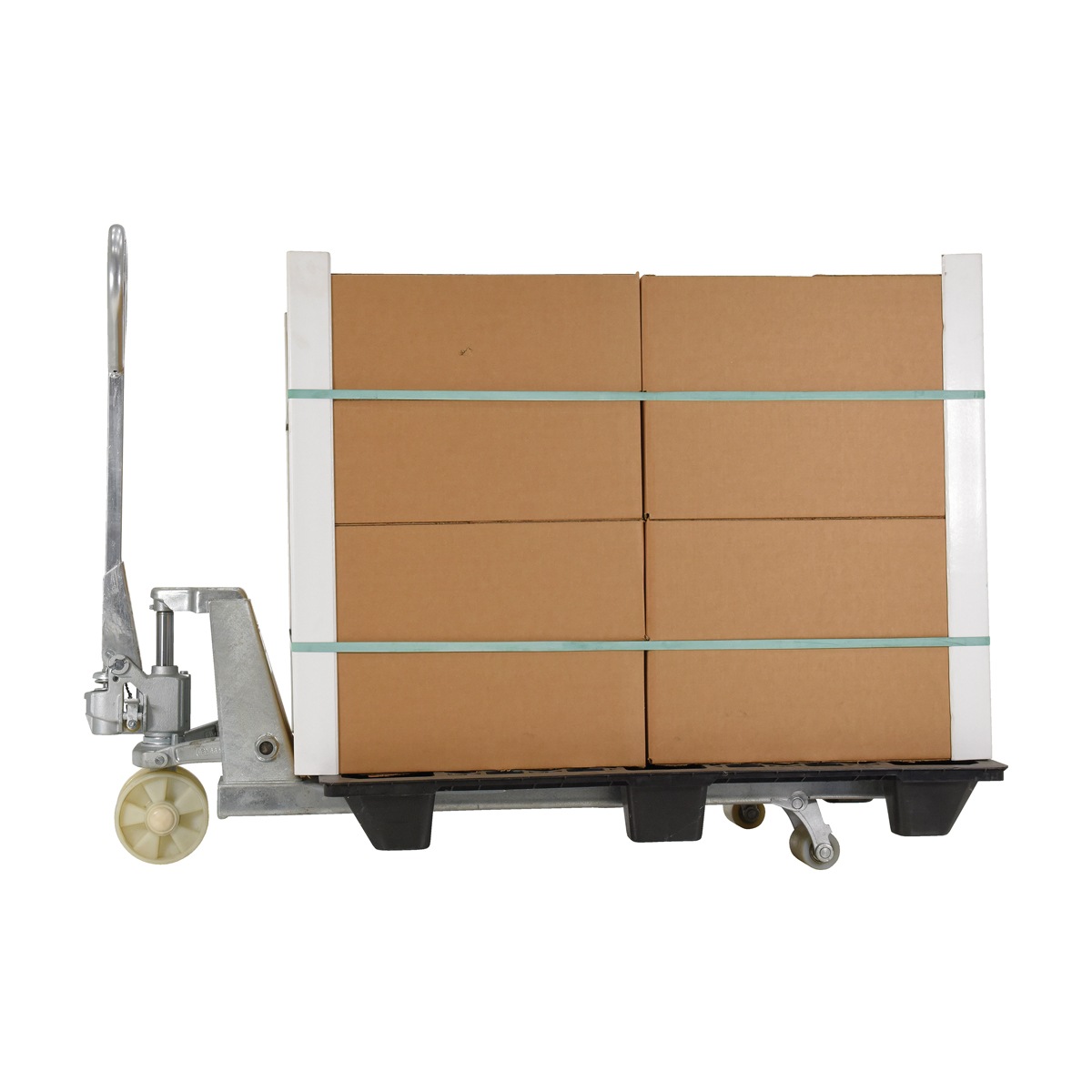

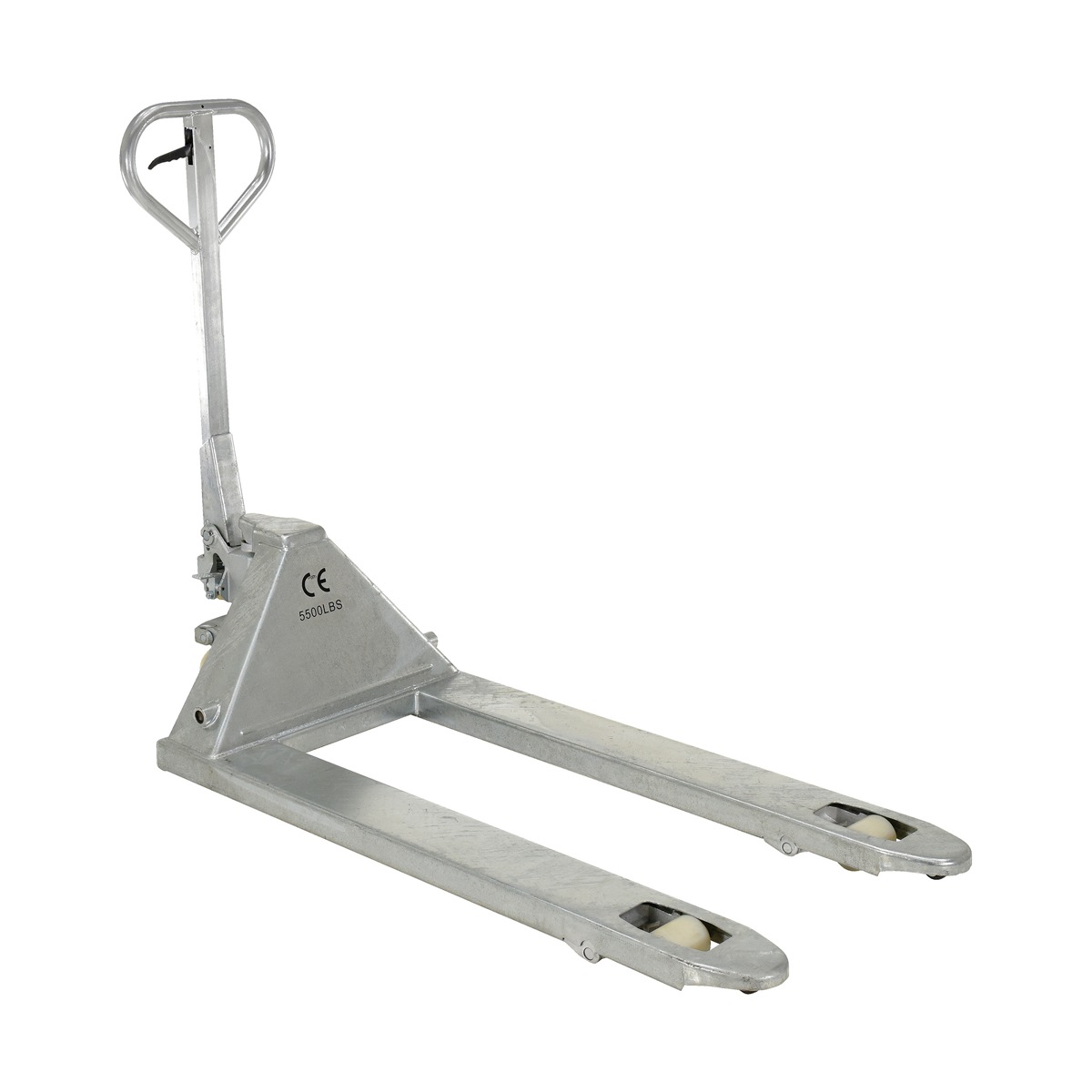

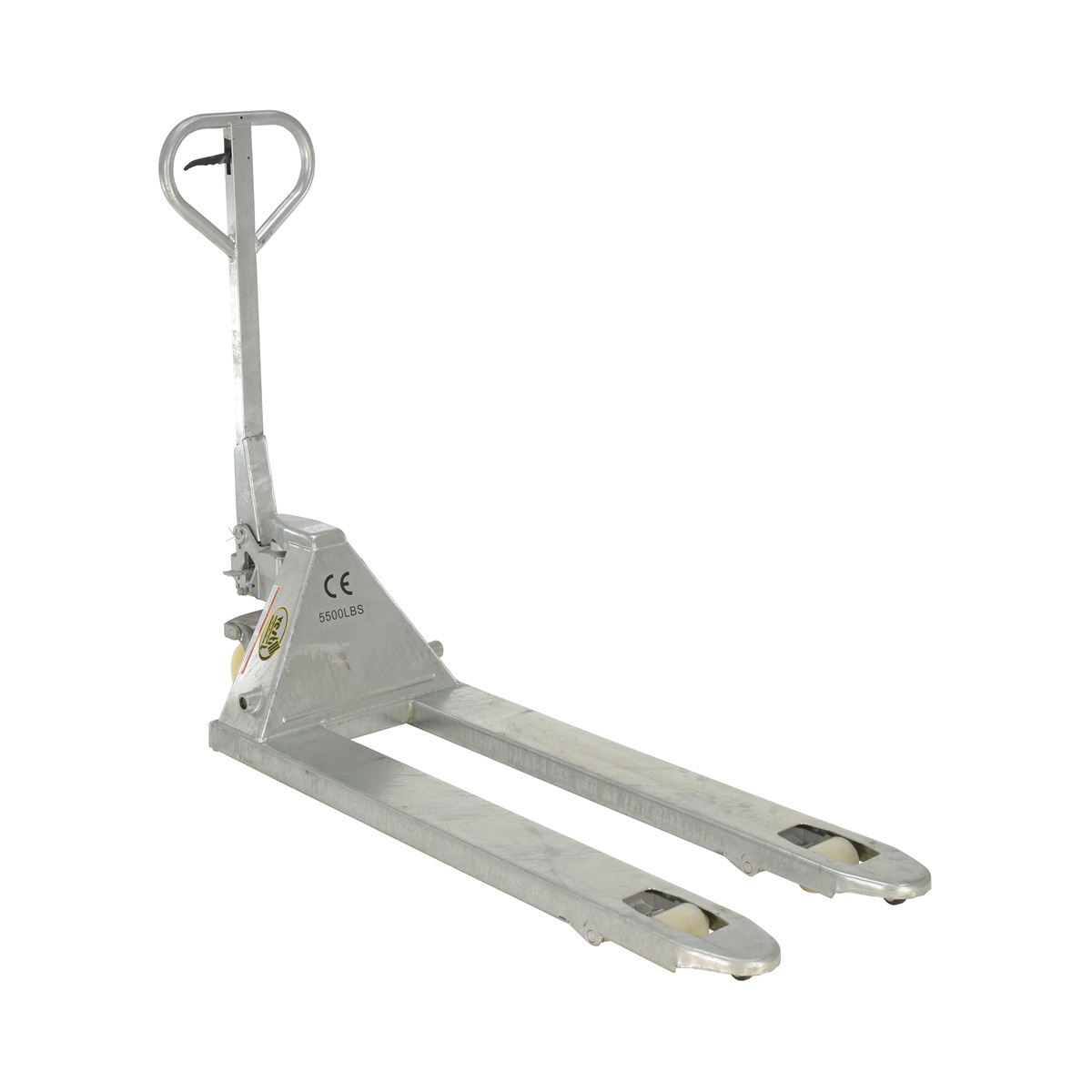

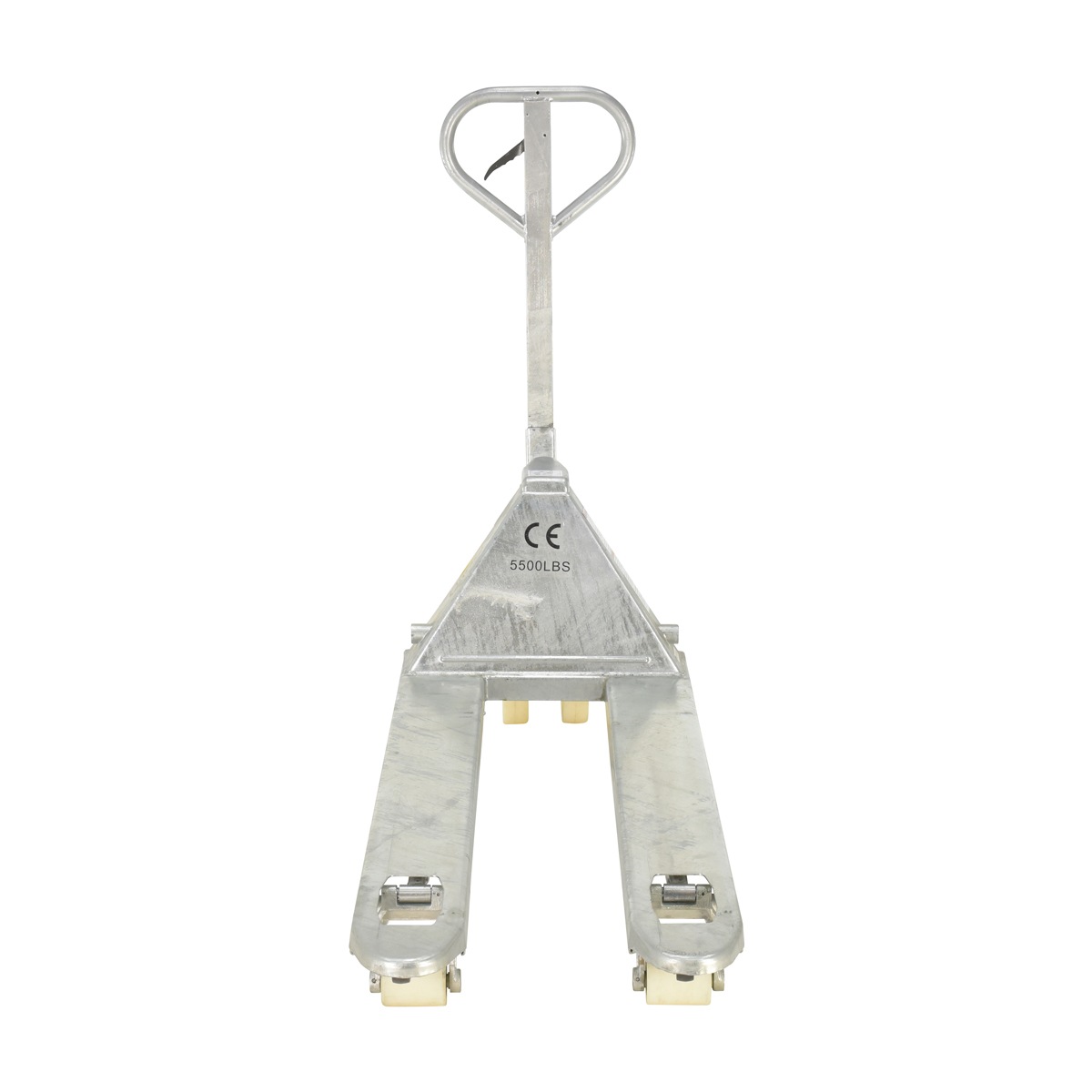

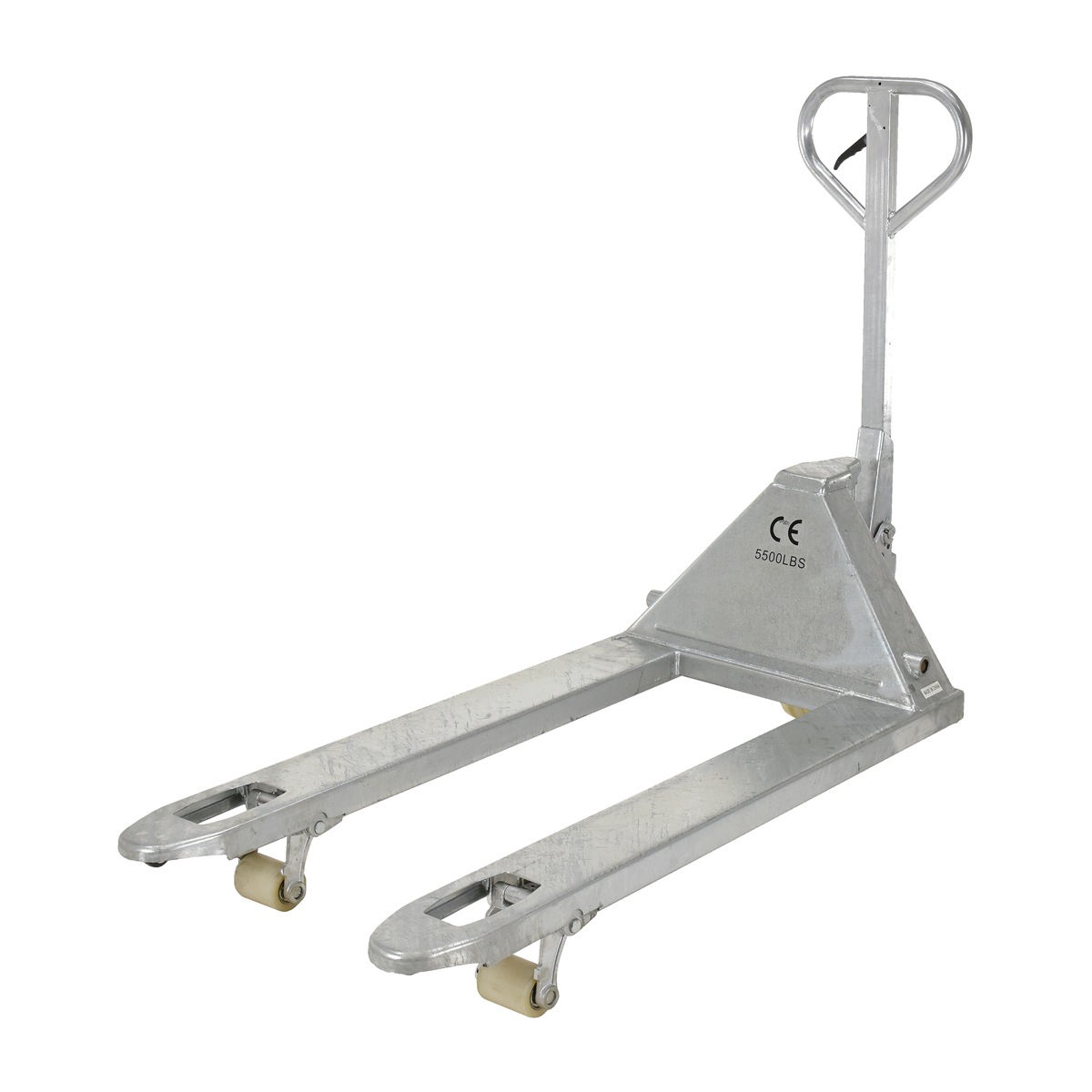

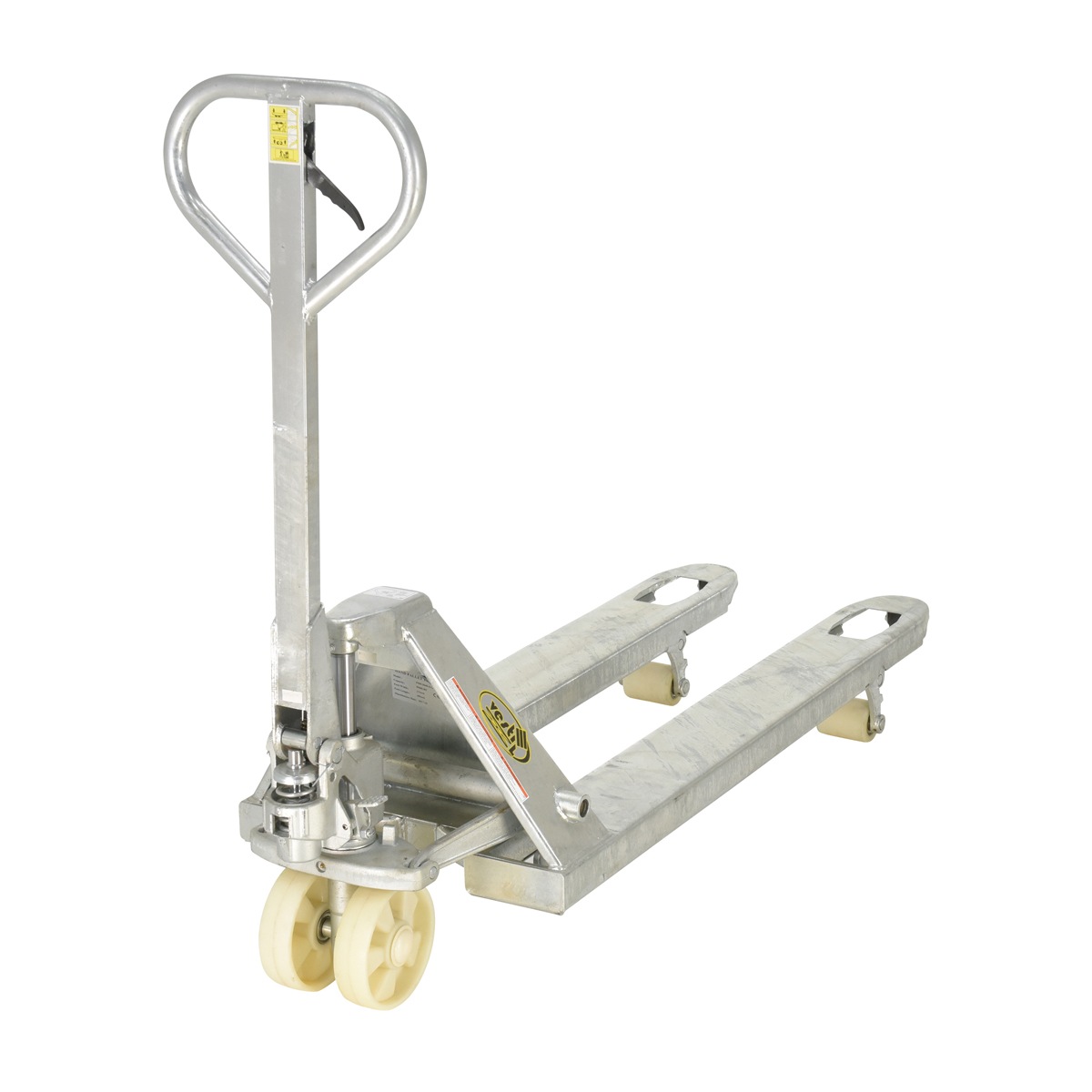

Vestil Galvanized Steel Pallet Truck

The Specialized Pallet Trucks are ideal for corrosive environments. The pallet truck includes a galvanized finish for strong durability in the harshest of environments. Full-featured pallet trucks were designed for chemical, pharmaceutical, and wash-down applications. 5,500 pounds uniform capacity.

• Ergonomic handle height
• Strong maneuver ability when loaded
• Extra strength forks for lifting capabilities
• Traverses smoothly over a variety of terrains

Specification

• Uniform Capacity (lb.): 5500
• Overall Fork Length (in.): 48
• Lowered Height (in.): 2-7/8
• Raised Height (in.): 7-3/4
• Individual Fork Width (in.): 6-1/2
• Steer Caster Material: Polyurethane
• Steer Caster Diameter (in.): 7
• Steer Caster Width (in.): 2
• Load Roller Material: Rubber
• Load Roller Diameter (in.): 3
• Load Roller Width (in.): 3-1/2

Documents

Click for PM5-2748-S-G Approval Drawings
