Vestil HDDL-55 Heavy Duty Vertical Drum Lifter 1500 LB

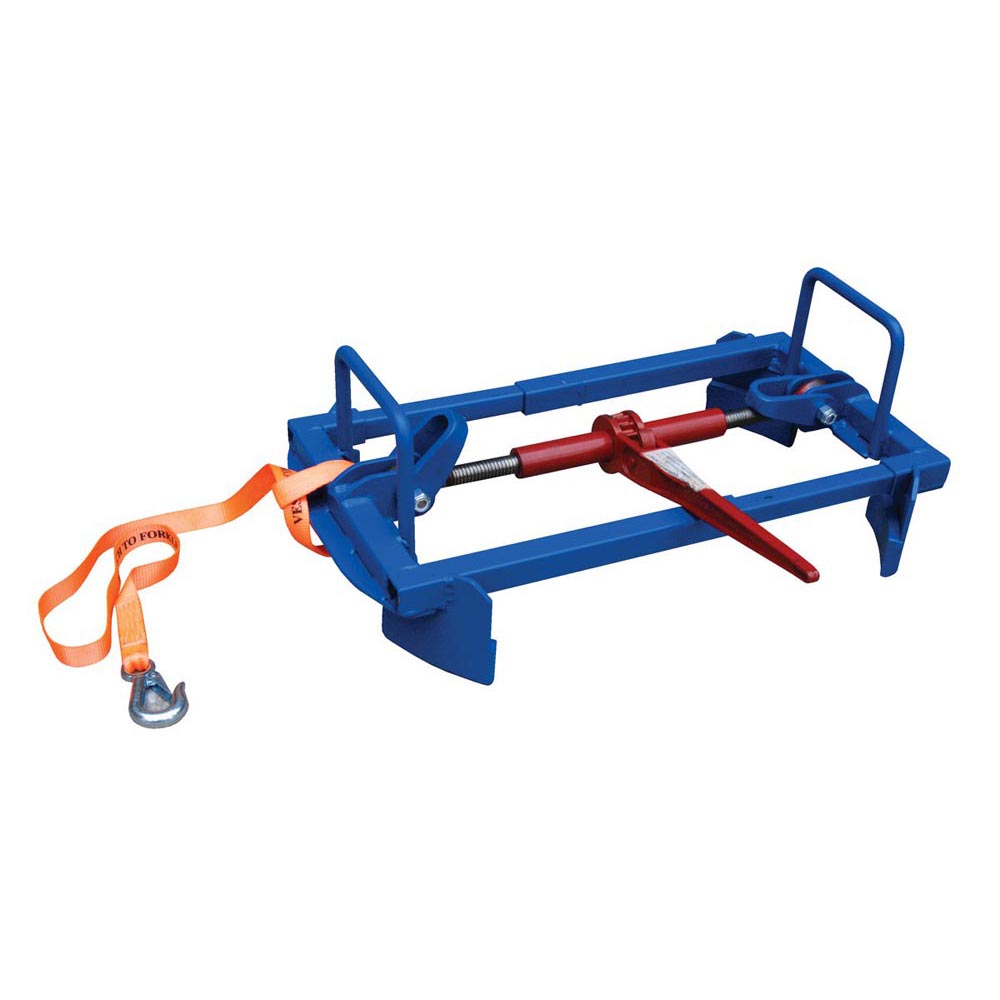

This Heavy Duty Vertical Drum Lifter is designed for lifting open (with lid installed and secured) and closed-head steel drums in vertical position. The Industrial ratchet load-binder is used to clamp the unit to the top of the drum and it is virtually impossible to break the drum loose. Inside jaw opening is adjustable. Lifter features integral fork pockets for use with fork truck forks/tines as well as lifting points for attachment of slings or chains. A safety restraint is included to secure the drum lifter to a carriage when being used with a fork truck. Steel construction with blue painted finish.

• Designed to lift open (with lid installed and secured) and closed-head steel drums in vertical position with ease

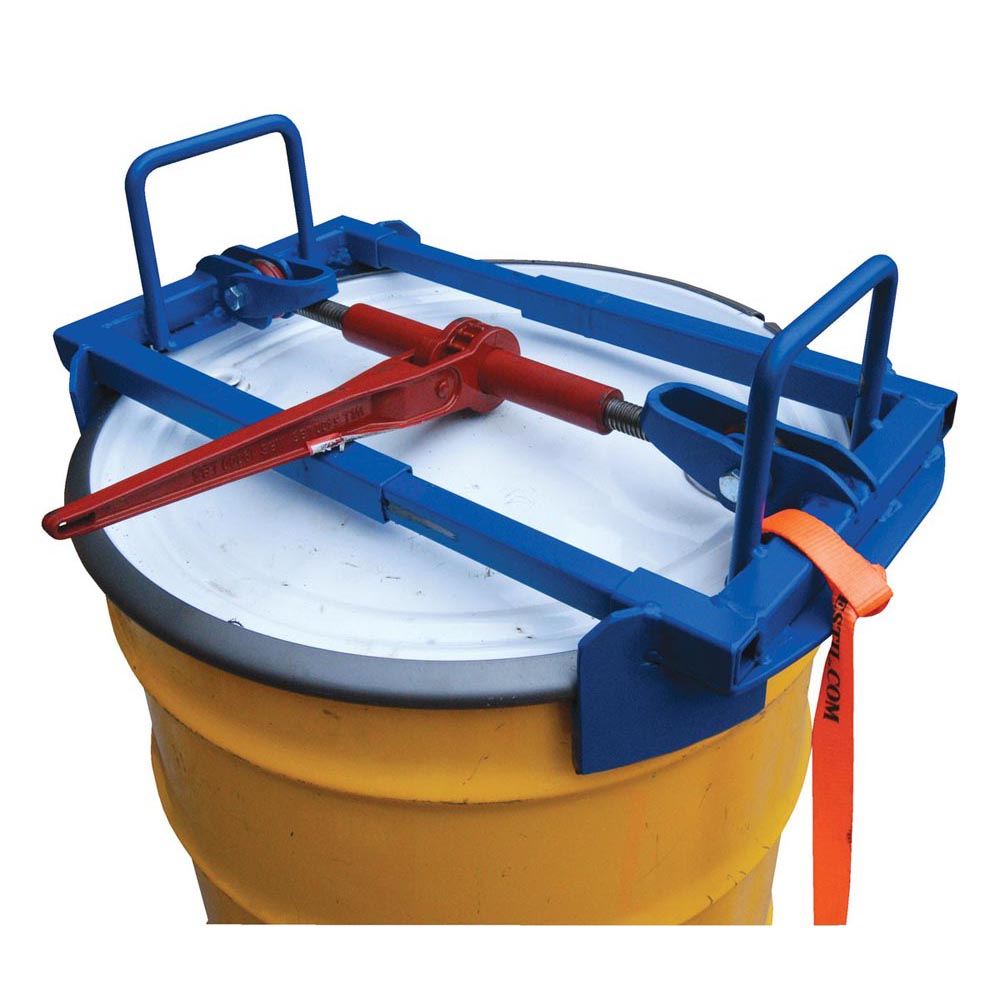

• Ratchet load-binder clamps unit to top of drum for maximum security

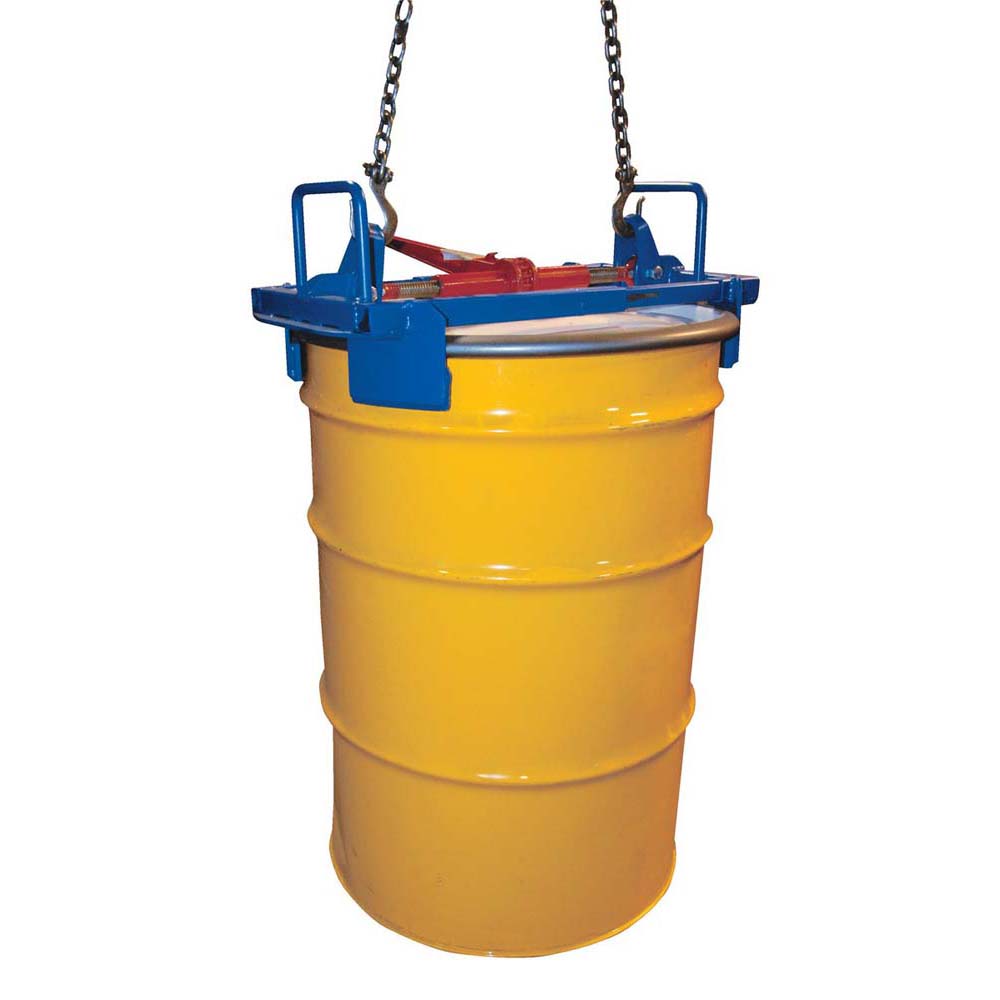

• Includes lifting points for attachment of sling for optimal lifting

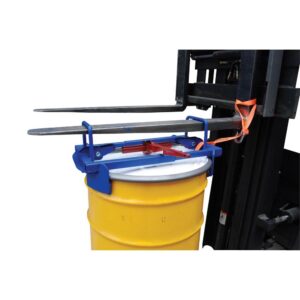

• Features integral pockets for use with fork truck forks

Specification

• Uniform Capacity (lb.): 1,500
• Jaw Opening Minimum (in.): 21
• Jaw Opening Maximum (in.): 27
• Fork Pocket Width (in.): 6-1/8
• Fork Pocket Height (in.): 4-5/8
• Accepts: 55-gallon drum

Documents

Click for HDDL-55 Approval Drawings

Click for Manual
