Vestil HYD-10-DC Portable DC Power Hefti-Lift 37″ x 69″

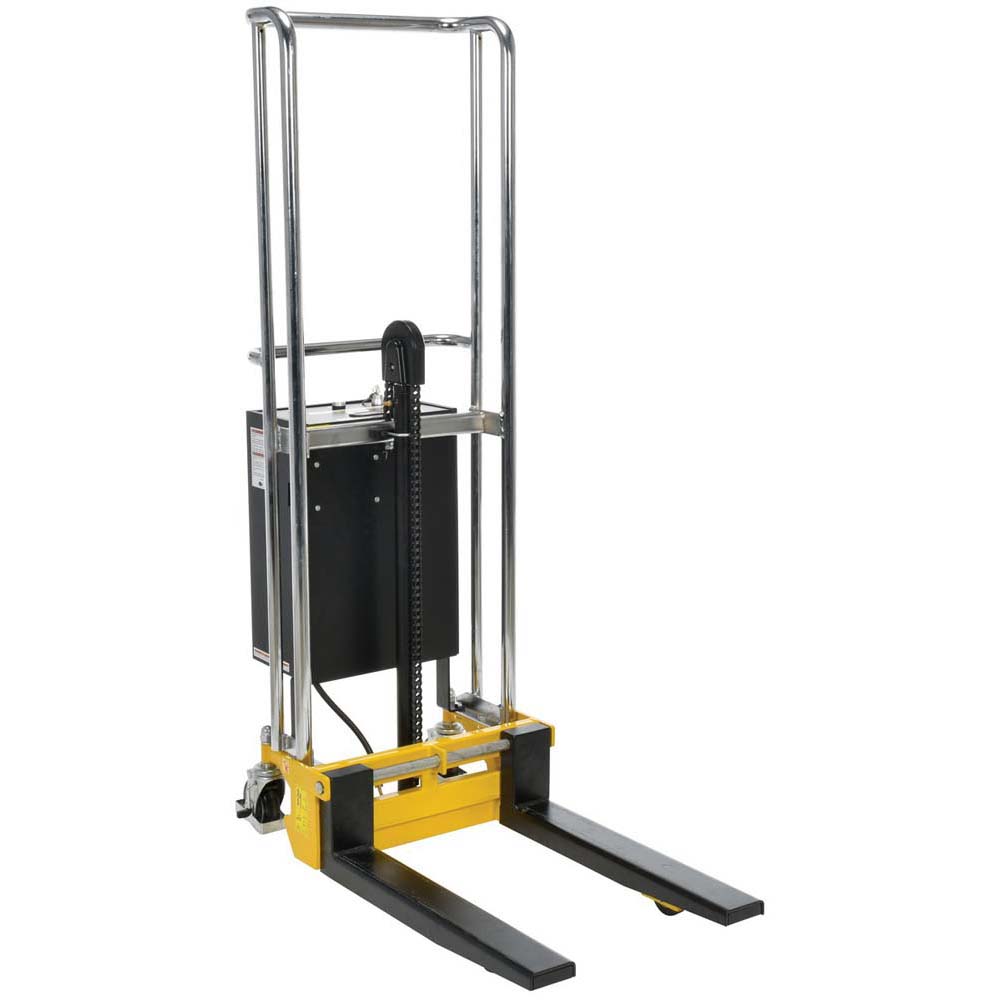

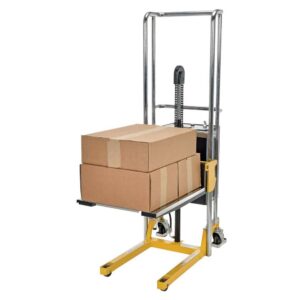

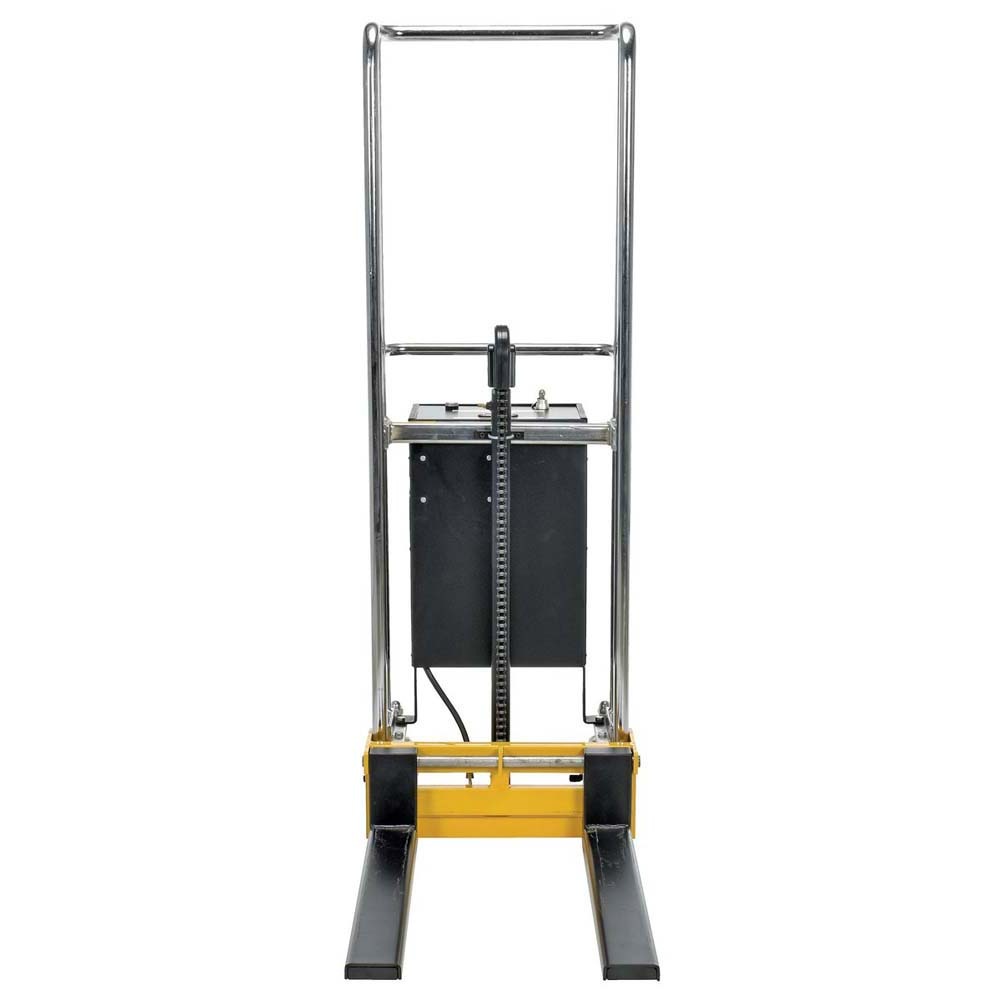

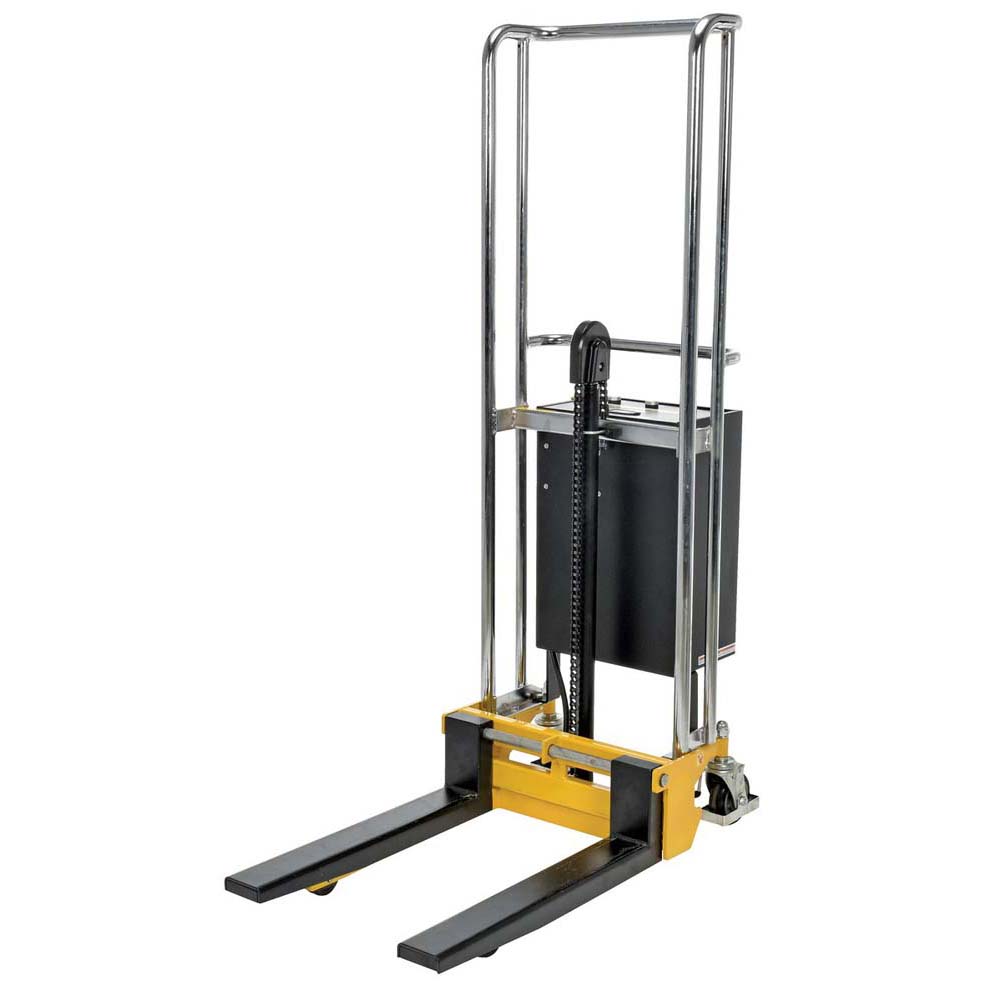

The Hefti-Lift is a user friendly, portable hydraulic lift. The lift provides reliable, power lifting when moving and positioning loads. It includes a removable platform for operation requiring forks. The non-slip chain is used for accurate positioning while the Lift rolls easily on two rigid and two swivel poly-on-steel casters that includes a foot operated brake. The unit has an all welded construction with a chrome platform and uprights. Not for use with pallets.

• Non-slip chain provides accurate deck positioning
• Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded

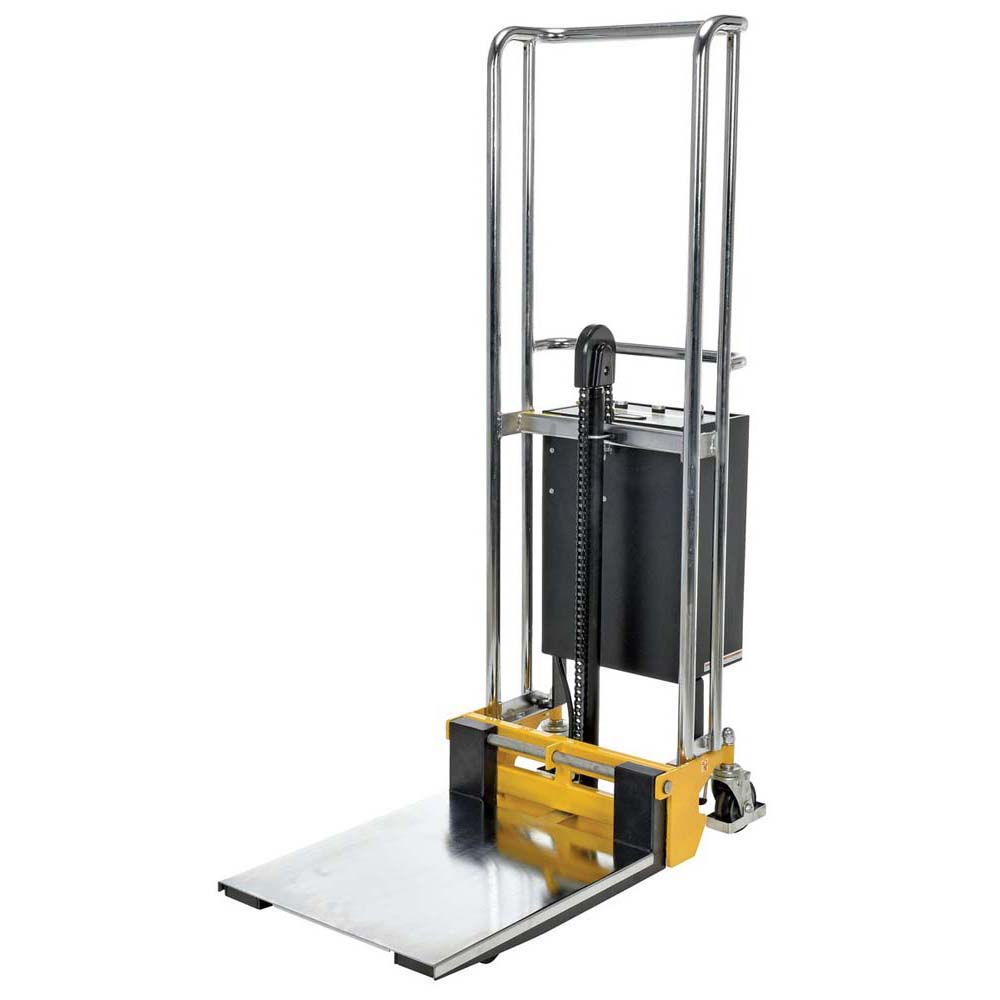

• Removable platform allows operation requiring forks
• Welded steel construction provides long lasting rugged use

Specification

• Uniform Capacity (lb.): 880
• Platform Width/Length (in.): 22-1/8 x 25-3/4
• Service Range (in.): 3-1/2 to 59

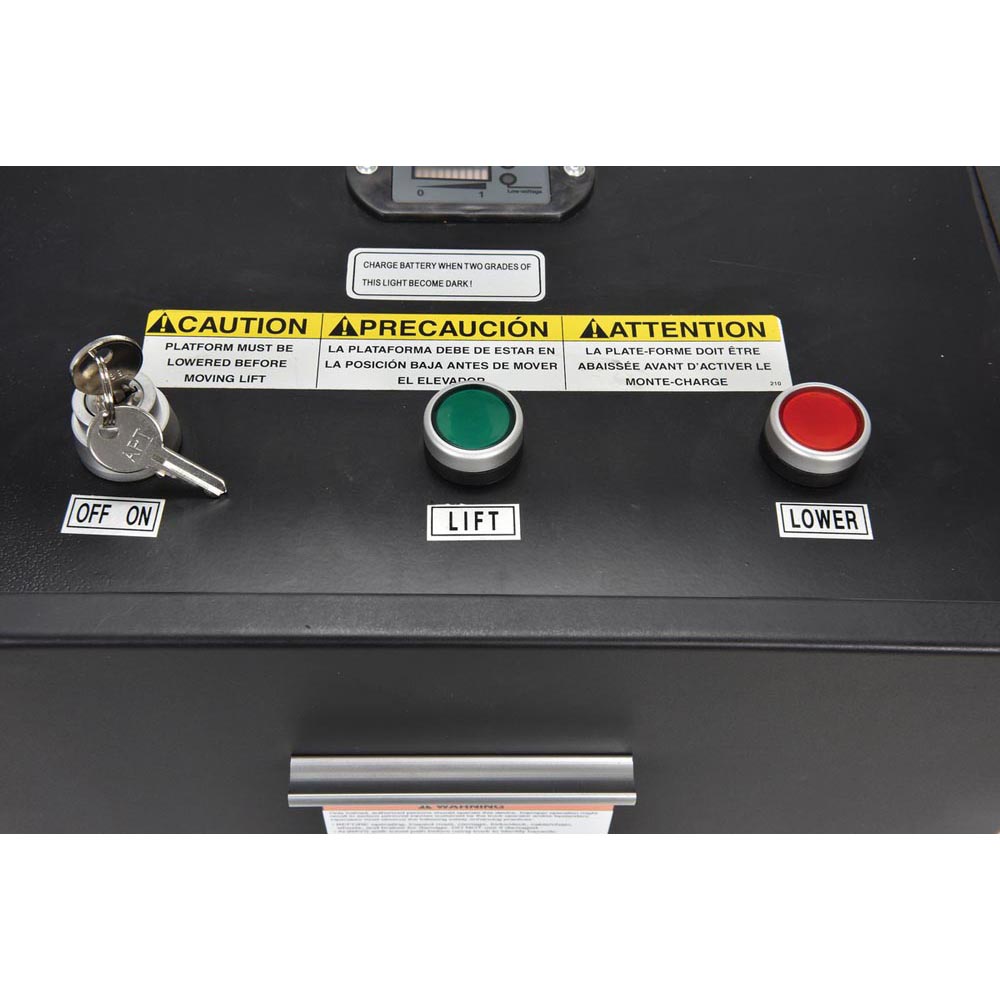

• Operation: (1) 12V DC
• Individual Fork Width/Height (in.): 4-1/2 x 2-1/2
• Fork Length (in.): 25-3/4
• Overall Fork Width (in.): 22
• Handle Height (in.): 42
• Back Caster Quantity/Diameter/Width (in.): (2) 5 x 2
• Back Caster Type: Swivel with Brake
• Front Caster Quantity/Diameter/Width (in.): (2) 3 x 1-1/2
• Front Caster Type: Rigid
• Caster Material: Poly-on-Steel
• Outrigger Inside Dimension (in.): 14
• Outrigger Outside Dimension (in.): 18-1/4

Documents

Click for HYD-10-DC Approval Drawings

Click for Manual
