Vestil HYD-10-EP Portable Foot Pump Hefti-Lift 57″ x 69″

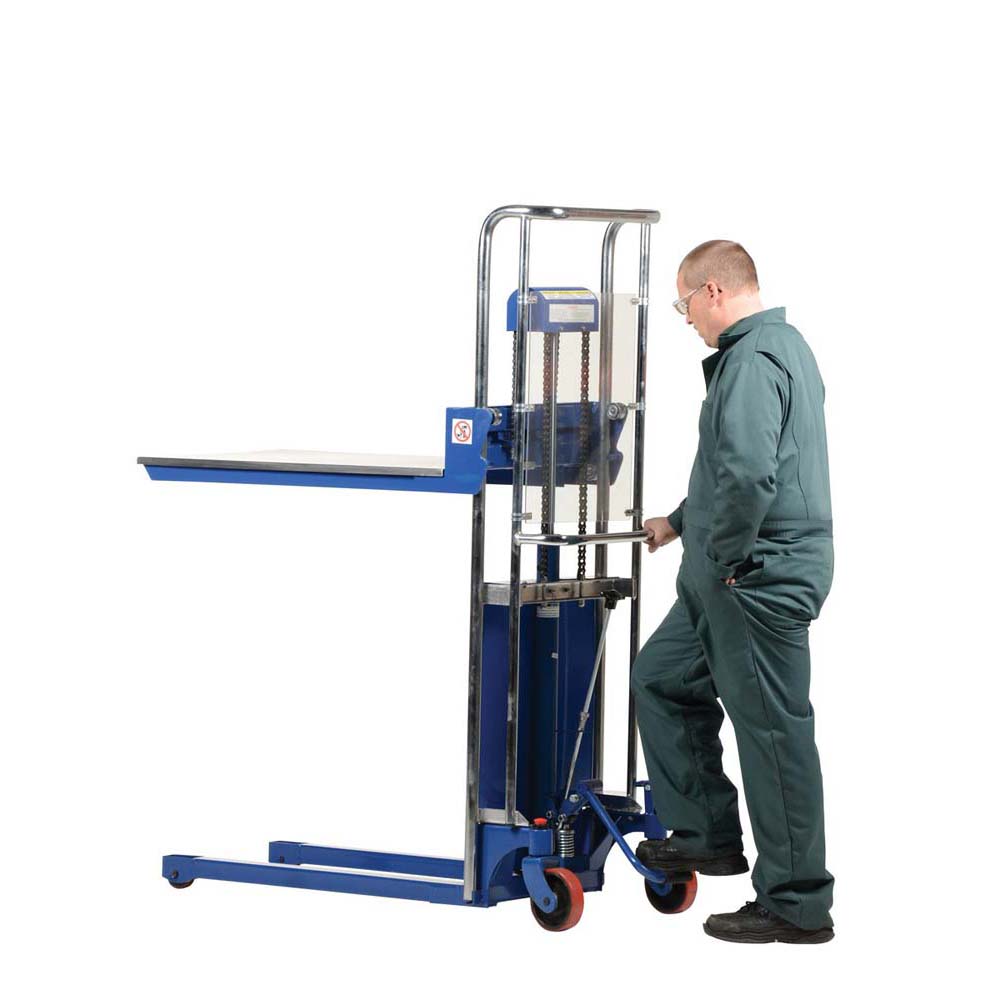

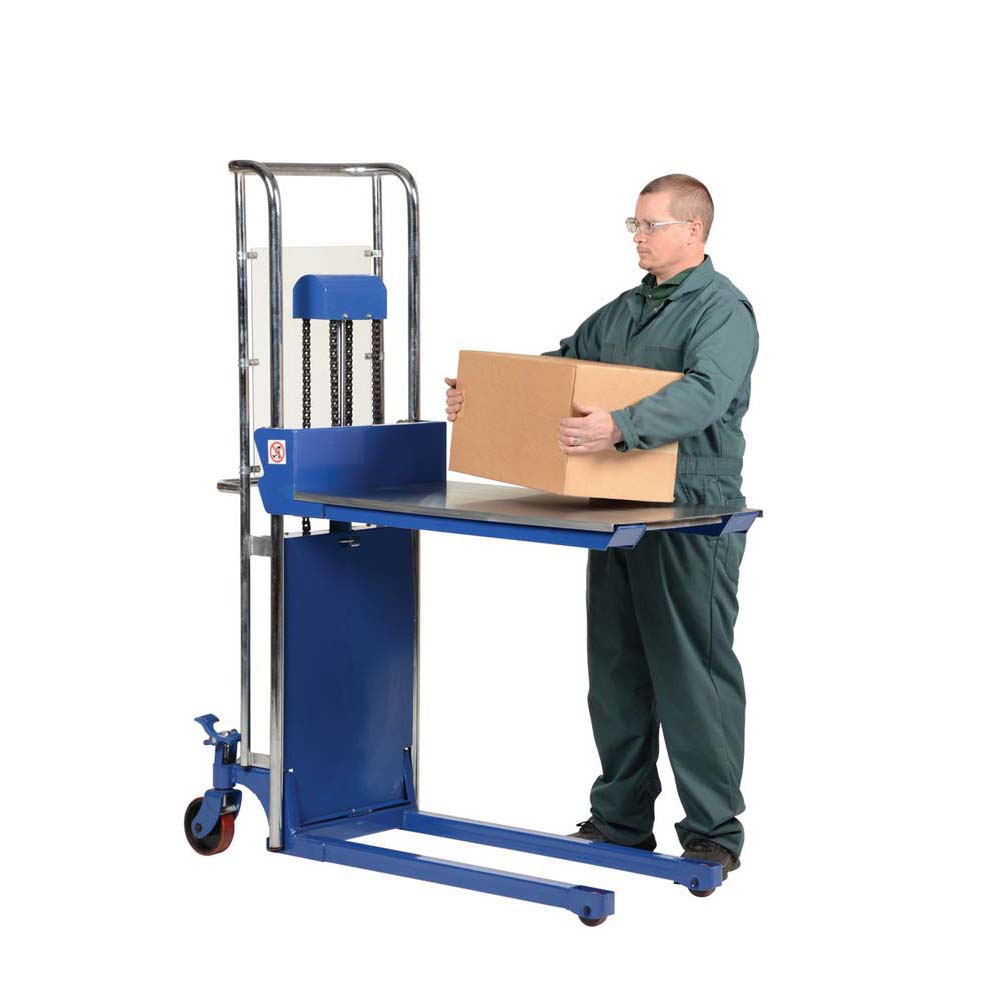

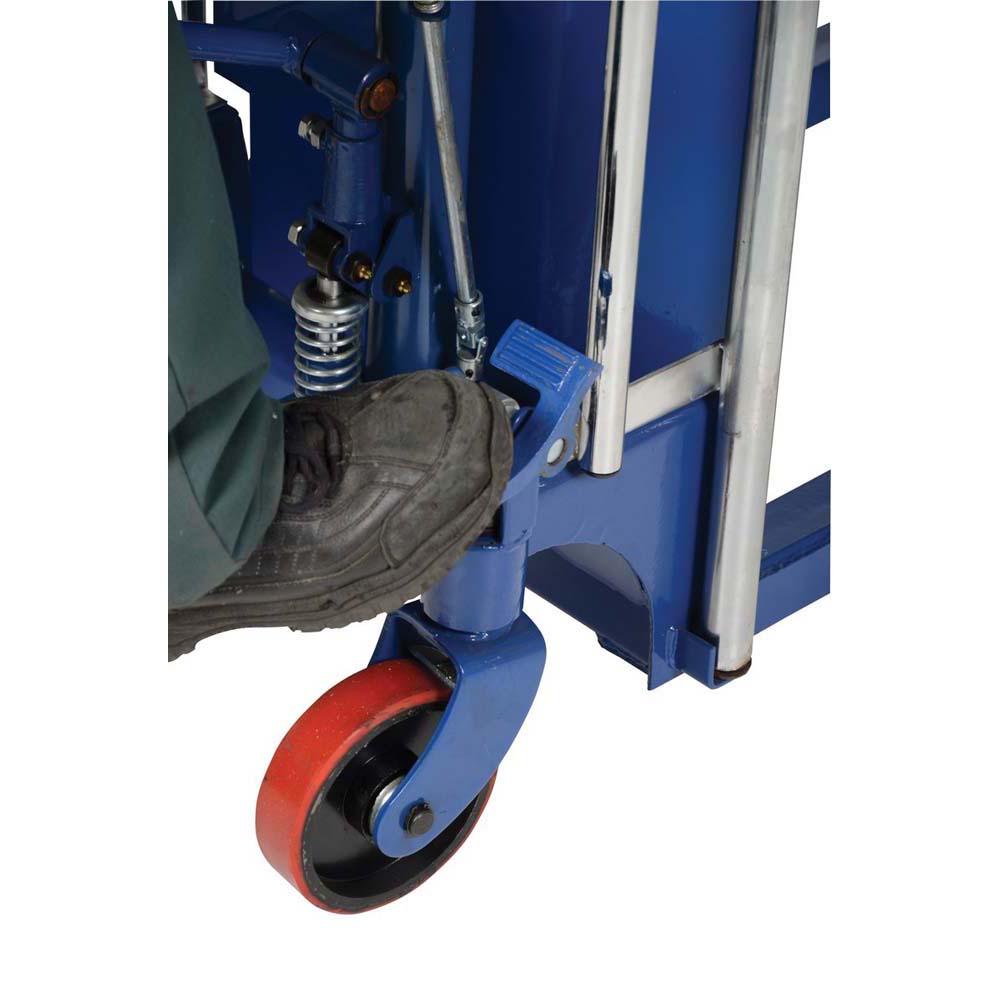

The Hefti-Lift is a user friendly, portable hydraulic lift. The lift provides reliable, power lifting when moving and positioning loads. It includes a removable platform for operation requiring forks. The non-slip chain is used for accurate positioning while the Lift rolls easily on two rigid and two swivel poly-on-steel casters that includes a foot operated brake. The unit has an all welded construction with a chrome platform and uprights. Not for use with pallets.

• Non-slip chain provides accurate deck positioning
• Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded

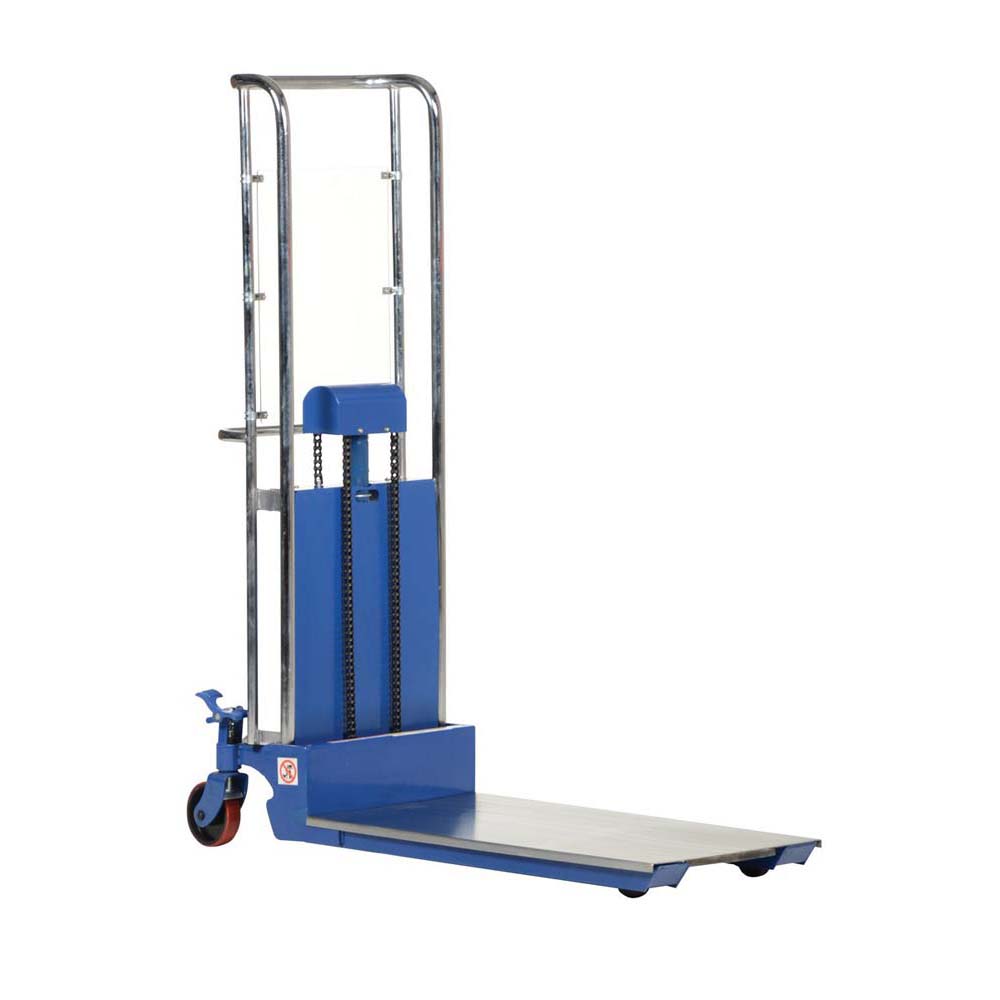

• Removable platform allows operation requiring forks
• Welded steel construction provides long lasting rugged use

Specification

• Uniform Capacity (lb.): 300
• Platform Width/Length (in.): 23 x 40
• Service Range (in.): 4-1/2 to 59

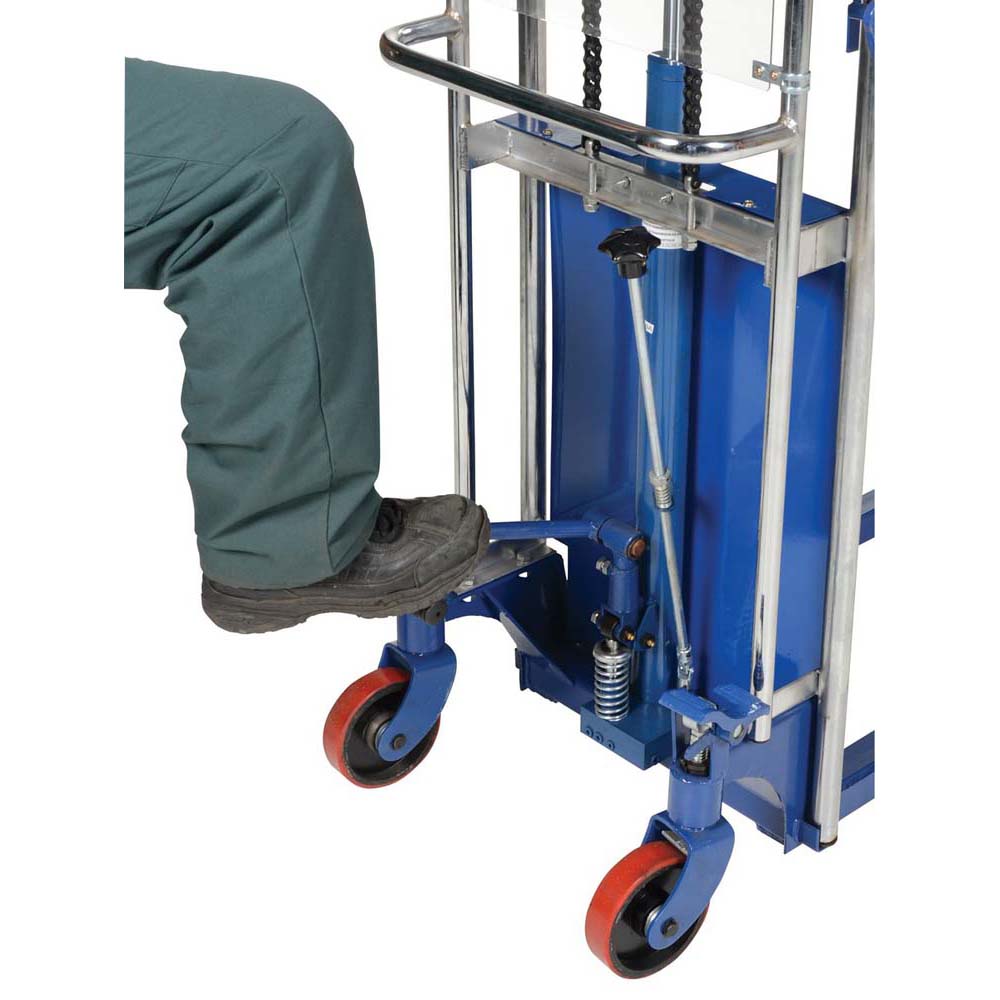

• Operation: Foot Pump
• Pump (qty.): 33
• Platform Travel per Stroke (in.): 3/4
• Individual Fork Width/Height (in.): 4-3/8 x 2-1/2
• Fork Length (in.): 40
• Overall Fork Width (in.): 22
• Handle Height (in.): 42
• Back Caster Quantity/Diameter/Width (in.): (2) 6 x 1-1/2
• Back Caster Type: Swivel
• Front Caster Quantity/Diameter/Width (in.): (2) 3 x 1-1/2
• Front Caster Type: Rigid
• Caster Material: Poly-on-Steel
• Outrigger Inside Dimension (in.): 14
• Outrigger Outside Dimension (in.): 18-1/4

Documents

Click for HYD-10-EP Approval Drawings
