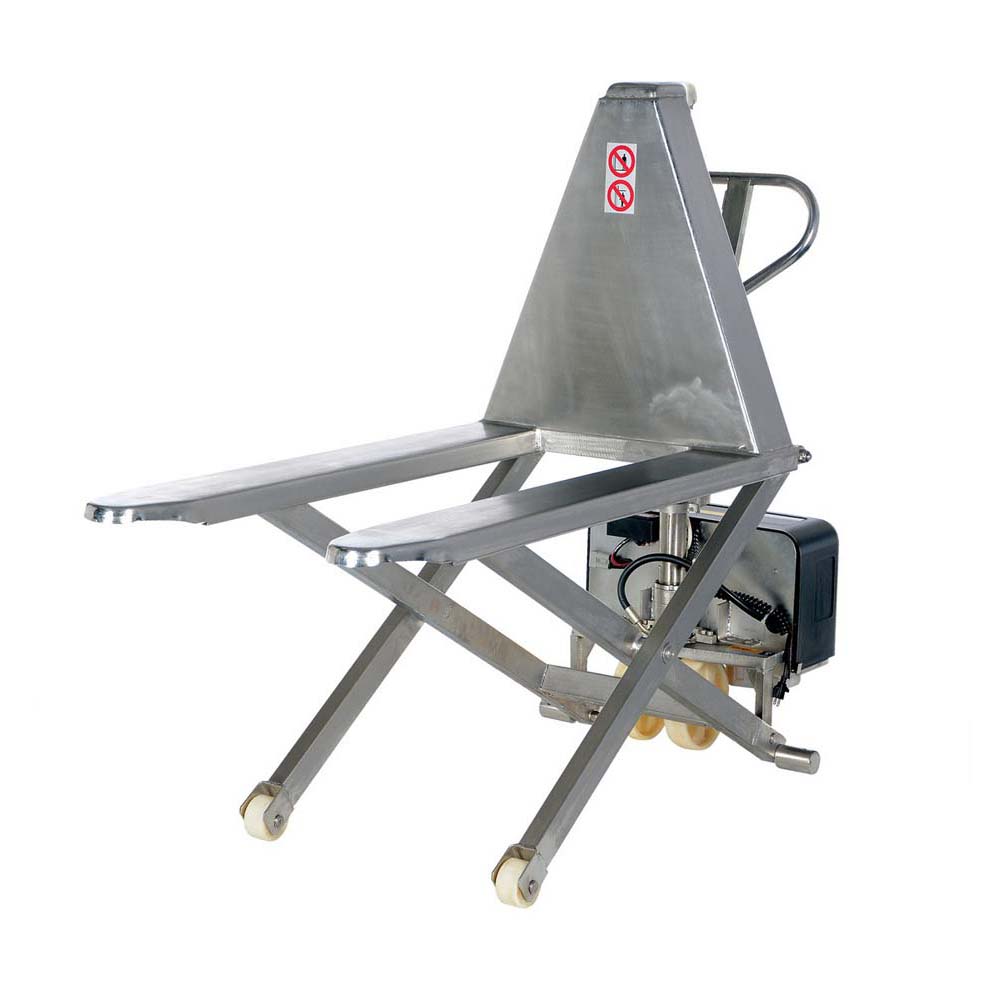

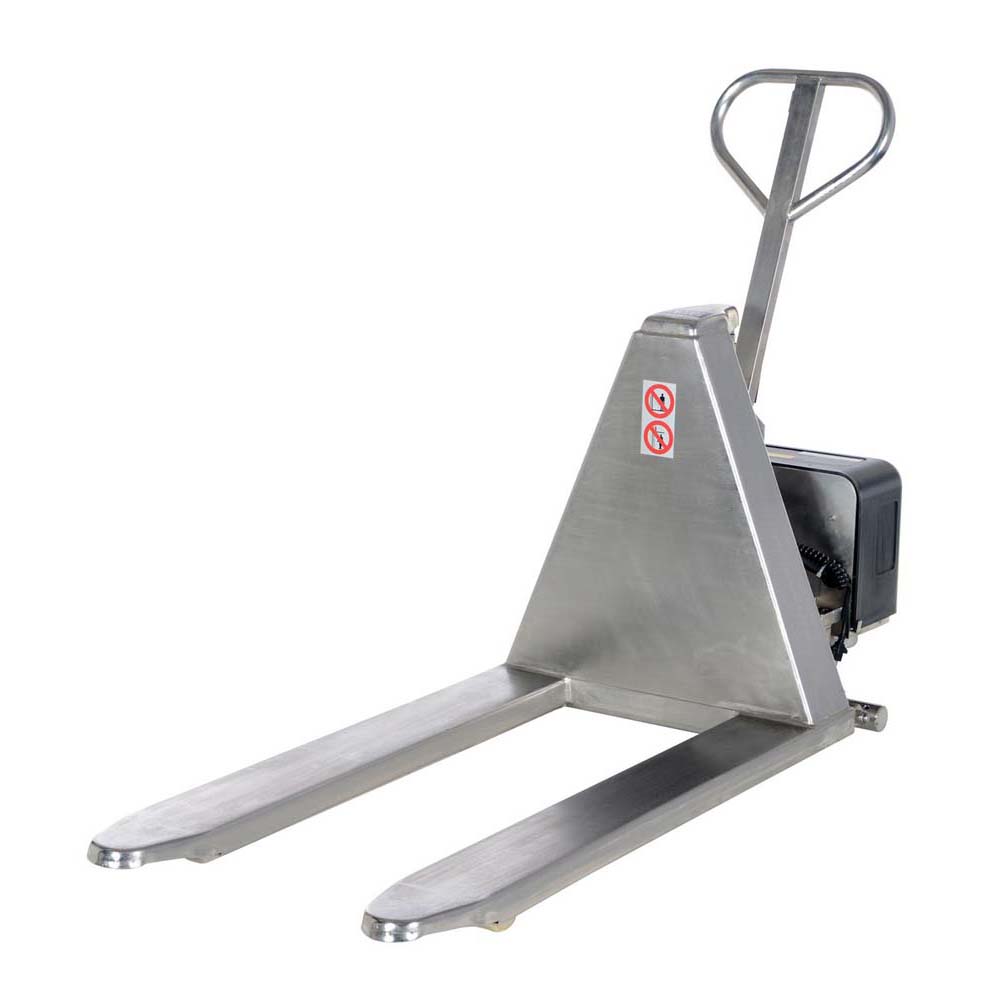

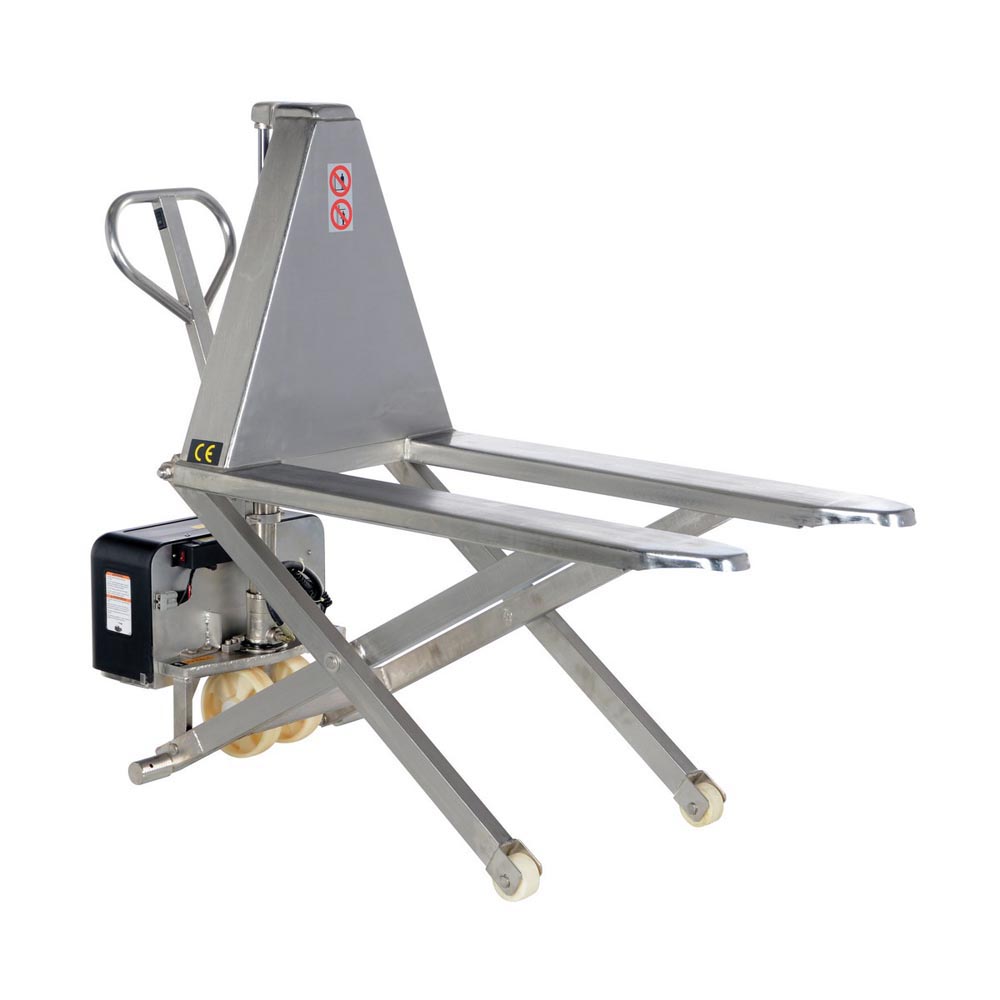

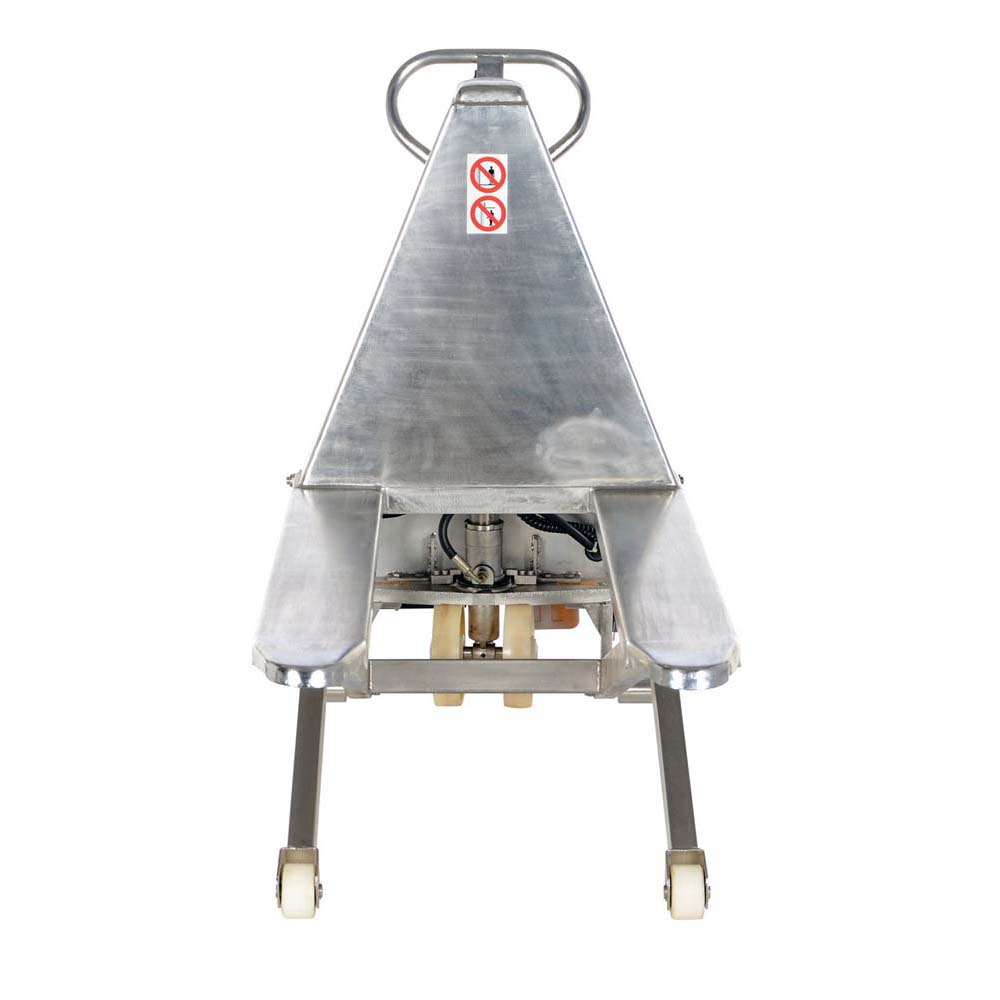

Vestil L-270-DC-HD-SS Tote Lift DC Powered Stainless Steel 2K 26.75 x 45

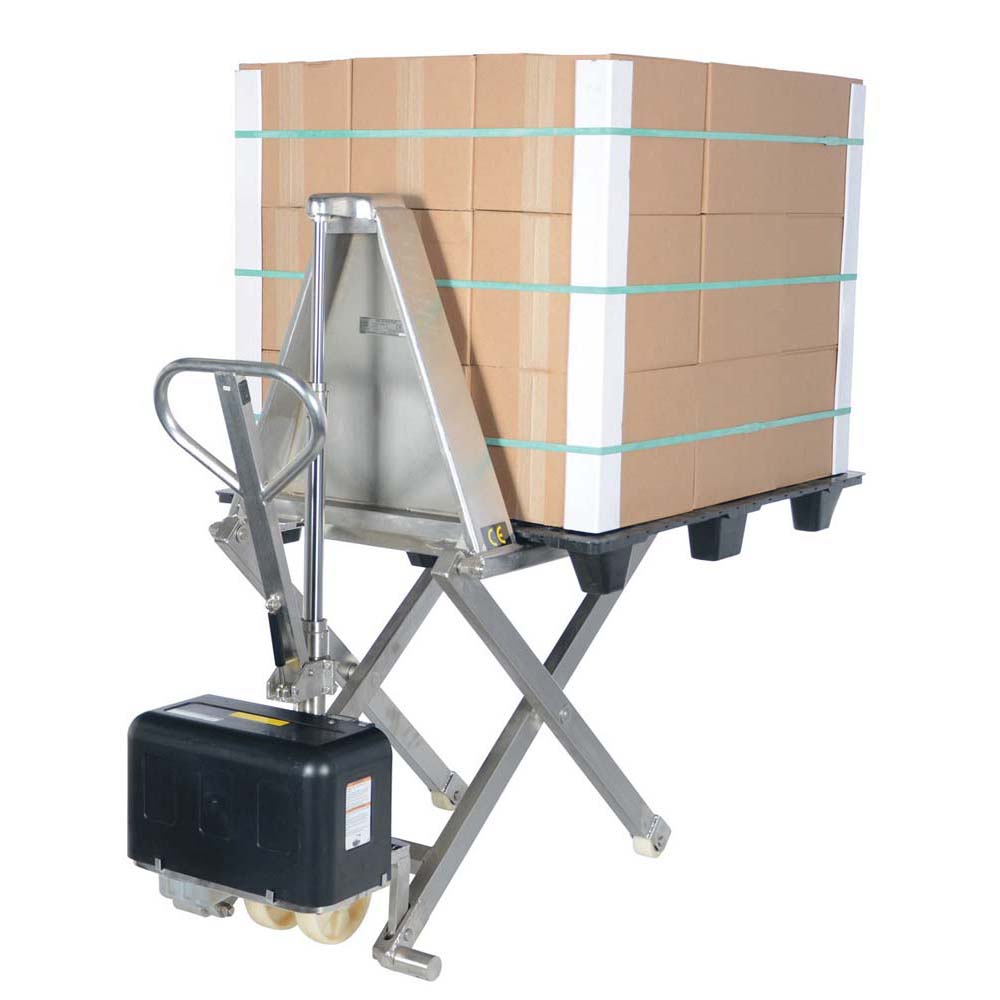

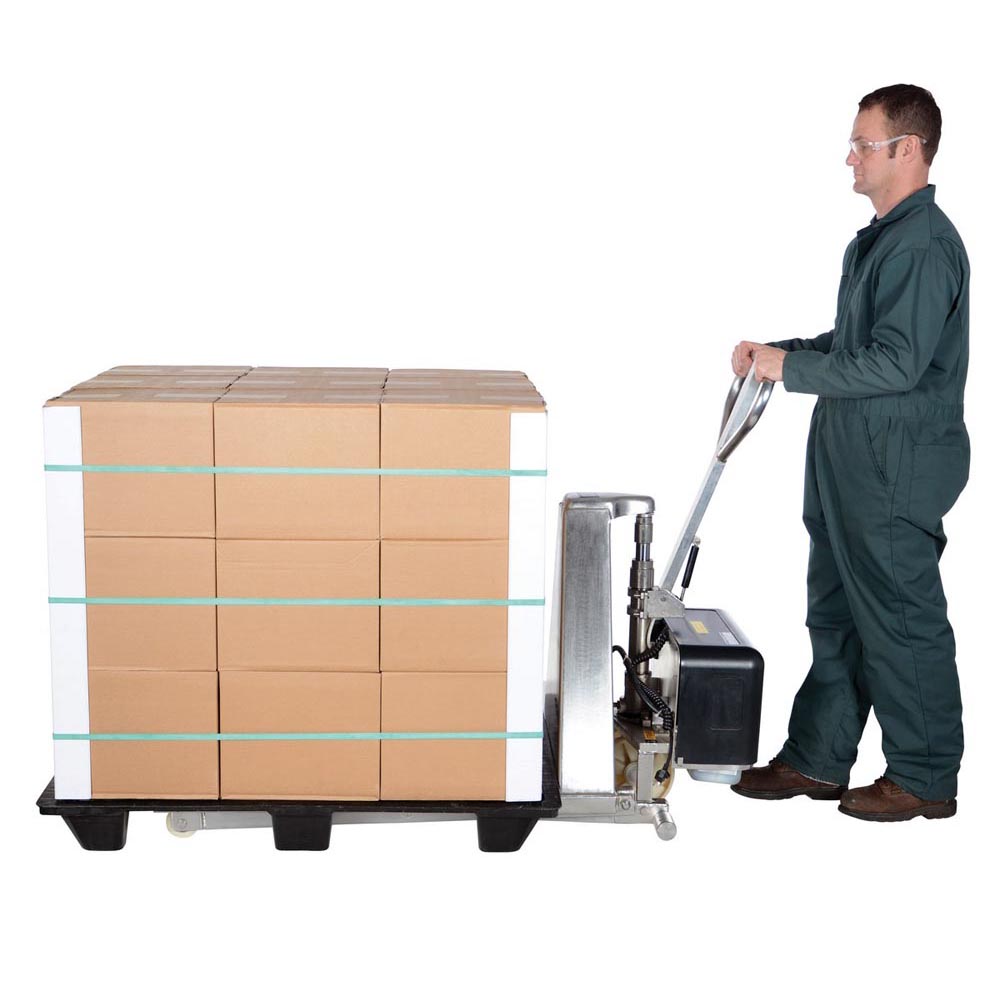

The Tote Lifter is designed to lift open bottom skids, boxes, and baskets. Lifter is DC power with rocker switch to raise or lower. This DC powered unit includes an on-board battery charger. The side stabilizers lock lift in place when load is raised over a certain height.

• Stainless steel construction provides long lasting rugged use
• Automatic stabilizers engage when forks reach specific height
• Stabilizers design prevent unit from moving
• Front rollers and two rear swivel casters allow for easy portability

Specification

• Uniform Capacity (lb.): 2000
• Operation: 12 Volt DC Power
• Maximum Amperage: 140
• Side Stabilizer Locks at Raised Height (in.): 20-1/2
• Fork Width (in.): 26-3/4
• Fork Length (in.): 45
• Lowered Height (in.): 3-1/2
• Raised Height (in.): 31-1/2
• Front Roller Diameter (in.): 3
• Front Roller Width (in.): 1-7/8
• Rear Wheel Diameter (in.): 5-3/4
• Rear Wheel Width (in.): 1-5/8
• Rear Wheel Material: Nylon
• Handle Length (in.): 30
• Handle Material: Steel/Plastic

Documents

Click for L-270-DC-HD-SS Approval Drawings

Click for Manual
