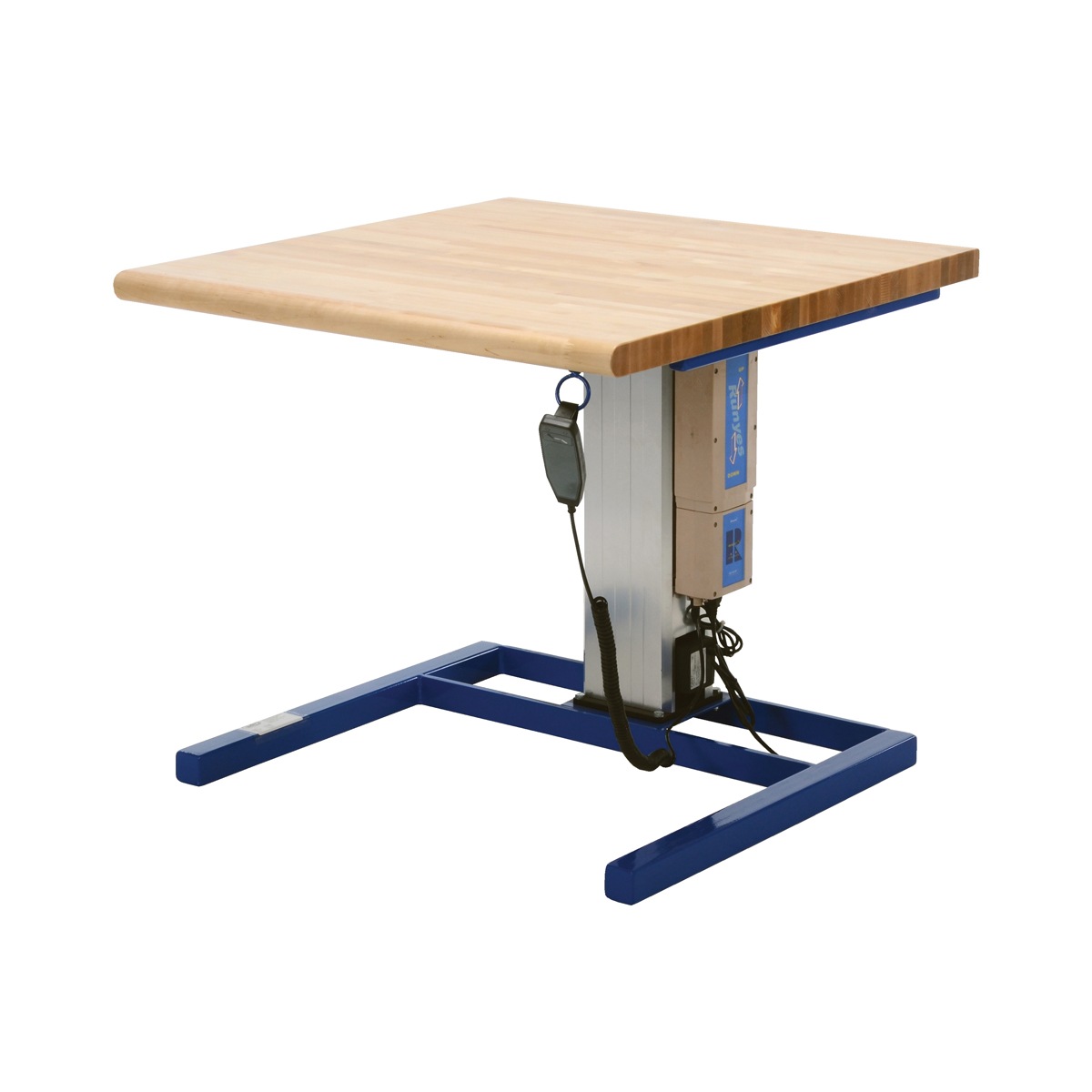

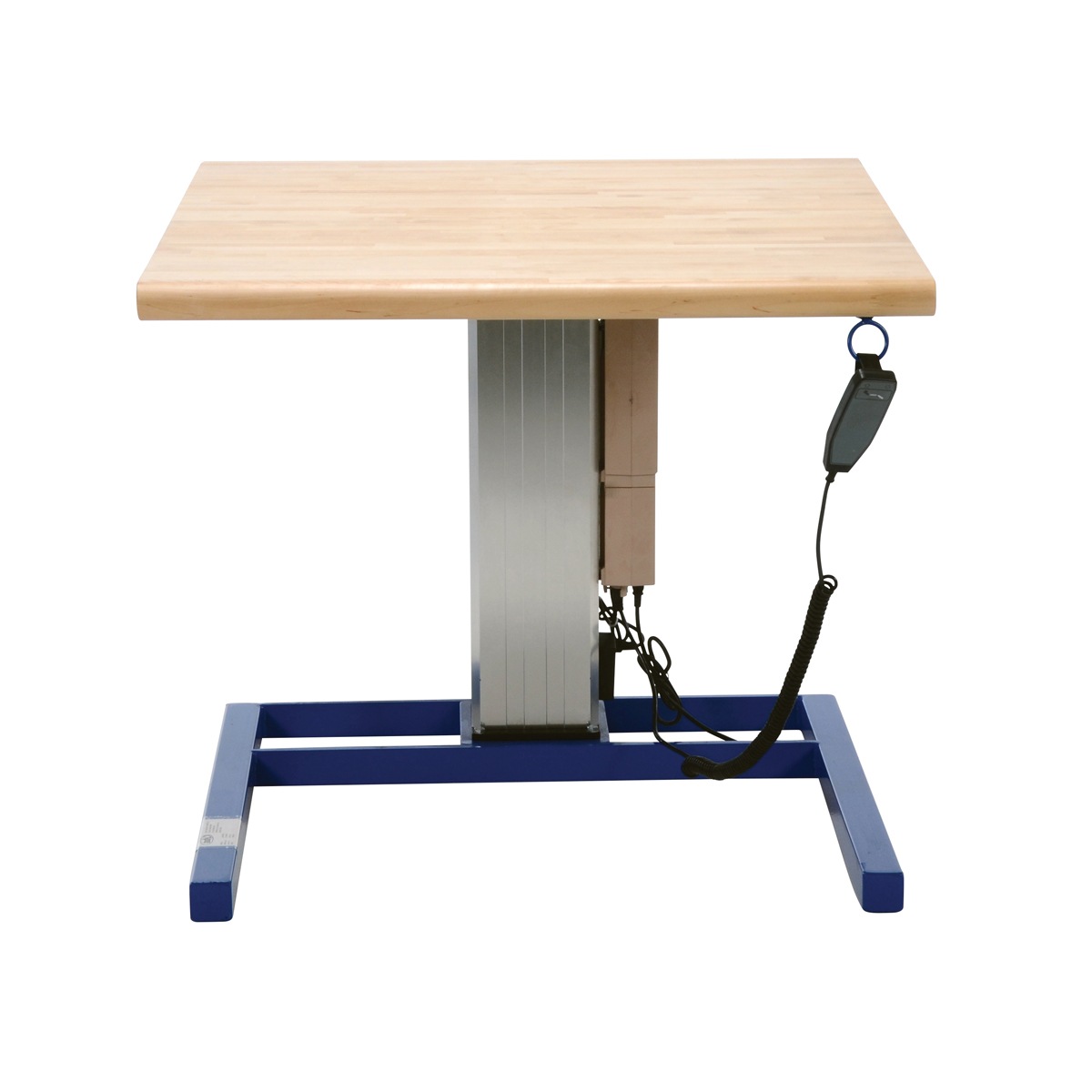

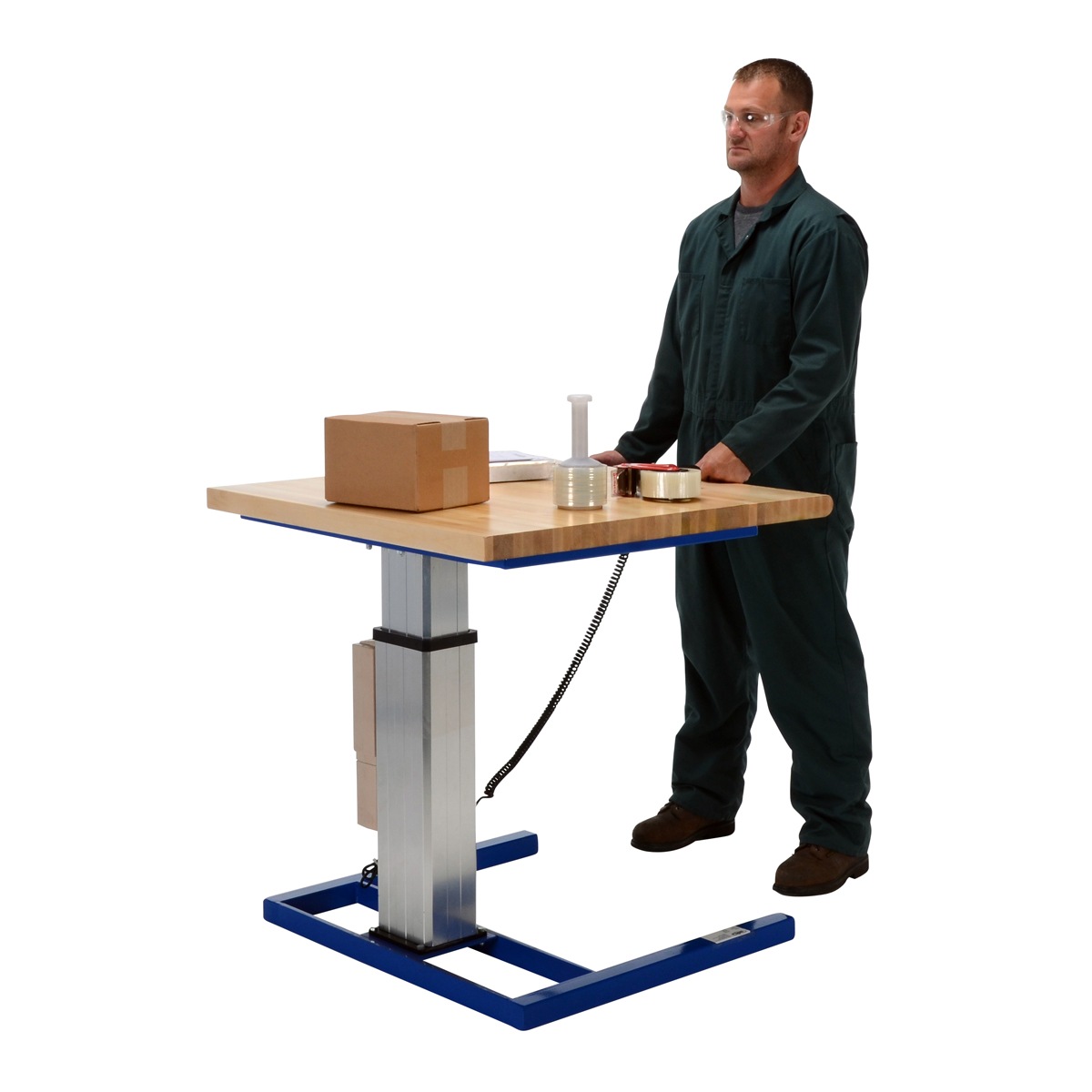

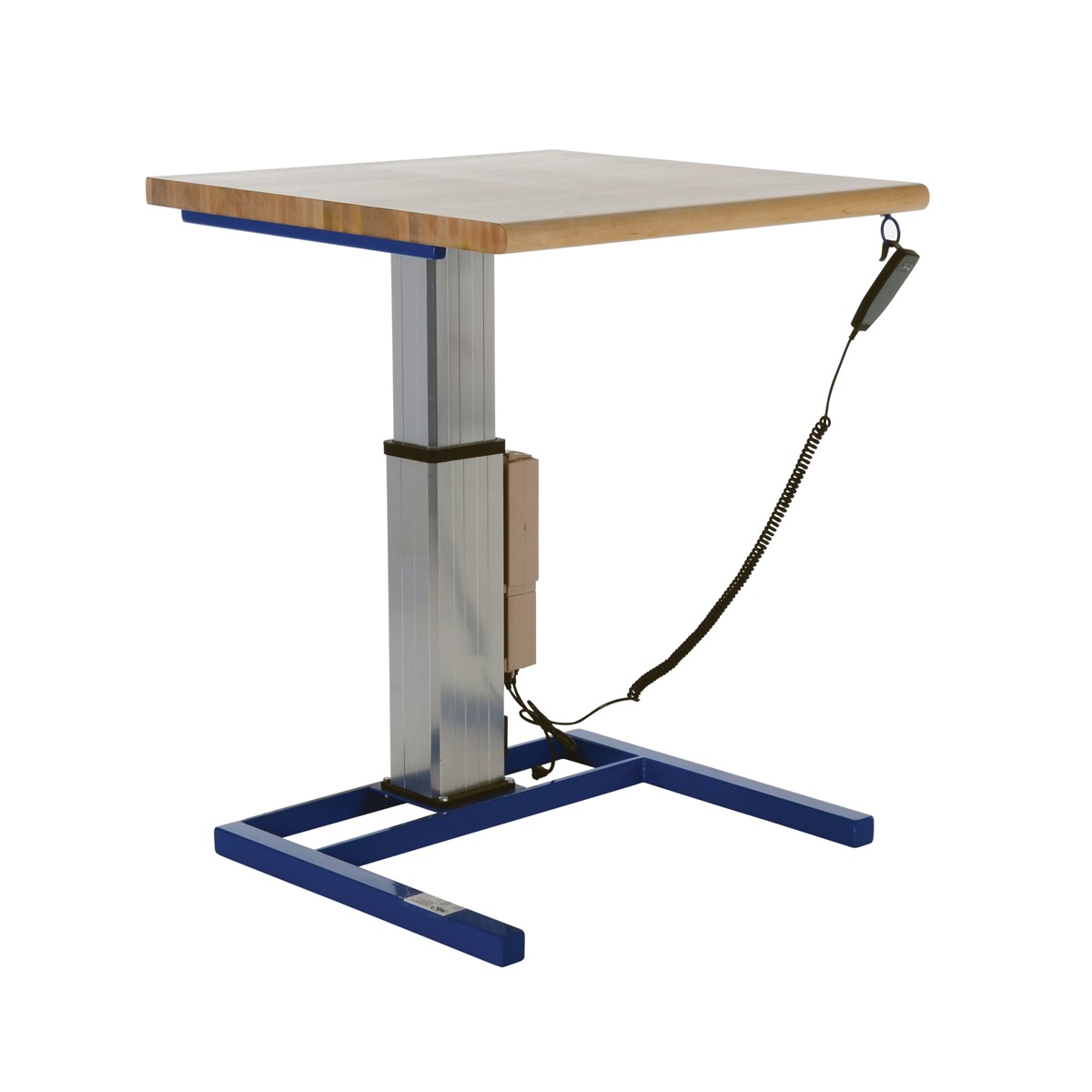

Vestil LAW-3636 Linear Actuated Adjust Height Work Bench

The Linear Actuated Adjustable-Height Work Bench increases productivity by allowing the body to reposition to a more comfortable position. The table allows anyone, regardless of their height, to easily use the table as a workstation or desk. Cantilever design optimizes foot, knee, and leg room. The platform is large enough for small parts assembly. A hand-held raise and lower control is attached to the understructure of the table; no more misplacing the remote. Durable hardwood platform standard.

• Designed to automatically raise or lower to keep material at an ergonomic work height
• Features variable height working surface for different sized workers
• Platform is large enough for small parts assembly
• Hand-held raise and lower control is attached to the understructure

Specification

• Uniform Capacity (lb.): 500
• Platform Width (in.): 36
• Platform Length (in.): 36
• Lowered Height (in.): 29-1/8
• Raised Height (in.): 44-1/8
• DC Power: 24V
• Frame Width (in.): 34
• Frame Length (in.): 29-5/8

Documents

Click for LAW-3636 Approval Drawings
