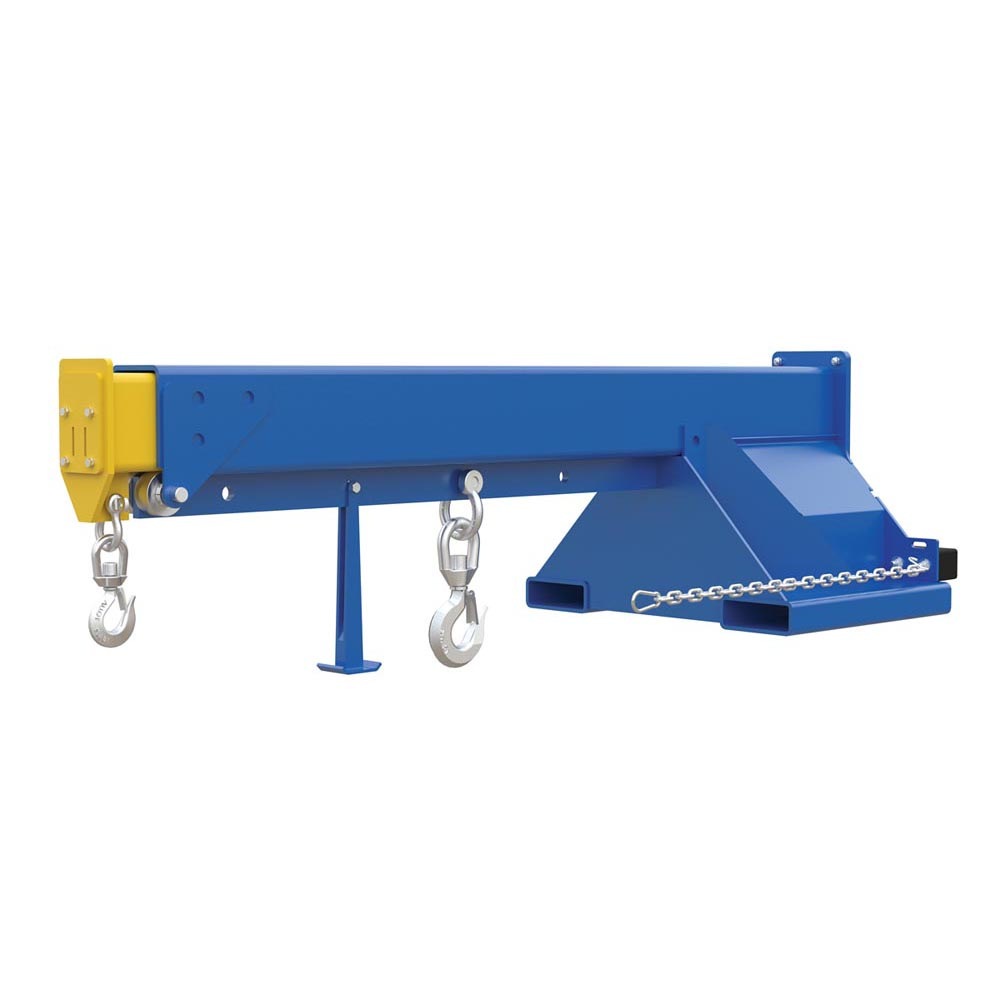

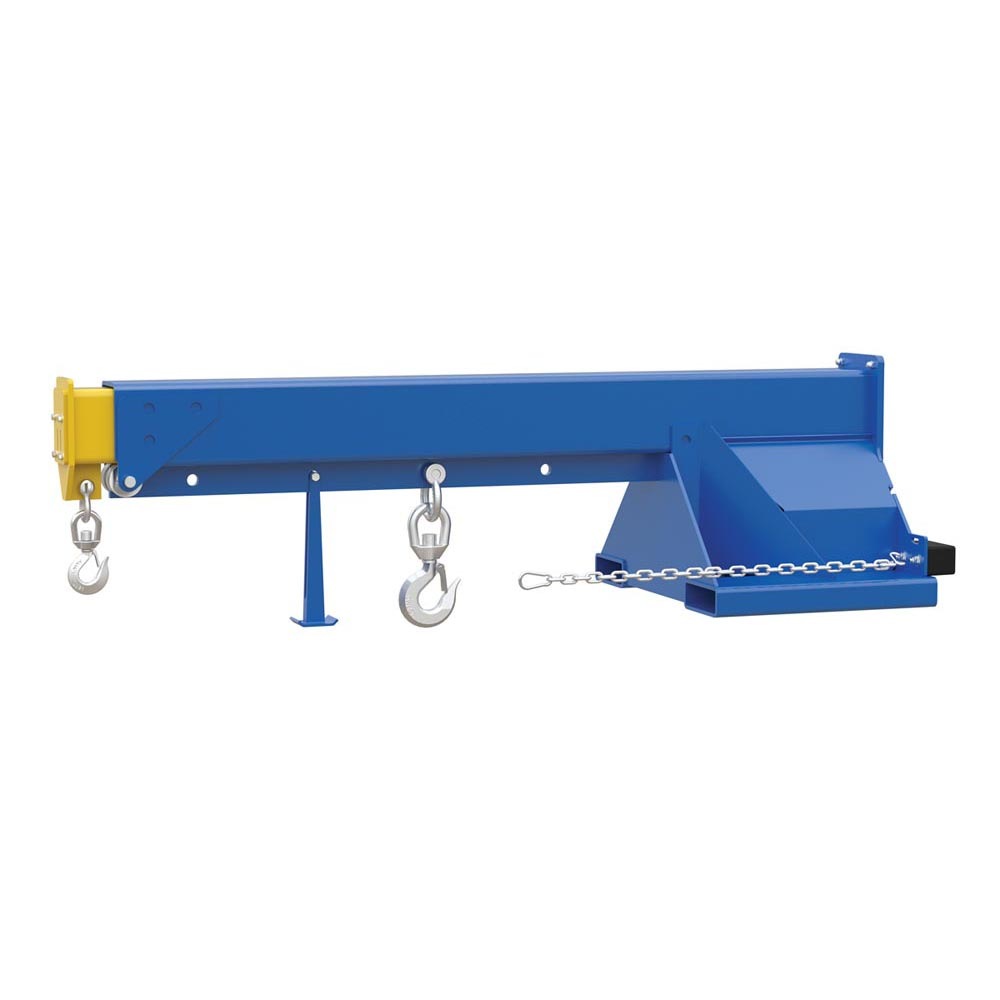

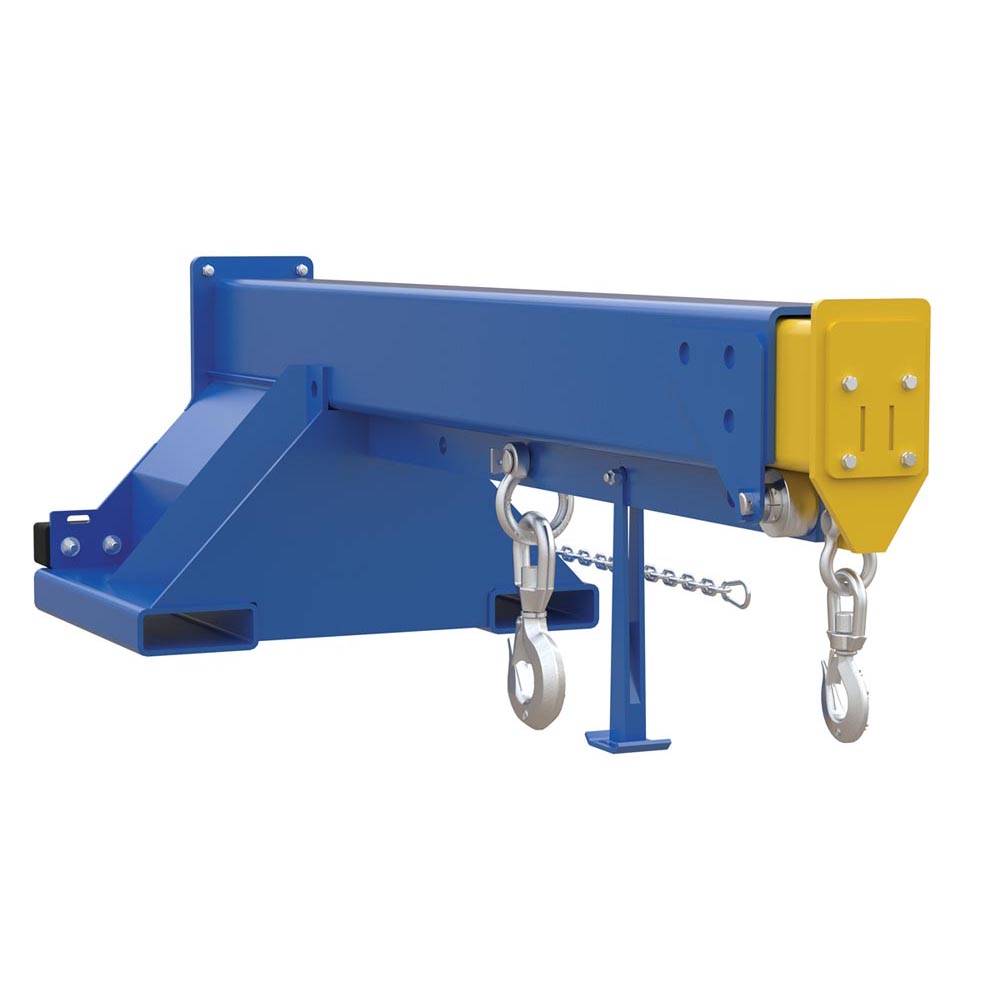

Vestil LM-1T-8-24-HBE-DC HYD Telescoping Lift Boom 8K 12V DC

The DC powered telescoping boom has all the benefits of the standard lifting boom, except now its powered. The powered telescoping feature allows the personnel to maneuver the length of the boom with the hand held control. Painted for a smooth finish and to limit abrasion. Includes two (2) lifting hooks.

• Unique design converts fork trucks into overhead lifting cranes

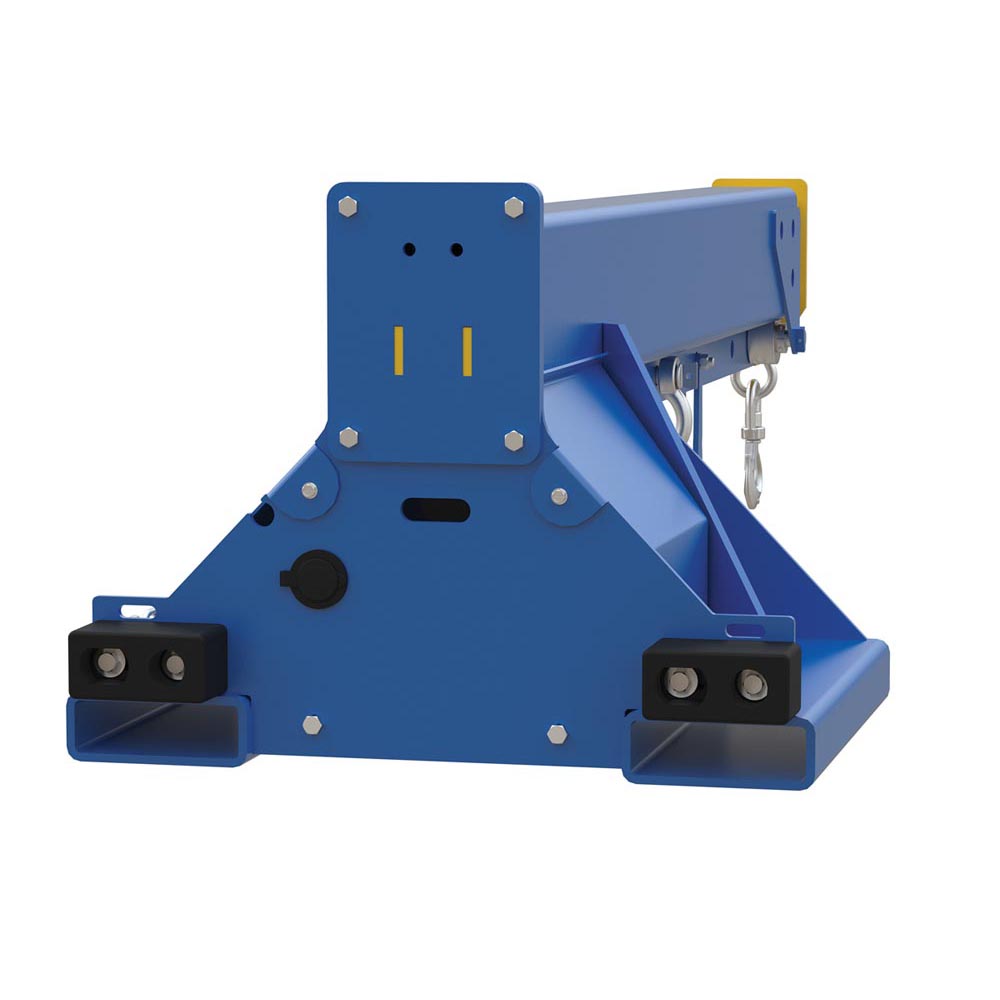

• Fork pockets with safety strap attach & secure boom to fork truck
• Robotically welded construction provides precision and durability
• Promotes workplace efficiency

Specification

• Movable Load (lbs.): 2000
• Lost Load (lbs.): 815
• Extended Length (in.): 144-3/4
• Min/Max Hook Point (in.): 36 – 142
• Power: 12V DC
• Usable Fork Pockets (in.): 7-1/4 x 2-1/4
• Fork Pocket Center (in.): 24
• Fork Truck Required Rating (lbs.): 8000
• Vertical Center of Gravity: 13 1/8
• Horizontal Center of Gravity: 15 3/4
• Retracted Center of Gravity: 32 1/16
• Extended Center of Gravity: 47 3/16

Documents

Click for LM-1T-8-24-HBE-DC Approval Drawings
