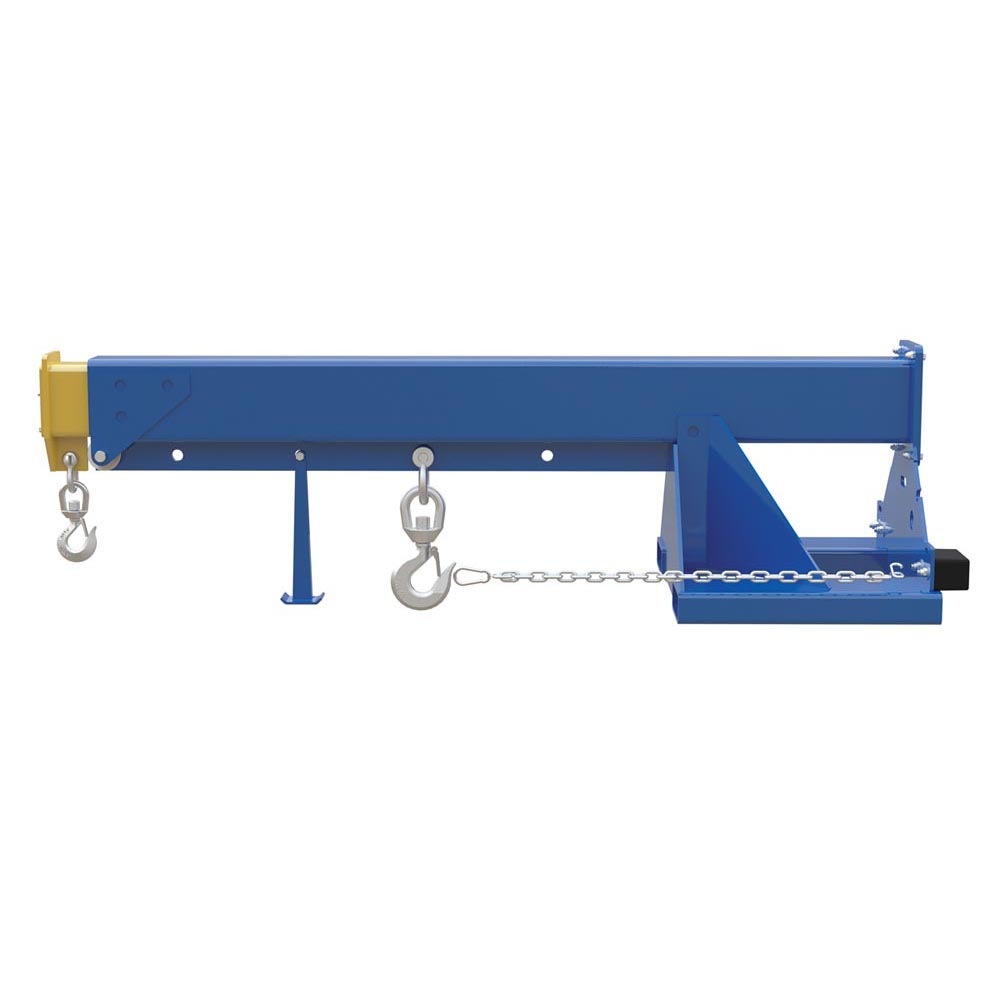

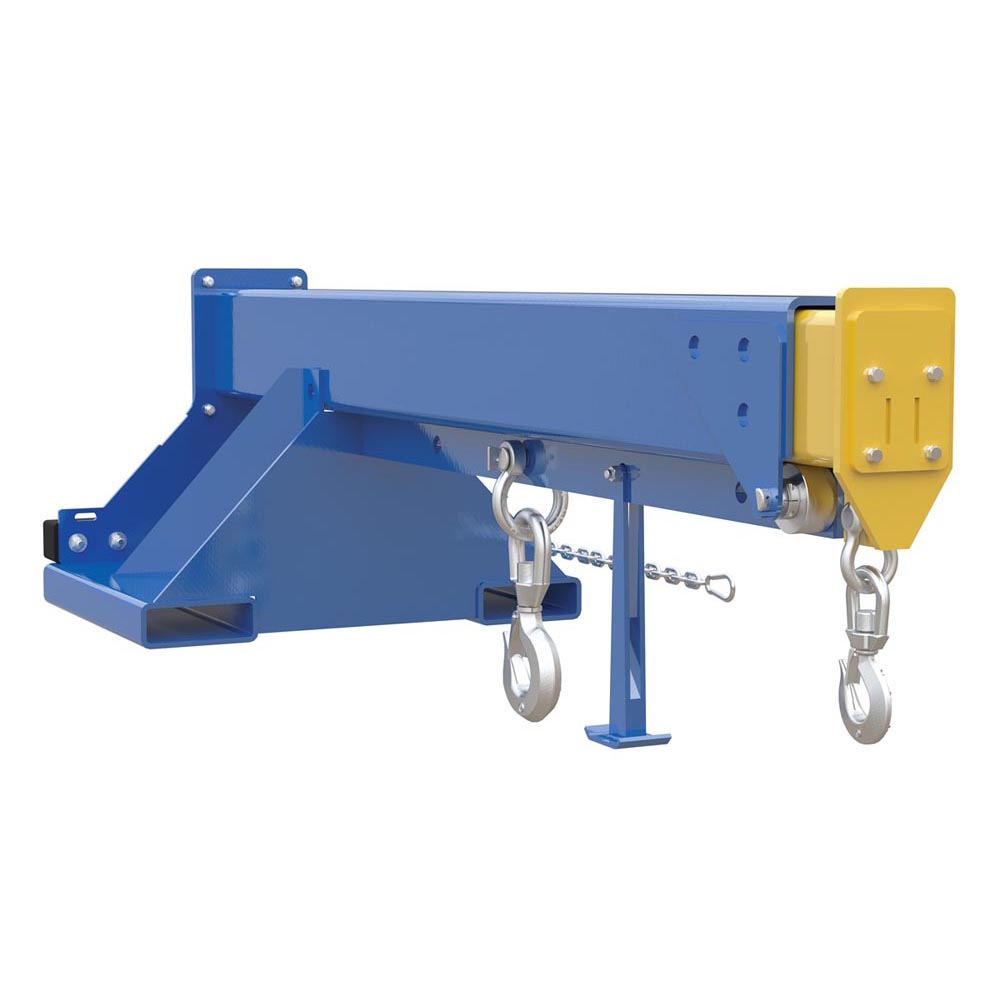

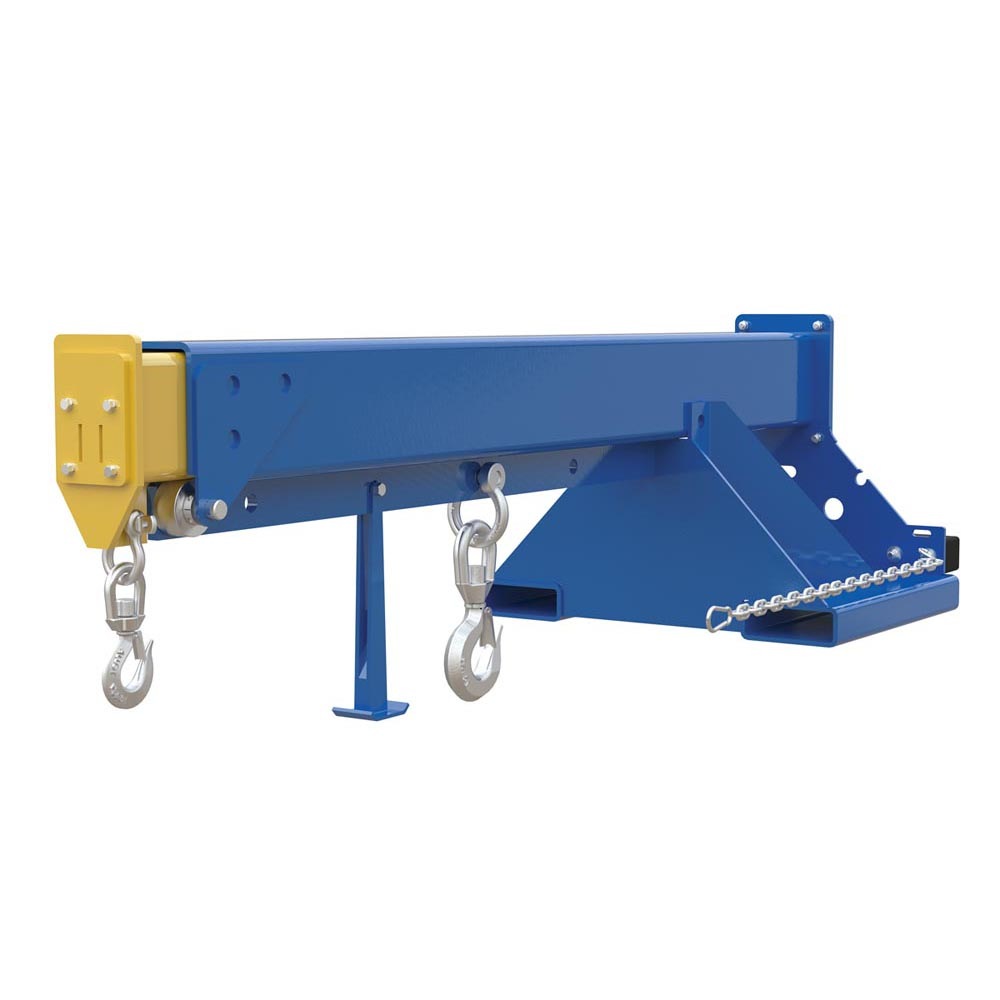

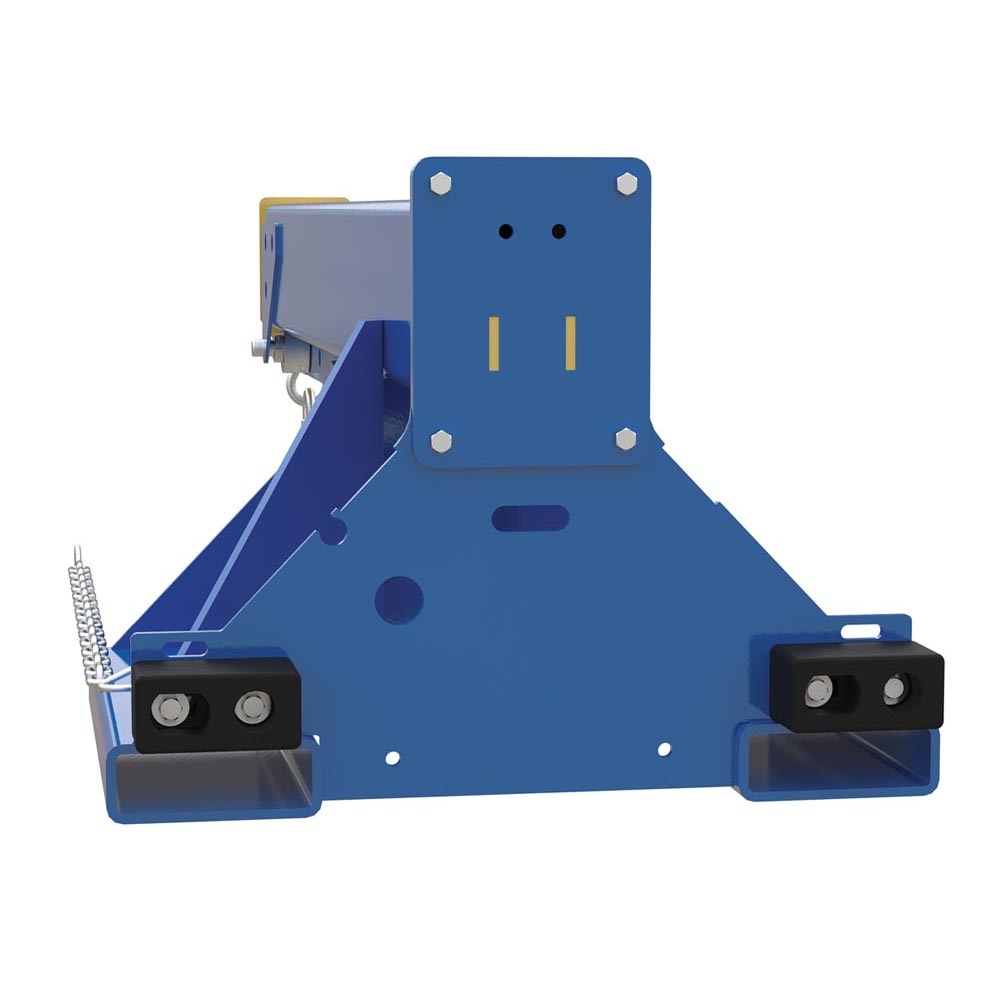

Vestil LM-1T-8-24-HBE-TP HYD Telescoping Lift Boom 8K Fork TK Power
$5,342.08
Description
The Fork truck powered telescoping boom has all the benefits of the standard lifting boom, except now its powered. The powered telescoping feature allows the personnel to maneuver the length of the boom automatically, reducing manual labor. The unit is powered by the fork trucks hydraulic system into the forklift to utilize the powered function. Includes two (2) lifting hooks and a painted finish.
- Unique design converts fork trucks into overhead lifting cranes
- Fork pockets with safety strap attach & secure boom to fork truck
- Robotically welded construction provides precision and durability
- Promotes workplace efficiency
Additional information
| Weight | 720 lbs |
|---|---|
| Dimensions | 86 × 34 × 26 in |
Specification
Specification
- Movable Load (lbs.): 2000
- Lost Load (lbs.): 715
- Extended Length (in.): 144-3/4
- Min/Max Hook Point (in.): 36 – 142
- Usable Fork Pockets (in.): 7-1/4 x 2-1/4
- Fork Pocket Center (in.): 24
- Fork Truck Required Rating (lbs.): 8000
- Fork Pocket Center (in.): 24
- Vertical Center of Gravity: 14
- Horizontal Center of Gravity: 16
- Retracted Center of Gravity: 35
- Extended Center of Gravity: 52
Documents
Click for LM-1T-8-24-HBE-TP Approval DrawingsReviews (0)
