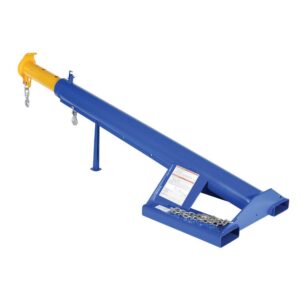

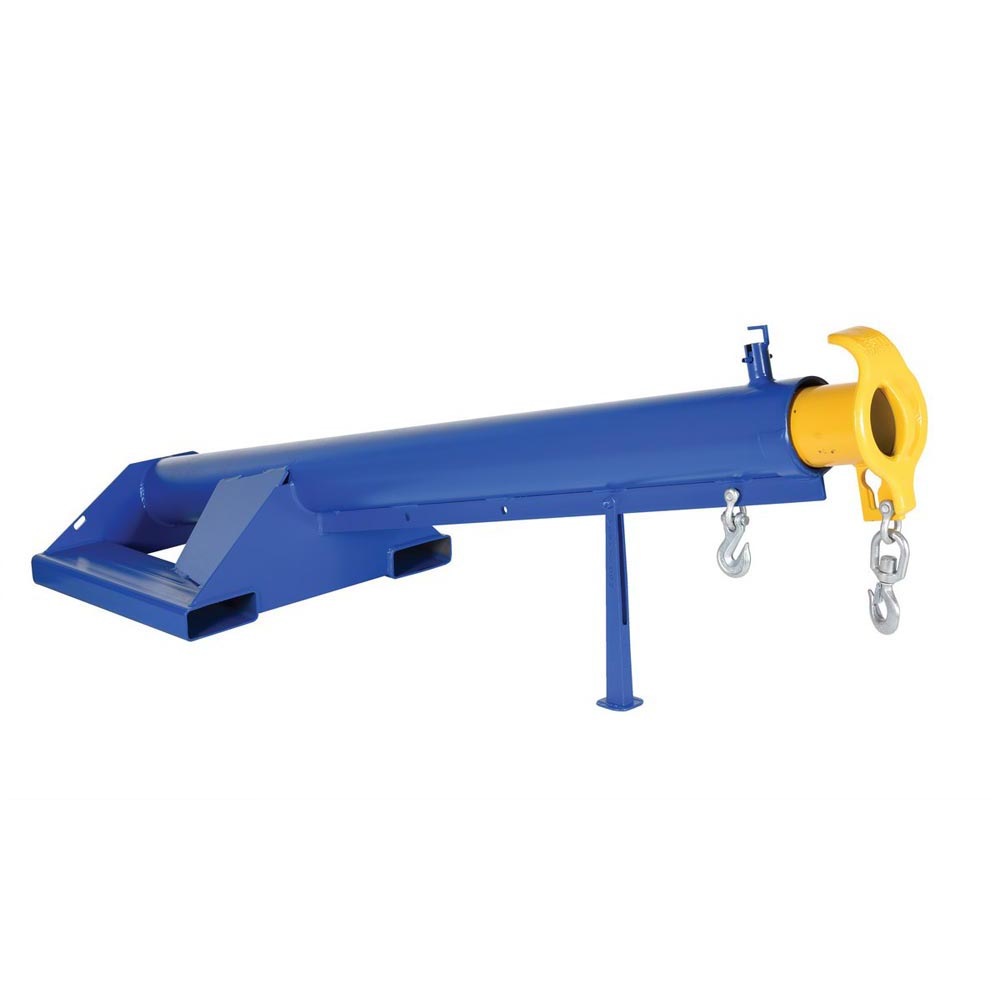

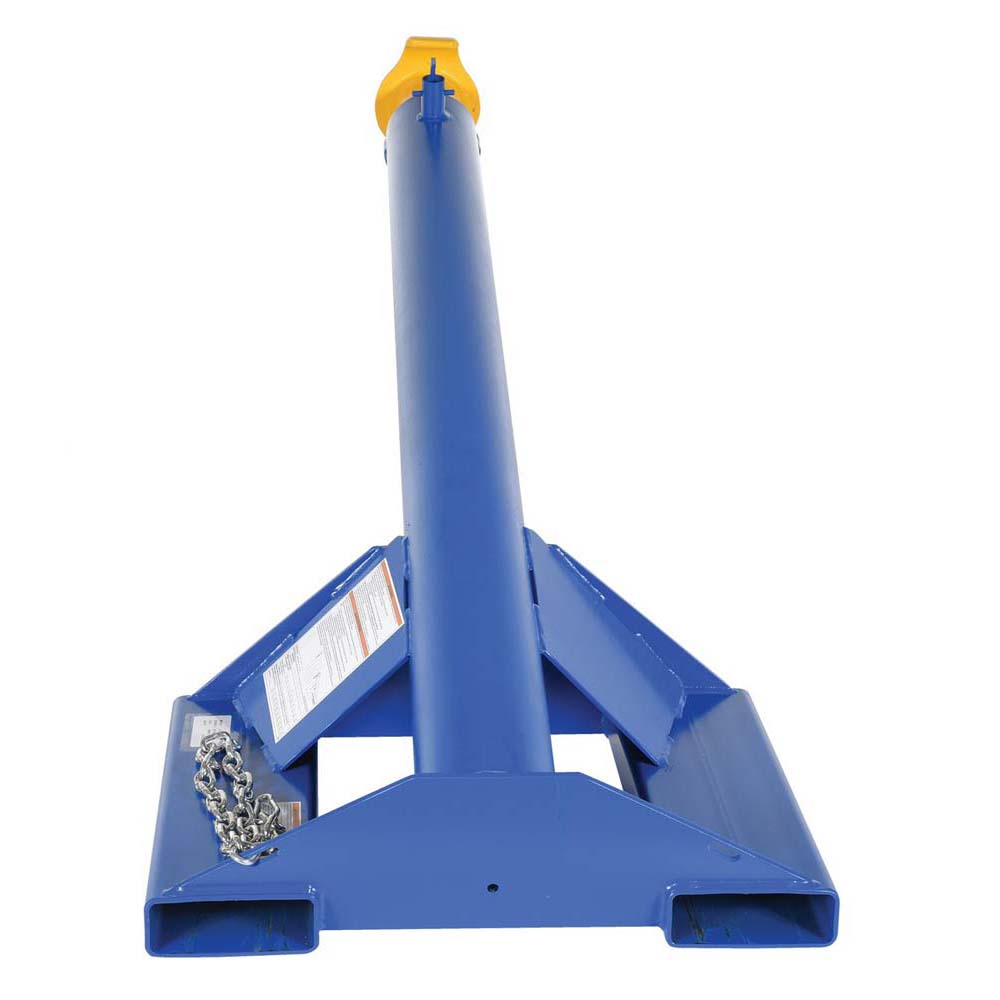

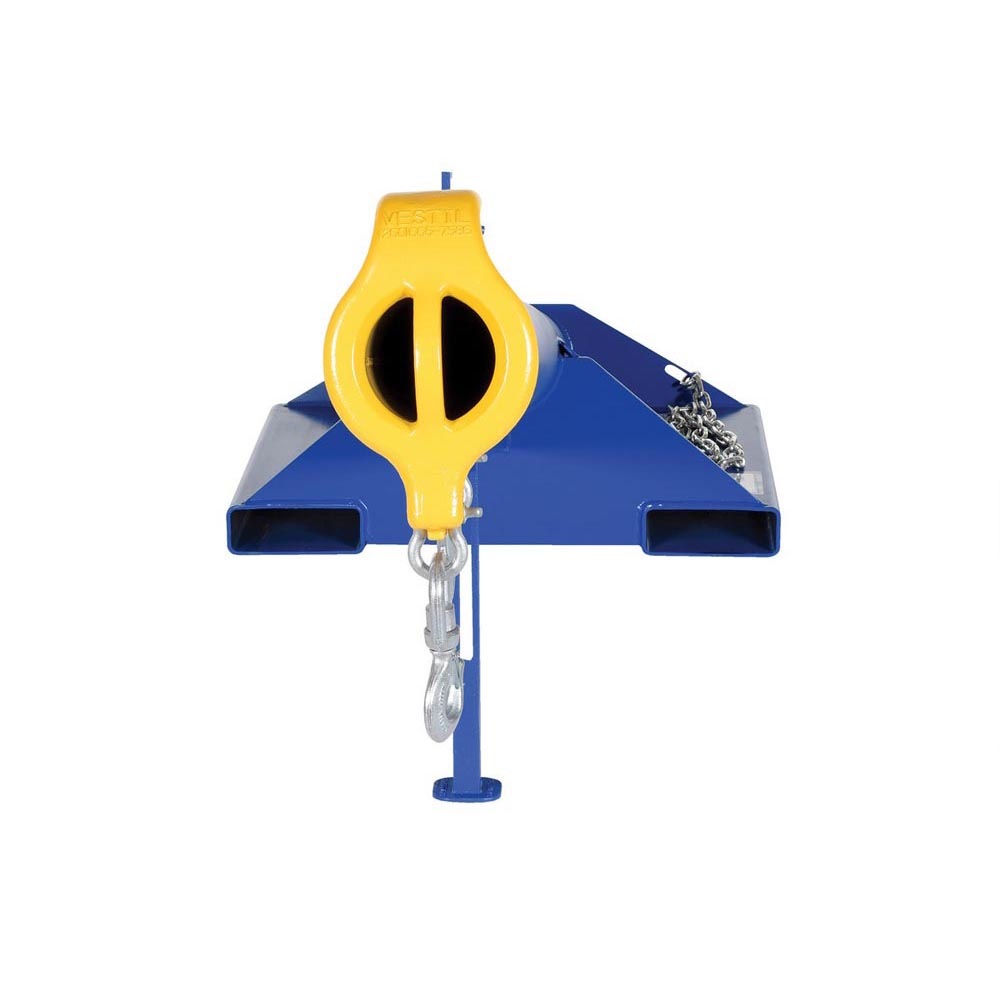

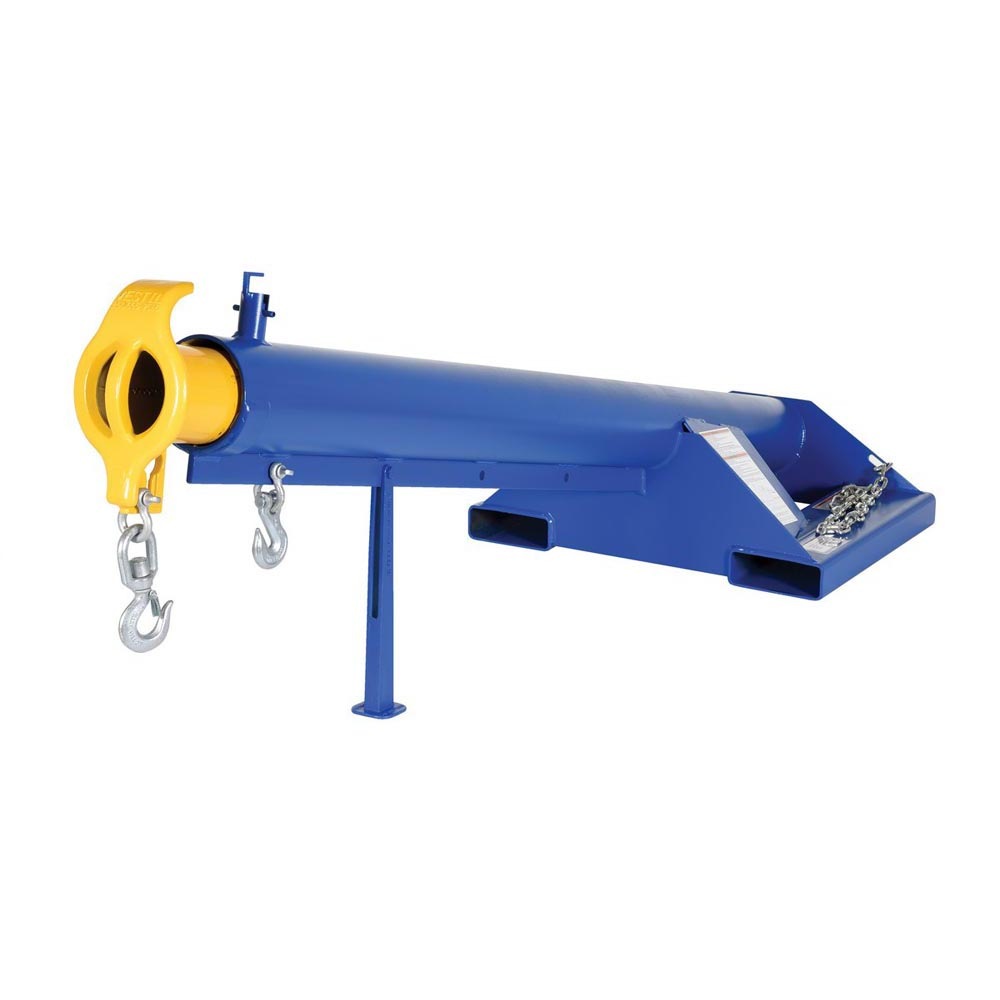

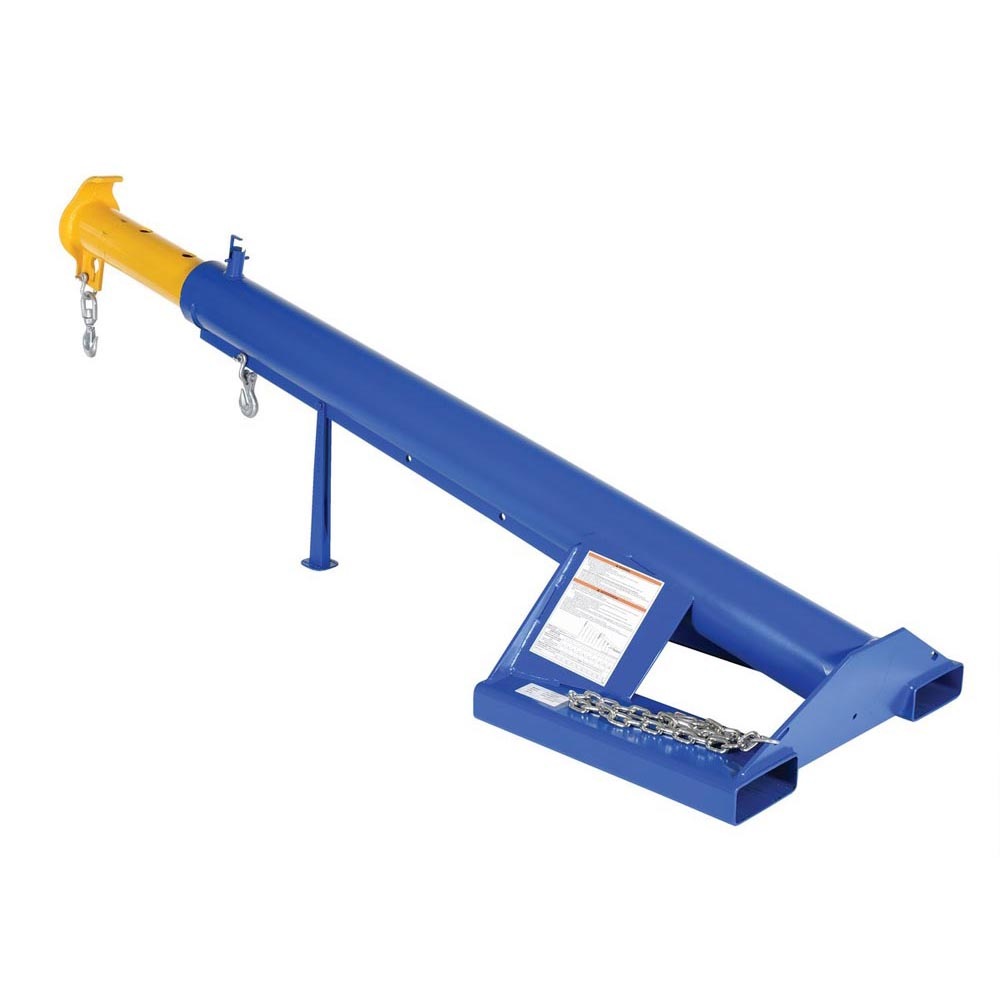

Vestil LM-F15-4-24 Lift Master Boom 15 Deg 4K 24 In Fork

Unique performance, convenience, and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. This unit come with an infinitely adjustable locking screw. A safety restraint secures the boom to the fork truck for safe operation. Includes two (2) lifting hooks.

• Unique design converts fork trucks into overhead lifting cranes
• Fork pockets with safety strap attach & secure boom to fork truck
• Robotically welded construction provides precision and durability
• Operations & capacity sticker provide user instructions and safety

Specification

• Uniform Capacity (lb.): 4,000
• Fork Pocket Center (in.): 24
• Fork Pocket Width/Height (in.): 7-1/2 x 2-1/2
• Restraint Length (in.): 36
• Boom Style: Telescoping
• Minimum/Maximum Hook Point (in.): 36/144
• Single-Hook Capacity at 36″ (lb.): 4000
• Single-Hook Capacity at 48″ (lb.): 3750
• Single-Hook Capacity at 60″ (lb.): 3500
• Single-Hook Capacity at 72″ (lb.): 3250
• Single-Hook Capacity at 84″ (lb.): 3000
• Single-Hook Capacity at 96″ (lbs.): 2750
• Single-Hook Capacity at 108″ (lbs.): 2500
• Single-Hook Capacity at 120″ (lbs.): 2250
• Single-Hook Capacity at 132″ (lbs.): 2000
• Single-Hook Capacity at 144″ (lbs.): 1750
• Overall Extended Height (in.): 48-1/2
• Retracted Hook Height (in.): 12-13/16
• Extended Hook Height (in.): 28-11/32
• Overall Extended Length (in.): 147
• Fixed Boom Degree: 15
• Boom Type: Fixed 15 Degrees
• OSHA: 1910.178(a)(4)

Documents

Click for LM-F15-4-24 Approval Drawings
