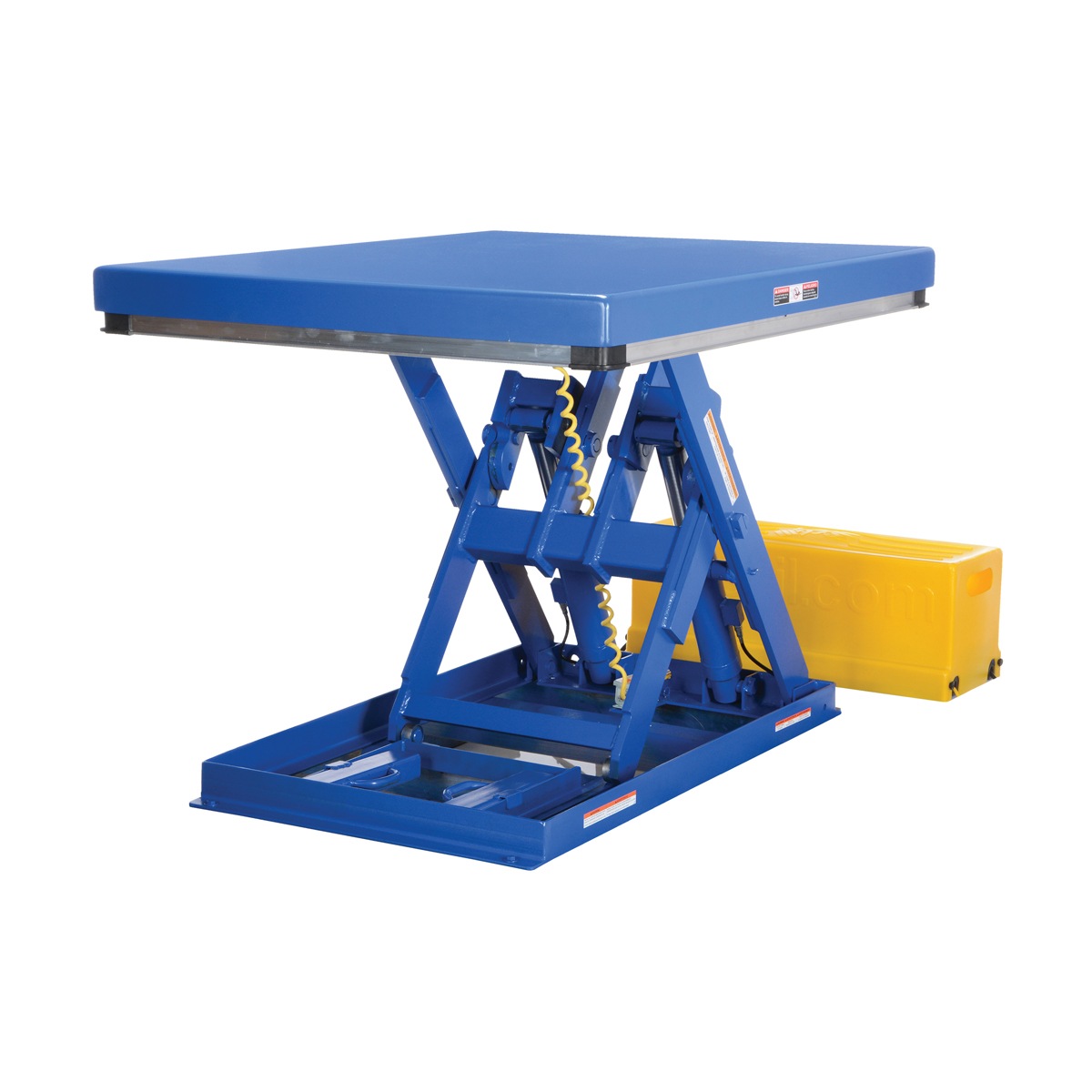

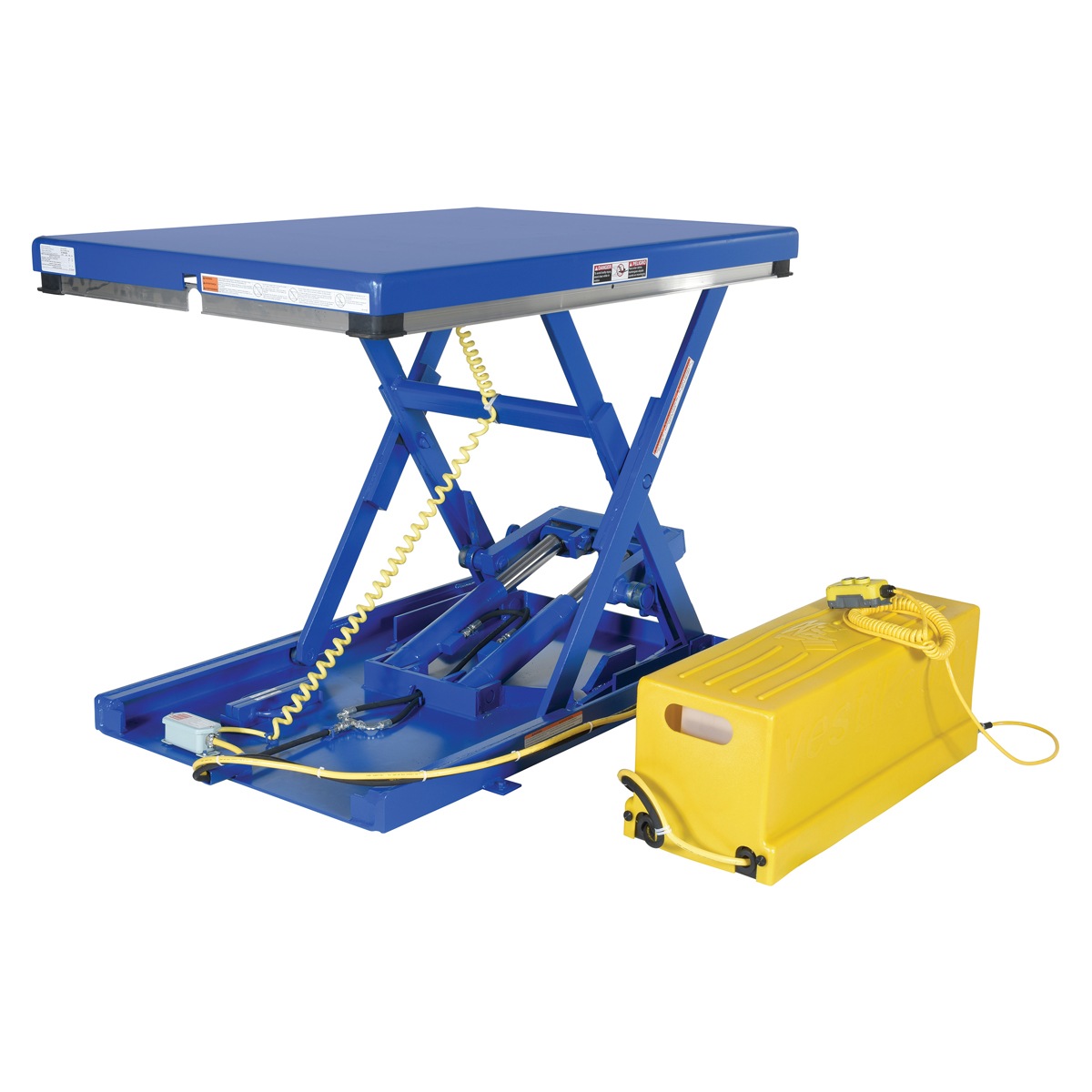

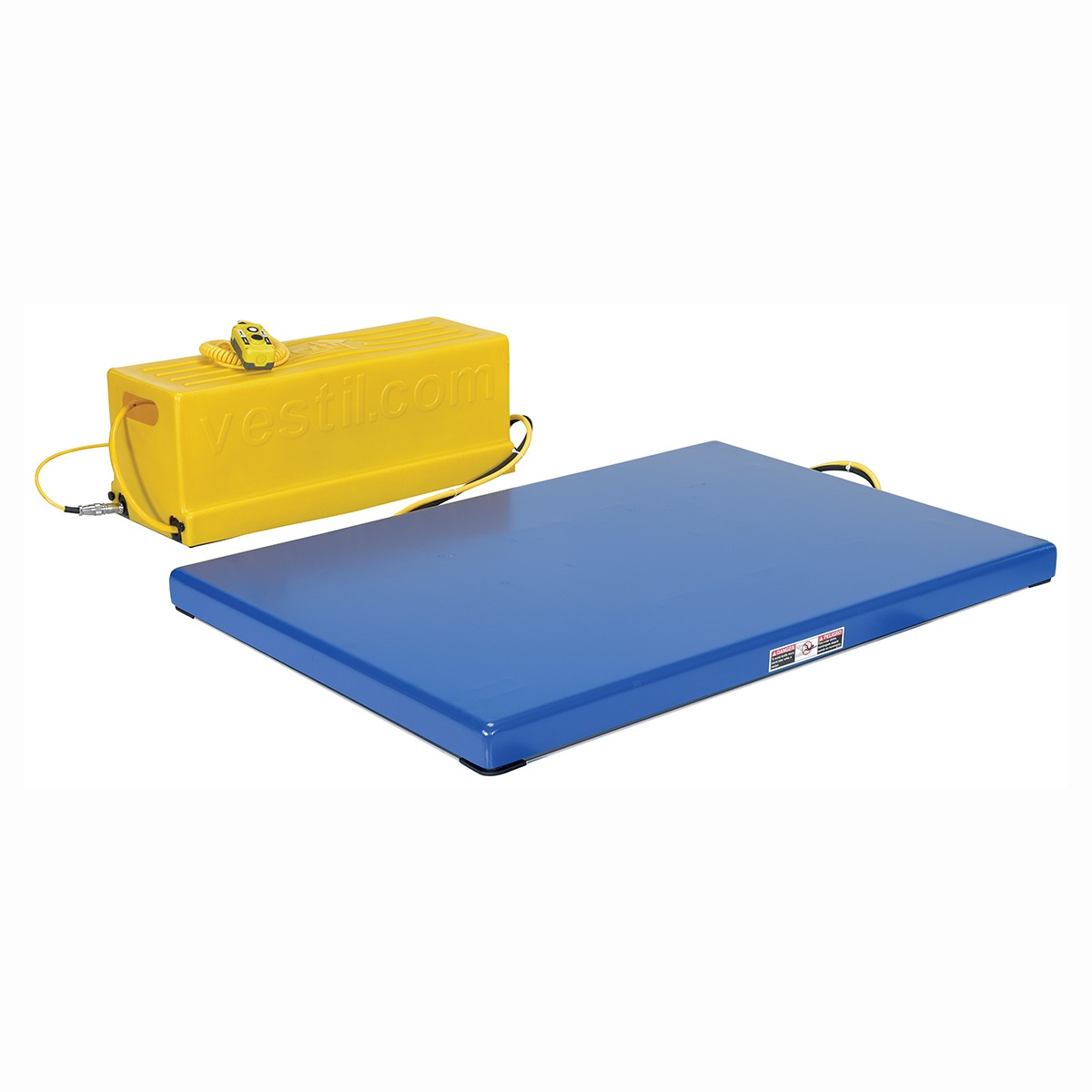

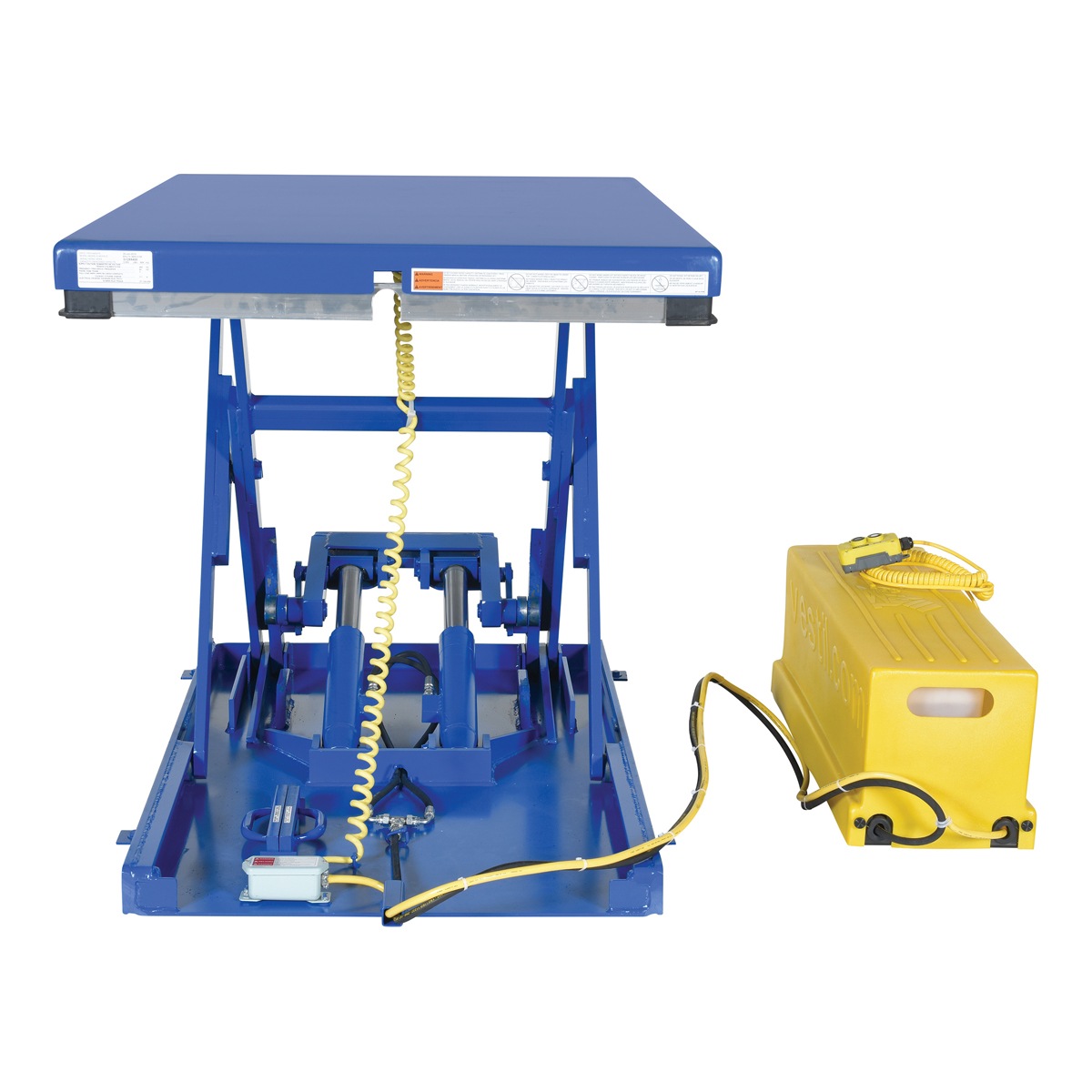

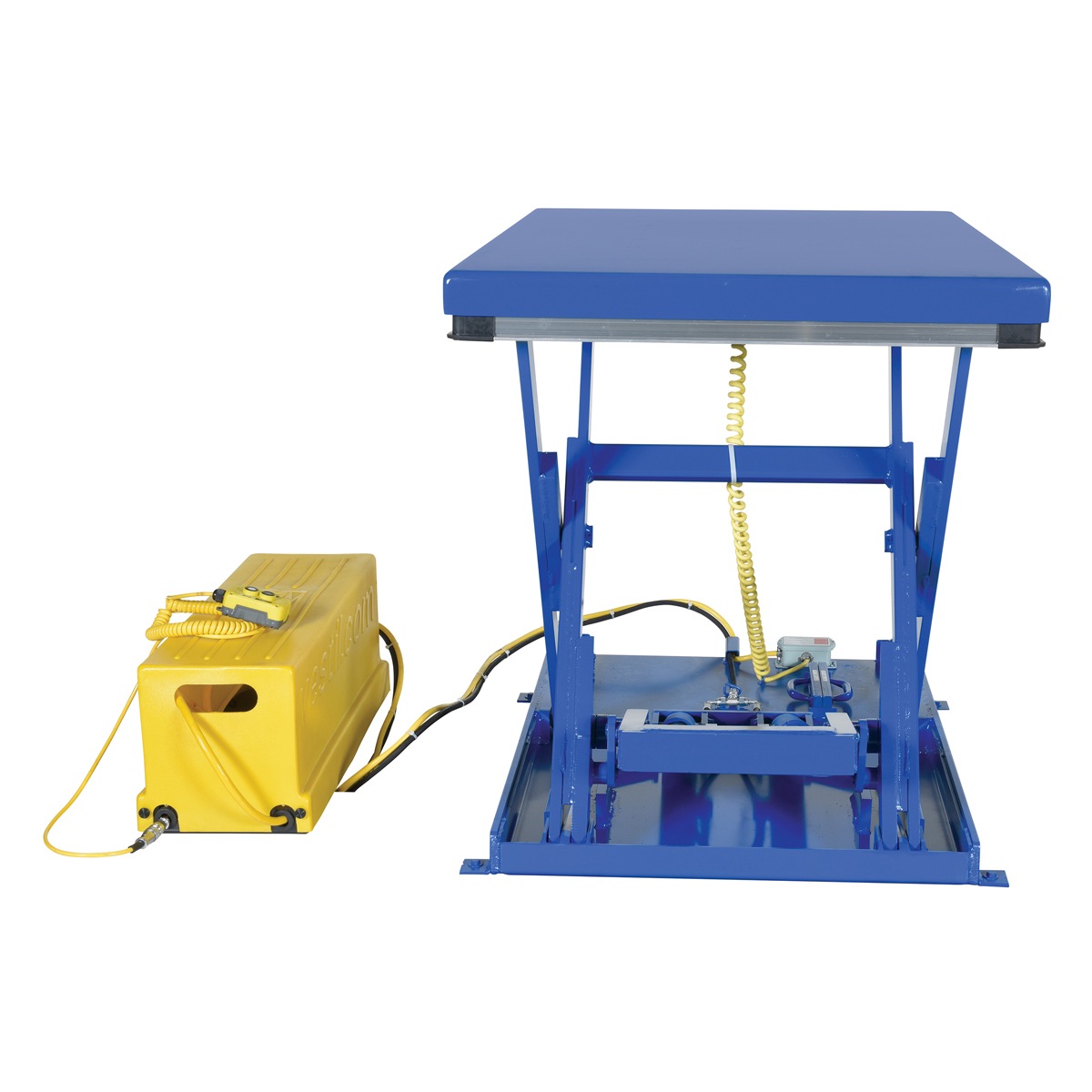

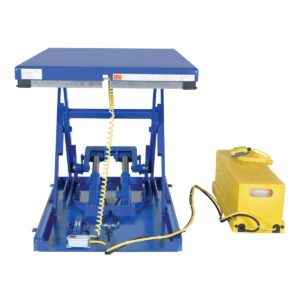

Vestil Low Profile Electric Lift Table

The Low Profile Electric/Hydraulic Scissor Lift Table loads and unloads skids with a pallet truck without the need for a pit when using the optional approach ramp. The superior engineering features rugged durability with safety features that include: electric perimeter pinch point guard, emergency stop velocity fuse in cylinders, handheld control and maintenance supports. The remote power unit comes complete with a plastic cover to protect the motor from dust and debris.

• Loads and unloads skids without the need for a pit
• Features entry-side electric toe guard to protect pinch points
• Includes velocity fuse to maintain platform height
• Plastic cover protects motor from dust and debris

Specification

• Uniform Capacity (lb.): 2,000
• Raised Height (in.): 39
• Travel Time (sec.): 14
• Vertical Travel (in.): 35-3/4
• Voltage/Phase: 460/3
• Handheld Control Voltage: 24V AC

Documents

Click for Manual

Click for EHLTX-3653-2-39 Approval Drawings

Click for EHLTX-4853-2-39 Approval Drawings

Click for EHLTX-6060-2-39 Approval Drawings
