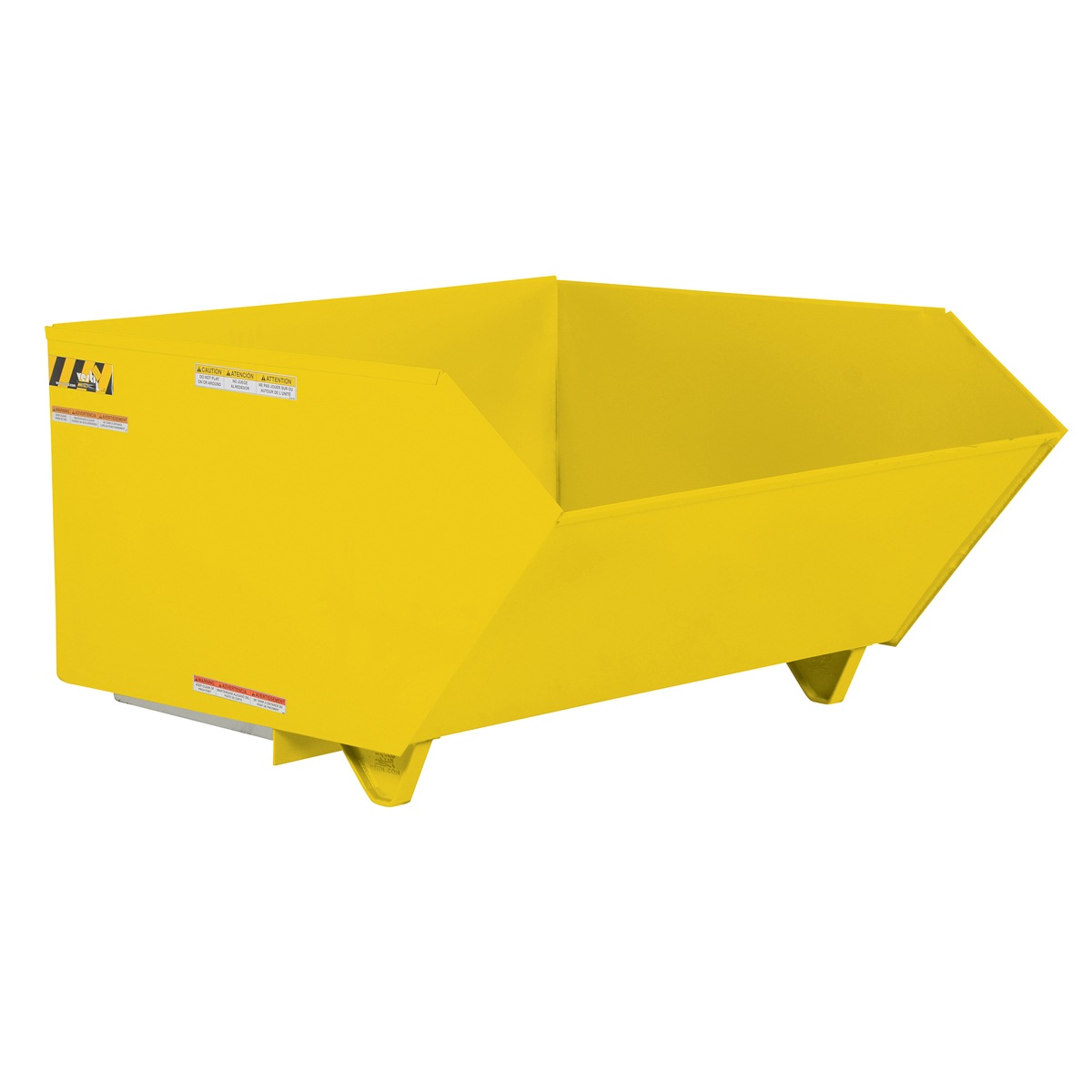

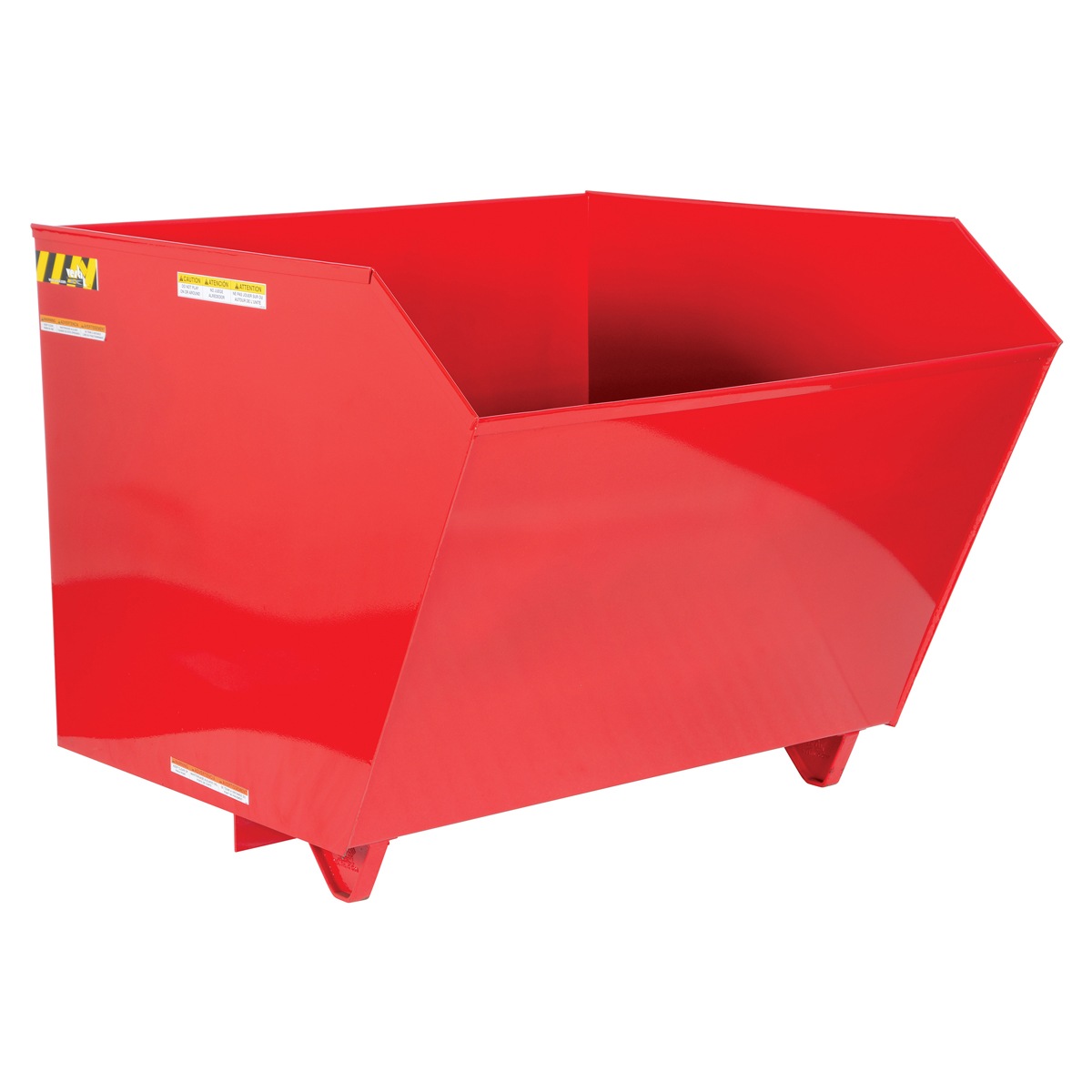

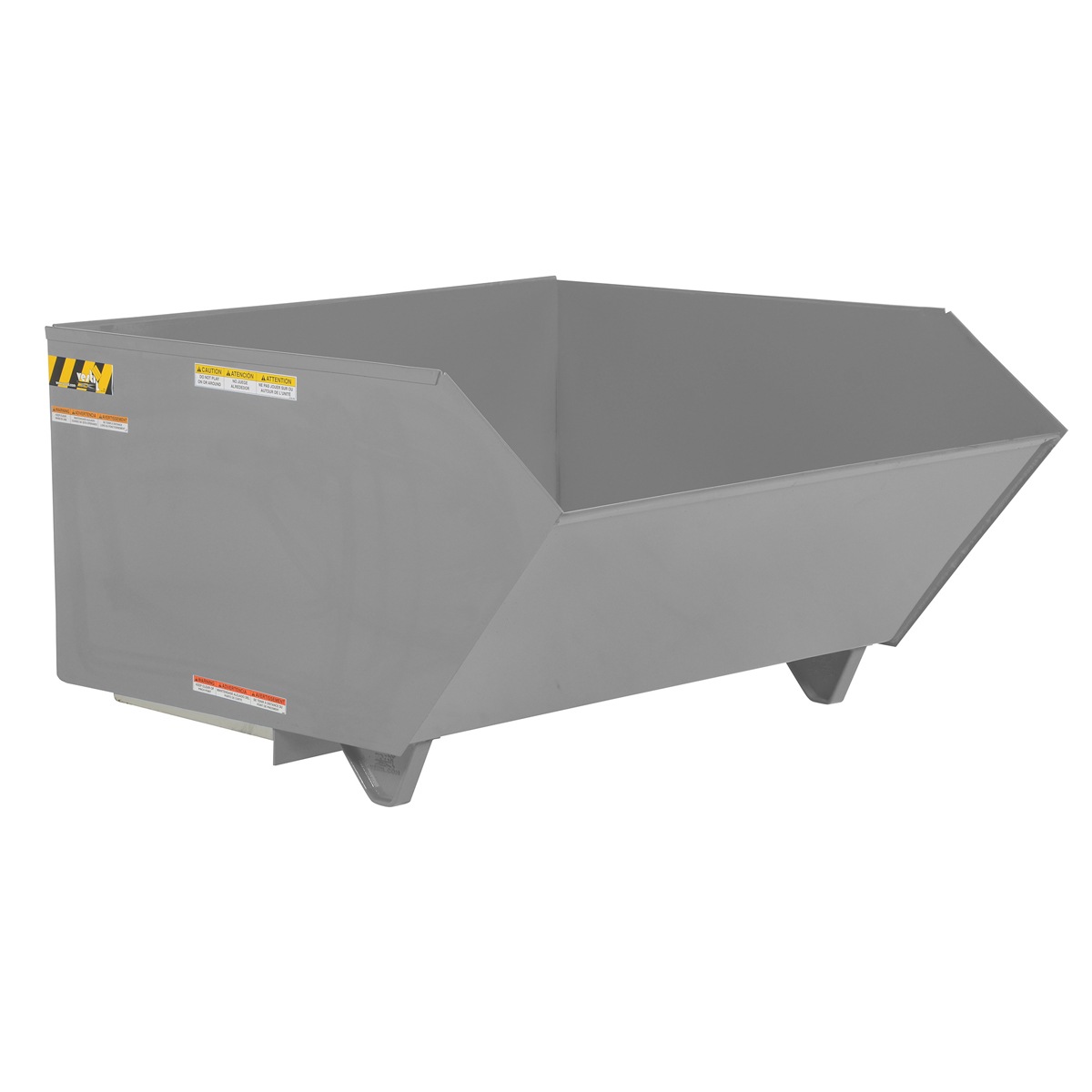

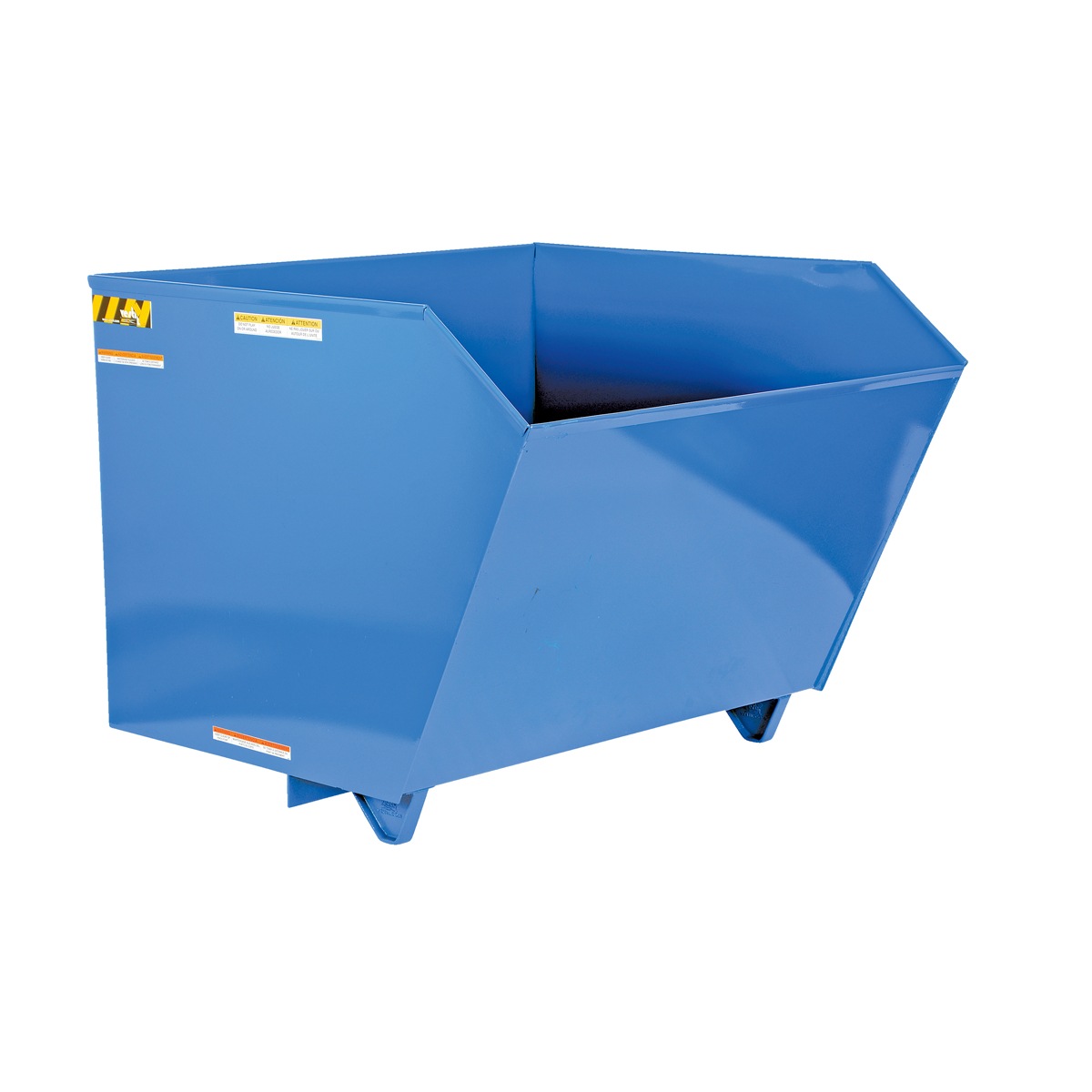

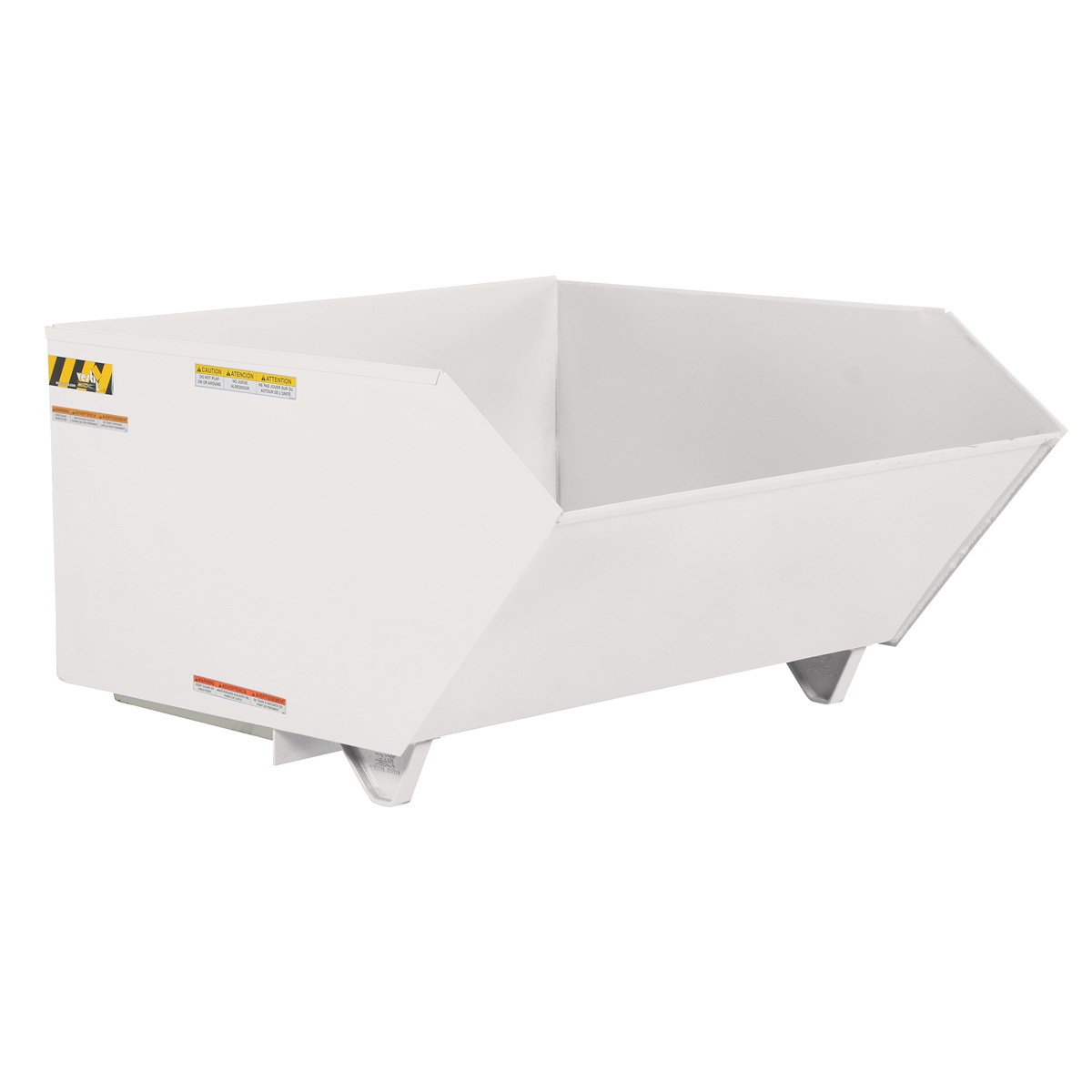

Vestil Low Profile Hopper LD 1.5 CU Yard

The Light Duty Low Profile 90° Self-Dumping Steel Hopper feature a full ninety (90) degree dump angle with a cushioned rubber bumper stop. The low profile design is essential for convenient loading. Dumping with a fork truck is quick and simple. A cable is pulled from the seat of the fork truck to dump the hopper. The unit returns to an upright and locked position when lowered to the ground. Fork pockets are 22″ long and are capped on the end to allow for 90° dump. The included safety restraint/chain must be securely attached to the lift truck carriage without slack. Models with same overall width may be stacked. For example, Models H-25 may be stacked with H-50’s, the H-100’s can be stacked with H-150’s, while the H-200 hoppers can only be stacked with other H-200 series models. Never stack hoppers more than 3 high.

• Low-profile design makes loading easier
• Included manual pull-cable dumps hopper from seat of fork truck
• Full 90° dump angle returns to upright position when lowered to ground
• Features heavy-duty latch mechanism for worker safety

Specification

• Uniform Capacity (lb.): 2,000
• Steel (gauge): 12
• Volume (cu. yd.): 1-1/2
• Fork Pocket Center (in.): 21-5/8
• Usable Fork Pocket Length (in.): 22
• Usable Fork Pocket Width (in.): 7
• Usable Fork Pocket Height (in.): 2
• Front Lip to Floor (in.): 26-15/16
• Formed Base Thickness (in.): 1/4
• Pull Cable Length (ft.): 4

Documents

Click for H-150-LD Approval Drawings
