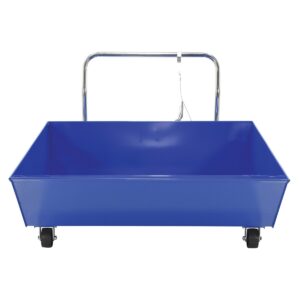

Vestil Low Profile Parts Hopper Yard 2K

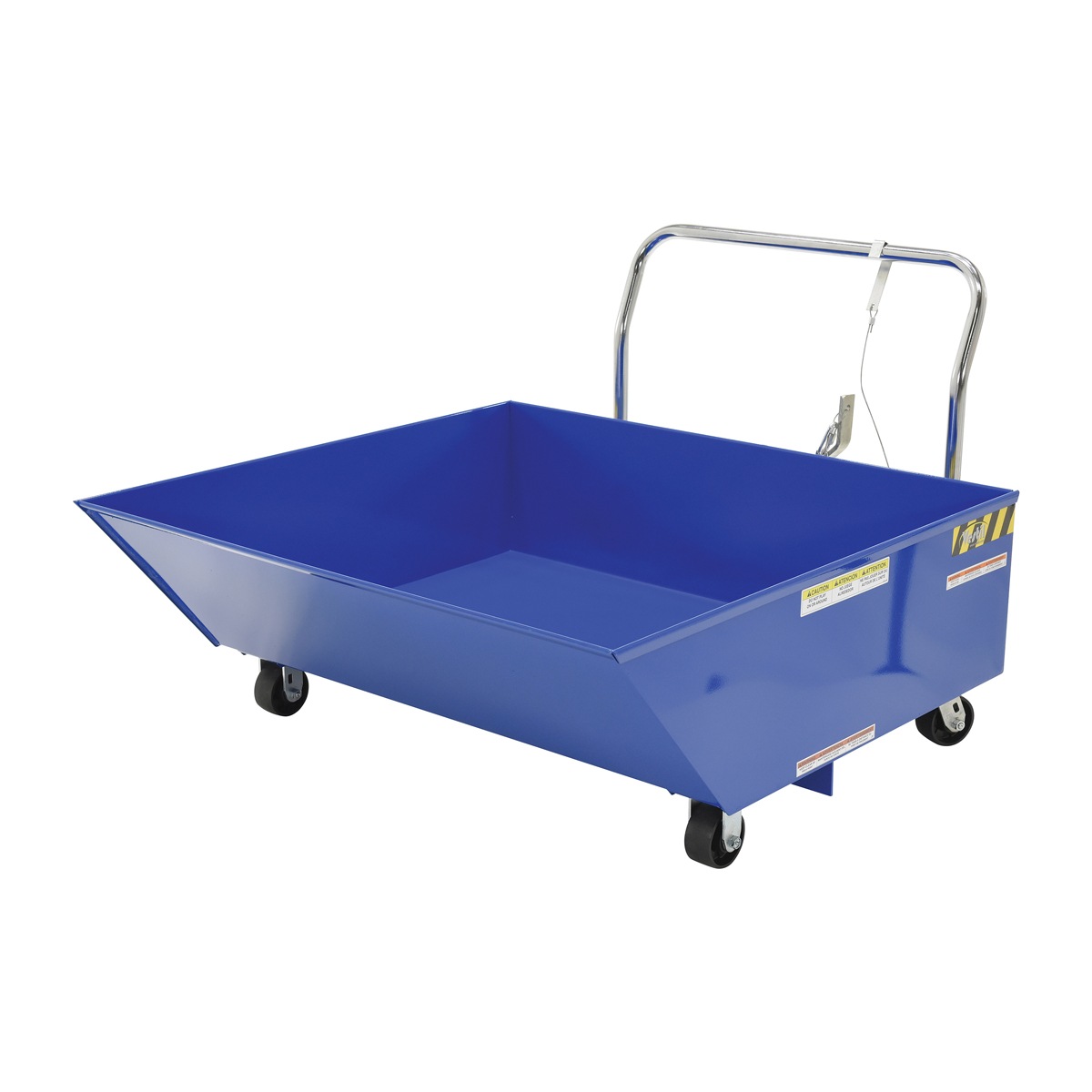

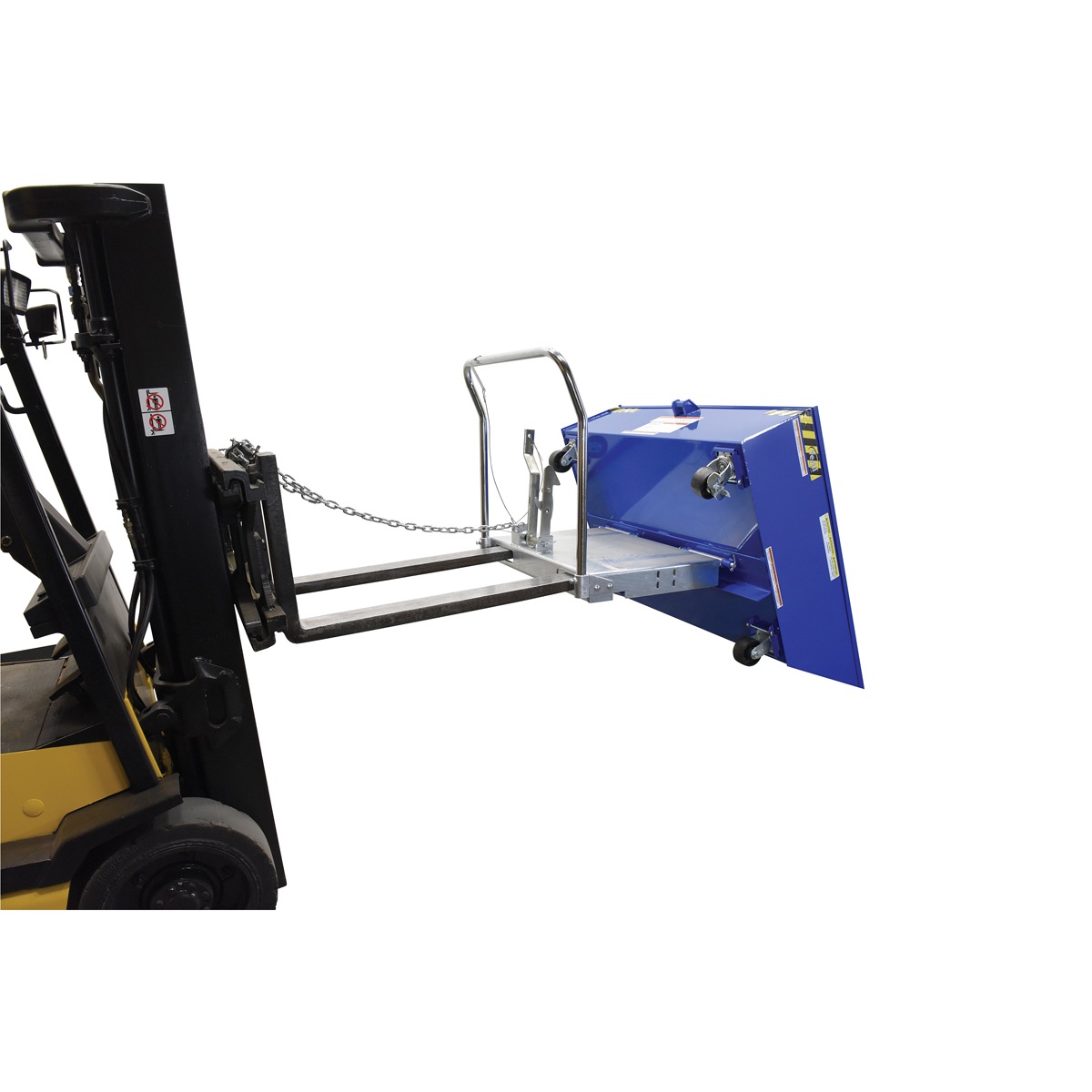

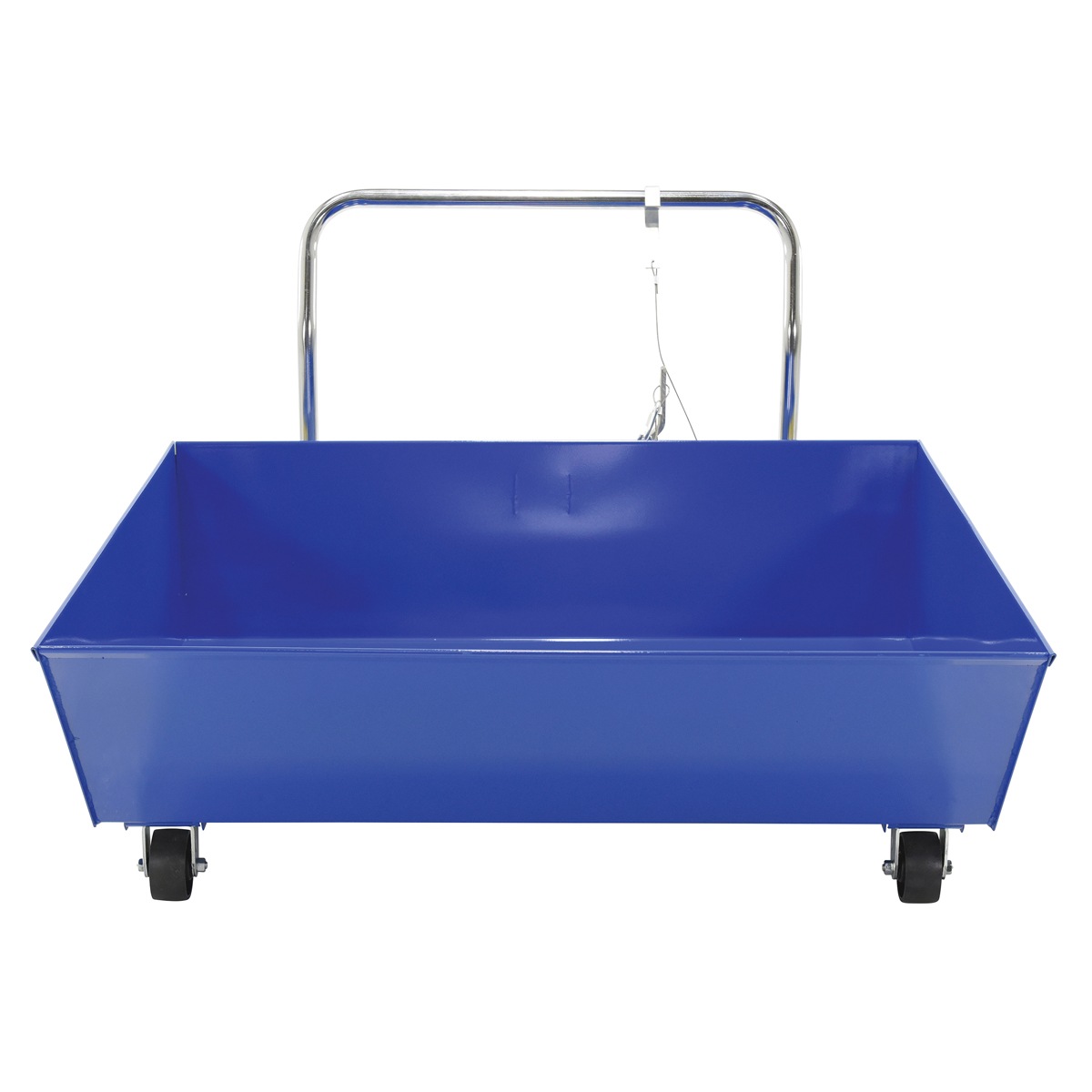

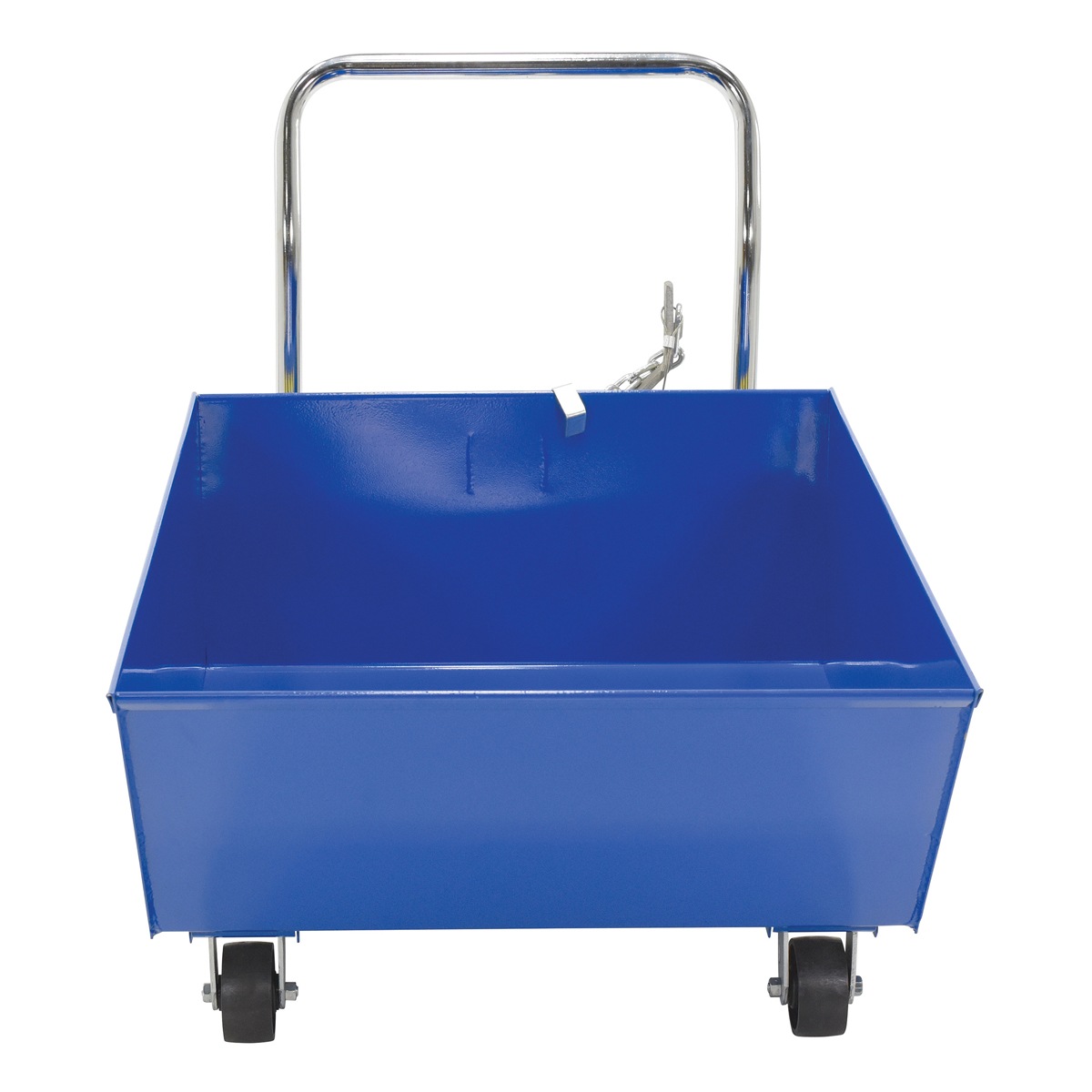

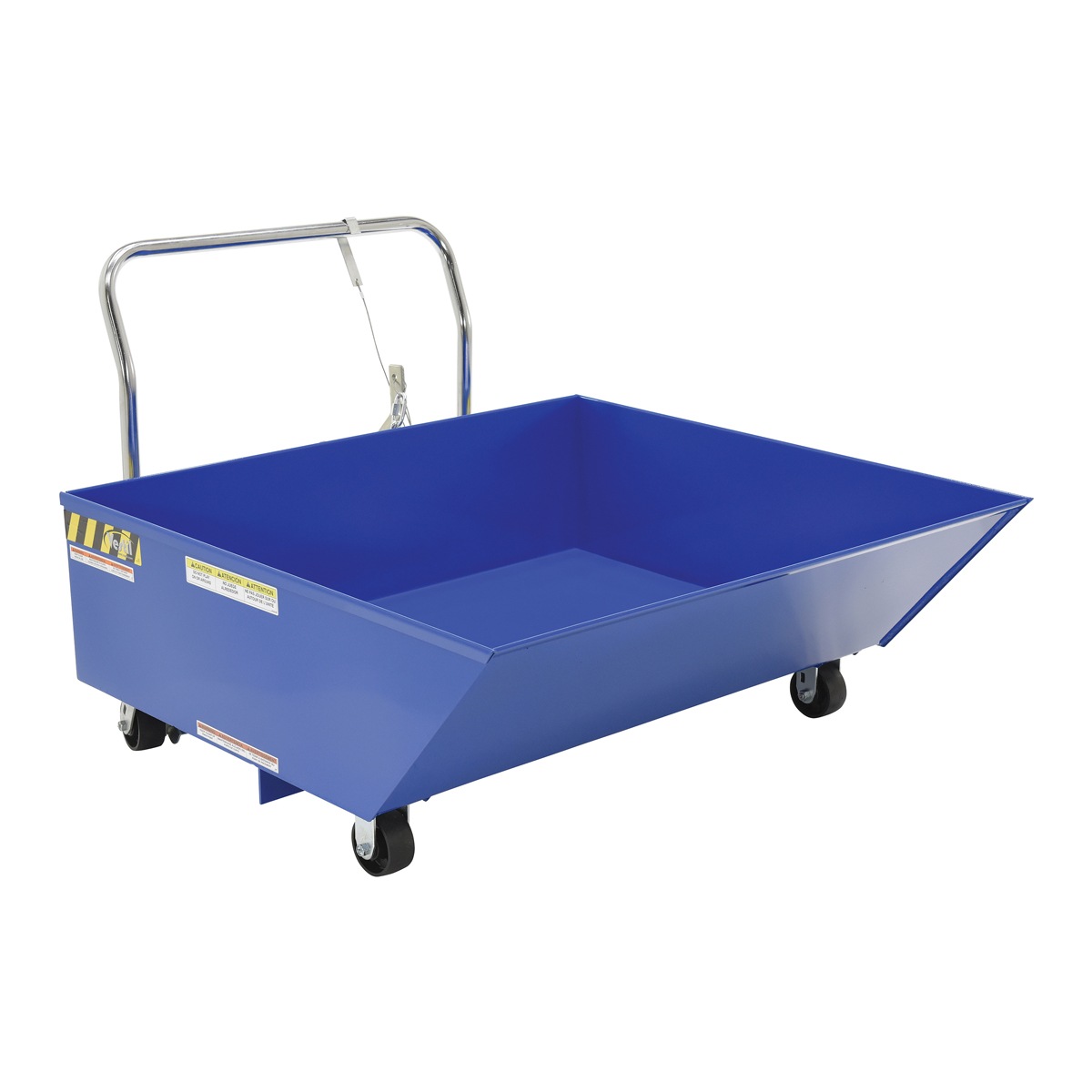

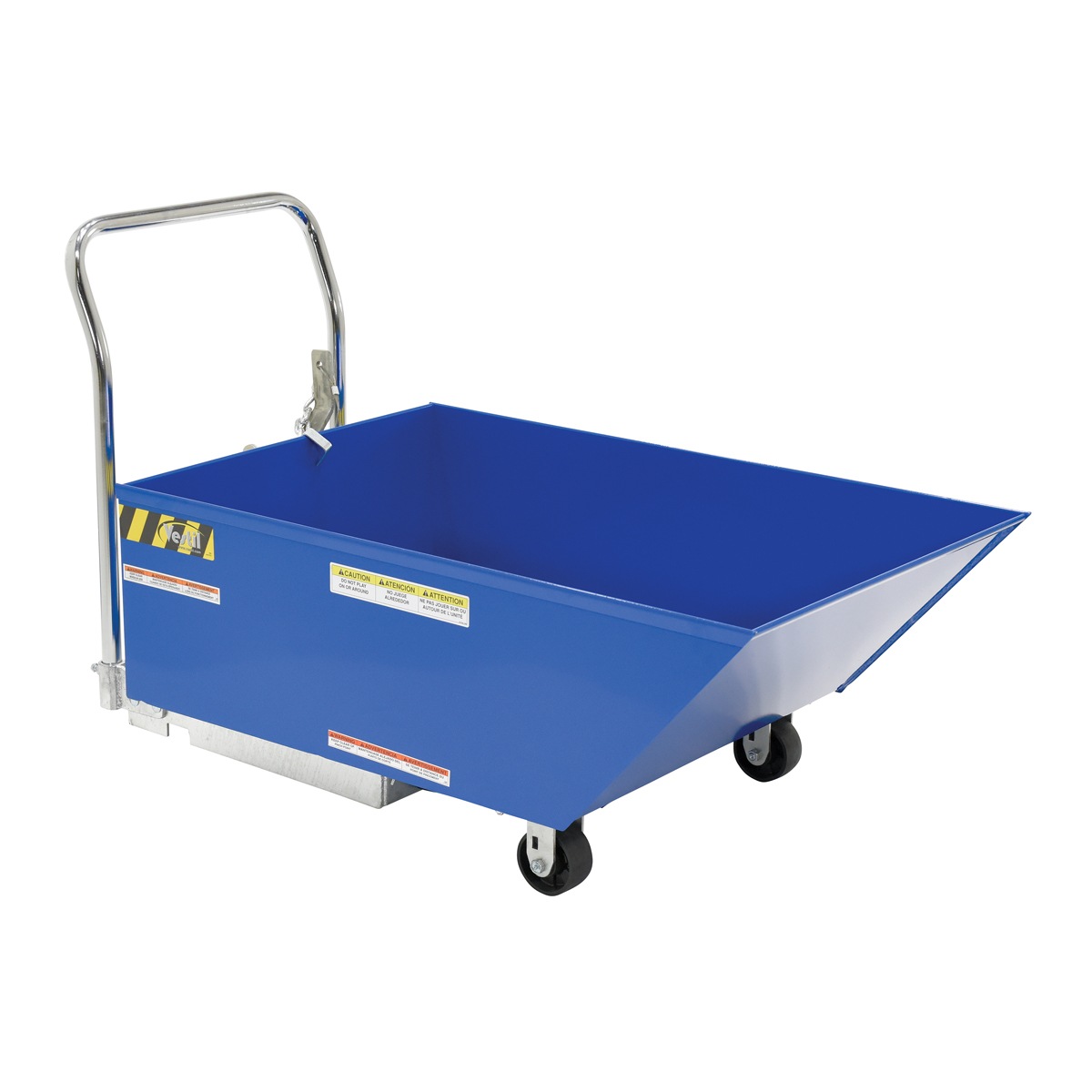

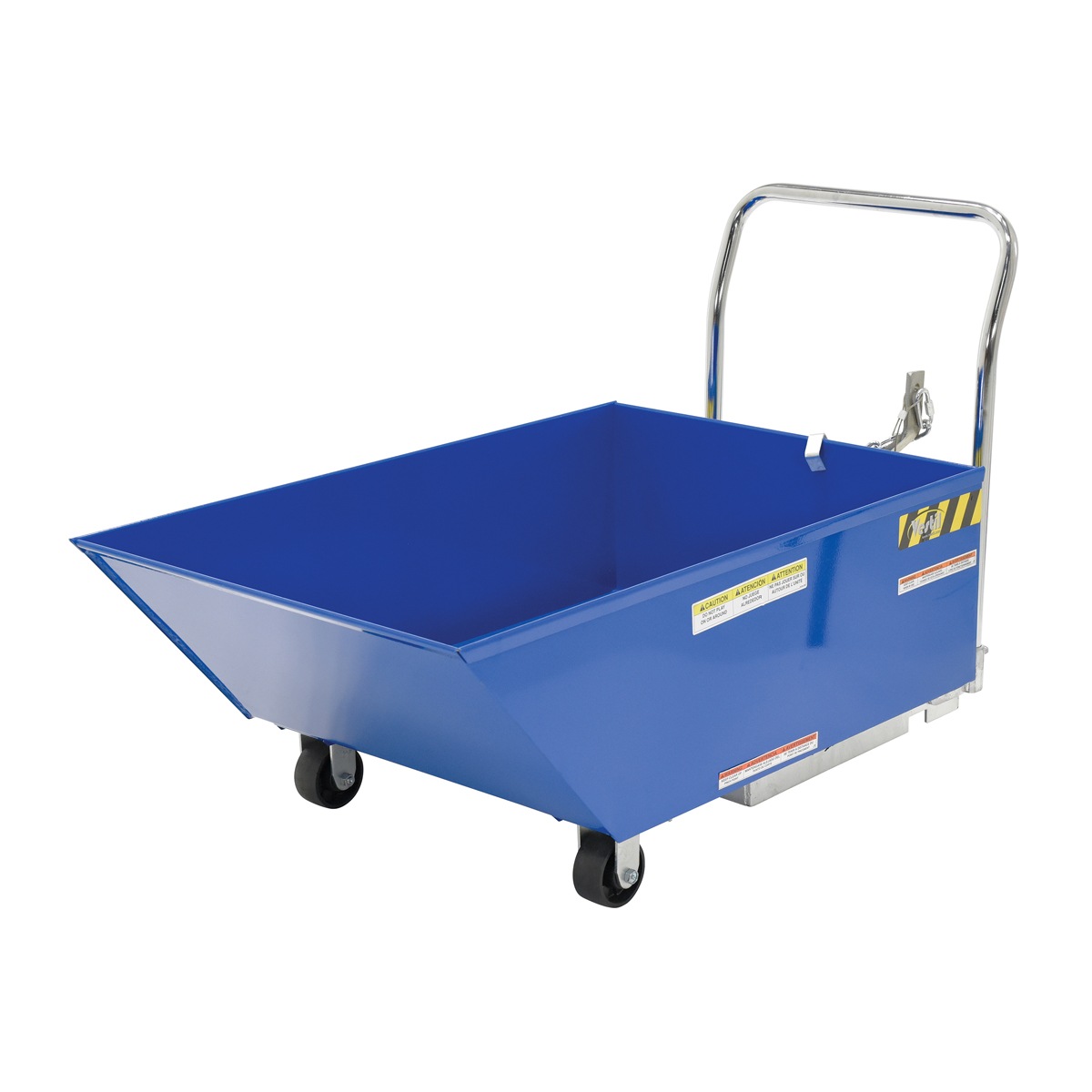

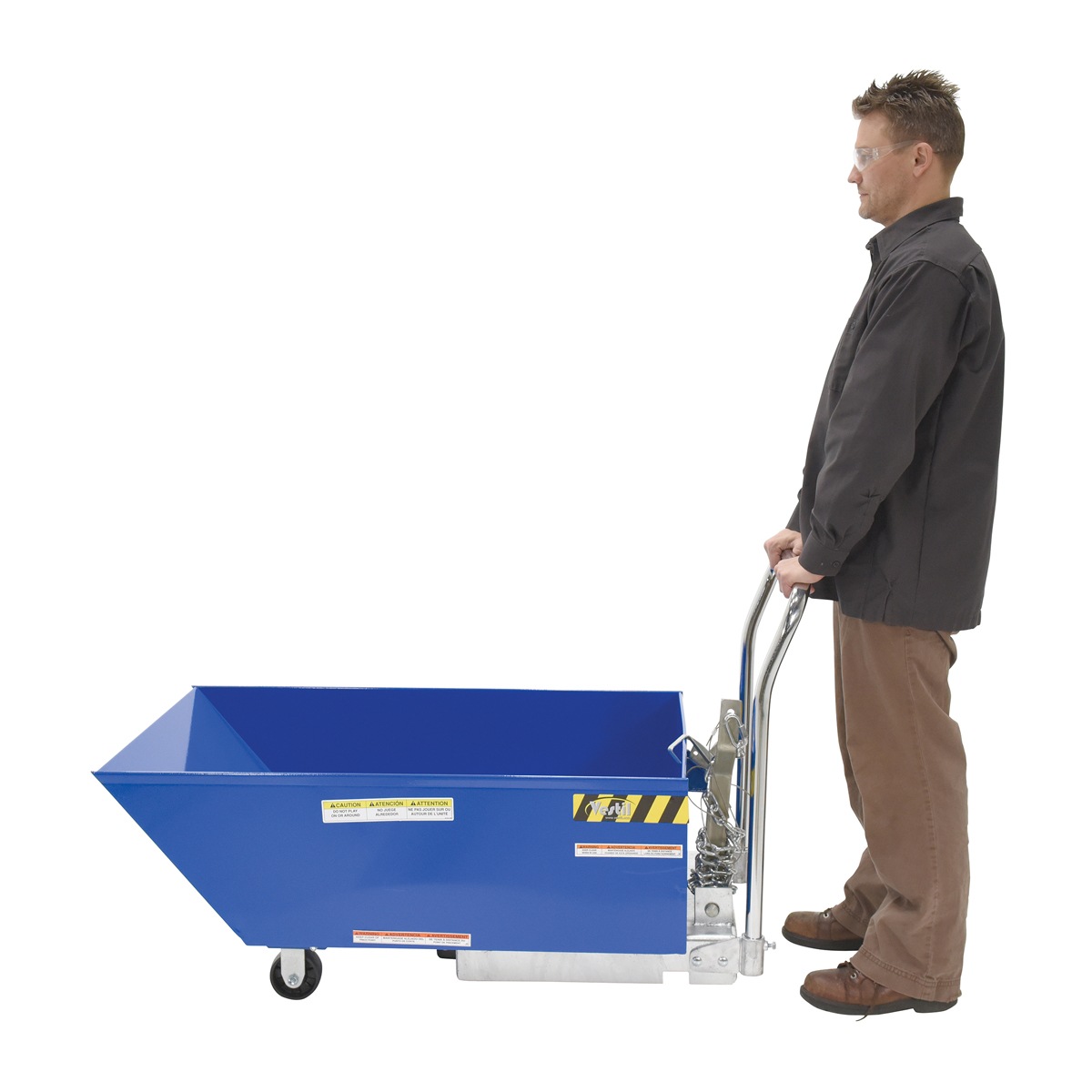

This unique Low Profile Parts Hopper has been designed to function as a parts hopper that may be dumped with the assistance of a fork truck. The low profile design allows the hopper to be placed underneath machinery as a catch basin for parts. The newly designed hopper reduces the hazards, inconveniences, and time associated with collecting parts off the floor. Unit rolls smoothly on casters and includes a removable push handle. Once the material is dumped, the hopper will return to the locked position when lowered to the ground. The included safety restraint should be properly secured to a fork truck before dumping.

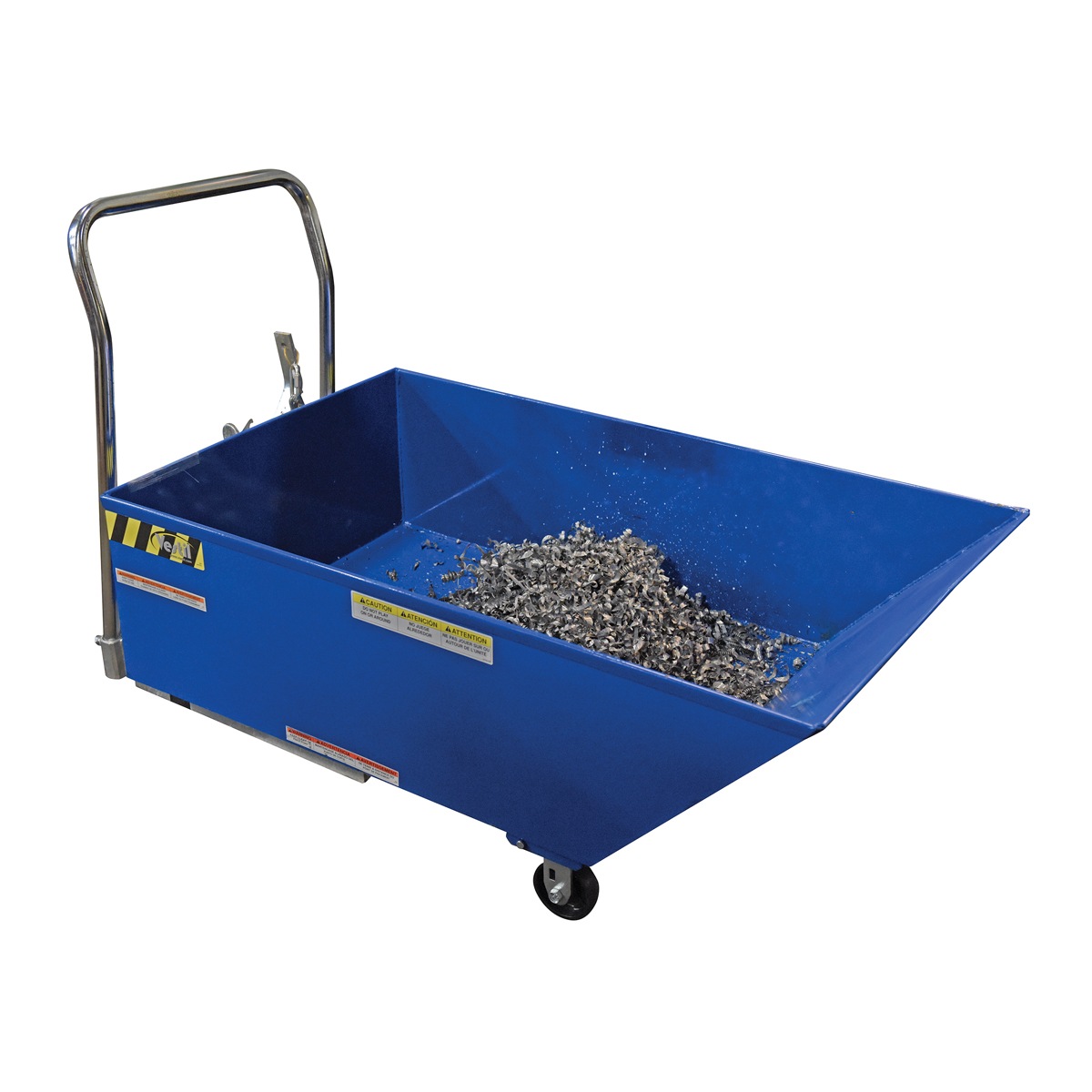

• Special low-profile design catches parts under machinery dispensing chutes
• Unique design returns to upright & locked position when lowered to floor

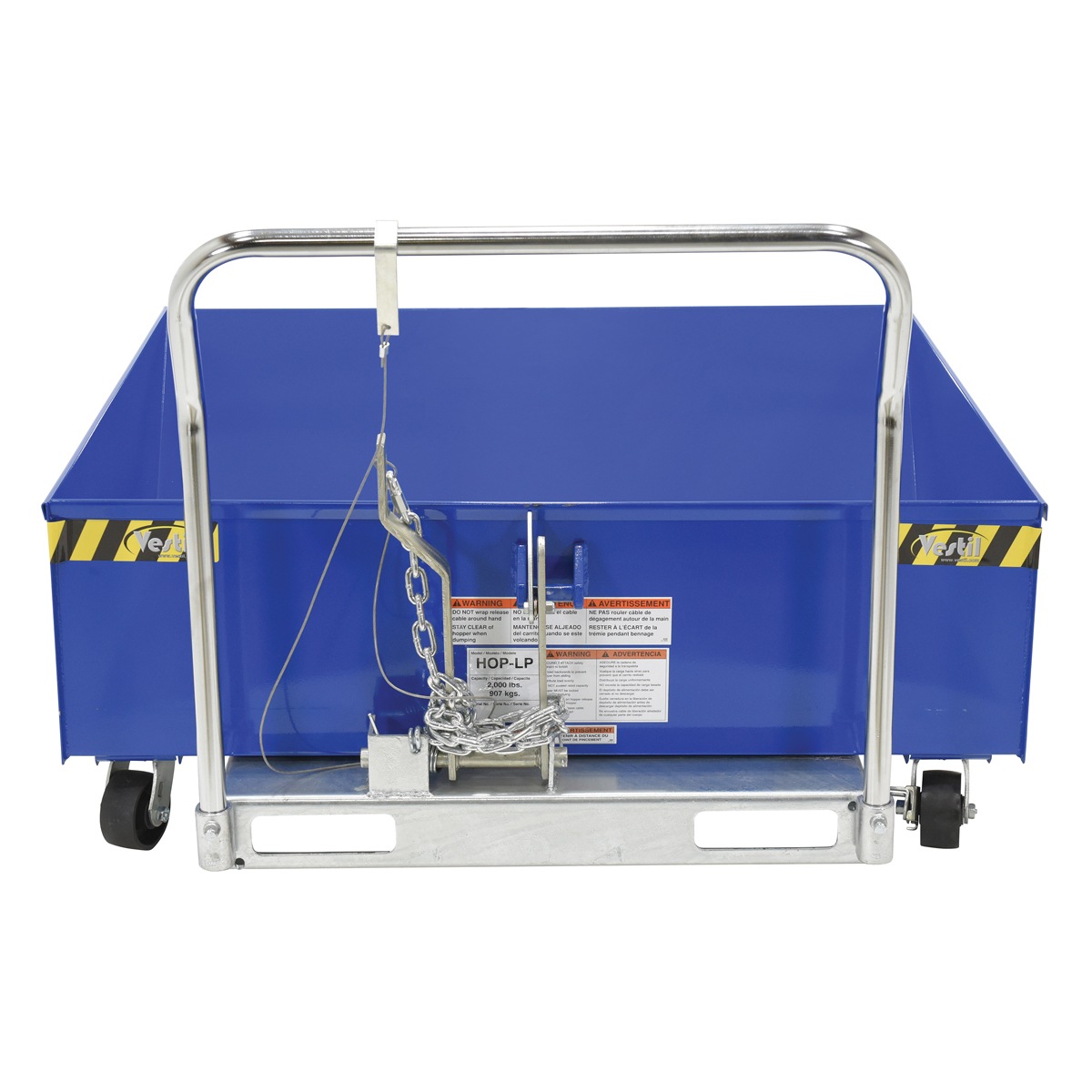

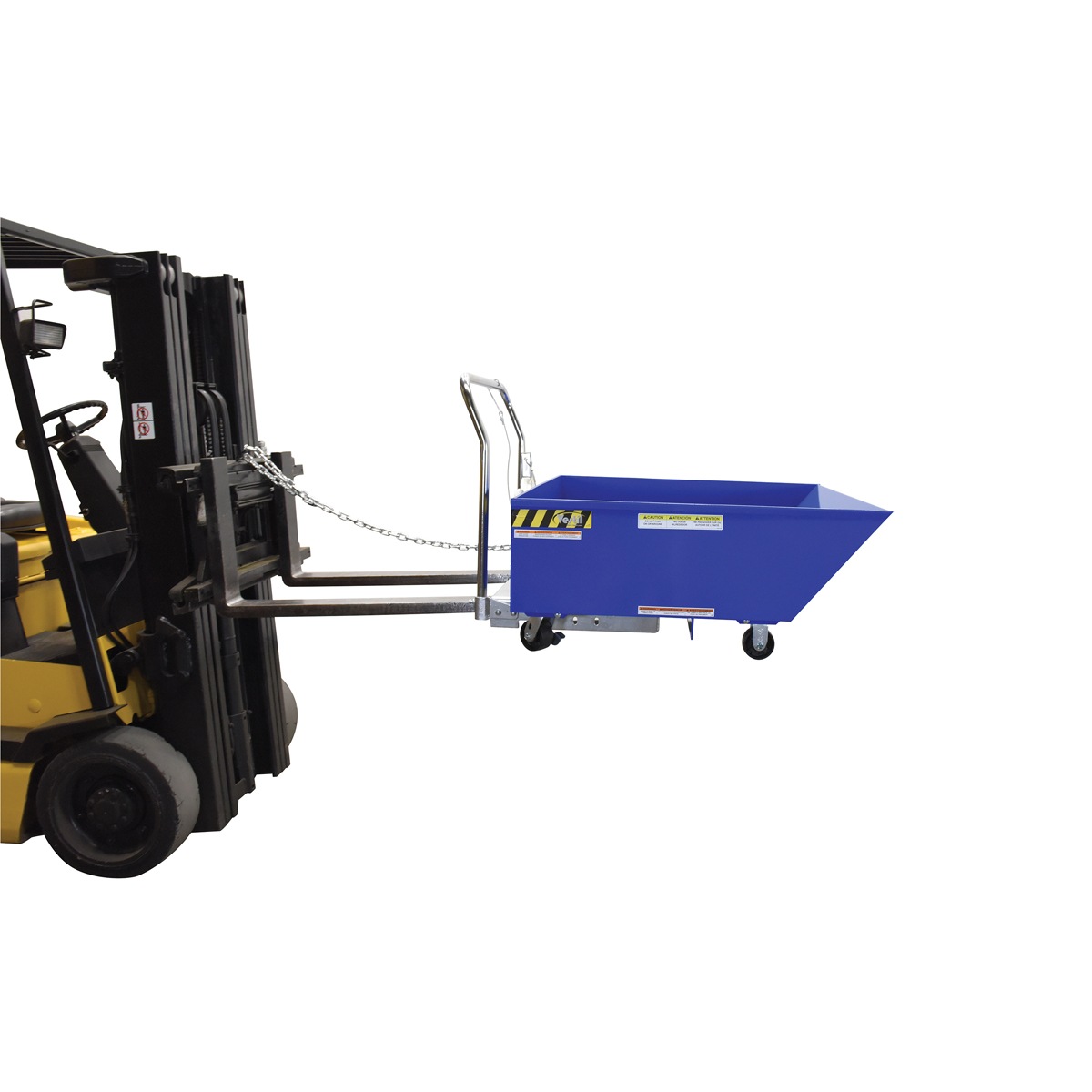

• Safety restraint secures hopper to fork truck
• Two rigid, one swivel and one swivel with brake casters make the unit portable

Specification

• Uniform Capacity (lb.): 2,000
• Fork Pocket Width (in.): 7
• Fork Pocket Height (in.): 2
• Dumping Radius (degree): 90
• Caster Material: Glass Filled Nylon
• Hopper Top Lip Height (chute height) (in.): 19-1/8
• Gauge (in.): 10
