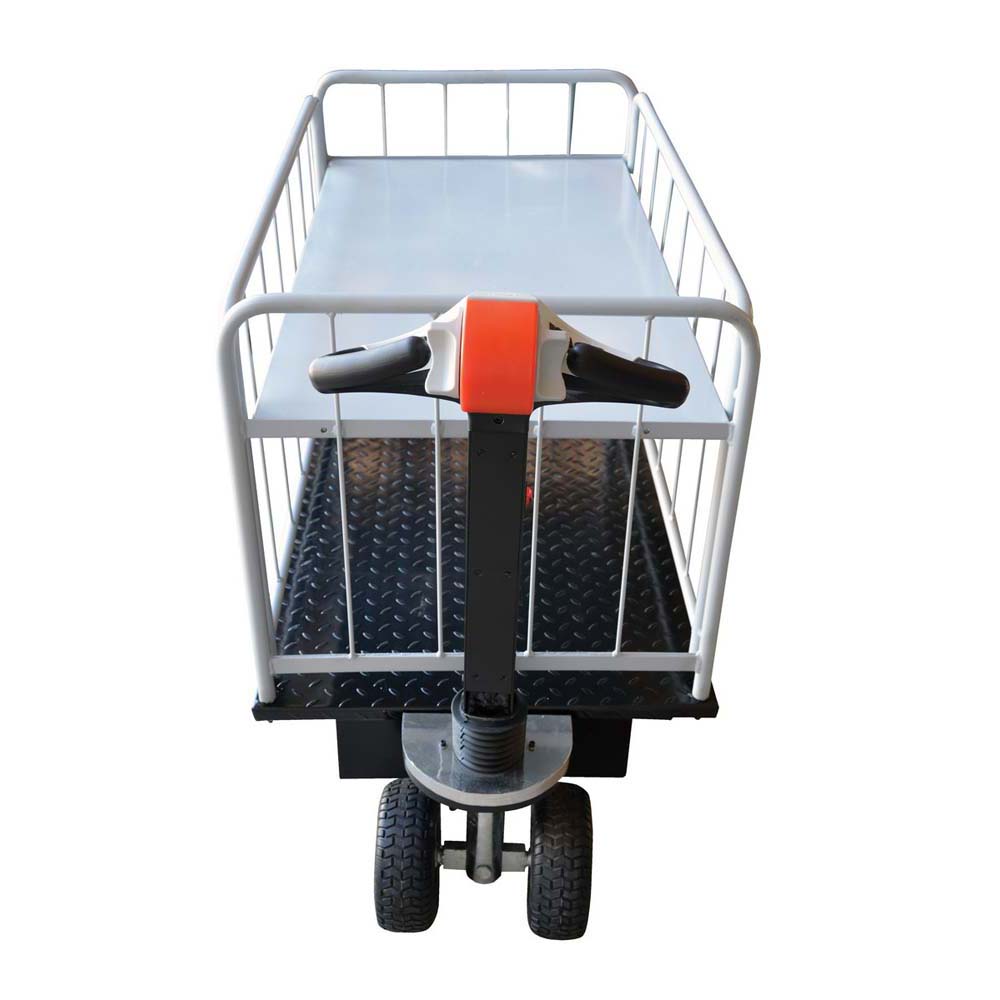

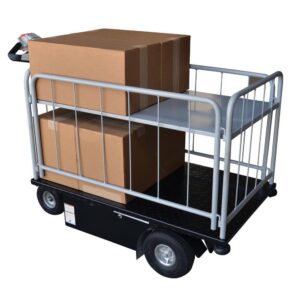

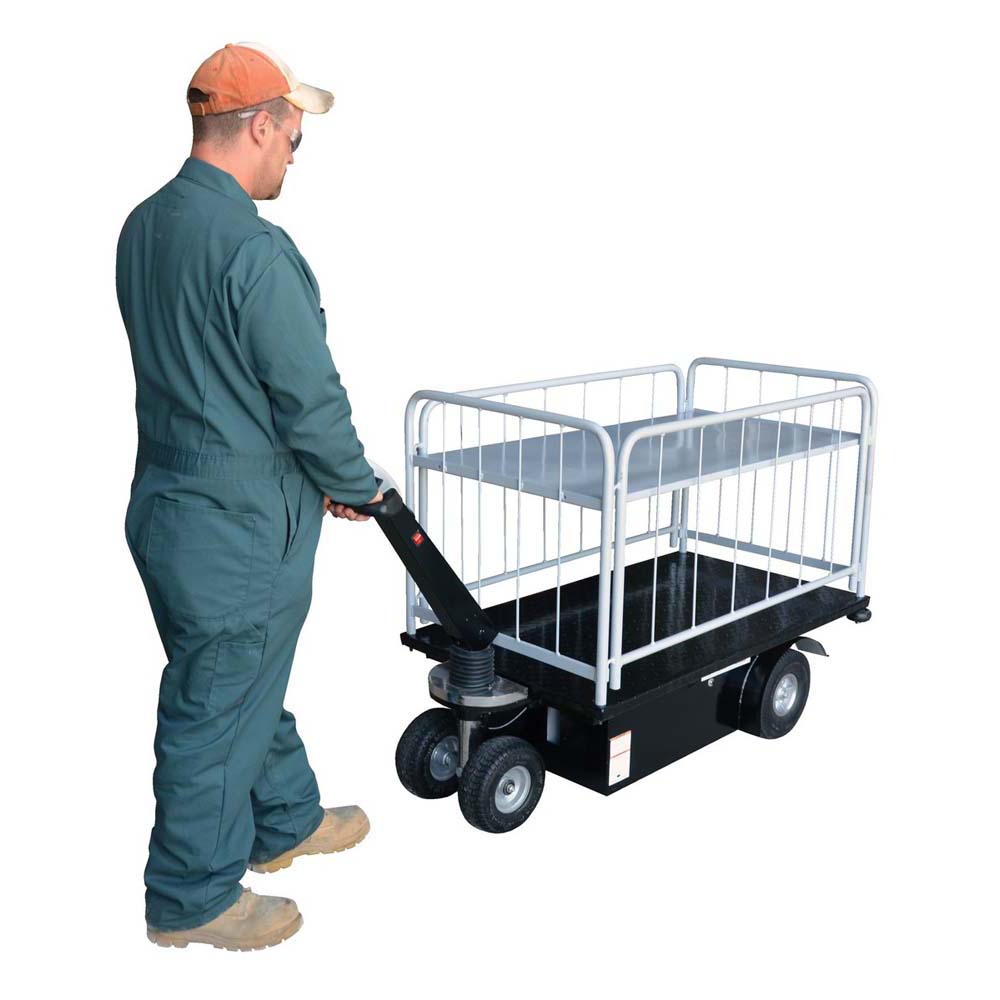

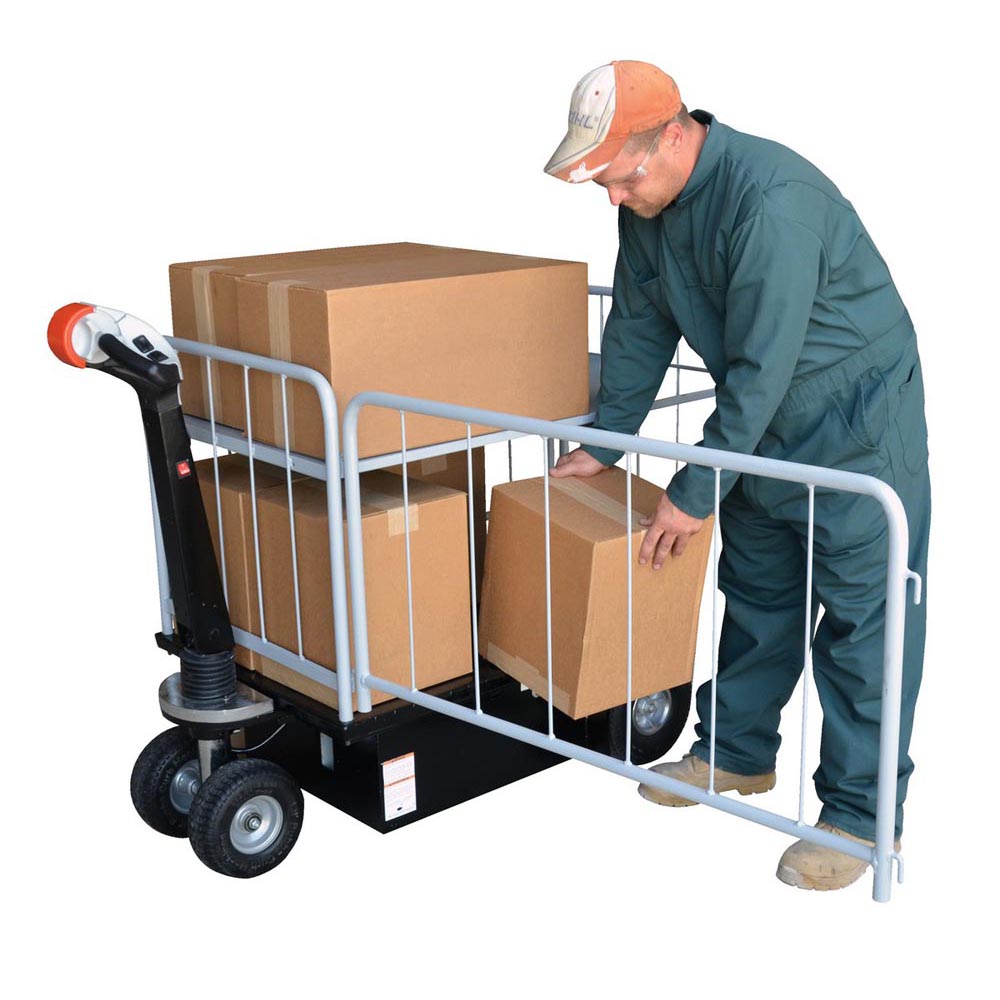

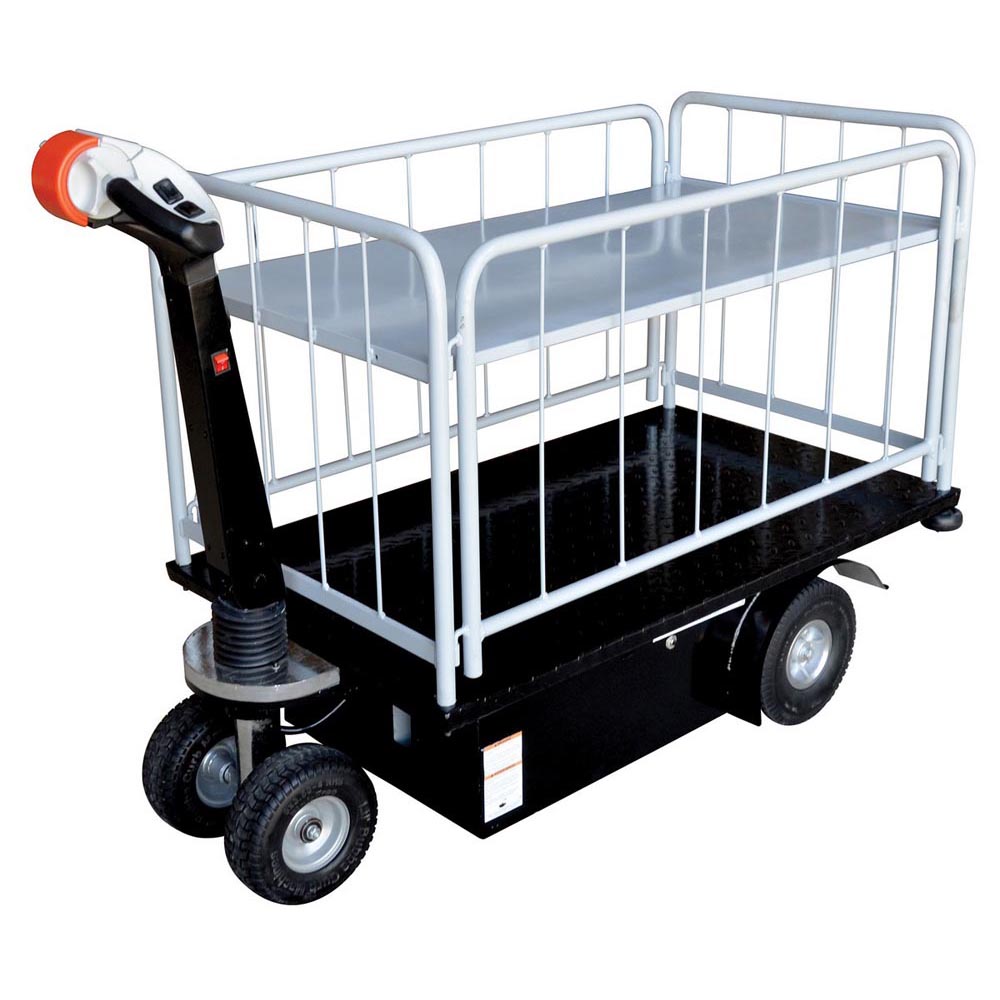

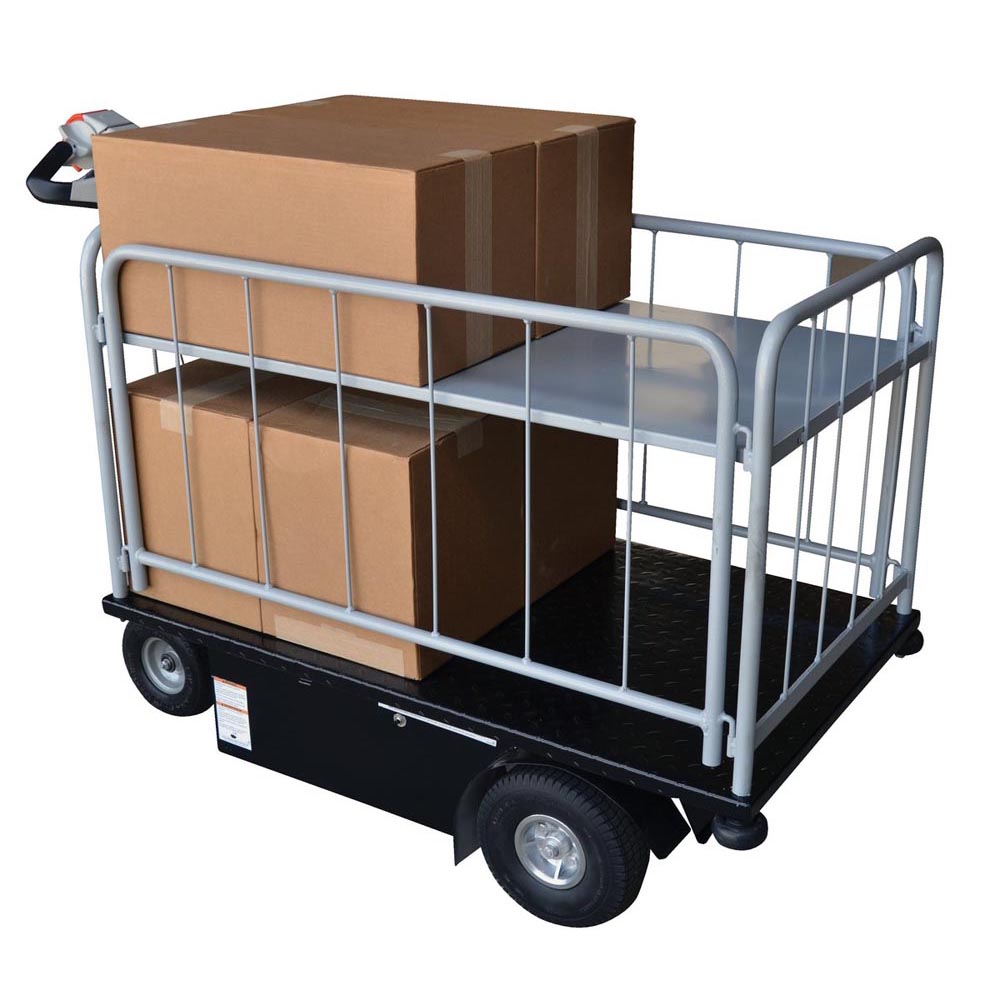

Vestil NE-CART-3 Traction Drive Cart-1 Shelf Side Load

This Traction-Drive Cart features built-in traction-drive system for easy transportability. Ideal for applications including mail rooms, hospitals, supermarkets, hotels and warehouses. Features electric drive motor with batteries for power. Internal battery charger is included. Variable throttle speed control for precise maneuvering and positioning is located in the handle. Cart rolls smoothly on non-marking solid foam filled wheels. Speed control is conveniently located in handle. Handle pivots back towards operator and includes horn, automatic brake and emergency stop. Each shelf includes a non-slip tread plate surface. Includes on-board charger and battery level indicator.

• Traction-drive system makes transporting product easy
• Emergency safety stop belly-bump button switch provides added user safety
• Variable throttle speed control provides precise maneuvering and positioning
• Battery level indicator signals user when battery gets low

Specification

• Overall Capacity (lb.): 750
• Shelf Capacity (lb.): 250
• Platform Length (in.): 46
• Platform Width (in.): 24-3/4
• Deck Height (in.): 14
• Shelf Height (in.): 33
• Distance Between Platforms (in.): 17-3/4
• Steering Wheel Diameter (in.): 9
• Steering Wheel Width (in.): 3-1/4
• Number of Steering Wheels: 2
• Steering Wheel Type: Solid Foam Tires
• Drive Wheel Diameter (in.): 10
• Drive Wheel Width (in.): 3-1/4
• Number of Drive Wheels: 2
• Drive Wheel Type: Solid Foam Tires
• Handle Height (in.): 44-11/16
• Railing Height (in.): 40
• Fast Travel Speed Loaded (miles per hour): 2.5
• Fast Travel Speed Unloaded (miles per hour): 2.8
• Slow Travel Speed Loaded (miles per hour): 1.3
• Slow Travel Speed Unloaded (miles per hour): 1.5
• Turing Radius (in.): 23-5/8
• Controller Type: Curtis 1228
• DC Drive Motor Voltage / Wattage: 24 / 500
• Battery Type: 12 Volt
• Number of Batteries: 2
• DC Battery Charger Output Voltage / Amps: 24 / 6
• DC Battery Charger Input Voltage: 110
• Frame Height (in.): 25-3/4
• Maximum Incline (degrees): 7
• Hours of Operation at Full Charge: 3-4
• Hours at Full Charge used Intermittently: 8
