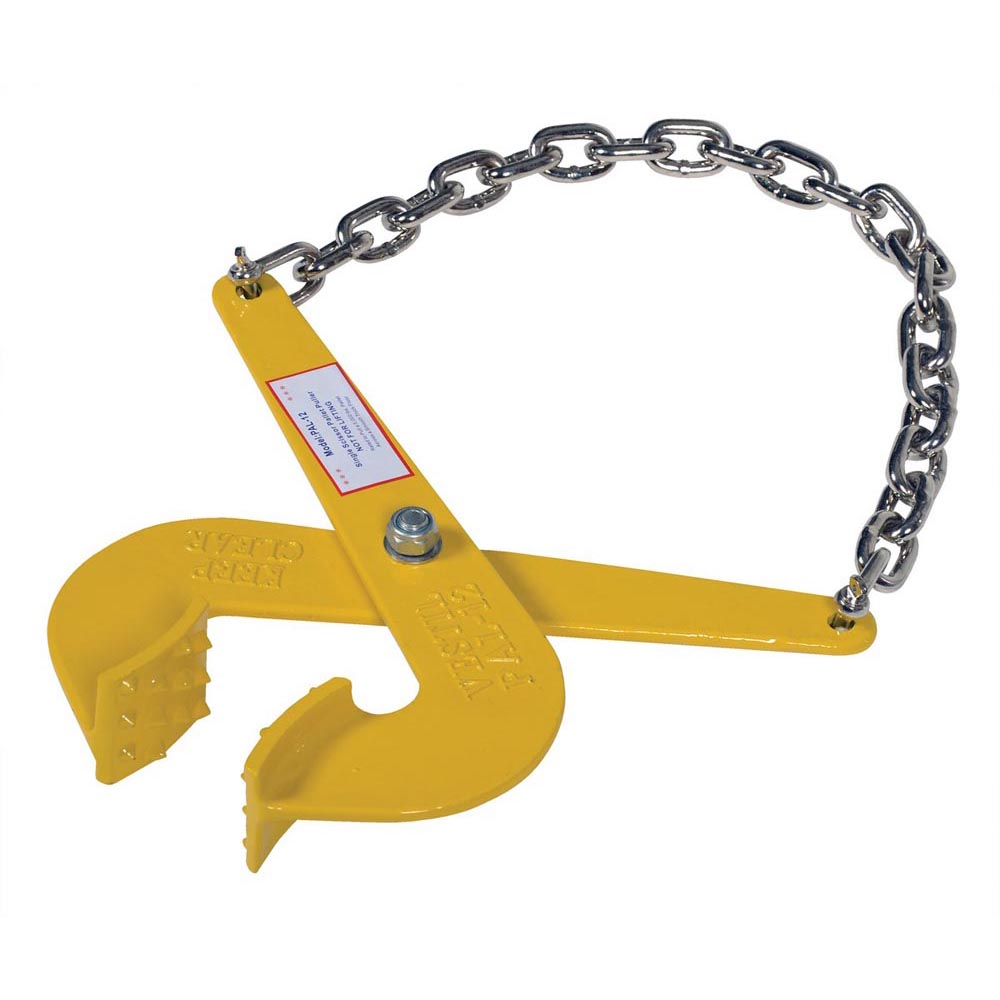

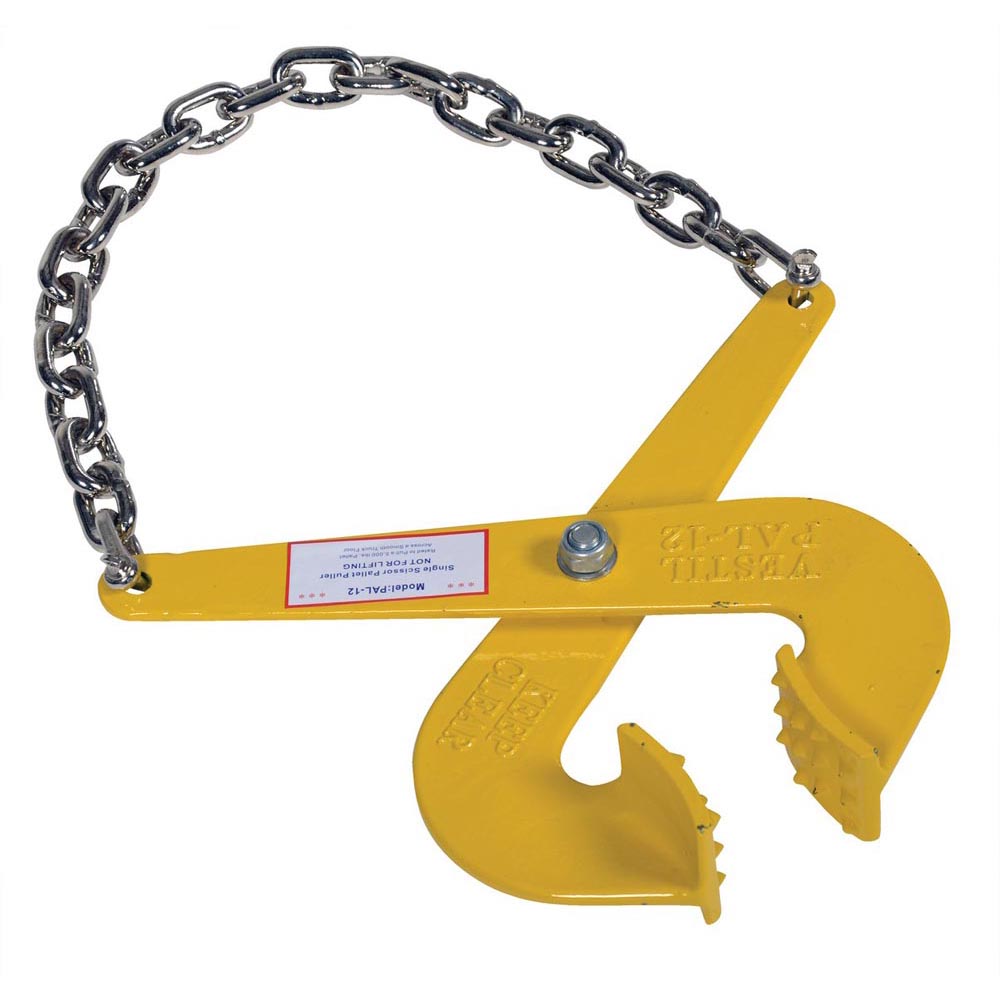

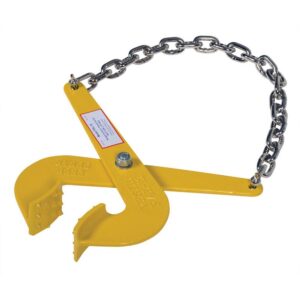

Vestil PAL-12 Single Scissor Pallet Puller 5K 7″ Jaw

The Pallet Puller is used to pull pallets to rear of trailers for easy fork truck access. Made of rugged steel construction. Heads are self-cleaning and unaffected by wood particles, paint or grease. The single scissor action allows for wider jaw opening. The Pallet puller is NOT designed for lifting.

• Self-cleaning head is unaffected by particles or debris
• Heavy-duty capacity can easily pull heavy loads
• Solid steel construction provides rugged long lasting use
• Puller design pulls pallet across a smooth truck floor with ease

Specification

• Uniform Pulling Capacity (lb.): 5000
• Teeth Pad Height (in.): 2-3/4
• Teeth Pad Length (in.): 3-1/4
• Jaw Opening (in.): 7
• Closed Width (in.): 15
• Closed Height (in.): 15
• Scissor Type: Single
• Maximum Jaw Opening (in.): 7-3/4
• Overall Chain Length (in.): 30
• Arm Thickness (in.): 1/4
• Chain Length (in.): 27-1/4
• Minimum Stringer Height (in.): 2-7/8 +

Documents

Click for PAL-12 Approval Drawings

Click for Manual
