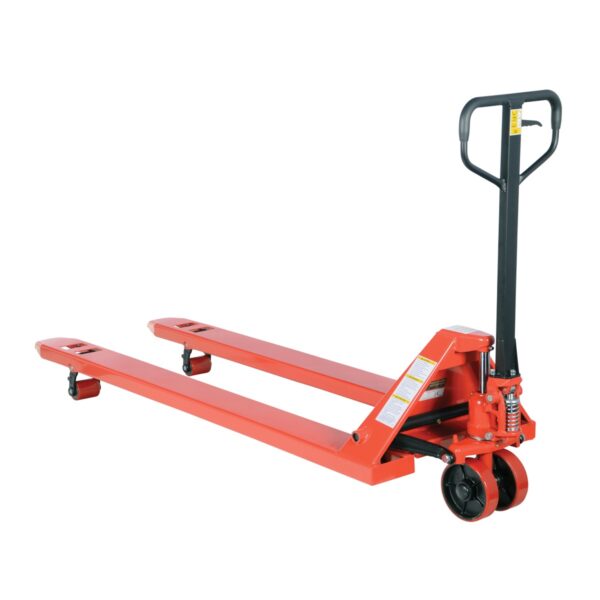

Vestil PM4-2772 Full Featured Pallet Truck 4.4K 27″ X 72″

The Full Featured Pallet Truck is an economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two (2) articulating steering wheels and two (2) front load rollers. The ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded. Steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. The unit is equipped with internally mounted solid steel adjustable push rods. The spring loaded handle automatically returns to vertical position when not in use. Hydraulic pump design facilitates easy-access seal replacement. Chrome-plated hydraulic pump piston for long seal life.

• Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
• Steering wheels include bearing dust covers for added life
• Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
• Chrome-plated hydraulic pump piston for long seal life

Specification

• Uniform Capacity (lb.): 4400
• Overall Fork Width (in.): 27
• Overall Fork Length (in.): 72
• Lowered Height (in.): 2-7/8
• Raised Height (in.): 7-3/4
• Individual Fork Width (in.): 7
• Steer Caster Material: Poly-On-Steel
• Steer Caster Diameter (in.): 7
• Steer Caster Width (in.): 2
• Load Roller Material: Steel
• Load Roller Diameter (in.): 3
• Load Roller Width (in.): 1-1/2

Documents

Click for PM4-2772 Approval Drawings
