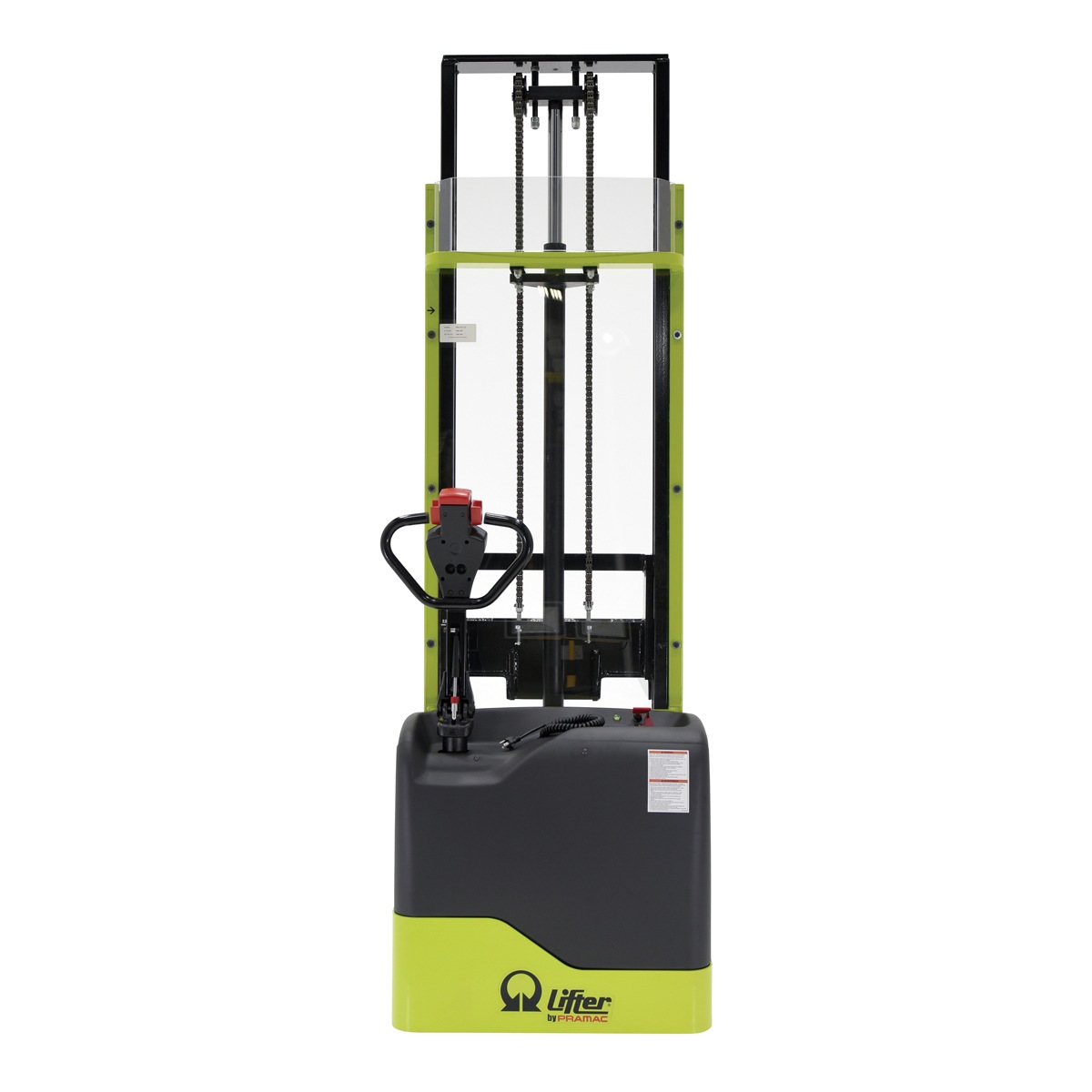

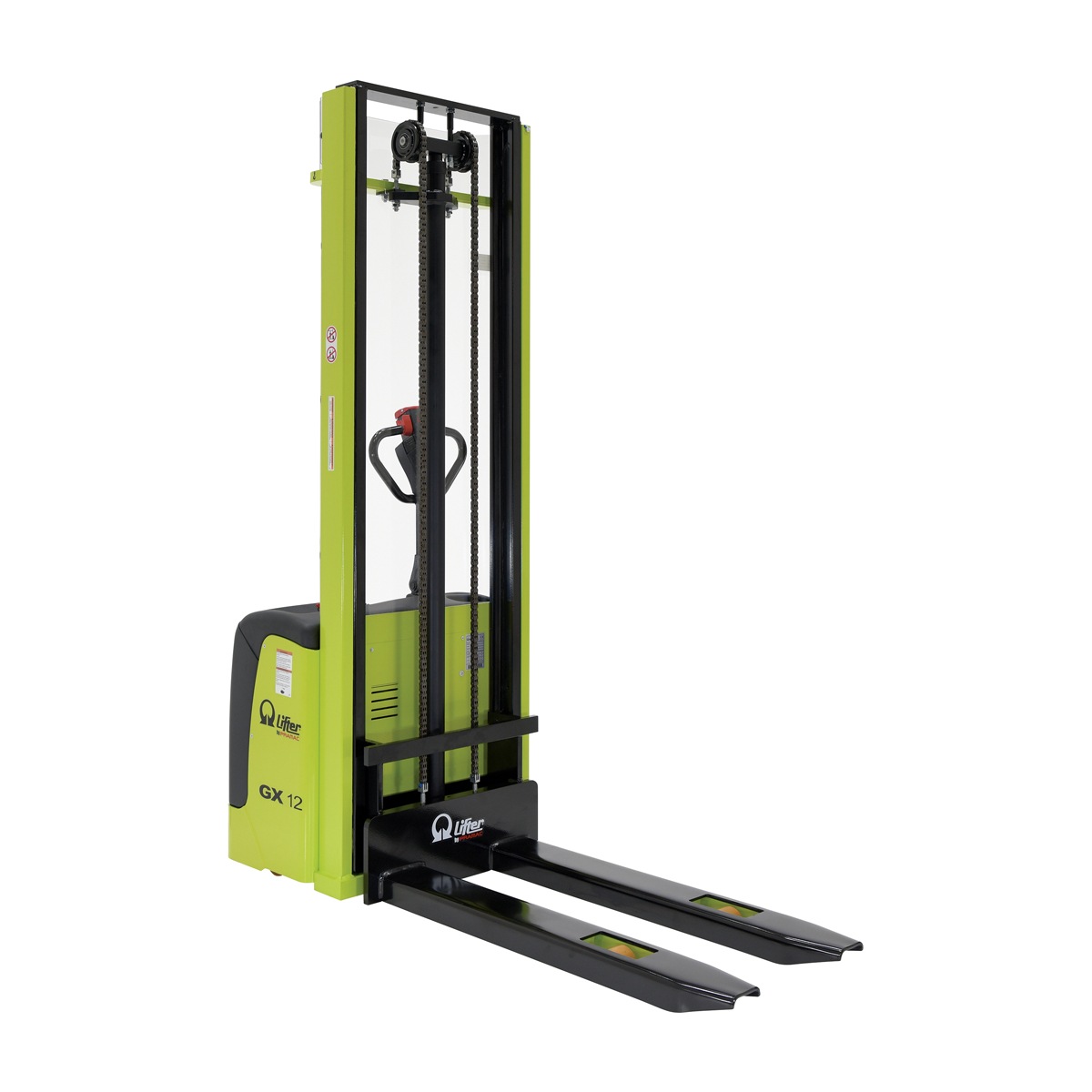

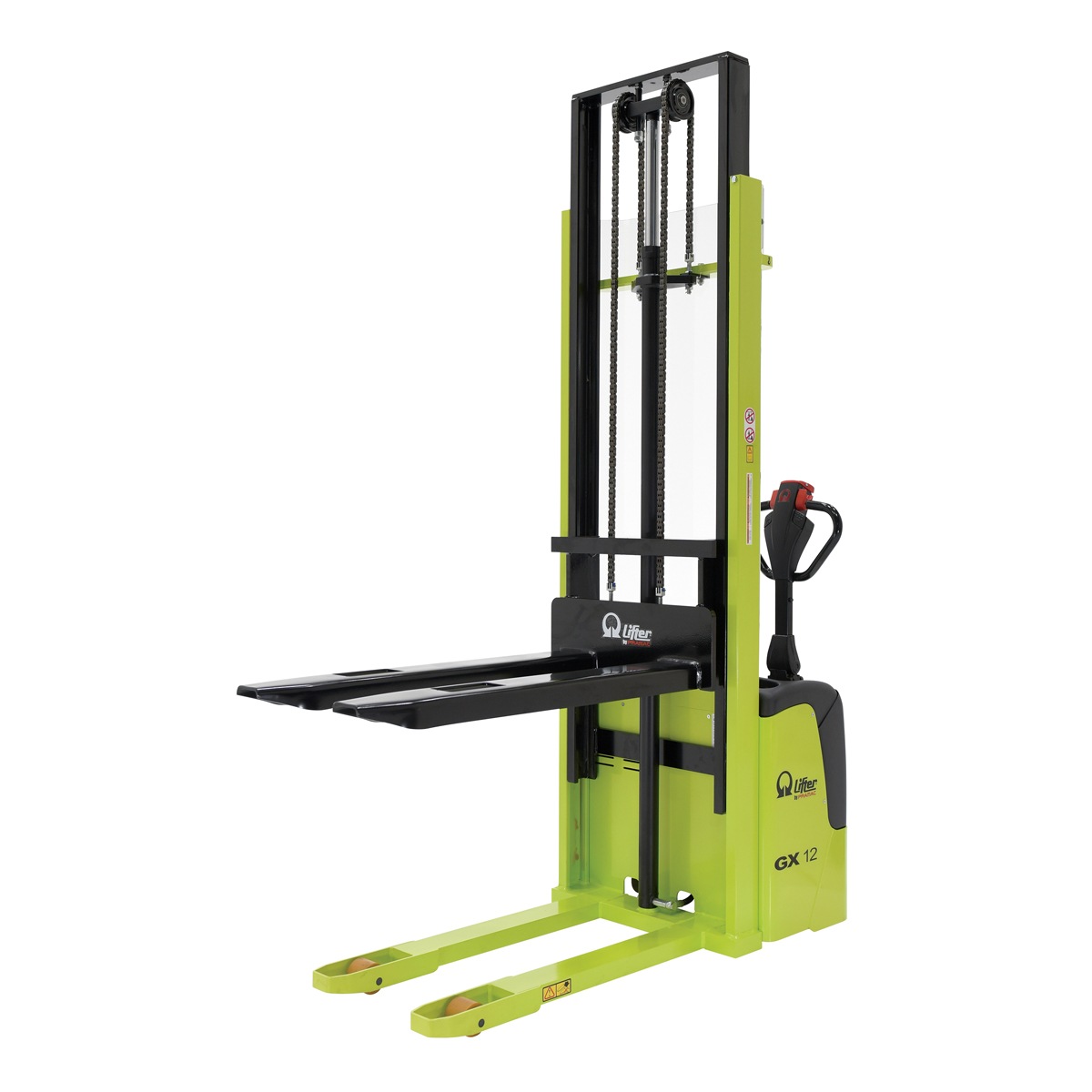

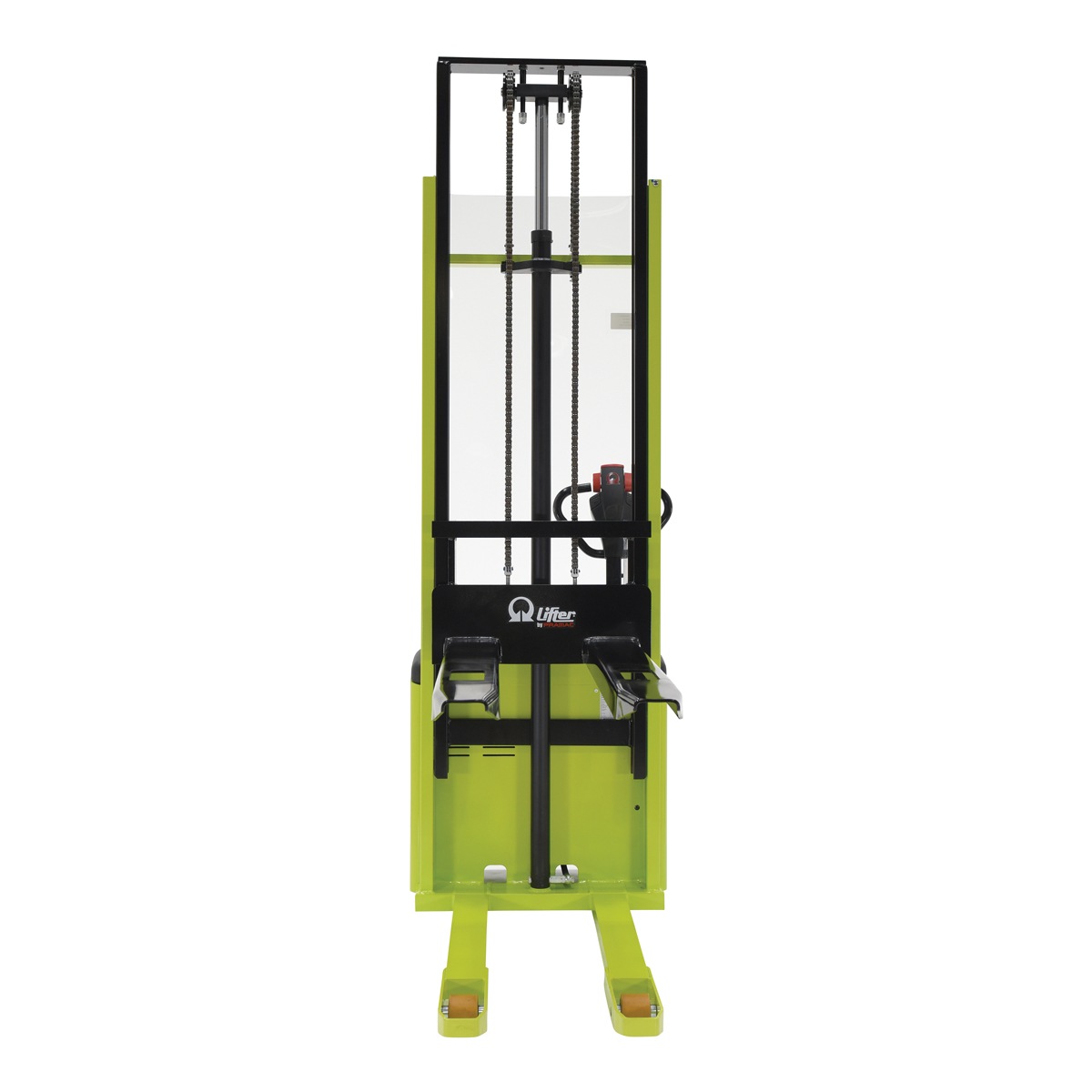

Vestil PMC-S-FF-137 Pramac Fork Over DC Stacker 22 X 45

The Self-Propelled Electric Stacker is great for distribution and shipping facilities. The unit raises and moves products from work area to work area, with ease. A bright finish allows the units to be visible to other personnel, both near and far. The unit is constructed of steel for strong, durable use on a daily basis. To use, simply slide the forks under the preferred products and lift to the desired height and maneuver to the chosen location.

• Steel construction for strong stability
• Green finish for discernibility
• Brightly lit battery notification
• Forks for lifting skids and baskets

Specification

• Uniform Capacity 0″ to 62″ Raised Height (lb.): 2500
• Uniform Capacity 63″ to 137-1/2″ Raised Height (lb.): 1500
• Service Range (in.): 3-1/2 to 137-1/2
• Fork Width/Length (in.): 22 x 45
• Fork Width (in.): 6
• Handle Height (in.): 52-1/4
• Handle Diameter (in.): 1.3
• Handle Type: Adjustable
• Drive Caster Type: Swivel
• Drive Caster Diameter (in.): 10
• Drive Caster Width (in.): 3
• Drive Caster Material: Rubber
• Front Caster Type: Rigid
• Front Caster Diameter (in.): 3-1/4
• Front Caster Width (in.): 2-3/4
• Front Caster Material: Rubber
• Rear Caster Type: Swivel
• Rear Caster Diameter (in.): 6
• Rear Caster Width (in.): 1-1/2
• Rear Caster Material: Rubber
• Battery: (2) 12V
• Style: Fixed Forks Over Fixed Support Legs (Skids only)
• Turning Radius (in.): 56-1/4

Documents

Click for PMC-S-FF-137 Approval Drawings

Click for Manual
