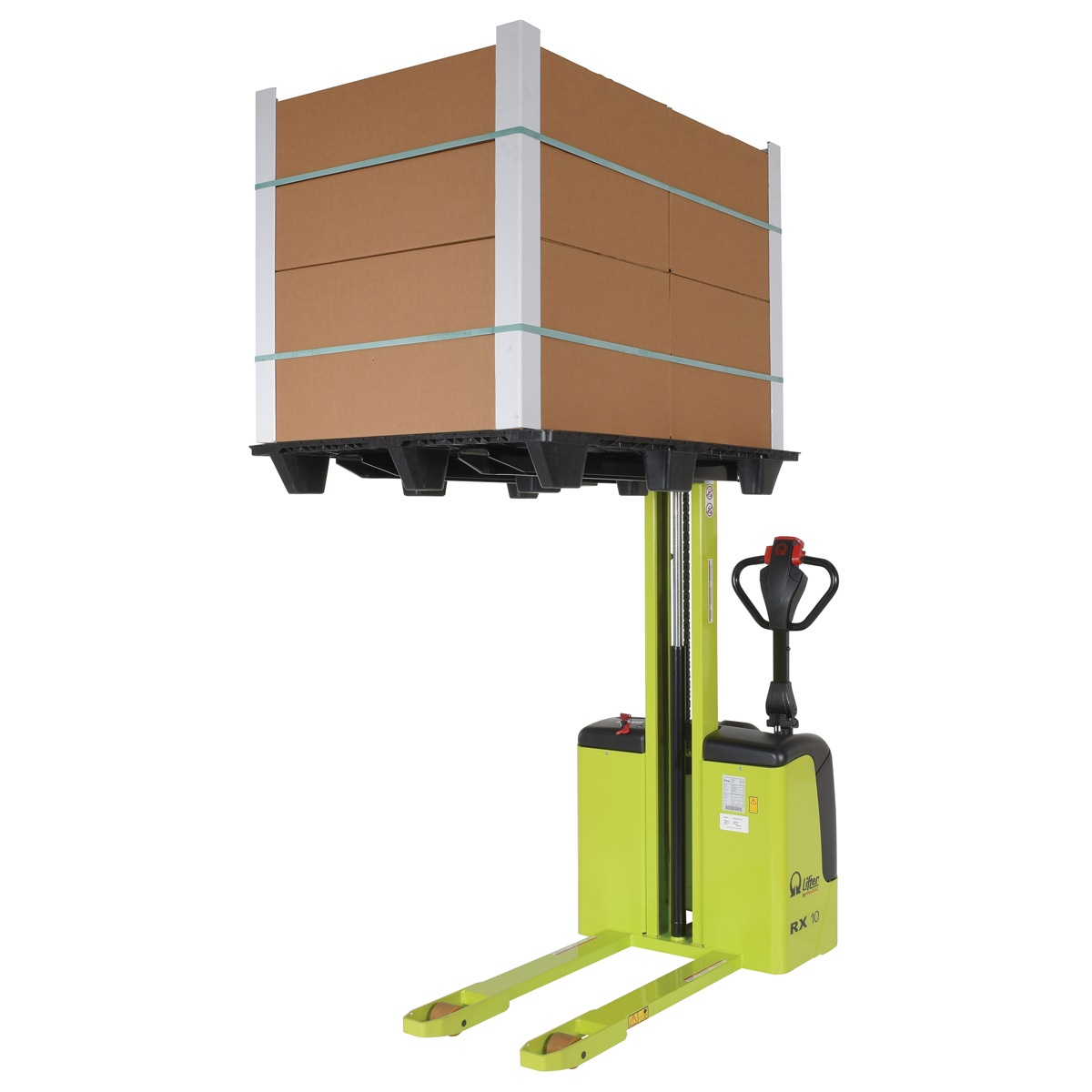

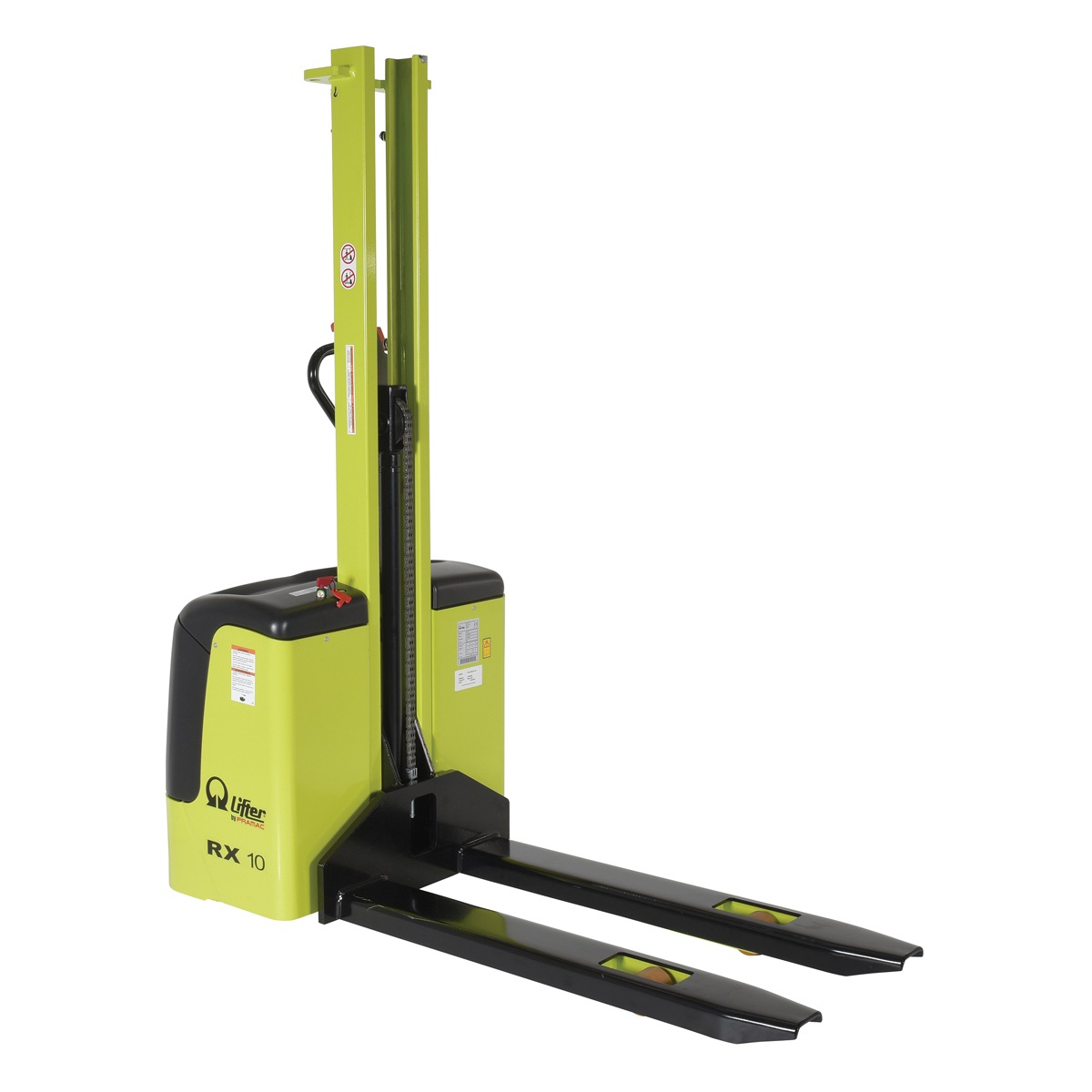

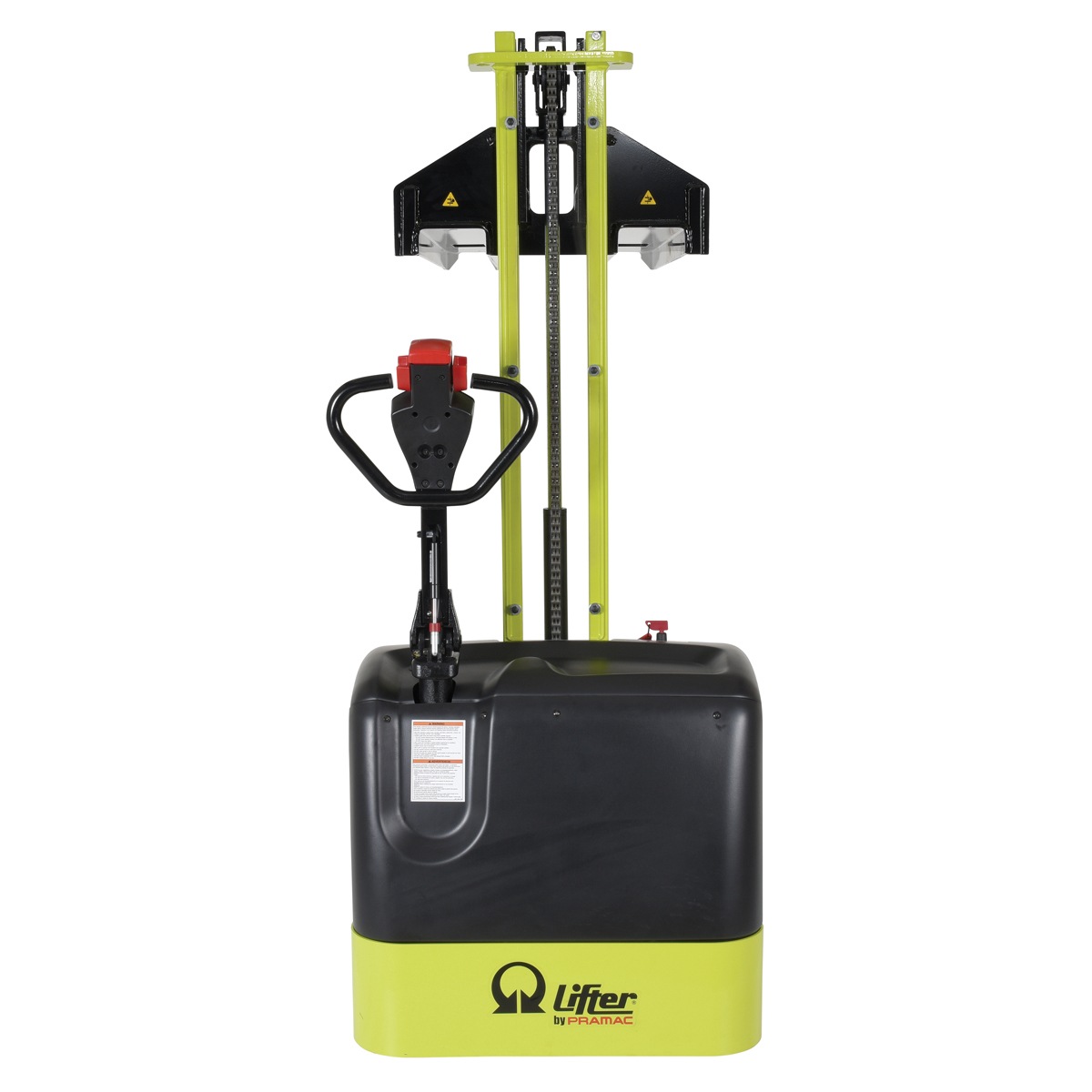

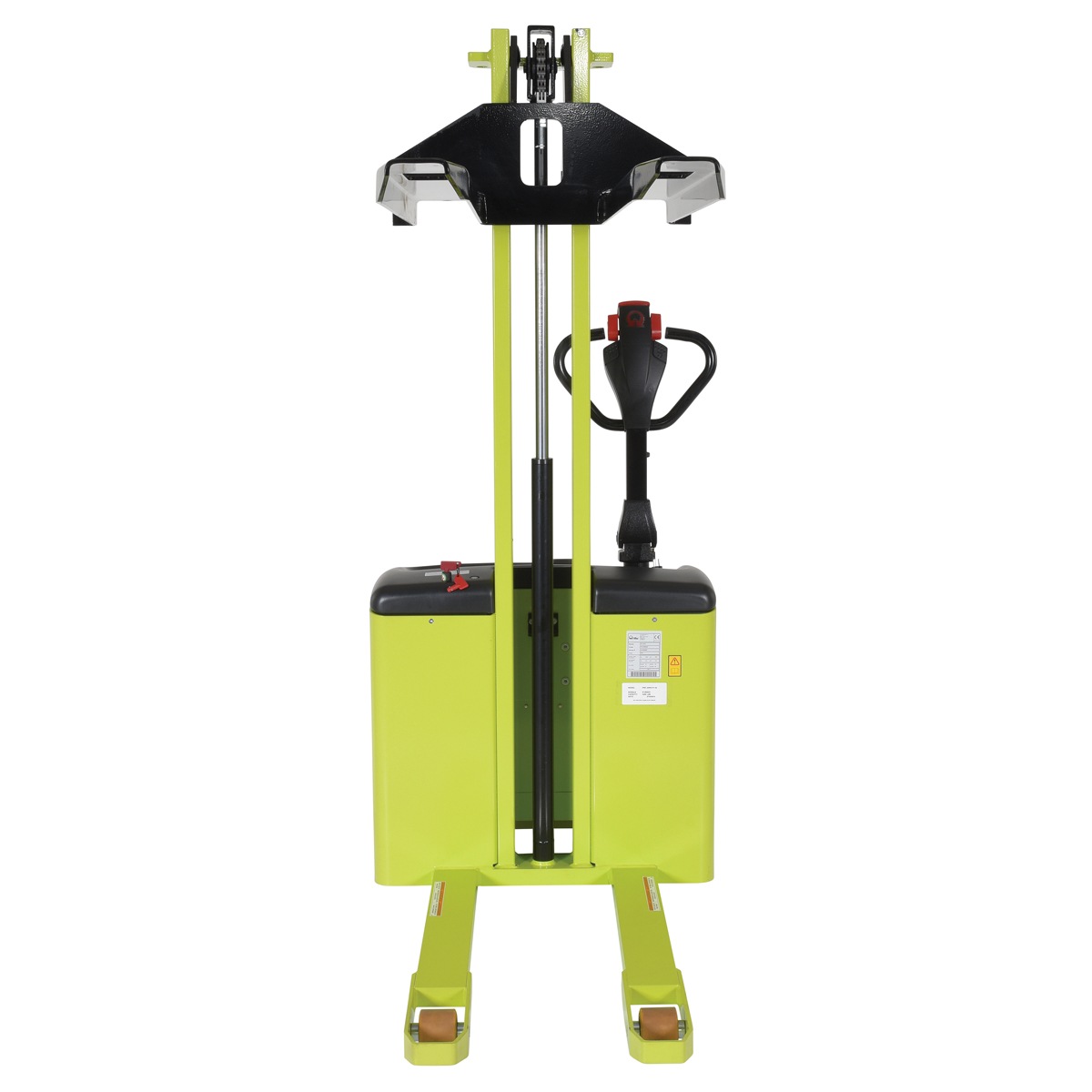

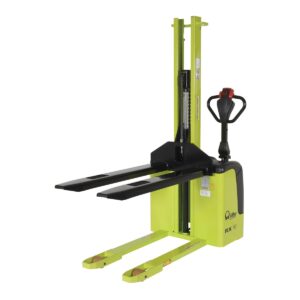

Vestil PMC-SNM-FF-62 Pramac Narrow Mast Stacker 22 X 45

Electric power drive and lift. Ergonomic handle with a full control and safety system. Features “Tortoise” push button for slow motion, a safety punch button with warning buzzer, and on-board battery charger. DC powered with two (2) 12V batteries.

• Fixed forks for constant readiness
• Powered model for quick movement
• Brightly colored
• High handle for ergonomic steering

Specification

• Uniform Capacity 0″ to 62″ Raised Height (lb.): 2200
• Service Range (in.): 3-1/2 to 59 1/2
• Fork Width Range (in.): 22
• Fork Length (in.): 45
• Battery: (2) 12V
• Overall Mast Height: 77.5
• Drive Wheel: 7 5/16 x 2
• Front Wheel: 3.2 x 2.75
• Stabilizer Wheel: 4.92 x 1.77
• Drive Motor: 24V DC/0.35Kw
• Lift Motor: 24V DC/2.2Kw
• Travel Speed w/Load: 2.2 m/h
• Travel Speed w/ out load: 2.5 m/h
• List speed w/load: 4.3″ per sec.
• List speed w/out load: 7.08″ per sec.

Documents

Click for PMC-SNM-FF-62 Approval Drawings
