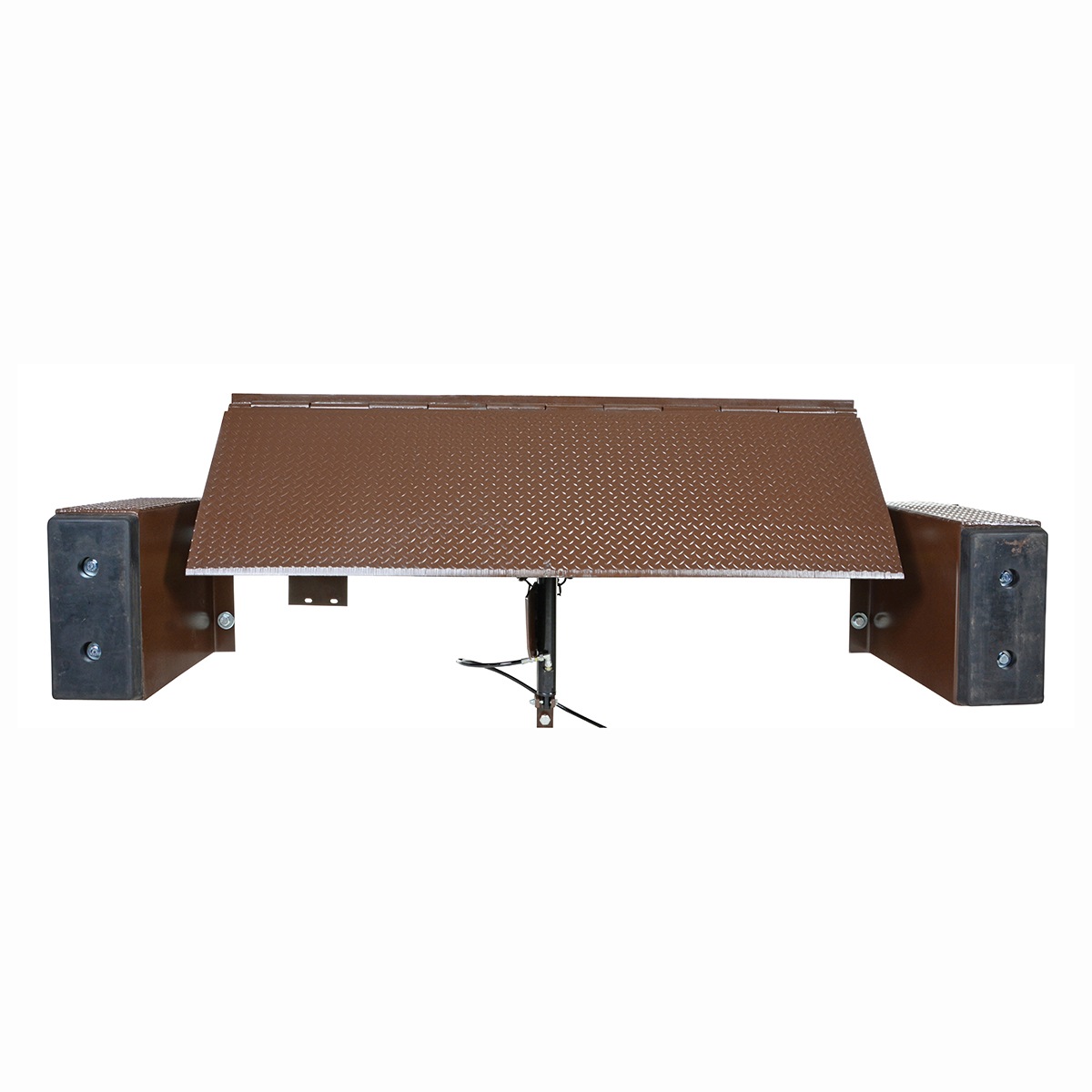

Vestil PP-1572-36 Hand Pump Edge-O-Dock Leveler 15K 72X36

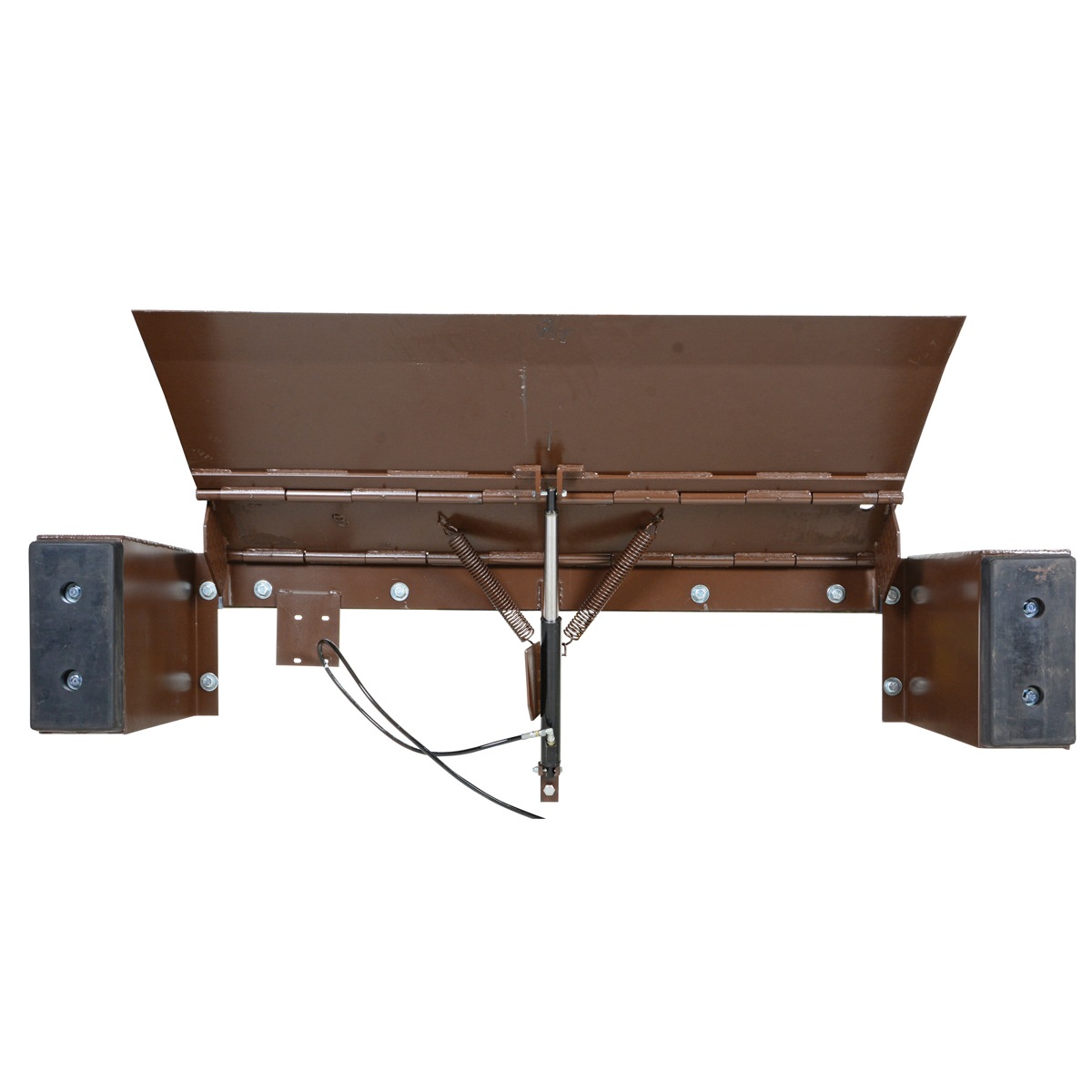

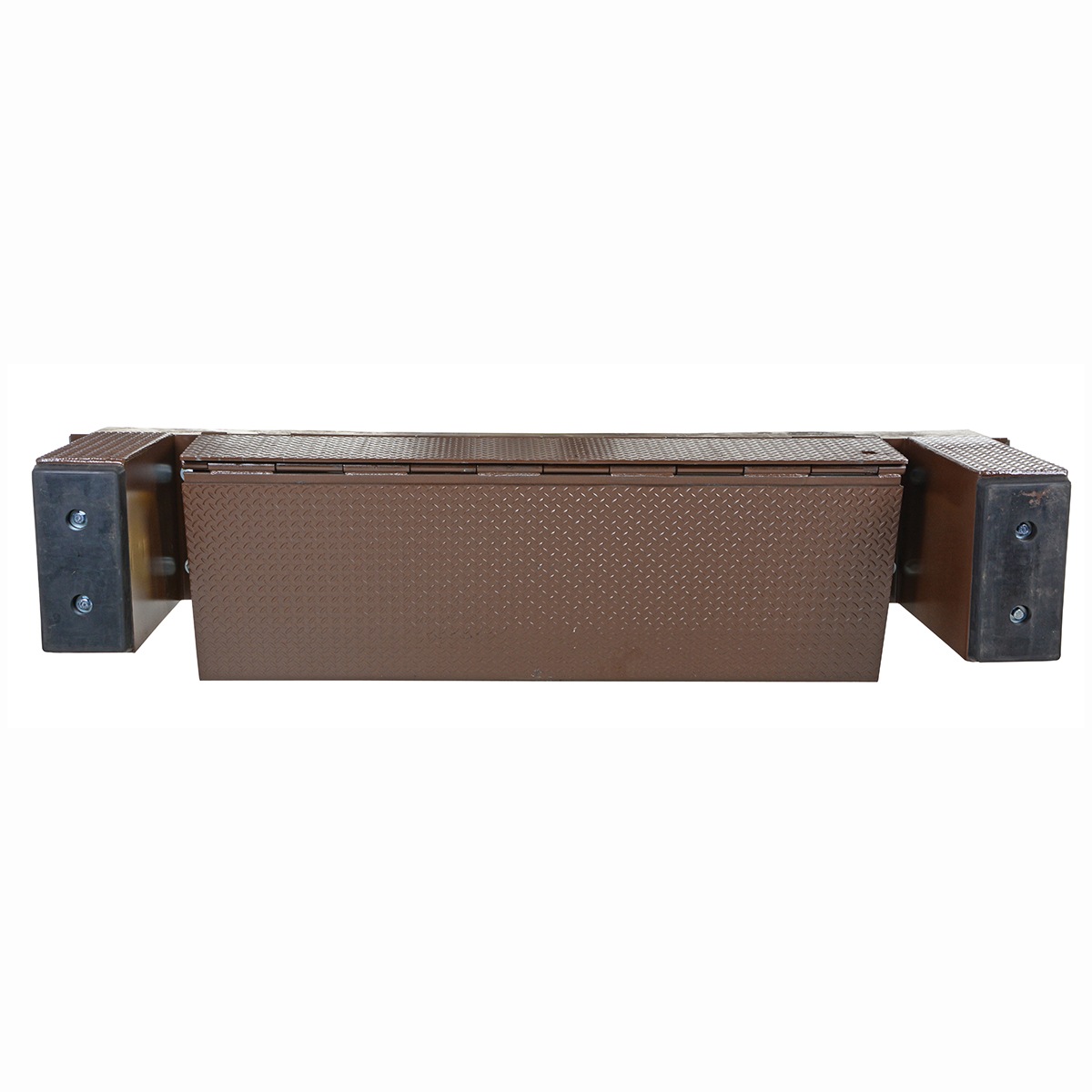

The Edge-O-Dock leveler permanently attaches to face of dock. It is recommended for docks to be at least 48 inches high. When the trailer departs, the lip drops automatically behind the face of the bumpers. Concrete recess is not required. It comes complete with bumpers and installation instructions. Standard Ramping is 29 inches; models FM/PP/PE 3066 and 3072 are 29-13/16 inches, with a 36-5/8 inches long ramping length available. A steel dock edge, or approach ramp is required for proper installation. The Hydraulic Hand Pump system is used to lift the leveler and extend the lip. The operator rotates the relief valve allowing the deck to descend down and rest upon the trailer. Unit comes complete with hand pump, wall mount brackets, cylinder, One-hundred Eighty (180) inch hydraulic line and oil. Truck must pull out for leveler to return to stored position.

• Easy install allows unit to quickly mount to any loading dock with a steel dock edge
• Tread plate design offers a positive non-slip gripping action
• Product design conveniently does not require a concrete recess
• Solid steel construction offers long lasting reliable use

Specification

• Uniform Capacity (lb.): 15000
• Service range above dock (in.): 5
• Service range below dock (in.): 5
• Bumper Width (in.): 8
• Bumper Length (in.): 2
• Bumper Height (in.): 18
• Ramp Width (in.): 72
• Ramping Length (in.): 36-5/8
• Bumper projection including rubber bumper (in.): 26-3/4

Documents

Click for PP-1572-36 Approval Drawings
