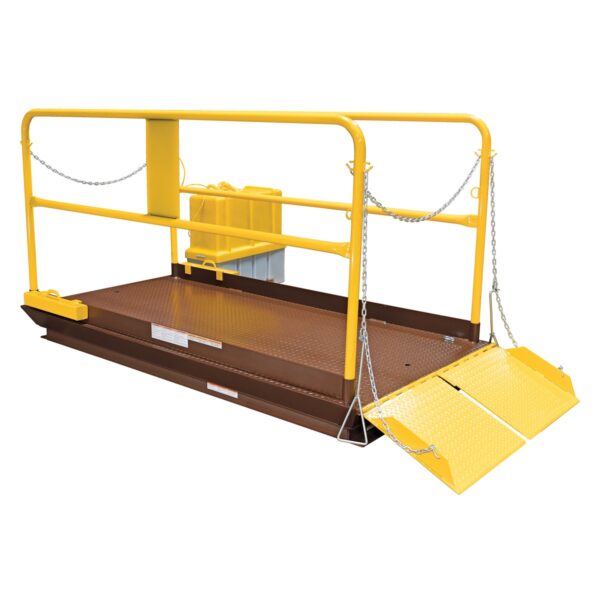

Vestil Prem Truck Scissor Dock Lift
Price range: $11,146.57 through $27,453.51
Description
Save time and reduce man-hours where there are no docks with a Truck Scissor Dock Lift. Engineered and designed for maximum safety and efficiency. The diamond plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature safety velocity fuse if line breaks. It comes complete with upper travel limit switch and overload relief valve. The push-button control is on a long coil cord. Pre-wired control box includes magnetic starter and overload fuse. High visibility safety yellow removable handrails with fixed toe boards are standard. Includes beveled toe-guards and electric toe-guards around perimeter of platform. The external motor can be located up to eight (8) feet away from lift.
- Unique design services semi-trailers when loading dock is unavailable
- Treadplate surface provides a safe non-slip grip
- Safety velocity fuses protect the hydraulic cylinders
- Upper travel limit switch cuts power to unit when max raised height is reached
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Capacity | 10000 lbs, 12000 lbs, 5000 lbs, 6000 lbs, 8000 lbs |
| Size | 4 X 8 FT, 6 X 10 FT, 6 X 12 FT, 6 X 8 FT, 7 X 10 FT, 7 X 12 FT, 7 X 8 FT, 8 X 10 FT, 8 X 12 FT, 8 X 8 FT |
Specification
Specification
- Push Button Coil Cord Length (ft.): 4-20
- External Motor Horsepower: 6.5
- External Motor Voltage/Phase: 460/3
- Motor Hertz: 60
- Motor Weight (lbs.): 300
- Handrail Height (in): 45
- Handrail Midrail Height (in): 21
- Toeboard Height (in): 4
- Beveled Toe Guard (in): 5
- Platform Type: Treadplate
- Platform Thickness (in.): 1/4
- Includes: Overload Protection
- OSHA: 1910.28
- ANSI: MH 29.1
Documents
Documents
Click for WL-100-10-610 Approval Drawings
Click for WL-100-10-612 Approval Drawings
Click for WL-100-10-68 Approval Drawings
Click for WL-100-10-710 Approval Drawings
Click for WL-100-10-712 Approval Drawings
Click for WL-100-10-78 Approval Drawings
Click for WL-100-10-810 Approval Drawings
Click for WL-100-10-812 Approval Drawings
Click for WL-100-10-88 Approval Drawings
Click for WL-100-12-610 Approval Drawings
Click for WL-100-12-612 Approval Drawings
Click for WL-100-12-68 Approval Drawings
Click for WL-100-12-710 Approval Drawings
Click for WL-100-12-712 Approval Drawings
Click for WL-100-12-78 Approval Drawings
Click for WL-100-12-810 Approval Drawings
Click for WL-100-12-812 Approval Drawings
Click for WL-100-12-88 Approval Drawings
Click for WL-100-5-48 Approval Drawings
Click for WL-100-5-610 Approval Drawings
Click for WL-100-5-68 Approval Drawings
Click for WL-100-5-710 Approval Drawings
Click for WL-100-5-78 Approval Drawings
Click for WL-100-5-810 Approval Drawings
Click for WL-100-5-88 Approval Drawings
Click for WL-100-6-610 Approval Drawings
Click for WL-100-6-68 Approval Drawings
Click for WL-100-6-710 Approval Drawings
Click for WL-100-6-78 Approval Drawings
Click for WL-100-6-810 Approval Drawings
Click for WL-100-6-88 Approval Drawings
Click for WL-100-8-610 Approval Drawings
Click for WL-100-8-68 Approval Drawings
Click for WL-100-8-710 Approval Drawings
Click for WL-100-8-78 Approval Drawings
